CED’s Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

Self Help Cold Island Well (HT).

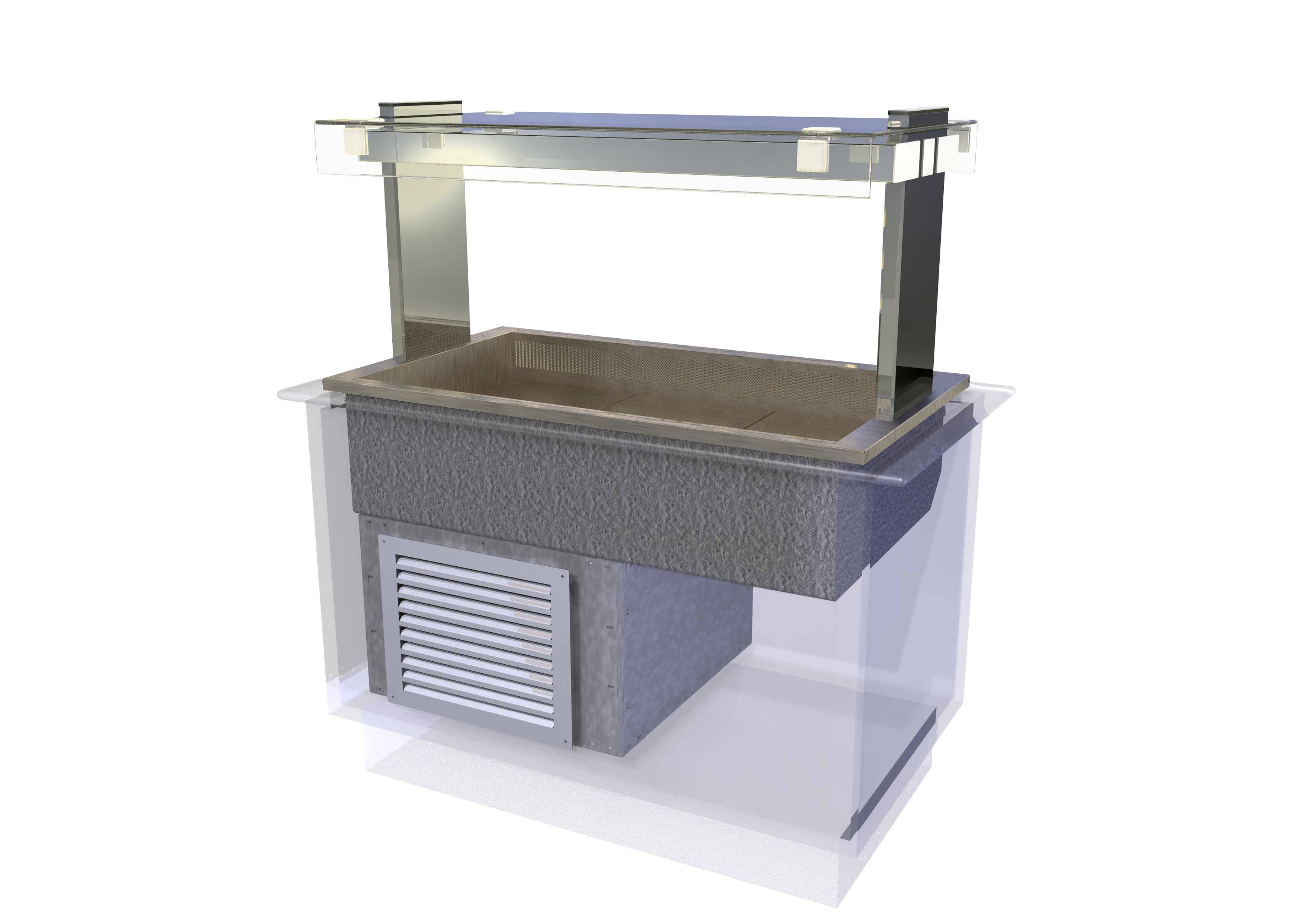

Kubus Cold Island Well



Features

Self Help Cold Island Well (HT).
Features.

  • Double edged rectilinear flat toughened island glass profile is designed to compliment other units within the range.
  • Self help application.
  • Features eye-level gantry mounted digital temperature display and control panel (operator side)
  • Cold fan blown well display features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Superstructure in bright polished steel and aluminium profile.
  • 24-hour operation as standard.
  • Non standard airflow arrangements available.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Refrigeration condensing unit is housed in an underslung self contained cradle.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Features ‘tamper proof’ temperature control facility.


Food Types

Self Help Cold Island Well (HT).
Food Display Types.



Drinks (Well Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Well Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Dimensions

Self Help Cold Island Well (HT).
Dimensions.

Model

KCIW2HT

KCIW3HT

KCIW4HT

KCIW5HT

KCIW6HT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Storage Capacity (Litres)

44

66

88

110

132

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

Height Above Worktop (mm)

540

540

540

540

540

Depth Below Worktop (mm)

677

677

677

677

677

Weight (Un-Crated) (kg)

96

116

136

156

162

Power (kW)

1.22

1.22

1.46

1.66

1.73

Total Heat Rejection @ 32°C Ambient (watts)

1080

1080

1340

2010

2317

Electrical Supply.

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V

  • (HT) = R290 Refrigerant.
  • Control panel to ‘operator side’ of gantry.
  • If controls are required on customer side, please state ‘Controls to customer side’ when ordering.


Downloads

General Layout Drawings.
Kubus Self Help Cold Island Wells (HT).





General Layout Drawings.
Non Standard Airflow Options (Cold Displays).



Fitting Instructions & User Manual.
Kubus Self Help Cold Island Wells (HT).

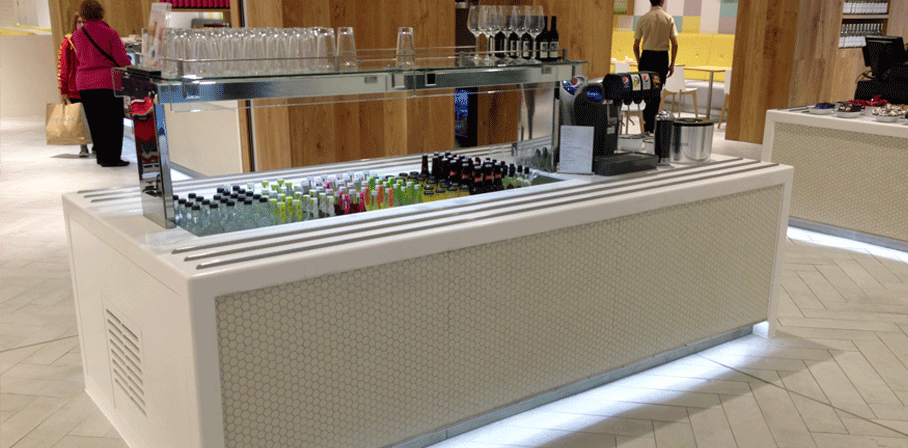

AA-KUBUS COLD BANNERCED35 - Bespoke Counter

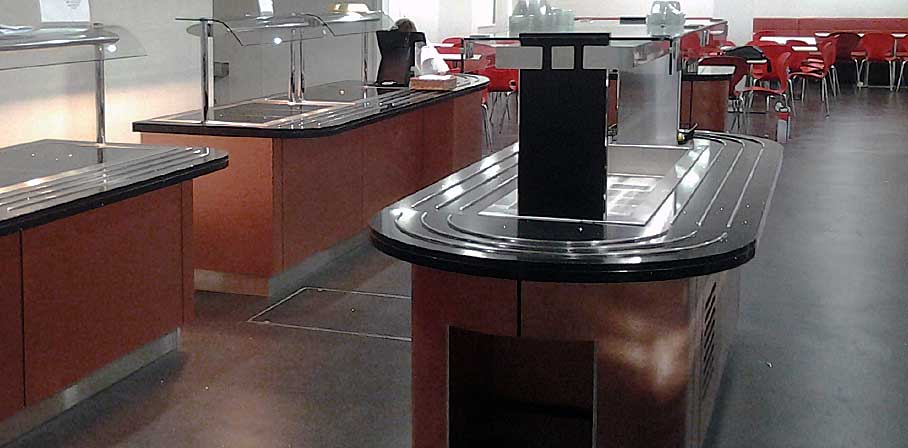

Page-header-KCIW3HT-INSITU-
