Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

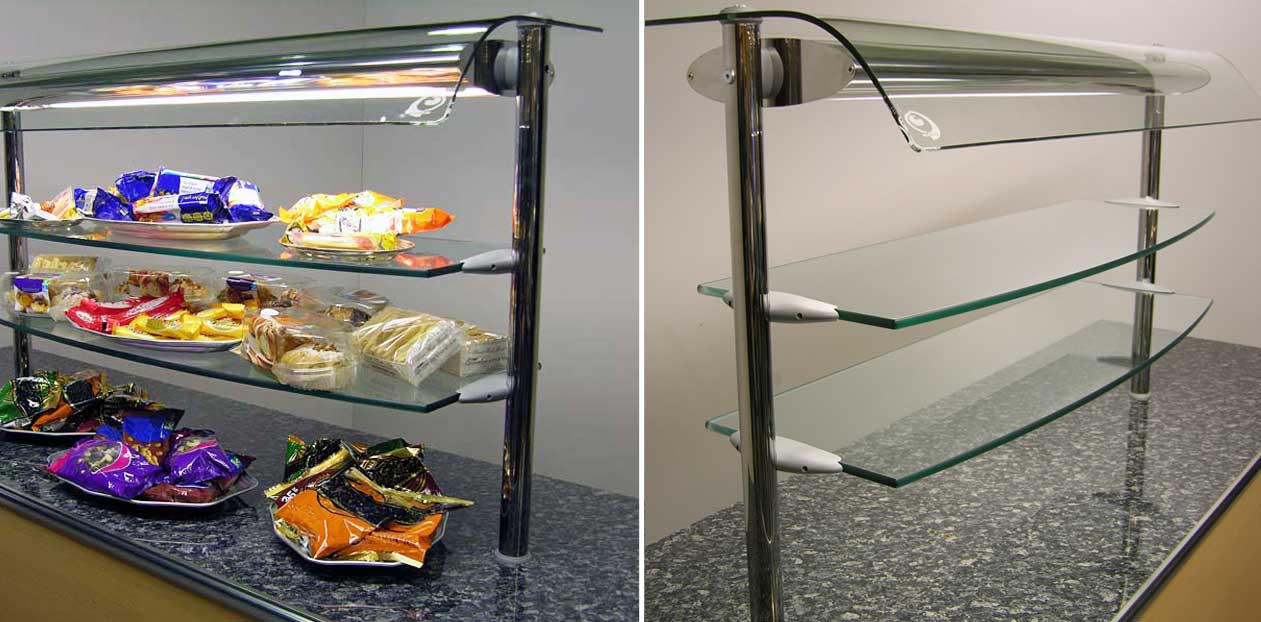

Visual

Self Help Ambient Multi Level GantryDesignline Self Help Ambient Multi Level Gantry (AMG2-4)



Features

Self Help Ambient Multi Level Gantry
Features

  • Curved toughened glass sneeze guard profile is designed to compliment other units within the range.
  • Ambient gantry for illumination and sneeze guard protection of shelf & worktop displayed ambient product.
  • Unit supplied with two curved toughened glass ambient impulse/ display shelves.
  • Superstructure in bright polished steel and aluminium profile.
  • Self help application.
  • Product illumination is provided from diffused LED lighting (4000 Kelvin)  in an elliptical profile gantry.
  • Lighting is controlled from a push button switch on gantry end plate.
  • Superstructure supports a toughened curved sneeze protection glass screen.
  • Supplied with post fixing plates, bolts, 2 in lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Self Help Ambient Multi Level Gantry
Food Display Types



Drinks: Still & carbonated, bottled, canned or carton, water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.



Food: Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.



  • Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations re: display times.


Dimensions

Self Help Ambient Multi Level Gantry
Dimensions

Model

AMG2

AMG3

AMG4

Capacity

2/1 GN

3/1 GN

4/1 GN

Length (mm)

800

1150

1500

Depth (mm)

377

377

377

Height above worktop (mm)

695

695

695

Weight (uncrated) (kg)

20

30

40

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V



Downloads

General Layout Drawings.
Designline Self Help Ambient Gantries.



Fitting Instructions & User Manual.
Designline Self Help Ambient Gantries.








Website-AMB-DESIGNLINE-LH-H

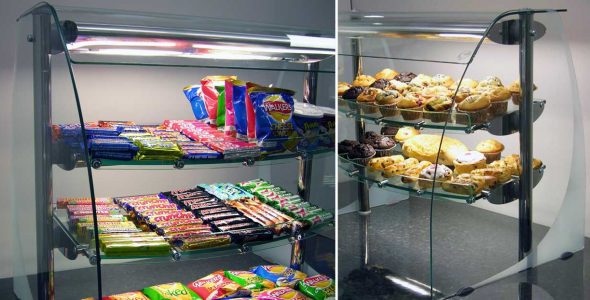

Visual

Self Help Ambient Multi Level Gantry
(Under Shelf Lights)

Designline Self Help Ambient Multi Level Gantry - Under Shelf Lights (MMG2-4)



Features

Self Help Ambient Multi Level Gantry
(Under Shelf Lights)
Features

  • Curved toughened glass sneeze guard & side glass profile is designed to compliment other units within the range.
  • Ambient gantry for illumination and sneeze guard protection of shelf & worktop displayed ambient product.
  • Self help ambient confectionery/morning goods display gantry, for counter top installation.
  • Two inclined curved toughened glass impulse/ display shelves c/w under shelf lighting.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Self help application.
  • Each shelf fitted with clear acrylic product stop/ point of sale fixing points.
  • Superstructure in bright polished steel and aluminium profile.
  • Lighting is controlled from a push button switch on gantry end plate.
  • Supplied with post fixing plates, post collars, end glass supports, fixing bolts, 2 m lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Self Help Ambient Multi Level Gantry
(Under Shelf Lights)
Food Display Types



Drinks: Still & carbonated, bottled, canned or carton, water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.



Food: Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.



  • Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations re: display times


Dimensions

Self Help Ambient Multi Level Gantry
(Under Shelf Lights)
Dimensions

Model MMG2 MMG3 MMG4

Capacity

2/1 GN

3/1 GN

4/1 GN

Length (mm)

821

1171

1521

Depth (mm)

594

594

594

Height above worktop (mm)

695

695

695

Weight (uncrated) (kg)

30

40

50

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V



Downloads

General Layout Drawings.
Designline Self Help Ambient Multi Level Gantry
(Under Shelf Lights)



Fitting Instructions & User Manual.
Designline Self Help Ambient Multi Level Gantry
(Under Shelf Lights)




Website-AMB-DESIGNLINE-LH-H

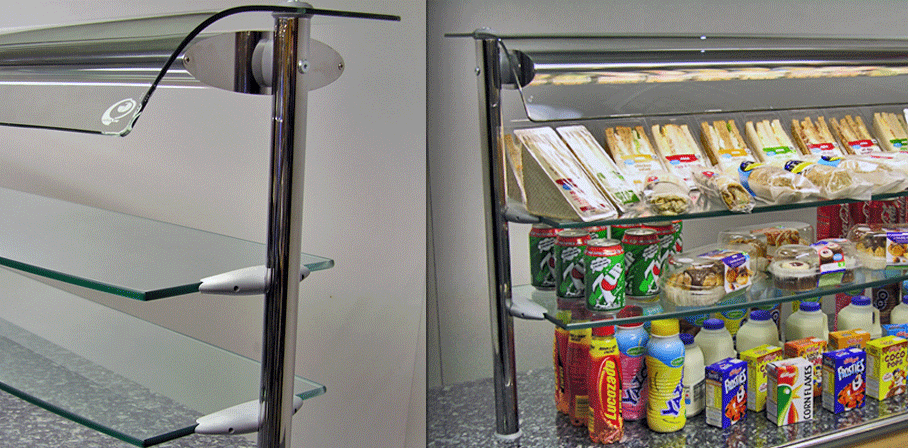

AAA2---DLINE-AMB-MULTI--GANTRY Ambient Multi Level Gantry
