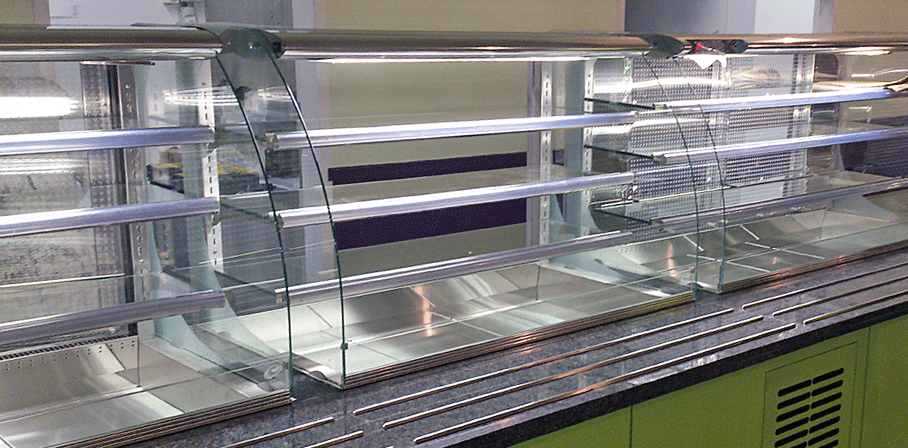

Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

Self Help Ambient Multideck (Open Rear)

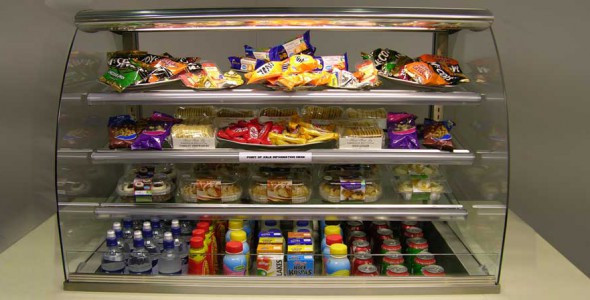

Designline Self Help Ambient Multideck (Open Rear) (MDA2-4)





Features

Self Help Ambient Multideck (Open Rear)
Features.

  • Curved toughened end glass profile is designed to compliment other units within the range.
  • Ambient multi deck with storage well & 3 tier glass shelving, for display of wrapped/ unwrapped ambient product.
  • Self help application. Can be converted to assisted service with addition of full height front glass ( see model below).
  • Superstructure in bright polished steel and aluminium profile.
  • 3 tier toughened glass shelving, adjustable in both height and angle, for increased product display area.
  • Rear loading/ open to rear for easier restocking access.

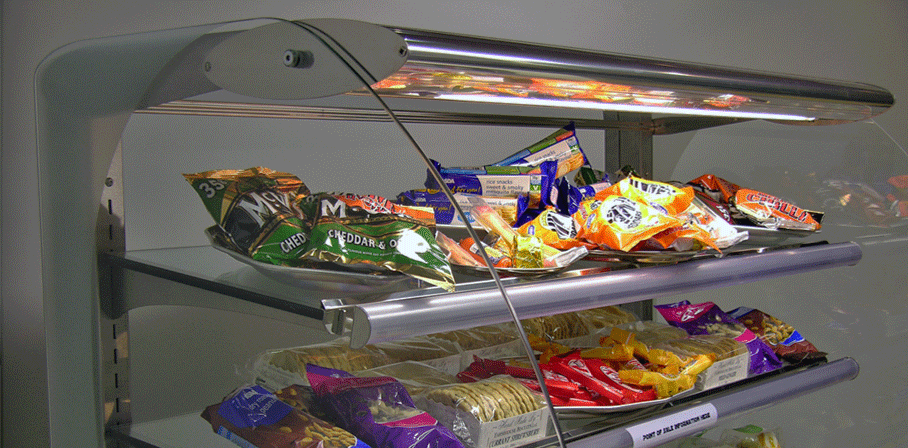

  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Lighting is controlled from a push button switch at eye level on gantry end plate.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Optional rear door set available (option DR2-DR4)
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Self Help Ambient Multideck (Open Rear)
Food Display Types.



Drinks: Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.



Food: Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

  • Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times


Dimensions

Self Help Ambient Multideck (Open Rear)
Dimensions

Model

MDA2

MDA3

MDA4

Capacity

2/1 GN

3/1 GN

4/1 GN

Length (mm)

825

1175

1525

Depth (mm)

660

660

660

Height above worktop (mm)

750

750

750

Depth below worktop (mm)

265

265

265

Weight (uncrated) (kg)

64

106

148

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V



  • Rear Door Option Available (DR2-4)


Downloads

General Layout Drawings.
Designline Self Help Ambient Multidecks (Open Rear).

Fitting Instructions & User Manual.
Designline Self Help Ambient Multidecks (Open Rear).





Website-AMB-DESIGNLINE-LH-H



Visual

Assisted Service Ambient Multideck (Open Rear)

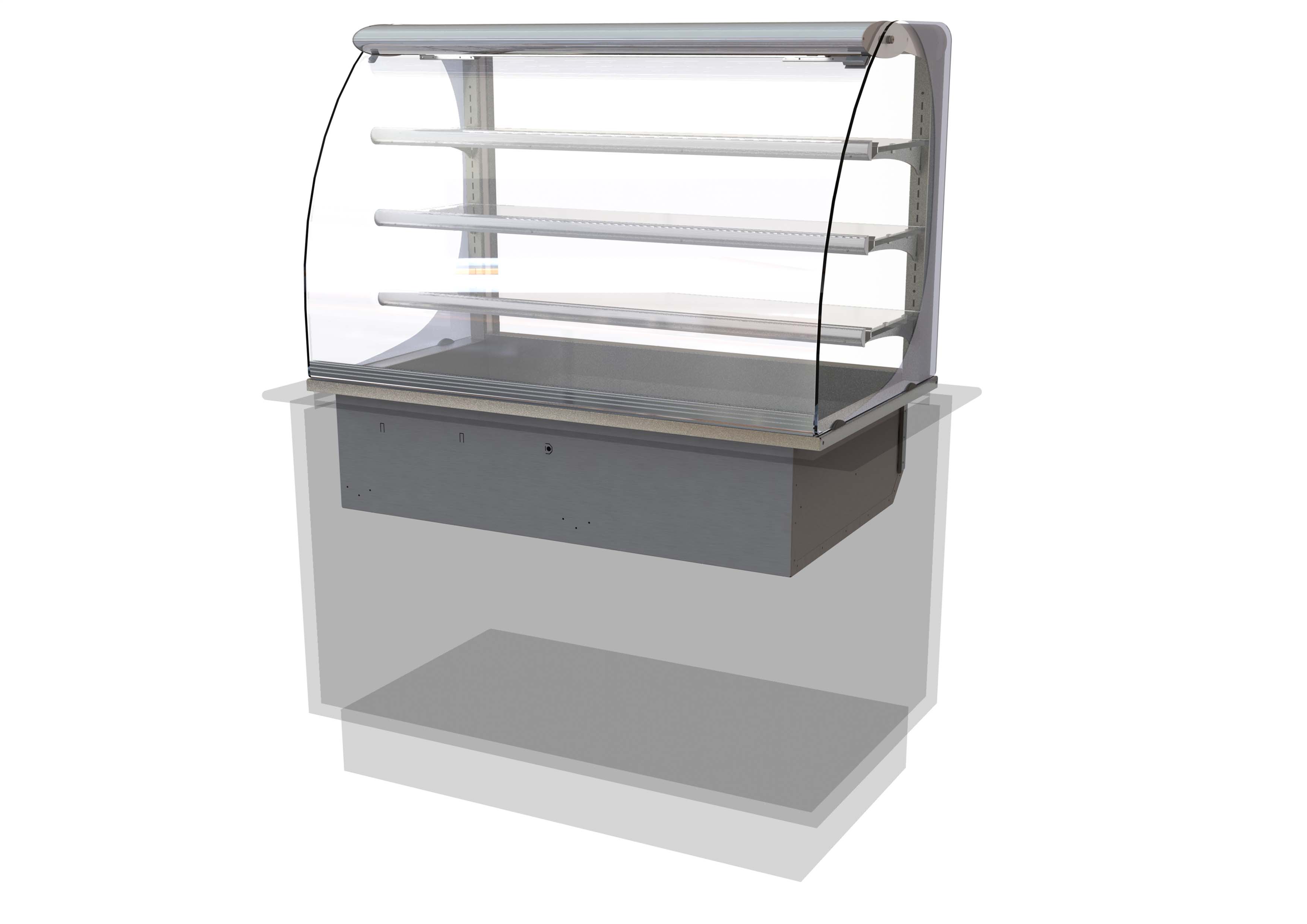

Designline Assisted Service Ambient Multideck (Open Rear) (MDA2-4AS)



Features

Assisted Service Ambient Multideck (Open Rear)
Features.

  • Curved full height toughened front & side glass profile is designed to compliment other units within the range.
  • Ambient multi deck with storage well & 3 tier glass shelving, for display of wrapped/ unwrapped ambient product.
  • Assisted service application.
  • Superstructure in bright polished steel and aluminium profile.
  • 3 tier toughened glass shelving, adjustable in both height and angle, for increased product display area.
  • Rear loading/ open to rear for easier restocking access.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Lighting is controlled from a push button switch at eye level on gantry end plate.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Optional rear door set available (option DR2-DR4)
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Assisted Service Ambient Multideck (Open Rear)
Food Display Types.



Drinks: Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.



Food: Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

  • Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times


Dimensions

Assisted Service Ambient Multideck (Open Rear)
Dimensions

Model

MDA2AS

MDA3AS

MDA4AS

Capacity

2/1 GN

3/1 GN

4/1 GN

Length (mm)

825

1175

1525

Depth (mm)

660

660

660

Height above worktop (mm)

750

750

750

Depth below worktop (mm)

265

265

265

Weight (uncrated) (kg)

69

112

156

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V



  • Rear Door Option Available (DR2-4)


Downloads

General Layout Drawings.
Designline Assisted Service Ambient Multidecks (Open Rear).



Fitting Instructions & User Manual.
Designline Assisted Service Ambient Multidecks (Open Rear).




Website-AMB-DESIGNLINE-LH-H

Visual

Self Help Ambient Multideck (Fixed Back)

Designline Self Help Ambient Multideck (Fixed Back) (MDA2-4FB)



Features

Self Help Ambient Multideck (Fixed Back)
Features.

  • Curved end glass profile is designed to compliment other units within the range.
  • Self help multi deck with both ambient storage well & 3 tier glass shelving, for display of wrapped/ unwrapped ambient product.
  • Product illumination is from diffused lighting in an elliptical profile gantry.
  • 3 tier toughened glass shelving, adjustable in both height and angle, for increased product display area.
  • Solid steel rear perforated back panel for wall sited application – to match similar chilled multideck display.
  • Customer side restocking access.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Superstructure in bright polished steel and aluminium profile.
  • Lighting is controlled from a push button switch at eye level on gantry end plate.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Self Help Ambient Multideck (Fixed Back)
Food Display Types



Drinks: Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.



Food: Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.



  • Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times


Dimensions

Self Help Ambient Multideck (Fixed Back)
Dimensions

Model

MDA2FB

MDA3FB

MDA4FB

Capacity

2/1 GN

3/1 GN

4/1 GN

Length (mm)

825

1175

1525

Depth (mm)

660

660

660

Height above worktop (mm)

750

750

750

Depth below worktop (mm)

265

265

265

Weight (uncrated) (kg)

64

106

148

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V



Downloads

General Layout Drawings.
Designline Self Help Ambient Multideck (Fixed Back)



Fitting Instructions & User Manual.
Designline Self Help Ambient Multideck (Fixed Back)
