Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

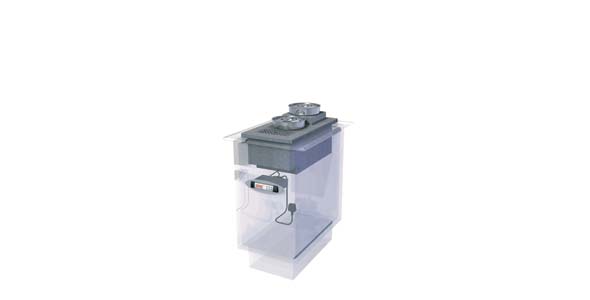

Self Help Dry Heat  Soup Unit



AAA2---DLINE-soup-unit



Features

Self Help Dry Heat  Soup Unit
Features

  • Dry heat bain marie supplied with 2 no. 4.5 litre (8 pint) s/steel soup containers & notched s/steel lids, supported in collars.
  • Removable steel drip tray/ soup bowl set down area.
  • Self help application.
  • Rear soup container in raised collar for improved customer access/ product presentation.
  • Designed to compliment other units within the range.
  • Base heat is controlled via remotely connected digital control panel/ digital probe.
  • Superstructure in bright polished and satin steel.
  • 24-hour operation as standard.
  • Remote control panel & elliptical fascia mounting plate on 2m loom for fitting in rear valance panel.
  • Features ‘tamper proof’ temperature control facility.


Food Types

Self Help Dry Heat  Soup Unit
Food Display Types



LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes in juice, meat / vegetable soups, broths & cream soups



Dimensions

Self Help Dry Heat  Soup Unit
Dimensions

Model

SUP1

Capacity

2 x 4.5 Litre

Length (mm)

345

Depth (mm)

660

Height above worktop (mm)

127

Depth below worktop (mm)

220

Weight (uncrated) (kg)

20

Power (kW)

0.5

Electrical supply

13A 230V



  • Model includes 2 x 4.5lr soup containers


Downloads

General Layout Drawings.
Designline Self Help Dry Heat  Soup Unit

Designline Self Help Soup UnitDesignline Self Help Soup Unit Designline Self Help Soup UnitDesignline Self Help Soup Unit Designline Self Help Soup UnitDesignline Self Help Soup Unit



Fitting Instructions.
Designline Self Help Dry Heat  Soup Unit

Fitting Designline Self Help Soup UnitFitting Designline Self Help Soup Unit
