Sanitising Post & Manual Dispenser (Alcohol Gel).
Public Health England advise that using a sanitising gel that has an alcohol content of 60% and above, is effective at killing corona virus. The CED alcohol gel sanitising post & manual dispenser is specially designed to help maintain a hygienic environment and allow you to combine safety and practicality at low cost.

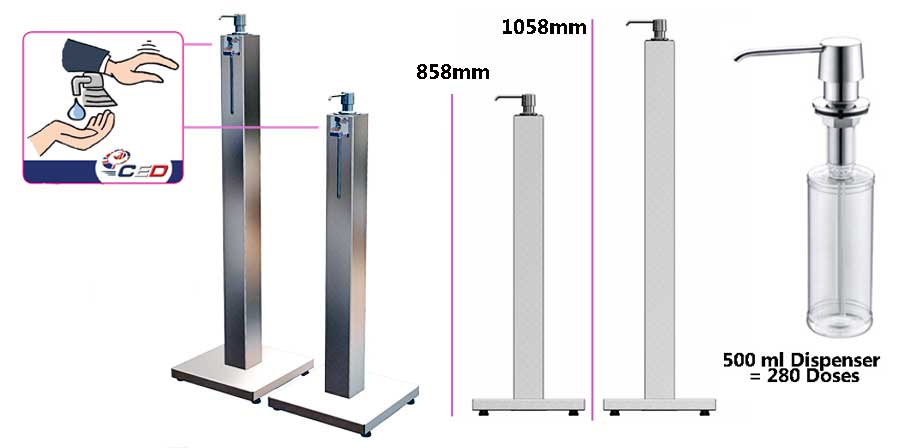

Easy To Use.  Just apply light pressure with the forearm to dispense 1-2ml of the sanitising gel. The 500 ml dispenser suits alcohol gel =/> 60% & is simple to refill. It just lifts out of the post to enable unscrewing of the alcohol gel storage bottle. The sanitising post is available as either a 1058mm (adult) or 858mm (child) high model and features a large dispensing capacity of approximately 250-300 doses. The slotted window in the post provides easy monitoring of gel level.

Economic & Durable. This free-standing steel post and sanitising gel dispenser can be placed in several locations for efficiency and security, to encourage PPB (personal protective behaviour). The spring loaded dispenser has been tested for a lifetime delivery of 50,000 doses too !

Practical. You can easily install or relocate the sanitising post and dispenser in many locations as there is no electrical connection.

Eye Catching. With its 360 degree operation, the CED sanitising post and dispenser can be strategically placed in multiple locations where hygiene is to be maintained..at the entrance to your establishment, reception desks, offices, changing rooms etc.

Suitable For Adults & Children. The sanitising post is ideal for helping control hygiene in schools too. The children’s version makes it easy to instill the importance of hygiene in collective environments.

Designed with a usable 858mm height for children, the sanitising post and dispenser can be positioned in a host of strategic locations like dining halls, classrooms and wherever children congregate.

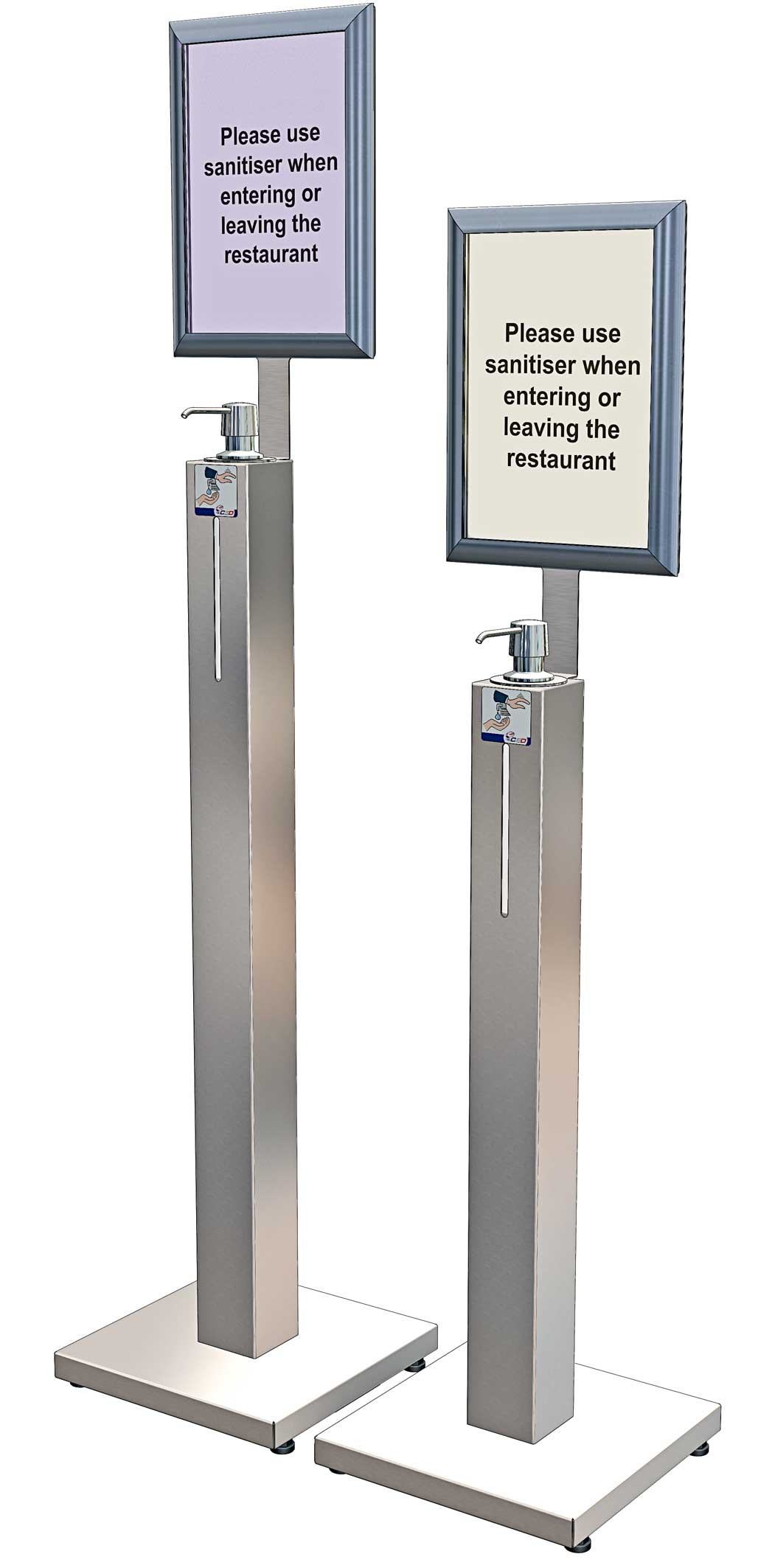

Fitted With A4 Sign Holder. Both heights of the sanitising post & manual dispenser can be purchased with a waterproof A4 sign holder mounted at eye level. The portrait orientation sign holder is an ideal communication point for advising on social distancing, customer flow or temporary access restrictions.
External Use. A 304 gd. s/steel option allows the unit to be used externally at entrance locations.



Visual

Sanitising Post & Manual Dispenser (Alcohol Gel).
Visual



Features

Sanitising Post & Manual Dispenser (Alcohol Gel).
Features

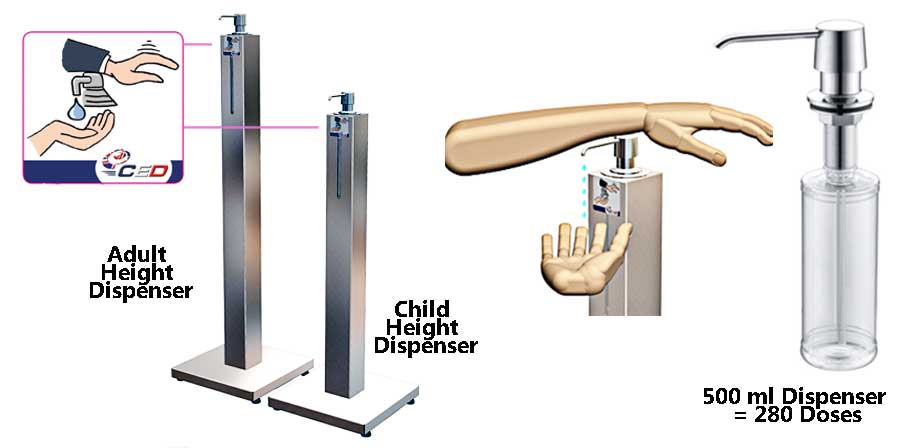

  • Alcohol Gel Sanitising Post & Dispenser, available in either (adult) 1058 mm or (child) 858 mm height versions.
  • Chrome/Brass Gel dispenser with brass thread suitable for high alcohol sanitising gels =/>60%.
  • Free standing stainless steel 430gd. post with 300 mm x 300 mm base and top mounted 500ml integrated gel dispenser.
  • Large capacity gel dispensing of appx. 250-300 doses.
  • Each dose measure is between 1 -2 ml – depending on the user force/time.
  • Apply light pressure with the forearm to manually dispense the sanitising gel.

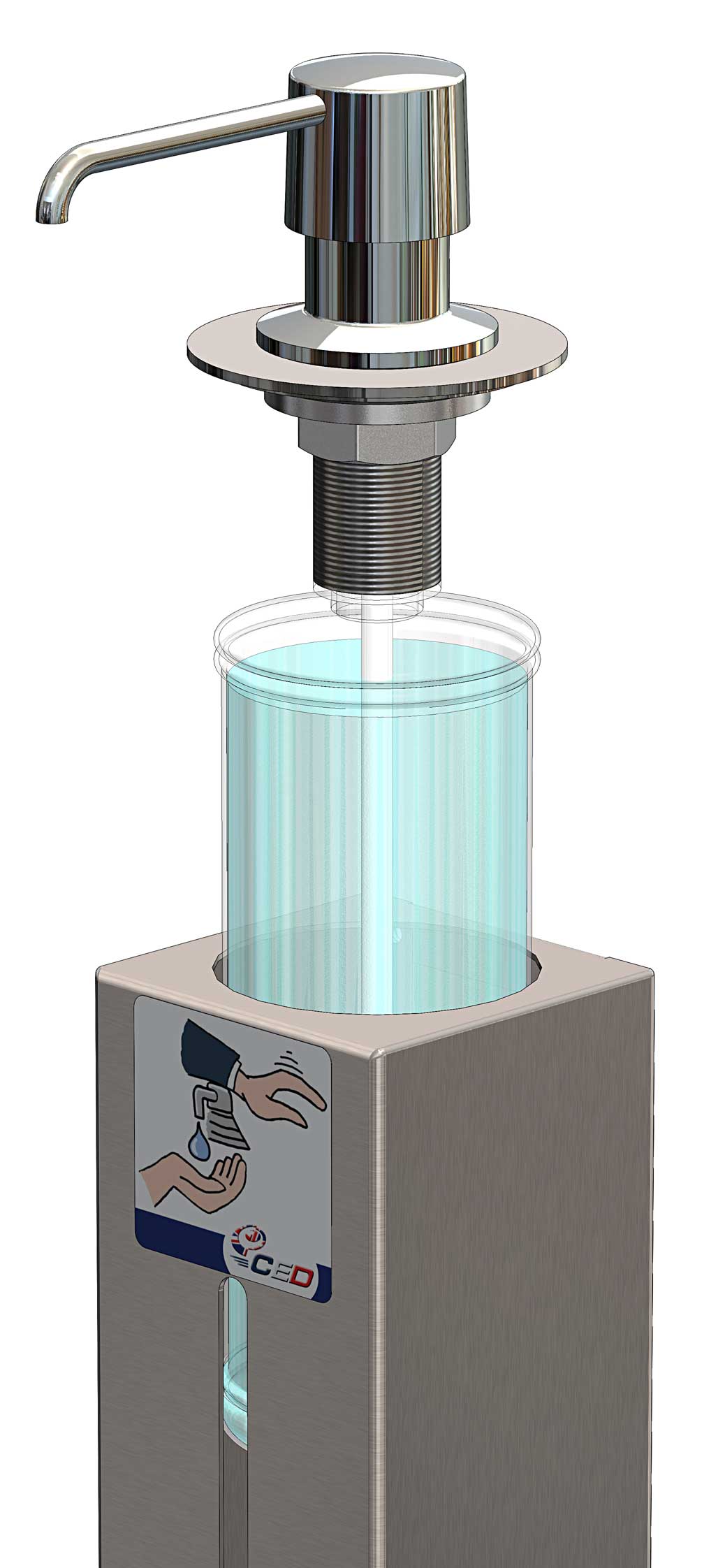

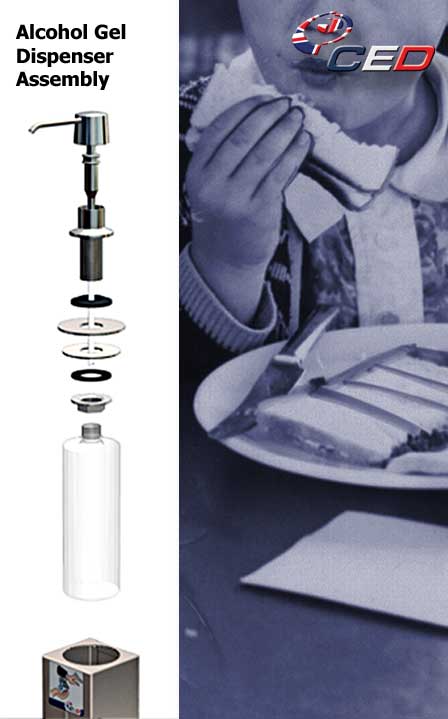

  • Easily removable and refillable dispenser, with brass threaded connection to 64 mm diameter gel container.
  • Sanitising post features viewing window to easily monitor gel level within the dispenser.
  • Easily install or relocate the sanitising post and dispenser in many locations, as no electrical connection is required.
  • Model code (MSPDA): Sanitising Post & Dispenser Adults Model – 1059 mm (h).
  • Model code (MSPDC): Sanitising Post & Dispenser Childrens Model – 859 mm (h).
  • Weight: (MSPDA) Adult height model = 5.5 Kg/ (MSPDC) Child height model = 4.9 Kg.


Dimensions

Sanitising Post & Manual Dispenser (Alcohol Gel).
Dimensions

Sanitising Post & Manual Dispenser (Alcohol Gel).

Model

MSPDA

MSPDC

Description

(Adult Height)
Alcohol Gel Sanitising Post & Dispenser.

(Children Height)
Alcohol Gel Sanitising Post & Dispenser.

500ml Integrated Pump Gel Dispenser

Included

Included

Sanitiser Gel Dispensing Dose Qty. Prior To Refill.

250 – 300

250 – 300

Suitable for high alcohol sanitising gels =/>60%.

Yes

Yes

Alcohol Gel Qty. Dispensed Per Use (ml).

1-2

1-2

Model / Dispensing Height (mm)

1059

859

Base Width x Depth (mm)

300 x 300

300 x 300

Model Weight (Kg)

5.5

4.9

Viewing Window
(To Monitor Gel Level Within Dispenser)

Included

Included






2

Visual

Sanitising Post & Manual Dispenser With Signage (Alcohol Gel).
Visual



Features

Sanitising Post & Manual Dispenser With Signage (Alcohol Gel).
Features

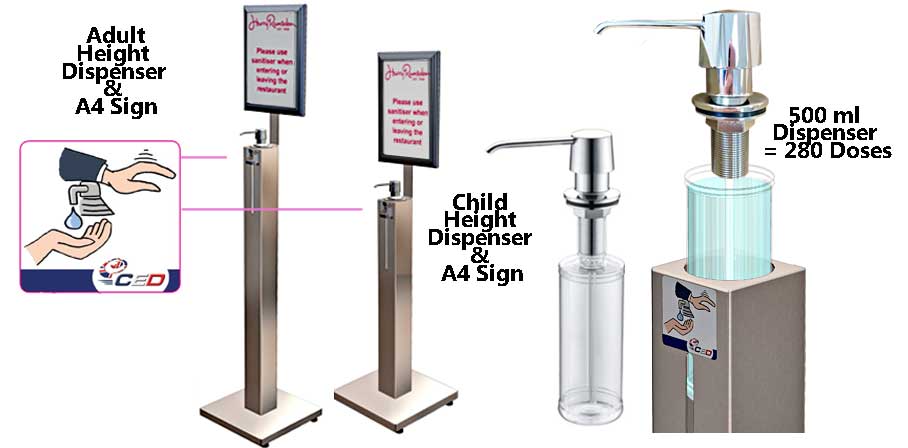

  • Alcohol Gel Sanitising Post & Dispenser, available in either (adult) 1058 mm or (child) 858 mm height versions.
  • Chrome/Brass Gel dispenser with brass thread suitable for high alcohol sanitising gels =/>60%.
  • Free standing stainless steel 430gd. post with 300 mm x 300 mm base and top mounted 500ml integrated gel dispenser.
  • Waterproof A4 Sign holder (portrait orientation) for display of notification messages.
  • Large capacity gel dispensing of appx. 250-300 doses.
  • Each dose measure is between 1 -2 ml – depending on the user force/time.
  • Apply light pressure with the forearm to manually dispense the sanitising gel.
  • Easily removable and refillable dispenser, with brass threaded connection to 64 mm diameter gel container.
  • Sanitising post features viewing window to easily monitor gel level within the dispenser.
  • Easily install or relocate the sanitising post and dispenser in many locations, as no electrical connection is required.
  • Model code (MSPDA-S): Sanitising Post & Dispenser & Sign Holder (Adult Height Model).
  • Model code (MSPDA-SE): Sanitising Post & Dispenser & Sign Holder, 304 gd. For External Use (Adult Height Model).
  • Model code (MSPDC-S): Sanitising Post & Dispenser & Sign Holder (Children Height Model).
  • Model code (MSPDC-SE): Sanitising Post & Dispenser & Sign Holder, 304 gd. For External Use (Children Height Model).
  • Weight: (MSPDA) Adult height model = 7.7 Kg/ (MSPDC) Child height model = 7.0 Kg.


Dimensions

Sanitising Post & Manual Dispenser With Signage (Alcohol Gel).
Dimensions

Sanitising Post & Manual Dispenser With Signage (Alcohol Gel).

Model

MSPDA-S

MSPDC-S

Description

(Adult Height)
Alcohol Gel Sanitising Post & Dispenser + A4 Sign Holder

(Children Height)
Alcohol Gel Sanitising Post & Dispenser + A4 Sign Holder

500ml Integrated Pump Gel Dispenser

Included

Included

Top Mounted A4 Waterproof Sign Holder (Portrait)

Included (visible printable area is 208mm w x 295mm h)

Included (visible printable area is 208mm w x 295mm h)

Sanitiser Gel Dispensing Dose Qty. Prior To Refill.

250 – 300

250 – 300

Sanitising Post Construction (S/Steel Type Gd.)

430 gd.

430 gd.

304 gd. External S/Steel Version (Model Code)

MSPDA-SE

MSPDC-SE

Suitable for high alcohol sanitising gels =/>60%.

Yes

Yes

Alcohol Gel Qty. Dispensed Per Use (ml).

1-2

1-2

Model Dispensing Height (mm)

1059

859

Model O/all Height Inc. Sign Holder (mm).

1445

1245

Base Width x Depth (mm)

300 x 300

300 x 300

Model Weight (Kg)

7.7

7.0

Viewing Window
(To Monitor Gel Level Within Dispenser)

Included

Included



Downloads

Sales & Technical Information.
Sanitising Post & Manual Dispenser With Signage
(Alcohol Gel)

Sanitising Post & Manual Dispensers With Signage - Technical SpecificationSanitising Post & Manual Dispensers With Signage – Technical Specification



General Layout Drawings.
Sanitising Post & Manual Dispenser With Signage
(Alcohol Gel)

Sanitising Post & Manual Dispenser With Signage - 2D All ModelsSanitising Post & Manual Dispenser With Signage – 2D All Models Sanitising Post & Manual Dispenser With Signage - 2D All ModelsSanitising Post & Manual Dispenser With Signage – 2D All Models Sanitising Post & Manual Dispenser With Signage - 2D All ModelsSanitising Post & Manual Dispenser With Signage – 2D All Models
