CED’s Backbar accessories are versatile, pre-engineered interconnecting solutions that allow multiple layout configurations using the standard modules. Introducing angled worktop sections to the design layout allows the back bar sections to become facetted, to create corners in the layout etc.
S/steel end decor panels provide a neat finish to an open end of the bar run.

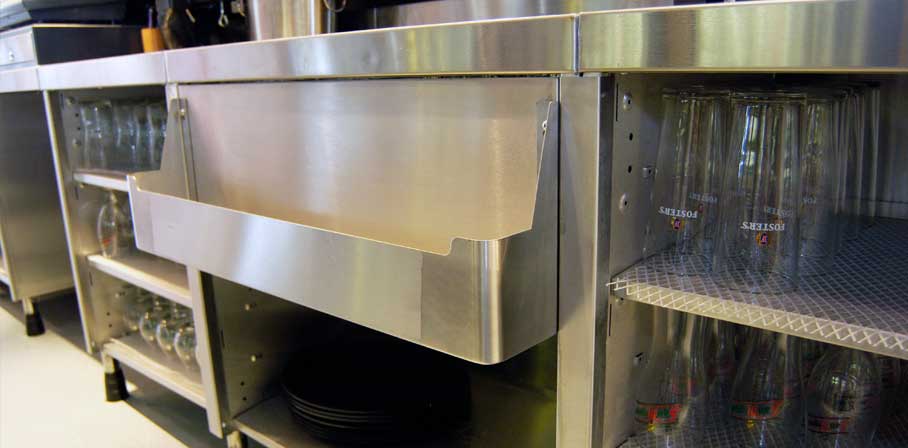

Hook on ‘blender shelves’ provide a perfect working platform for cocktails or smoothies. Spirit bottles can also be stored to hand, located in a fixed optional ‘speed rail’.
An optional secondary ‘add on speed rail’, hooks over the main speed rail to provide double the bottle storage capacity, or utilise the optional condiment sets by locating them over the worktop upstands, for bar fruit such as lemon slices, olives, peanuts etc.

Accessory Types

Rear Cover Trim

Rear Cover TrimsWEBSITE---backbar-logo

Features.

  • Series of varied cover trims in 430 gd. s/steel that cover the interface between different base unit end panels.
  • Trim type CT: Used to cap the interface of 2 base units at 45 or 90 degree angle.
  • Trim type DT: Used to cap the interface of 2 adjacent base units in a straight bar run.
  • Trim type ST: Used to cap over the end decor panel and base unit side panel at the end of a bar run.
  • Trim type AT: Used to cap over the interface  of 2 adjacent angled base units. (10 deg/ 15 deg/ 20 deg.)
  • *Bespoke angled trims available on request.

Rear Cover Trims
Types

Accessory Code

Function

Corner Trim CT

Right Angle Corner Joint

Double Trim DT

Bridges 2 Units

Single Trim ST

Covers End Unit

Angled Trim AT

Joins 2 Angled Units In Conjunction With Worktop Infills



Rails

Speed rails, Condiment Sets & ShelvesWEBSITE---backbar-logo

Speed Rail (Fixed)
Features.

  • 304 gd. S/steel face fixed shelf for local storage and access of spirit bottles in wet areas of the bar run, such as ice chests.
  • Folded/ welded construction with keyhole slot mounting facility to bottle shelf rear.
  • Available to suit 450, 650, 800 and 1000 mm long base units.

Speed Rail (Fixed)
Dimensions

Accessory Code

Unit Length (mm)

SR45

450 mm

SR65

650 mm

SR80

800 mm

SR100

1000 mm

Speed Rail (Add On)WEBSITE---backbar-logo
Features.

  • 304 gd. S/steel hook on shelf attaches to front face of fixed speed rail option.
  • For additional local storage of spirit bottles in wet areas of the bar run.
  • Folded/ welded construction.
  • Available to suit 450, 650, 800 and 1000 mm unit speed rails.

Speed Rail (Add On)
Dimensions

Accessory Code

Unit Length (mm)

ASR45

450 mm

ASR65

650 mm

ASR80

800 mm

ASR100

1000 mm

Condiment SetWEBSITE---backbar-logo
Features.

  • 304 gd. S/steel removable condiment storage shelf, attaches over rear upstand of most backbar base units.
  • Ideal for bar fruit such as lemon slices, olives, peanuts etc.
  • Suitable for wet or dry areas of the bar run.
  • Folded/ welded construction.
  • Supplied with 2/3 no. 1/9 Gn x 65 mm containers.
  • Available as either 2 or 3 Gn container version.

Condiment Set
Dimensions

Accessory Code

Unit Length (mm)

CS/2

450 mm

CS/3

650 mm

Blender ShelfWEBSITE---backbar-logo
Features.

  • 304 gd. S/steel face fixed shelf for local storage and access to electric drinks blenders in dry/wet areas of the bar run, such as ice chests.
  • Provides a perfect working platform for making of cocktails or smoothies.
  • Folded construction with keyhole slot mounting facility to blender shelf rear.
  • Front and rear upstand to shelf acts as product stop.

Blender Shelf
Dimensions

Accessory Code

Unit Length (mm)

BS45/22

450 mm

LBS65/22

650 mm



Worktops

Infill/ Bridging WorktopsWEBSITE---backbar-logo

Plain Top Infill/ Bridging Worktop
Features.

  • Series of varied length ‘plain top’ S/steel infill or bridging worktops for use over void areas of the bar, such as bottle fridges.
  • Can be used in conjunction with optional high leg support frame ( option HLF).
  • Constructed in 304 gd. s/steel.
  • Worktop section includes 95 mm rear worktop up stand.
  • Anti drip mould to front edge of worktop.
  • Available in 450, 650, 800 and 1000 mm lengths.
  • Wet area version available on request (features removable perforated drip tray within plain top)
  • ‘Bespoke’ sizes also available

Plain Top Infill/ Bridging Worktop
Dimensions

Code

Unit Length (mm)

PB45

450 mm

PB65

650 mm

PB80

800 mm

PB100

1000 mm

Angled Infill/ Bridging WorktopWEBSITE---backbar-logo
Features.

  • Series of varied ‘plain top’ S/steel angled infill or bridging worktops for use with a facetted base unit layout.
  • Constructed in 304 gd. s/steel.
  • Worktop section includes 95 mm rear worktop up stand.
  • Anti drip mould to front edge of worktop.
  • Available in 10, 15 and 20 degree angles as standard.
  • *Bespoke angles also available on request.

Angled Infill/ Bridging Worktop
Dimensions

Code

Angle

AT10

10 Deg.

AT15

15 Deg.

AT20

20 Deg.

45 Degree Corner Infill/ Bridging WorktopWEBSITE---backbar-logo
Features.

  • ‘Plain top’ S/steel angled infill or bridging worktop for bridging 2 no. base units for a 45 degree facetted corner layout.
  • Constructed in 304 gd. s/steel.
  • Worktop section includes 95 mm rear worktop up stand.
  • Anti drip mould to front edge of worktop.
  • Bespoke angles also available on request.

45 Degree Corner Infill/ Bridging Worktop
Dimensions

Accessory Code

Angle

CT45

45 Deg.

90 Degree Corner Infill/ Bridging WorktopWEBSITE---backbar-logo
Features.

CT-90basin tap - dome head

  • ‘Plain top’ S/steel angled infill or bridging worktop for bridging 2 no. base units for a 90 degree right angle internal corner layout.
  • Constructed in 304 gd. s/steel.
  • Worktop section includes 95 mm rear worktop up stand.
  • Anti drip mould to front edge of worktop.
  • Bespoke angles also available on request.
  • Optional Hand Wash bowl corner worktop (Model CTW90)
  • Model CTW90 : c/w 300 mm diam. x 160 mm deep inset bowl &  pair of Dome Head type Basin Taps, plug/chain & 38 mm (1 1/2″) waste connection – supplied loose.

90 Degree Corner Infill/ Bridging Worktop
Dimensions

Accessory Code

Angle

CT90

90 Deg.

CTW90 (c/w Hand Wash Basin & Mixer Tap)

90 Deg.



Frames

High & Low Leg Support framesWEBSITE---backbar-logo



High Leg Support Frame
Features.

  • S/steel tubular high leg set frame supports an infill/ bridging worktop at end of any bar run where infill worktop is fitted  ( e.g. wall or open end)
  • Locates under the infill section of worktop.
  • Frame supplied with pair of nylon feet adjustable +/- 25 mm for final alignment on site.

Low Leg Support FrameWEBSITE---backbar-logo
Features.

  • S/steel tubular low leg set frame which alternately bridges the interface of 2 no. base units of any bar run. ( each base unit supplied with 1 set as standard )
  • Locates under the end panels of 2 no. adjoining base units.
  • Frame supplied with pair of nylon feet adjustable +/- 25 mm for final alignment on site.

High & Low Leg Support Frame
Types

Accessory Code

Function.

HLF

Infill/ bridging worktop support. (End Panels cannot be fitted to this item)

LLF

Supports alternate end panels of 2 no. adjoining base units.



End Decor PanelWEBSITE---backbar-logo
Features.


  • 2 part universal S/steel end decor panel that provide a neat finish to an open end of the bar run.
  • Constructed in 430 gd. s/steel.
  • 1 x EP1 decor end panel is required to finish each exposed end of every run.

End Decor Panel
Dimensions

Accessory Code

Unit Length (mm)

EP1

450 mm



Roll-under bin

Roll-Under BinWEBSITE---backbar-logo
Features.


  • Optional 2 section roll under bin module with removable waste container.
  • Bin housing mounted on 4 no. castors.
  • Bin housing features letter box opening for bottle waste and s/steel circular pull handle.
  • Constructed in 430 gd. s/steel.
  • Available to suit a 450 or 600 mm void.

Roll-Under Bin
Dimensions

Accessory Code

Unit Length (mm)

RUB45

450 mm.

RUB65

650 mm.
