Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

Self Help Ceran Glass Hotplate

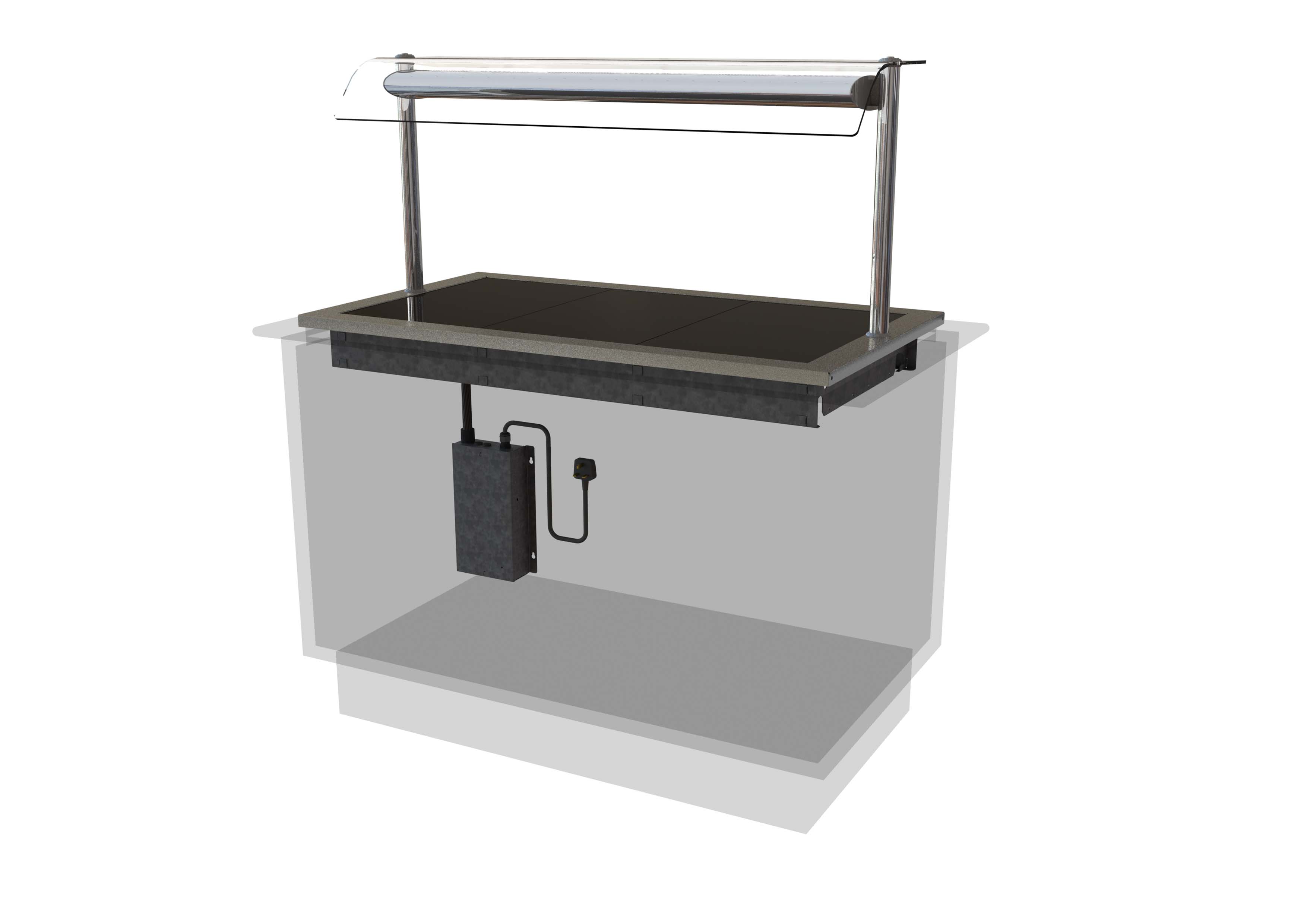

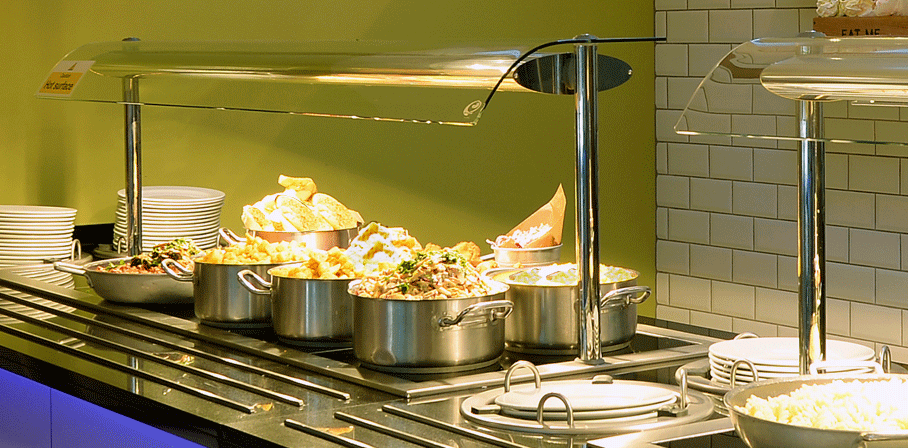

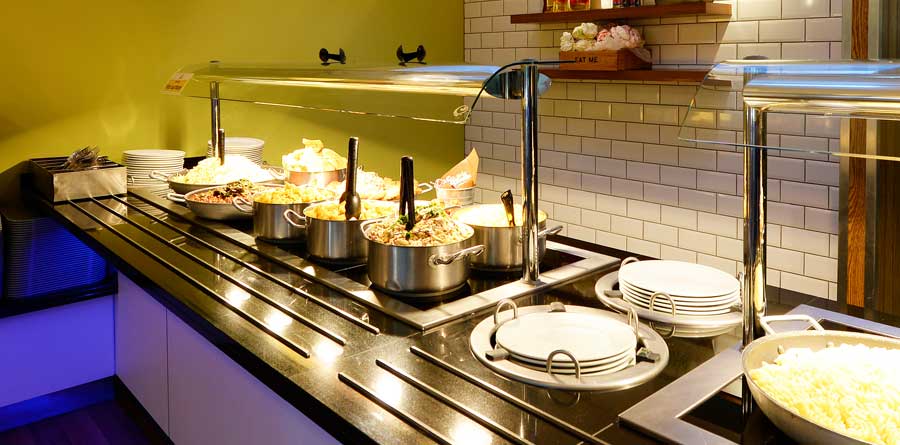

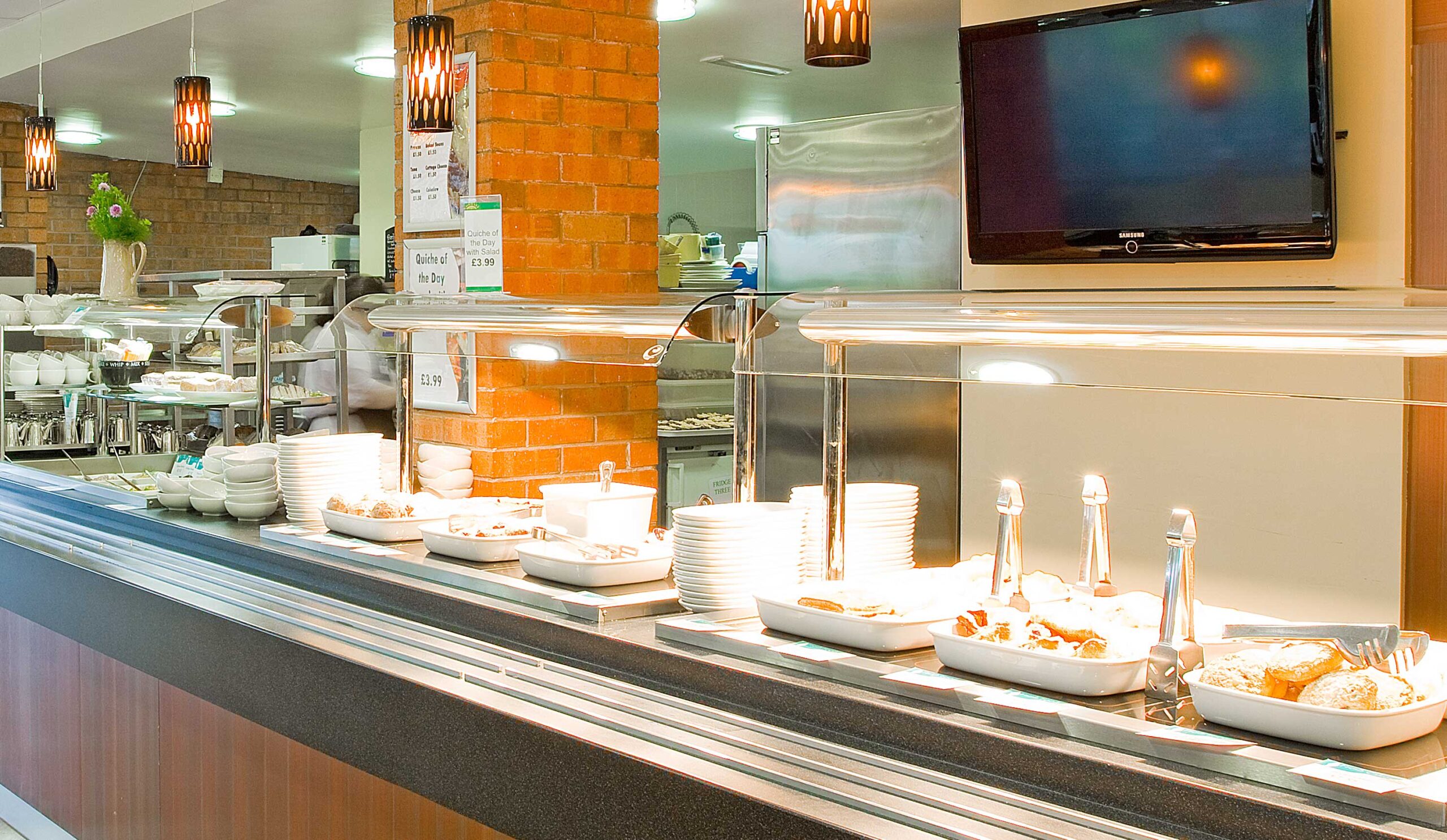

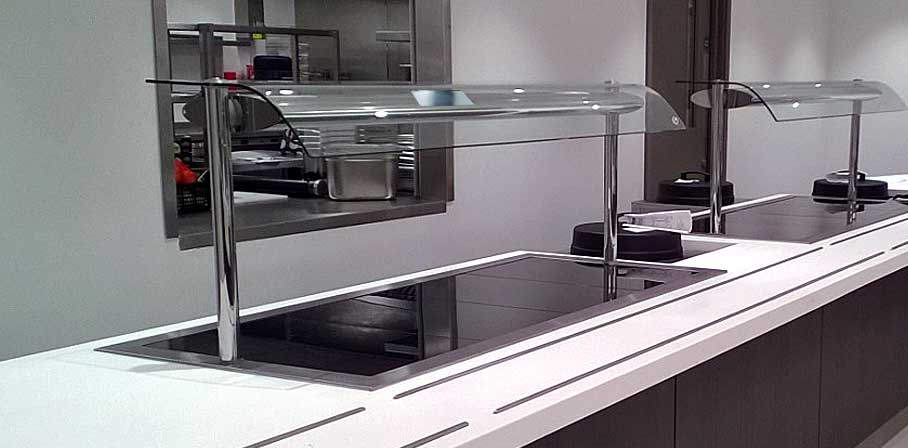

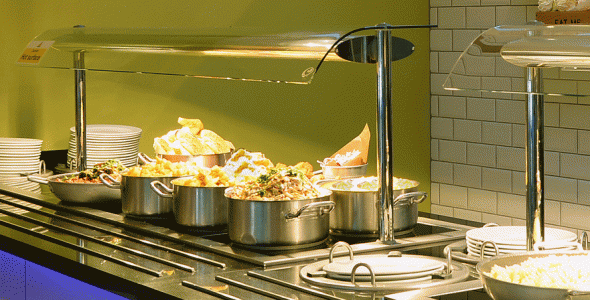

Designline Self Help Ceran Glass Hotplate (HP2-6)



Features

Self Help Ceran Glass Hotplate
Features

  • Curved glass sneeze guard profile is designed to compliment other units within the range.

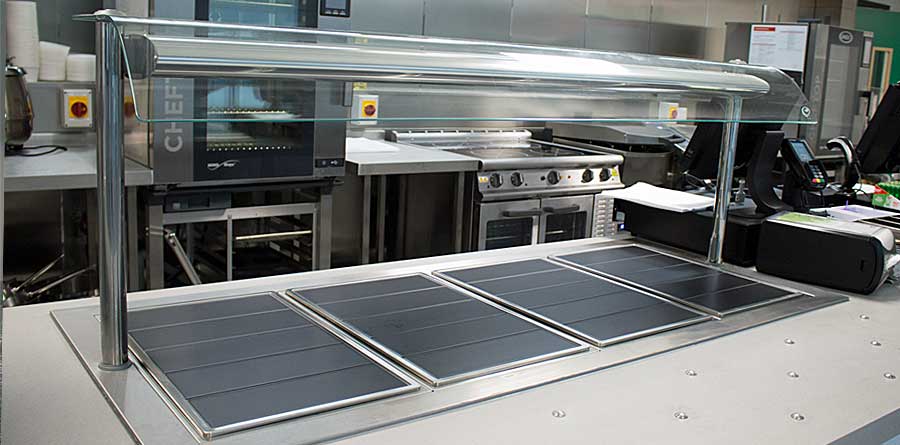

  • Ceran glass hotplate display surface for food presentation in flat bottomed oven to tableware dishes.
  • Self help application. Can be factory converted to assisted service by addition of full height glass screen and end glass (see model below).

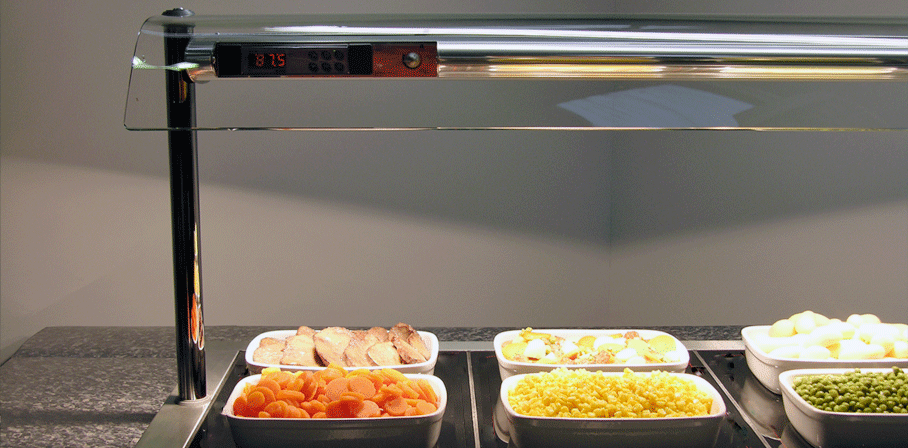

  • ‘Touch safe’ gantry mounted digital temperature display and eye level control panel (Operator side)
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from a gantry mounted dimmer switch.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp supply.
  • Product illumination/ surface heat is provided from an elliptical profile gantry.
  • Features tamper proof temperature control facility.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.


Food Types

Self Help Ceran Glass Hotplate
Food Display Types



LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns

Lunch / Dinner: stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables (dry or in liquid), ribs with sauce, chicken portions



SHORT TERM HOLDING (15-20 mins)

Breakfast / Brunch: omelettes, fried/ boiled eggs,  baked potatoes

Lunch / Dinner: battered fish, chips / fries, pizza



Dimensions

Self Help Ceran Glass Hotplate
Dimensions

Model

HP1

HP2

HP3

HP4

HP5

HP6

Capacity

1/1 GN

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Length (mm)

475

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

660

Height above worktop (mm)

535

535

535

535

535

535

Depth below worktop (mm)

92

92

92

92

92

92

Weight (uncrated) (kg)

37

46

55

64

73

82

Power (kW)

0.9

1.3

1.95

2.6

3.3

3.9

Electrical supply

13A 230V

13A 230V

13A 230V

13A 230V

16A 230V

20A 230V

  • This model has controls fitted on operator side of gantry as standard.
    If controls are required on customer side i.e. for wall sited counters, please state ‘controls to customer side’ when ordering.
  • Model HP1 has remote controls on a loom for mounting into valance panel.


Downloads

General Layout Drawings
Designline Self Help Ceran Glass Hotplates





Fitting Instructions & User Manual.
Designline Self Help Ceran Glass Hotplates






website-HOT-DESIGNLINE-LH-H

Visual

Assisted Service Ceran Glass Hotplate

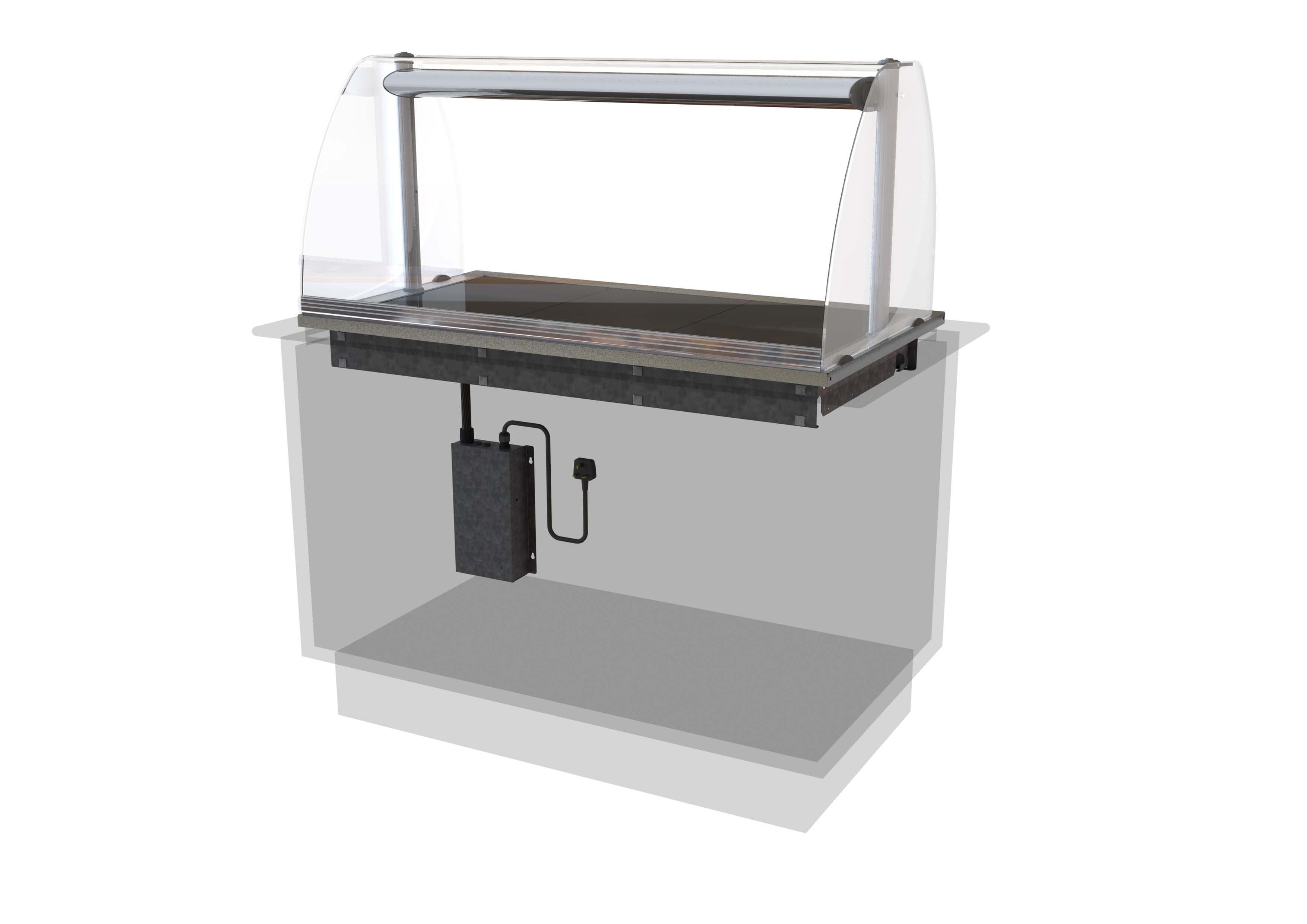

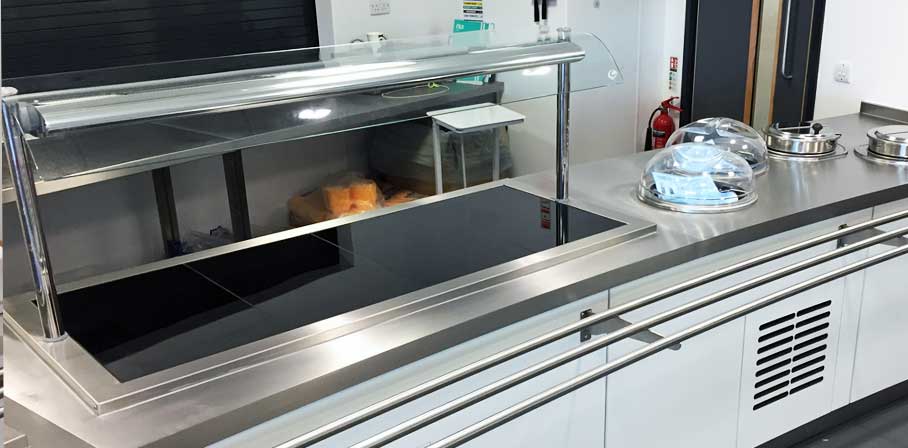

Designline Assisted Service Ceran Glass Hotplate (HP2-6+AS2-6)



Features

Assisted Service Ceran Glass Hotplate
Features

  • Curved full height front & side glass sneeze guard profile is designed to compliment other units within the range.
  • Ceran glass hotplate display surface for food presentation in flat bottomed oven to tableware dishes.
  • Assisted service application.
  • ‘Touch safe’ gantry mounted digital temperature display and eye level control panel (Operator side)
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from a gantry mounted dimmer switch.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp supply.
  • Tilting front glass sneeze screen mounted on locking hinge, for ease of cleaning.
  • Product illumination/ surface heat is provided from an elliptical profile gantry.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Features tamper proof temperature control facility.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.


Food Types

Assisted Service Ceran Glass Hotplate
Food Display Types



LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns

Lunch / Dinner: stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables (dry or in liquid), ribs with sauce, chicken portions



SHORT TERM HOLDING (15-20 mins)

Breakfast / Brunch: omelettes, fried/ boiled eggs,  baked potatoes

Lunch / Dinner: battered fish, chips / fries, pizza



Dimensions

Assisted Service Ceran Glass Hotplate
Dimensions

model

HP2+AS2

HP3+AS3

HP4+AS4

HP5+AS5

HP6+AS6

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

Height above worktop (mm)

535

535

535

535

535

Depth below worktop (mm)

92

92

92

92

92

Weight (uncrated) (kg)

57

67

78

89

99

Power (kW)

1.3

1.95

2.6

3.3

3.9

Electrical supply

13A 230V

13A 230V

13A 230V

16A 230V

20A 230V

  • This model has controls fitted on operator side of gantry as standard.


Downloads

General Layout Drawings
Designline Assisted Service Ceran Glass Hotplates





Fitting Instructions & User Manual.
Designline Assisted Service Ceran Glass Hotplates

website-HOT-DESIGNLINE-RH-Hdesignline-hotplate-insitu2




page-header-HP3-INSITUDesignline-Ceran-Glass-Hotphp5-1-designline-hotplaAAA2---DLINE-ceranL
