2024 New Kubus Cold Patisserie (HT)

The Kubus range of freestanding patisseries are equally at home as independent displays or as classic serve over, in-counter food displays.
A visual companion to CED’s premium Kubus drop in display range, they offer 24 hour operation and are available in both self help and assisted service. Kubus patisseries feature a clean rectilinear design, enhanced by durable steel superstructures and light ducts, all enclosed under a toughened flat glass serve over hood.
Kubus patisseries maximize sales by providing customers with an extensive display area and merchandising space, within a minimal footprint.

Visual

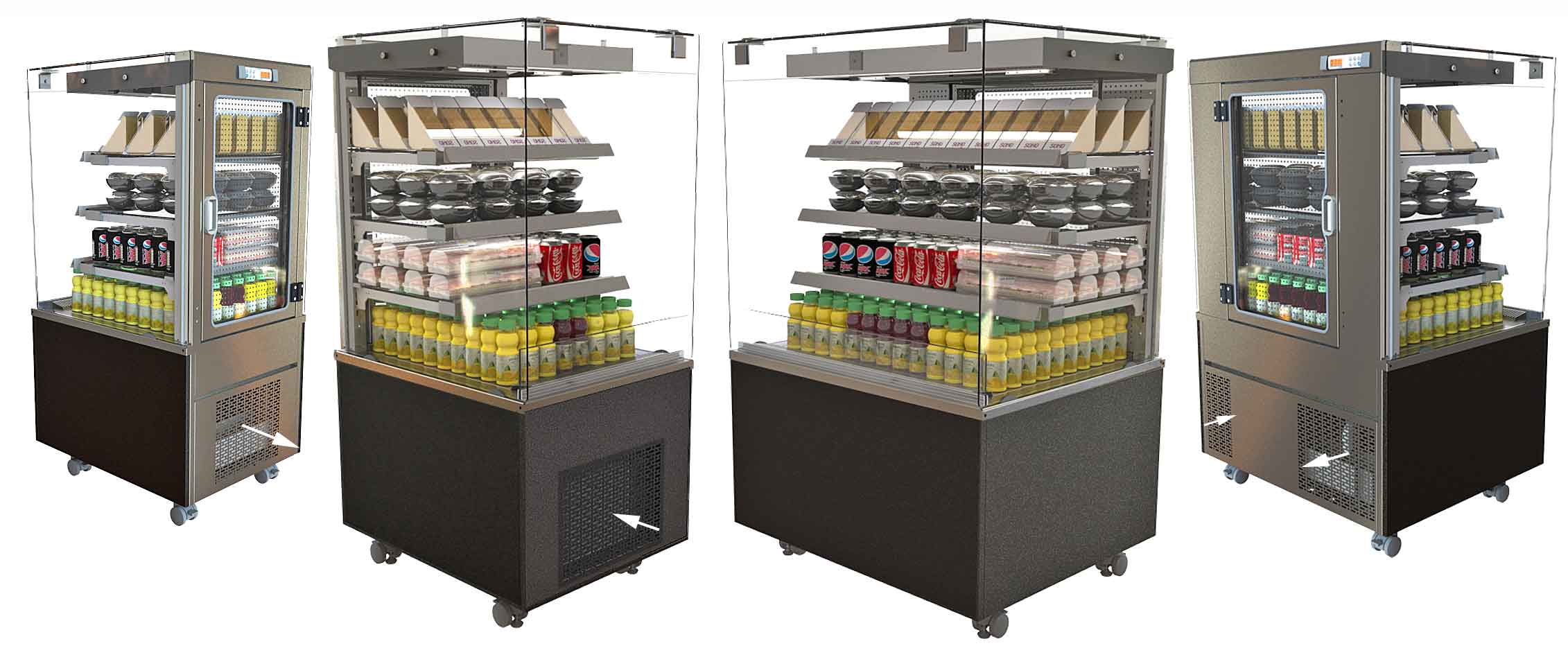

Self Help Cold Patisserie (Rear Doors) (HT)
Visual



Features

Self Help Cold Patisserie (Rear Doors) (HT)
Features

  • Rectangular glass profile is designed to compliment other drop in and patisserie units within the Kubus range.
  • Freestanding self help chilled patisserie, open fronted with rear loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, open fronted display and side glass for self help/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Double glazed, hinged rear door/s for easier restocking access.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for further worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Black plasticised steel front fascia and side panels.
  • 40mm point of sale ticket strip & product stop to each display level.
  • Mobile lockable transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.
  • 600mm (rear door) model – Airflow in customer/ air out operator side.
  • 900/ 1200/ 1500/ 1800mm (rear door) model – Airflow in/ out to operator side.
  • Optional night blind – factory fit only.



Food Types

Self Help Cold Patisserie (Rear Doors) (HT)
Food Display Types

Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.



Dimensions

Self Help Cold Patisserie (Rear Doors) (HT)
Dimensions

Model

KPC6HT

KPC9HT

KPC12HT

KPC15HT

KPC18HT

Capacity (Litres)

162

247

331

389

469

Length (mm)

600

900

1200

1500

1800

Depth (mm)

750

750

750

750

750

Height (mm)

1423/1433

1423/1433

1423/1433

1423/1433

1423/1431

Weight (uncrated) (kg)

141

188

240

294

346

Refrig. Airflow (600mm model)
In Customer/ Air Out
Operator Side

Included

N/A

N/A

N/A

N/A

Refrig. Airflow (Other size models)
In/ Out To Operator Side

N/A

Included

Included

Included

Included

Power (kW)

1.32

1.54

1.68

1.71

1.76

Total Heat Rejection
@ 32°C Ambient (watts)

1340

2010

2317

2317

2489

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



  • Control panel to ‘operator side’ of gantry.
  • HT = R290 Refrigerant


Options

Self Help Cold Patisserie (Rear Doors) (HT)
Options

Option

KPC6HT

KPC9HT

KPC12HT

KPC15HT

KPC18HT

S/Steel Front Panel (Ventilated)

KCSF6

N/A

N/A

N/A

N/A

S/Steel Front Panel (Solid)
(Airflow In/Out To Rear)

N/A

KASF9

KASF12

KASF15

KASF18

S/Steel Side Panels:
In Lieu Of Std. Black Panels.

KSSP

KSSP

KSSP

KSSP

KSSP

Night Blind:
Factory Fit Only.

KNB6

KNB9

KNB12

KNB15

KNB18

Gantry Controls To Customer Side:
In Lieu Of Std. Operator Side Position.

KCUSP6

KCUSP9

KCUSP12

KCUSP15

KCUSP18

Kickplinth S/Steel (Set):
Cold Patisserie

PKICK6C

PKICK9C

PKICK12C

PKICK15C

PKICK18C





Downloads

General Layout Drawings
Kubus Self Help Cold Patisserie (Rear Doors)

Option: Patisserie S/Steel Kickplinth Set (PKICK)

Specification Sheet, Fitting Instructions, User Manual, Energy Facts.
Kubus Self Help Cold Patisserie (Rear Doors)



Kubus-cold

Visual

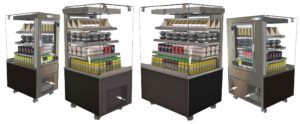

Assisted Service Cold Patisserie (Rear Doors) (HT)
Visual



Features

Assisted Service Cold Patisserie (Rear Doors) (HT)
Features

  • Rectangular glass profile is designed to compliment other drop in and patisserie units within the kubus range.
  • Freestanding assisted service chilled patisserie, closed front with rear loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, full height front and side glass for assisted service/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Double glazed, hinged rear door/s for easier restocking access.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for further worktop height merchandising.
  • Full height front glass is mounted on locking tilt hinge for easier cleaning.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Black plasticised steel front fascia and side panels.
  • 40mm point of sale ticket strip & product stop to each display level.
  • Mobile lockable transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.
  • 600mm (rear door) model – Airflow in customer/ air out operator side.
  • 900/ 1200/ 1500/ 1800mm (rear door) model – Airflow in/ out to operator side.


Food Types

Assisted Service Cold Patisserie (Rear Doors) (HT)
Food Display Types

Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.

Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts.



Dimensions

Assisted Service Cold Patisserie (Rear Doors) (HT)
Dimensions

Model

KPC6ASHT

KPC9ASHT

KPC12ASHT

KPC15ASHT

KPC18ASHT

Capacity (Litres)

162

247

331

389

469

Length (mm)

600

900

1200

1500

1800

Depth (mm)

750

750

750

750

750

Height (mm)

1423/1433

1423/1433

1423/1433

1423/1433

1423/1431

Weight (uncrated) (kg)

144

191

243

298

349

Refrig. Airflow (600mm model)
In Customer/ Air Out
Operator Side.

Included

N/A

N/A

N/A

N/A

Refrig. Airflow (Other size models)
In/ Out To Operator Side.

N/A

Included

Included

Included

Included

Power (kW)

1.17

1.36

1.57

1.71

1.71

Total Heat Rejection
@ 32°C Ambient (watts)

1080

1340

2010

2317

2489

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



  • Control panel to ‘operator side’ of gantry.
  • HT = R290 Refrigerant


Options

Assisted Service Cold Patisserie (Rear Doors) (HT)
Options

Option

KPC6ASHT

KPC9ASHT

KPC12ASHT

KPC15ASHT

KPC18ASHT

S/Steel Front Panel (Ventilated)

KCSF6

N/A

N/A

N/A

N/A

S/Steel Front Panel (Solid)
(Airflow In/Out To Rear)

N/A

KASF9

KASF12

KASF15

KASF18

S/Steel Side Panels:
In Lieu Of Std. Black Panels.

KSSP

KSSP

KSSP

KSSP

KSSP

Kickplinth S/Steel (Set):
Cold Patisserie

PKICK6C

PKICK9C

PKICK12C

PKICK15C

PKICK18C





Downloads

General Layout Drawings.
Kubus Assisted Service Cold Patisserie (Rear Doors) (HT)

Option: Patisserie S/Steel Kickplinth Set (PKICK)

Specification Sheet, Fitting Instructions, User Manual, Energy Facts.
Kubus Assisted Service Cold Patisserie (Rear Doors) (HT)



Kubus-cold

Visual

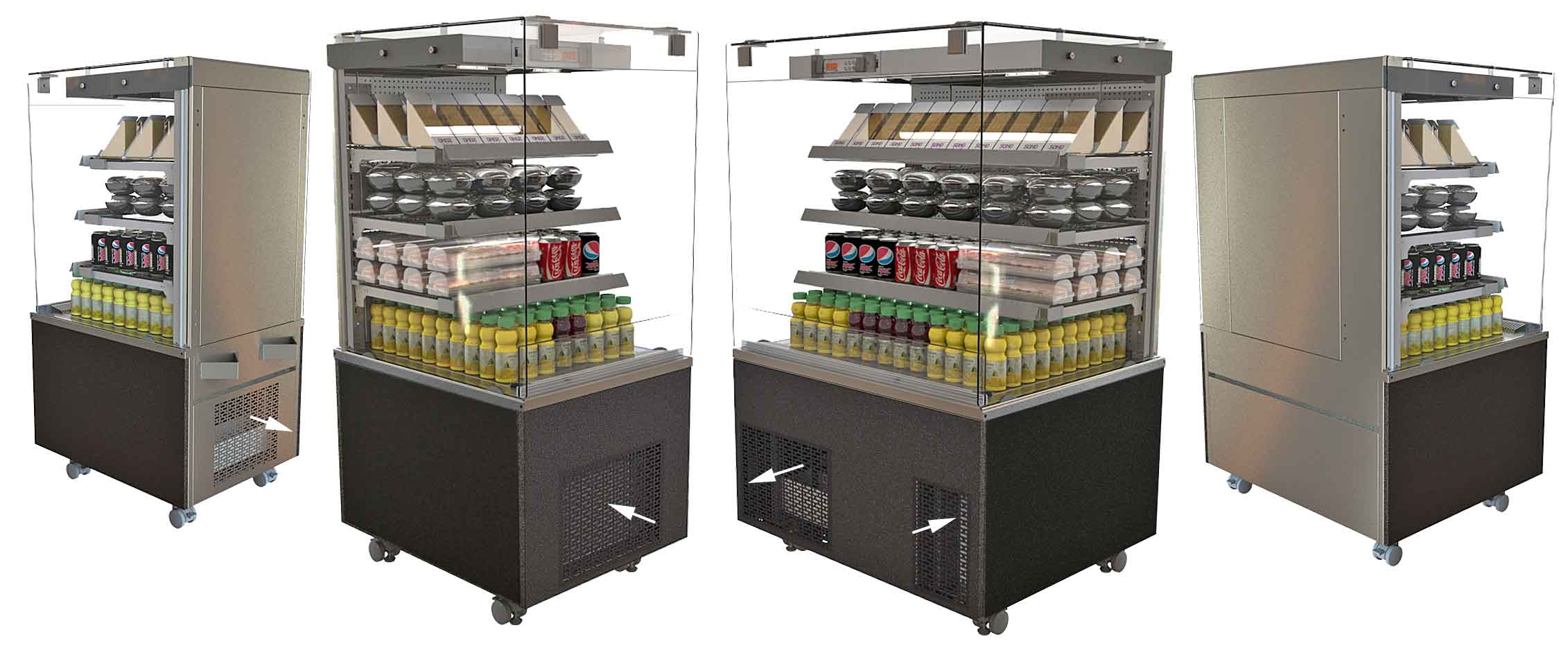

Self Help Cold Patisserie (Fixed Back) (HT)
Visual



Features

Self Help Cold Patisserie (Fixed Back) (HT)
Features

  • Rectangular glass profile is designed to compliment other drop in and patisserie units within the Kubus range.
  • Freestanding self help, wall sited chilled patisserie, open fronted with front loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, open fronted display and side glass for self help/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Stainless steel rear fixed back panels in display, allow for positioning the display against a wall.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for further worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Black plasticised steel front fascia and side panels.
  • 40mm point of sale ticket strip & product stop to each display level.
  • Mobile lockable transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.
  • 600mm (fixed back) model – Airflow in customer/ air out operator side
    (c/w rear wall stand-off bracket).
  • 900/ 1200/ 1500/ 1800mm (fixed back) model – Airflow in/ out to customer side.
  • Optional night blind – factory fit only.


Food Types

Self Help Cold Patisserie (Fixed Back) (HT)
Food Display Types

Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes, pastries, cakes, yoghurt, fruit in juice & fruit.



Dimensions

Self Help Cold Patisserie (Fixed Back) (HT)
Dimensions

Model

KPC6FBHT

KPC9FBHT

KPC12FBHT

KPC15FBHT

KPC18FBHT

Capacity (Litres)

162

247

331

389

469

Length (mm)

600

900

1200

1500

1800

Depth (mm)

750 + 75

750

750

750

750

Height (mm)

1423/1433

1423/1433

1423/1433

1423/1433

1423/1431

Weight (uncrated) (kg)

141

188

240

294

346

Refrig. Airflow (600mm model)
In Customer/ Air Out Operator Side.(c/w Wall Stand Off Bracket)

Included

N/A

N/A

N/A

N/A

Refrig. Airflow (Other size models)
In/ Out To Customer Side.

N/A

Included

Included

Included

Included

Power (kW)

1.32

1.54

1.68

1.71

1.76

Total Heat Rejection
@ 32°C Ambient (watts)

1340

2010

2317

2317

2489

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



  • Control panel to ‘operator side’ of gantry.
  • HT = R290 Refrigerant


Options

Self Help Cold Patisserie (Fixed Back) (HT)
Options

Option

KPC6FBHT

KPC9FBHT

KPC12FBHT

KPC15FBHT

KPC18FBHT

S/Steel Front Panel (Ventilated)

KCSF6

N/A

N/A

N/A

N/A

S/Steel Front Panel (Solid)
(Airflow In/Out To Front)

N/A

KCSF9

KCSF12

KCSF15

KCSF18

S/Steel Side Panels:
In Lieu Of Std. Black Panels.

KSSP

KSSP

KSSP

KSSP

KSSP

Night Blind:
Factory Fit Only.

KNB6FB

KNB9FB

KNB12FB

KNB15FB

KNB18FB

Kickplinth S/Steel (Set):
Cold Patisserie

PKICK6C

PKICK9C

PKICK12C

PKICK15C

PKICK18C





Downloads

General Layout Drawings.
Kubus Self Help Cold Patisserie (Fixed Back) (HT)

Option: Patisserie S/Steel Kickplinth Set (PKICK)

Specification Sheet, Fitting Instructions, User Manual, Energy Facts.
Kubus Self Help Cold Patisserie (Fixed Back) (HT)






Kubus-coldA---Kubus-Cold-Pat-In-Count

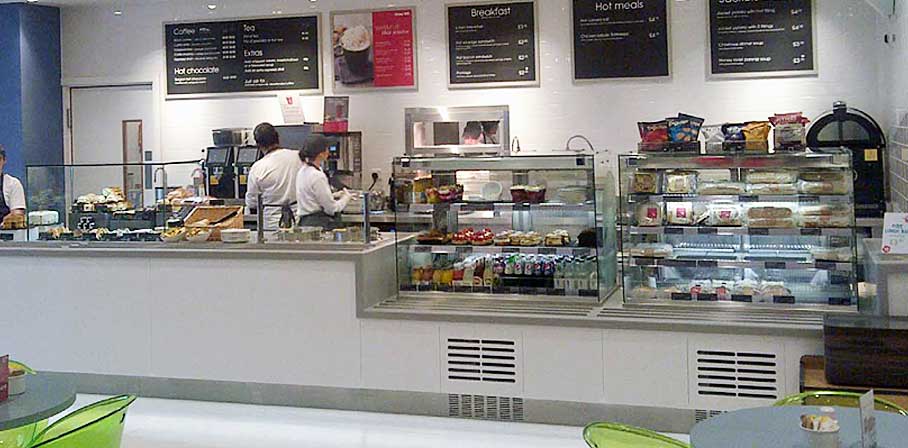

CED145 - Kubus Patisseres In Counter

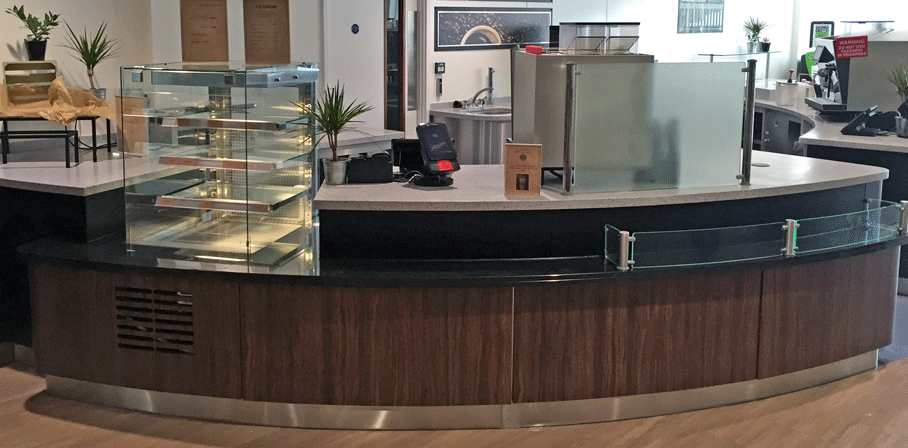

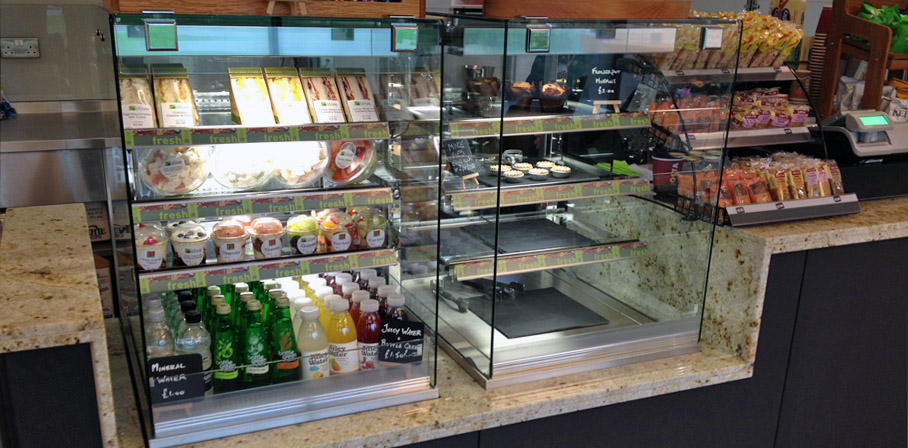

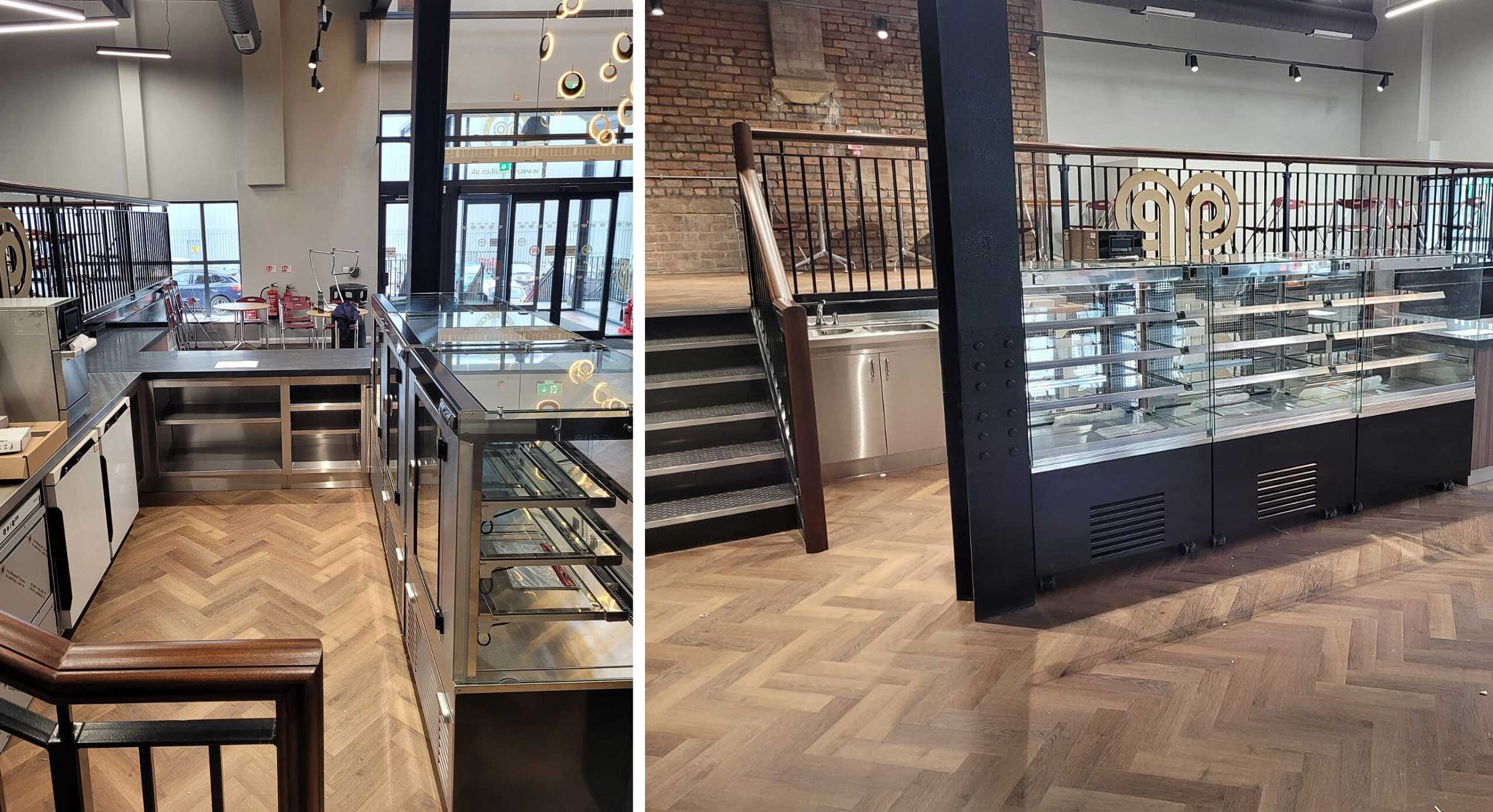

CED 132 - Bespoke Counterkubus-patiss-insituKubus-chilled-patisserie-in

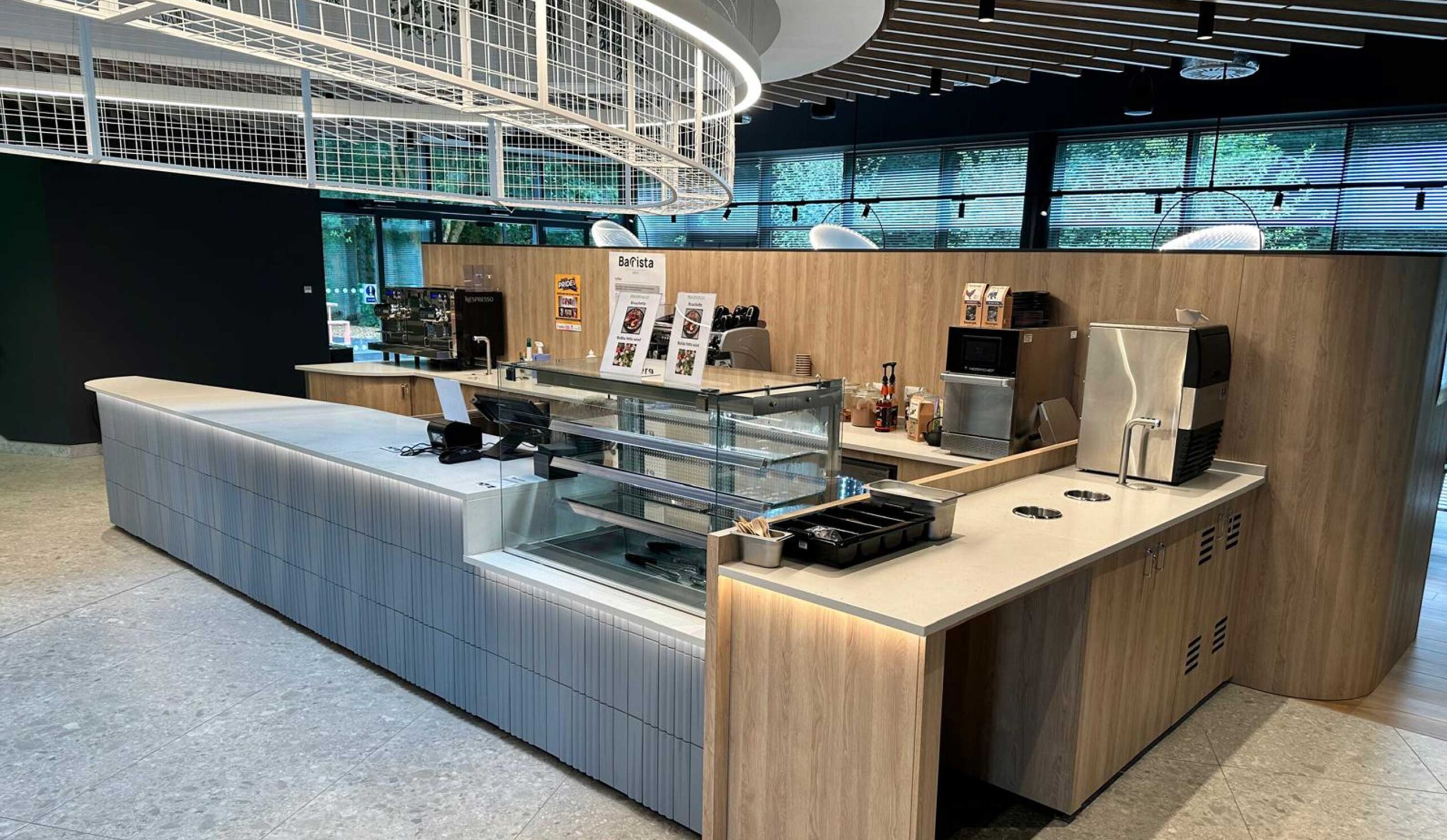

Kubus Cold Patisseries - In Counter
kubus-cold-patisserie

.

Follow us, View us, Tweet Us

facebook headerlinked in logo you tube logotwitter logo

.

Glide Dining Carts Price List

Glide catalogue

Drop-Ins Price List

fed catalogue 2018

Fabrication Price List

Tournus Price List

Merchandiser Price List

Backbar Price List


Pages
