2024 New Designline Ambient Patisserie
The Designline range of freestanding patisseries are equally at home as independent displays or as classic serve over, in-counter food displays.
A visual companion to CED’s classic elliptical Designline drop in display range, they are available in both self help and assisted service. Designline patisseries are enhanced by durable serve over steel superstructures and light ducts.
Designline patisseries maintain the elliptical shape of the original drop in displays, but with larger display area and improved merchandising space, within a minimal footprint.
Features

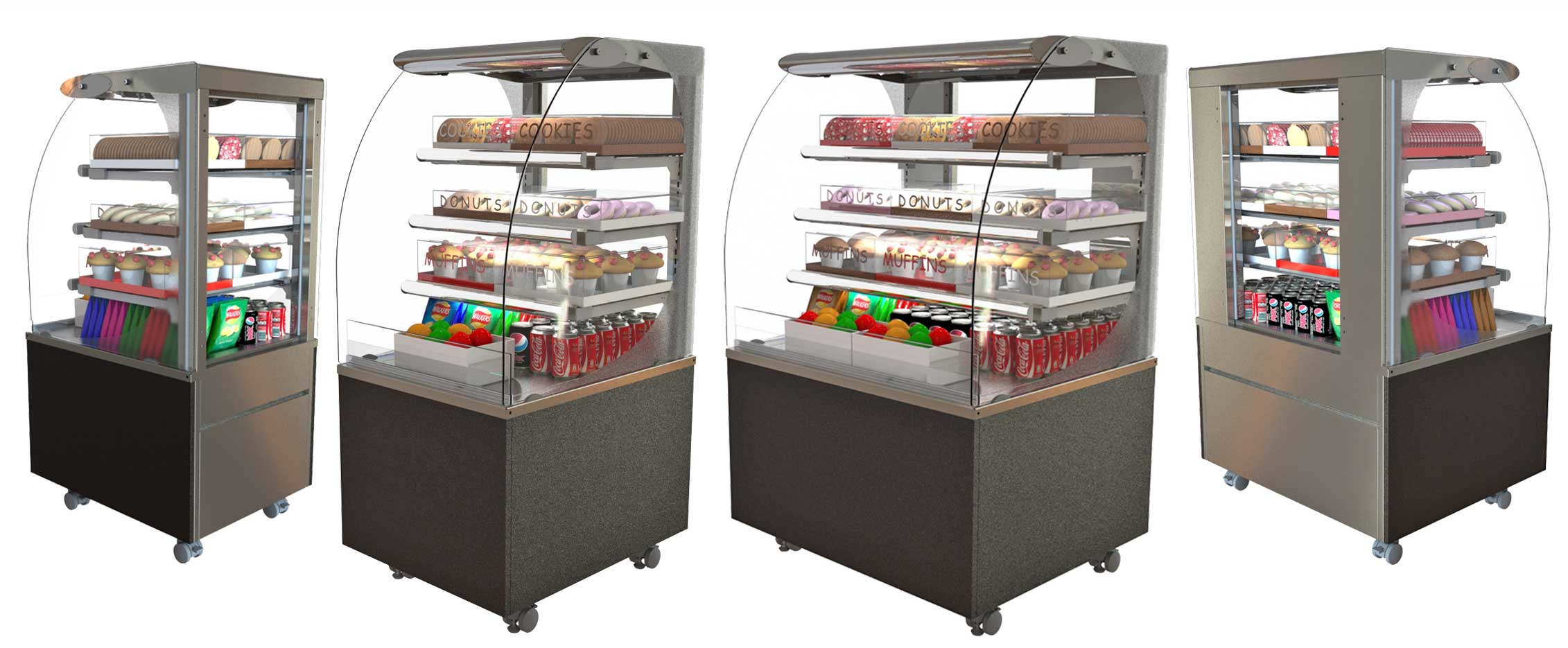

Self Help Ambient Patisserie (Open Rear)
Features
- Curved glass profile is designed to compliment other drop in and patisserie units within the Designline range.
- Freestanding self help ambient patisserie, open fronted with open rear loading to four display levels.
- Ideal for the display of wrapped morning goods, ambient produce and drinks.
- Stainless steel canopy, open fronted display and side glass for self help/ serve over presentation.
- Open to rear as standard for easier restocking, with optional rear door available. (option KDR6,KDR9, KDR12)
- Three toughened glass shelves, adjustable in height and angle.
- Steel deck area for additional merchandising at worktop height.
- Low energy diffused LED lighting to each display level.
- 24 hour operation as standard.
- Switched lighting control in canopy head.
- Black plasticised steel front fascia, side panels & rear canopy trim.
- 40 mm point of sale ticket strip & product stop to each display level.
- Mobile lockable transportation combined castor/ feet.
- Adjustable final positioning/ levelling feet.
- ‘C’ profile safety edge to all exposed edge glass.
- Optional Rear Door – Factory Fit
Food Types
Self Help Ambient Patisserie (Open Rear)
Food Display Types
Drinks (Deck Area): Still & carbonated, bottled, canned or carton water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.
Food (Deck and Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.
- Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times
Dimensions
Self Help Ambient Patisserie (Open Rear)
Dimensions
|
Model |
PA6 |
PA9 |
PA12 |
|
Capacity (Litres) |
162 |
247 |
331 |
|
Length (mm) |
600 |
900 |
1200 |
|
Depth (mm) |
750 |
750 |
750 |
|
Height (mm) |
1405/1415 |
1405/1415 |
1405/1415 |
|
Weight (Uncrated) (kg) |
110 |
150 |
190 |
|
Power (kW) |
0.1 |
0.1 |
0.1 |
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
- Rear Door Option Available (Option KDR6/KDR9/KDR12)
- Push button lighting control in canopy head.
Options
Self Help Ambient Patisserie (Open Rear)
Options
|
Option |
PA6 |
PA9 |
PA12 |
|
|
S/Steel Front Panel (Solid): |
KASF6 |
KASF9 |
KASF12 |
|
|
S/Steel Side Panels: |
KSSP |
KSSP |
KSSP |
|
|
Rear Door/s. |
KDR6 |
KDR9 |
KDR12 |
|
|
Kickplinth S/Steel (Set): |
PKICK6A |
PKICK9A |
PKICK12A |
|
Downloads
General Layout Drawings.
Designline Self Help Ambient Patisserie (Open Rear)
Option: Patisserie S/Steel Kickplinth Set (PKICK)
Spec. Sheet, Fitting Instructions & User Manual.
Designline Self Help Ambient Patisserie (Open Rear)
Features

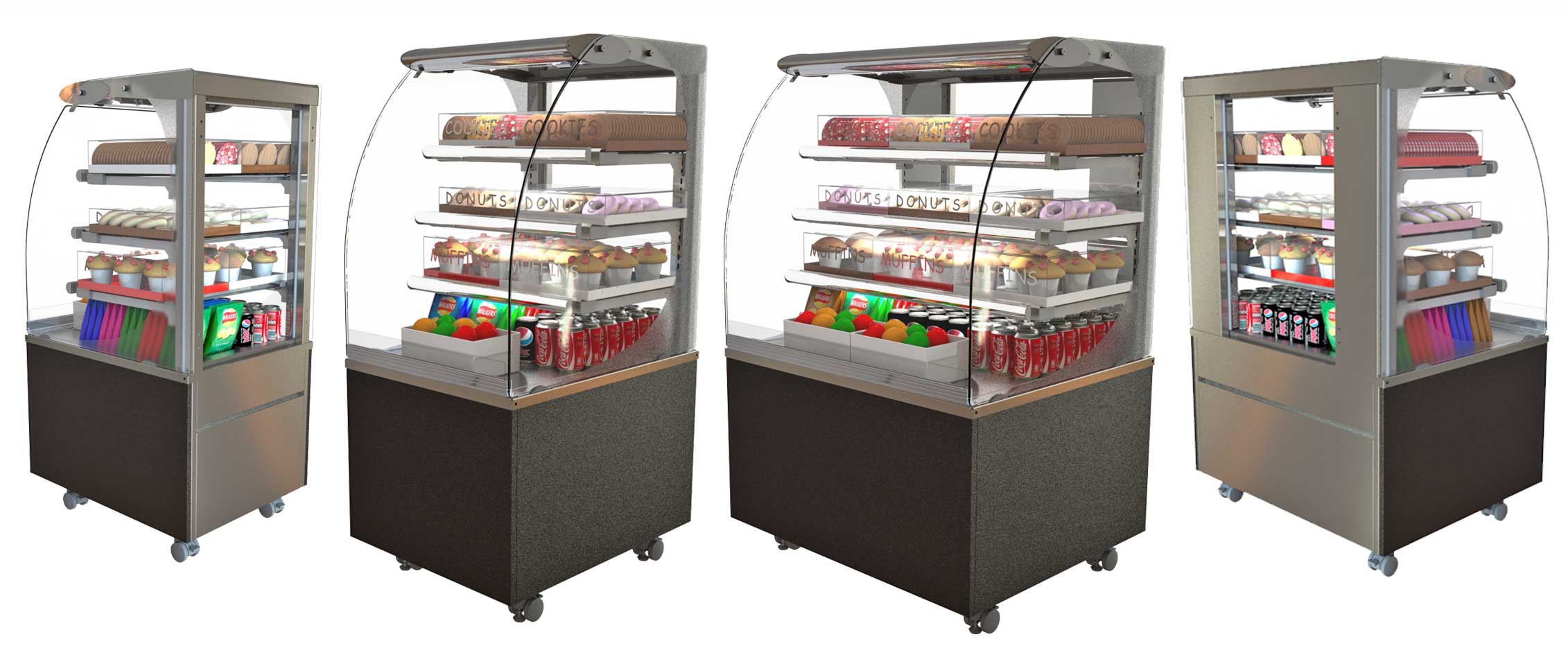

Assisted Service Ambient Patisserie (Open Rear)
Features
- Full height curved front glass profile is designed to compliment other drop in and patisserie units within the Designline range.
- Freestanding assisted service ambient patisserie, open fronted with open rear loading to four display levels.
- Ideal for the display of morning goods, ambient produce and drinks.
- Three toughened glass shelves, adjustable in height and angle.
- Steel deck area for additional merchandising at worktop height.
- Stainless steel canopy, closed front display and side glass for assisted service/ serve over presentation.
- Open to rear as standard for easier restocking, with optional rear door available.(option KDR6,KDR9, KDR12)
- Curved front glass mounted on locking tilt hinge, for easier cleaning access.
- Low energy diffused LED lighting to each display level.
- 24 hour operation as standard.
- Switched lighting control in canopy head.
- Black plasticised steel front fascia, side panels & rear canopy trim.
- 40 mm point of sale ticket strip & product stop to each display level.
- Mobile lockable transportation combined castor/ feet.
- Adjustable final positioning/ levelling feet.
- ‘C’ profile safety edge to all exposed edge glass.
- Optional Rear Door – Factory Fit
Food Types
Assisted Service Ambient Patisserie (Open Rear)
Food Display Types
Drinks (Deck Area): Still & carbonated, bottled, canned or carton water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.
Food (Deck And Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.
- Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times
Dimensions
Assisted Service Ambient Patisserie (Open Rear)
Dimensions
|
Model |
PA6AS |
PA9AS |
PA12AS |
|
Capacity (Litres) |
162 |
247 |
331 |
|
Length (mm) |
600 |
900 |
1200 |
|
Depth (mm) |
750 |
750 |
750 |
|
Height (mm) |
1405/1415 |
1405/1415 |
1405/1415 |
|
Weight (Uncrated) (kg) |
110 |
150 |
190 |
|
Power (kW) |
0.1 |
0.1 |
0.1 |
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
- Rear Door Option Available (Option KDR6/KDR9/KDR12)
- Push button lighting control in canopy head.
Options
Assisted Service Ambient Patisserie (Open Rear)
Options
|
Option |
PA6AS |
PA9AS |
PA12AS |
|
|
S/Steel Front Panel (Solid): |
KASF6 |
KASF9 |
KASF12 |
|
|
S/Steel Side Panels: |
KSSP |
KSSP |
KSSP |
|
|
Rear Door/s. |
KDR6 |
KDR9 |
KDR12 |
|
|
Kickplinth S/Steel (Set): |
PKICK6A |
PKICK9A |
PKICK12A |
|
Downloads
General Layout Drawings.
Designline Assisted Service Ambient Patisserie (Open Rear)
Option: Patisserie S/Steel Kickplinth Set (PKICK)
Spec. Sheet, Fitting Instructions & User Manual.
Designline Assisted Service Ambient Patisserie (Open Rear)
Features

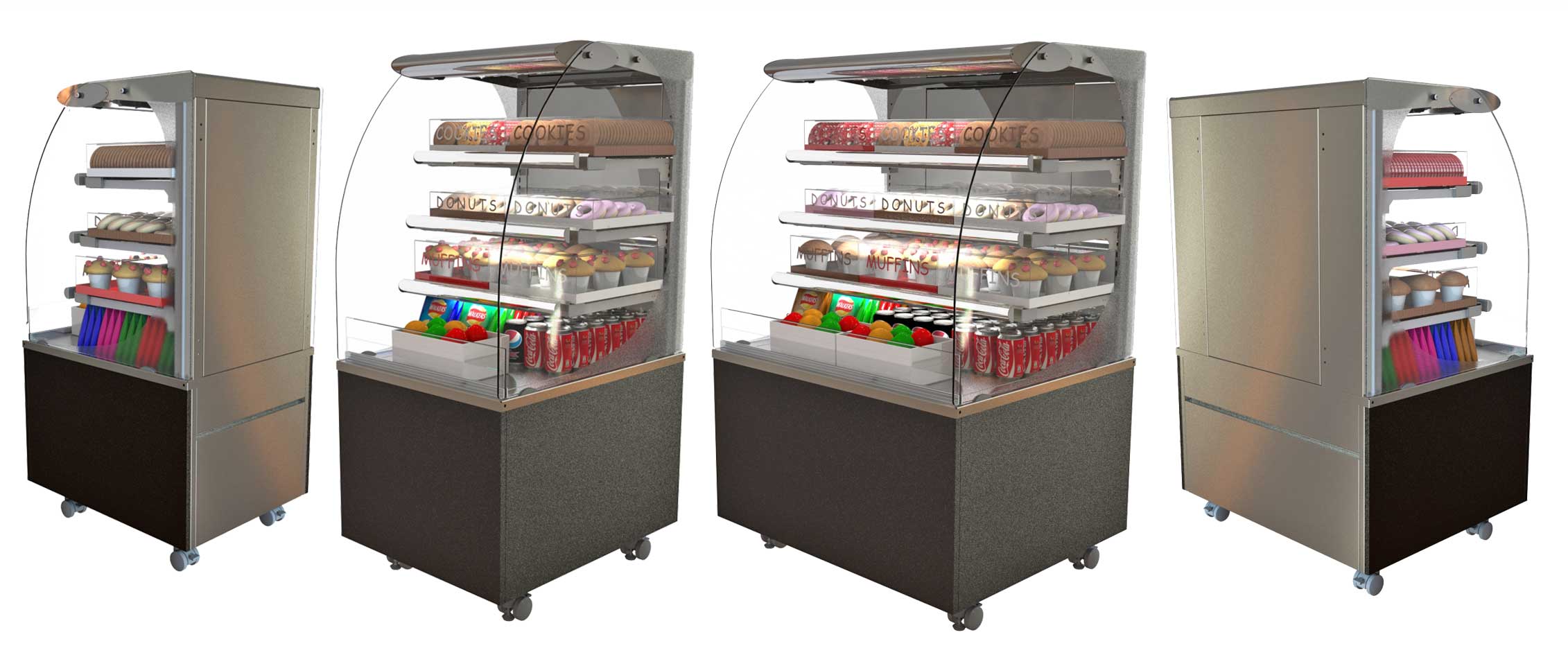

Self Help Ambient Patisserie (Fixed Back)
Visual
- Curved glass profile is designed to compliment other drop in and patisserie units within the Designline range.
- Freestanding self help ambient patisserie, open fronted with front loading/fixed rear to four display levels.
- Suitable for wall sited use.
- Ideal for the display of wrapped morning goods, ambient produce and drinks.
- Stainless steel canopy, open fronted display and side glass for self help presentation.
- Bright polished steel rear back panels as standard.
- Three toughened glass shelves, adjustable in height and angle.
- Steel deck area for additional merchandising at worktop height.
- Low energy diffused LED lighting to each display level.
- 24 hour operation as standard.
- Switched lighting control in canopy head.
- Black plasticised steel front fascia, side panels & rear canopy trim.
- 40 mm point of sale ticket strip & product stop to each display level.
- Mobile lockable transportation combined castor/ feet.
- Adjustable final positioning/ levelling feet.
- ‘C’ profile safety edge to all exposed edge glass.
Food Types
Self Help Ambient Patisserie (Fixed Back)
Food Display Types
Drinks (Deck Area): Still & carbonated, bottled, canned or carton water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.
Food (Deck and Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.
- Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times
Dimensions
Self Help Ambient Patisserie (Fixed Back)
Dimensions
|
Model |
PA6FB |
PA9FB |
PA12FB |
|
Capacity (Litres) |
162 |
247 |
331 |
|
Length (mm) |
600 |
900 |
1200 |
|
Depth (mm) |
750 |
750 |
750 |
|
Height (mm) |
1405/1415 |
1405/1415 |
1405/1415 |
|
Weight (Uncrated) (kg) |
110 |
150 |
190 |
|
Power (kW) |
0.1 |
0.1 |
0.1 |
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
Options
Self Help Ambient Patisserie (Fixed Back)
Options
|
Option |
PA6FB |
PA9FB |
PA12FB |
|
|
S/Steel Front Panel (Solid): |
KASF6 |
KASF9 |
KASF12 |
|
|
S/Steel Side Panels: |
KSSP |
KSSP |
KSSP |
|
|
Kickplinth S/Steel (Set): |
PKICK6A |
PKICK9A |
PKICK12A |
|
Downloads
General Layout Drawings.
Designline Self Help Ambient Patisserie (Fixed Back)
Option: Patisserie S/Steel Kickplinth Set (PKICK)
Spec. Sheet, Fitting Instructions & User Manual.
Designline Self Help Ambient Patisserie (Fixed Back)

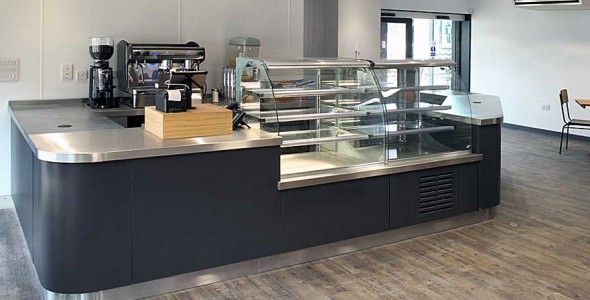

Ambient model shown centre
.
