CED Fabrications - Designline Brand - Chilled LogoThe Designline range of freestanding patisseries are equally at home as independent displays or as classic serve over, in-counter food displays.
A visual companion to CED’s curved Designline drop in display range, they offer 24 hour operation and are available in both self help and assisted service. Designline patisseries offer classic elliptical styling, enhanced by a durable serve over steel superstructure and canopy head light duct.
Designline patisseries maximize sales by providing customers with an extensive display area and merchandising space, within a minimal footprint.

Visual

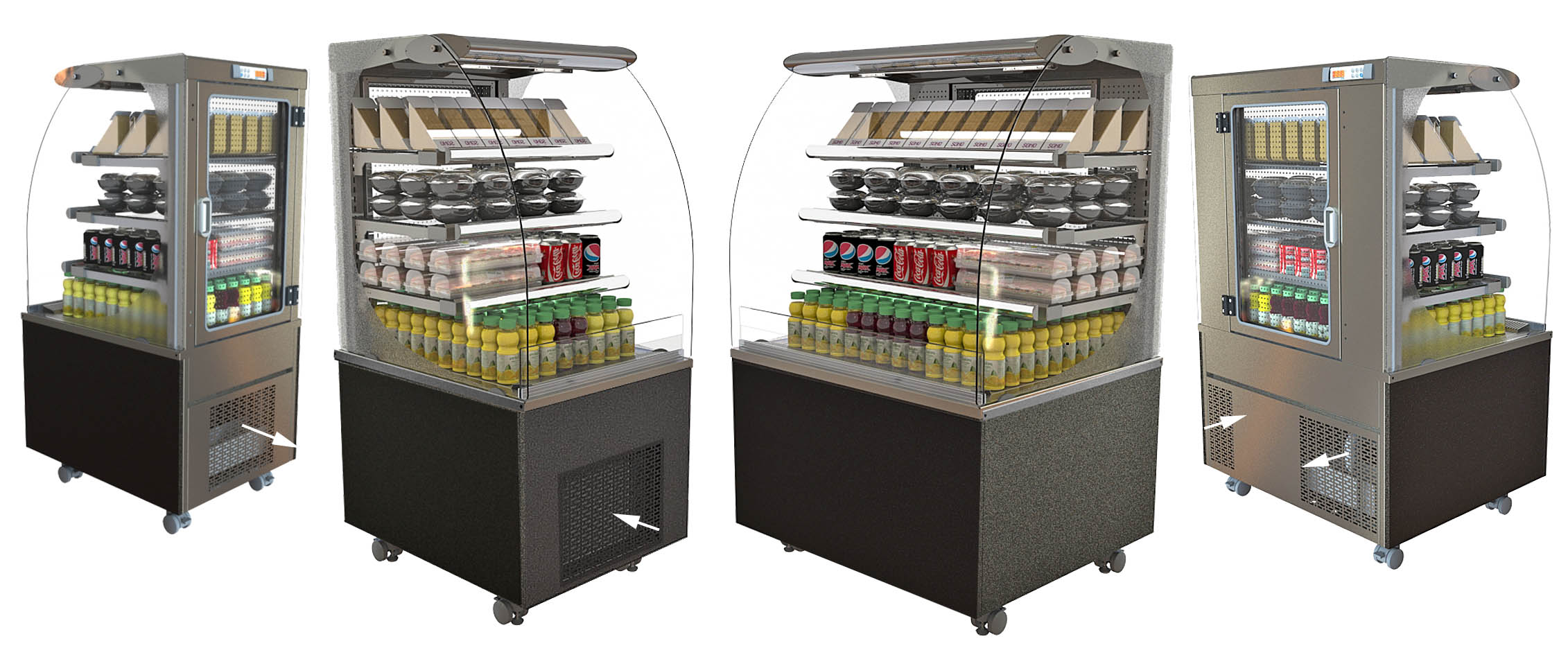

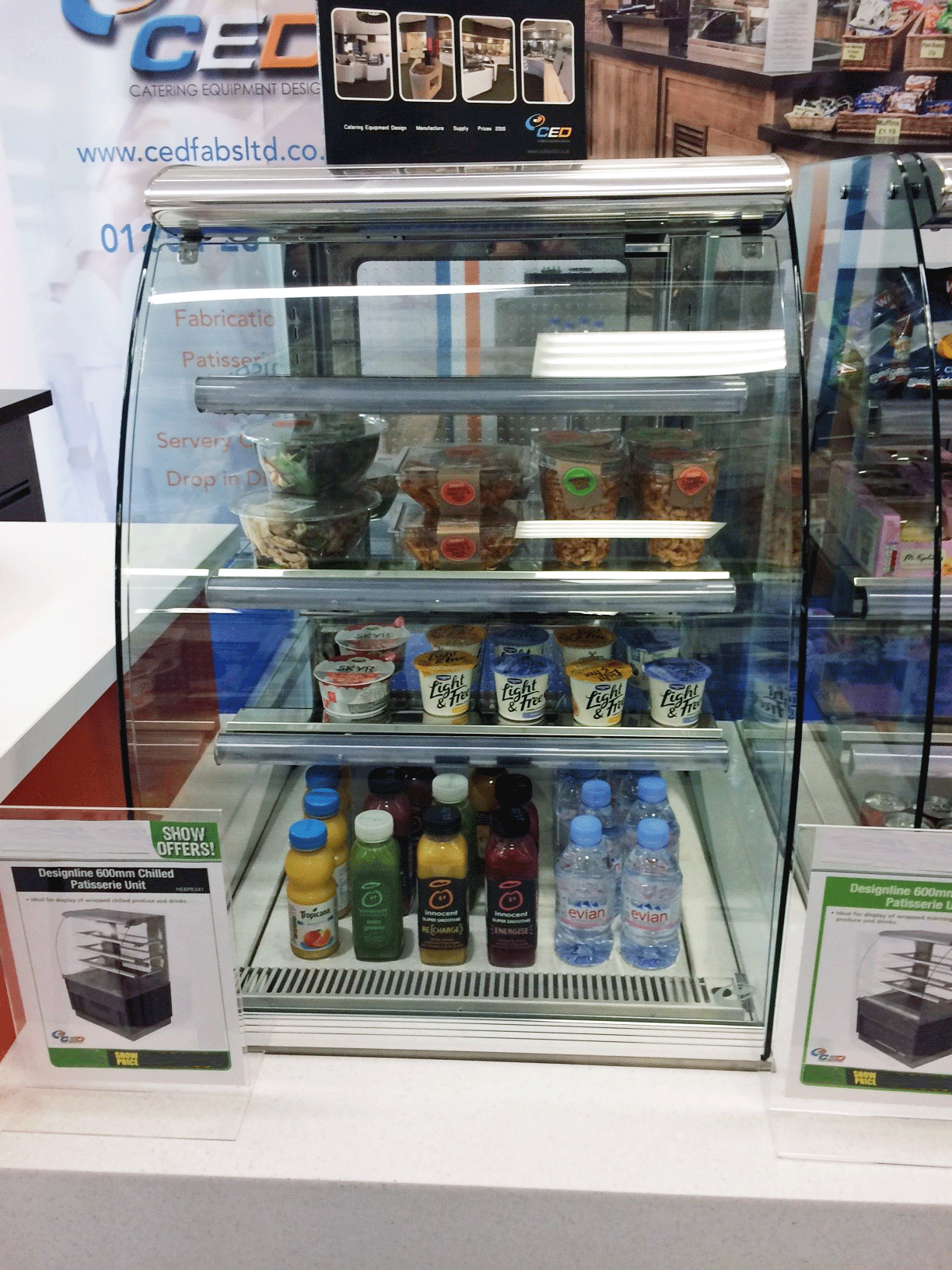

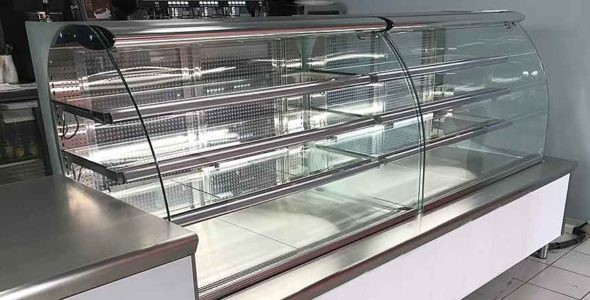

Self Help Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Visual



Features

Self Help Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Features

  • Curved glass profile is designed to compliment other drop in and patisserie units within the Designline range.
  • Freestanding self help chilled patisserie, open fronted with rear loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, open fronted display and side glass for self help/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Double glazed, hinged rear door/s for easier restocking access.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for additional worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Black plasticised steel front fascia & side panels.
  • 40mm point of sale ticket strip & product stop to each display level.
  • Mobile lockable transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.
  • 600mm (rear door) model – Airflow in customer/ air out operator side.
  • 900/ 1200/ 1500/ 1800mm (rear door) model – Airflow in/ out to operator side.


Food Types

Self Help Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Food Display Types

Drinks (Deck Area): Still, carbonated, bottled, canned or carton water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes, & pastries, cakes, yoghurt, fruit juice & fruit.



Dimensions

Self Help Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Dimensions

Model

PC6HT

PC9HT

PC12HT

PC15HT

PC18HT

Capacity (Litres)

162

247

331

389

469

Length (mm)

600

900

1200

1500

1800

Depth (mm)

750

750

750

750

750

Height (mm)

1405/1415

1405/1415

1405/1415

1405/1415

1405/1415

Weight (uncrated) (kg)

141

188

240

294

346

Refrig. Airflow (600mm model)
In Customer/ Air Out
Operator Side.

Included

N/A

N/A

N/A

N/A

Refrig. Airflow (Other size models)
In/ Out To Operator Side.

N/A

Included

Included

Included

Included

Power (kW)

1.32

1.54

1.68

1.71

1.76

Total Heat Rejection
@ 32°C Ambient (watts)

1340

2010

2317

2317

2489

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = R290 Refrigerant
  • Control panel to operator side


Options

CED Fabrications - Designline Brand - Chilled LogoSelf Help Cold Patisserie (Rear Doors) (HT)
Options

Option

PC6HT

PC9HT

PC12HT

PC15HT

PC18HT

S/Steel Front Panel (Ventilated)

KCSF6

N/A

N/A

N/A

N/A

S/Steel Front Panel (Solid)
(Airflow In/Out To Rear)

N/A

KASF9

KASF12

KASF15

KASF18

S/Steel Side Panels:
In Lieu Of Std. Black Panels.

KSSP

KSSP

KSSP

KSSP

KSSP

Gantry Controls To Customer Side:
In Lieu Of Std. Operator Side Position.

KCUSP6

KCUSP9

KCUSP12

KCUSP15

KCUSP18

Kickplinth S/Steel (Set):
Cold Patisserie

PKICK6C

PKICK9C

PKICK12C

PKICK15C

PKICK18C





Downloads

General Layout Drawings.CED Fabrications - Designline Brand - Chilled Logo
Designline Self Help Cold Patisserie (Rear Doors) (HT)

Option: Patisserie S/Steel Kickplinth Set (PKICK)

Specification Sheet, Fitting Instructions, User Manual, Energy Facts.
Designline Self Help Cold Patisserie (Rear Doors) (HT)




Designline-Cold

Visual

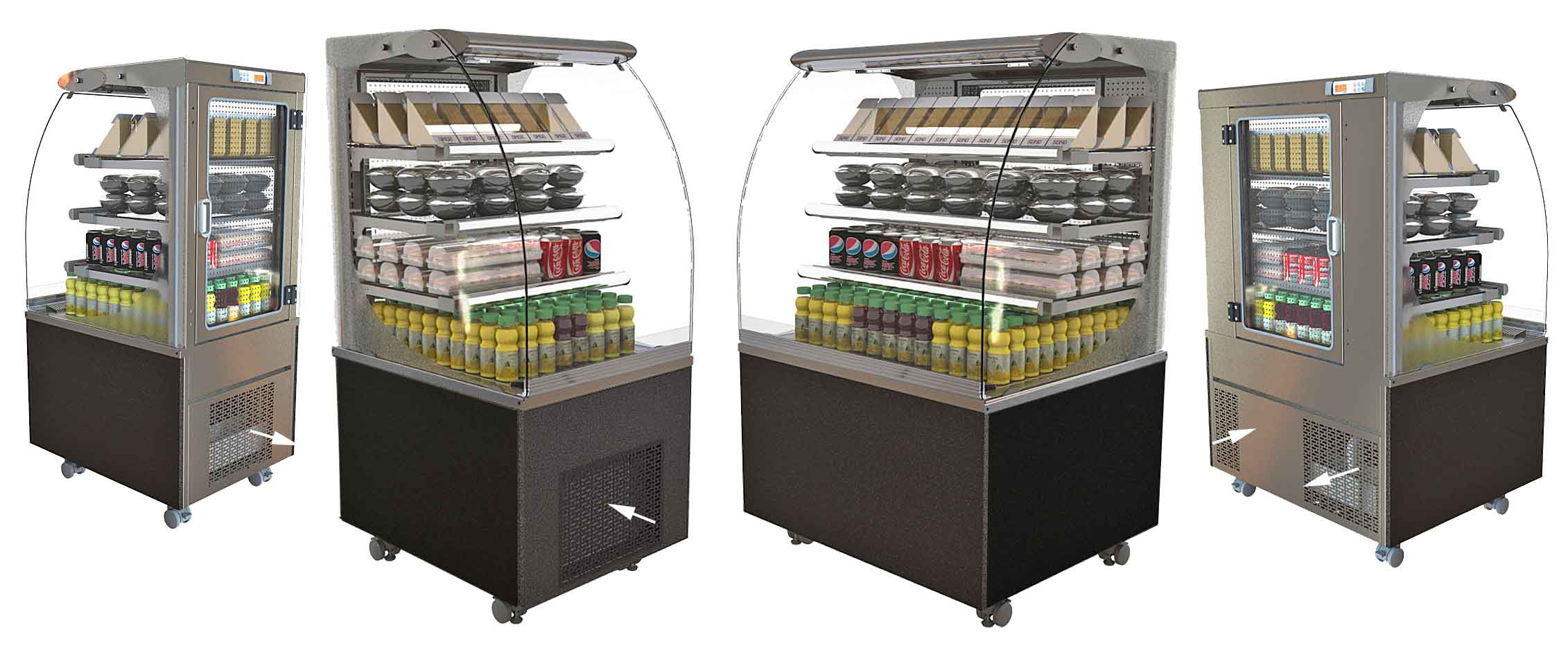

Assisted Serve Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo



Features

Assisted Serve Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Features

  • Curved full height front & side glass profile is designed to compliment other drop in and patisserie units within the Designline range.
  • Freestanding assisted service chilled patisserie, closed front with rear loading to four display levels.
  • Ideal for the display of wrapped & unwrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, full height front & side glass for assisted service/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Double glazed, hinged rear door/s for easier restocking access.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for additional worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Full height front glass is mounted on locking tilt hinge for easier cleaning.
  • Black plasticised steel front fascia & side panels.
  • 40mm point of sale ticket strip & product stop to each display level.
  • Mobile lockable transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.
  • 600mm (rear door) model – Airflow in customer/ air out operator side.
  • 900/ 1200/ 1500/ 1800mm (rear door) model – Airflow in/ out to operator side.


Food Types

Assisted Serve Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Food Display Types



Drinks (Deck Area): Still & carbonated, bottled, canned or carton water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes, & pastries, cakes, yoghurt, fruit juice & fruit.



Dimensions

Assisted Serve Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Dimensions

Model

PC6ASHT

PC9ASHT

PC12ASHT

PC15ASHT

PC18ASHT

Capacity (Litres)

162

247

331

389

469

Length (mm)

600

900

1200

1500

1800

Depth (mm)

750

750

750

750

750

Height (mm)

1405/1415

1405/1415

1405/1415

1405/1415

1405/1415

Weight (uncrated) (kg)

144

191

243

298

349

Refrig. Airflow (600mm model)
In Customer/ Air Out
Operator Side.

Included

N/A

N/A

N/A

N/A

Refrig. Airflow (Other size models)
In/ Out To Operator Side.

N/A

Included

Included

Included

Included

Power (kW)

1.17

1.36

1.57

1.71

1.76

Total Heat Rejection
@ 32°C Ambient (watts)

1080

1340

2010

2317

2489

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = R290 Refrigerant
  • Control panel to operator side


Options

CED Fabrications - Designline Brand - Chilled LogoAssisted Service Cold Patisserie (Rear Doors) (HT)
Options

Option

PC6ASHT

PC9ASHT

PC12ASHT

PC15ASHT

PC18ASHT

S/Steel Front Panel (Ventilated)

KCSF6

N/A

N/A

N/A

N/A

S/Steel Front Panel (Solid)
(Airflow In/Out To Rear)

N/A

KASF9

KASF12

KASF15

KASF18

S/Steel Side Panels:
In Lieu Of Std. Black Panels.

KSSP

KSSP

KSSP

KSSP

KSSP

Kickplinth S/Steel (Set):
Cold Patisserie

PKICK6C

PKICK9C

PKICK12C

PKICK15C

PKICK18C





Downloads

General Layout Drawings.CED Fabrications - Designline Brand - Chilled Logo
Designline Assisted Service Cold Patisserie (Rear Doors) (HT)



Option: Patisserie S/Steel Kickplinth Set (PKICK)

Specification Sheet, Fitting Instructions, User Manual, Energy Facts.
Designline Assisted Service Cold Patisserie (Rear Doors) (HT)




Designline-Cold

Visual

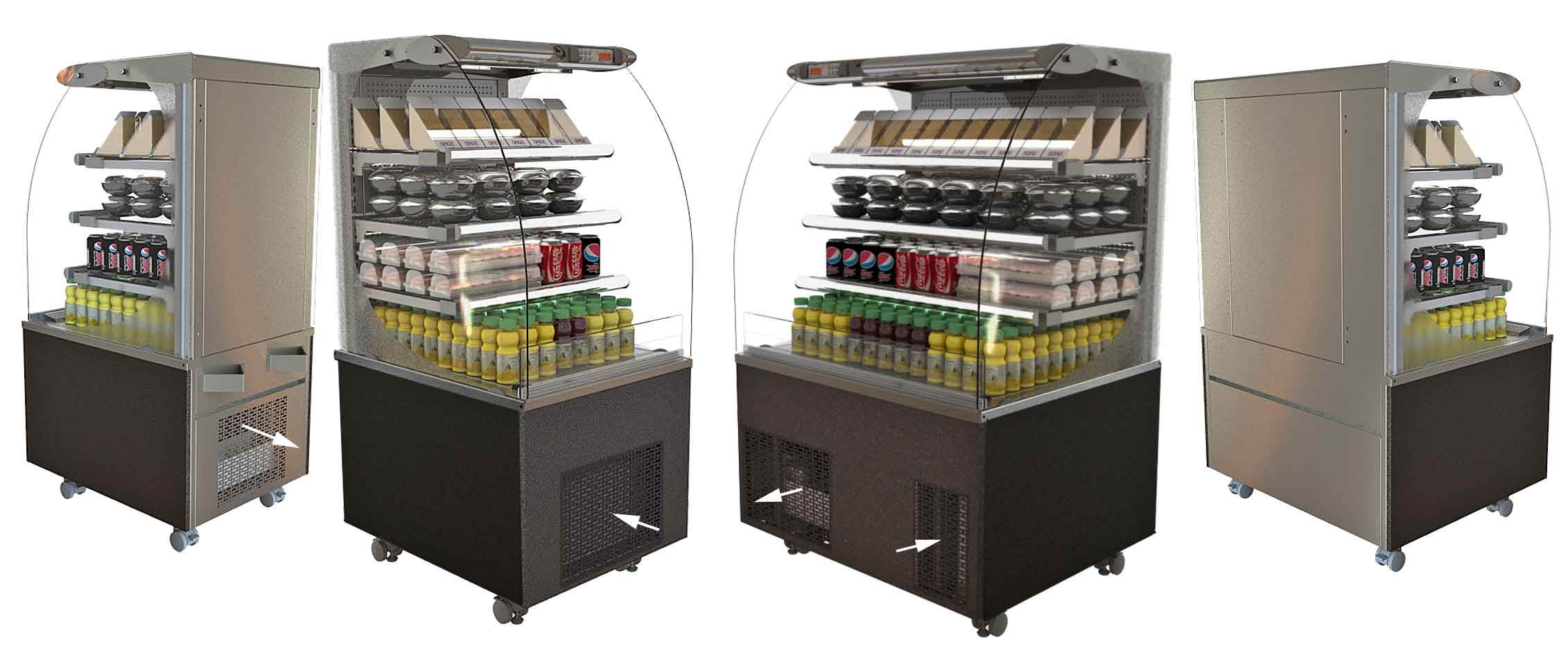

Self Help Cold Patisserie (Fixed Back) (HT)CED Fabrications - Designline Brand - Chilled Logo
Visual



Features

Self Help Cold Patisserie (Fixed Back) (HT)CED Fabrications - Designline Brand - Chilled Logo
Features

  • Curved glass profile is designed to compliment other drop in and patisserie units within the Designline range.
  • Freestanding self help, wall sited chilled patisserie, open fronted with front loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, open fronted display and side glass for self help/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Stainless steel rear fixed back panels in display, allow for positioning the display against a wall.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for additional worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Black plasticised steel front fascia & side panels.
  • 40mm point of sale ticket strip & product stop to each display level.
  • Mobile lockable transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.
  • 600mm (fixed back) model – Airflow in customer/ air out operator side
    (c/w rear wall stand-off bracket).
  • 900/ 1200/ 1500/ 1800mm (fixed back) model – Airflow in/ out to customer side.


Food Types

Self Help Cold Patisserie (Fixed Back) (HT)CED Fabrications - Designline Brand - Chilled Logo
Food Display Types



Drinks (Deck Area): Still & carbonated, bottled, canned or carton water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes, & pastries, cakes, yoghurt, fruit juice & fruit.



Dimensions

Self Help Cold Patisserie (Fixed Back) (HT)CED Fabrications - Designline Brand - Chilled Logo
Dimensions

Model

PC6FBHT

PC9FBHT

PC12FBHT

PC15FBHT

PC18FBHT

Capacity (Litres)

162

247

331

389

469

Length (mm)

600

900

1200

1500

1800

Depth (mm)

750 + 75

750

750

750

750

Height (mm)

1405/1415

1405/1415

1405/1415

1405/1415

1405/1415

Weight (uncrated) (kg)

141

188

240

294

346

Refrig. Airflow (600mm model)
In Customer/ Air Out Operator Side.(c/w Wall Stand Off Bracket)

Included

N/A

N/A

N/A

N/A

Refrig. Airflow (Other size models)
In/ Out To Customer Side.

N/A

Included

Included

Included

Included

Power (kW)

1.32

1.54

1.68

1.71

1.76

Total Heat Rejection
@ 32°C Ambient (watts)

1340

2010

2317

2317

2489

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = R290 Refrigerant
  • Control panel to operator side


Options

CED Fabrications - Designline Brand - Chilled LogoSelf Help Cold Patisserie (Fixed Back) (HT)
Options

Option

PC6FBHT

PC9FBHT

PC12FBHT

PC15FBHT

PC18FBHT

S/Steel Front Panel (Ventilated)

KCSF6

N/A

N/A

N/A

N/A

S/Steel Front Panel (Solid)
(Airflow In/Out To Front)

N/A

KCSF9

KCSF12

KCSF15

KCSF18

S/Steel Side Panels:
In Lieu Of Std. Black Panels.

KSSP

KSSP

KSSP

KSSP

KSSP

Kickplinth S/Steel (Set):
Cold Patisserie

PKICK6C

PKICK9C

PKICK12C

PKICK15C

PKICK18C





Downloads

General Layout Drawings.CED Fabrications - Designline Brand - Chilled Logo
Designline Self Help Cold Patisseries (Fixed Back) (HT)



Option: Patisserie S/Steel Kickplinth Set (PKICK)

Specification Sheet, Fitting Instructions, User Manual, Energy Facts.
Designline Self Help Cold Patisseries (Fixed Back) (HT)




Designline-Coldpage-header-d.line-Amb-AS-P
Section-header--DLINE-COLD-

page-header-2--DLINE-COLD-P
"e</p
