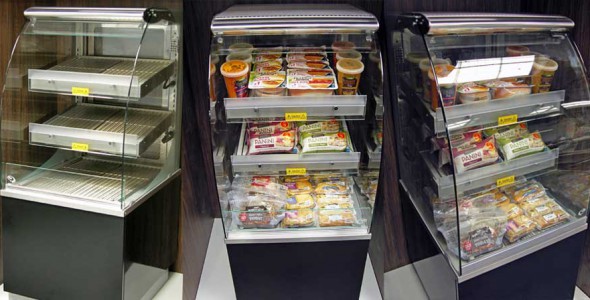

2024 New Designline Heated Patisserie
Designline freestanding heated patisseries are a classic companion to the range of Designline drop in displays. Available in both self help and assisted service, Designline heated patisseries feature a matching clean elliptical profile, durable bright steel and chrome plated aluminium superstructure, within a toughened front glass screen or open front.
The Designline heated patisserie is ideal for the display of pre-heated cooked food, packaged, cartoned or unwrapped heated produce. Designline heated patisseries feature combined static & fan blown heat, ‘point of sale’ branding, lockable mobile castors and adjustable feet, with optimum product display provided through glazed side panels.
Features

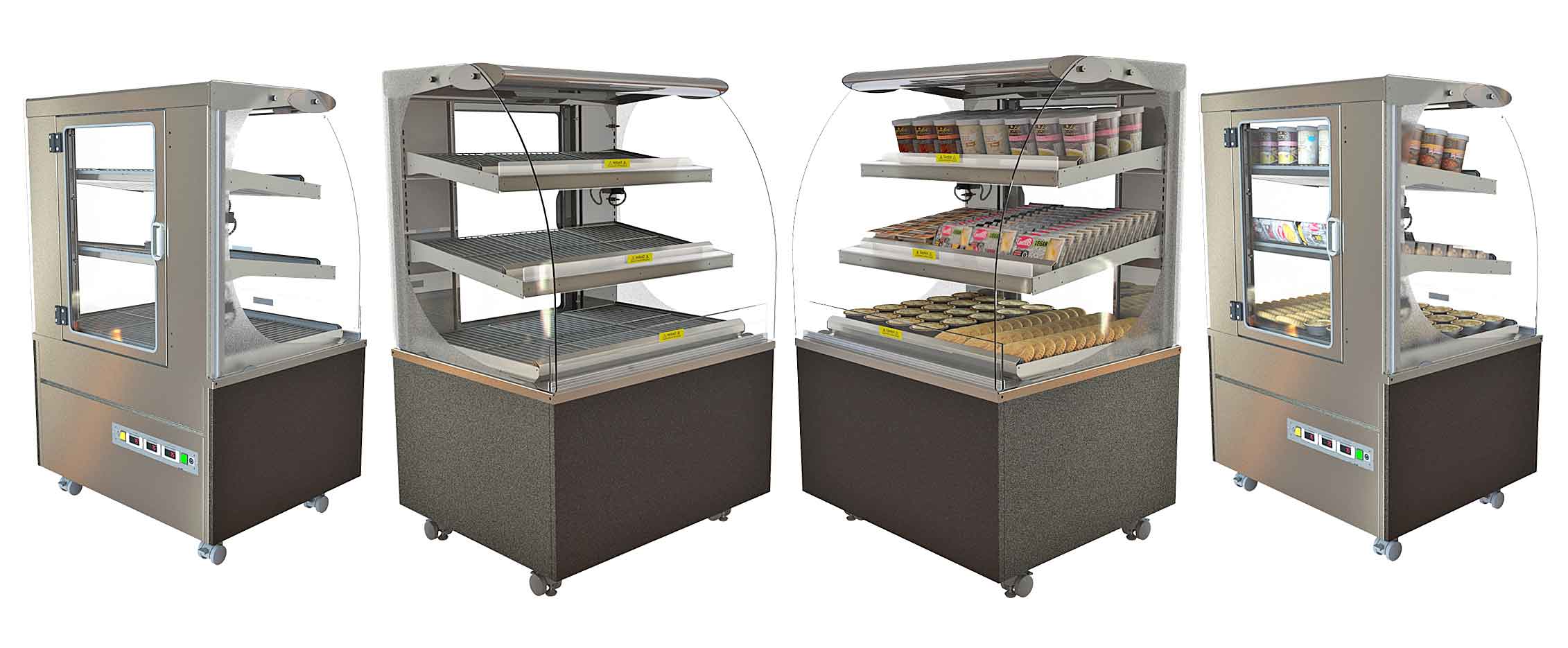

Self Help Heated Patisserie (Rear Doors).
Features
- Curved glass profile is designed to compliment other drop in and patisserie units within the Designline range.
- Freestanding self help heated patisserie, open fronted with rear loading to three display levels.
- Ideal for the display of pre-heated cooked food, either unwrapped, packaged or cartoned heated produce.
- Heated by both static heat and convected hot air.
- 3 tier food display levels comprising 2 steel/ coated aluminum shelves and large hot deck display area.
- The temperature of each of 3 heated zones can be independently set, using digital displays mounted in the rear base panel.
- Product temperature maintained at 70 – 75 deg. C in +18 deg. C ambient.
- Stainless steel & glass canopy, open fronted display and side glass for self help/ serve over presentation.
- Double glazed, hinged rear door/s for easier restocking access.
- High temperature LED lighting to each display level (4000 Kelvin) – to match chilled/ ambient models.
- 24 hour operation as standard.
- Removable wire steel deck & shelf grid covers for use with packaged & cartoned heated produce display.
- Black plasticised steel front fascia & side panels.
- 40 mm point of sale ticket strip mount & product stop to each display level.
- Mobile lockable transportation combined castor/ feet.
- Adjustable final positioning/ levelling feet.
- ‘C’ profile safety edge to all exposed edge glass.
Food Types
Self Help Heated Patisserie (Rear Doors).
Food Display Types
Liquid Based Foods (Deck Area): Cartoned soups, cartoned vegetable soups, porridge etc.
Food (Deck And Shelving Area): Packaged or unwrapped pies, pastries, sausage rolls, stews, curry, chilli dishes, grilled sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.
Dimensions
Self Help Heated Patisserie (Rear Doors).
Dimensions
|
Model |
PH6 |
PH9 |
PH12 |
|
|
Length (mm) |
600 |
900 |
1200 |
|
|
Depth (mm) |
750 |
750 |
750 |
|
|
Height (mm) |
1405/1415 |
1405/1415 |
1405/1415 |
|
|
Weight (Uncrated) (kg) |
115 |
160 |
210 |
|
|
Power (kW) |
2.04 |
2.85 |
2.89 |
|
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
|
- Controls to ‘operator side’ rear base panel of display.
Options
Self Help Heated Patisserie (Rear Doors).
Options
|
Option |
PH6 |
PH9 |
PH12 |
|
|
S/Steel Front Panel (Solid): |
KASF6 |
KASF9 |
KASF12 |
|
|
S/Steel Side Panels: |
KSSP |
KSSP |
KSSP |
|
|
Kickplinth S/Steel (Set) |
PKICK6A |
PKICK9A |
PKICK12A |
|
Downloads
General Layout Drawings.
Designline Self Help Heated Patisserie (Rear Doors)
Option: Patisserie S/Steel Kickplinth Set (PKICK)
Spec. Sheet, Fitting Instructions, User Manual, Energy Facts.
Designline Self Help Heated Patisserie (Rear Doors)
Features

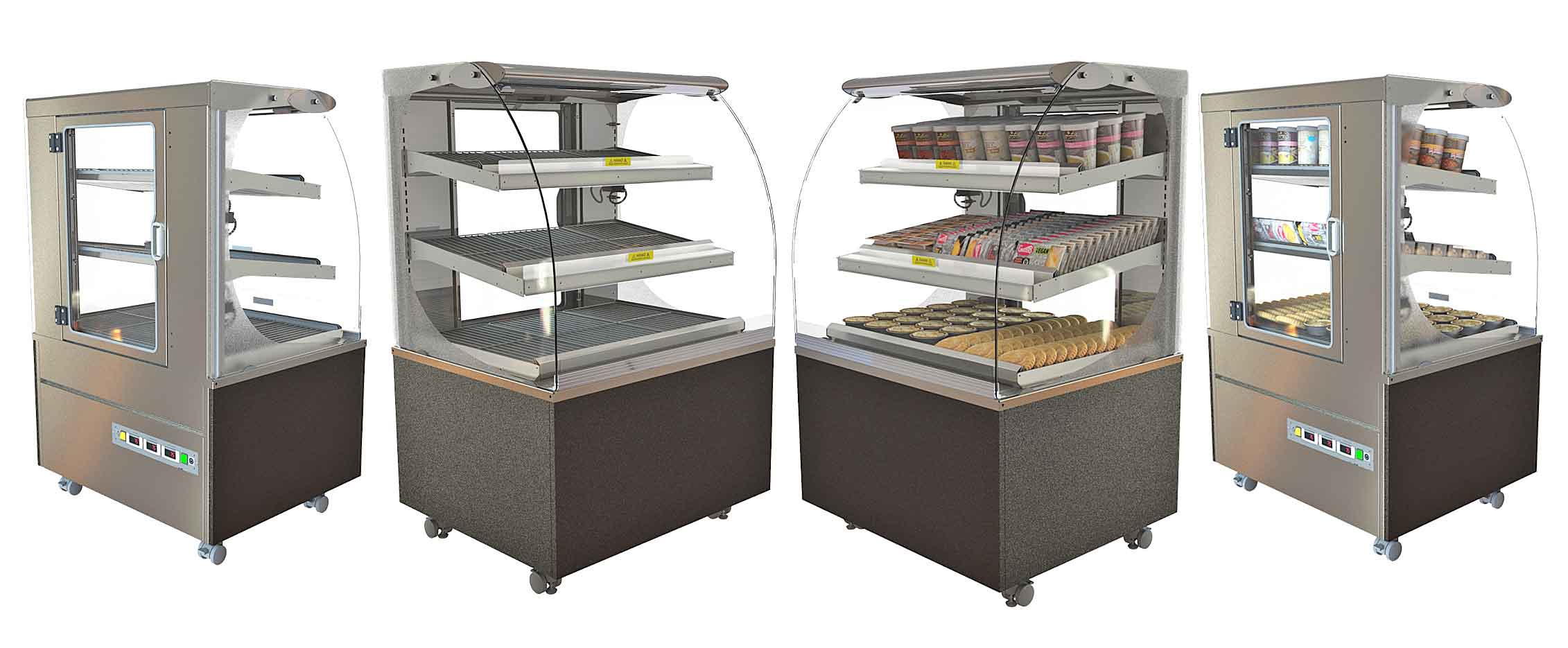

Assisted Service Heated Patisserie (Rear Doors).
Features
- Curved full height front & side glass profile is designed to compliment other drop in and patisserie units within the Designline range.
- Freestanding assisted service heated patisserie, closed curved glass front with rear loading to three display levels.
- Ideal for the display of pre-heated cooked food, either unwrapped, packaged or cartoned heated produce.
- Heated by both static heat and convected hot air.
- 3 tier food display levels comprising 2 steel/ coated aluminum shelves and large hot deck display area.
- The temperature of each of 3 heated zones can be independently set, using digital displays mounted in the rear base panel.
- Product temperature maintained at 70 – 75 deg. C in +18 deg. C ambient.
- Stainless steel canopy, full glass fronted display and side glass for assisted service/ serve over presentation.
- Double glazed, hinged rear door/s for easier restocking access.
- High temperature LED lighting to each display level (4000 Kelvin) – to match chilled/ ambient models.
- 24 hour operation as standard.
- Removable wire steel deck & shelf grid covers for use with packaged & cartoned heated produce display.
- Full height flat front glass is mounted on locking tilting hinge, glass pulls forward for easier cleaning.
- Black plasticised steel front fascia & side panels.
- 40 mm point of sale ticket strip mount & product stop to each display level.
- Mobile lockable transportation combined castor/ feet.
- Adjustable final positioning/ levelling feet.
- ‘C’ profile safety edge to all exposed edge glass.
Food Types
Assisted Service Heated Patisserie (Rear Doors).
Food Display Types.
Liquid Based Foods (Deck Area): Cartoned soups, cartoned vegetable soups, porridge etc.
Food (Deck And Shelving Area): Packaged or unwrapped pies, pastries, sausage rolls, stews, curry, chilli dishes, grilled sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.
Dimensions
Assisted Service Heated Patisserie (Rear Doors).
Dimensions
|
Model |
PH6AS |
PH9AS |
PH12AS |
|
|
Length (mm) |
600 |
900 |
1200 |
|
|
Depth (mm) |
750 |
750 |
750 |
|
|
Height (mm) |
1405/1415 |
1405/1415 |
1405/1415 |
|
|
Weight (Uncrated) (kg) |
120 |
165 |
216 |
|
|
Power (kW) |
2.04 |
2.85 |
2.89 |
|
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
|
- Controls to ‘operator side’ rear base panel of display.
Options
Assisted Service Heated Patisserie (Rear Doors).
Options
|
Option |
PH6AS |
PH9AS |
PH12AS |
|
|
S/Steel Front Panel (Solid): |
KASF6 |
KASF9 |
KASF12 |
|
|
S/Steel Side Panels: |
KSSP |
KSSP |
KSSP |
|
|
Kickplinth S/Steel (Set) |
PKICK6A |
PKICK9A |
PKICK12A |
|
Downloads
General Layout Drawings.
Designline Assisted Service Heated Patisserie (Rear Doors).
Option: Patisserie S/Steel Kickplinth Set (PKICK)
Spec. Sheet, Fitting Instructions, User Manual, Energy Facts.
Designline Assisted Service Heated Patisserie (Rear Doors).
Features

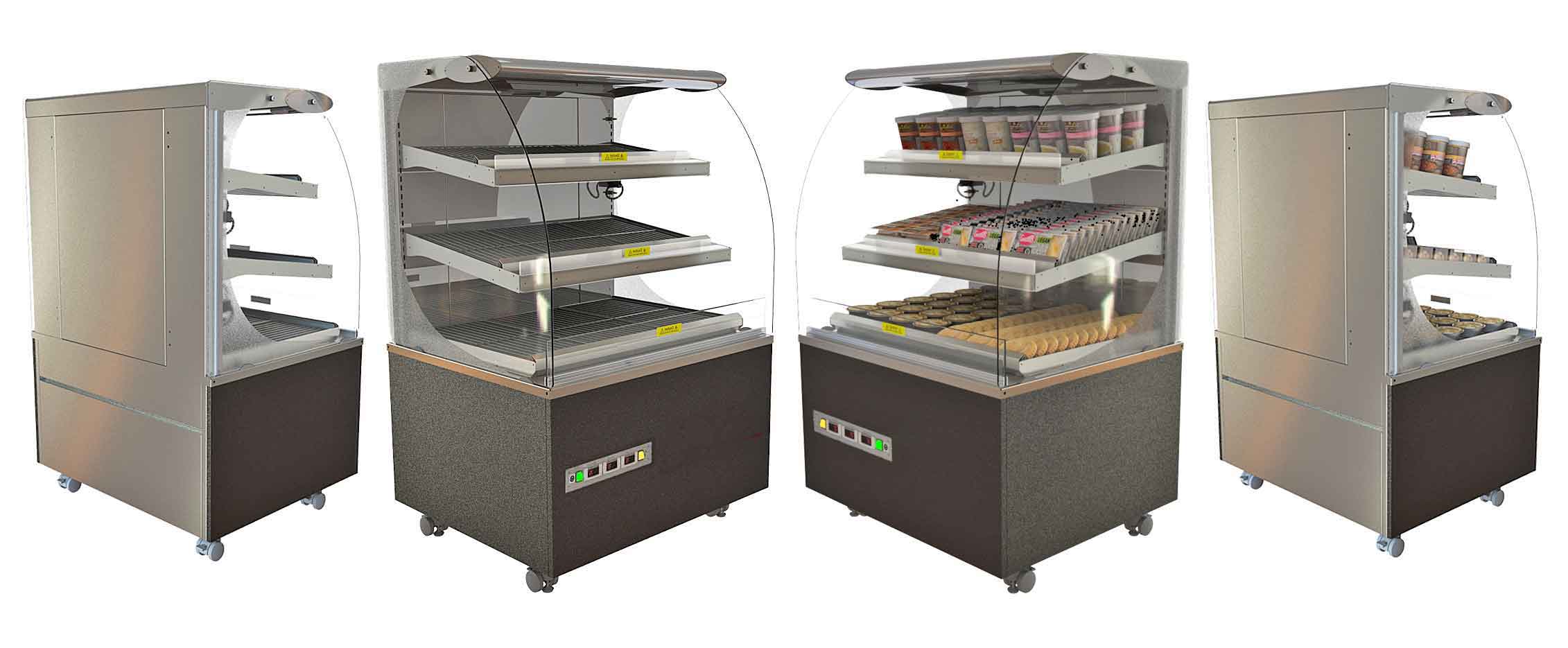

Self Help Heated Patisserie (Fixed Back).
Features
- Curved glass profile is designed to compliment other drop in and patisserie units within the Designline range.
- Freestanding self help heated patisserie, open fronted, with fixed back panel to three display levels.
- Ideal for the display of pre-heated cooked food, either unwrapped, packaged or cartoned heated produce.
- Heated by both static heat and convected hot air.
- 3 tier food display levels comprising 2 steel/ coated aluminum shelves and large hot deck display area.
- The temperature of each of the 3 display tier heated zones can be independently set, using digital displays mounted in the front of the base panel.
- Product temperature maintained at 70 – 75 deg. C in +18 deg. C ambient.
- Stainless steel & glass canopy, open fronted display and side glass for self help/ serve over presentation.
- Front loading restocking access.
- High temperature LED lighting to each display level (4000 Kelvin) – to match chilled/ ambient models.
- 24 hour operation as standard.
- Removable wire steel deck & shelf grid covers for use with packaged & cartoned heated produce display.
- Black plasticised steel front fascia & side panels.
- 40 mm point of sale ticket strip mount & product stop to each display level.
- Mobile lockable transportation combined castor/ feet.
- Adjustable final positioning/ levelling feet.
- ‘C’ profile safety edge to all exposed edge glass.
Food Types
Self Help Heated Patisserie (Fixed Back).
Food Display Types
Liquid Based Foods (Deck Area): Cartoned soups, cartoned vegetable soups, porridge etc.
Food (Deck And Shelving Area): Packaged or unwrapped pies, pastries, sausage rolls, stews, curry, chilli dishes, grilled sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.
Dimensions
Self Help Heated Patisserie (Fixed Back).
Dimensions
|
Model |
PH6FB |
PH9FB |
PH12FB |
|
|
Length (mm) |
600 |
900 |
1200 |
|
|
Depth (mm) |
750 |
750 |
750 |
|
|
Height (mm) |
1405/1415 |
1405/1415 |
1405/1415 |
|
|
Weight (Uncrated) (kg) |
115 |
160 |
210 |
|
|
Power (kW) |
2.04 |
2.85 |
2.89 |
|
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
|
- Controls to ‘customer side’ front base panel of display.
Options
Self Help Heated Patisserie (Fixed Back).
Options
|
Option |
PH6FB |
PH9FB |
PH12FB |
|
|
S/Steel Front Panel (c/w Controls Cut Out): |
KHSF6 |
KHSF9 |
KHSF12 |
|
|
S/Steel Side Panels: |
KSSP |
KSSP |
KSSP |
|
|
Kickplinth S/Steel (Set) |
PKICK6A |
PKICK9A |
PKICK12A |
|
Downloads
General Layout Drawings.
Designline Self Help Heated Patisserie (Fixed Back).
Option: Patisserie S/Steel Kickplinth Set (PKICK)
Spec. Sheet, Fitting Instructions, User Manual, Energy Facts.
Designline Self Help Heated Patisserie (Fixed Back).
.
