The Designline range of drop in patisseries are a visual companion to CED’s classic elliptical Designline drop in display range, they are available in both self help and assisted service. Designline patisseries maintain the elliptical shape of the original drop in displays, but with larger display area and improved merchandising space, within a minimal footprint.

Visual

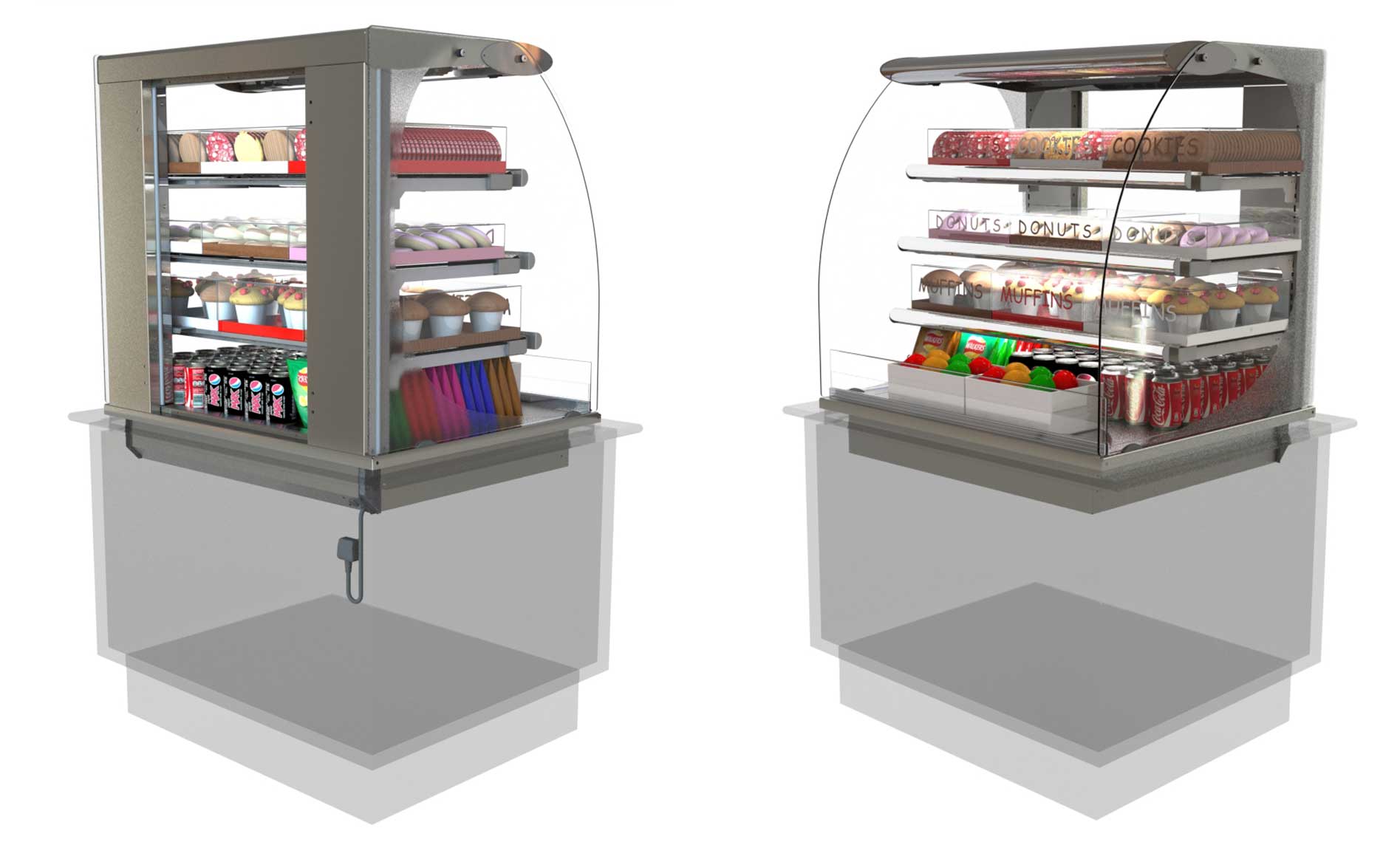

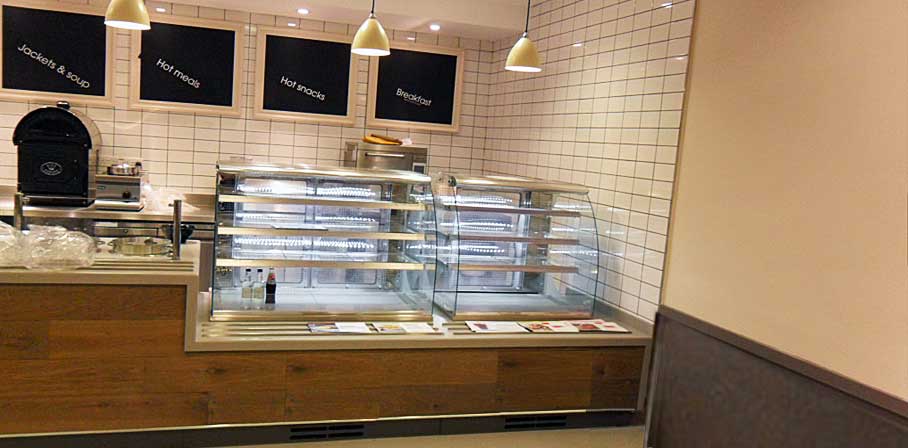

Self Help (Drop In) Ambient Patisserie (Open Rear)
Visual



Features

Self Help (Drop In) Ambient Patisserie (Open Rear)
Features.

  • Self help drop in ambient patisserie with storage deck & 3 tier glass shelving – open rear.
  • Curved glass profile is designed to compliment other units within the range.
  • Ideal for the display of wrapped morning goods, ambient produce and drinks.
  • Available in 600, 900 & 1200mm (w) x 750mm(d) for self help application.
  • Superstructure in bright/ satin steel profile & toughened elliptical side glass.
  • 3 tier toughened glass shelving, adjustable in height and angle, for increased product display area.
  • S/steel display deck area.
  • Low energy diffused LED lighting (4000 Kelvin) to each display level.
  • Switched lighting control in canopy head.
  • Open to rear for easier restocking access.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plates for easier cleaning and maintenance.
  • Supplied with 3m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Rear door option available  (KDR6,9,12)
  • Features s/steel surround frame/ worktop & 108mm deep tank.
  • ‘C’ profile safety edge to all exposed edge glass.





Dimensions

Self Help (Drop In) Ambient Patisserie (Open Rear)
Dimensions

Model

PA6D

PA9D

PA12D

Capacity (Litres)

162

247

331

Length (mm)

600

900

1200

Depth (mm)

750

750

750

Height above worktop (mm)

830

830

830

Depth below worktop (mm)

107

107

107

Weight (Uncrated (Kg)

110

150

190

Power (kW)

0.1

0.1

0.1

Electrical Supply

13A 230V

13A 230V

13A 230V

  • Switched lighting control in canopy head.





Options

Self Help (Drop In) Ambient Patisserie (Open Rear)
Options

Option

PA6D

PA9D

PA12D

Rear Door/s.

KDR6

KDR9

KDR12





Food Types

Self Help (Drop In) Ambient Patisserie (Open Rear)
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.

Food (Deck And Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

* Sandwiches, baguettes, rolls, baps & cheese subject to local health regulations re: display times.



Downloads

General Layout Drawings.
Designline Self Help (Drop In) Ambient Patisserie (Open Rear)



Fitting Instructions

Spec. Sheet  & User Manual.
Designline Self Help (Drop In) Ambient Patisserie (Open Rear)




Kubus Ambient

Visual

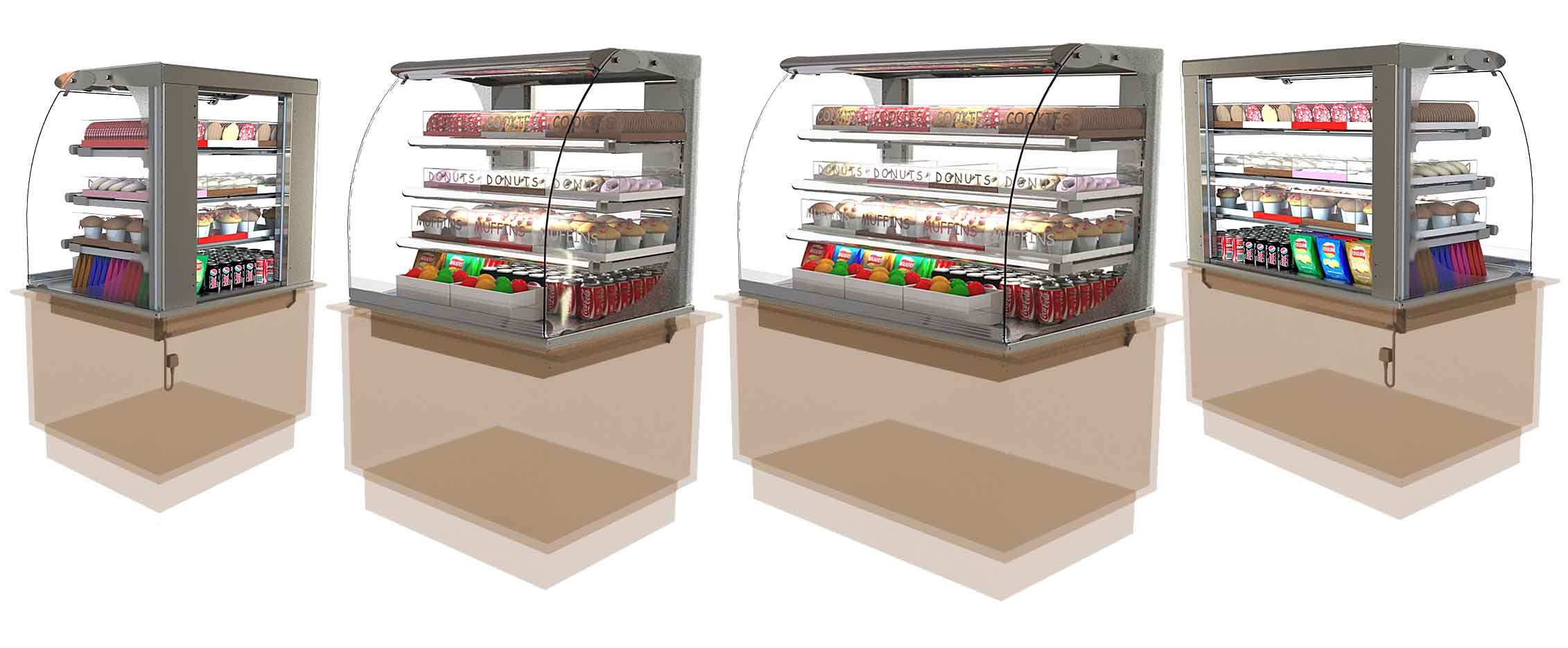

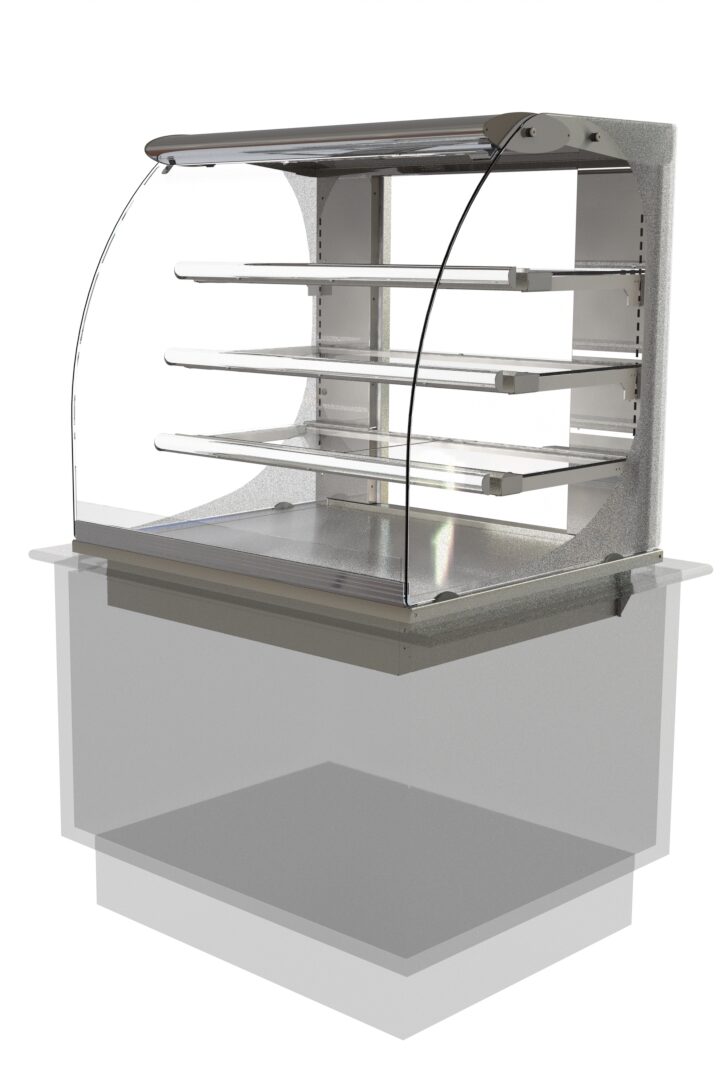

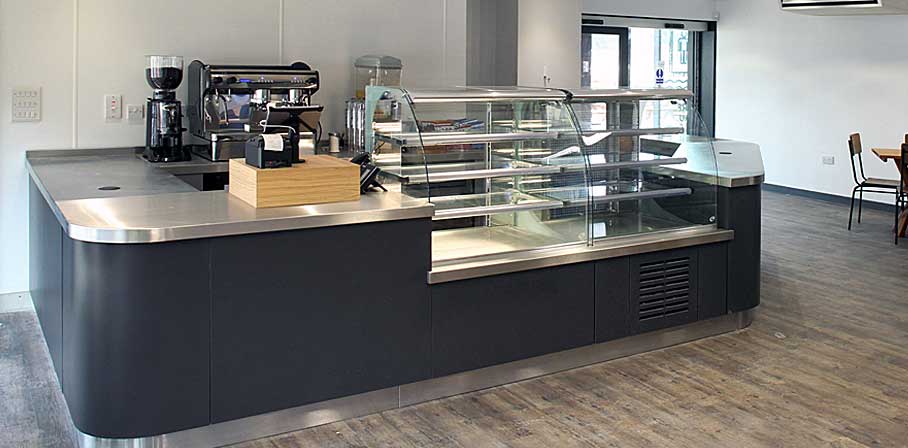

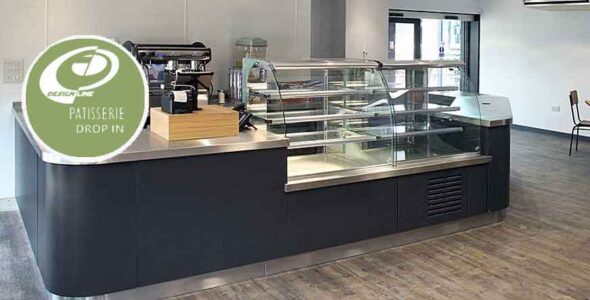

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Visual



Features

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Features.

  • Assisted service drop in ambient patisserie with storage deck & 3 tier glass shelving – open rear.
  • Curved glass profile is designed to compliment other units within the range.
  • Ideal for the display of wrapped or unwrapped morning goods, ambient produce and drinks.
  • Available in 600, 900 & 1200mm (w) x 750mm(d) for self help application.
  • Full height curved front glass, mounted on locking tilt hinge – pulls forward for easier cleaning.
  • Stainless steel canopy, curved front & elliptical side glass, for assisted service/ serve over presentation.
  • 3 tier toughened glass shelving, adjustable in height and angle, for increased product display area.
  • S/steel display deck area.
  • Low energy diffused LED lighting (4000 Kelvin) to each display level.
  • Switched lighting control in canopy head.
  • Open to rear for easier restocking access.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plates for easier cleaning and maintenance.
  • Supplied with 3m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Rear door option available  (KDR6,9,12)
  • Features s/steel surround frame/ worktop & 108mm deep tank.
  • ‘C’ profile safety edge to all exposed edge glass.





Dimensions

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Dimensions.

Model

PA6ASD

PA9ASD

PA12ASD

Capacity (Litres)

162

247

331

Length (mm)

600

900

1200

Depth (mm)

750

750

750

Height above worktop (mm)

830

830

830

Depth below worktop (mm)

107

107

107

Weight (Uncrated) (Kg)

110

150

190

Power (kW)

0.1

0.1

0.1

Electrical Supply

13A 230V

13A 230V

13A 230V

  • Switched lighting control in canopy head.


Options

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Options

Option

PA6ASD

PA9ASD

PA12ASD

Rear Door/s.

KDR6

KDR9

KDR12





Food Types

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.

Food (Deck And Shelving Area):  Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

* Sandwiches, baguettes, rolls, baps & cheese subject to local health regulations re: display times.





Downloads

General Layout Drawings.
Designline Ass. Service (Drop In) Ambient Patisserie (Open Rear)



Fitting Instructions.
Designline Ass. Service (Drop In) Ambient Patisserie (Open Rear)

Spec. Sheet & User Manual.
Designline Ass. Service (Drop In) Ambient Patisserie (Open Rear)




website KUBUS AMBIENT HEADER

Visual

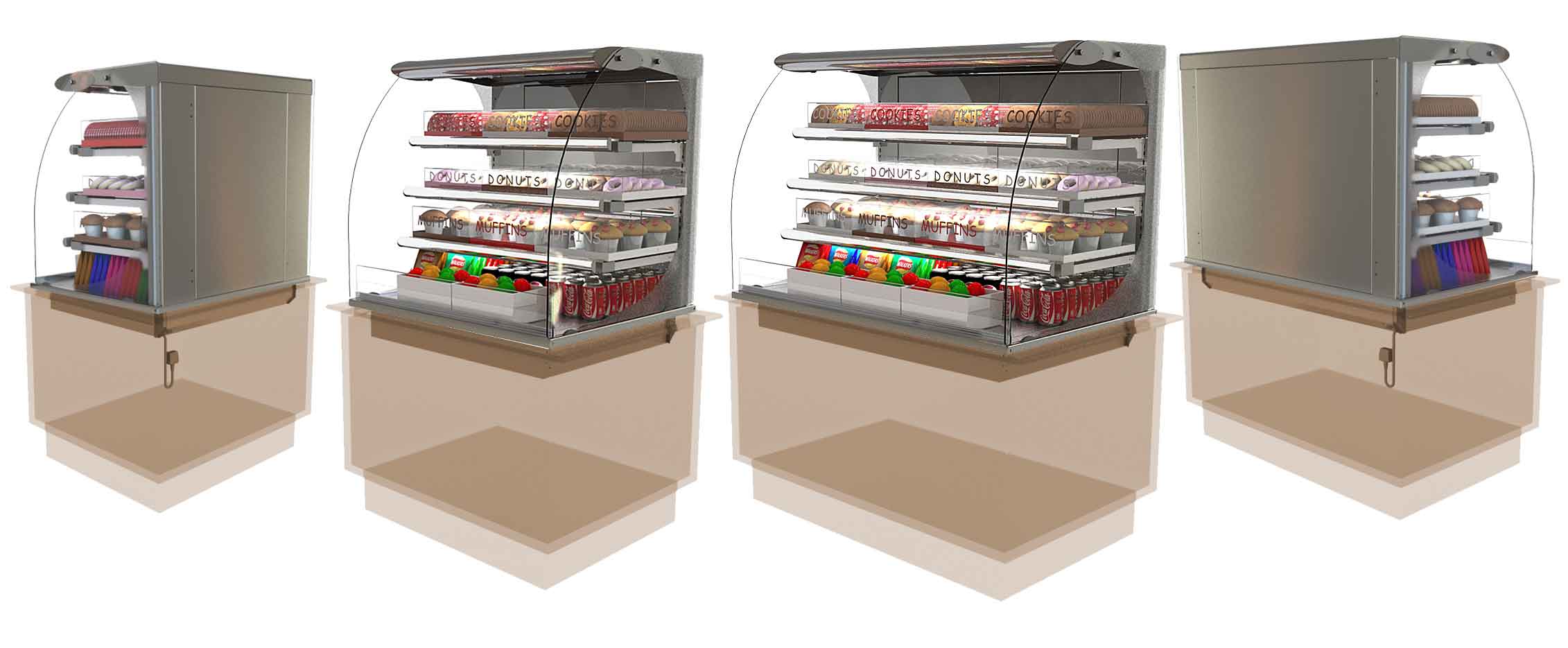

Self Help (Drop In) Ambient Patisserie (Fixed Back)
Visual



Features

Self Help (Drop In) Ambient Patisserie (Fixed Back)
Features.

  • Self help drop in ambient patisserie with storage deck & 3 tier glass shelving – fixed back panel.
  • Wall sited application.
  • Curved profile is designed to compliment other units within the range.
  • Ideal for the display of wrapped morning goods, ambient produce and drinks.
  • Available in 600, 900 & 1200mm (w) x 750mm(d) for self help application.
  • Superstructure in bright/ satin steel profile & toughened elliptical side glass.
  • 3 tier toughened glass shelving, adjustable in height and angle, for increased product display area.
  • S/steel display deck area.
  • Low energy diffused LED lighting (4000 Kelvin) to each display level.
  • Switched lighting control in canopy head.
  • Solid steel rear perforated back panel for wall sited application – finished to match similar chilled patisserie display.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plates for easier cleaning and maintenance.
  • Supplied with 3m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Features s/steel surround frame/ worktop & 108mm deep tank.
  • ‘C’ profile safety edge to all exposed edge glass.





Dimensions

Self Help (Drop In) Ambient Patisserie (Fixed Back)
Dimensions.

Model

PA6FBD

PA9FBD

PA12FBD

Capacity (Litres)

162

247

331

Length (mm)

600

900

1200

Depth (mm)

750

750

750

Height above worktop (mm)

830

830

830

Depth below worktop (mm)

107

107

107

Weight (Uncrated (Kg)

110

150

190

Power (kW)

0.1

0.1

0.1

Fixed Back Panel (Rear)

Included

Included

Included

Electrical Supply

13A 230V

13A 230V

13A 230V

  • Switched lighting control in canopy head.


Options

Self Help (Drop In) Ambient Patisserie (Fixed Back)
Options

Option

PA6FBD

PA9FBD

PA12FBD

Rear Door/s.

KDR6

KDR9

KDR12





Food Types

Self Help (Drop In) Ambient Patisserie (Fixed Back)
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.

Food (Deck And Shelving Area):  Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

* Sandwiches, baguettes, rolls, baps & cheese subject to local health regulations re: display times.





Downloads

General Layout Drawings.
Designline Self Help (Drop In) Ambient Patisserie (Fixed Back)

Fitting Instructions
