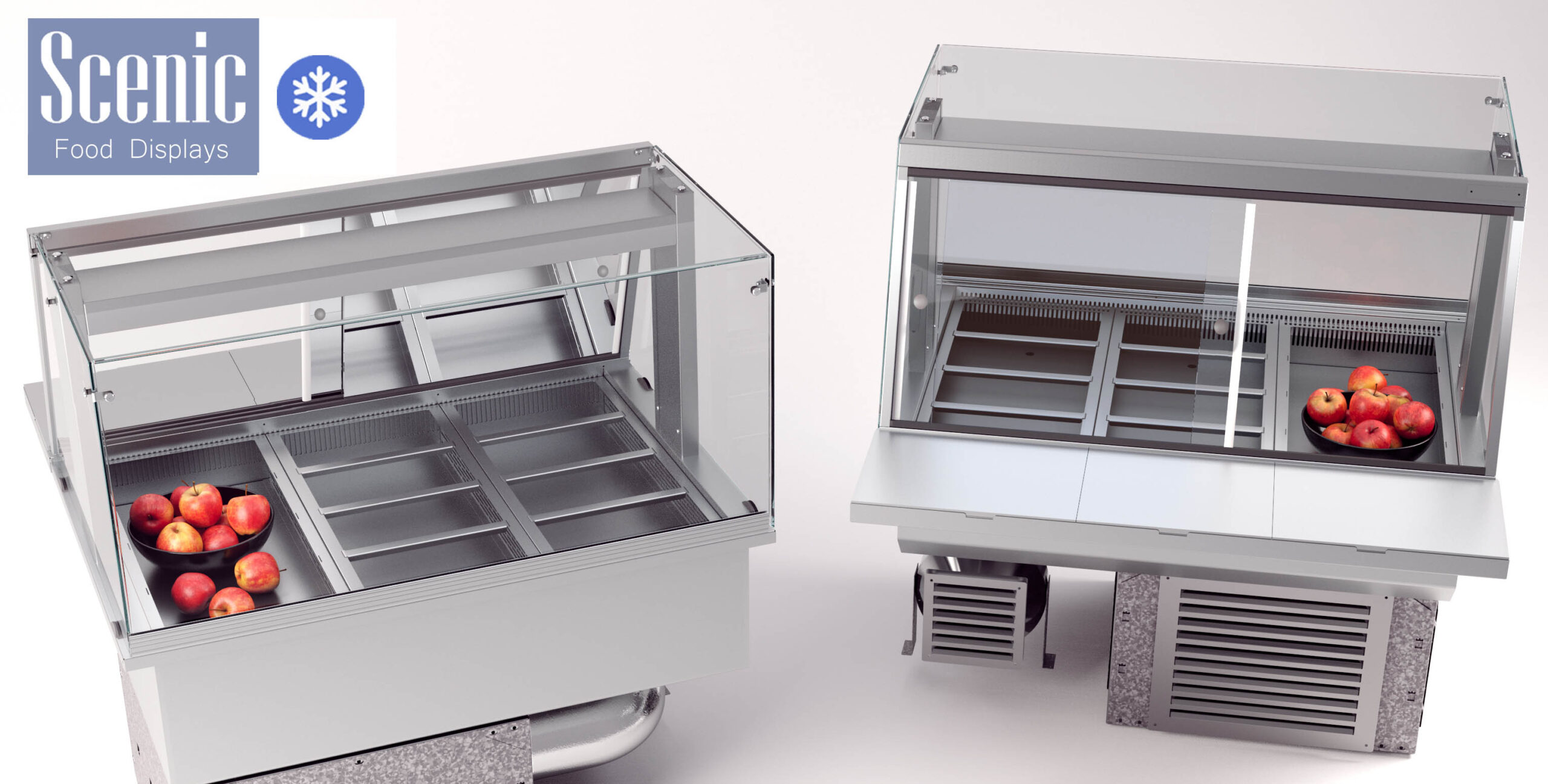

Scenic Cold Deli – (1/1Gn) & (1/1+1/3Gn) Depth

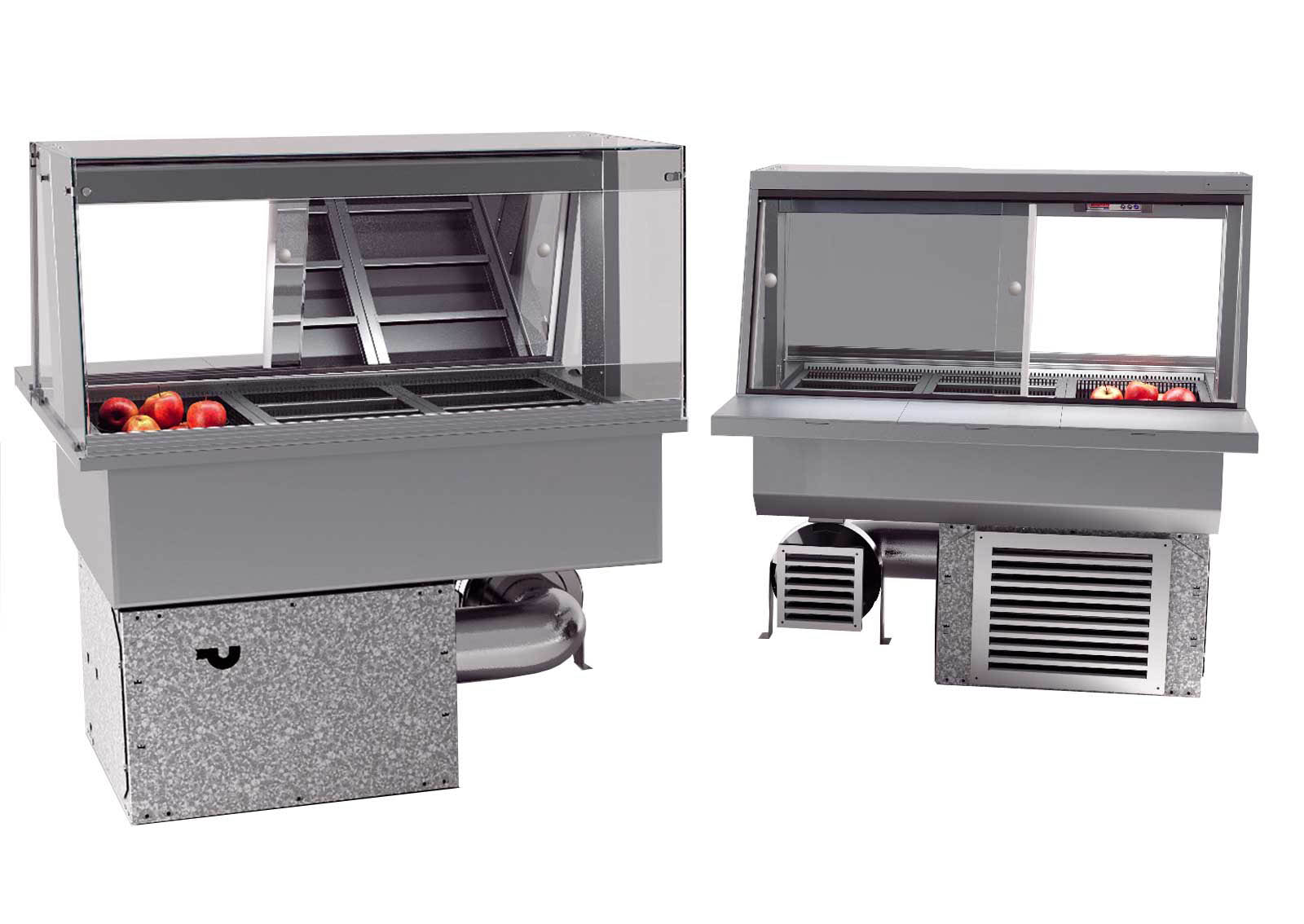

Visual

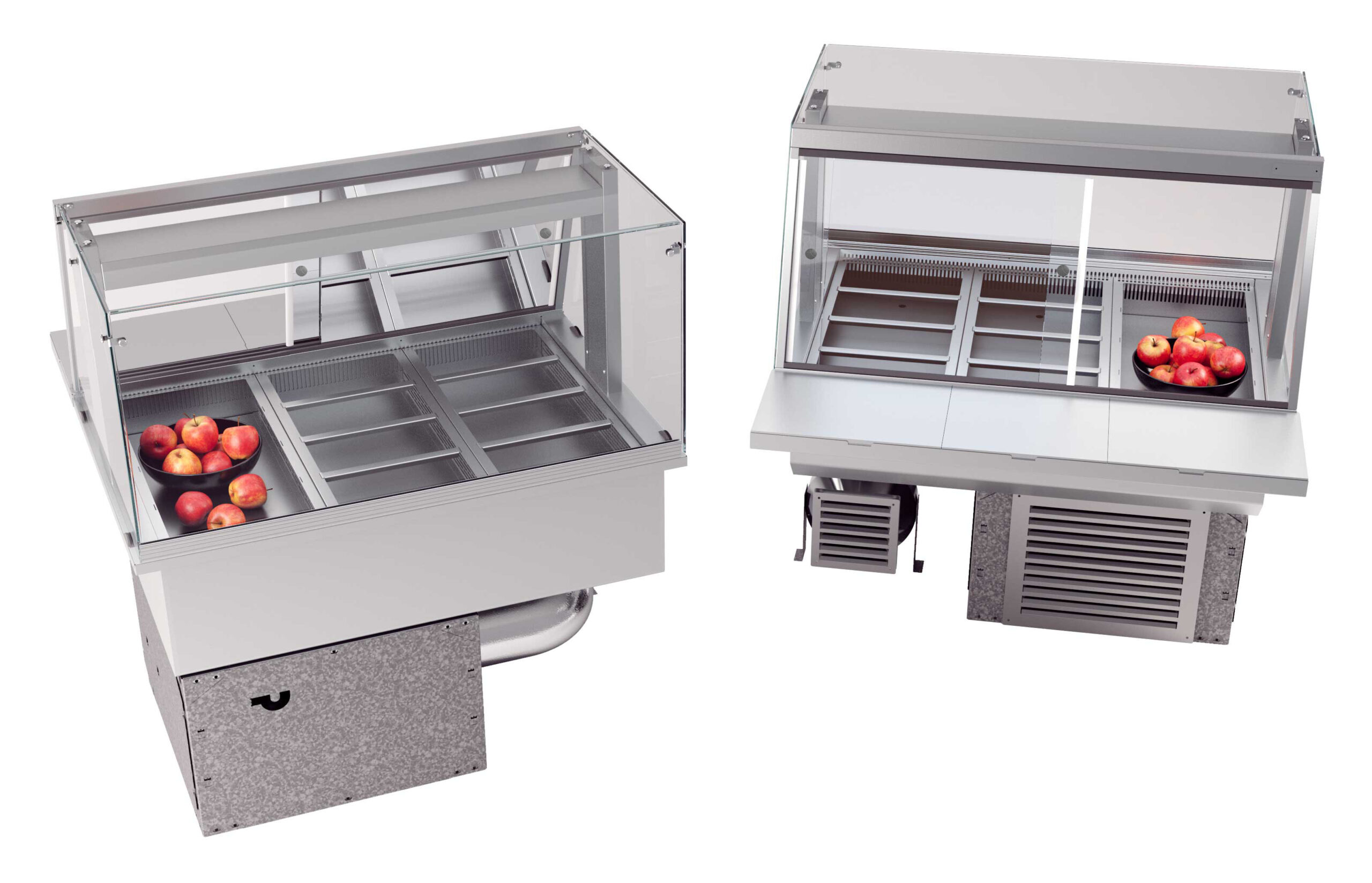

Self Help Cold Deli (1/1Gn) (HT)
Visual

Features

Self Help Cold Deli (1/1Gn) (HT)
Features

• Drop In Self Help Cold Deli – Open Fronted, Mirrored Sliding Rear Doors.
• Available in 2/1, 3/1, 4/1 & 5/1 Gn length.
• 1/1 Gn deep display area.
• Square profile c/w toughened sneeze screen, air retaining screen, top/ side glass.
• Deli style food presentation c/w 1/1 Gn wide pan collars (trivets) & dividers to accept multiple 100 mm (d) Gn containers.
• Rear S/steel prep. shelf.
• O/all Dims: 785(D) x 560(H) above worktop/ 680 (H) below.
• Chilled by energy efficient hydrocarbon refrigeration (HT).
• Refrigeration condensing unit housed in an under-slung self contained cradle.
• Square gantry in satin s/steel c/w diffused LED lighting (4000 kelvin).
• Integral automatic condensate water evaporation tray – eliminates the need for site drainage.
• Rear sliding ‘two way’ mirror doors fitted with edge protection/ durable nylon handles, offer easier restocking access/ visual stock checking.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Eye-level gantry mounted digital temperature display control panel (operator side).
• 24-hour operation as standard. Auto defrost.
• Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Standard refrigeration airflow – Air in to customer side/ air out to operator side.

Options (Factory Fit)

• ‘SAF2’ – Airflow in/ out to operator side. Fan assisted airflow kit.
• ‘SAF1’ – Airflow in/ out to customer side. Fan assisted airflow kit.
• ‘SCRPS2’, ‘SCRPS3’, ‘SCRPS4’, ‘SCRPS5’ – Deli Preparation shelf + 300 mm (D) (set) (polyethylene) cutting boards – 2/1, 3/1, 4/1 or 5/1 Gn.

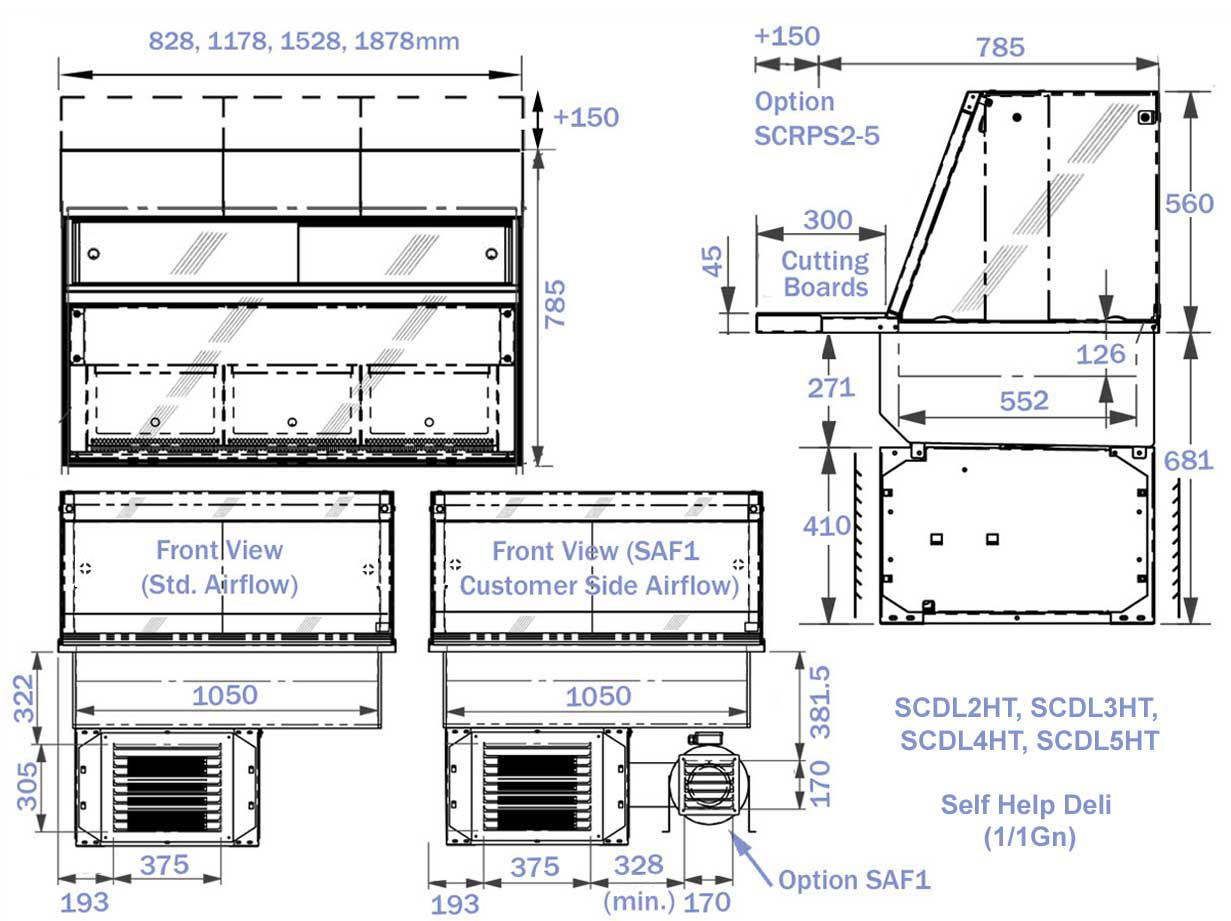

Dimensions

Self Help Cold Deli (1/1Gn) (HT)
Dimensions

Options

Self Help Cold Deli (1/1Gn) (HT)
Options

(Option) Airflow Kit
(SAF2) Air In/ Out Operator Side – (SAF1) Air In/Out Customer Side.

*Adjustable 3 Speed Fan With Mounting Feet (+0.1 kW/ +1.2 Kg)
* Flexible duct (Between Cradle/Fan Inlet) & (2M Duct Attached To Fan Outlet) c/w Ventilated S/Steel Ducting Air Outlet Grille/ Spiggot.
*Factory Fit Only

(Option) Extended Prep. Shelf + (Set) Cutting Boards.

*Extension To Rear Shelf In S/Steel – adds 150 mm to O/all depth.
* (Set) Removable Polyethylene Cutting Boards – White 300 mm (D).
*Factory Fit Only

Food Types

Self Help Cold Deli (1/1Gn) (HT)
Food Display Types

Food (Deck Area): Deli fillings, sandwiches fillings, chopped salads, chopped vegetables, pastas, dressing sauces, fruit in juice & fruit, cheese snacks & pastries.

Downloads

General Layout Drawings.
Self Help Cold Deli (1/1Gn) (HT).

Option: Scenic Deli Airflow In/Out Operator Side (SAF2)

Option: Scenic Deli Airflow In/Out Customer Side (SAF1)

Fitting Instructions.
Self Help Cold Deli (1/1Gn) (HT).

Spec Sheet, User Manual, CE/ UKCA Conformance.
Self Help Cold Deli (1/1Gn) (HT).

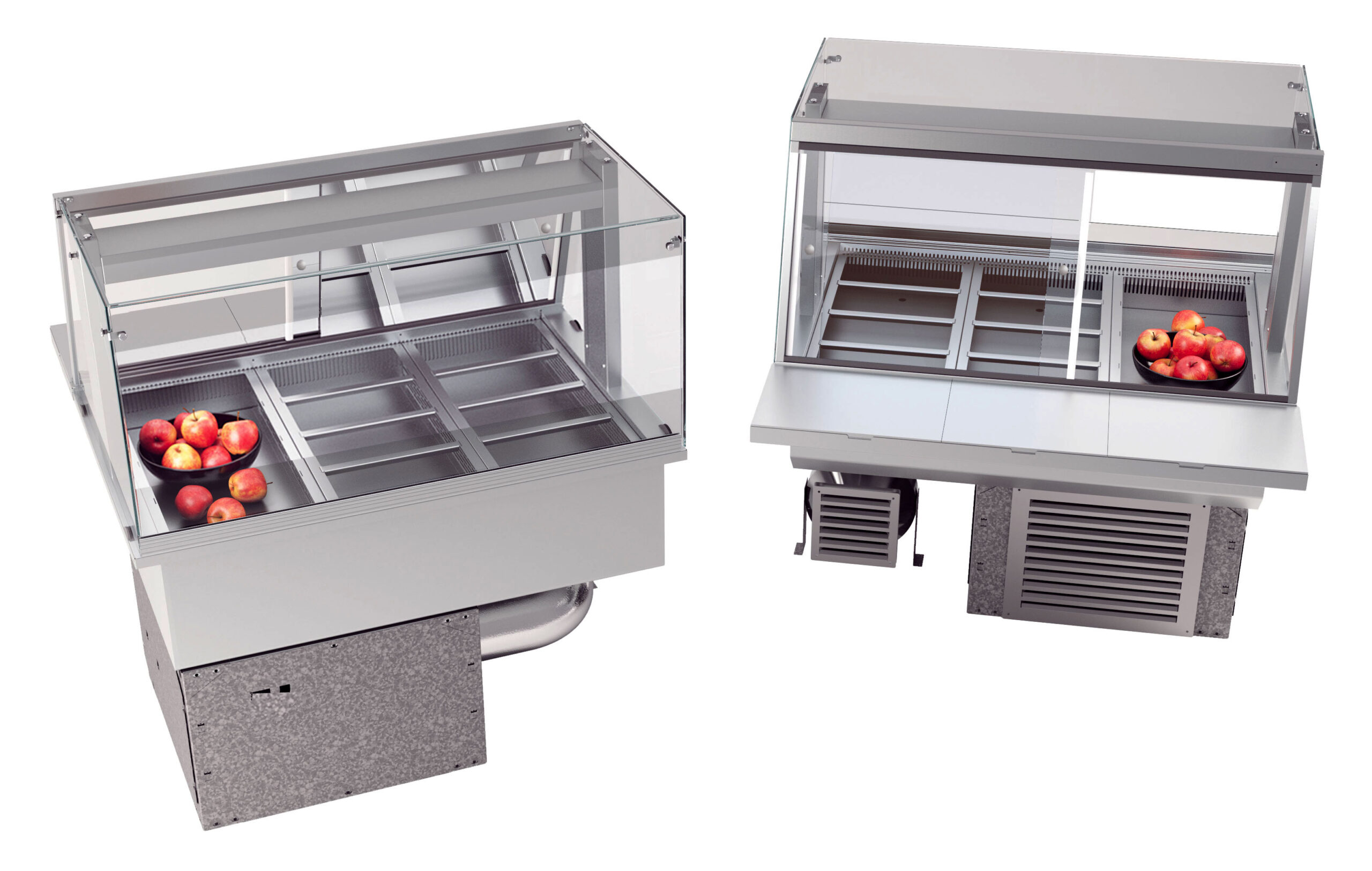

Visual

Self Help Cold Deep Deli (1/1 + 1/3Gn) (HT)
Visual

Features

Self Help Cold Deep Deli (1/1 + 1/3Gn) (HT)
Features

• Drop In Self Help Cold Deep Deli – Open Fronted, Mirrored Sliding Rear Doors.
• Available in 2/1, 3/1, 4/1 & 5/1 Gn length.
• 1/1 + 1/3 Gn deep display area.
• Square profile c/w toughened sneeze screen, air retaining screen, top/ side glass.
• Deli style food presentation c/w 1/1 Gn wide pan collars (trivets) & dividers to accept multiple 100 mm (d) Gn containers.
• Rear S/steel prep. shelf.
• O/all Dims: 960(D) x 560(H) above worktop/ 680 (H) below.
• Chilled by energy efficient hydrocarbon refrigeration (HT).
• Refrigeration condensing unit housed in an under-slung self contained cradle.
• Square gantry in satin s/steel c/w diffused LED lighting (4000 kelvin).
• Integral automatic condensate water evaporation tray – eliminates the need for site drainage.
• Rear sliding ‘two way’ mirror doors fitted with edge protection/ durable nylon handles, offer easier restocking access/ visual stock checking.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Eye-level gantry mounted digital temperature display control panel (operator side).
• 24-hour operation as standard. Auto defrost.
• Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Standard refrigeration airflow – Air in to customer side/ air out to operator side.

Options (Factory Fit)

• ‘SAF2’ – Airflow in/ out to operator side. Fan assisted airflow kit.
• ‘SAF1’ – Airflow in/ out to customer side. Fan assisted airflow kit.
• ‘SCRPS2’, ‘SCRPS3’, ‘SCRPS4’, ‘SCRPS5’ – Deli Preparation shelf + 300 mm (D) (set) (polyethylene) cutting boards – 2/1, 3/1, 4/1 or 5/1 Gn.

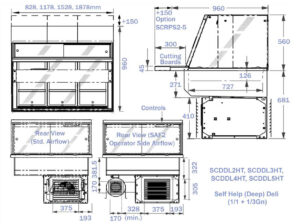

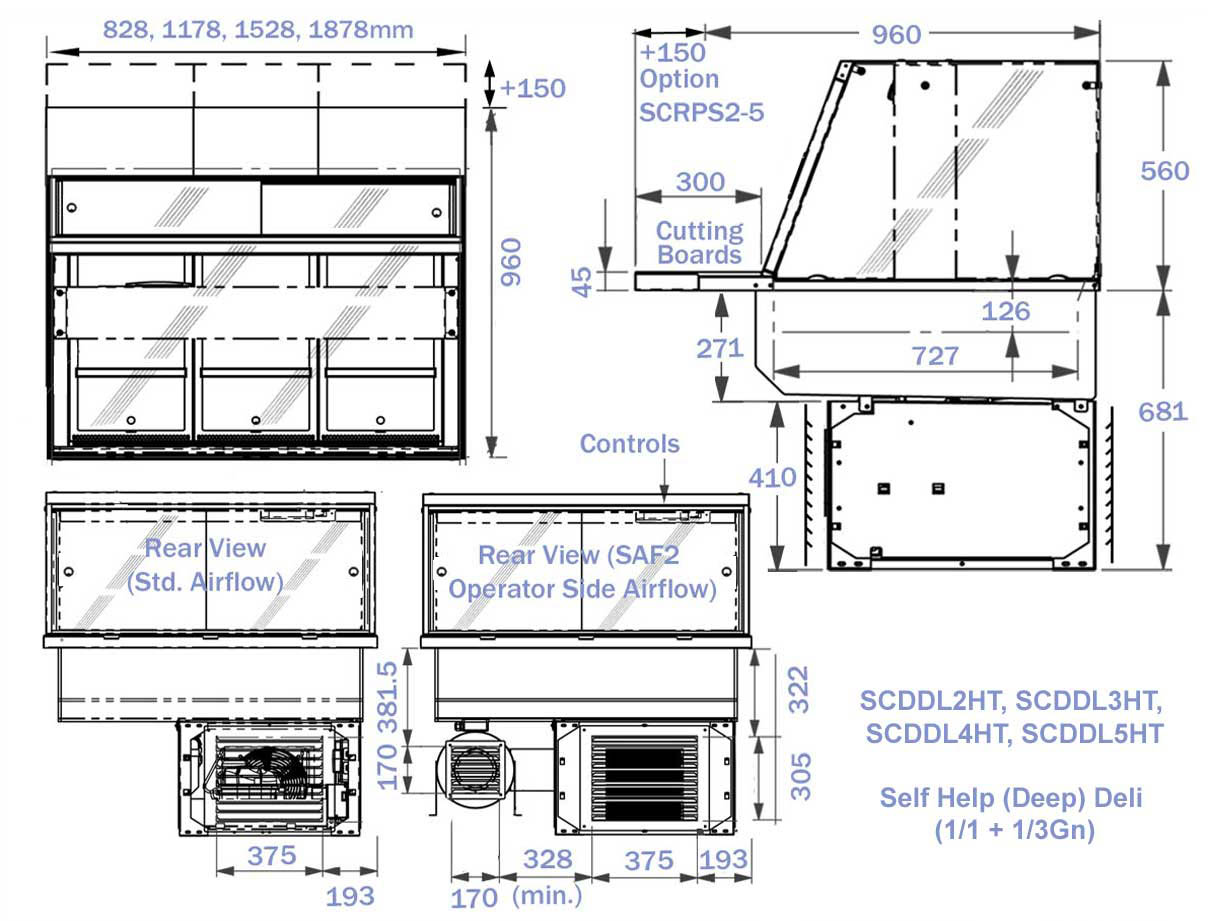

Dimensions

Self Help Cold Deep Deli (1/1 + 1/3Gn) (HT)
Dimensions

Options

Self Help Cold Deep Deli (1/1 + 1/3Gn) (HT)
Options

(Option) Airflow Kit
(SAF2) Air In/ Out Operator Side – (SAF1) Air In/Out Customer Side.

*Adjustable 3 Speed Fan With Mounting Feet (+0.1 kW/ +1.2 Kg)
* Flexible duct (Between Cradle/Fan Inlet) & (2M Duct Attached To Fan Outlet) c/w Ventilated S/Steel Ducting Air Outlet Grille/ Spiggot.
*Factory Fit Only

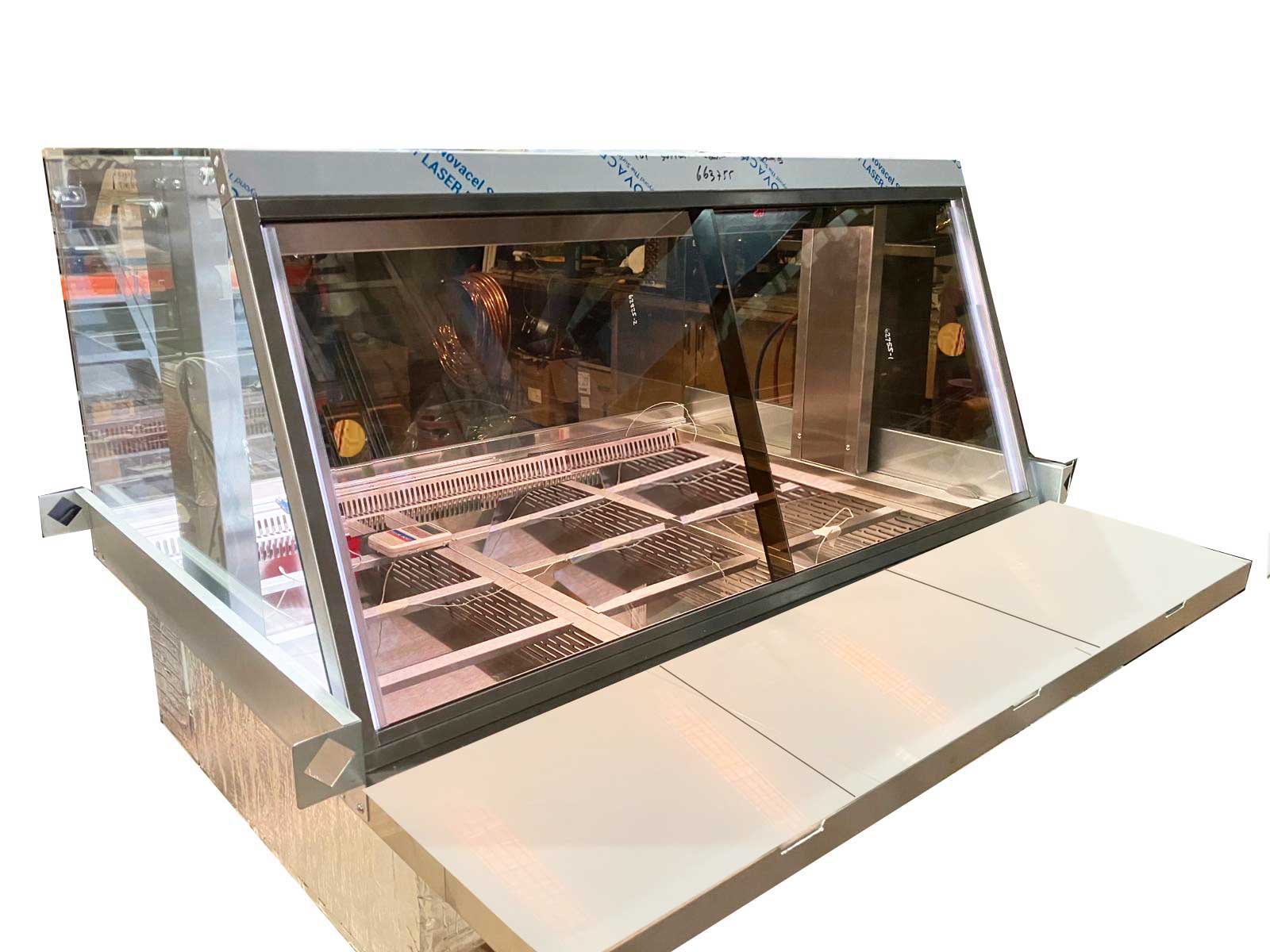

(Option) Extended Prep. Shelf + (Set) Cutting Boards.

*Extension To Rear Shelf In S/Steel – adds 150 mm to O/all depth.
* (Set) Removable Polyethylene Cutting Boards – White 300 mm (D).
*Factory Fit Only

Food Types

Self Help Cold Deep Deli (1/1 + 1/3Gn) (HT)
Food Display Types

Food (Deck Area): Deli fillings, sandwiches fillings, chopped salads, chopped vegetables, pastas, dressing sauces, fruit in juice & fruit, cheese snacks & pastries.

Downloads

General Layout Drawings.
Self Help Cold Deep Deli (1/1 + 1/3Gn) (HT).

Option: Scenic Deli Airflow In/Out Operator Side (SAF2)

Option: Scenic Deli Airflow In/Out Customer Side (SAF1)

Fitting Instructions.
Self Help Cold Deep Deli (1/1 + 1/3Gn) (HT).

Spec Sheet, User Manual, CE/ UKCA Conformance.
Self Help Cold Deep Deli (1/1 + 1/3Gn) (HT).

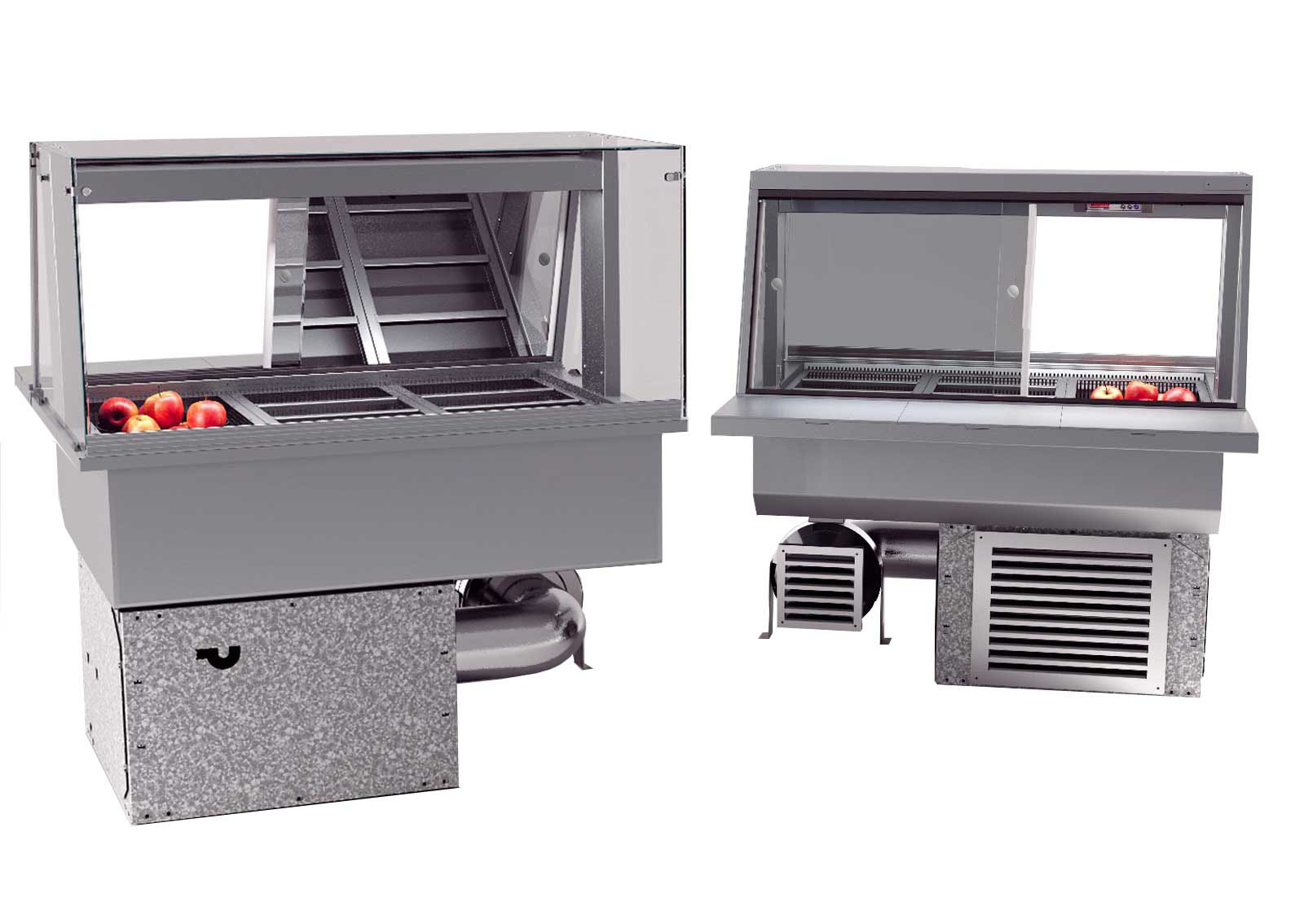

Visual

Assisted Service Cold Deli (1/1Gn) (HT)
Visual

Features

Assisted Service Cold Deli (1/1Gn) (HT)
Features.

• Drop In Assisted Service Cold Deli – Closed Fronted, Mirrored Sliding Rear Doors.
• Available in 2/1, 3/1, 4/1 & 5/1 Gn length.
• 1/1 Gn deep display area.

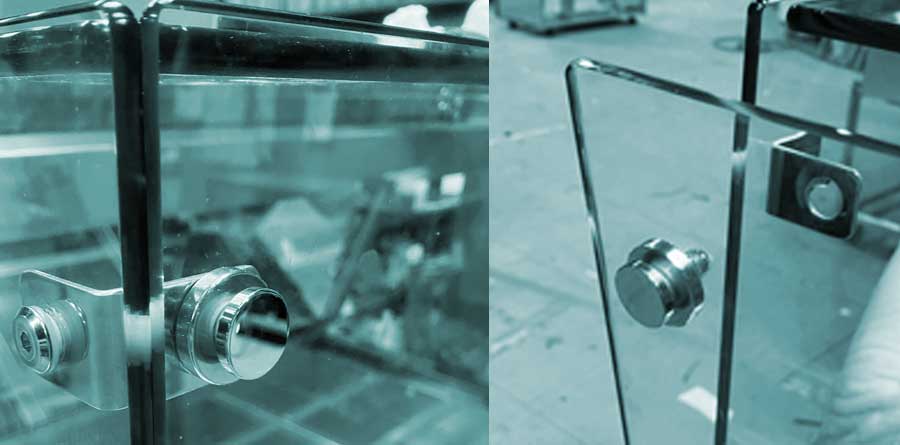

• Square profile c/w toughened hinged full height front screen, top/ side glass.
• Deli style food presentation c/w 1/1 Gn wide pan collars (trivets) & dividers to accept multiple 100 mm (d) Gn containers.
• Rear S/steel prep. shelf.
• O/all Dims: 785(D) x 560(H) above worktop/ 680 (H) below.
• Chilled by energy efficient hydrocarbon refrigeration (HT).
• Refrigeration condensing unit housed in an under-slung self contained cradle.
• Square gantry in satin s/steel c/w diffused LED lighting (4000 kelvin).
• Integral automatic condensate water evaporation tray – eliminates the need for site drainage.
• Rear sliding ‘two way’ mirror doors fitted with edge protection/ durable nylon handles, offer easier restocking access/ visual stock checking.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Eye-level gantry mounted digital temperature display control panel (operator side).
• 24-hour operation as standard. Auto defrost.
• Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Standard refrigeration airflow – Air in to customer side/ air out to operator side.

Options (Factory Fit)

• ‘SAF2’ – Airflow in/ out to operator side. Fan assisted airflow kit.
• ‘SAF1’ – Airflow in/ out to customer side. Fan assisted airflow kit.
• ‘SCRPS2’, ‘SCRPS3’, ‘SCRPS4’, ‘SCRPS5’ – Deli Preparation shelf + 300 mm (D) (set) (polyethylene) cutting boards – 2/1, 3/1, 4/1 or 5/1 Gn.

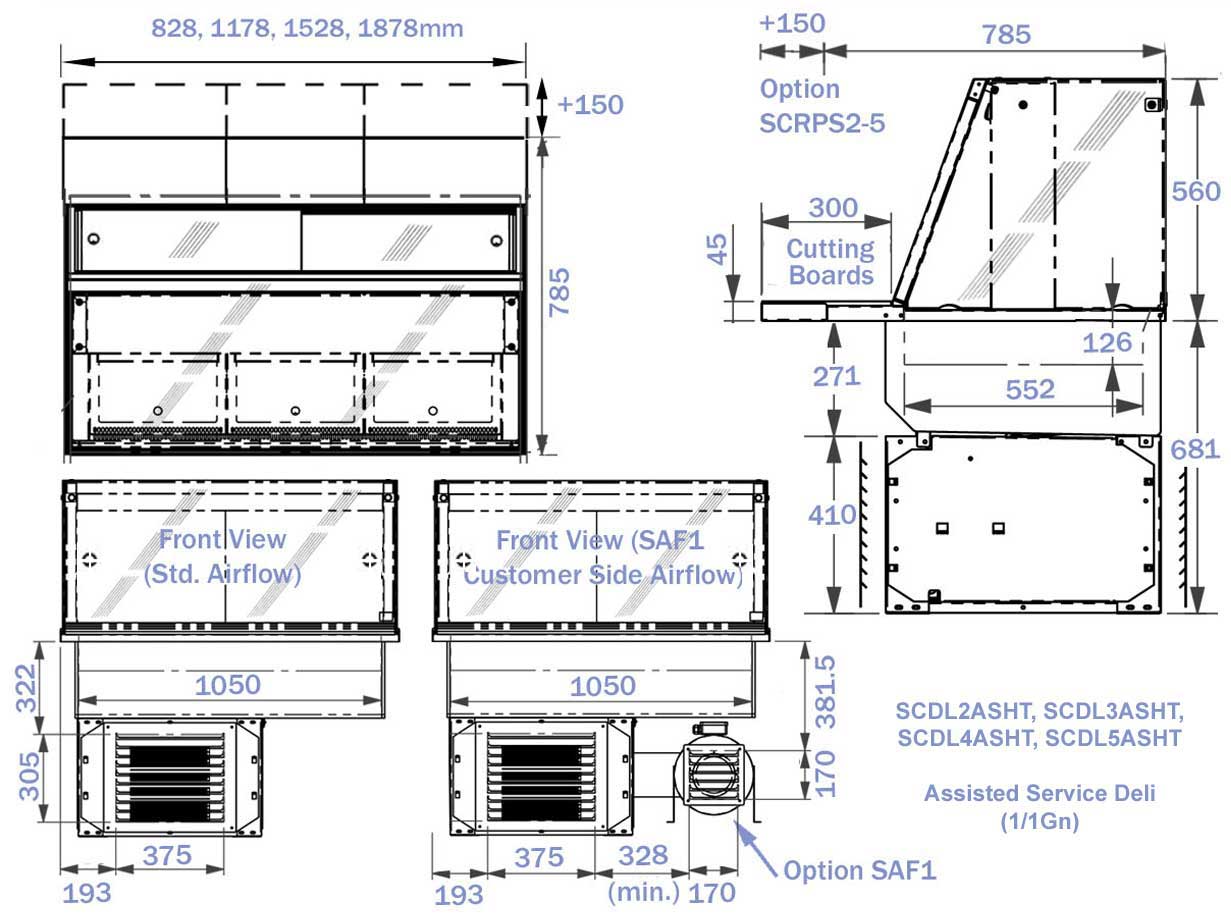

Dimensions

Assisted Service Cold Deli (1/1Gn) (HT)
Dimensions.

Options

Assisted Service Cold Deli (1/1Gn) (HT)
Options

Food Types

Assisted Service Cold Deli (1/1Gn) (HT)
Food Display Types.

Food (Deck Area): Deli fillings, sandwiches fillings, chopped salads, chopped vegetables, pastas, dressing sauces, fruit in juice & fruit, cheese snacks & pastries.

Downloads

General Layout Drawings.
Ass. Serve Cold Deli (1/1Gn) (HT)

Option: Cold Deli Airflow In/Out Operator Side (SAF2)

Option: Cold Deli Airflow In/Out Customer Side (SAF1)

Fitting Instructions.

Spec Sheet, User Manual, CE/ UKCA Conformance.
Ass. Serve Cold Deli (1/1Gn) (HT)

Visual

Assisted Service Cold Deep Deli (1/1 + 1/3Gn) (HT)
Visual

Features

Assisted Service Cold Deep Deli (1/1 + 1/3Gn) (HT)
Features.

• Drop In Assisted Service Cold Deep Deli – Closed Fronted, Mirrored Sliding Rear Doors.
• Available in 2/1, 3/1, 4/1 & 5/1 Gn length.
• 1/1 + 1/3Gn deep display area.
• Square profile c/w toughened hinged full height front screen, top/ side glass.
• Deli style food presentation c/w 1/1 Gn wide pan collars (trivets) & dividers to accept multiple 100 mm (d) Gn containers.
• Rear S/steel prep. shelf.
• O/all Dims: 960(D) x 560(H) above worktop/ 680 (H) below.
• Chilled by energy efficient hydrocarbon refrigeration (HT).
• Refrigeration condensing unit housed in an under-slung self contained cradle.
• Square gantry in satin s/steel c/w diffused LED lighting (4000 kelvin).
• Integral automatic condensate water evaporation tray – eliminates the need for site drainage.
• Rear sliding ‘two way’ mirror doors fitted with edge protection/ durable nylon handles, offer easier restocking access/ visual stock checking.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Eye-level gantry mounted digital temperature display control panel (operator side).
• 24-hour operation as standard. Auto defrost.
• Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Standard refrigeration airflow – Air in to customer side/ air out to operator side.

Options (Factory Fit)

• ‘SAF2’ – Airflow in/ out to operator side. Fan assisted airflow kit.
• ‘SAF1’ – Airflow in/ out to customer side. Fan assisted airflow kit.
• ‘SCRPS2’, ‘SCRPS3’, ‘SCRPS4’, ‘SCRPS5’ – Deli Preparation shelf + 300 mm (D) (set) (polyethylene) cutting boards – 2/1, 3/1, 4/1 or 5/1 Gn.

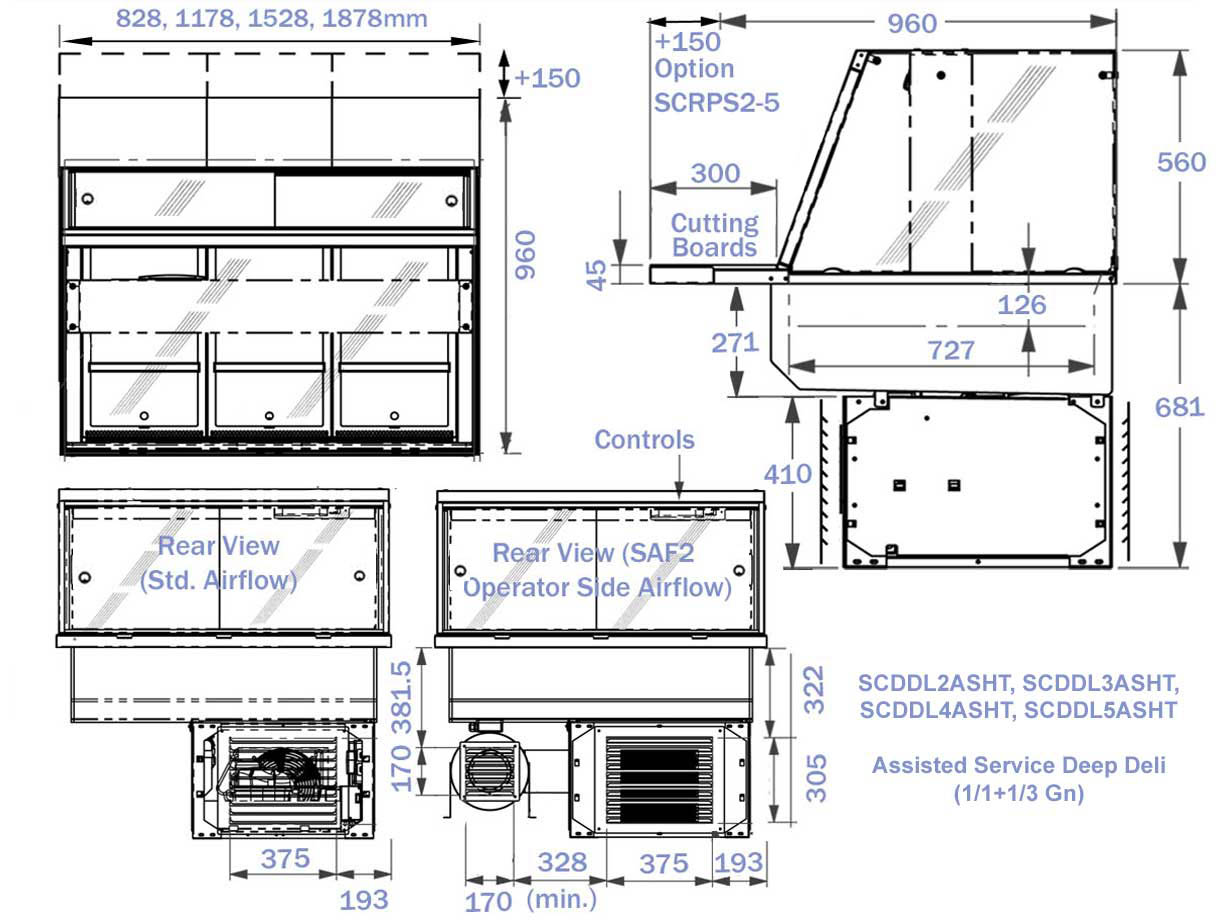

Dimensions

Assisted Service Cold Deep Deli (1/1 + 1/3Gn) (HT)
Dimensions.

Options

Assisted Service Cold Deep Deli (1/1 + 1/3Gn) (HT)
Options

Food Types

Assisted Service Cold Deep Deli (1/1 + 1/3Gn) (HT)
Food Display Types.

Food (Deck Area): Deli fillings, sandwiches fillings, chopped salads, chopped vegetables, pastas, dressing sauces, fruit in juice & fruit, cheese snacks & pastries.

Downloads

General Layout Drawings.
Ass. Serve Cold Deep Deli (1/1 + 1/3Gn) (HT)

Option: Cold Deli Airflow In/Out Operator Side (SAF2)

Option: Cold Deli Airflow In/Out Customer Side (SAF1)

Fitting Instructions.

Spec Sheet, User Manual, CE/ UKCA Conformance.
Ass. Serve Cold Deep Deli (1/1 + 1/3Gn) (HT)
