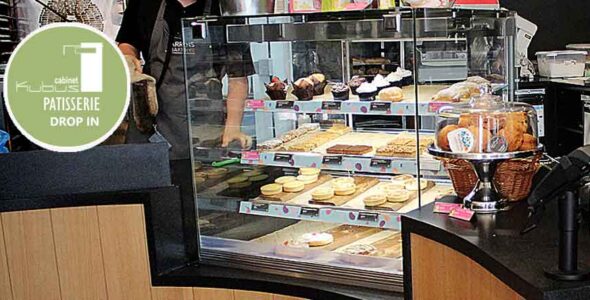

CED’s Kubus drop in patisserie displays are a deco cubist companion to other Kubus freestanding patisseries and the range of drop in displays. They optimise a clean rectilinear design perspective, enhanced by durable steel superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels. The drop in patisseries have larger display areas and improved merchandising space, within a minimal footprint.

Visual

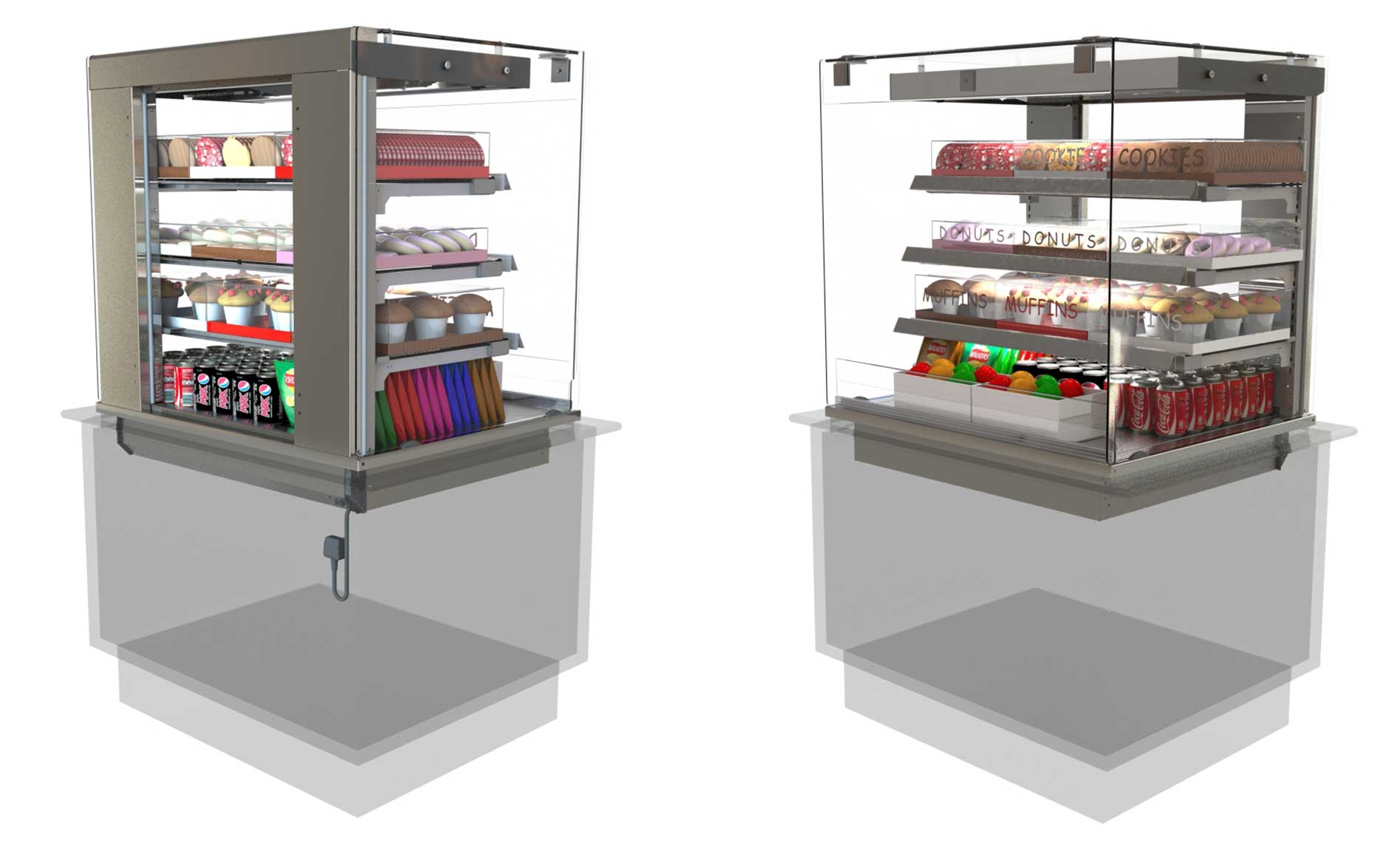

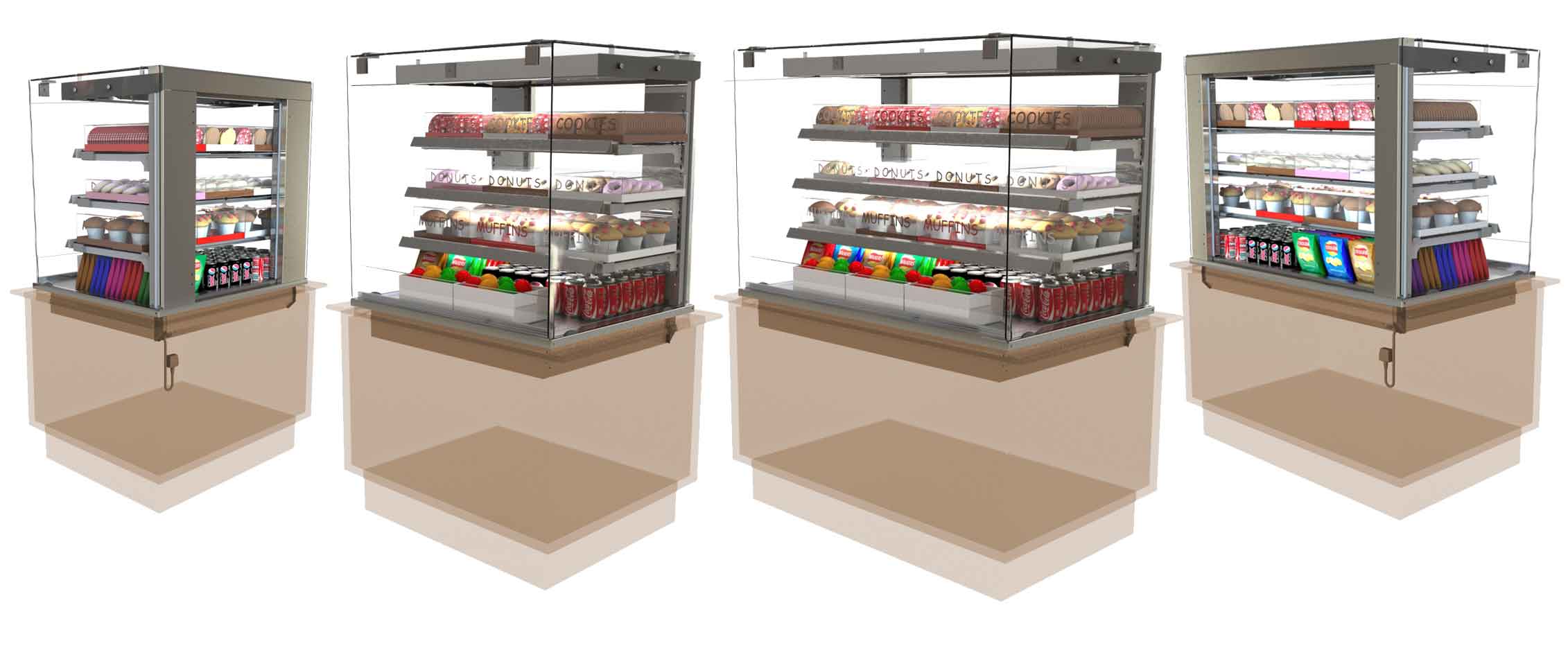

Self Help (Drop In) Ambient Patisserie (Open Rear)
Visual



Features

Self Help (Drop In) Ambient Patisserie (Open Rear)
Features.

  • Self help drop in ambient patisserie with storage deck & 3 tier glass shelving – open rear.
  • Rectilinear flat glass profile is designed to compliment other units within the range.
  • Ideal for the display of wrapped morning goods, ambient produce and drinks.
  • Available in 600, 900 & 1200mm (w) x 750mm(d) for self help application.
  • Superstructure in bright/ satin steel profile & toughened side glass.
  • Canopy head also finished with serve over top glass.
  • 3 tier toughened glass shelving, adjustable in height and angle, for increased product display area.
  • S/steel deck display area.
  • Low energy diffused LED lighting (4000 Kelvin) to each display level.
  • Switched lighting control in canopy head.
  • Open to rear for easier restocking access.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plates for easier cleaning and maintenance.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Rear door option available  (KDR6,9,12)
  • Features s/steel surround frame/ worktop & 108mm deep tank.
  • C’ profile safety edge to all exposed edge glass.


Dimensions

Self Help (Drop In) Ambient Patisserie (Open Rear)
Dimensions

Model

KPA6D

KPA9D

KPA12D

Capacity (Litres)

162

247

331

Length (mm)

600

900

1200

Depth (mm)

750

750

750

Height above worktop (mm)

849

849

849

Depth below worktop (mm)

108

108

108

Weight (Uncrated (Kg)

110

150

190

Power (kW)

0.1

0.1

0.1

Electrical Supply

13A 230V

13A 230V

13A 230V

  • Lighting switch mounted in gantry sofitt.


Options

Self Help (Drop In) Ambient Patisserie (Open Rear)
Options

Option

KPA6D

KPA9D

KPA12D

Rear Door/s.

KDR6

KDR9

KDR12





Food Types

Self Help (Drop In) Ambient Patisserie (Open Rear)
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.

Food (Deck And Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

* Sandwiches, baguettes, rolls, baps & cheese subject to local health regulations re: display times.





Downloads

General Layout Drawings.
Kubus Self Help (Drop In) Ambient Patisserie (Open Rear)



Fitting Instructions
Kubus Self Help (Drop In) Ambient Patisserie (Open Rear)

Spec. Sheet & User Manual.
Kubus Self Help (Drop In) Ambient Patisserie (Open Rear)




Kubus Ambient

Visual

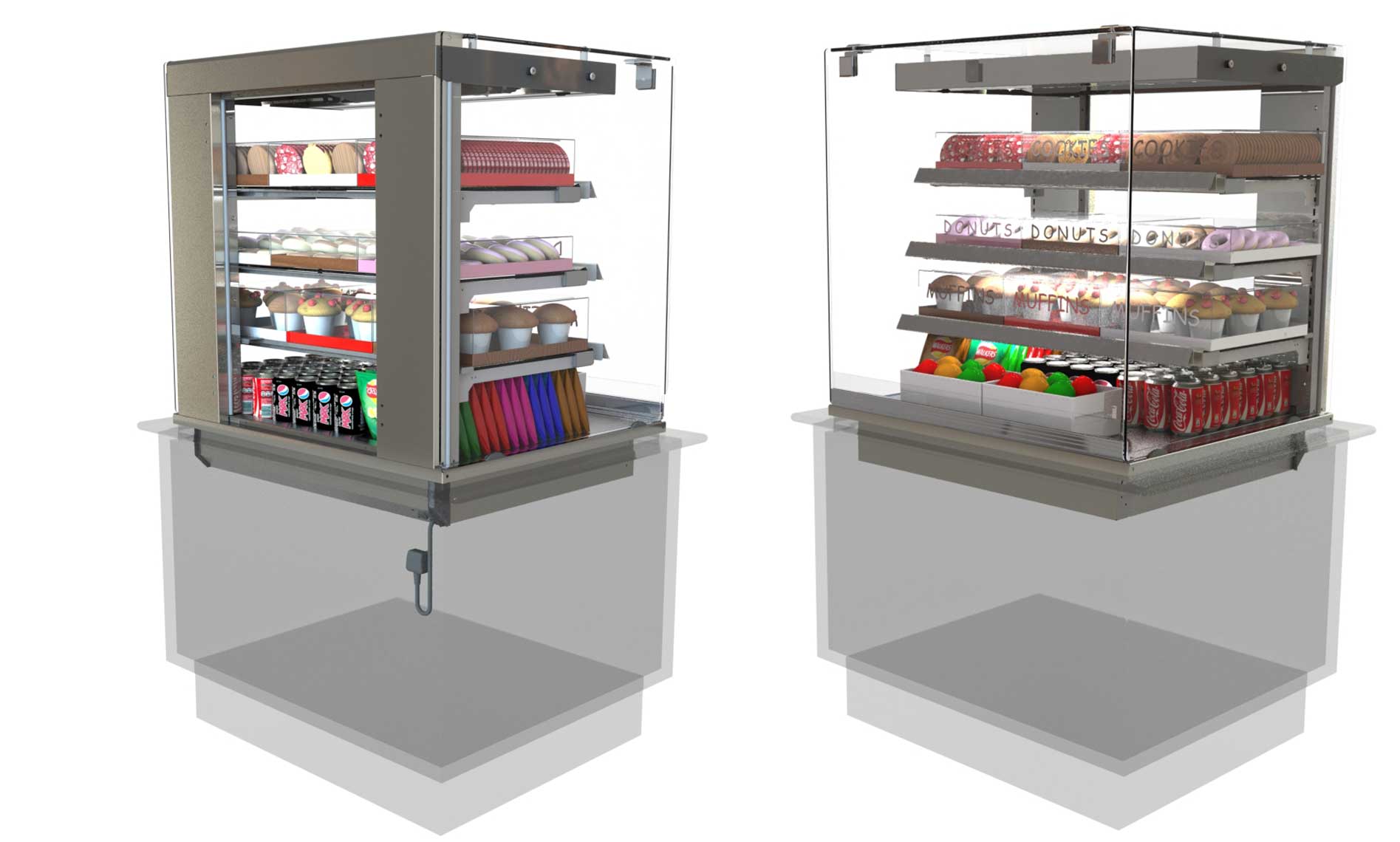

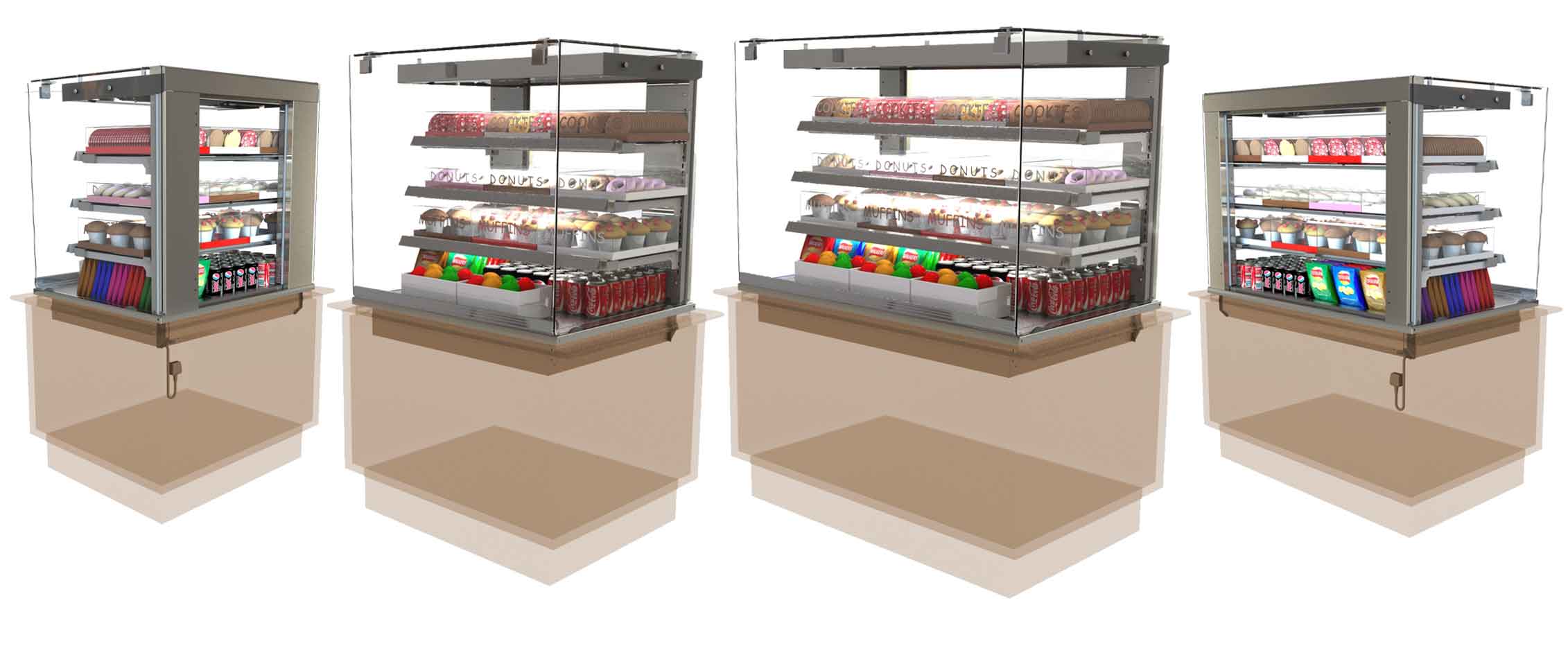

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Visual





Features

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Features.

  • Assisted service drop in ambient patisserie with storage deck & 3 tier glass shelving – open rear.
  • Rectilinear flat glass profile is designed to compliment other units within the range.
  • Ideal for the display of wrapped morning goods, ambient produce and drinks.
  • Available in 600, 900 & 1200mm (w) x 750mm(d) for self help application.
  • Full height front glass, mounted on locking tilt hinge – pulls forward for easier cleaning.
  • Stainless steel canopy, full height front & side glass for assisted service/ serve over presentation.
  • Canopy head also finished with serve over top glass.
  • 3 tier toughened glass shelving, adjustable in height and angle, for increased product display area.
  • S/steel deck display area.
  • Low energy diffused LED lighting (4000 Kelvin) to each display level.
  • Switched lighting control in canopy head.
  • Open to rear for easier restocking access.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plates for easier cleaning and maintenance.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Rear door option available  (KDR6,9,12)
  • Features s/steel surround frame/ worktop & 108mm deep tank.
  • C’ profile safety edge to all exposed edge glass.


Dimensions

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Dimensions.

Model

KPA6ASD

KPA9ASD

KPA12ASD

Capacity (Litres)

162

247

331

Length (mm)

600

900

1200

Depth (mm)

750

750

750

Height above worktop (mm)

849

849

849

Depth below worktop (mm)

108

108

108

Weight (Uncrated (Kg)

110

150

190

Power (kW)

0.1

0.1

0.1

Optional Rear Door

KDR6

KDR9

KDR12

Electrical Supply

13A 230V

13A 230V

13A 230V

  • Lighting switch mounted in gantry sofitt.


Options

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Options

Option

KPA6ASD

KPA9ASD

KPA12ASD

Rear Door/s.

KDR6

KDR9

KDR12





Food Types

Ass. Serve (Drop In) Ambient Patisserie (Open Rear)
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.

Food (Deck And Shelving Area):  Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

* Sandwiches, baguettes, rolls, baps & cheese subject to local health regulations re: display times.



Downloads

General Layout Drawings.
Kubus Ass. Service (Drop In) Ambient Patisserie (Open Rear)



Fitting Instructions
Kubus Ass. Service (Drop In) Ambient Patisserie (Open Rear)

Spec. Sheet & User Manual.
Kubus Ass. Service (Drop In) Ambient Patisserie (Open Rear)




website KUBUS AMBIENT HEADER

Visual

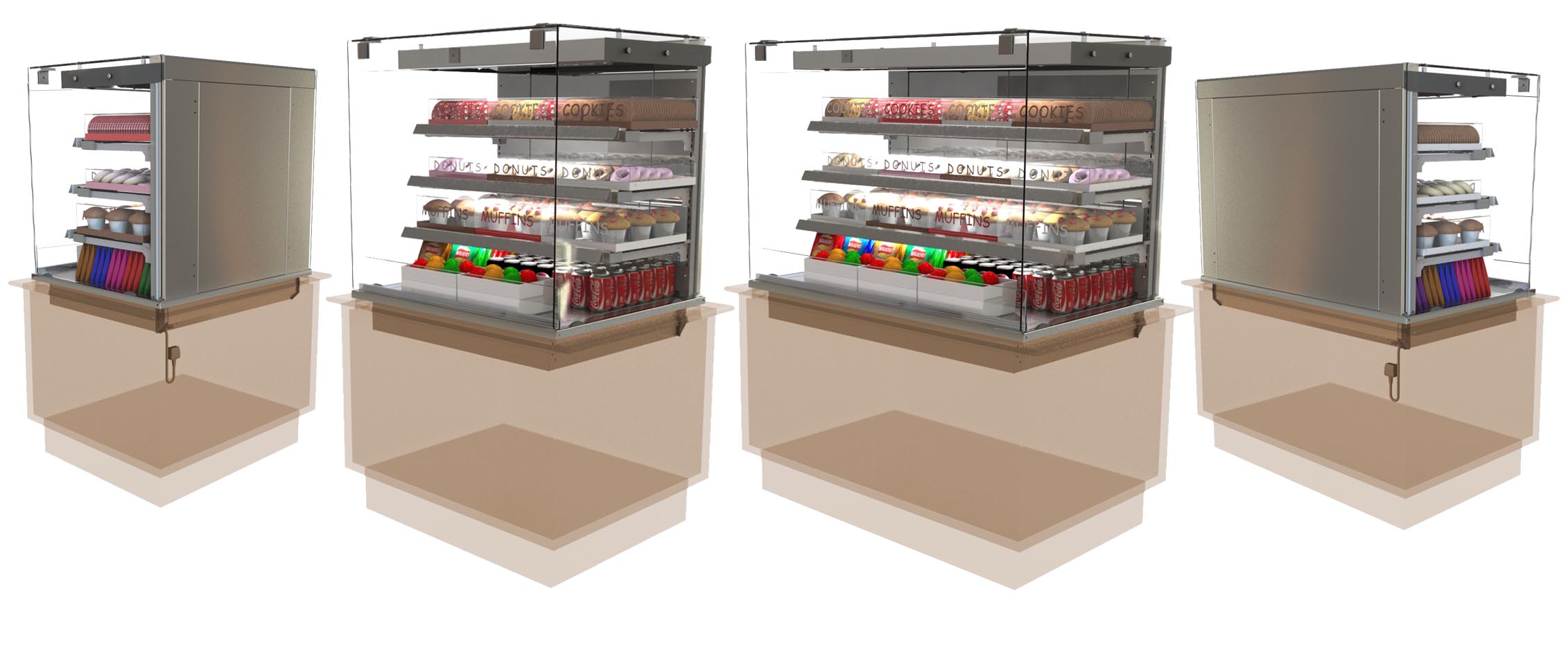

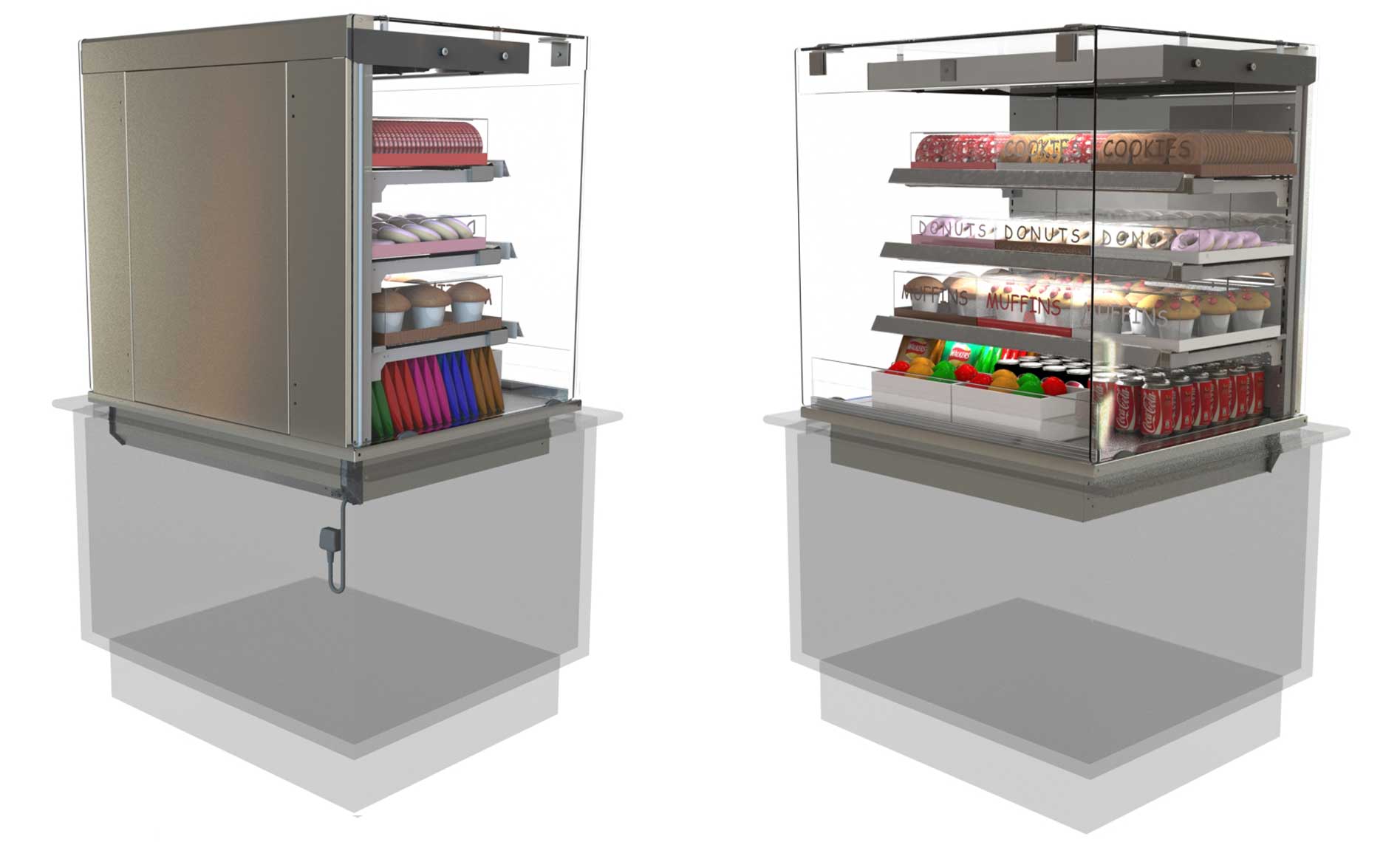

Self Help (Drop In) Ambient Patisserie (Fixed Back)
Visual



Features

Self Help (Drop In) Ambient Patisserie (Fixed Back)
Features.

  • Self help drop in ambient patisserie with storage deck & 3 tier glass shelving – fixed back panel.
  • Wall sited application.
  • Rectilinear flat glass profile is designed to compliment other units within the range.
  • Ideal for the display of wrapped morning goods, ambient produce and drinks.
  • Available in 600, 900 & 1200mm (w) x 750mm(d) for self help application.
  • Superstructure in bright/ satin steel profile & toughened side glass.
  • Canopy head also finished with serve over top glass.
  • 3 tier toughened glass shelving, adjustable in height and angle, for increased product display area.
  • S/steel deck display area.
  • Low energy diffused LED lighting (4000 Kelvin) to each display level.
  • Switched lighting control in canopy head.
  • Solid steel rear perforated back panel for wall sited application – finished to match similar chilled patisserie display.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plates for easier cleaning and maintenance.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Features s/steel surround frame/ worktop & 108mm deep tank.
  • C’ profile safety edge to all exposed edge glass.


Dimensions

Self Help (Drop In) Ambient Patisserie (Fixed Back)
Dimensions.

Model

KPA6FBD

KPA9FBD

KPA12FBD

Capacity (Litres)

162

247

331

Length (mm)

600

900

1200

Depth (mm)

750

750

750

Height above worktop (mm)

849

849

849

Depth below worktop (mm)

108

108

108

Weight (Uncrated (Kg)

110

150

190

Power (kW)

0.1

0.1

0.1

Fixed Back Panel (Rear)

Included

Included

Included

Electrical Supply

13A 230V

13A 230V

13A 230V

  • Lighting switch mounted in gantry sofitt.


Food Types

Self Help (Drop In) Ambient Patisserie (Fixed Back)
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.

Food (Deck And Shelving Area):  Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

* Sandwiches, baguettes, rolls, baps & cheese subject to local health regulations re: display times.



Downloads

General Layout Drawings.
Kubus Self Help (Drop In) Ambient Patisserie (Fixed Back)

Fitting Instructions
Kubus Self Help (Drop In) Ambient Patisserie (Fixed Back)

Spec. Sheet & User Manual.
Kubus Self Help (Drop In) Ambient Patisserie (Fixed Back)
