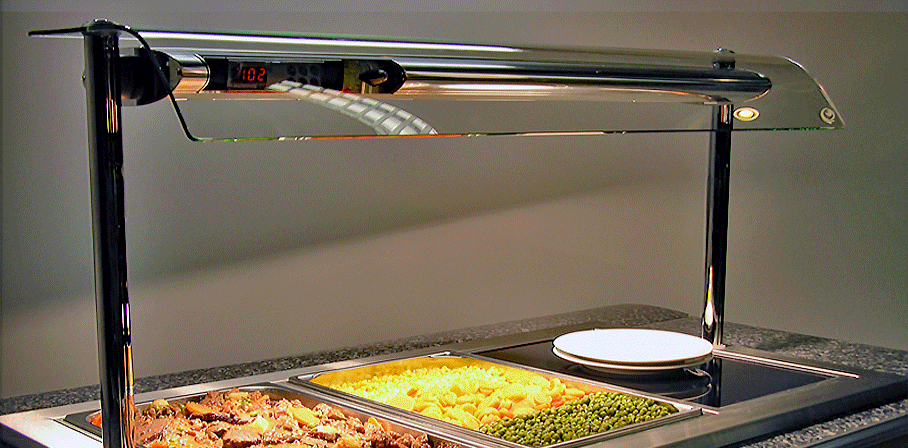

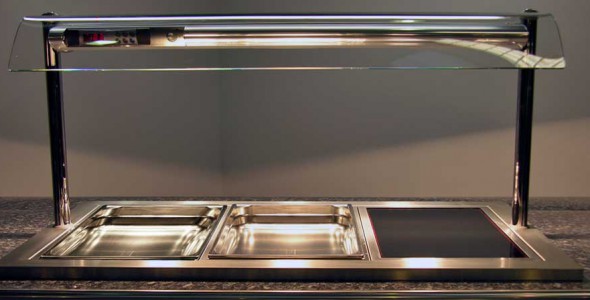

Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

Self Help Wet Well Bain Marie (Manual Fill)

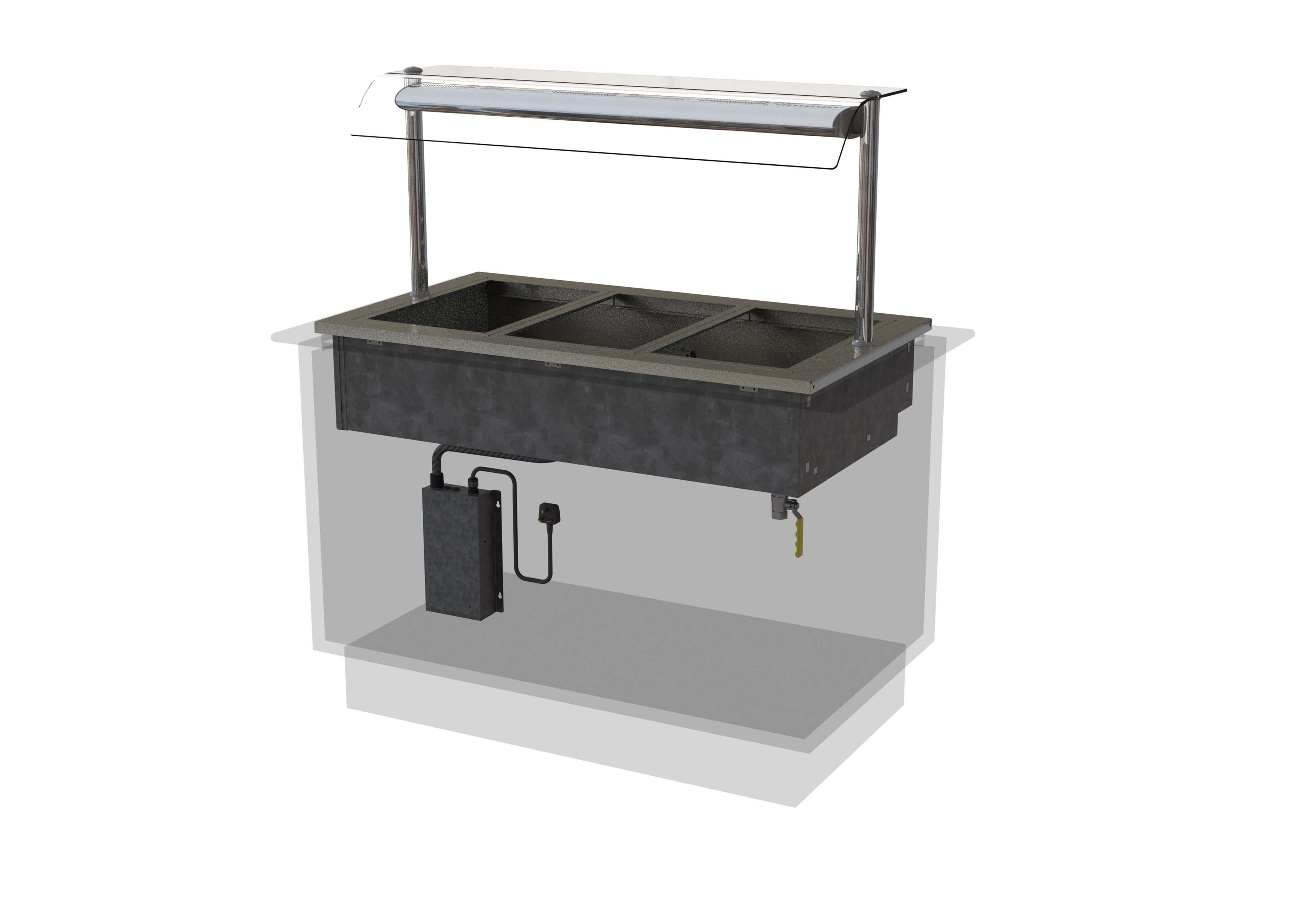

Designline Self Help Wet Well Bain Marie (Manual Fill) (HBMW2-6)





Features

Self Help Wet Well Bain Marie (Manual Fill)
Features

  • Curved glass sneeze guard profile is designed to compliment other units within the range.
  • Manually filled wet well bain marie tank with individual 1/1GN support collars to accept 100/150mm deep s/steel gastronorm containers.
  • Self help application. Can be factory converted to assisted service by addition of full height glass screen and end glass (see model below).
  • Manually fill with  3/4” B.S.P. lever arm waste for site drain connection or manual emptying.
  • ‘Touch safe’ gantry mounted digital temperature display and eye level control panel (operator side).
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from a gantry mounted dimmer switch.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Wet well design reduces food deposits in container bases.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp/ 20 Amp/ 32 Amp supply.
  • Features ‘tamper proof’ temperature control facility.
  • Product illumination/surface heat is provided from an elliptical profile gantry.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.


Food Types

Self Help Wet Well Bain Marie (Manual Fill)
Food Display Types



LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns

Lunch / Dinner: stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables (dry or in liquid), ribs with sauce, chicken portions



SHORT TERM HOLDING (15-20 mins)

Breakfast / Brunch: omelettes, fried/ boiled eggs,  baked potatoes

Lunch / Dinner: battered fish, chips / fries, pizza



Dimensions

Self Help Wet Well Bain Marie (Manual Fill)
Dimensions

Model

HBMW2

HBMW3

HBMW4

HBMW5

HBMW6

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

Height above worktop (mm)

535

535

535

535

535

Depth below worktop (mm)

220

220

220

220

220

Drain connection depth (mm)

+125

+125

+125

+125

+125

Weight (uncrated) (kg)

35

48

58

70

82

Power (kW)

2.1

3.2

4.2

5.3

6.3

Electrical supply

13A 230V

16A 230V

20A 230V

32A 230V

32A 230V



  • This model has controls fitted on operator side of gantry as standard.
    If controls are required on customer side i.e. for wall sited counters, please state ‘controls to customer side’ when ordering.


Downloads

General Layout Drawings
Designline Self Help Wet Well Bain Maries (Manual Fill)





Fitting Instructions & User Manual.
Designline Self Help Wet Well Bain Maries (Manual Fill)




website-HOT-DESIGNLINE-LH-H

Visual

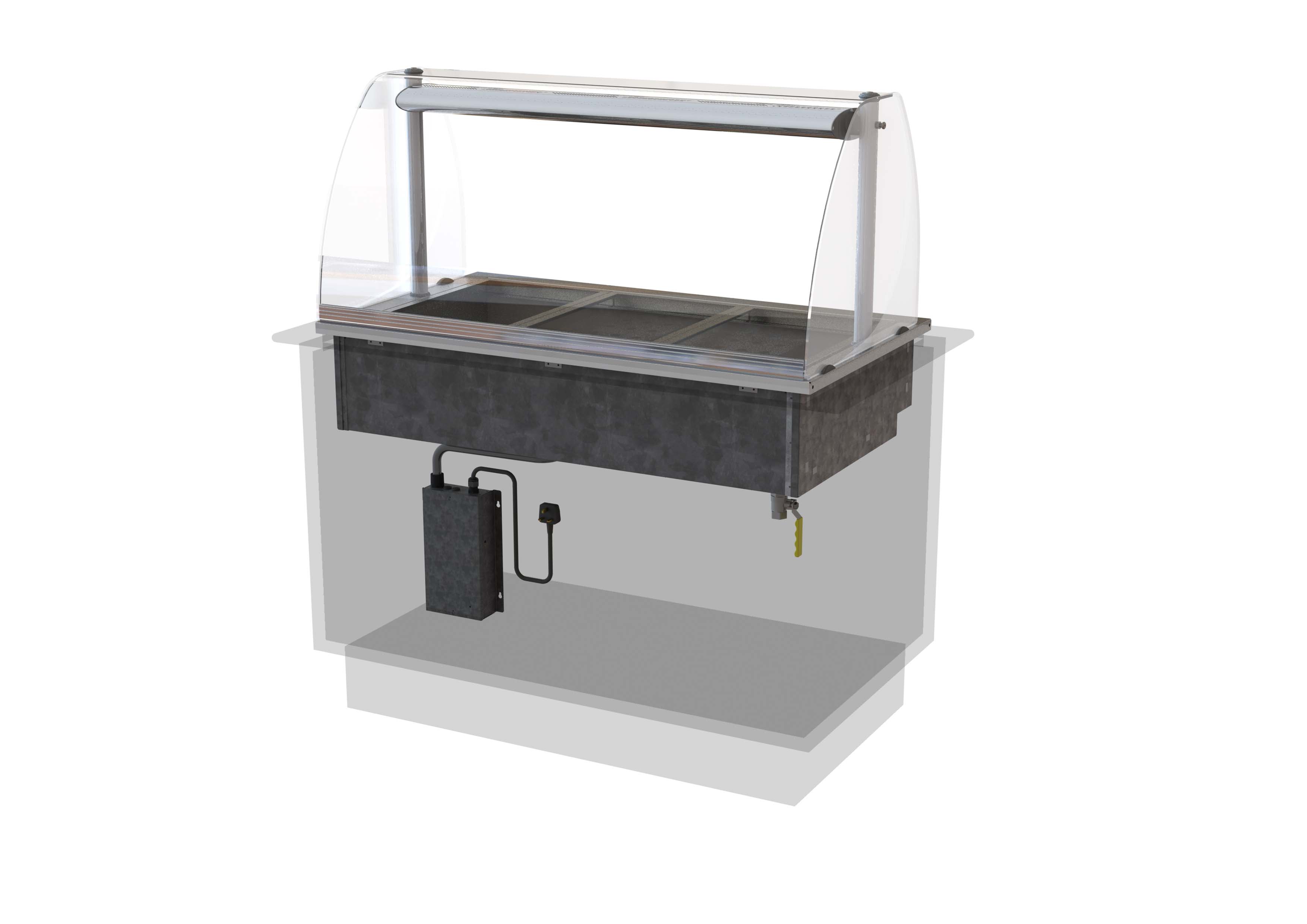

Assisted Service Wet Well Bain Marie (Manual Fill)

Designline Assisted Service Wet Well Bain Marie (Manual Fill) (HBMW2-6+AS2-6)



Features

Assisted Service Wet Well Bain Marie (Manual Fill)
Features

  • Full height curved front and side glass sneeze guard profile is designed to compliment other units within the range.
  • Manually filled wet well bain marie tank with individual 1/1GN support collars to accept 100/150mm deep s/steel gastronorm containers.
  • Assisted service application.
  • Manual fill with  3/4” B.S.P. lever arm waste for site drain connection or manual emptying.
  • ‘Touch safe’ gantry mounted digital temperature display and eye level control panel (operator side).
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from a gantry mounted dimmer switch.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Wet well design reduces food deposits in container bases.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp/ 20 Amp/ 32 Amp supply.
  • Tilting front glass sneeze screen mounted on locking hinge, for ease of cleaning.
  • Features ‘tamper proof’ temperature control facility.
  • Product illumination/surface heat is provided from an elliptical profile gantry.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.





Food Types

Assisted Service Wet Well Bain Marie (Manual Fill)
Food Display Types



LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns

Lunch / Dinner: stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables (dry or in liquid), ribs with sauce, chicken portions



SHORT TERM HOLDING (15-20 mins)

Breakfast / Brunch: omelettes, fried/ boiled eggs,  baked potatoes

Lunch / Dinner: battered fish, chips / fries, pizza



Dimensions

Assisted Service Wet Well Bain Marie (Manual Fill)
Dimensions

model

HBMW2+AS2

HBMW3+AS3

HBMW4+AS4

HBMW5+AS5

HBMW6+AS6

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

Height above worktop (mm)

535

535

535

535

535

Depth below worktop (mm)

220

220

220

220

220

Drain connection depth (mm)

+125

+125

+125

+125

+125

Weight (uncrated) (kg)

46

60

72

86

99

Power (kW)

2.1

3.2

4.2

5.3

6.3

Electrical supply

13A 230V

16A 230V

20A 230V

32A 230V

32A 230V



  • This model has controls fitted on operator side of gantry as standard.


Downloads

General Layout Drawings
Designline Assisted Service Wet Well Bain Maries (Manual Fill)





Fitting Instructions & User Manual.
Designline Assisted Service Wet Well Bain Maries (Manual Fill)




website-HOT-DESIGNLINE-RH-HAAA2---DLINE-WET-WELL-B-MARIE
