CED’s ‘Money Maker’ range of free standing chilled high capacity merchandisers, are the environmentally friendly answer to volume refrigerated grab n’ go retail sales.

Gently chilled by hydrocarbon (HT) refrigerant, these self help units are available in a choice of 5 standard widths, 2 depths & fitted with either 3 or 4 adjustable steel shelves. Internal display space is maximized & traditional bottle well storage is provided on a deck below the display tiers. A stainless steel interior with bright polished back and inner side panels offer a truly inviting merchandising space, where food display is enhanced by horizontal & vertical diffused LED lighting (4000 k).

Night Blind Models. Each model is supplied with an energy saving retractable insulated night blind, 24 hour operational use, forced electric defrost, solid insulated steel end panels and integral evaporation. Each display tier also features a 40 mm ticket strip.

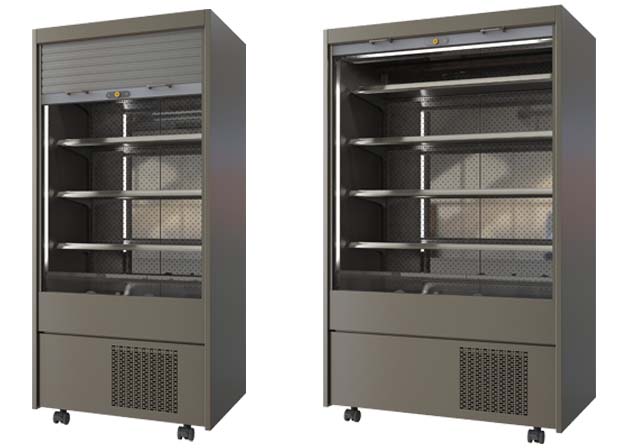

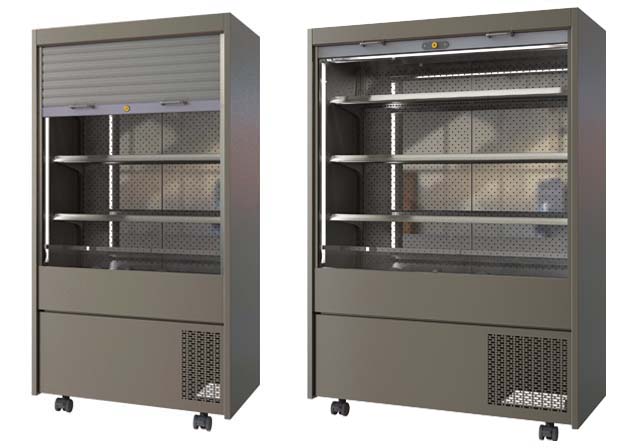

Lockable Roller Shutter Models. The Money Maker range is also available in both depths, as a lockable roller shutter version, in all sizes. The shutter system comprises an insulated aluminum overhead shuttering in matching silver, with secure twin locking suited keys. Whether standard or fitted with roller shutter, the unit height remains the same.

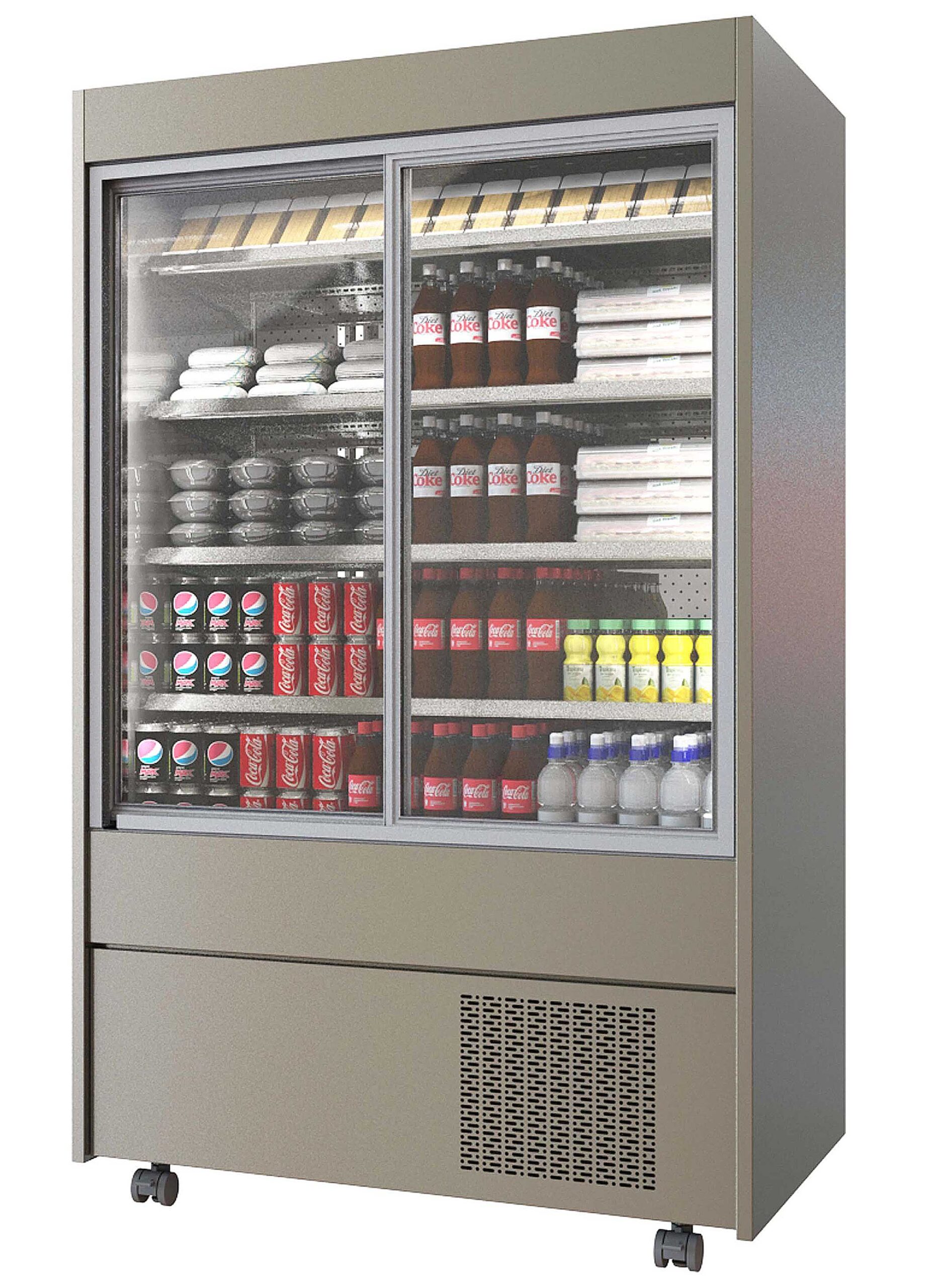

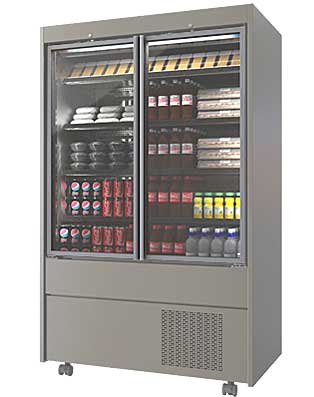

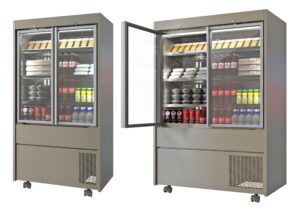

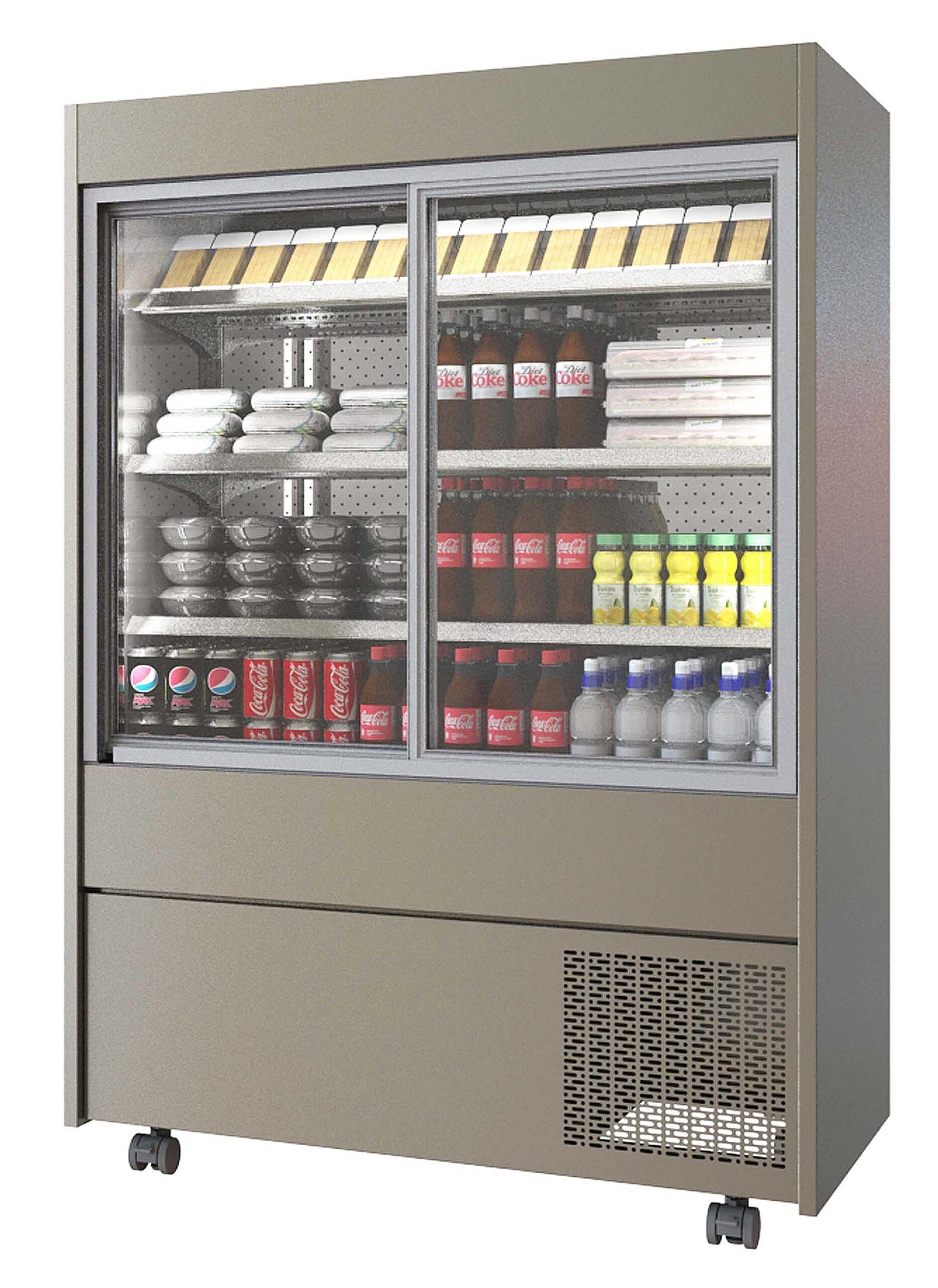

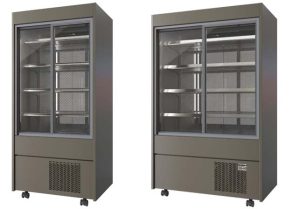

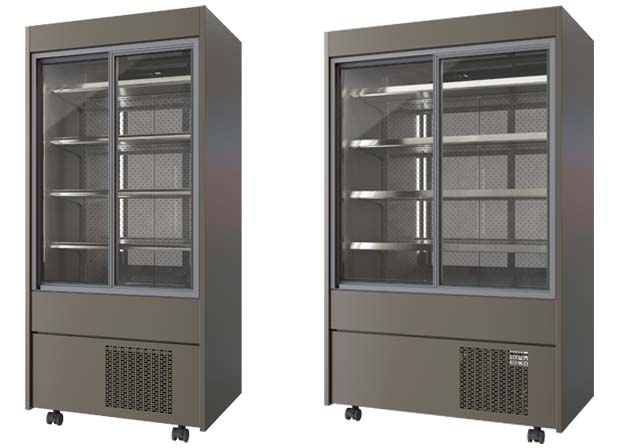

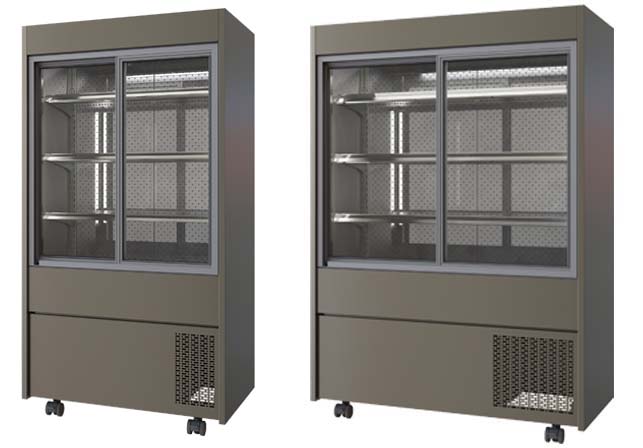

Double Glazed Front Sliding Door Models. The 900, 1200 and 1500mm wide models are also available with energy saving double glazed sliding doors. These units are ideally suited for grab n’ go offers at shop entrance locations – where draughts often enter the cabinet, affecting temperature holding.

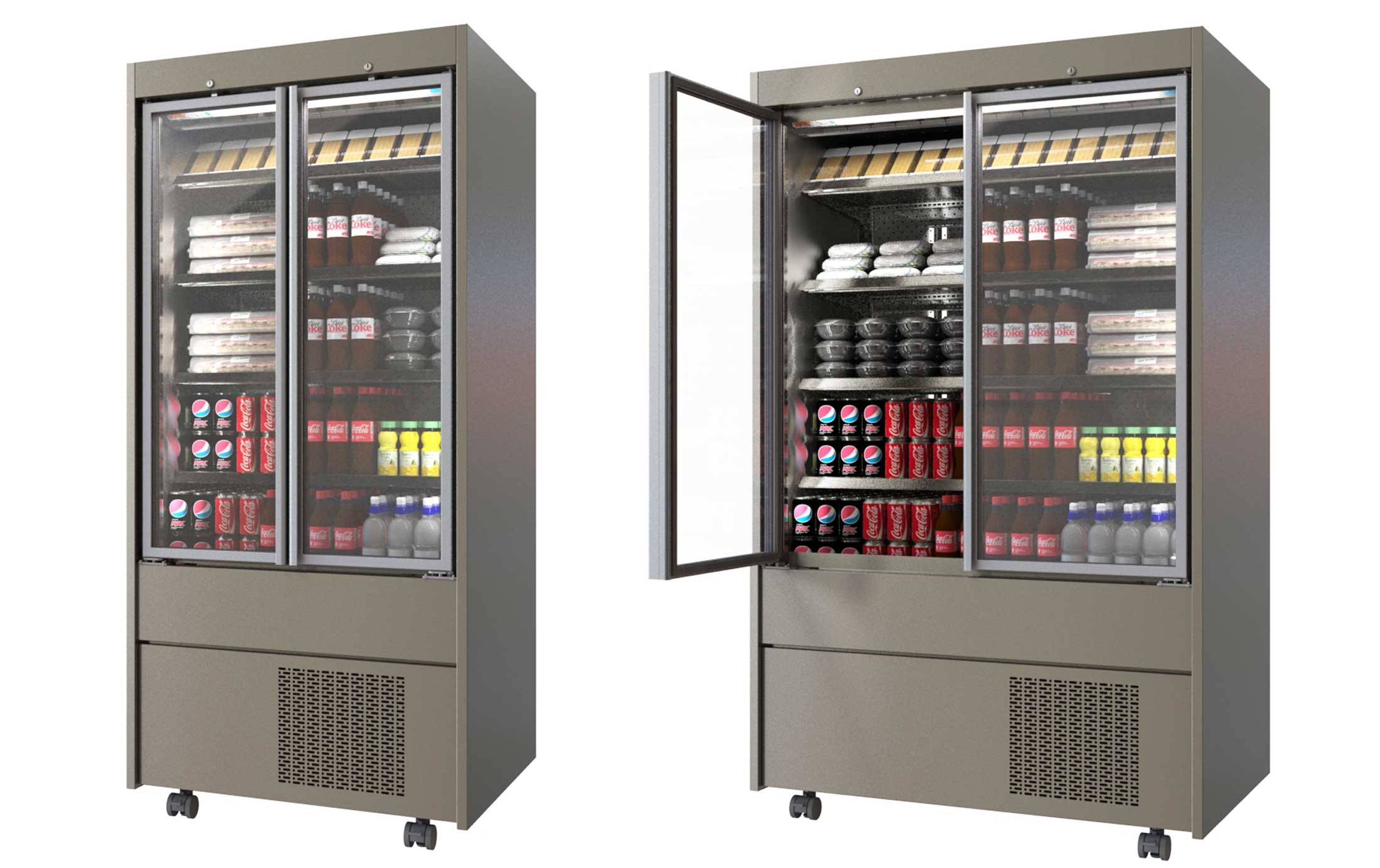

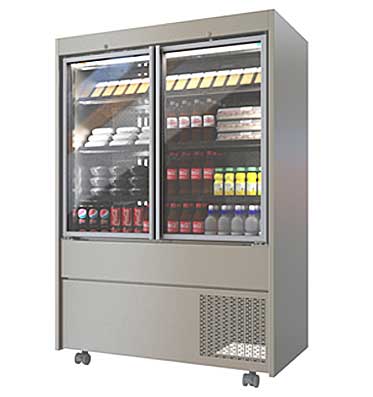

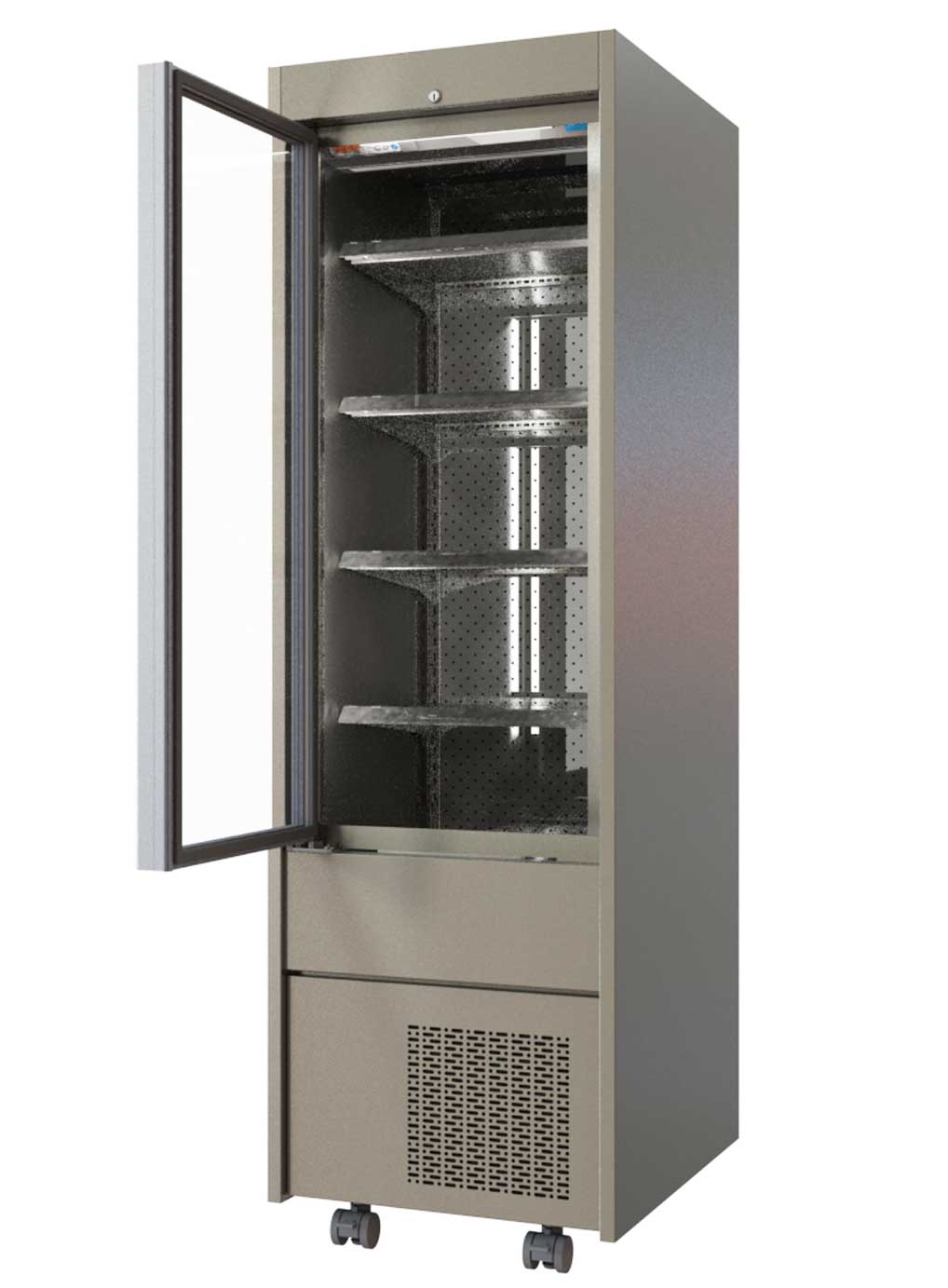

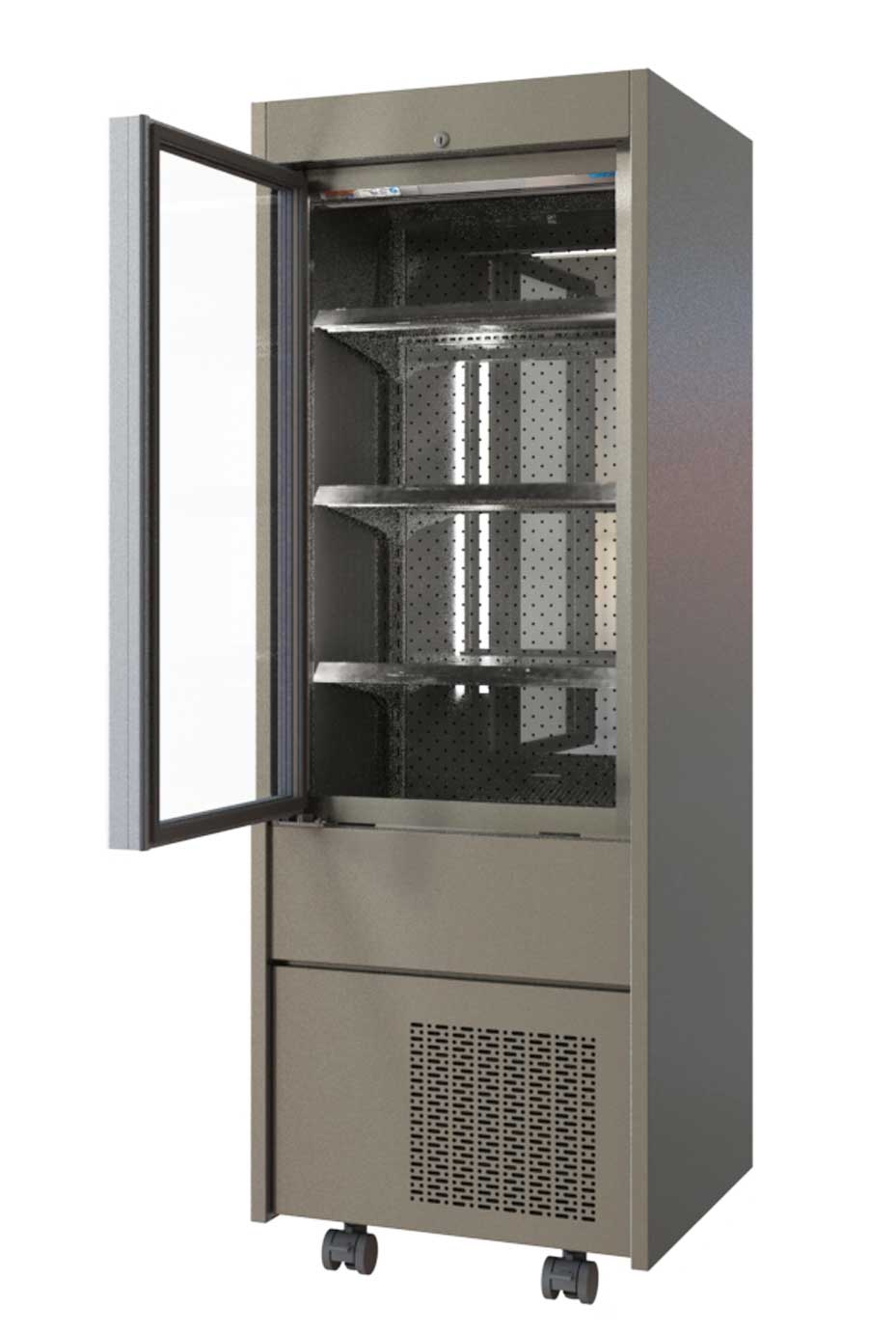

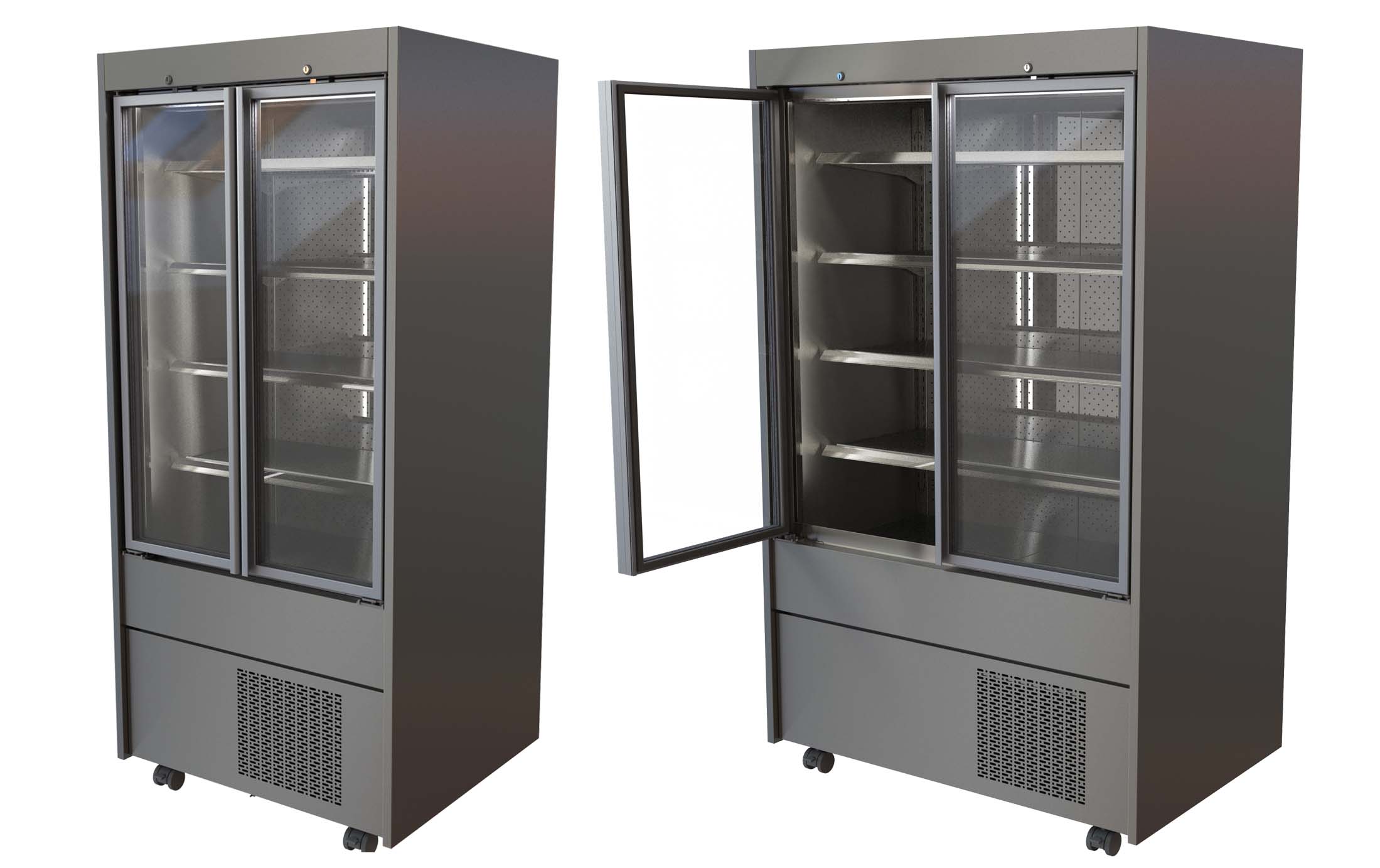

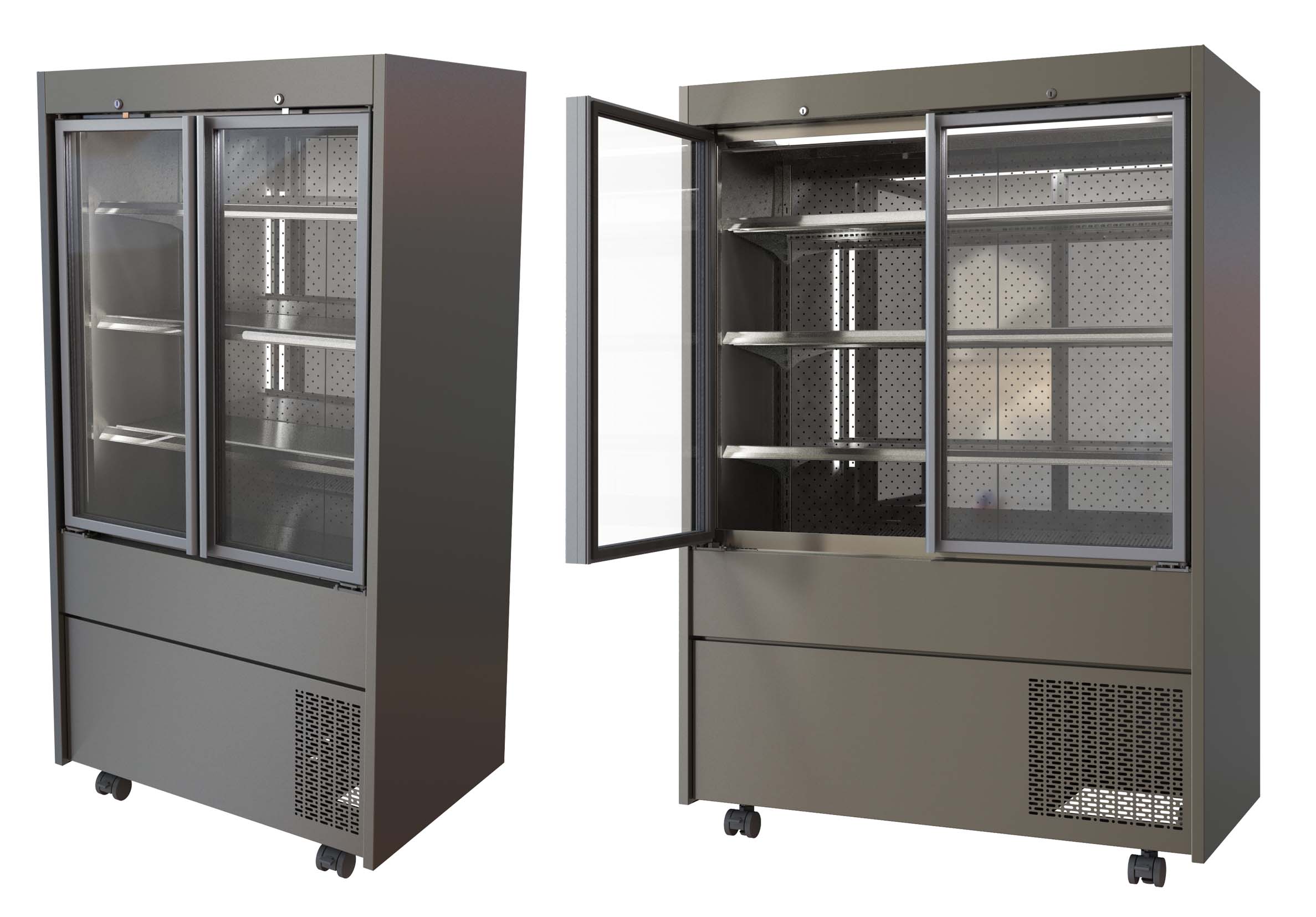

NEW: Double Glazed Hinged Front Door Models. The 600, 900, 1200, 1500 & 1800mm wide slim & large models are now available with lockable, energy saving, double glazed hinged front doors. The glazed doors feature a continuous pull handle to opening side & hold open for stock merchandising. Ideal for shop entrance locations, or wherever low running costs are priority.

Each CED Money Maker is mobile & mounted on durable locking castors with a central adjustable foot, for smooth delivery, final positioning & levelling. A heavy duty castor version is also offered. Matching heated models are also available.

Visual

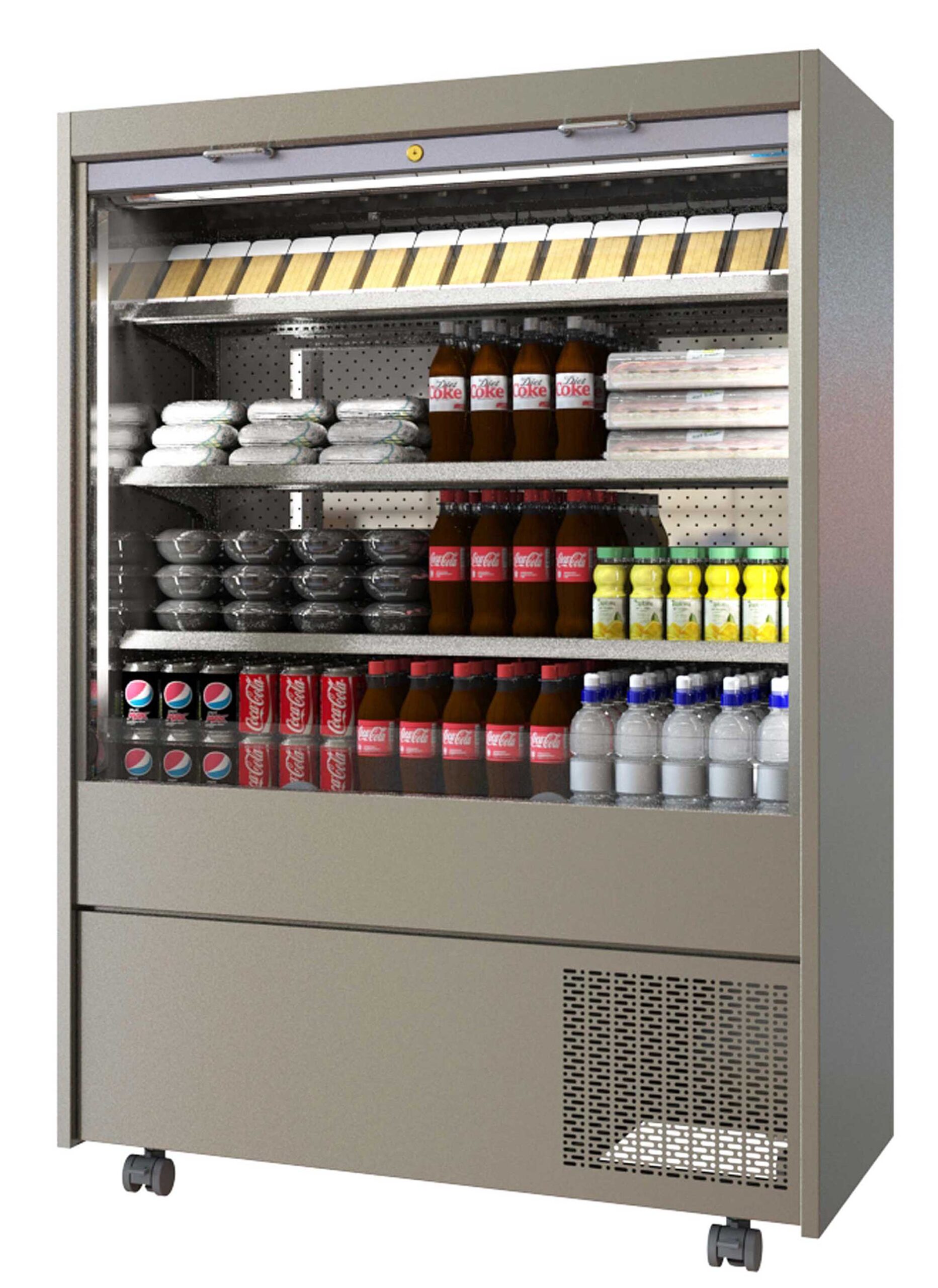

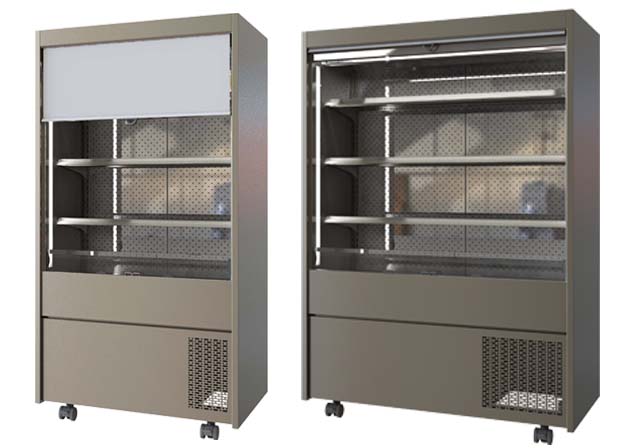

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Visual



Features

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Features

  • Mobile chilled merchandiser in compact range of sizes, for retail locations where space is a premium.
  • Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
  • Self help (fixed back) application.
  • 3 tier steel adjustable height shelving, for increased chilled product display area.
  • Additional cold deck area, typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
  • Fitted with energy saving retractable insulated night blind.
  • Available in 600, 900, 1200, 1500 & 1800 mm wide.
  • Slimline unit depth 635 mm (+50), unit height 1725 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • Features canopy mounted digital temperature display and control panel (customer side).
  • Features ‘tamper proof’ temperature control facility.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Stand off brackets for wall siting included, to ensure adequate unit ventilation.
  • Adjustable final positioning/ levelling feet.

Options

  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 1765 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Mobile impulse timber basket. (4 finishes)
  • 3 tier glass shelving (Set).
  • Additional glass shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
  • Additional steel shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
  • Double glazed rear door/s (Set) –Night Blind Models Only.
  • Coloured external surface finishes available (20 RAL Colours).

Wall Sited Model Installation:

  • Do not remove the rear stand-off brackets during installation, these allow the warm air to travel up the back of the merchandisers.

Wall Sited Model Installation (In A Shop Fitted Housing):

Ensure the housing has either:

  • 100mm clearance above the merchandiser (at front pelmet) to allow warm air to escape, or
  • The housing is left open above the merchandiser roof to disperse warm air from the rear into free space above the housing (not trapped by a suspended ceiling) or
  • The housing may have a part depth soffit (with 25mm + 100mm front pelmet clearance) above the merchandiser, as long as the part depth soffit finishes with a 100mm clearance at its’ rear, to allow warm air escape to free space.

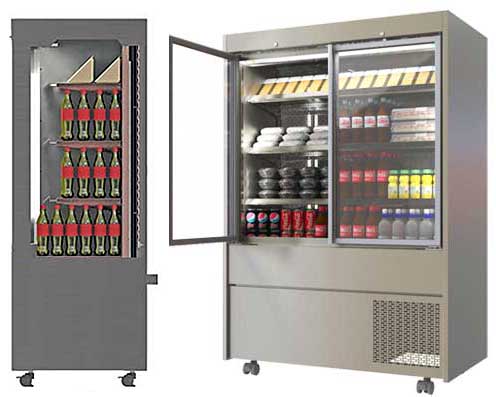

Dimensions

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Dimensions.



Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Capacity (Litres)

160

240

330

420

510

Length (mm)

600

900

1200

1500

1800

Depth (mm)

635(+50)

635(+50)

635(+50)

635(+50)

635(+50)

Height (mm)

1725

1725

1725

1725

1725

3 Tiers + Deck

Included

Included

Included

Included

Included

Night Blind

Included

Included

Included

Included

Included

Shelf Depth (mm)
(4 x 1/2L cola bottles).

291

291

291

291

291

Well Depth (mm)
(6 x 1/2L cola bottles).

400

400

400

400

400

Weight (uncrated) (kg)

157

187

217

247

275

Refrigerant Type

R290

R290

R290

R290

R290

Power (kW)

1.31

1.48

1.66

1.69

1.72

Total Heat Rejection @ 32°C Ambient (watts)

1340

2010

2317

2317

2489

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



Option Codes

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

D/Glazed
Side Panels

DGPS

DGPS

DGPS

DGPS

DGPS

Ø100mm
H.Duty Castor
(1765mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Hook In Chrome  Wire Impulse Basket.

MMIB6

MMIB9

MMIB12

MMIB15

MMIB18

Mobile Impulse Timber Basket.(Redwood Clear Varnish).

MITB6

MITB9

MITB12

MITB15

MITB18

Wood Stain To Mobile Impulse Timber Basket(Oak/ Wenge/Ash Grey).

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S

Rear Doors
(Night Blind Only).

MMDR6S

MMDR9S

MMDR12S

MMDR15S

MMDR18S

Glass Shelving (Set).

GSSETMM6S

GSSETMM9S

GSSETMM12S

GSSETMM15S

GSSETMM18S

Additional Glass Shelf.

AGSMM6S

AGSMM9S

AGSMM12S

AGSMM15S

AGSMM18S

Additional Steel Shelf.

ASSMM6S

ASSMM9S

ASSMM12S

ASSMM15S

ASSMM18S

Coloured Surface Finish (20 Colours)

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO

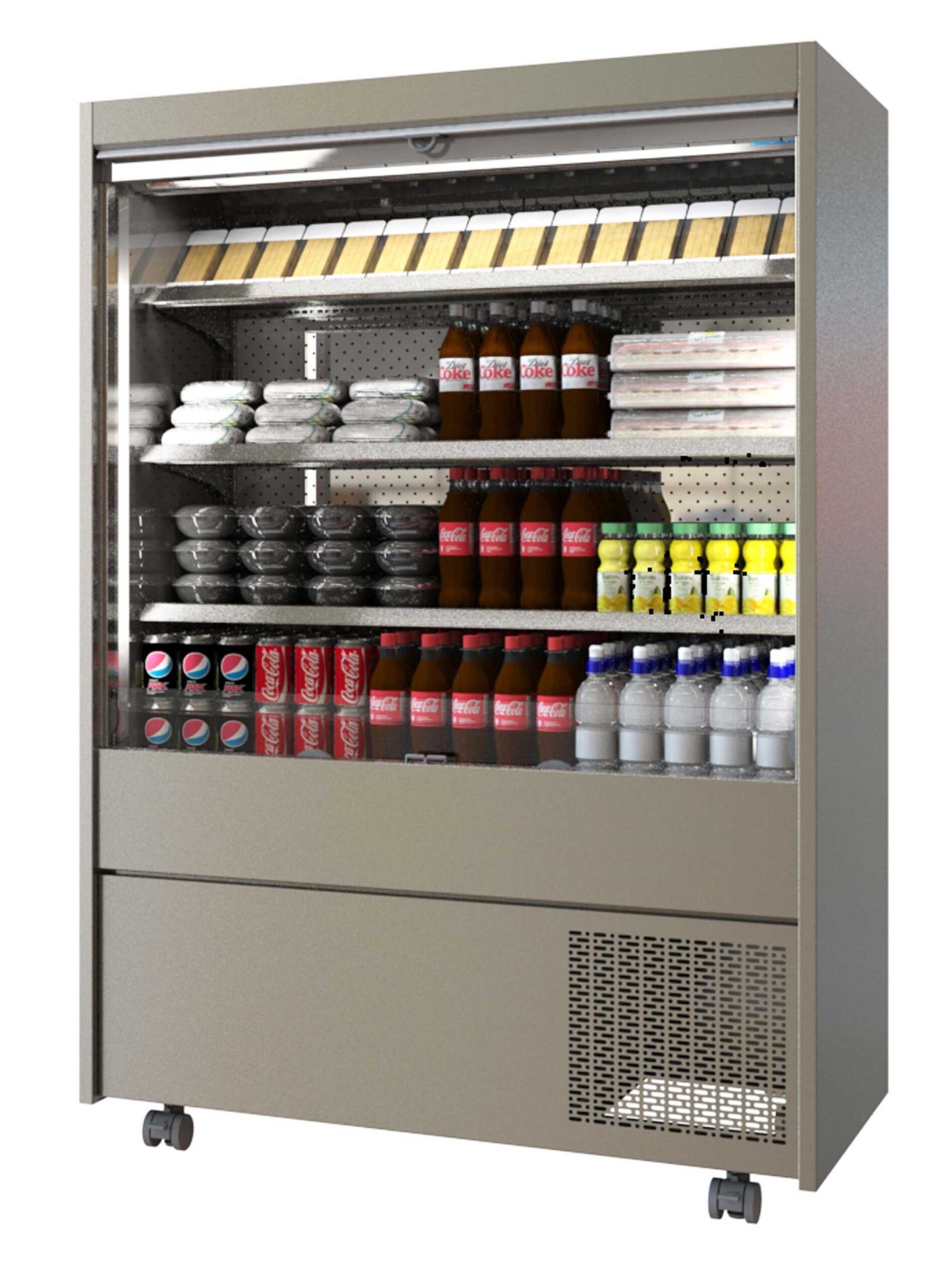

Food Types

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Wrapped sandwiches, baguettes, rolls & barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Options

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Options.

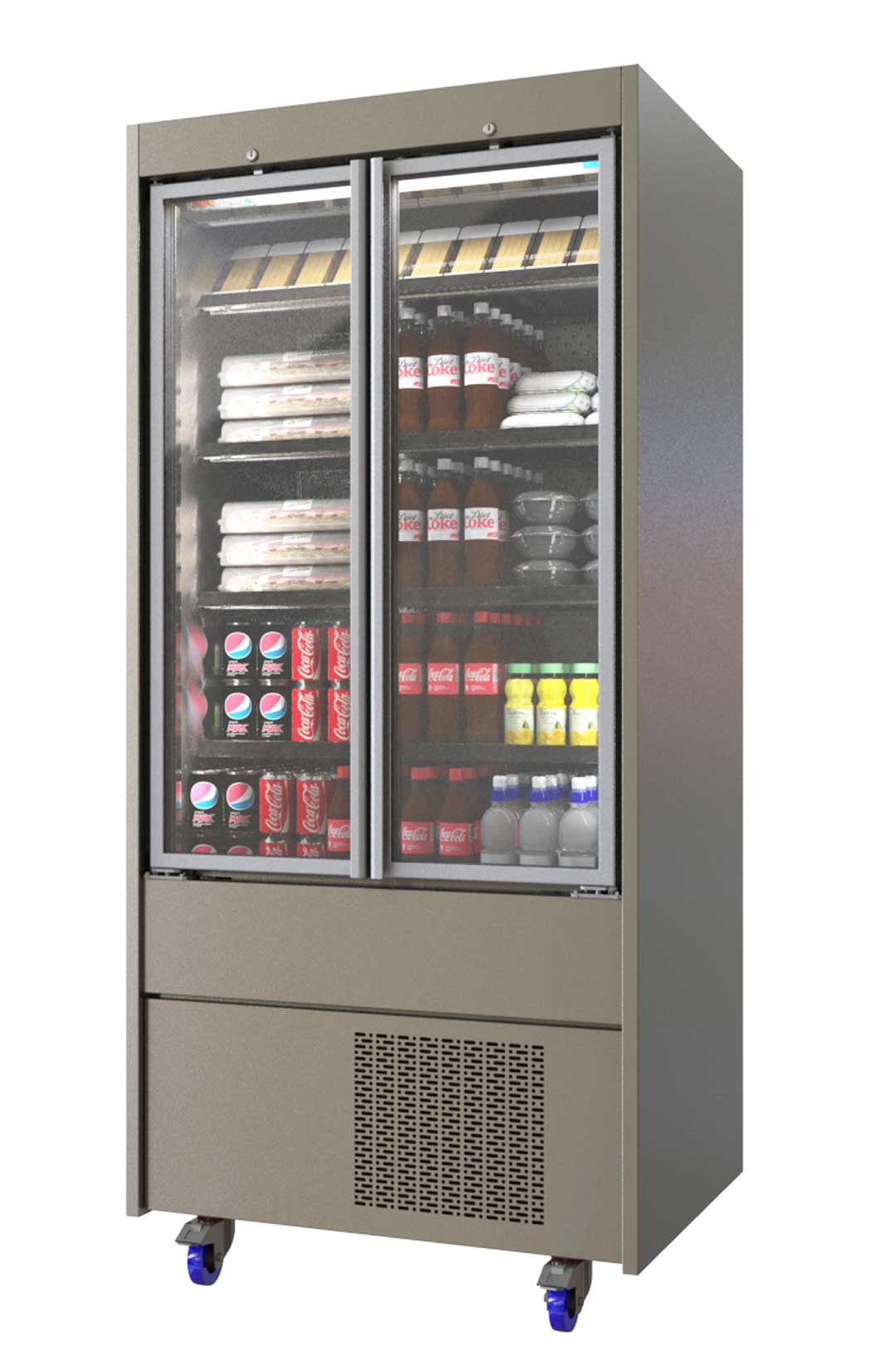

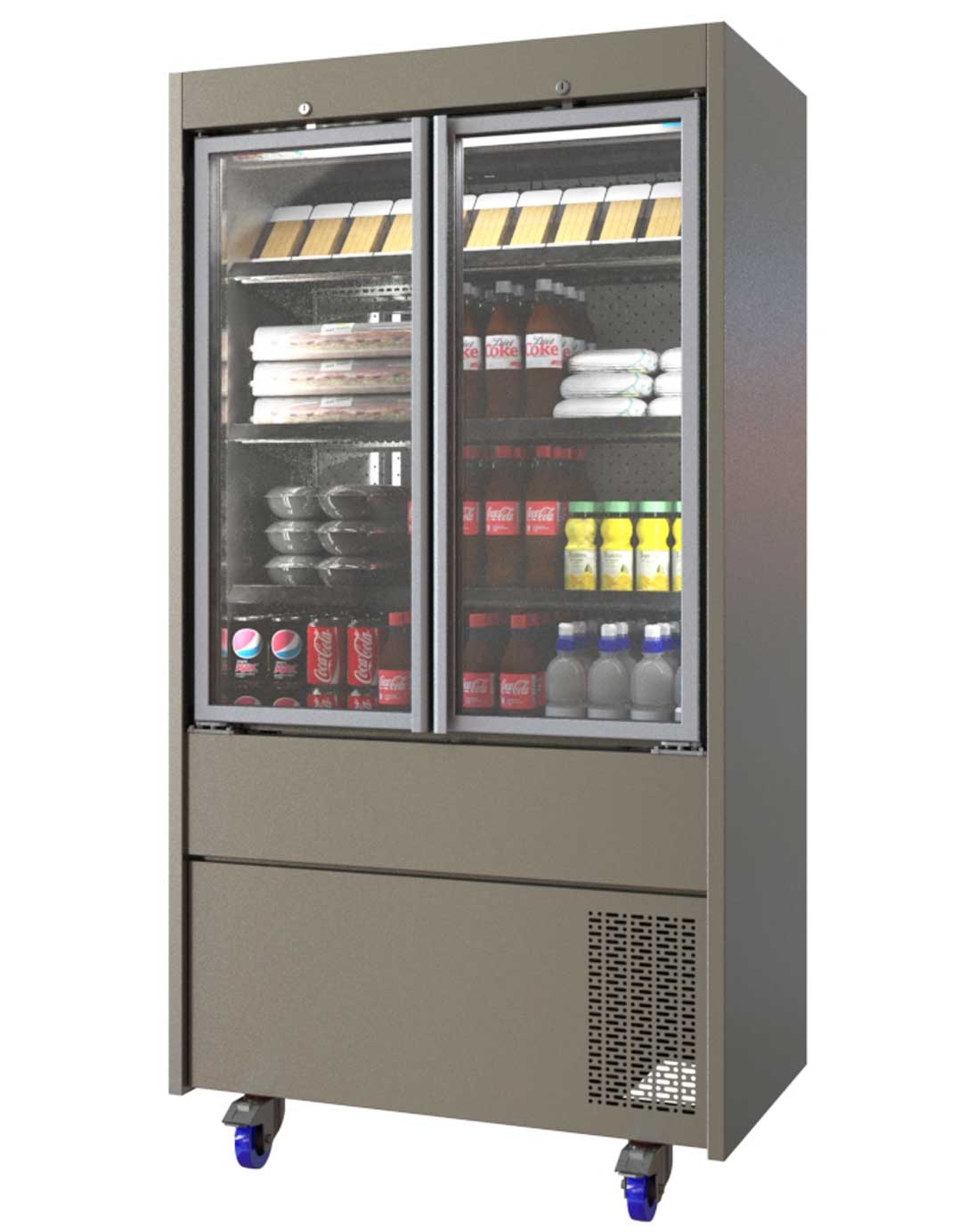

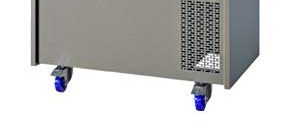

Ø 100mm Heavy Duty Castors.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*1765 mm Unit Height*

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Ø 100 mm Heavy Duty Castor
(1765 mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Revised Height (mm)

1765

1765

1765

1765

1765













Double Glazed Rear Door Set – (Night Blind Models Only)
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Double Glazed Rear Door (Set).

MMDR6S

MMDR9S

MMDR12S

MMDR15S

MMDR18S

Qty. Doors Per Model.

One

Two

Two

Two

Four

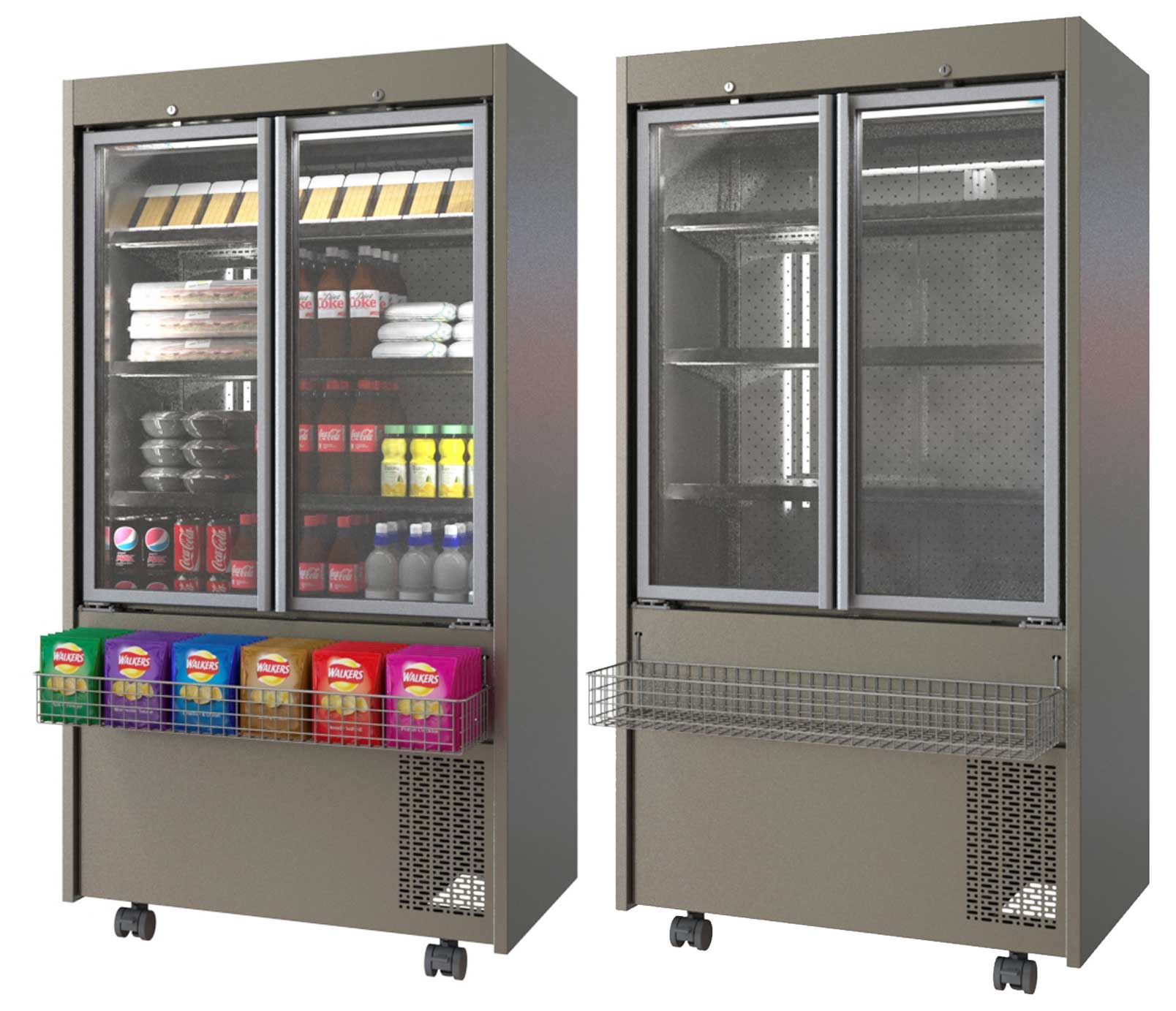

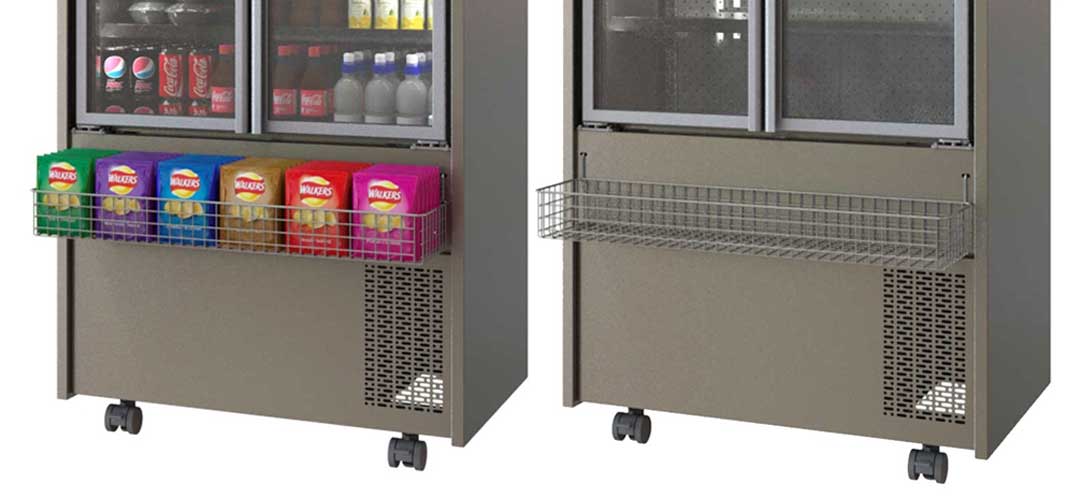

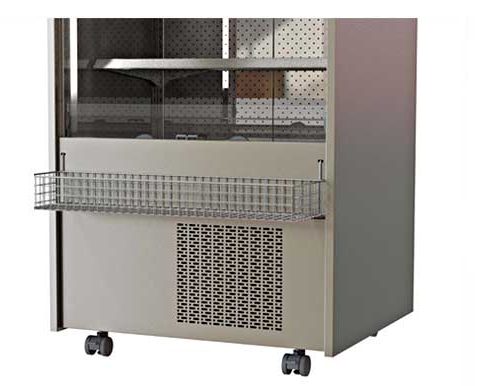

Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.





Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Hook In Impulse Basket.

MMIB6

MMIB9

MMIB12

MMIB15

MMIB18

Basket Size L x H x D (mm)

540 x 99 x 210

840 x 99 x 210

1140 x 99 x 210

1440 x 99 x 210

1740 x 99 x 210

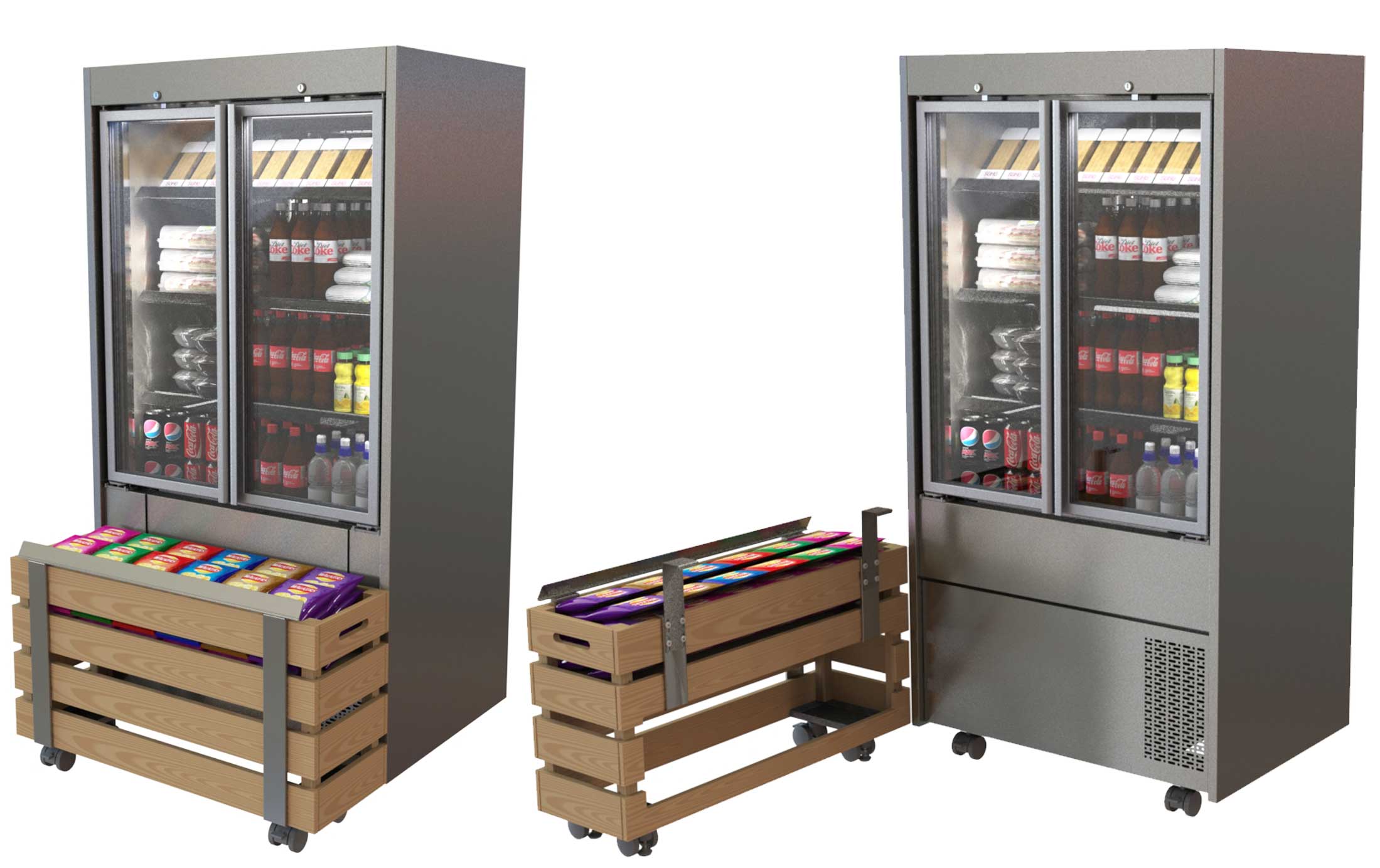

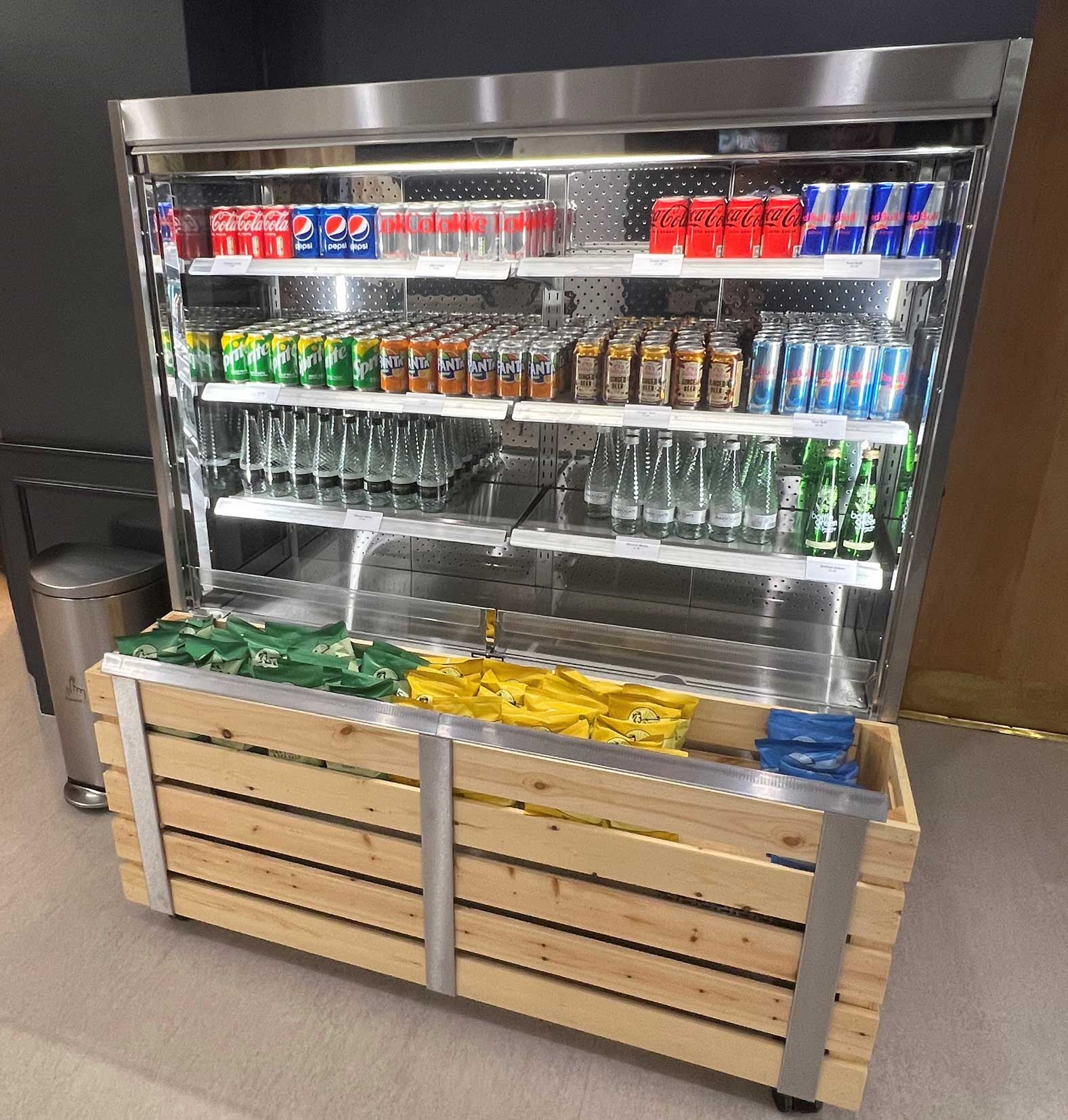

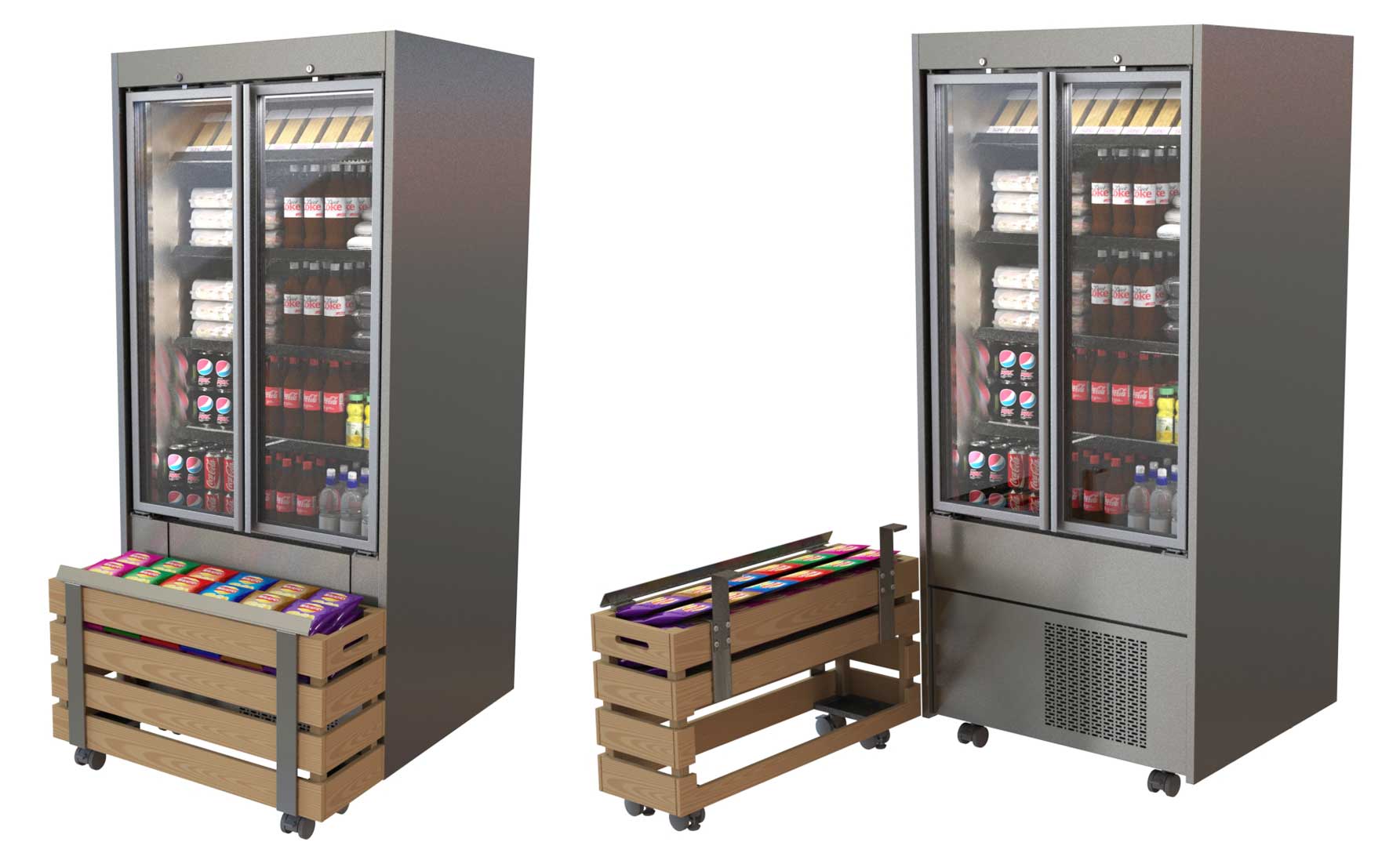

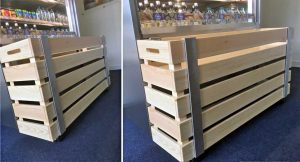

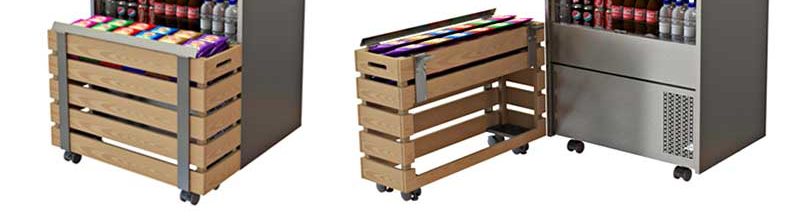

Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB6

MITB9

MITB12

MITB15

MITB18

Basket Size L x H x D (mm)

600 x 660 x 300

900 x 660 x 300

1200 x 660 x 300

1500 x 660 x 300

1800 x 660 x 300

Storage Area L x H x D (mm)

570 x 270 x 147

870 x 270 x 147

1170 x 270 x 147

1470 x 270 x 147

1770 x 270 x 147













Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S

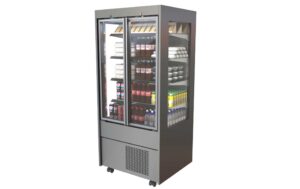

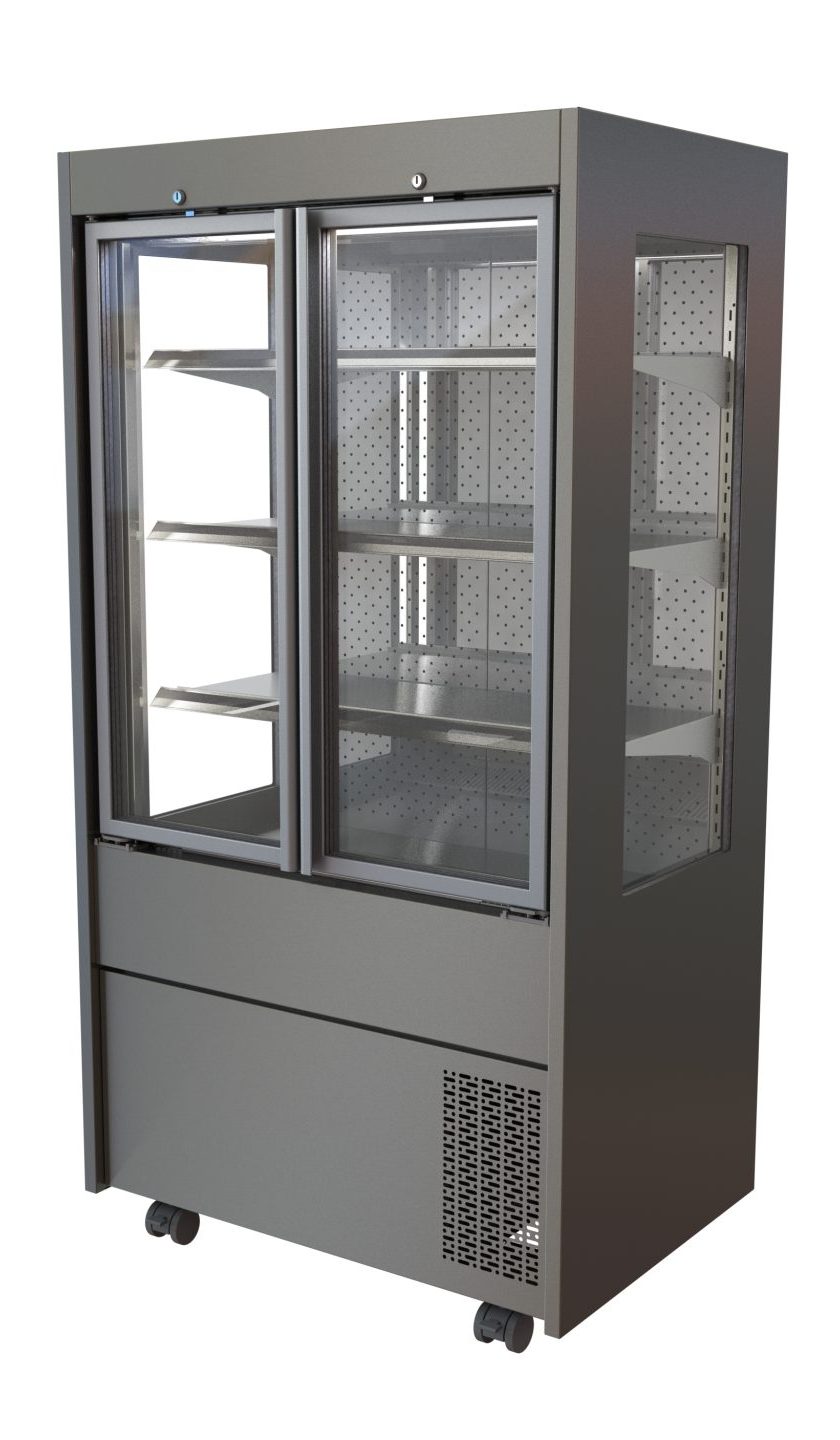

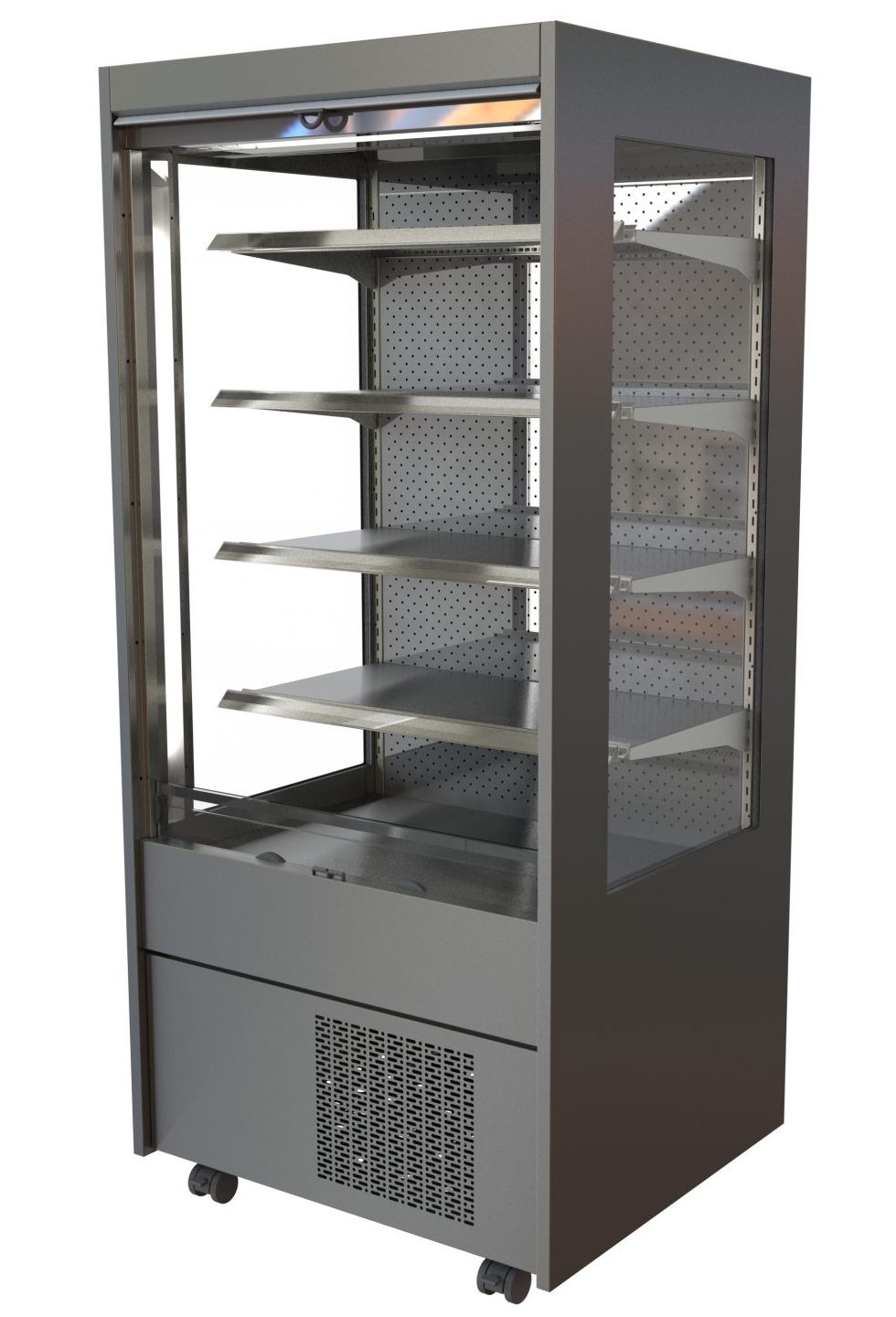

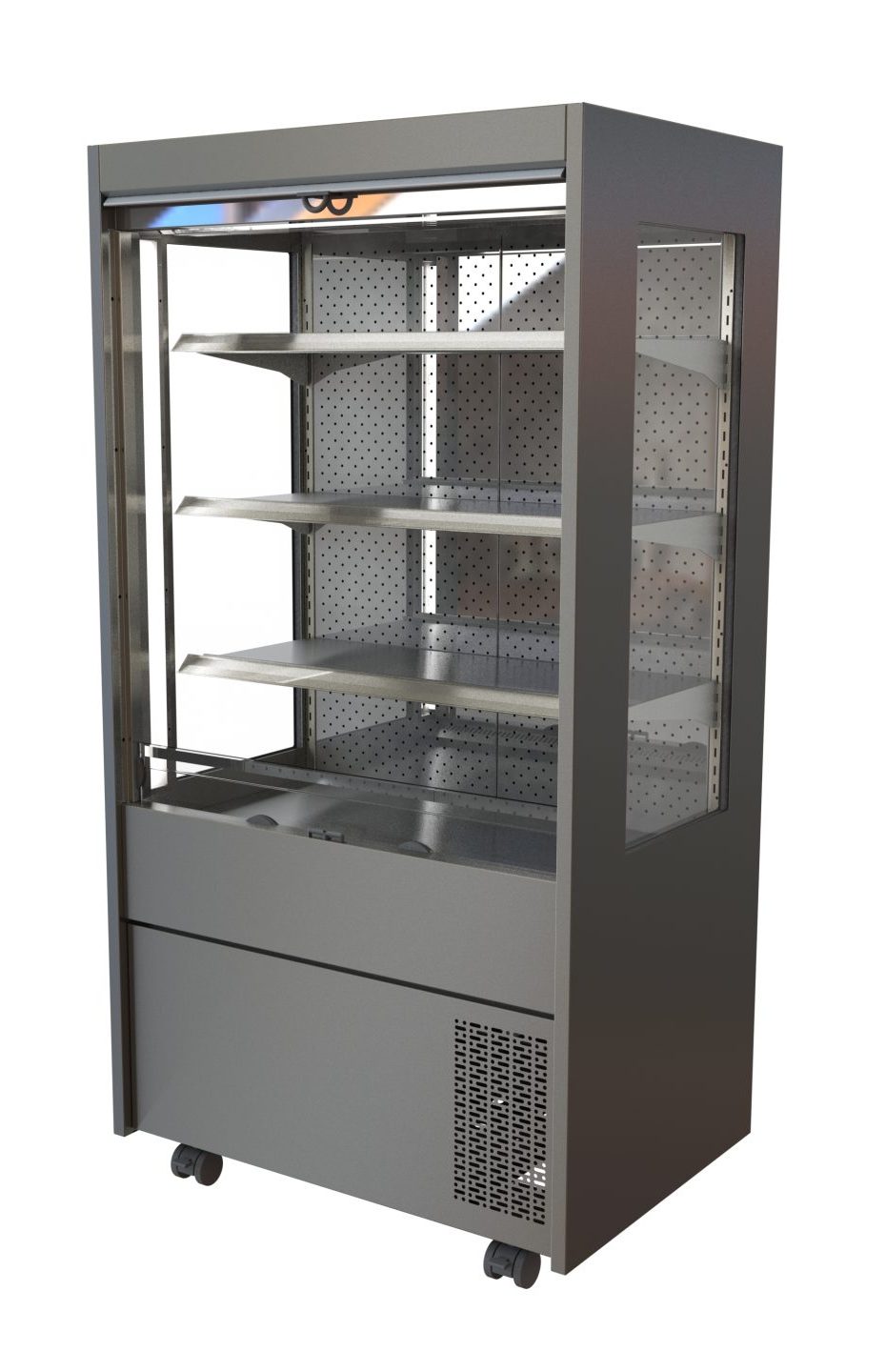

Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Panoramic Glazed Side Panels

DGPS

DGPS

DGPS

DGPS

DGPS







3 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – 3 Tier Glass Shelving (Set).

GSSETMM6S

GSSETMM9S

GSSETMM12S

GSSETMM15S

GSSETMM18S

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes

















Additional Glass Shelf. Converts the 3 Tier glass shelving option into 4 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Additional Glass Shelf (Converts 3 Tier To 4 Tier Glass Shelving).

AGSMM6S

AGSMM9S

AGSMM12S

AGSMM15S

AGSMM18S

Additional Storage Area – Length x Depth (mm).

528 x 291

828 x 291

1128 x 291

1412 x 291

1712 x 291

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Additional Steel Shelf.
Converts the 3 Tier model into 4 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Additional S/Steel Shelf (Converts 3 Tier To 4 Tier Shelving).

ASSMM6S

ASSMM9S

ASSMM12S

ASSMM15S

ASSMM18S

Additional Storage Area – Length x Depth (mm).

528 x 291

828 x 291

1128 x 291

1412 x 291

1712 x 291

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Option – Unpack & Position Money Maker.

MMUP69

MMUP69

MMUP1215

MMUP1215

MMUP18

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE

MMWEEE

MMWEEE





















Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Euro Plug Code.

EXPLUG

EXPLUG

EXPLUG

EXPLUG

EXPLUG







Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MM600SHT

MM900SHT

MM1200SHT

MM1500SHT

MM1800SHT

Export Packing Case.

EXMM6S

EXMM9S

EXMM12S

EXMM15S

EXMM18S

O/All Case Dims. L x W x H (mm).

700 x 785 x 1935

1000 x 785 x 1935

1300 x 785 x 1935

1600 x 785 x 1935

1900 x 785 x 1935

Case Weight (kg) *Not Including Merchandiser*

49

60

70

83

95





Downloads

General Layout Drawings/ Fitting Details.
Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT).





Specification Sheets, User Manual, CE & UKCA Conformance, Energy Facts.
Money Maker Chilled Merchandiser Range.







User Video Guides

Operation & Maintenance Guides
Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT).

Replacing Evaporation Drip Tray.






Visual

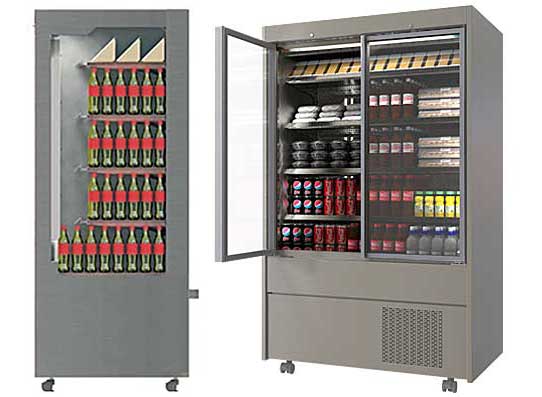

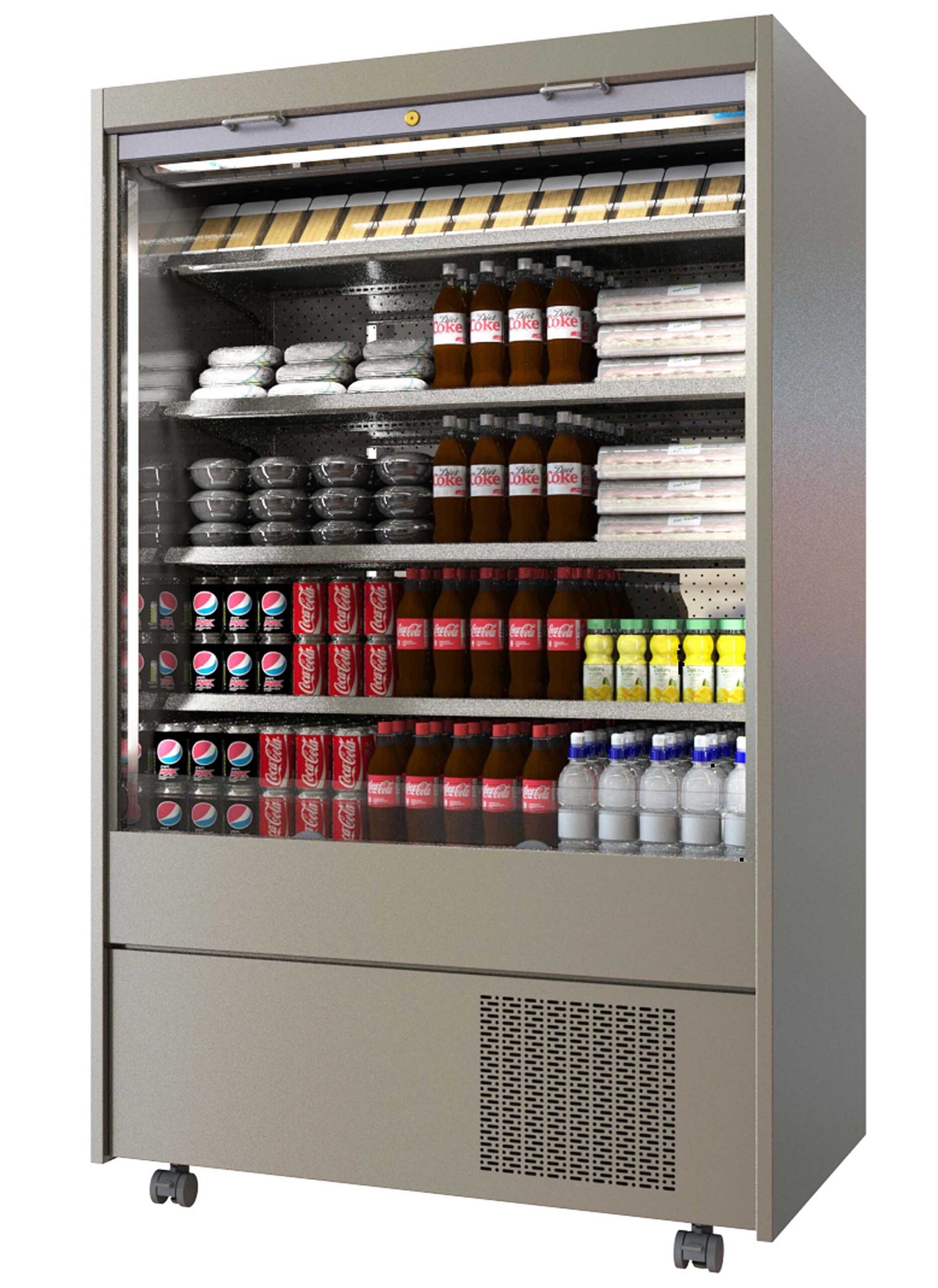

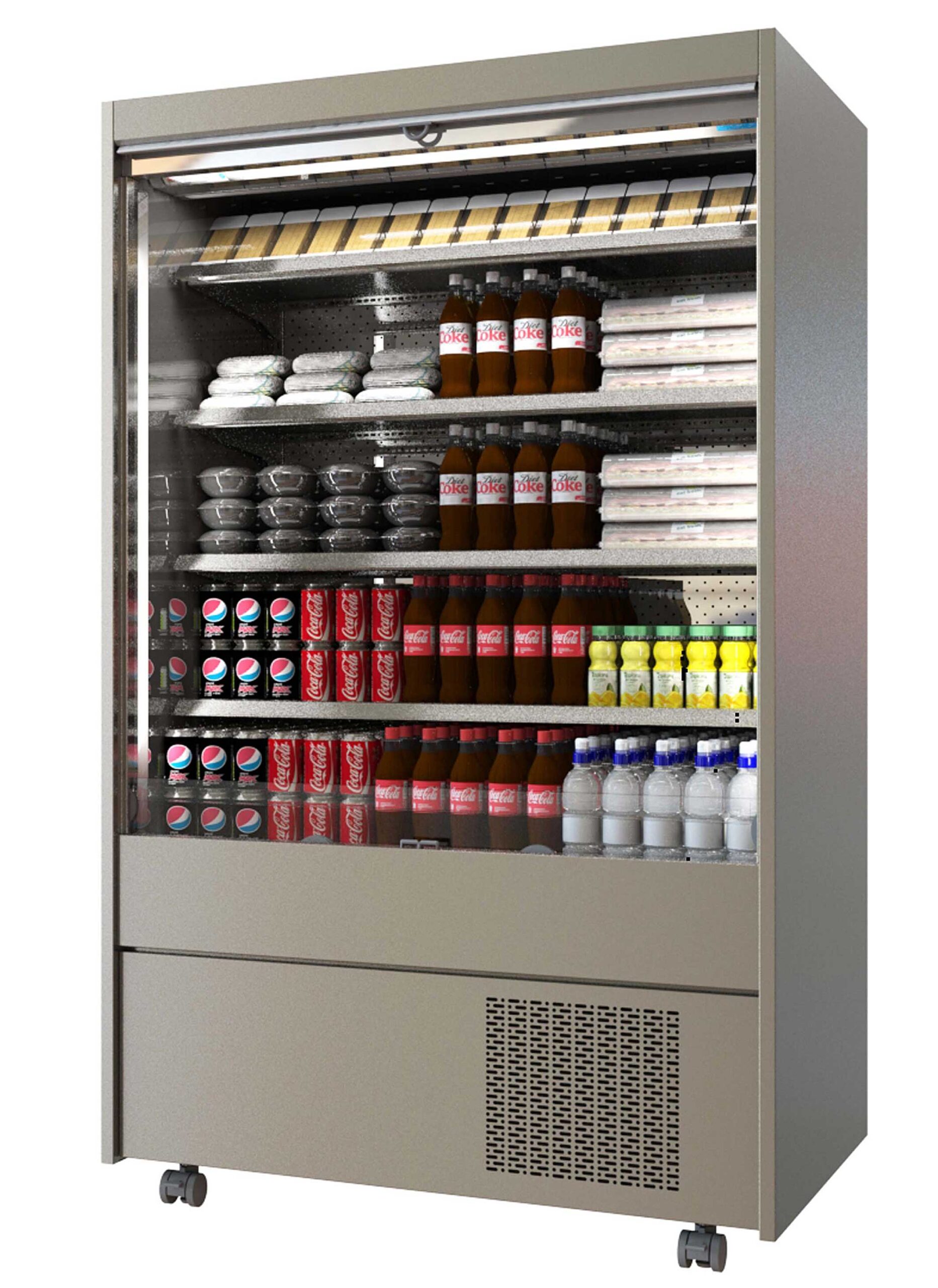

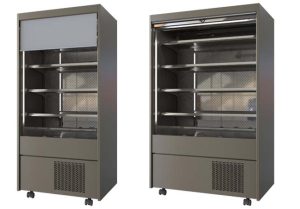

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Visual




Features

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Features.



  • Mobile chilled merchandiser in a large range of sizes, for retail locations where maximum merchandising capacity is a premium.
  • Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
  • Self help (fixed back) application.
  • 4 tier steel adjustable height shelving, for maximum chilled product display area in a minimum footprint.
  • Additional cold deck area, typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
  • Fitted with energy saving retractable insulated night blind.
  • Available in 600, 900, 1200, 1500 & 1800 mm wide.
  • Large unit depth 795 mm (+50), unit height 1965 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • Features canopy mounted digital temperature display and control panel (customer side).
  • Features ‘tamper proof’ temperature control facility.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Stand off brackets for wall siting included, to ensure adequate unit ventilation.
  • Adjustable final positioning/ levelling feet.

Options

  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 2005 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Mobile impulse timber basket. (4 finishes)
  • 4 tier glass shelving (Set).
  • Additional glass shelf option – allows 5 display tiers – when product displayed is not predominantly bottle storage.
  • Additional steel shelf option – allows 5 display tiers – when product displayed is not predominantly bottle storage.
  • Double glazed rear door/s (Set)-Night Blind Models Only.
  • Coloured external surface finishes available (20 RAL Colours).

Wall Sited Model Installation:

  • Do not remove the rear stand-off brackets during installation, these allow the warm air to travel up the back of the merchandisers.

Wall Sited Model Installation (In A Shop Fitted Housing):

Ensure the housing has either:

  • 100mm clearance above the merchandiser (at front pelmet) to allow warm air to escape, or
  • The housing is left open above the merchandiser roof to disperse warm air from the rear into free space above the housing (not trapped by a suspended ceiling) or
  • The housing may have a part depth soffit (with 25mm + 100mm front pelmet clearance) above the merchandiser, as long as the part depth soffit finishes with a 100mm clearance at its’ rear, to allow warm air escape to free space.



Dimensions

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Dimensions.

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Capacity (Litres)

260

397

552

700

862

Length (mm)

600

900

1200

1500

1800

Depth (mm)

795(+50)

795(+50)

795(+50)

795(+50)

795(+50)

Height (mm)

1965

1965

1965

1965

1965

4 Tiers + Deck

Included

Included

Included

Included

Included

Night Blind

Included

Included

Included

Included

Included

Shelf Depth (mm)
(6 x 1/2L cola bottles).

391

391

391

391

391

Well Depth (mm)
(8 x 1/2L cola bottles)

560

560

560

560

560

Weight (uncrated)(kg)

192

231

270

311

349

Refrigerant Type

R290

R290

R290

R290

R290

Power (kW)

1.31

1.48

1.67

1.70

1.72

Total Heat Rejection @ 32°C Ambient (watts)

1340

2010

2317

2317

2489

Electrical supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



Option Codes

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

D/Glazed
Side Panels

DGPL

DGPL

DGPL

DGPL

DGPL

Ø100mm
H/Duty Castor
(2005mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Hook In Chrome
Wire Impulse Basket

MMIB6

MMIB9

MMIB12

MMIB15

MMIB18

Mobile Impulse
Timber Basket
(Redwood Clear
Varnish)

MITB6

MITB9

MITB12

MITB15

MITB18

Wood Stain To
Mobile Impulse
Timber Basket
(Oak/ Wenge/Ash
Grey)

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S

Rear Doors
(Night Blind Only).

MMDR6L

MMDR9L

MMDR12L

MMDR15L

MMDR18L

Glass
Shelving (Set).

GSSETMM6L

GSSETMM9L

GSSETMM12L

GSSETMM15L

GSSETMM18L

Additional Glass Shelf.

AGSMM6L

AGSMM9L

AGSMM12L

AGSMM15L

AGSMM18L

Additional Steel Shelf.

ASSMM6L

ASSMM9L

ASSMM12L

ASSMM15L

ASSMM18L

Coloured
Surface Finish
(20 Colours).

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO



Food Types

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Options

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Options.




Ø 100mm Heavy Duty Castors.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*2005 mm Unit Height*

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Ø 100 mm Heavy Duty Castor                          (1765 mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Revised Height (mm)

2005

2005

2005

2005

2005













Double Glazed Rear Door Set – (Night Blind Models Only)
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Double Glazed Rear Door (Set).

MMDR6L

MMDR9L

MMDR12L

MMDR15L

MMDR18L

Qty. Doors Per Model.

One

Two

Two

Two

Four







Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.









Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Hook In Impulse Basket.

MMIB6

MMIB9

MMIB12

MMIB15

MMIB18

Basket Size L x H x D (mm)

540 x 99 x 210

840 x 99 x 210

1140 x 99 x 210

1440 x 99 x 210

1740 x 99 x 210







Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB6

MITB9

MITB12

MITB15

MITB18

Basket Size L x H x D (mm)

600 x 660 x 300

900 x 660 x 300

1200 x 660 x 300

1500 x 660 x 300

1800 x 660 x 300

Storage Area L x H x D (mm)

570 x 270 x 147

870 x 270 x 147

1170 x 270 x 147

1470 x 270 x 147

1770 x 270 x 147













Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S





Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.



Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Panoramic Glazed Side Panels

DGPL

DGPL

DGPL

DGPL

DGPL













4 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – 4 Tier Glass Shelving (Set).

GSSETMM6L

GSSETMM9L

GSSETMM12L

GSSETMM15L

GSSETMM18L

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes

















Additional Glass Shelf. Converts the 4 Tier glass shelving option into 5 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Additional Glass Shelf (Converts 4 Tier To 5 Tier Glass Shelving).

AGSMM6L

AGSMM9L

AGSMM12L

AGSMM15L

AGSMM18L

Additional Storage Area – Length x Depth (mm).

528 x 391

828 x 391

1128 x 391

1412 x 391

1712 x 391

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Additional Steel Shelf.
Converts the 4 Tier model into 5 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Additional S/Steel Shelf (Converts 4 Tier To 5 Tier Shelving).

ASSMM6L

ASSMM9L

ASSMM12L

ASSMM15L

ASSMM18L

Additional Storage Area – Length x Depth (mm).

528 x 391

828 x 391

1128 x 391

1412 x 391

1712 x 391

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Option – Unpack & Position Money Maker.

MMUP69

MMUP69

MMUP1215

MMUP1215

MMUP18

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE

MMWEEE

MMWEEE





















Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Euro Plug Code.

EXPLUG

EXPLUG

EXPLUG

EXPLUG

EXPLUG













Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MM600LHT

MM900LHT

MM1200LHT

MM1500LHT

MM1800LHT

Export Packing Case.

EXMM6L

EXMM9L

EXMM12L

EXMM15L

EXMM18L

O/All Case Dims. L x W x H (mm).

700 x 945 x 2175

1000 x 945 x 2175

1300 x 945 x 2175

1600 x 945 x 2175

1900 x 945 x 2175

Case Weight (kg) *Not Including Merchandiser*

61

73

85

99

113





Downloads

General Layout Drawings/ Fitting Details.
Money Maker 4 Tier Large Merchandiser (Night Blind) (HT).





Specification Sheets, User Manual, CE & UKCA Conformance, Energy Facts.
Money Maker Chilled Merchandiser Range.







User Video Guides

Operation & Maintenance Guides
Money Maker 4 Tier Large Merchandiser (Night Blind) (HT).

Replacing Evaporation Drip Tray.






Visual

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Visual



Features

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Features

  • Mobile chilled merchandiser in compact range of sizes, for retail locations where space is a premium.
  • Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
  • Self help (fixed back) application.
  • 3 tier steel adjustable height shelving, for increased chilled product display area.
  • Additional cold deck area, typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
  • Lockable roller shutter – overhead type, twin locking, insulated aluminum lath, silver finish. (unit height 1725 mm).
  • Available in 600, 900, 1200, 1500 & 1800 mm wide.
  • Slimline unit depth 635 mm (+50), unit height 1725 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • Features canopy mounted digital temperature display and control panel (customer side).
  • Features ‘tamper proof’ temperature control facility.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Stand off brackets for wall siting included, to ensure adequate unit ventilation.
  • Adjustable final positioning/ levelling feet.

Options

  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 1765 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Mobile impulse timber basket. (4 finishes)
  • 3 tier glass shelving (Set).
  • Additional glass shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
  • Additional steel shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
  • Coloured external surface finishes available (20 RAL Colours).

Wall Sited Model Installation:

  • Do not remove the rear stand-off brackets during installation, these allow the warm air to travel up the back of the merchandisers.

Wall Sited Model Installation (In A Shop Fitted Housing):

Ensure the housing has either:

  • 100mm clearance above the merchandiser (at front pelmet) to allow warm air to escape, or
  • The housing is left open above the merchandiser roof to disperse warm air from the rear into free space above the housing (not trapped by a suspended ceiling) or
  • The housing may have a part depth soffit (with 25mm + 100mm front pelmet clearance) above the merchandiser, as long as the part depth soffit finishes with a 100mm clearance at its’ rear, to allow warm air escape to free space.



Dimensions

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Dimensions.



Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Capacity (Litres)

160

240

330

420

510

Length (mm)

600

900

1200

1500

1800

Depth (mm)

635(+50)

635(+50)

635(+50)

635(+50)

635(+50)

Height (mm)

1725

1725

1725

1725

1725

3 Tiers + Deck

Included

Included

Included

Included

Included

Roller Shutter
(1725 mm Unit Height)

Included

Included

Included

Included

Included

Shelf Depth (mm)
(4 x 1/2L cola bottles).

291

291

291

291

291

Well Depth (mm)
(6 x 1/2L cola bottles).

400

400

400

400

400

Weight
Uncrated (Kg).

167

197

227

257

288

Refrigerant Type

R290

R290

R290

R290

R290

Power (kW)

1.31

1.48

1.66

1.69

1.72

Total Heat Rejection @ 32°C  Ambient (watts)

1340

2010

2317

2317

2489

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



Option Codes

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Ø100mm
H/Duty Castor
(1765 mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

D/Glazed Side Panels

DGPS

DGPS

DGPS

DGPS

DGPS

Hook In Chrome
Wire Impulse
Basket

MMIB6

MMIB9

MMIB12

MMIB15

MMIB18

Mobile Impulse
Timber Basket
(Redwood Clear
Varnish).

MITB6

MITB9

MITB12

MITB15

MITB18

Wood Stain To
Mobile Impulse
Timber Basket
(Oak/ Wenge/
Ash Grey).

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S

Glass
Shelving (Set).

GSSETMM6S

GSSETMM9S

GSSETMM12S

GSSETMM15S

GSSETMM18S

Additional Glass Shelf.

AGSMM6S

AGSMM9S

AGSMM12S

AGSMM15S

AGSMM18S

Additional Steel Shelf.

ASSMM6S

ASSMM9S

ASSMM12S

ASSMM15S

ASSMM18S

Coloured
Surface Finish
(20 Colours).

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO



Food Types

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Wrapped sandwiches, baguettes, rolls & barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Options

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Options.



Ø 100mm Heavy Duty Castors.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*1765 mm Unit Height*

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – Ø 100 mm Heavy Duty Castor (1765 mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Revised Height (mm)

1765

1765

1765

1765

1765













Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.









Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – Hook In Impulse Basket.

MMIB6

MMIB9

MMIB12

MMIB15

MMIB18

Basket Size L x H x D (mm)

540 x 99 x 210

840 x 99 x 210

1140 x 99 x 210

1440 x 99 x 210

1740 x 99 x 210









Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB6

MITB9

MITB12

MITB15

MITB18

Basket Size L x H x D (mm)

600 x 660 x 300

900 x 660 x 300

1200 x 660 x 300

1500 x 660 x 300

1800 x 660 x 300

Storage Area L x H x D (mm)

570 x 270 x 147

870 x 270 x 147

1170 x 270 x 147

1470 x 270 x 147

1770 x 270 x 147















Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S







Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – Panoramic Glazed Side Panels

DGPS

DGPS

DGPS

DGPS

DGPS



















3 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – 3 Tier Glass Shelving (Set).

GSSETMM6S

GSSETMM9S

GSSETMM12S

GSSETMM15S

GSSETMM18S

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes

















Additional Glass Shelf. Converts the 3 Tier glass shelving option into 4 tiers of chilled glass shelf storage, ideal where product displayed is not  predominantly bottle storage.

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – Additional Glass Shelf (Converts 3 Tier To 4 Tier Glass Shelving).

AGSMM6S

AGSMM9S

AGSMM12S

AGSMM15S

AGSMM18S

Additional Storage Area – Length x Depth (mm).

528 x 291

828 x 291

1128 x 291

1412 x 291

1712 x 291

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes

















Additional Steel Shelf.
Converts the 3 Tier model into 4 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – Additional S/Steel Shelf (Converts 3 Tier To 4 Tier Shelving).

ASSMM6S

ASSMM9S

ASSMM12S

ASSMM15S

ASSMM18S

Additional Storage Area – Length x Depth (mm).

528 x 291

828 x 291

1128 x 291

1412 x 291

1712 x 291

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Option – Unpack & Position Money Maker.

MMUP69

MMUP69

MMUP1215

MMUP1215

MMUP18

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE

MMWEEE

MMWEEE























Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Euro Plug Code.

EXPLUG

EXPLUG

EXPLUG

EXPLUG

EXPLUG













Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MM600SRHT

MM900SRHT

MM1200SRHT

MM1500SRHT

MM1800SRHT

Export Packing Case.

EXMM6S

EXMM9S

EXMM12S

EXMM15S

EXMM18S

O/All Case Dims. L x W x H (mm).

700 x 785 x 1935

1000 x 785 x 1935

1300 x 785 x 1935

1600 x 785 x 1935

1900 x 785 x 1935

Case Weight (kg) *Not Including Merchandiser*

49

60

70

83

95





Downloads

General Layout Drawings/ Fitting Details.
Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)



Specification Sheets, User Manual, CE & UKCA Conformance, Energy Facts
Money Maker Chilled Merchandiser Range.







User Video Guides

Operation & Maintenance Guides
Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)

Replacing Evaporation Drip Tray.






Visual

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Visual



Features

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Features.

  • Mobile chilled merchandiser in a large range of sizes, for retail locations where maximum merchandising capacity is a premium.
  • Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
  • Self help (fixed back) application.
  • 4 tier steel adjustable height shelving, for maximum chilled product display area in a minimum footprint.
  • Additional cold deck area, typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
  • Lockable roller shutter – overhead type, twin locking, insulated aluminum lath, silver finish. (unit height 1965 mm).
  • Available in 600, 900, 1200, 1500 & 1800 mm wide.
  • Large unit depth 795 mm (+50), unit height 1965 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • Features canopy mounted digital temperature display and control panel (customer side).
  • Features ‘tamper proof’ temperature control facility.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Stand off brackets for wall siting included, to ensure adequate unit ventilation.
  • Adjustable final positioning/ levelling feet.

Options

  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 2005 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Mobile impulse timber basket. (4 finishes)
  • 4 tier glass shelving (Set).
  • Additional glass shelf – allows 5 display tiers – when product displayed is not predominantly bottle storage.
  • Additional steel shelf – allows 5 display tiers – when product displayed is not predominantly bottle storage.
  • Coloured external surface finishes available (20 RAL Colours).

Wall Sited Model Installation:

  • Do not remove the rear stand-off brackets during installation, these allow the warm air to travel up the back of the merchandisers.

Wall Sited Model Installation (In A Shop Fitted Housing):

Ensure the housing has either:

  • 100mm clearance above the merchandiser (at front pelmet) to allow warm air to escape, or
  • The housing is left open above the merchandiser roof to disperse warm air from the rear into free space above the housing (not trapped by a suspended ceiling) or
  • The housing may have a part depth soffit (with 25mm + 100mm front pelmet clearance) above the merchandiser, as long as the part depth soffit finishes with a 100mm clearance at its’ rear, to allow warm air escape to free space.



Dimensions

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Dimensions.

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Capacity (Litres)

260

397

552

700

862

Length (mm)

600

900

1200

1500

1800

Depth (mm)

795(+50)

795(+50)

795(+50)

795(+50)

795(+50)

Height (mm)

1965

1965

1965

1965

1965

4 Tiers + Deck

Included

Included

Included

Included

Included

Roller Shutter (1965mm Unit Height).

Included

Included

Included

Included

Included

Shelf Depth (mm)
(6 x 1/2L cola bottles).

391

391

391

391

391

Well Depth (mm)
(8 x 1/2L cola bottles).

560

560

560

560

560

Weight (Uncrated) (kg).

202

241

280

321

359

Refrigerant Type.

R290

R290

R290

R290

R290

Power (kW).

1.31

1.48

1.67

1.70

1.72

Total Heat Rejection @ 32°C Ambient (watts).

1340

2010

2317

2317

2489

Electrical Supply.

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



Option Codes

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Ø100mm
H/Duty Castor
(2005 mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

D/Glazed
Side Panels

DGPL

DGPL

DGPL

DGPL

DGPL

Hook In Chrome
Wire Impulse
Basket

MMIB6

MMIB9

MMIB12

MMIB15

MMIB18

Mobile Impulse
Timber Basket
(Redwood Clear
Varnish)

MITB6

MITB9

MITB12

MITB15

MITB18

Wood Stain To
Mobile Impulse
Timber Basket
(Oak/ Wenge/ Ash
Grey)

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S

Glass
Shelving (Set).

GSSETMM6L

GSSETMM9L

GSSETMM12L

GSSETMM15L

GSSETMM18L

Additional Glass
Shelf.

AGSMM6L

AGSMM9L

AGSMM12L

AGSMM15L

AGSMM18L

Additional Steel
Shelf.

ASSMM6L

ASSMM9L

ASSMM12L

ASSMM15L

ASSMM18L

Coloured
Surface Finish
(20 Colours).

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO



Food Types

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Options

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Display Options.



Ø 100mm Heavy Duty Castors. Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*2005 mm Unit Height*

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – Ø 100 mm Heavy Duty Castor (2005 mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Revised Height (mm)

2005

2005

2005

2005

2005













Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.









Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – Hook In Impulse Basket.

MMIB6

MMIB9

MMIB12

MMIB15

MMIB18

Basket Size L x H x D (mm)

540 x 99 x 210

840 x 99 x 210

1140 x 99 x 210

1440 x 99 x 210

1740 x 99 x 210







Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB6

MITB9

MITB12

MITB15

MITB18

Basket Size L x H x D (mm)

600 x 660 x 300

900 x 660 x 300

1200 x 660 x 300

1500 x 660 x 300

1800 x 660 x 300

Storage Area L x H x D (mm)

570 x 270 x 147

870 x 270 x 147

1170 x 270 x 147

1470 x 270 x 147

1770 x 270 x 147













Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S





Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – Panoramic Glazed Side Panels

DGPL

DGPL

DGPL

DGPL

DGPL

















4 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – 4 Tier Glass Shelving (Set).

GSSETMM6L

GSSETMM9L

GSSETMM12L

GSSETMM15L

GSSETMM18L

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes

















Additional Glass Shelf. Converts the 4 Tier glass shelving option into 5 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – Additional Glass Shelf (Converts 4 Tier To 5 Tier Glass Shelving).

AGSMM6L

AGSMM9L

AGSMM12L

AGSMM15L

AGSMM18L

Additional Storage Area – Length x Depth (mm).

528 x 391

828 x 391

1128 x 391

1412 x 391

1712 x 391

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Additional Steel Shelf.
Converts the 4 Tier model into 5 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – Additional S/Steel Shelf (Converts 4 Tier To 5 Tier Shelving).

ASSMM6L

ASSMM9L

ASSMM12L

ASSMM15L

ASSMM18L

Additional Storage Area – Length x Depth (mm).

528 x 391

828 x 391

1128 x 391

1412 x 391

1712 x 391

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Coloured Steel Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Option – Unpack & Position Money Maker.

MMUP69

MMUP69

MMUP1215

MMUP1215

MMUP18

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE

MMWEEE

MMWEEE





















Euro Plug (<3Kw Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Euro Plug Code.

EXPLUG

EXPLUG

EXPLUG

EXPLUG

EXPLUG













Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MM600LRHT

MM900LRHT

MM1200LRHT

MM1500LRHT

MM1800LRHT

Export Packing Case.

EXMM6L

EXMM9L

EXMM12L

EXMM15L

EXMM18L

O/All Case Dims. L x W x H (mm).

700 x 945 x 2175

1000 x 945 x 2175

1300 x 945 x 2175

1600 x 945 x 2175

1900 x 945 x 2175

Case Weight (kg) *Not Including Merchandiser*

61

73

85

99

113





Downloads

General Layout Drawings/ Fitting Details.
Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)



Specification Sheets, User Manual, CE & UKCA Conformance, Energy Facts.
Money Maker Chilled Merchandiser Range.







User Video Guides

Operation & Maintenance Guides
Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)

Replacing Evaporation Drip Tray.






Visual

Money Maker 3 Tier Slim Merchandiser (Front Hinged Doors).
Visual



Features

Money Maker 3 Tier Slim Merchandiser (Front Hinged Doors).
Features

  • Mobile chilled merchandiser in compact range of sizes, for retail locations where space is a premium.
  • Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
  • Self help (fixed back) application.
  • 3 tier steel adjustable height shelving, for increased chilled product display area.
  • Additional cold deck area, typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
  • Fitted with energy saving, double glazed, lockable hinged front doors.
  • Full length handle profile to each door opening side.
  • 600 model features right hand hinged front door.
  • Available in 600, 900, 1200, 1500 & 1800 mm wide.
  • Slimline unit depth 635 mm (+50), unit height 1725 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • Features canopy mounted digital temperature display and control panel (customer side).
  • Features ‘tamper proof’ temperature control facility.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Stand off brackets for wall siting included, to ensure adequate unit ventilation.
  • Adjustable final positioning/ levelling feet.

Options

  • 600 model – Left hand hinged front door.
  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 1765 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Mobile impulse timber basket. (4 finishes)
  • 3 tier glass shelving (Set).
  • Additional glass shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
  • Additional steel shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
  • Double glazed rear door/s (Set)
  • Coloured external surface finishes available (20 RAL Colours).

Wall Sited Model Installation:

  • Do not remove the rear stand-off brackets during installation, these allow the warm air to travel up the back of the merchandisers.

Wall Sited Model Installation (In A Shop Fitted Housing):

Ensure the housing has either:

  • 100mm clearance above the merchandiser (at front pelmet) to allow warm air to escape, or
  • The housing is left open above the merchandiser roof to disperse warm air from the rear into free space above the housing (not trapped by a suspended ceiling) or
  • The housing may have a part depth soffit (with 25mm + 100mm front pelmet clearance) above the merchandiser, as long as the part depth soffit finishes with a 100mm clearance at its’ rear, to allow warm air escape to free space.



Dimensions

Money Maker 3 Tier Slim Merchandiser (Front Hinged Doors).
Dimensions.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Capacity (Litres)

160

240

330

420

510

Length (mm)

600

900

1200

1500

1800

Depth (mm)

635(+50)

635(+50)

635(+50)

635(+50)

635(+50)

Height (mm)

1725

1725

1725

1725

1725

3 Tiers + Deck

Included

Included

Included

Included

Included

Double Glazed (Lockable)
Hinged Front Door/s

Included

Included

Included

Included

Included

Front Door (Qty)

1

2

2

2

3

Front Door Opening Depth (mm)

493

376

526

676

537

Shelf Depth (mm)
(4 x 1/2L cola bottles).

291

291

291

291

291

Well Depth (mm)
(6 x 1/2L cola bottles).

400

400

400

400

400

Weight (uncrated) (kg)

167

197

227

257

288

Refrigerant Type

R290

R290

R290

R290

R290

Power (kW)

1.31

1.48

1.66

1.69

1.72

Total Heat Rejection @ 32°C Ambient (watts)

1340

2010

2317

2317

2489

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



Option Codes

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

D/Glazed
Side Panels

DGPSD

DGPSD

DGPSD

DGPSD

DGPSD

Left Hand
Hinged Front Door

MLHD6S

N/A

N/A

N/A

N/A

Ø100mm
H.Duty Castor
(1765mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Hook In Chrome  Wire Impulse Basket.

MMIB6HD

MMIB9HD

MMIB12HD

MMIB15HD

MMIB18HD

Mobile Impulse Timber Basket.(Redwood Clear Varnish).

MITB6HD

MITB9HD

MITB12HD

MITB15HD

MITB18HD

Wood Stain To Mobile Impulse Timber Basket(Oak/ Wenge/Ash Grey).

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S

Rear Doors.

MMDR6S

MMDR9S

MMDR12S

MMDR15S

MMDR18S

Glass Shelving (Set).

GSSETMM6S

GSSETMM9S

GSSETMM12S

GSSETMM15S

GSSETMM18S

Additional Glass Shelf.

AGSMM6S

AGSMM9S

AGSMM12S

AGSMM15S

AGSMM18S

Additional Steel Shelf.

ASSMM6S

ASSMM9S

ASSMM12S

ASSMM15S

ASSMM18S

Coloured Surface Finish (20 Colours)

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO



Food Types

Money Maker 3 Tier Slim Merchandiser (Front Hinged Doors).
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Wrapped sandwiches, baguettes, rolls & barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Options

Money Maker 3 Tier Slim Merchandiser (Front Hinged Doors).
Display Options.

Ø 100mm Heavy Duty Castors.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).
*1765 mm Unit Height*

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Ø 100 mm Heavy Duty Castor
(1765 mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Revised Height (mm)

1765

1765

1765

1765

1765



















Left Hand Hinged Front Door.
Single left hand hinged front door for 600 wide slim model.



Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Left Hand Hinged Front Door
(600 mm model only)

MLHD6S

N/A

N/A

N/A

N/A























Double Glazed Rear Door Set.
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Double Glazed Rear Door (Set).

MMDR6S

MMDR9S

MMDR12S

MMDR15S

MMDR18S

Qty. Doors Per Model.

One

Two

Two

Two

Four





Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Hook In Impulse Basket.

MMIB6HD

MMIB9HD

MMIB12HD

MMIB15HD

MMIB18HD

Basket Size L x H x D (mm)

540 x 99 x 210

840 x 99 x 210

1140 x 99 x 210

1440 x 99 x 210

1740 x 99 x 210

















Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB6HD

MITB9HD

MITB12HD

MITB15HD

MITB18HD

Basket Size L x H x D (mm)

600 x 540 x 300

900 x 540 x 300

1200 x 540 x 300

1500 x 540 x 300

1800 x 540 x 300

Storage Area L x H x D (mm)

570 x 270 x 147

870 x 270 x 147

1170 x 270 x 147

1470 x 270 x 147

1770 x 270 x 147



















Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S



Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Panoramic Glazed Side Panels

DGPSD

DGPSD

DGPSD

DGPSD

DGPSD



















3 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – 3 Tier Glass Shelving (Set).

GSSETMM6S

GSSETMM9S

GSSETMM12S

GSSETMM15S

GSSETMM18S

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes

















Additional Glass Shelf. Converts the 3 Tier glass shelving option into 4 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Additional Glass Shelf (Converts 3 Tier To 4 Tier Glass Shelving).

AGSMM6S

AGSMM9S

AGSMM12S

AGSMM15S

AGSMM18S

Additional Storage Area – Length x Depth (mm).

528 x 291

828 x 291

1128 x 291

1412 x 291

1712 x 291

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Additional Steel Shelf.
Converts the 3 Tier model into 4 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Additional S/Steel Shelf (Converts 3 Tier To 4 Tier Shelving).

ASSMM6S

ASSMM9S

ASSMM12S

ASSMM15S

ASSMM18S

Additional Storage Area – Length x Depth (mm).

528 x 291

828 x 291

1128 x 291

1412 x 291

1712 x 291

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Option – Unpack & Position Money Maker.

MMUP69

MMUP69

MMUP1215

MMUP1215

MMUP18

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE

MMWEEE

MMWEEE





















Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Euro Plug Code.

EXPLUG

EXPLUG

EXPLUG

EXPLUG

EXPLUG







Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MM6SHD

MM9SHD

MM12SHD

MM15SHD

MM18SHD

Export Packing Case.

EXMM6S

EXMM9S

EXMM12S

EXMM15S

EXMM18S

O/All Case Dims. L x W x H (mm).

700 x 785 x 1935

1000 x 785 x 1935

1300 x 785 x 1935

1600 x 785 x 1935

1900 x 785 x 1935

Case Weight (kg) *Not Including Merchandiser*

49

60

70

83

95





Downloads

General Layout Drawings/ Fitting Details.
Money Maker 3 Tier Slim Merchandiser (Front Hinged Doors).





Specification Sheets, User Manual, CE & UKCA Conformance, Energy Facts.
Money Maker Chilled Merchandiser Range.







User Video Guides

Operation & Maintenance Guides
Money Maker 3 Tier Slim Merchandiser (Front Hinged Doors).

Replacing Evaporation Drip Tray.






Visual

Money Maker 4 Tier Large Merchandiser (Front Hinged Doors)
Visual




Features

Money Maker 4 Tier Large Merchandiser (Front Hinged Doors)
Features

  • Mobile chilled merchandiser in a large range of sizes, for retail locations where maximum merchandising capacity is a premium.
  • Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
  • Self help (fixed back) application.
  • 4 tier steel adjustable height shelving, for maximum chilled product display area in a minimum footprint.
  • Additional cold deck area, typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
  • Fitted with energy saving, double glazed, lockable hinged front doors.
  • Full length handle profile to each door opening side.
  • 600 model features right hand hinged front door.
  • Available in 600, 900, 1200, 1500 & 1800 mm wide.
  • Large unit depth 795 mm (+50), unit height 1965 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • Features canopy mounted digital temperature display and control panel (customer side).
  • Features ‘tamper proof’ temperature control facility.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Stand off brackets for wall siting included, to ensure adequate unit ventilation.
  • Adjustable final positioning/ levelling feet.

Options

  • 600 model – Left hand hinged front door.
  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 2005 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Mobile impulse timber basket. (4 finishes)
  • 4 tier glass shelving (Set).
  • Additional glass shelf option – allows 5 display tiers – when product displayed is not predominantly bottle storage.
  • Additional steel shelf option – allows 5 display tiers – when product displayed is not predominantly bottle storage.
  • Double glazed rear door/s (Set)
  • Coloured external surface finishes available (20 RAL Colours).

Wall Sited Model Installation:

  • Do not remove the rear stand-off brackets during installation, these allow the warm air to travel up the back of the merchandisers.

Wall Sited Model Installation (In A Shop Fitted Housing):

Ensure the housing has either:

  • 100mm clearance above the merchandiser (at front pelmet) to allow warm air to escape, or
  • The housing is left open above the merchandiser roof to disperse warm air from the rear into free space above the housing (not trapped by a suspended ceiling) or
  • The housing may have a part depth soffit (with 25mm + 100mm front pelmet clearance) above the merchandiser, as long as the part depth soffit finishes with a 100mm clearance at its’ rear, to allow warm air escape to free space.



Dimensions

Money Maker 4 Tier Large Merchandiser (Front Hinged Doors)
Dimensions.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Capacity (Litres)

260

397

552

700

862

Length (mm)

600

900

1200

1500

1800

Depth (mm)

795(+50)

795(+50)

795(+50)

795(+50)

795(+50)

Height (mm)

1965

1965

1965

1965

1965

4 Tiers + Deck

Included

Included

Included

Included

Included

Double Glazed (Lockable)
Hinged Front Door/s

Included

Included

Included

Included

Included

Front Door (Qty)

1

2

2

2

3

Front Door Opening Depth (mm)

493

376

526

676

537

Shelf Depth (mm)
(6 x 1/2L cola bottles).

391

391

391

391

391

Well Depth (mm)
(8 x 1/2L cola bottles)

560

560

560

560

560

Weight (uncrated)(kg)

202

241

280

321

359

Refrigerant Type

R290

R290

R290

R290

R290

Power (kW)

1.31

1.48

1.67

1.70

1.72

Total Heat Rejection @ 32°C Ambient (watts)

1340

2010

2317

2317

2489

Electrical supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



Option Codes

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

D/Glazed
Side Panels

DGPLD

DGPLD

DGPLD

DGPLD

DGPLD

Left Hand Hinged Front Door

MLHD6L

N/A

N/A

N/A

N/A

Ø100mm
H/Duty Castor
(2005mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Hook In Chrome
Wire Impulse Basket

MMIB6HD

MMIB9HD

MMIB12HD

MMIB15HD

MMIB18HD

Mobile Impulse
Timber Basket
(Redwood Clear
Varnish)

MITB6HD

MITB9HD

MITB12HD

MITB15HD

MITB18HD

Wood Stain To
Mobile Impulse
Timber Basket
(Oak/ Wenge/Ash
Grey)

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S

Rear Doors.

MMDR6LHD

MMDR9LHD

MMDR12LHD

MMDR15LHD

MMDR18LHD

Glass
Shelving (Set).

GSSETMM6L

GSSETMM9L

GSSETMM12L

GSSETMM15L

GSSETMM18L

Additional Glass Shelf.

AGSMM6L

AGSMM9L

AGSMM12L

AGSMM15L

AGSMM18L

Additional Steel Shelf.

ASSMM6L

ASSMM9L

ASSMM12L

ASSMM15L

ASSMM18L

Coloured
Surface Finish
(20 Colours).

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO



Food Types

Money Maker 4 Tier Large Merchandiser (Front Hinged Doors)
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Options

Money Maker 4 Tier Large Merch. (Front Hinged Doors)
Display Options.



Ø 100mm Heavy Duty Castors.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*2005 mm Unit Height*

Model

MM6LHD

MM9LHD

MM12LHD

MM1500LHT

MM1800LHT

Option – Ø 100 mm Heavy Duty Castor                          (1765 mm Unit Height)

HDC6

HDC9

HDC12

HDC15

HDC18

Revised Height (mm)

2005

2005

2005

2005

2005











Left Hand Hinged Front Door.
Single left hand hinged front door for 600 wide large model.



Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Left Hand Hinged Front Door
(600 mm model only)

MLHD6L

N/A

N/A

N/A

N/A



















Double Glazed Rear Door Set
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Double Glazed Rear Door (Set).

MMDR6L

MMDR9L

MMDR12L

MMDR15L

MMDR18L

Qty. Doors Per Model.

One

Two

Two

Two

Four





Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Hook In Impulse Basket.

MMIB6HD

MMIB9HD

MMIB12HD

MMIB15HD

MMIB18HD

Basket Size L x H x D (mm)

540 x 99 x 210

840 x 99 x 210

1140 x 99 x 210

1440 x 99 x 210

1740 x 99 x 210





Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB6HD

MITB9HD

MITB12HD

MITB15HD

MITB18HD

Basket Size L x H x D (mm)

600 x 540 x 300

900 x 540 x 300

1200 x 540 x 300

1500 x 540 x 300

1800 x 540 x 300

Storage Area L x H x D (mm)

570 x 270 x 147

870 x 270 x 147

1170 x 270 x 147

1470 x 270 x 147

1770 x 270 x 147





Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB6S

MITB9S

MITB12S

MITB15S

MITB18S



Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Panoramic Glazed Side Panels

DGPLD

DGPLD

DGPLD

DGPLD

DGPLD







4 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – 4 Tier Glass Shelving (Set).

GSSETMM6L

GSSETMM9L

GSSETMM12L

GSSETMM15L

GSSETMM18L

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Additional Glass Shelf. Converts the 4 Tier glass shelving option into 5 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Additional Glass Shelf (Converts 4 Tier To 5 Tier Glass Shelving).

AGSMM6L

AGSMM9L

AGSMM12L

AGSMM15L

AGSMM18L

Additional Storage Area – Length x Depth (mm).

528 x 391

828 x 391

1128 x 391

1412 x 391

1712 x 391

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes













Additional Steel Shelf.
Converts the 4 Tier model into 5 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Additional S/Steel Shelf (Converts 4 Tier To 5 Tier Shelving).

ASSMM6L

ASSMM9L

ASSMM12L

ASSMM15L

ASSMM18L

Additional Storage Area – Length x Depth (mm).

528 x 391

828 x 391

1128 x 391

1412 x 391

1712 x 391

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

N/A

Yes

Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**



Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Option – Unpack & Position Money Maker.

MMUP69

MMUP69

MMUP1215

MMUP1215

MMUP18

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE

MMWEEE

MMWEEE























Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Euro Plug Code.

EXPLUG

EXPLUG

EXPLUG

EXPLUG

EXPLUG











Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MM6LHD

MM9LHD

MM12LHD

MM15LHD

MM18LHD

Export Packing Case.

EXMM6L

EXMM9L

EXMM12L

EXMM15L

EXMM18L

O/All Case Dims. L x W x H (mm).

700 x 945 x 2175

1000 x 945 x 2175

1300 x 945 x 2175

1600 x 945 x 2175

1900 x 945 x 2175

Case Weight (kg) *Not Including Merchandiser*

61

73

85

99

113





Downloads

General Layout Drawings/ Fitting Details.
Money Maker 4 Tier Large Merchandiser (Front Hinged Doors).





Specification Sheets, User Manual, CE & UKCA Conformance, Energy Facts.
Money Maker Chilled Merchandiser Range.







User Video Guides

Operation & Maintenance Guides
Money Maker 4 Tier Large Merchandiser (Front Hinged Doors).

Replacing Evaporation Drip Tray.










Visual

Money Maker 3 Tier Slim Merchandiser (Front Sliding Doors) (HT).
Visual



Features

Money Maker 3 Tier Slim Merchandiser (Front Sliding Doors) (HT)
Features

  • Mobile chilled merchandiser in compact range of sizes, for retail locations where space is a premium.
  • Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
  • Self help (fixed back) application.
  • 3 tier steel adjustable height shelving, for increased chilled product display area.
  • Additional cold deck area, typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
  • Fitted with energy saving double glazed front sliding doors.
  • Available in 900, 1200 & 1500 mm wide.
  • Slimline unit depth 635 mm (+50), unit height 1725 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • Features canopy mounted digital temperature display and control panel (customer side).
  • Features ‘tamper proof’ temperature control facility.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Stand off brackets for wall siting included, to ensure adequate unit ventilation.
  • Adjustable final positioning/ levelling feet.

Options

  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 1765 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Mobile impulse timber basket. (4 finishes)
  • 3 tier glass shelving (Set).
  • Additional glass shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
  • Additional steel shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
  • Double glazed rear door/s (Set) –Front Sliding Door & Night Blind Models Only.
  • Coloured external surface finishes available (20 RAL Colours).

Wall Sited Model Installation:

  • Do not remove the rear stand-off brackets during installation, these allow the warm air to travel up the back of the merchandisers.

Wall Sited Model Installation (In A Shop Fitted Housing):

Ensure the housing has either:

  • 100mm clearance above the merchandiser (at front pelmet) to allow warm air to escape, or
  • The housing is left open above the merchandiser roof to disperse warm air from the rear into free space above the housing (not trapped by a suspended ceiling) or
  • The housing may have a part depth soffit (with 25mm + 100mm front pelmet clearance) above the merchandiser, as long as the part depth soffit finishes with a 100mm clearance at its’ rear, to allow warm air escape to free space.



Dimensions

Money Maker 3 Tier Slim Merchandiser (Front Sliding Doors) (HT)
Dimensions



Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Capacity (Litres)

240

330

420

Length (mm)

900

1200

1500

Depth (mm)

635(+50)

635(+50)

635(+50)

Height (mm)

1725

1725

1725

3 Tiers + Deck

Included

Included

Included

Double Glazed Sliding Front Doors

Included

Included

Included

Shelf Depth (mm)
(4 x 1/2L cola bottles)

291

291

291

Well Depth (mm)
(6 x 1/2L cola bottles)

400

400

400

Weight (uncrated) (kg)

197

227

257

Refrigerant Type

R290

R290

R290

Power (kW)

1.48

1.66

1.69

Total Heat Rejection @ 32°C Ambient (Watts)

2010

2317

2317

Electrical Supply

13A 230V

13A 230V

13A 230V



Option Codes

Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Double Glazed Side Panels

DGPSD

DGPSD

DGPSD

Ø100mm
H/Duty Castor
(1765 mm Unit Height)

HDC9

HDC12

HDC15

Hook In Chrome Wire Impulse Basket.

MMIB9

MMIB12

MMIB15

Mobile Impulse Timber Basket (Redwood Clear Varnish)

MITB9D

MITB12D

MITB15D

Wood Stain To Mobile Impulse Timber Basket (Oak/ Wenge/ Ash Grey).

MITB9S

MITB12S

MITB15S

Rear Doors
(Front Sliding Door Model).

MMDR9S

MMDR12S

MMDR15S

Glass
Shelving (Set).

GSSETMM9S

GSSETMM12S

GSSETMM15S

Additional Glass
Shelf.

AGSMM9S

AGSMM12S

AGSMM15S

Additional Steel
Shelf.

ASSMM9S

ASSMM12S

ASSMM15S

Coloured
Surface Finish (20 Colours).

MMPCO

MMPCO

MMPCO



Food Types

Money Maker 3 Tier Slim Merchandiser (Front Sliding Doors) (HT)
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food:  Wrapped sandwiches, baguettes, rolls & barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Options

Money Maker 3 Tier Slim Merchandiser (Front Sliding Doors) (HT)
Options.

Ø 100mm Heavy Duty Castors.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*1765 mm Unit Height*

Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Ø 100 mm Heavy Duty Castor
(1765 mm Unit Height)

HDC9

HDC12

HDC15

Revised Height (mm)

1765

1765

1765

















Double Glazed Rear Doors Set – (Front Sliding Door Model).
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Double Glazed Rear Door (Set).

MMDR9S

MMDR12S

MMDR15S

Qty. Doors Per Model.

Two

Two

Two





Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.





Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Hook In Impulse Basket.

MMIB9

MMIB12

MMIB15

Basket Size L x H x D (mm)

840 x 99 x 210

1140 x 99 x 210

1440 x 99 x 210











Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB9D

MITB12D

MITB15D

Basket Size L x H x D (mm)

900 x 660 x 300

1200 x 660 x 300

1500 x 660 x 300

Storage Area L x H x D (mm)

870 x 270 x 147

1170 x 270 x 147

1470 x 270 x 147













Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB9S

MITB12S

MITB15S





Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.



Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Panoramic Glazed Side Panels

DGPSD

DGPSD

DGPSD















3 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – 3 Tier Glass Shelving (Set).

GSSETMM9S

GSSETMM12S

GSSETMM15S

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

Yes

















Additional Glass Shelf.  Converts the 3 Tier glass shelving option into 4 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Additional Glass Shelf (Converts 3 Tier To 4 Tier Glass Shelving).

AGSMM9S

AGSMM12S

AGSMM15S

Additional Storage Area – Length x Depth (mm).

828 x 291

1128 x 291

1412 x 291

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

Yes















Additional Steel Shelf.
Converts the 3 Tier model into 4 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Additional S/Steel Shelf (Converts 3 Tier To 4 Tier Shelving).

ASSMM9S

ASSMM12S

ASSMM15S

Additional Storage Area – Length x Depth (mm).

828 x 291

1128 x 291

1412 x 291

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model (Front Sliding Doors)

MM900SDHT

MM1200SDHT

MM1500SDHT

Option – Unpack & Position Money Maker.

MMUP69

MMUP1215

MMUP1215

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE





















Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model

MM900SDHT

MM1200SDHT

MM1500SDHT

Euro Plug Code.

EXPLUG

EXPLUG

EXPLUG













Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MM900SDHT

MM1200SDHT

MM1500SDHT

Export Packing Case.

EXMM9S

EXMM12S

EXMM15S

O/All Case Dims. L x W x H (mm).

1000 x 785 x 1935

1300 x 785 x 1935

1600 x 785 x 1935

Case Weight (kg) *Not Including Merchandiser*

60

70

83





Downloads

General Layout Drawings/ Fitting Details.
Money Maker 3 Tier Slim Merchandiser (Front Sliding Doors) (HT).





Specification Sheets, User Manual, CE & UKCA Conformance, Energy Facts.
Money Maker Chilled Merchandiser Range.







User Video Guides

Operation & Maintenance Guides
Money Maker 3 Tier Slim Merchandiser (Front Sliding Doors) (HT).

Replacing Evaporation Drip Tray.






Visual

Money Maker 4 Tier Large Merchandiser (Front Sliding Doors) (HT)
Visual.



Features

Money Maker 4 Tier Large Merchandiser (Front Sliding Doors) (HT)
Features.



  • Mobile chilled merchandiser in a large range of sizes, for retail locations where maximum merchandising capacity is a premium.
  • Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
  • Self help (fixed back) application.
  • 4 tier steel adjustable height shelving, for maximum chilled product display area in a minimum footprint.
  • Additional cold deck area, typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
  • Fitted with energy saving double glazed front sliding doors.
  • Available in 900, 1200 & 1500 mm wide.
  • Large unit depth 795 mm (+50), unit height 1965 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • Features canopy mounted digital temperature display and control panel (customer side).
  • Features ‘tamper proof’ temperature control facility.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Stand off brackets for wall siting included, to ensure adequate unit ventilation.
  • Adjustable final positioning/ levelling feet.

Options

  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 2005 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Mobile impulse timber basket. (4 finishes)
  • 4 tier glass shelving (Set).
  • Additional glass shelf option – allows 5 display tiers – when product displayed is not predominantly bottle storage.
  • Additional steel shelf option – allows 5 display tiers – when product displayed is not predominantly bottle storage.
  • Double glazed rear door/s (Set) – Front Sliding DoorNight Blind Models Only.
  • Coloured external surface finishes available (20 RAL Colours).

Wall Sited Model Installation:

  • Do not remove the rear stand-off brackets during installation, these allow the warm air to travel up the back of the merchandisers.

Wall Sited Model Installation (In A Shop Fitted Housing):

Ensure the housing has either:

  • 100mm clearance above the merchandiser (at front pelmet) to allow warm air to escape, or
  • The housing is left open above the merchandiser roof to disperse warm air from the rear into free space above the housing (not trapped by a suspended ceiling) or
  • The housing may have a part depth soffit (with 25mm + 100mm front pelmet clearance) above the merchandiser, as long as the part depth soffit finishes with a 100mm clearance at its’ rear, to allow warm air escape to free space.



Dimensions

Money Maker 4 Tier Large Merchandiser (Front Sliding Doors) (HT)
Dimensions

Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Capacity (Litres)

397

552

700

Length (mm)

900

1200

1500

Depth (mm)

795(+50)

795(+50)

795(+50)

Height (mm)

1965

1965

1965

4 Tiers + Deck

Included

Included

Included

D/ Glazed Sliding Front Doors

Included

Included

Included

Shelf Depth (mm)
(6 x 1/2L cola bottles).

391

391

391

Well Depth (mm)
(8 x 1/2L cola bottles).

560

560

560

Weight (uncrated) (kg)

241

280

321

Refrigeration Type

R290

R290

R290

Power (kW)

1.48

1.67

1.70

Total Heat Rejection @ 32°C Ambient (watts)

2010

2317

2317

Electrical Supply

13A 230V

13A 230V

13A 230V





Option Codes

Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

D/Glazed
Side Panels

DGPLD

DGPLD

DGPLD

Ø 100mm
Heavy Duty Castor
(2005 mm Unit Height)

HDC9

HDC12

HDC15

Hook In Chrome
Wire Impulse
Basket

MMIB9

MMIB12

MMIB15

Mobile Impulse
Timber Basket
(Redwood Clear
Varnish)

MITB9D

MITB12D

MITB15D

Wood Stain To
Mobile Impulse
Timber Basket
(Oak/ Wenge/ Ash
Grey)

MITB9S

MITB12S

MITB15S

Rear Doors
(Front Sliding Doors Model)

MMDR9L

MMDR12L

MMDR15L

Glass
Shelving (Set).

GSSETMM9L

GSSETMM12L

GSSETMM15L

Additional Glass
Shelf.

AGSMM9L

AGSMM12L

AGSMM15L

Additional Steel
Shelf.

ASSMM9L

ASSMM12L

ASSMM15L

Coloured
Surface Finish
(20 Colours).

MMPCO

MMPCO

MMPCO



Food Types

Money Maker 4 Tier Large Merchandiser (Front Sliding Doors) (HT)
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Options

Money Maker 4 Tier Large Merchandiser (Front Sliding Doors) (HT)
Display Options.




Ø 100mm Heavy Duty Castor.

Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*2005 mm Unit Height*

Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Ø 100 mm Heavy Duty Castor                          (1765 mm Unit Height)

HDC9

HDC12

HDC15

Revised Height (mm)

2005

2005

2005













Double Glazed Rear Door Set – (Front Sliding Door Models)
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Double Glazed Rear Door (Set).

MMDR9L

MMDR12L

MMDR15L

Qty. Doors Per Model.

Two

Two

Two







Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.









Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Hook In Impulse Basket.

MMIB9

MMIB12

MMIB15

Basket Size L x H x D (mm)

840 x 99 x 210

1140 x 99 x 210

1440 x 99 x 210







Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB9D

MITB12D

MITB15D

Basket Size L x H x D (mm)

900 x 660 x 300

1200 x 660 x 300

1500 x 660 x 300

Storage Area L x H x D (mm)

870 x 270 x 147

1170 x 270 x 147

1470 x 270 x 147













Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB9S

MITB12S

MITB15S





Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.



Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Panoramic Glazed Side Panels

DGPLD

DGPLD

DGPLD













4 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – 4 Tier Glass Shelving (Set).

GSSETMM9L

GSSETMM12L

GSSETMM15L

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

Yes

















Additional Glass Shelf. Converts the 4 Tier glass shelving option into 5 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Additional Glass Shelf (Converts 4 Tier To 5 Tier Glass Shelving).

AGSMM9L

AGSMM12L

AGSMM15L

Additional Storage Area – Length x Depth (mm).

828 x 391

1128 x 391

1412 x 391

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

Yes















Additional Steel Shelf.
Converts the 4 Tier model into 5 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Additional S/Steel Shelf (Converts 4 Tier To 5 Tier Shelving).

ASSMM9L

ASSMM12L

ASSMM15L

Additional Storage Area – Length x Depth (mm).

828 x 391

1128 x 391

1412 x 391

Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).

N/A

N/A

Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).



WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model (Front Sliding Doors)

MM900LDHT

MM1200LDHT

MM1500LDHT

Option – Unpack & Position Money Maker.

MMUP69

MMUP1215

MMUP1215

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE





















Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model

MM900LDHT

MM1200LDHT

MM1500LDHT

Euro Plug Code.

EXPLUG

EXPLUG

EXPLUG











Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MM900LDHT

MM1200LDHT

MM1500LDHT

Export Packing Case.

EXMM9L

EXMM12L

EXMM15L

O/All Case Dims. L x W x H (mm).

1000 x 945 x 2175

1300 x 945 x 2175

1600 x 945 x 2175

Case Weight (kg) *Not Including Merchandiser*

73

85

99





Downloads

General Layout Drawings/ Fitting Details.
Money Maker 4 Tier Large Merchandiser (Front Sliding Doors) (HT).



Specification Sheets, User Manual, CE & UKCA Conformance, Energy Facts.
Money Maker Chilled Merchandiser Range.







User Video Guides

Operation & Maintenance Guides
Money Maker 4 Tier Large Merchandiser (Front Sliding Doors) (HT).

Replacing Evaporation Drip Tray.




MM1200LRHT 4 Shelf Roller Shutter c/w Heavy Duty Castor Option HDC12.
MM1200LHT 4 Shelf Night Blind c/w Heavy Duty Castor Option HDC12.

Model With Twin Locking Roller Shutter Shown.

Model With Pull Down Night Blind Shown.

Acrylic Deck Area Air Retaining Screen With Ticket Strip.

Deck Area For Visible Product Display In The Base Area.

Roller Shutter In Use (On model MM1200LRHT).

Optional Colour Finish To External Surfaces Shown (MMPCO).
Optional Chrome Wire Impulse Basket Shown (MMIB15).
Optional Mobile Timber Impulse Basket Shown (MITB12)<em<ahref=”https://www.cedfabsltd.co.uk/wp-content/uploads/2018/09/CED3436-Bespoke-Counter.jpg”>
