New Under Development 2024 – Money Maker Heated Merchandiser

Visual

Money Maker Large Heated Merchandiser
Visual

Features

Money Maker Large Heated Merchandiser
Features

• • Mobile hot holding merchandiser in a range of sizes, for retail locations where maximum merchandising capacity is premium.
  • Ideal for the display of pre-heated cooked food, packaged & cartoned heated produce, whether for snack, breakfast or lunch offers.
  • Heated by both static heat and fan blown heated air.
  • Product temperature maintained at 70- 75 deg. C in +18 deg. C ambient.
  • Self help (fixed back) application.
  • 4 tier food display levels comprising 3 steel/ coated aluminum shelves and hot deck display area.
  • The temperature of each of the 4 display tier heated zones can be independently set, using digital displays mounted behind the front panel.
  • Shelving is adjustable in both height/angle with removable steel wire food display grids on all display levels.
  • Vertical & horizontal covered LED lighting to display area (4000 Kelvin) – to match chilled models.
  • Fitted with an energy saving retractable insulated night blind.
  • Available in 600, 900 & 1200mm wide.
  • Large unit depth 795mm, unit height 1965 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • User friendly ‘On/ Off’ and lighting switches discreetly mounted in canopy.
  • Features 4 ‘tamper proof’ digital control panels – concealed in lift off front fascia panel – which allow variable temperature holding to each tier.
  • Cabinet can also be used with lighting only as an ambient merchandiser.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • 600mm/ 900mm wide models supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • 1200mm wide models supplied with 2m lead & single phase 32A commando plug (32A 230V 50Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable shelving system for easier cleaning and maintenance.
  • Adjustable final positioning/ levelling feet.

  Options

  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 2005 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Double glazed rear door/s (Set).
  • Coloured external surface finishes available (20 RAL Colours).
  • Export plug option (<3kW Models) – compatible with type C, E & F sockets. State plug type at point of order.
  • Export Packing Case.
  • WEEE disposal of redundant item (on delivery)
  • Unpack/position Of Merchandiser (on delivery)

Dimensions

Money Maker Large Heated Merchandiser
Dimensions



* Unit Supplied With Commando Plug



Option Codes
Model	MMH600L	MMH900L	MMH1200L
D/Glazed Side Panels	DGPL	DGPL	DGPL
Ø100mm H.Duty Castor (2005mm Unit Height)	HDC6	HDC9	HDC12
Hook In Chrome Wire Impulse Basket	MMIB6	MMIB9	MMIB12
Rear Doors.	MMHDR6L	MMHDR9L	MMHDR12L
WEEE Disposal (Removal of existing item during delivery of new model)	MMWEEE	MMWEEE	MMWEEE
Unpack/Position (On delivery)	MMUP69	MMUP69	MMUP1215
Euro Plug	EXPLUG	EXPLUG	N/A
Euro Shipping Case	EXMM6L	EXMM9L	EXMM12L
Coloured Surface Finish (20 Colours).	MMPCO	MMPCO	MMPCO

Food Types

Money Maker Large Heated Merchandiser
Food Display Types.



Food: Pre-heated cooked food, packaged & cartoned heated product. Hot wrapped buritos, sandwiches, rolls, breads & baguettes, hot savouries, pies, pastries & sausage rolls, chicken, pizza, cartoned soup and oats.

Options

Money Maker Large Heated Merchandiser
Options.



Ø 100mm Heavy Duty Castor.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*2005 mm Unit Height*

Model	MMH600L	MMH900L	MMH1200L
Option – Ø 100 mm Heavy Duty Castor                                (2005 mm Unit Height)	HDC6	HDC9	HDC12
Revised Height (mm)	2005	2005	2005











Double Glazed Rear Door Set.
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model	MMH600L	MMH900L	MMH1200L
Option – Double Glazed Rear Door (Set).	MMHDR6L	MMHDR9L	MMHDR12L
Qty. Doors Per Model.	One	Two	Two





Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of food bags, sauce pots, condiments, cutlery, folded luncheon napkins (163mm sq.), ambient product (crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.

Model	MMH600L	MMH900L	MMH1200L
Option – Hook In Impulse Basket.	MMIB6	MMIB9	MMIB12
Basket Size L x H x D (mm)	540 x 99 x 210	840 x 99 x 210	1140 x 99 x 210







Panoramic Glazed Side Panels. Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.





Model	MMH600L	MMH900L	MMH1200L
Option – Panoramic Glazed Side Panels	DGPL	DGPL	DGPL













Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.

Model	MMH600L	MMH900L	MMH1200L
Option – Coloured Surface Finish.	MMPCO	MMPCO	MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Heated Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model	MMH600L	MMH900L	MMH1200L
Option – Unpack & Position Money Maker.	MMUP69	MMUP69	MMUP1215
Option – WEEE Disposal Of Redundant Multideck During Delivery.	MMWEEE	MMWEEE	MMWEEE





Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model	MMH600L	MMH900L
Euro Plug Code.	EXPLUG	EXPLUG













Export Packing Case. Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model	MMH600L	MMH900L	MMH1200L
Export Packing Case.	EXMM6L	EXMM9L	EXMM12L
O/All Case Dims. L x W x H (mm).	700 x 945 x 2175	1000 x 945 x 2175	1300 x 945 x 2175
Case Weight (kg) *Not Including Merchandiser*	61	73	85





Downloads

General Layout Drawings/ Fitting Details.
Money Maker Large Heated Merchandiser





Specification Sheets, User Manual, CE & UKCA Conformance.
Money Maker Slim Heated Merchandiser



Visual

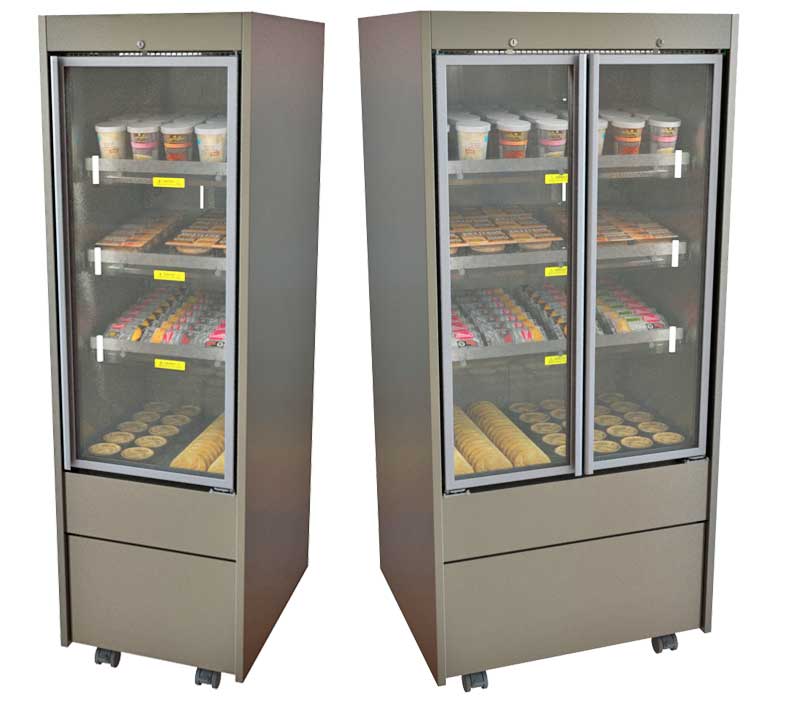

Money Maker Slim Heated Merchandiser (Hinged Front Doors).
Visual

Features

Money Maker Slim Heated Merchandiser (Hinged Front Doors).
Features

• Mobile hot holding merchandiser in a range of sizes, for retail locations where space is a premium.
• Ideal for the display of pre-heated cooked food, packaged & cartoned heated produce, whether for snack, breakfast or lunch offers.
• Heated by both static heat and fan blown heated air.
• Product temperature maintained at 70- 75 deg. C in +18 deg. C ambient.
• Self help (fixed back) application.
• Fitted with energy saving, double glazed, lockable hinged front doors.
• 600mm front door is right hand hinged.
• 4 tier food display levels comprising 3 steel/ coated aluminum shelves and hot deck display area.
• The temperature of each of the 4 display tier heated zones can be independently set, using digital displays mounted behind the front panel.
• Shelving is adjustable in both height/angle with removable steel wire food display grids on all display levels.
• Vertical & horizontal covered LED lighting to display area (4000 Kelvin) – to match chilled merchandiser models.
• Available in 600, 900 & 1200mm wide.
• Slim unit depth 635mm, unit height 1725 mm.
• 24-hour operation.
• Superstructure in bright polished (internal) and satin (external) steel.
• Bright polished steel rear back panel for typical use in wall sited situation.
• User friendly ‘On/ Off’ and lighting switches discreetly mounted in canopy.
• Features 4 ‘tamper proof’ digital control panels – concealed in lift off front fascia panel – which allow variable temperature holding to each tier.
• Cabinet can also be used with lighting only as an ambient merchandiser.
• 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
• 600mm/ 900mm wide models supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
• 1200mm wide models supplied with 2m lead & single phase 32A commando plug (32A 230V 50Hz).
• Removable steel front fascia panel, for ease of cleaning/ service maintenance.
• Modular removable shelving system for easier cleaning and maintenance.
• Adjustable final positioning/ levelling feet.

Options

• Ø 100 mm heavy duty castor (2 braked to customer side)
  **unit height increases to 1765 mm**.
• Panoramic glazed side panels.
• 600mm left hand hinged front door.
• Hook in chrome wire impulse basket.
• Double glazed rear door/s (Set).
• Coloured external surface finishes available (20 RAL Colours).
• Export plug option (<3kW Models) – compatible with type C, E & F sockets. State plug type at point of order.
• Export Packing Case.
• WEEE disposal of redundant item (on delivery)
• Unpack/position Of Merchandiser (on delivery)

Dimensions

Money Maker Slim Heated Merchandiser (Hinged Front Doors).
Dimensions



Option Codes
Model	MMH6SHD	MMH9SHD	MMH12SHD
D/Glazed Side Panels	DGPSD	DGPSD	DGPSD
Ø100mm H. Duty Castor (1765mm Unit Height)	HDC6	HDC9	HDC12
Left Hand Hinged Front Door	MLHD6S	N/A	N/A
Hook In Chrome Wire Impulse Basket	MMIB6HD	MMIB9HD	MMIB12HD
WEEE Disposal	MMWEEE	MMWEEE	MMWEEE
Unpack/ Position	MMUP69	MMUP69	MMUP1215
Euro Plug	EXPLUG	EXPLUG	N/A
Euro Case.	EXMM6S	EXMM9S	EXMM12S
Rear Doors.	MMHDR6S	MMHDR9S	MMHDR12S
Coloured Surface Finish (20 Colours).	MMPCO	MMPCO	MMPCO

Food Types

Money Maker Slim Heated Merchandiser (Hinged Front Doors).
Food Display Types.

Food: Pre-heated cooked food, packaged & cartoned heated product. Hot wrapped buritos, sandwiches, rolls, breads & baguettes, hot savouries, pies, pastries & sausage rolls, chicken, pizza, cartoned soup and oats.

Options

Money Maker Slim Heated Merchandiser (Hinged Front Doors).
Options.

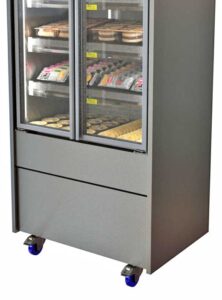

Ø 100mm Heavy Duty Castor.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*1765 mm Unit Height*

Model	MMH6SHD	MMH9SHD	MMH12SHD
Option – Ø 100 mm Heavy Duty Castor                                (1765 mm Unit Height)	HDC6	HDC9	HDC12
Revised Height (mm)	1765	1765	1765











Double Glazed Rear Door Set.
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model	MMH6SHD	MMH9SHD	MMH12SHD
Option – Double Glazed Rear Door (Set).	MMHDR6S	MMHDR9S	MMHDR12S
Qty. Doors Per Model.	One	Two	Two





Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of food bags, sauce pots, condiments, cutlery, folded luncheon napkins (163mm sq.), ambient product (crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.

Model	MMH6SHD	MMH9SHD	MMH12SHD
Option – Hook In Impulse Basket.	MMIB6HD	MMIB9HD	MMIB12HD
Basket Size L x H x D (mm)	540 x 99 x 210	840 x 99 x 210	1140 x 99 x 210

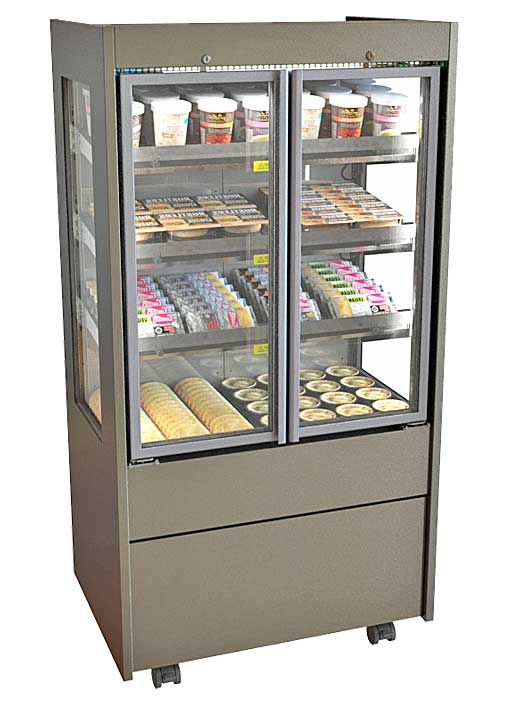

Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.



Model	MMH6SHD	MMH9SHD	MMH12SHD
Option – Panoramic Glazed Side Panels	DGPSD	DGPSD	DGPSD

















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.

Model	MMH6SHD	MMH9SHD	MMH12SHD
Option – Coloured Surface Finish.	MMPCO	MMPCO	MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Heated Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model	MMH6SHD	MMH9SHD	MMH12SHD
Option – Unpack & Position Money Maker.	MMUP69	MMUP69	MMUP1215
Option – WEEE Disposal Of Redundant Multideck During Delivery.	MMWEEE	MMWEEE	MMWEEE

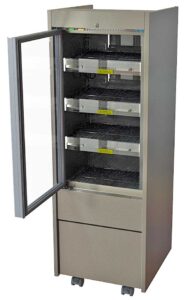

Left Hand Hinged Front Door.
Left hand hinged double glazed front single door for 600mm slim model only.

Model	MMH6SHD	MMH9SHD	MMH12SHD
Euro Plug Code.	MLHD6S	N/A	N/A







Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model	MMH6SHD	MMH9SHD	MMH12SHD
Euro Plug Code.	EXPLUG	EXPLUG	N/A













Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model	MMH6SHD	MMH9SHD	MMH12SHD
Export Packing Case.	EXMM6S	EXMM9S	EXMM12S
O/All Case Dims. L x W x H (mm).	700 x 785 x 1935	1000 x 785 x 1935	1300 x 785 x 1935
Case Weight (kg) *Not Including Merchandiser*	49	60	70



Downloads

General Layout Drawings/ Fitting Details.
Money Maker Slim Heated Merchandiser (Hinged Front Door).





Specification Sheets, User Manual, CE & UKCA Conformance.
Money Maker Slim Heated Merchandiser (Hinged Front Door).
