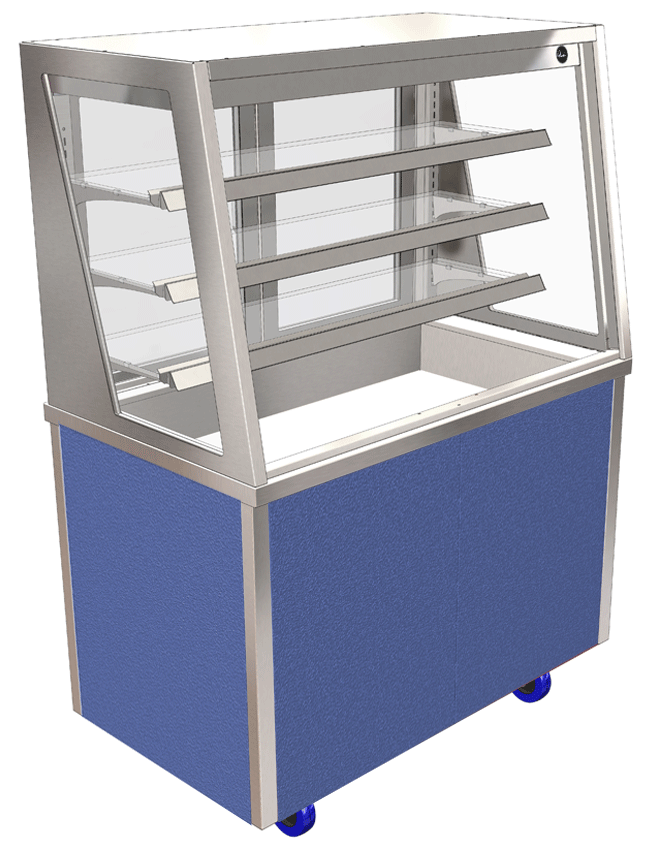

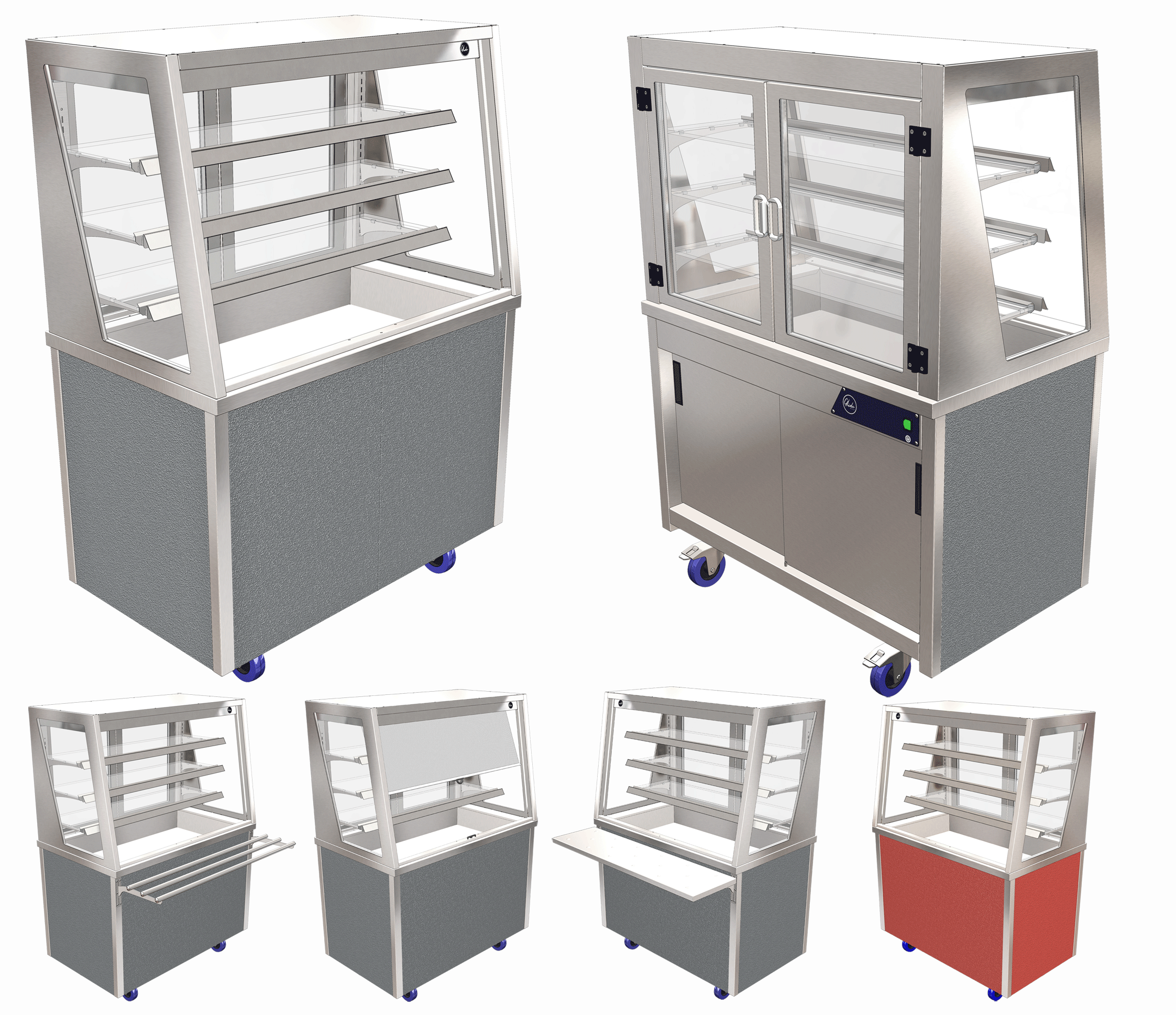

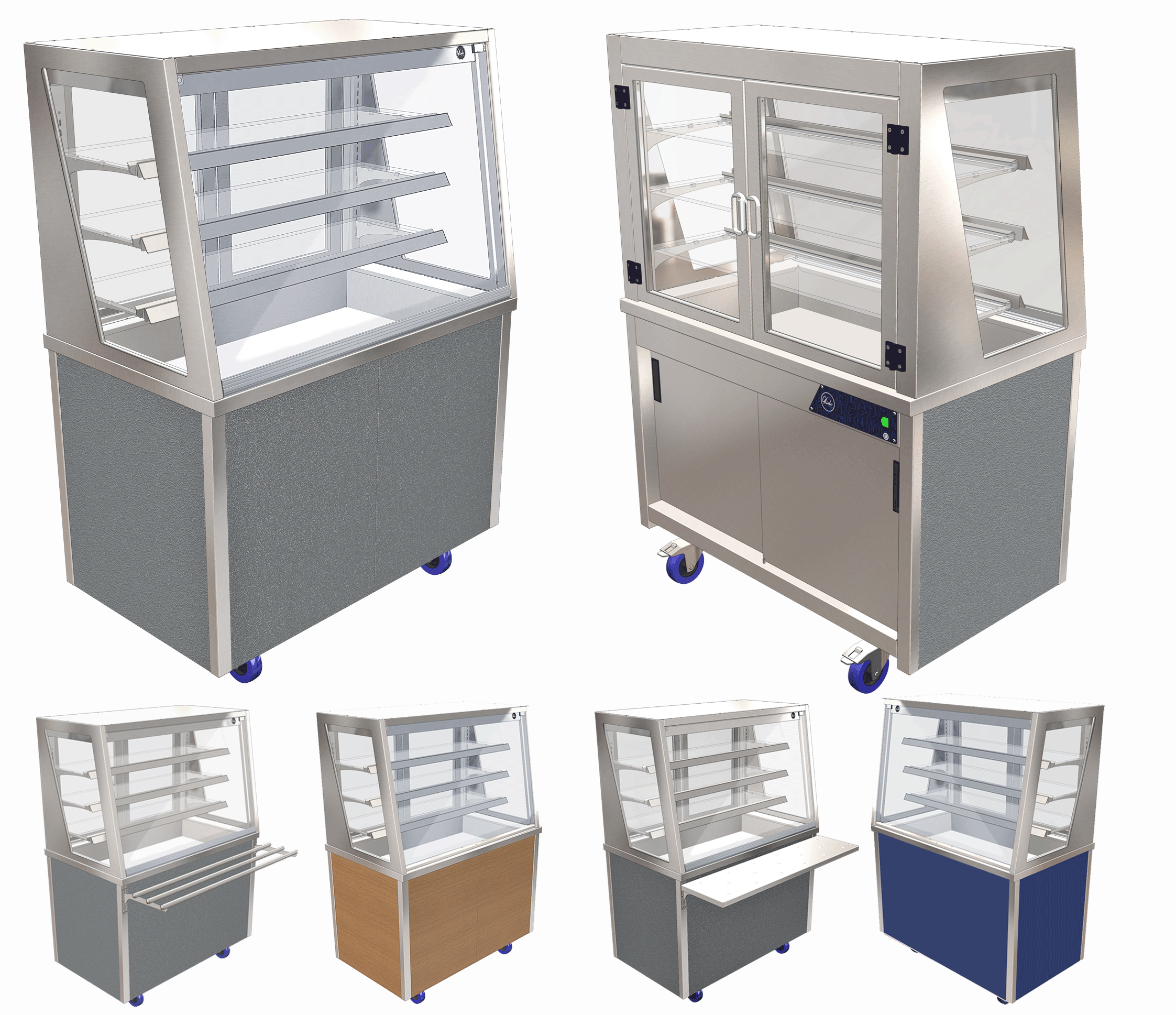

The ambient multideck is ideal for displaying confectionery, fruit, baked goods or drinks & forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

Glide Ambient Multideck. This mobile, self contained display is available in four different Gastronorm lengths, with locking castors to easily position your equipment around the serving space. The multideck accepts 1-1Gn (x100) container pans in the well/ storage area – perfect for bulk presentation of fruit and other morning goods. The display also features 3 tiers of sturdy 10mm thick glass shelving – each shelf fitted with point of sale ticket strips. Illumination is provided by LED lighting and a storage cupboard with sliding doors is below. The multideck is available as self help or assisted serve with rear doors for loading. The model is also produced with a stainless steel fixed back panel for wall sited use.
Self Help Ambient Multideck (Rear Doors).
Re-stocking access is by side hinged, glazed rear doors.

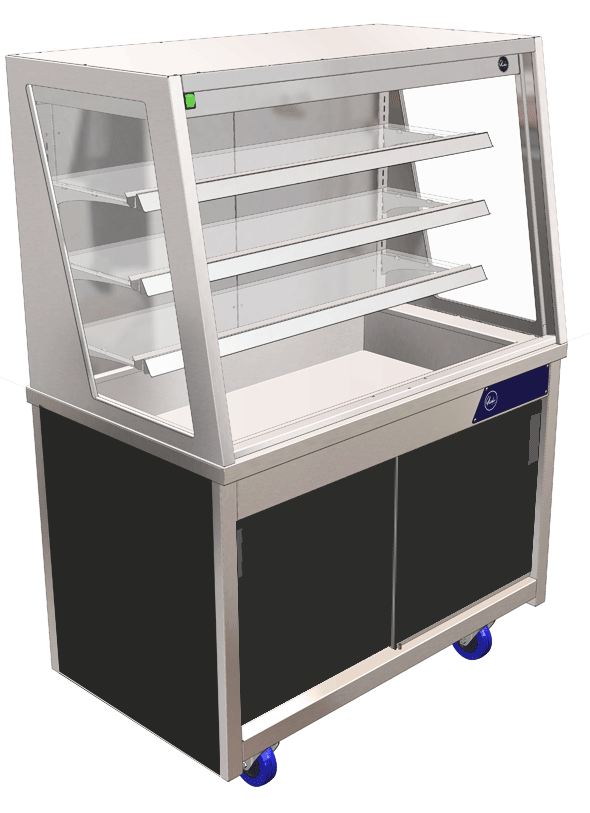

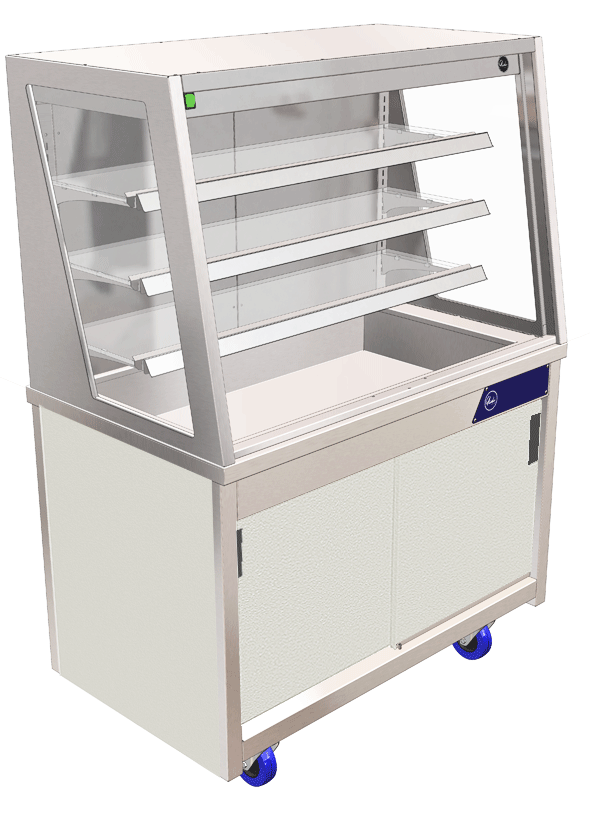

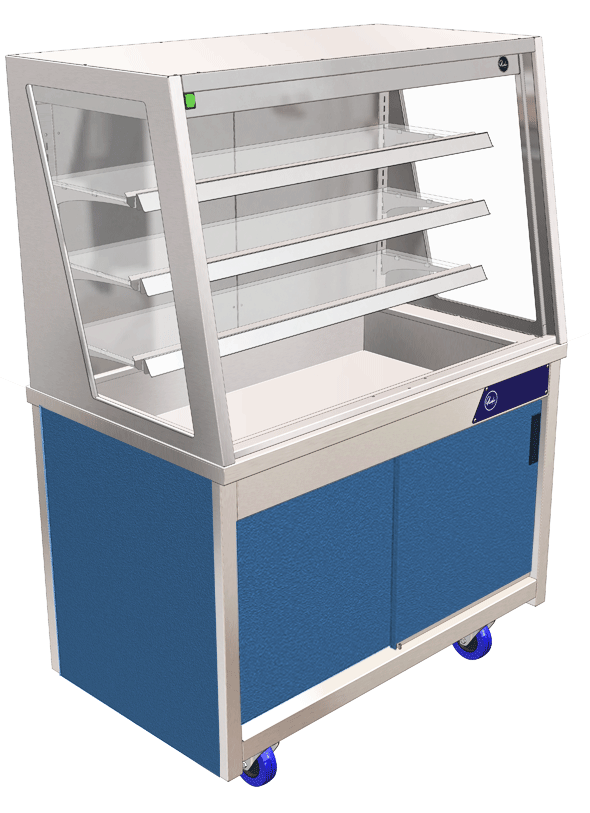

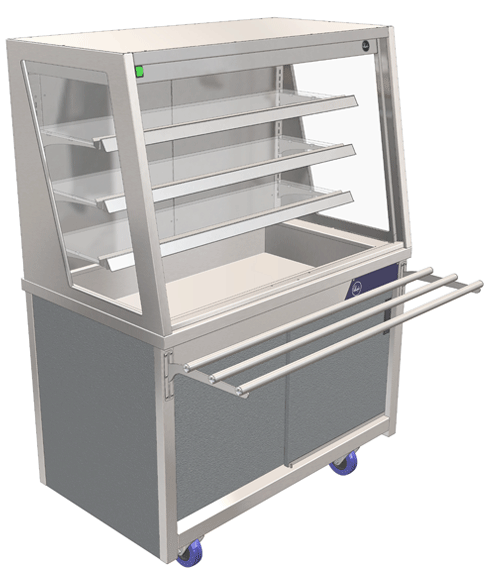

Self Help Ambient Multideck (Fixed Back).
The fixed back multideck has a front mounted light control switch and a s/steel inner back panel, it’s designed for positioning in an alcove, against a wall or back to back to form a central island grab and go station.

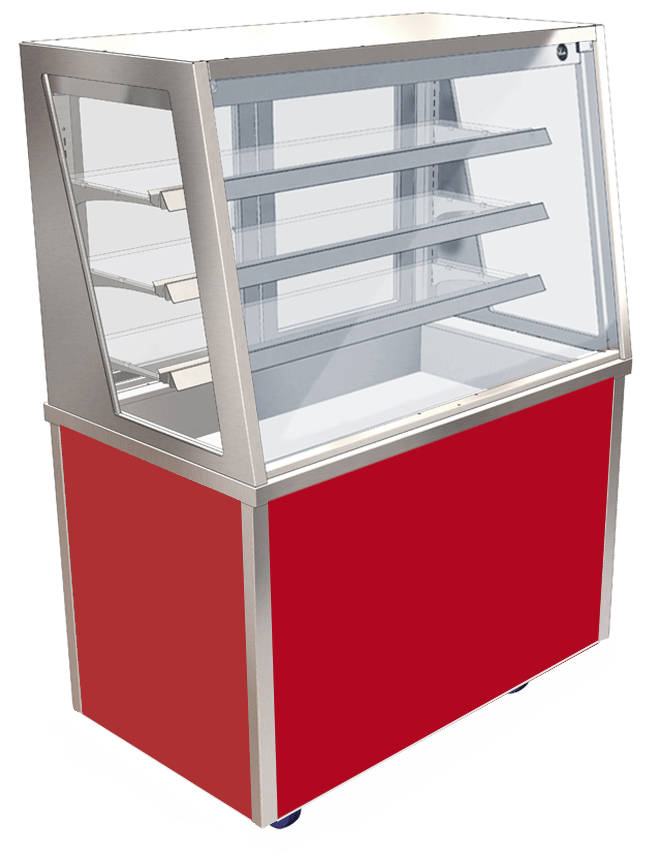

Assisted Service Ambient Multideck (Rear Doors).
Features a full glazed front screen that tilts forward for cleaning. Re-stocking access is through the side hinged, glazed rear doors.

Height Options.
Low Height Model (Glide Junior)
in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.

Folding Steel Solid or Tubular Tray Slides. Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.


Insulated Night Blind

An insulated pull down night blind is available with hook fastening, to avoid decanting product after the serving period. It can be retro-fitted on site by a competent person also.

Colour Finishes To Base Panels. 11 alternative choices of durable steel, colour & wood effect finishes for ambient multideck base panels, to compliment other selected models in the servery colour scheme.





Visual

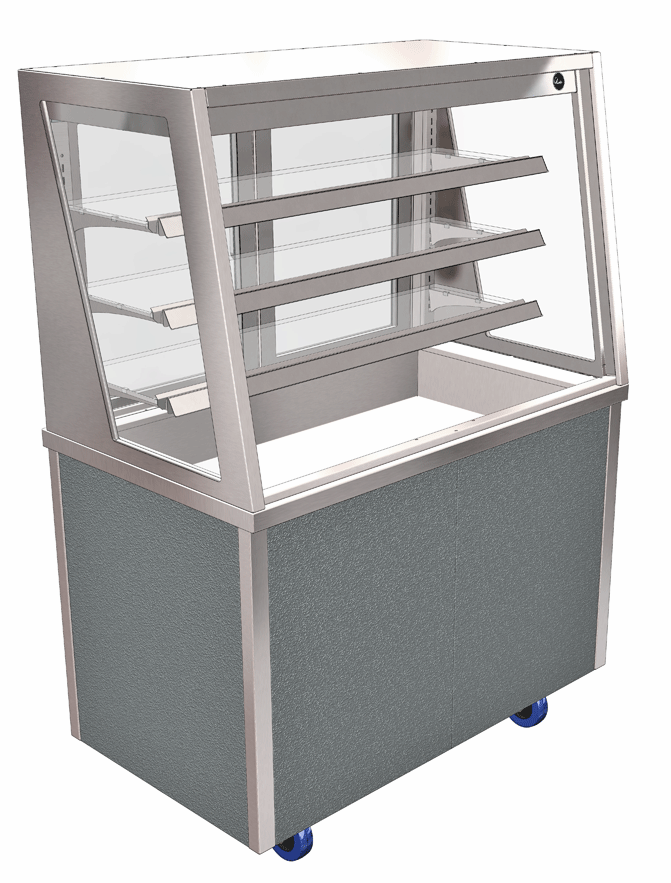

Glide Self Help Ambient Multideck (Rear Doors).
Visual



Features

Glide Self Help Ambient Multideck (Rear Doors).
Features

  • Glide mobile dining cart, self help ambient multideck (rear doors).
  • Free standing application.
  • Available in 2-1Gn (825mm), 3-1Gn (1175mm), 4-1Gn (1525mm) & 5-1Gn (1875mm) lengths.
  • Model dimensions: 700 mm (d) x 900mm (worktop h).  O/all 1655mm (h).
  • Fitted with 3 no. adjustable (h) 10mm thk. glass shelves c/w ticket strips (adjustable in height & angle).
  • Glass shelving fitted with product stops & 40mm(h) ticket strip holder to front edge of each shelf.
  • Multideck accepts 1-1Gn (x100) container pans in the well/ storage area.
  • Ambient rear facing cupboard under, with removable s/steel sliding cupboard doors & 2 no. tiers of removable grid shelves, for easy cleaning.
  • Ambient cupboard accommodates up to (10) x 1-1 Gn x 200mm (d) containers (not included), depending on model size.
  • LED canopy lighting with opaque cover, colour 4000k.
  • LED lighting control panel to rear, features illuminated rocker switch/power isolation.
  • Panoramic double glazed side glass panels, which improve presentation appearance & add natural lighting in the display.
  • Double glazed rear doors, for re-stocking access from operator side.
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop & deck plates in 304 gd. s/steel, all other external steel surfaces in 430gd (superstructure/ base corners/ cupboard doors etc.).
  • Fitted with lockable non-marking rubber tyre castors.
  • Power Supply: Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz), for connection to dedicated 13A SSO.

Glide Range: Electrical Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
  • If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • Folding s/steel solid tray slide available*.
  • Folding s/steel tubular tray rail Ø25 tube, available*.
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm)*.
  • Insulated night blind available, pull down hook fastening type. Indicates end of service & avoids decanting product after the serving period. Can be retro-fitted.
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available.
  • Low height model 800mm (h) available*. * Bespoke option with extended lead time*.
  • Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).

Food Display Examples

  • Drinks (Deck Area). Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.
  • Food (Deck & Shelving Area): Fruit, danish pastries, muffins, donuts, fruit cake, biscuits, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereal.
  • *Sandwiches, baguettes, rolls, barmcakes & cheese are subject to local health regulations re: display times*

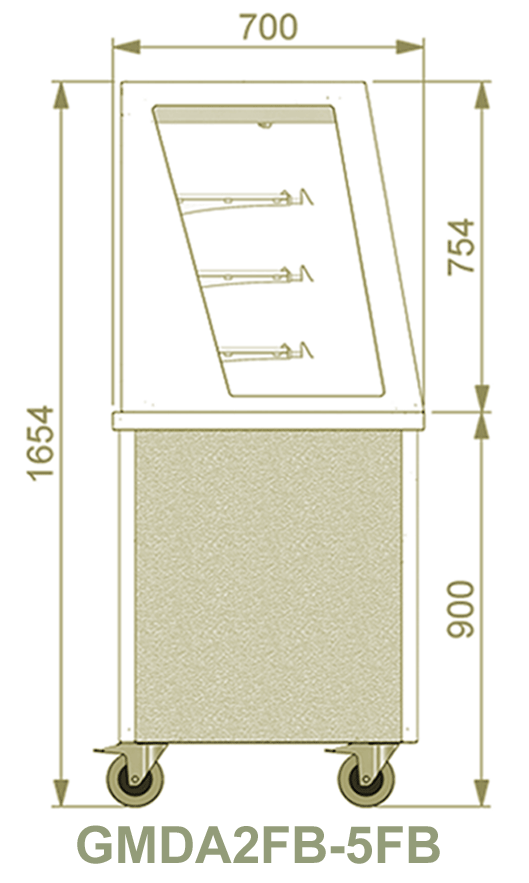

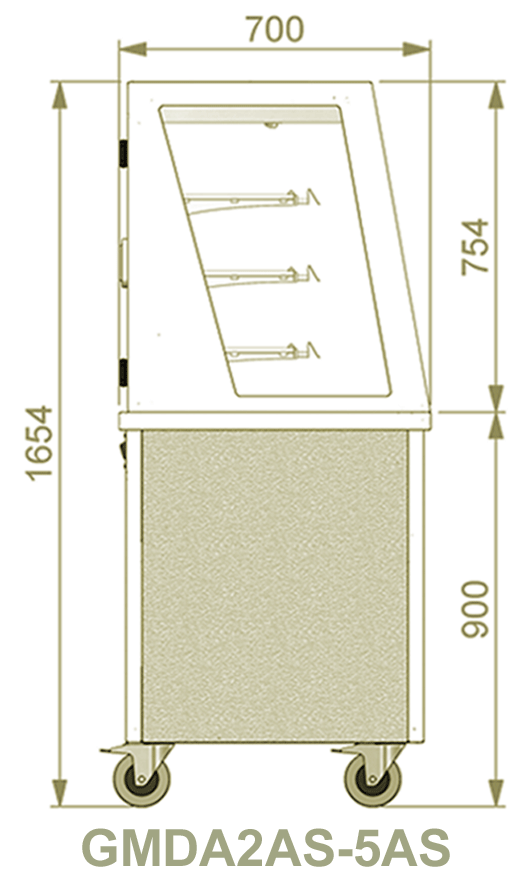

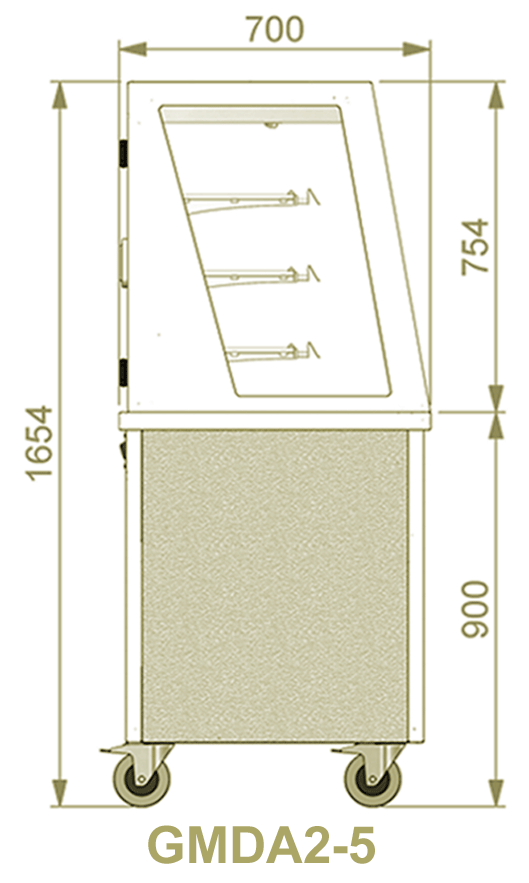

Dimensions

Glide Self Help Ambient Multideck (Rear Doors).
Dimensions

Model Code

GMDA2xxx

GMDA3xxx

GMDA4xxx

GMDA5xxx

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

1655

1655

1655

1655

Rear Storage Cupboard
Removable S/Steel Sliding Doors & Adjustable Height Shelving

Included

Included

Included

Included

Removable 2 Tier Shelving
Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers,
Containers Not Included

4

6

8

10

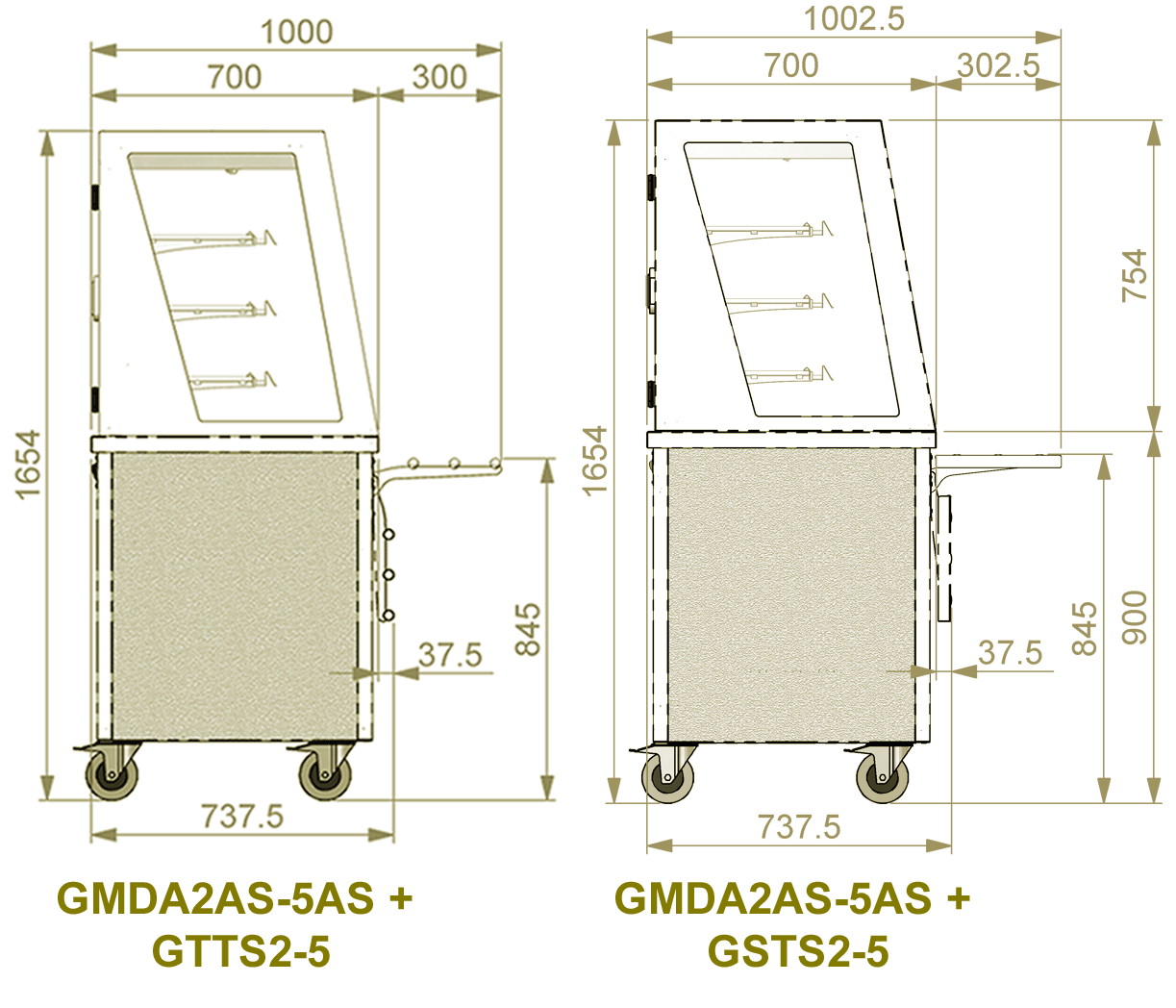

Optional Trayslide
– Revised Model Depth (mm)

Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide
– Revised Model Depth (mm)

Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

Power (kW)
c/w 3m lead & Plug, for connection to dedicated 13A SSO.

0.1

0.1

0.1

0.2

LED Canopy Lighting
C
olour 4000k, opaque safety cover

Included

Included

Included

Included

Optional Model Height G850H (mm)
Optional tray slide height = 795mm (h)

1605

1605

1605

1605

Optional Model Height *G800H (mm)
Optional tray slide height = 745mm (h)

*bespoke option, extended lead time*

1555

1555

1555

1555

Weight (kg) – Uncrated

90

120

168

202

* LED lighting rear control panel features illuminated rocker switch/power isolation*



Options – Glide Self Help Ambient Multideck (Rear Doors).

Option                                                                                          Option Code

Model Code

GMDA2

GMDA3

GMDA4

GMDA5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Night Blind.
Insulated, Pull Down, Hook Fasten

GNB2

GNB3

GNB4

GNB5

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5


Popular Model Codes & Options

Description Model Code Option Code Option Code Option Code

Glide Self Help Ambient Multideck (Rear Doors)
(& S/Steel Drop Down
Solid Tray Slide)

GMDA2
GMDA3
GMDA4
GMDA5

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

Glide Self Help Ambient Multideck (Rear Doors)
(& S/Steel Drop Down
Tubular Tray Rail)

GMDA2
GMDA3
GMDA4
GMDA5

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

Glide Self Help Ambient Multideck (Rear Doors)
(& Night Blind)

GMDA2
GMDA3
GMDA4
GMDA5

GNB2
GNB3
GNB4
GNB5

YYYY

Glide Self Help Ambient Multideck (Rear Doors)
(& Colour Panel Finish – Red)

GMDA2
GMDA3
GMDA4
GMDA5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

GPREDCHA2

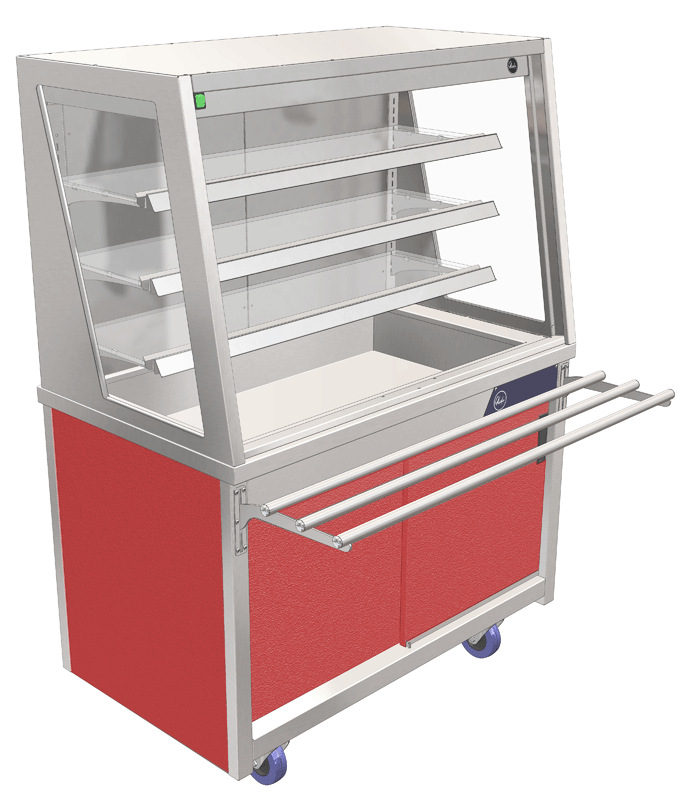

Glide Self Help Ambient Multideck (Rear Doors) (& S/Steel Drop Down Tubular Tray Rail) & (Colour Panel Finish Red)

GMDA2
GMDA3
GMDA4
GMDA5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

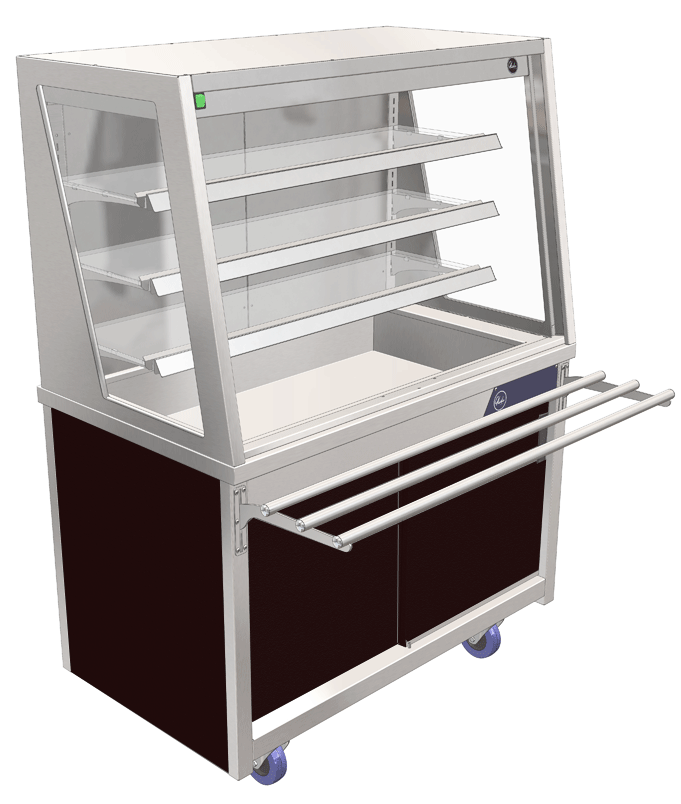

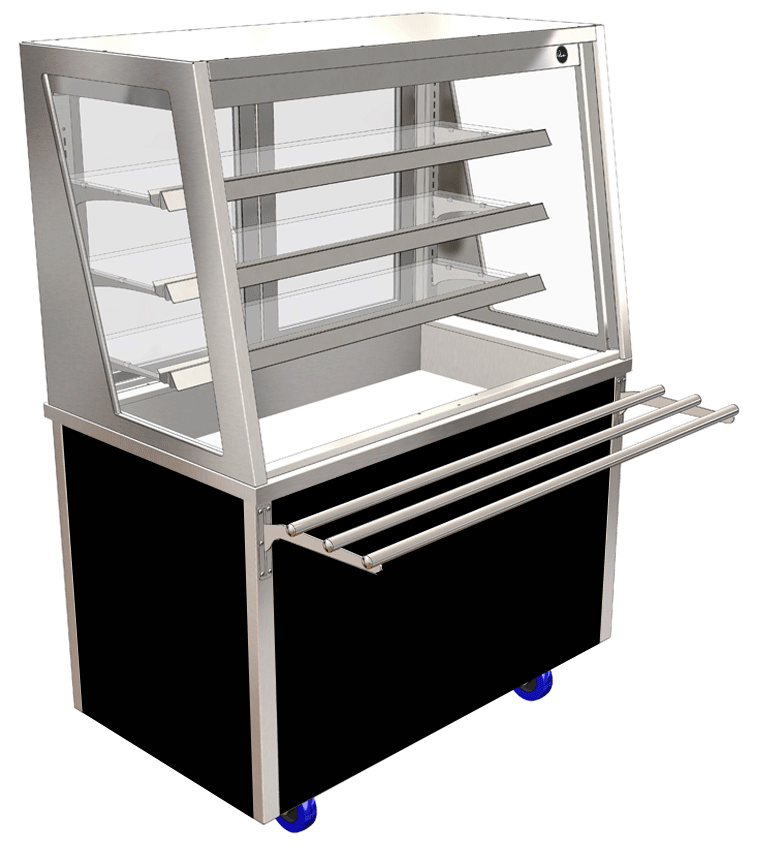

Glide Self Help Ambient Multideck (Rear Doors) (& S/Steel Drop Down Tubular Tray Rail) & (Colour Panel Finish Black)

GMDA2
GMDA3
GMDA4
GMDA5

GTTS2
GTTS3
GTTS4
GTTS5

GBLAKCHA2
GBLAKCHA3
GBLAKCHA4
GBLAKCHA5



Options

Glide Self Help Ambient Multideck (Rear Doors).
Options.

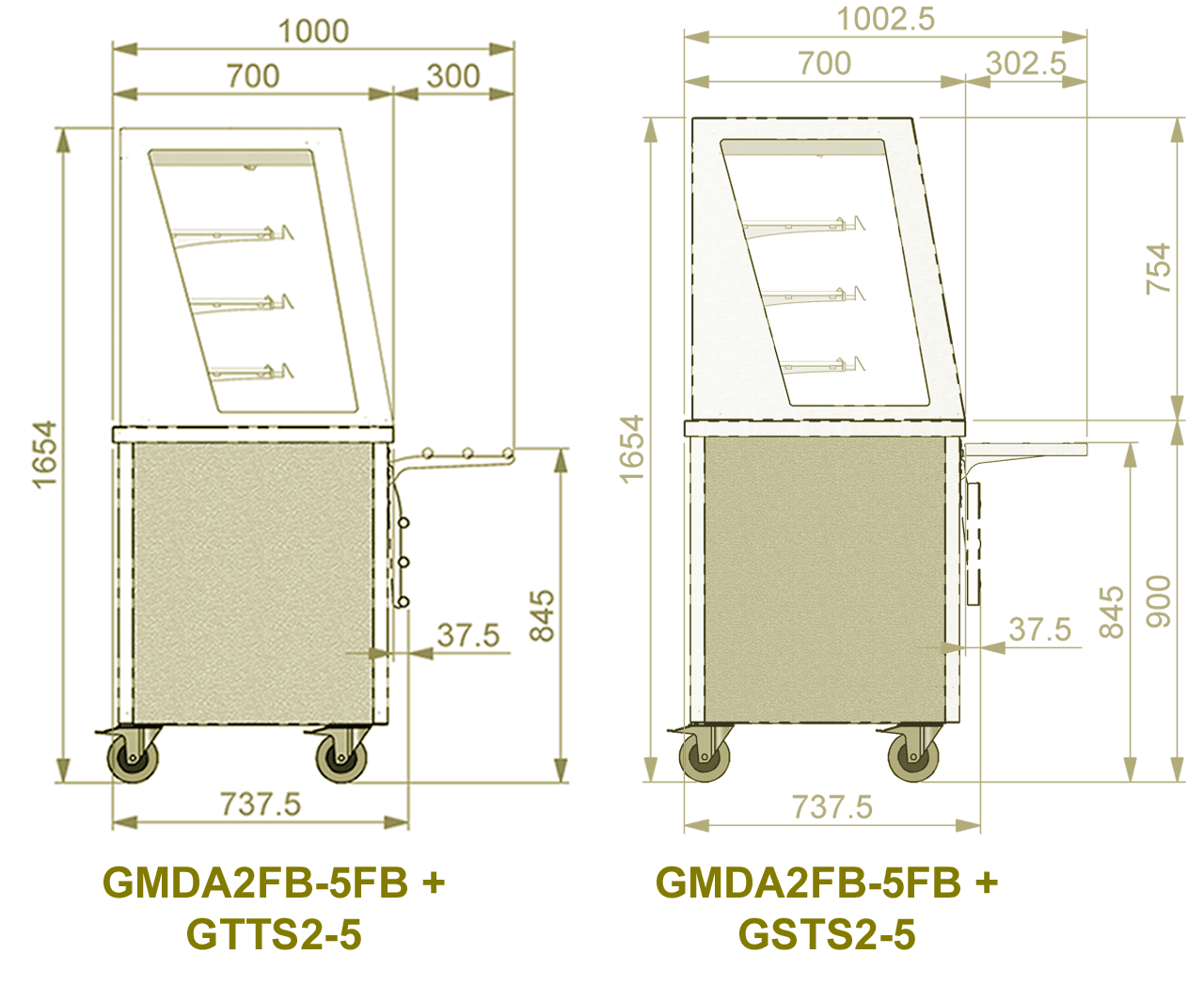

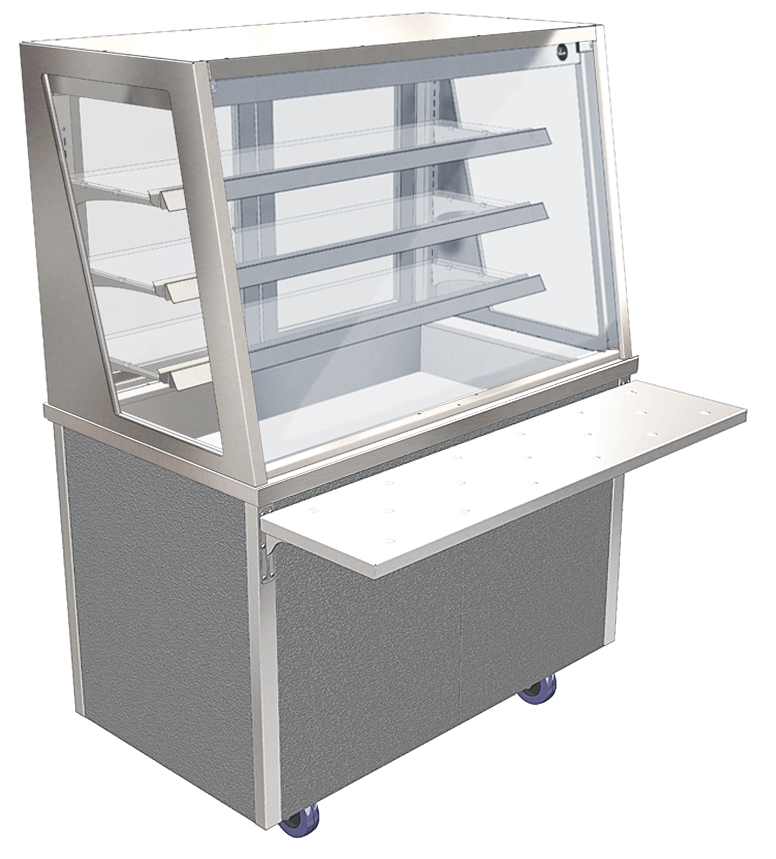

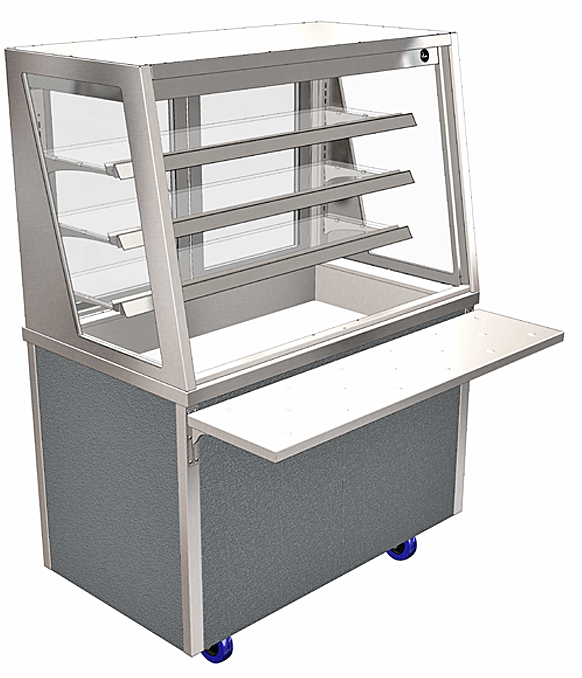

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

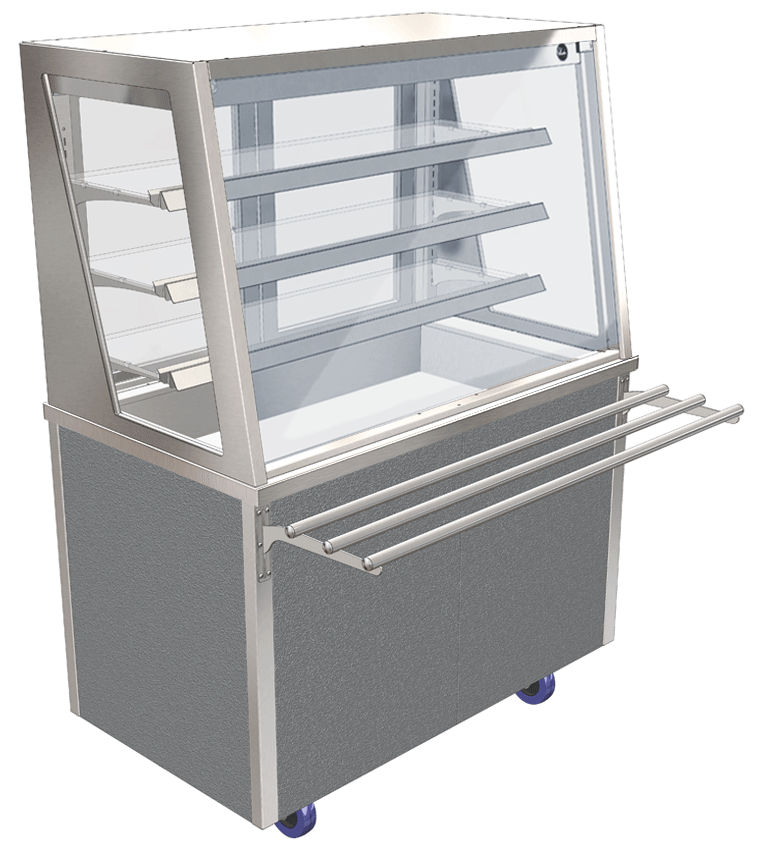

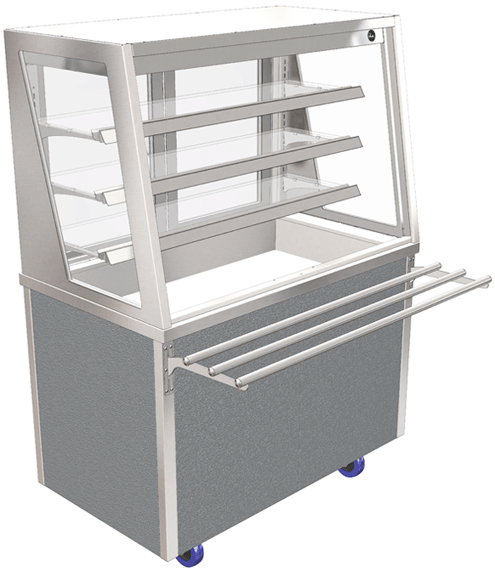

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

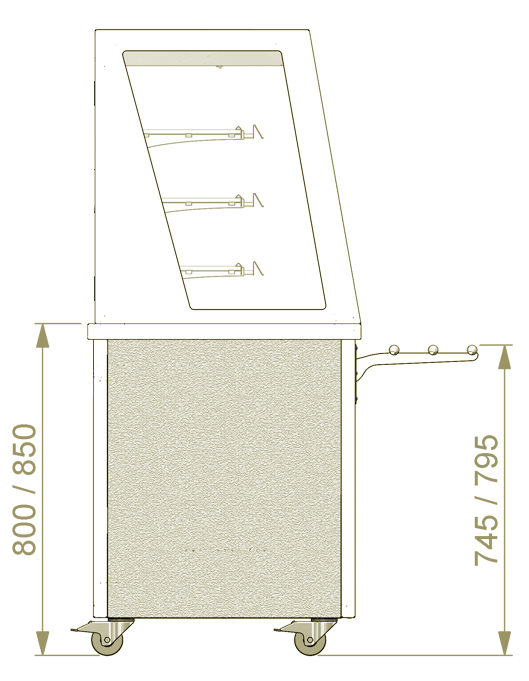

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

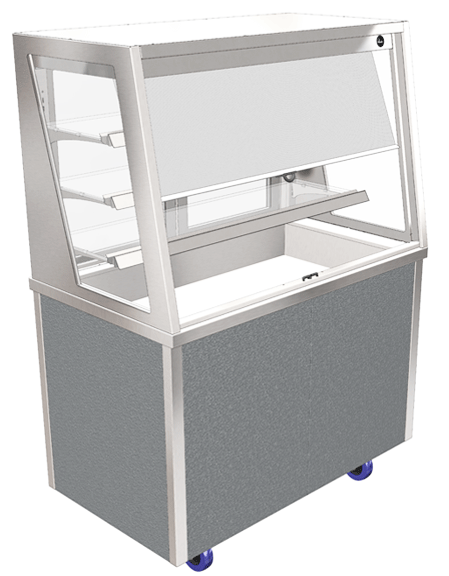

Glide Night Blind
(Option Codes GNB2 – GNB5) Glide option: 2-1 Gn to 5-1 Gn, night blind, insulated pull down night blind, hook fastening, indicates display is closed & avoids decanting product after the serving period. Factory fit or retro-fit by competent person.

Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

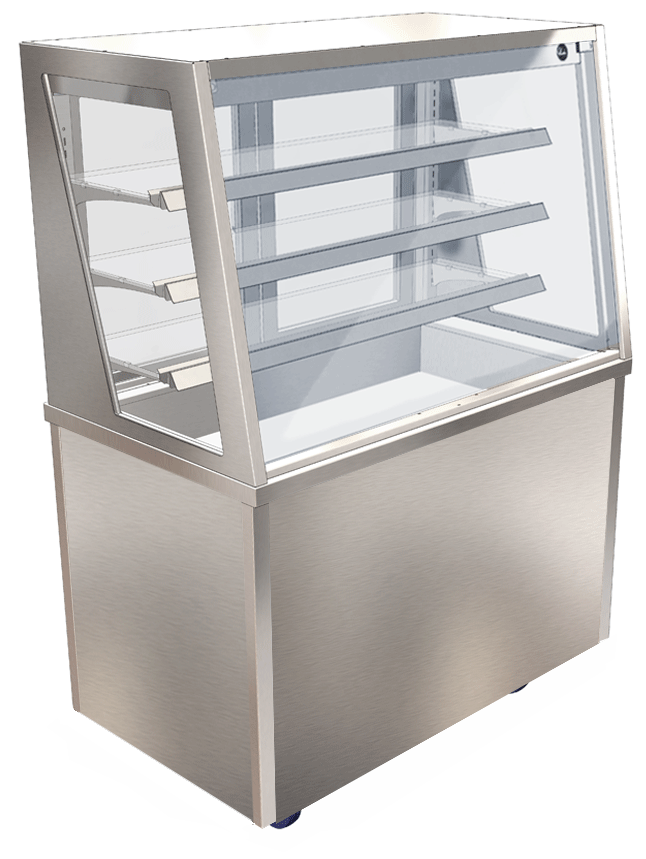

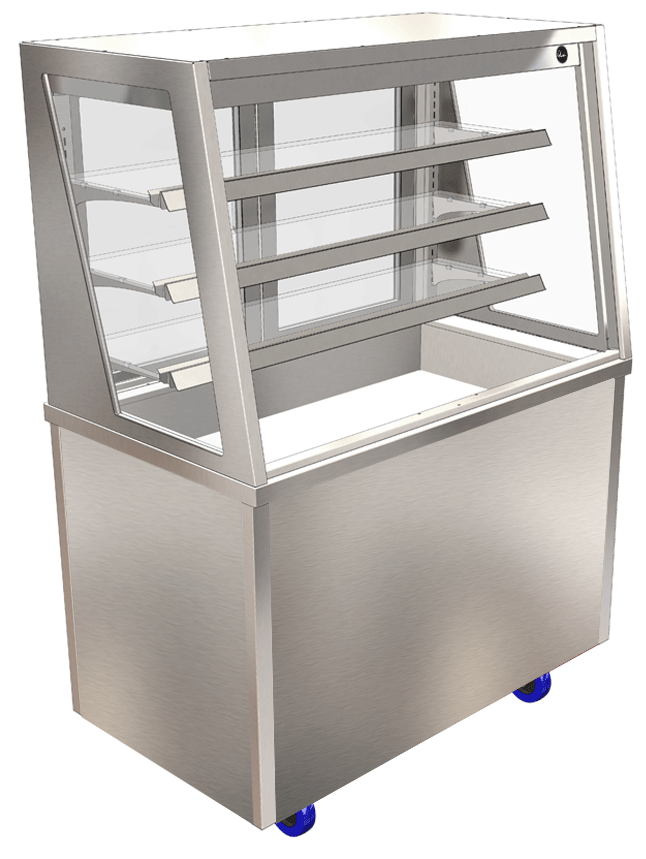

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

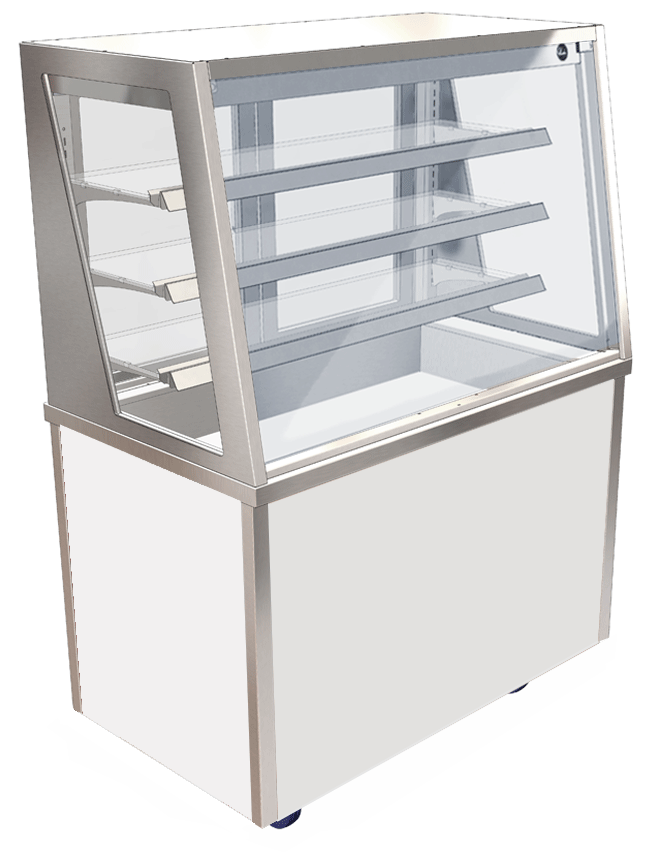

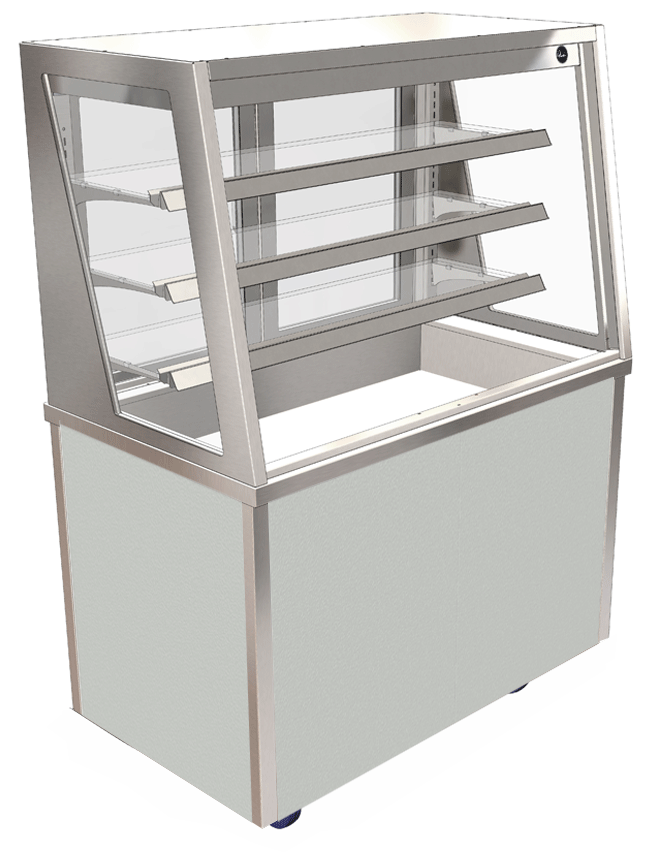

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

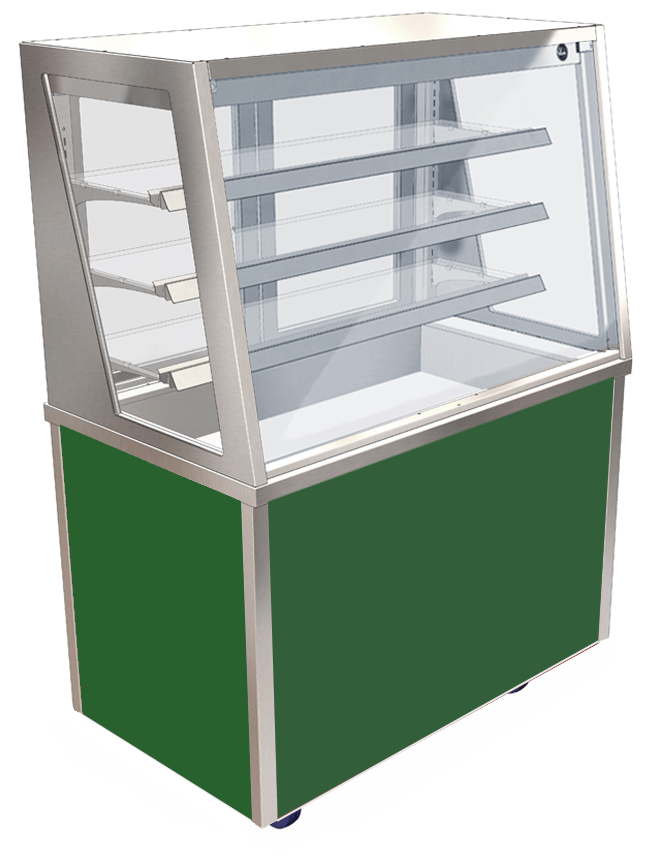

Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

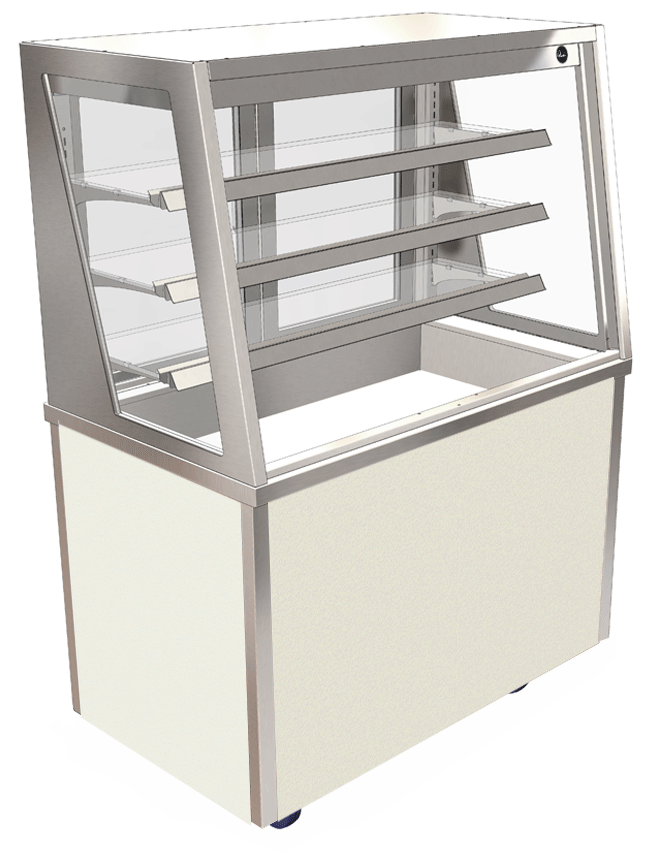

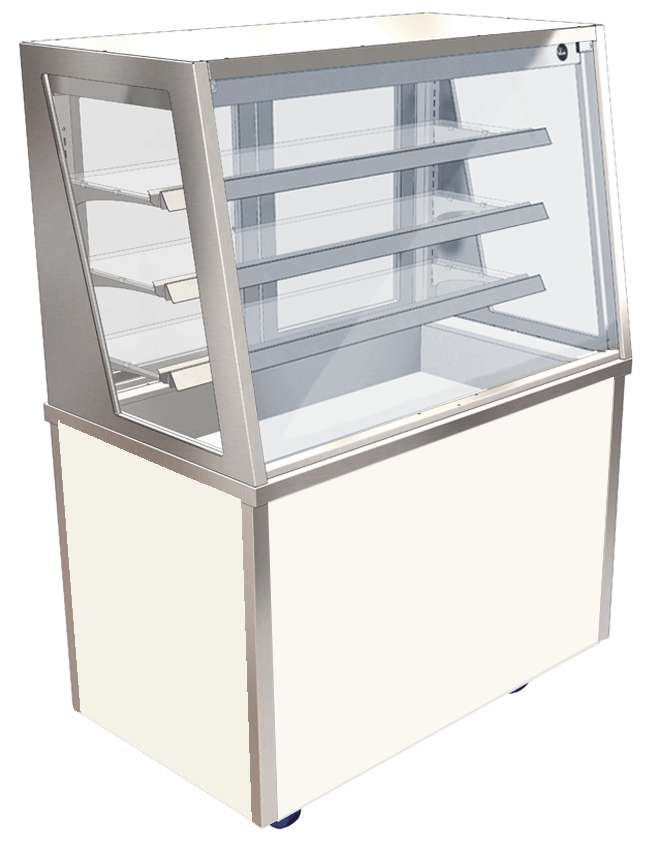

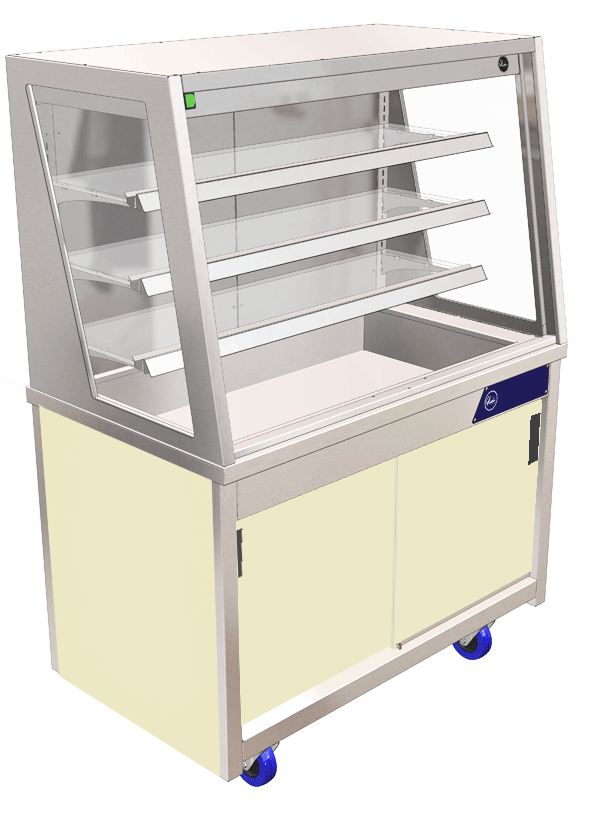

Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

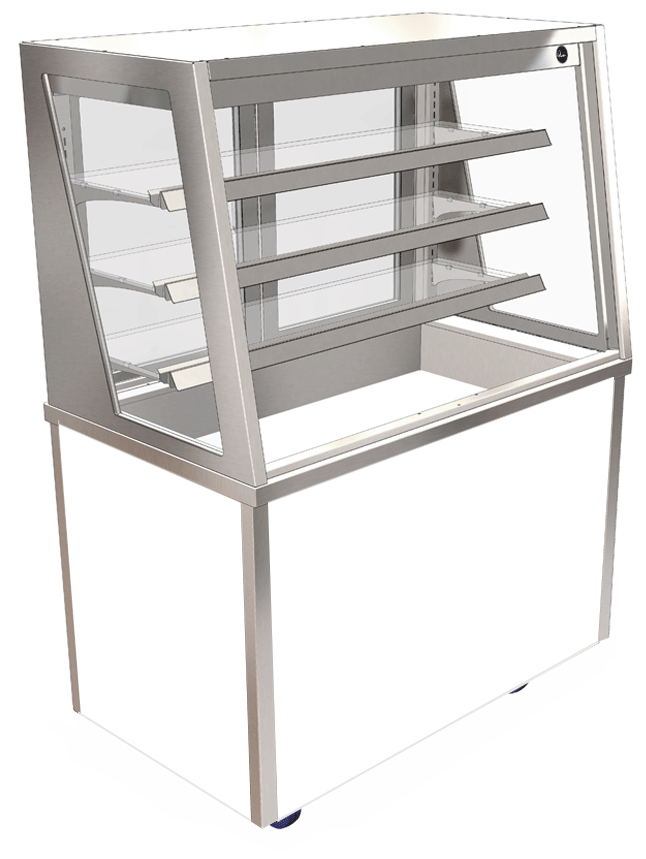

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

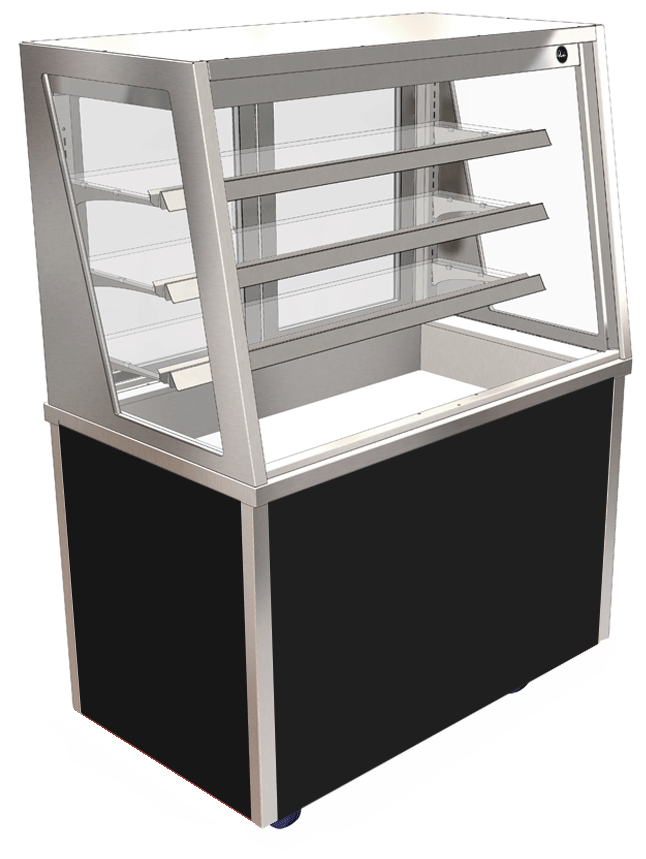

Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

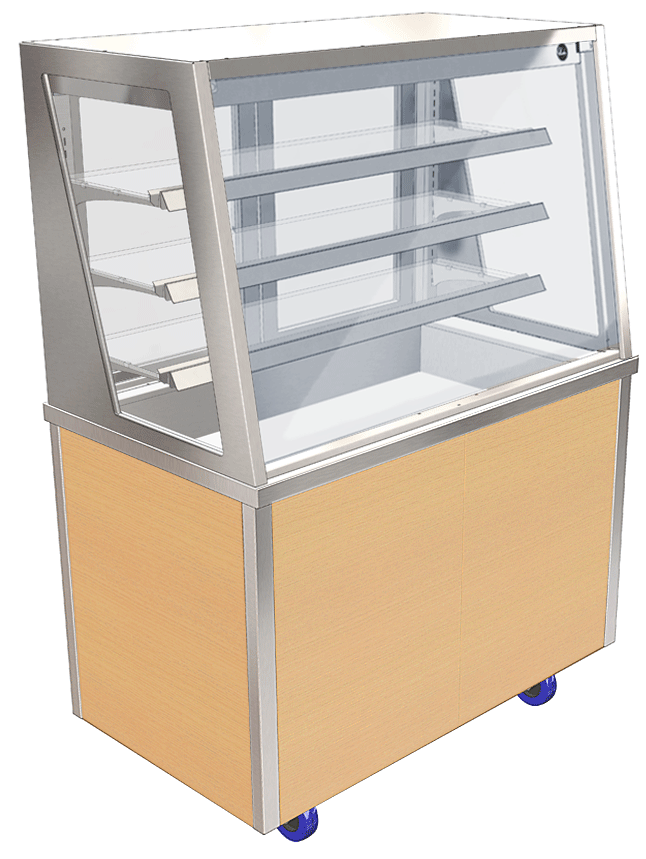

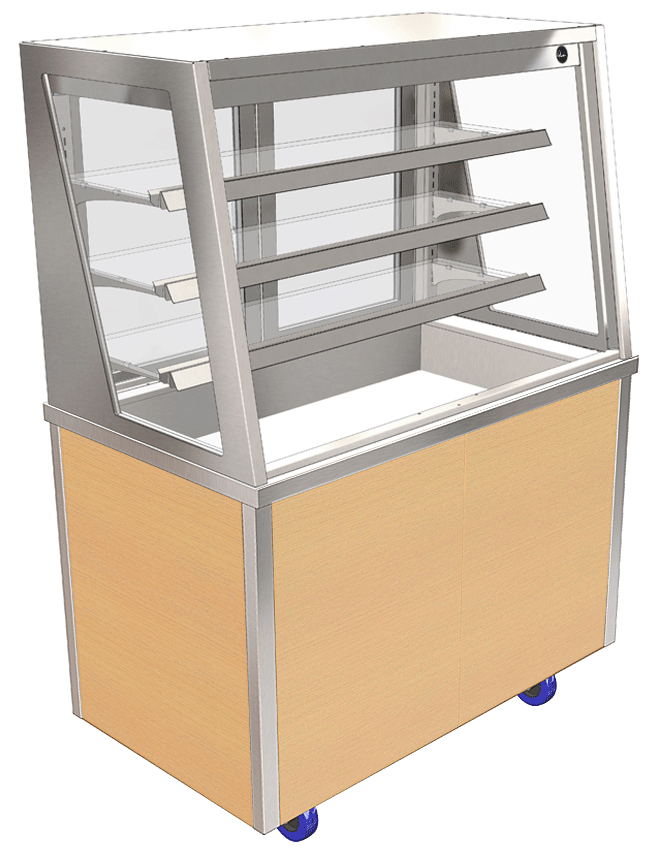

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

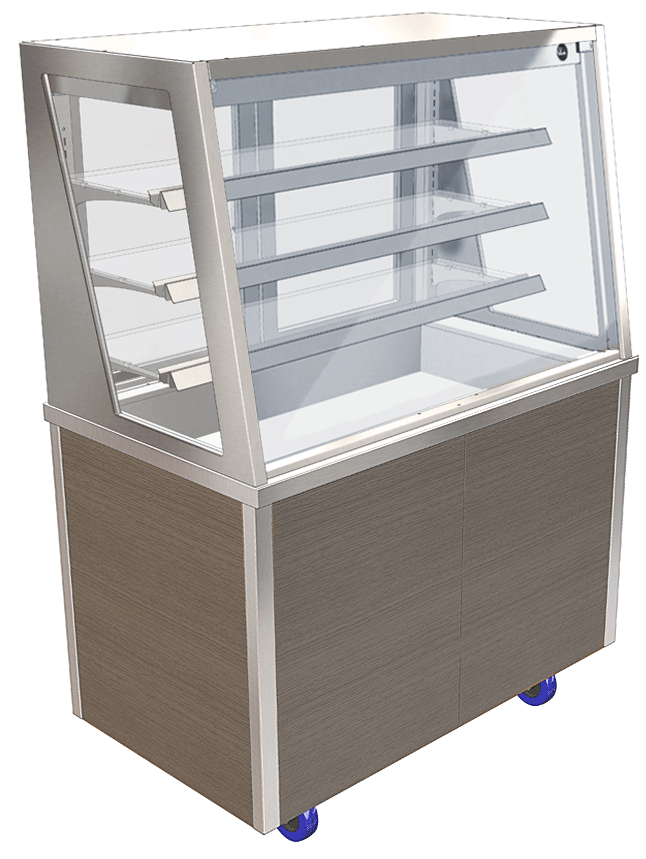

Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

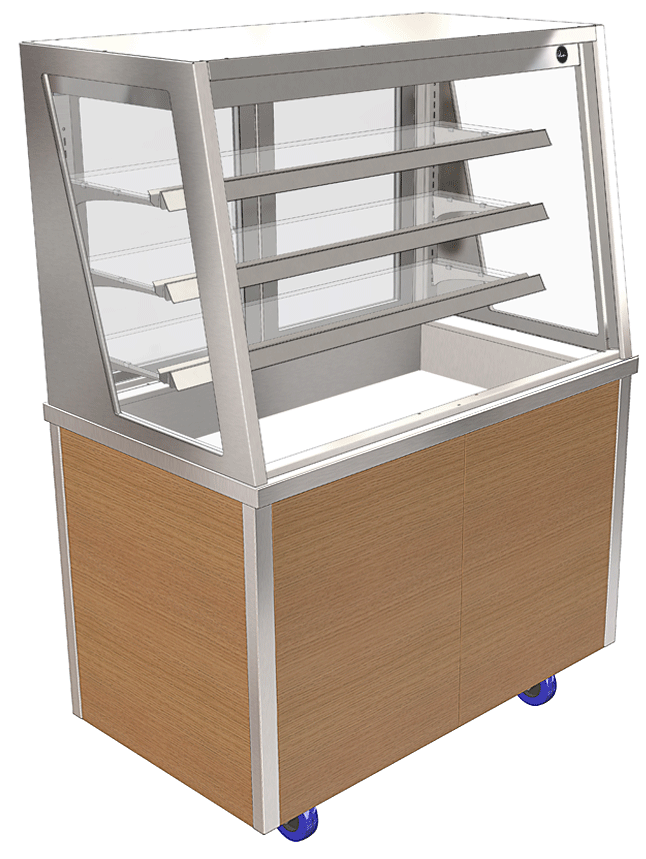

Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Options – Glide Self Help Ambient Multideck (Rear Doors).

Option                                                                                          Option Code

Model Code

GMDA2

GMDA3

GMDA4

GMDA5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Night Blind.
Insulated, Pull Down, Hook Fasten

GNB2

GNB3

GNB4

GNB5

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

Glide Self Help Ambient Multideck-Rear Doors (& Solid Tray Slide)
Model Code Option Code
GMDA2         GSTS2
GMDA3         GSTS3
GMDA4         GSTS4
GMDA5         GSTS5





Glide Self Help Ambient Multideck-Rear Doors (& Tubular Tray Rail)
Model Code Option Code
GMDA2          GTTS2
GMDA3          GTTS3
GMDA4          GTTS4
GMDA5          GTTS5





Glide Self Help Ambient Multideck-Rear Doors (& Night Blind)
Model Code Option Code
GMDA2          GNB2
GMDA3          GNB3
GMDA4          GNB4
GMDA5          GNB5





Glide Self Help Ambient Multideck-Rear Doors (& Colour Panels – Red)
Model Code Option Code
GMDA2          GPREDCHA2
GMDA3          GPREDCHA3
GMDA4          GPREDCHA4
GMDA5          GPREDCHA5





Glide Self Help Ambient Multideck-Rear Doors (& Tubular Tray Rail) (& Colour Panels – Red)
Model Code Option Codes
GMDA2        GTTS2  GPREDCHA2
GMDA3        GTTS3  GPREDCHA3
GMDA4        GTTS4  GPREDCHA4
GMDA5        GTTS5  GPREDCHA5





Glide Self Help Ambient Multideck-Rear Doors (& Tubular Tray Rail) (& Colour Panels – Black)
Model Code  Option Codes
GMDA2         GTTS2  GBLAKCHA2
GMDA3         GTTS3  GBLAKCHA3
GMDA4         GTTS4  GBLAKCHA4
GMDA5         GTTS5  GBLAKCHA5



Downloads

General Layout Drawings
Glide Self Help Ambient Multideck (Rear Doors).





Specification Sheet, Base Panel Colour Options, User Manual.
Glide Self Help Ambient Multideck (Rear Doors).




Visual

Glide Self Help Ambient Multideck (Fixed Back).
Visual



Features

Glide Self Help Ambient Multideck (Fixed Back).
Features

  • Glide mobile dining cart, self help ambient multideck (fixed back).
  • Wall sited application (in an alcove, against a wall or next to other dining carts in a wall sited Glide counter run).
  • Available in 2-1Gn (825mm), 3-1Gn (1175mm), 4-1Gn (1525mm) & 5-1Gn (1875mm) lengths.
  • Model dimensions: 700 mm (d) x 900mm (worktop h).  O/all 1655mm (h).
  • Fitted with 3 no. adjustable (h) 10mm thk. glass shelves c/w ticket strips (adjustable in height & angle).
  • Glass shelving fitted with product stops & 40mm(h) ticket strip holder to front edge of each shelf.
  • Multideck accepts 1-1Gn (x100) container pans in the well/ storage area.
  • Ambient front facing cupboard under, with removable plastisol merlin grey sliding cupboard doors & 2 no. tiers of removable grid shelves, for easy cleaning.
  • Ambient cupboard accommodates up to (10) x 1-1 Gn x 200mm (d) containers (not included), depending on model size.
  • LED canopy lighting with opaque cover, colour 4000k.
  • LED lighting control panel to gantry, features illuminated rocker switch/power isolation.
  • Panoramic double glazed side glass panels, which improve presentation appearance & add natural lighting in the display.
  • S/steel inner back panel, for re-stocking access from customer side.
  • Front facing sliding cupboard doors/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop & deck plates in 304 gd. s/steel, all other external steel surfaces in 430gd (superstructure/ base corners/ cupboard doors etc.).
  • Fitted with lockable non-marking rubber tyre castors.
  • Power Supply: Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz), for connection to dedicated 13A SSO.

Glide Range: Electrical Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
  • If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • Folding s/steel solid tray slide available*.
  • Folding s/steel tubular tray rail Ø25 tube, available*.
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm)*.
  • Insulated night blind available, pull down hook fastening type. Indicates end of service & avoids decanting product after the serving period. Can be retro-fitted.
  • 11 solid colour & woodgrain base cupboard/ side panel finishes available.
  • Low height model 850mm (h) available.
  • Low height model 800mm (h) available*. * Bespoke option with extended lead time*.
  • Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).

Food Display Examples

  • Drinks (Deck Area). Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.
  • Food (Deck & Shelving Area): Fruit, danish pastries, muffins, donuts, fruit cake, biscuits, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereal.
  • *Sandwiches, baguettes, rolls, barmcakes & cheese are subject to local health regulations re: display times*


Dimensions

Glide Self Help Ambient Multideck (Fixed Back).
Dimensions

Model Code

GMDA2FB

GMDA3FB

GMDA4FB

GMDA5FB

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

1655

1655

1655

1655

Front Facing Storage Cupboard
Removable Plastisol Sliding Doors & Adjustable Height Shelving

Included

Included

Included

Included

Removable 2 Tier Shelving
Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers,
Containers Not Included

4

6

8

10

Optional Trayslide
– Revised Model Depth (mm)

Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide
– Revised Model Depth (mm)

Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

Power (kW)
c/w 3m lead & Plug, for connection to dedicated 13A SSO.

0.1

0.1

0.1

0.2

LED Canopy Lighting
Colour 4000k, opaque safety cover

Included

Included

Included

Included

Optional Model Height G850H (mm)
Optional tray slide height = 795mm (h)

1605

1605

1605

1605

Optional Model Height *G800H (mm)
Optional tray slide height = 745mm (h)

*bespoke option, extended lead time*

1555

1555

1555

1555

Weight (kg) – Uncrated

80

110

158

192

* LED lighting is controlled by illuminated green rocker switch/ power isolation at high level in gantry*

Options – Glide Self Help Ambient Multideck (Fixed Back).

Option                                                                                          Option Code

Model Code

GMDA2FB

GMDA3FB

GMDA4FB

GMDA5FB

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Night Blind.
Insulated, Pull Down, Hook Fasten

GNB2

GNB3

GNB4

GNB5

Glide Colour Finish Base Panels (Front Doors & Sides).
Ocean Blue (BS 18C37)

GBLUEWSA2

GBLUEWSA3

GBLUEWSA4

GBLUEWSA5

Glide S/Steel Finish Base Panels (Front Doors & Sides).
S/Steel (430 gd)

GSSTLWSA2

GSSTLWSA3

GSSTLWSA4

GSSTLWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Goosewing Light Grey (BS 10A05)

GGREYWSA2

GGREYWSA3

GGREYWSA4

GGREYWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Forest Green (RAL 6002)

GGRENWSA2

GGRENWSA3

GGRENWSA4

GGRENWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Poppy Red (BS 04E5B)

GPREDWSA2

GPREDWSA3

GPREDWSA4

GPREDWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Buttermilk Cream (BS 10C31)

GCREMWSA2

GCREMWSA3

GCREMWSA4

GCREMWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
White (BS 00E55)

GWHITWSA2

GWHITWSA3

GWHITWSA4

GWHITWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Black (BS 00E53)

GBLAKWSA2

GBLAKWSA3

GBLAKWSA4

GBLAKWSA5

Glide Wood Grain Effect Finish Base Panels (Front Doors & Sides).
Walnut (DL85)

GWALNWSA2

GWALNWSA3

GWALNWSA4

GWALNWSA5

Glide Wood Grain Effect Finish Base Panels (Front Doors & Sides).
Beech (DL76)

GBEECWSA2

GBEECWSA3

GBEECWSA4

GBEECWSA5



Glide Wood Grain Effect Finish Base Panels (Front Doors & Sides).
Oak (DL84)

GOAKWSA2

GOAKWSA3

GOAKWSA4

GOAKWSA5


Popular Model Codes & Options

Description Model Code Option Code Option Code Option Code

Glide Self Help Ambient Multideck (Fixed Back).
(& S/Steel Drop Down
Solid Tray Slide)

GMDA2FB
GMDA3FB
GMDA4FB
GMDA5FB

GSTS2
GSTS3
GSTS4
GSTS5

YYYY

Glide Self Help Ambient Multideck (Fixed Back).
(& S/Steel Drop Down
Tubular Tray Rail)

GMDA2FB
GMDA3FB
GMDA4FB
GMDA5FB

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

Glide Self Help Ambient Multideck (Fixed Back).
(& Night Blind)

GMDA2FB
GMDA3FB
GMDA4FB
GMDA5FB

GNB2
GNB3
GNB4
GNB5

YYYY

Glide Self Help Ambient Multideck (Fixed Back).
(& Colour Panel Finish – Red)

GMDA2FB
GMDA3FB
GMDA4FB
GMDA5FB

GPREDWSA2
GPREDWSA3
GPREDWSA4
GPREDWSA5

GPREDCHA2

Glide Self Help Ambient Multideck (Fixed Back). (& S/Steel Drop Down Tubular Tray Rail) & (Colour Panel Finish Red)

GMDA2FB
GMDA3FB
GMDA4FB
GMDA5FB

GTTS2
GTTS3
GTTS4
GTTS5

GPREDWSA2
GPREDWSA3
GPREDWSA4
GPREDWSA5

Glide Self Help Ambient Multideck (Fixed Back). (& S/Steel Drop Down Tubular Tray Rail) & (Colour Panel Finish Black)

GMDA2FB
GMDA3FB
GMDA4FB
GMDA5FB

GTTS2
GTTS3
GTTS4
GTTS5

GBLAKWSA2
GBLAKWSA3
GBLAKWSA4
GBLAKWSA5



Options

Glide Self Help Ambient Multideck (Fixed Back).
Options.



Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Night Blind.
(Option Codes GNB2 – GNB5) Glide option: 2-1 Gn to 5-1 Gn, night blind, insulated pull down night blind, hook fastening, indicates display is closed & avoids decanting product after the serving period. Factory fit or retro-fit by competent person.

Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Codes GBLUEWSA2 – GBLUEWSA5) 2-1 Gn to 5-1 Gn full set of front doors/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



S/steel Finish. (Option Code GSSTLWSA2 – GSSTLWSA5) 2-1 Gn to 5-1 Gn full set of front doors/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Light Grey Finish. (Option Codes GGREYWSA2 – GGREYWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Forest Green Finish. (Option Codes GGRENWSA2 – GGRENWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Codes GPREDWSA2 – GPREDWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Cream Finish. (Option Codes GCREMWSA2 – GCREMWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



White Finish. (Option Codes GWHITWSA2 – GWHITWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Black Finish. (Option Codes GBLAKWSA2 – GBLAKWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Beech Woodgrain Finish. (Option Codes GBEECWSA2 – GBEECWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Walnut Woodgrain Finish. (Option Codes GWALNWSA2 – GWALNWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Oak Woodgrain Finish. (Option Codes GOAKWSA2 – GOAKWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).





Options – Glide Self Help Ambient Multideck (Fixed Back).

Option                                                                                          Option Code

Model Code

GMDA2FB

GMDA3FB

GMDA4FB

GMDA5FB

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Night Blind.
Insulated, Pull Down, Hook Fasten

GNB2

GNB3

GNB4

GNB5

Glide Colour Finish Base Panels (Front Doors & Sides).
Ocean Blue (BS 18C37)

GBLUEWSA2

GBLUEWSA3

GBLUEWSA4

GBLUEWSA5

Glide S/Steel Finish Base Panels (Front Doors & Sides).
S/Steel (430 gd)

GSSTLWSA2

GSSTLWSA3

GSSTLWSA4

GSSTLWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Goosewing Light Grey (BS 10A05)

GGREYWSA2

GGREYWSA3

GGREYWSA4

GGREYWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Forest Green (RAL 6002)

GGRENWSA2

GGRENWSA3

GGRENWSA4

GGRENWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Poppy Red (BS 04E5B)

GPREDWSA2

GPREDWSA3

GPREDWSA4

GPREDWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Buttermilk Cream (BS 10C31)

GCREMWSA2

GCREMWSA3

GCREMWSA4

GCREMWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
White (BS 00E55)

GWHITWSA2

GWHITWSA3

GWHITWSA4

GWHITWSA5

Glide Colour Finish Base Panels (Front Doors & Sides).
Black (BS 00E53)

GBLAKWSA2

GBLAKWSA3

GBLAKWSA4

GBLAKWSA5

Glide Wood Grain Effect Finish Base Panels (Front Doors & Sides).
Walnut (DL85)

GWALNWSA2

GWALNWSA3

GWALNWSA4

GWALNWSA5

Glide Wood Grain Effect Finish Base Panels (Front Doors & Sides).
Beech (DL76)

GBEECWSA2

GBEECWSA3

GBEECWSA4

GBEECWSA5



Glide Wood Grain Effect Finish Base Panels (Front Doors & Sides).
Oak (DL84)

GOAKWSA2

GOAKWSA3

GOAKWSA4

GOAKWSA5



Popular Model Codes & Options.

Glide Self Help Ambient Multideck – Fixed Back (& Solid Tray Slide)
Model Code       Option Code
GMDA2FB         GSTS2
GMDA3FB         GSTS3
GMDA4FB         GSTS4
GMDA5FB         GSTS5





Glide Self Help Ambient Multideck – Fixed Back (& Tubular Tray Rail)
Model Code        Option Code
GMDA2FB          GTTS2
GMDA3FB          GTTS3
GMDA4FB          GTTS4
GMDA5FB          GTTS5





Glide Self Help Ambient Multideck – Fixed Back (& Night Blind)
Model Code        Option Code
GMDA2FB          GNB2
GMDA3FB          GNB3
GMDA4FB          GNB4
GMDA5FB          GNB5





Glide Self Help Ambient Multideck – Fixed Back (& Colour Panels – Red)
Model Code        Option Code
GMDA2FB          GPREDWSA2
GMDA3FB          GPREDWSA3
GMDA4FB          GPREDWSA4
GMDA5FB          GPREDWSA5







Glide Self Help Ambient Multideck – Fixed Back (& Tubular Tray Rail) (& Colour Panels – Red)
Model Code      Option Codes
GMDA2FB        GTTS2  GPREDWSA2
GMDA3FB        GTTS3  GPREDWSA3
GMDA4FB        GTTS4  GPREDWSA4
GMDA5FB        GTTS5  GPREDWSA5





Glide Self Help Ambient Multideck – Fixed Back (& Tubular Tray Rail) (& Colour Panels – Black)
Model Code       Option Codes
GMDA2FB         GTTS2  GBLAKWSA2
GMDA3FB         GTTS3  GBLAKWSA3
GMDA4FB         GTTS4  GBLAKWSA4
GMDA5FB         GTTS5  GBLAKWSA5



Downloads

General Layout Drawings
Glide Self Help Ambient Multideck – Fixed Back





Specification Sheet, Base Panel Colour Options, User Manual.
Glide Self Help Ambient Multideck – Fixed Back




Visual

Glide Assisted Service Ambient Multideck (Rear Doors).
Visual



Features

Glide Assisted Service Ambient Multideck (Rear Doors).
Features

  • Glide mobile dining cart, assisted service ambient multideck (rear doors).
  • Free standing application.
  • Tilting full height front toughened flat glass/ locking tilt hinge, pull handle for safe easy cleaning.
  • Available in 2-1Gn (825mm), 3-1Gn (1175mm), 4-1Gn (1525mm) & 5-1Gn (1875mm) lengths.
  • Model dimensions: 700 mm (d) x 900mm (worktop h).  O/all 1655mm (h).
  • Fitted with 3 no. adjustable (h) 10mm thk. glass shelves c/w ticket strips (adjustable in height & angle).
  • Glass shelving fitted with product stops & 40mm(h) ticket strip holder to front edge of each shelf.
  • Multideck accepts 1-1Gn (x100) container pans in the well/ storage area.
  • Ambient rear facing cupboard under, with removable s/steel sliding cupboard doors & 2 no. tiers of removable grid shelves, for easy cleaning.
  • Ambient cupboard accommodates up to (10) x 1-1 Gn x 200mm (d) containers (not included), depending on model size.
  • LED canopy lighting with opaque cover, colour 4000k.
  • LED lighting control panel to rear, features illuminated rocker switch/power isolation.
  • Panoramic double glazed side glass panels, which improve presentation appearance & add natural lighting in the display.
  • Double glazed rear doors, for re-stocking access and customer service from operator side.
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop & deck plates in 304 gd. s/steel, all other external steel surfaces in 430gd (superstructure/ base corners/ rear cupboard doors etc.).
  • Fitted with lockable non-marking rubber tyre castors.
  • Power Supply: Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz), for connection to dedicated 13A SSO.

Glide Range: Electrical Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
  • If operated from a double socket outlet (DSO), if 2x items are plugged in that exceed min 20 amps (min. BS standard for DSO = 20A), an electrical fault may occur.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • Folding s/steel solid tray slide available*.
  • Folding s/steel tubular tray rail Ø25 tube, available*.
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm)*.
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available.
  • Low height model 800mm (h) available*. * Bespoke option with extended lead time*.
  • Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).

Food Display Examples

  • Drinks (Deck Area). Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.
  • Food (Deck & Shelving Area): Fruit, danish pastries, muffins, donuts, fruit cake, biscuits, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereal.
  • *Sandwiches, baguettes, rolls, barmcakes & cheese are subject to local health regulations re: display times*


Dimensions

Glide Assisted Service Ambient Multideck (Rear Doors).
Dimensions

Model Code

GMDA2AS

GMDA3AS

GMDA4AS

GMDA5AS

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

1655

1655

1655

1655

Rear Storage Cupboard
Removable S/Steel Sliding Doors & Adjustable Height Shelving

Included

Included

Included

Included

Removable 2 Tier Shelving
Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers,
Containers Not Included

4

6

8

10

Optional Trayslide
– Revised Model Depth (mm)

Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide
– Revised Model Depth (mm)

Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

Power (kW)
c/w 3m lead & Plug, for connection to dedicated 13A SSO.

0.1

0.1

0.1

0.2

LED Canopy Lighting
Colour 4000k, opaque safety cover

Included

Included

Included

Included

Optional Model Height G850H (mm)
Optional tray slide height = 795mm (h)

1605

1605

1605

1605

Optional Model Height *G800H (mm)
Optional tray slide height = 745mm (h)

*bespoke option, extended lead time*

1555

1555

1555

1555

Weight (kg) – Uncrated

100

133

179

215

* LED lighting rear control panel features illuminated rocker switch/power isolation*



Options – Glide Assisted Service Ambient Multideck (Rear Doors).

Option                                                                                          Option Code

Model Code

GMDA2AS

GMDA3AS

GMDA4AS

GMDA5AS

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5


Popular Model Codes & Options

Description Model Code Option Code Option Code

Glide Assisted Service Ambient Multideck (Rear Doors)
(& S/Steel Drop Down
Solid Tray Slide)

GMDA2AS
GMDA3AS
GMDA4AS
GMDA5AS

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

Glide Assisted Service Ambient Multideck (Rear Doors)
(& S/Steel Drop Down
Tubular Tray Rail)

GMDA2AS
GMDA3AS
GMDA4AS
GMDA5AS

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

Glide Assisted Service Ambient Multideck (Rear Doors)
(& Colour Panel Finish – Blue)

GMDA2AS
GMDA3AS
GMDA4AS
GMDA5AS

GBLUECHA2
GBLUECHA3
GBLUECHA4
GBLUECHA5

YYYY

Glide Assisted Service Ambient Multideck (Rear Doors)
(& Colour Panel Finish – Red)

GMDA2AS
GMDA3AS
GMDA4AS
GMDA5AS

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

GPREDCHA2

Glide Assisted Service Ambient Multideck (Rear Doors) (& S/Steel Drop Down Tubular Tray Rail) & (Colour Panel Finish Red)

GMDA2AS
GMDA3AS
GMDA4AS
GMDA5AS

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

Glide Assisted Service Ambient Multideck (Rear Doors)  (& S/Steel Drop Down Tubular Tray Rail) & (Colour Panel Finish Black)

GMDA2AS
GMDA3AS
GMDA4AS
GMDA5AS

GTTS2
GTTS3
GTTS4
GTTS5

GBLAKCHA2
GBLAKCHA3
GBLAKCHA4
GBLAKCHA5



Options

Glide Assisted Service Ambient Multideck (Rear Doors).
Options.



Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model  (Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

 Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).





Options – Glide Assisted Service Ambient Multideck (Rear Doors).

Option                                                                                          Option Code

Model Code

GMDA2AS

GMDA3AS

GMDA4AS

GMDA5AS

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

Glide Assisted Service Ambient Multideck – Rear Doors (& Solid Tray Slide)
Model Code       Option Code
GMDA2AS         GSTS2
GMDA3AS         GSTS3
GMDA4AS         GSTS4
GMDA5AS         GSTS5





Glide Assisted Service Ambient Multideck – Rear Doors (& Tubular Tray Rail)
Model Code       Option Code
GMDA2AS          GTTS2
GMDA3AS          GTTS3
GMDA4AS          GTTS4
GMDA5AS          GTTS5





Glide Assisted Service Ambient Multideck – Rear Doors (& Colour Panels – Blue)
Model Code       Option Code
GMDA2AS          GBLUECHA2
GMDA3AS          GBLUECHA3
GMDA4AS          GBLUECHA4
GMDA5AS          GBLUECHA5





Glide Assisted Service Ambient Multideck – Rear Doors (& Colour Panels – Red)
Model Code        Option Code
GMDA2AS          GPREDCHA2
GMDA3AS          GPREDCHA3
GMDA4AS          GPREDCHA4
GMDA5AS          GPREDCHA5





Glide Assisted Service Ambient Multideck – Rear Doors (& Tubular Tray Rail) (& Colour Panels – Red)
Model Code      Option Codes
GMDA2AS        GTTS2  GPREDCHA2
GMDA3AS        GTTS3  GPREDCHA3
GMDA4AS        GTTS4  GPREDCHA4
GMDA5AS        GTTS5  GPREDCHA5





Glide Assisted Service Ambient Multideck – Rear Doors (& Tubular Tray Rail) (& Colour Panels – Black)
Model Code       Option Codes
GMDA2AS         GTTS2  GBLAKCHA2
GMDA3AS         GTTS3  GBLAKCHA3
GMDA4AS         GTTS4  GBLAKCHA4
GMDA5AS         GTTS5  GBLAKCHA5



Downloads

General Layout Drawings
Glide Assisted Service Ambient Multideck – Rear Doors.





Specification Sheet, Base Panel Colour Options, User Manual.
Glide Assisted Service Ambient Multideck – Rear Doors.
