Glide Ambient Multideck (Shutter)

Visual

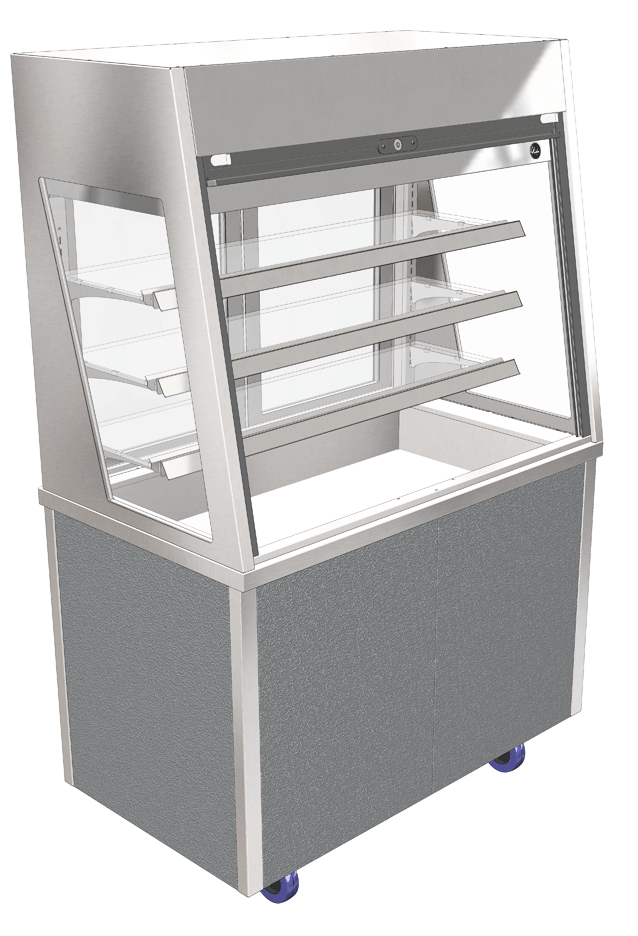

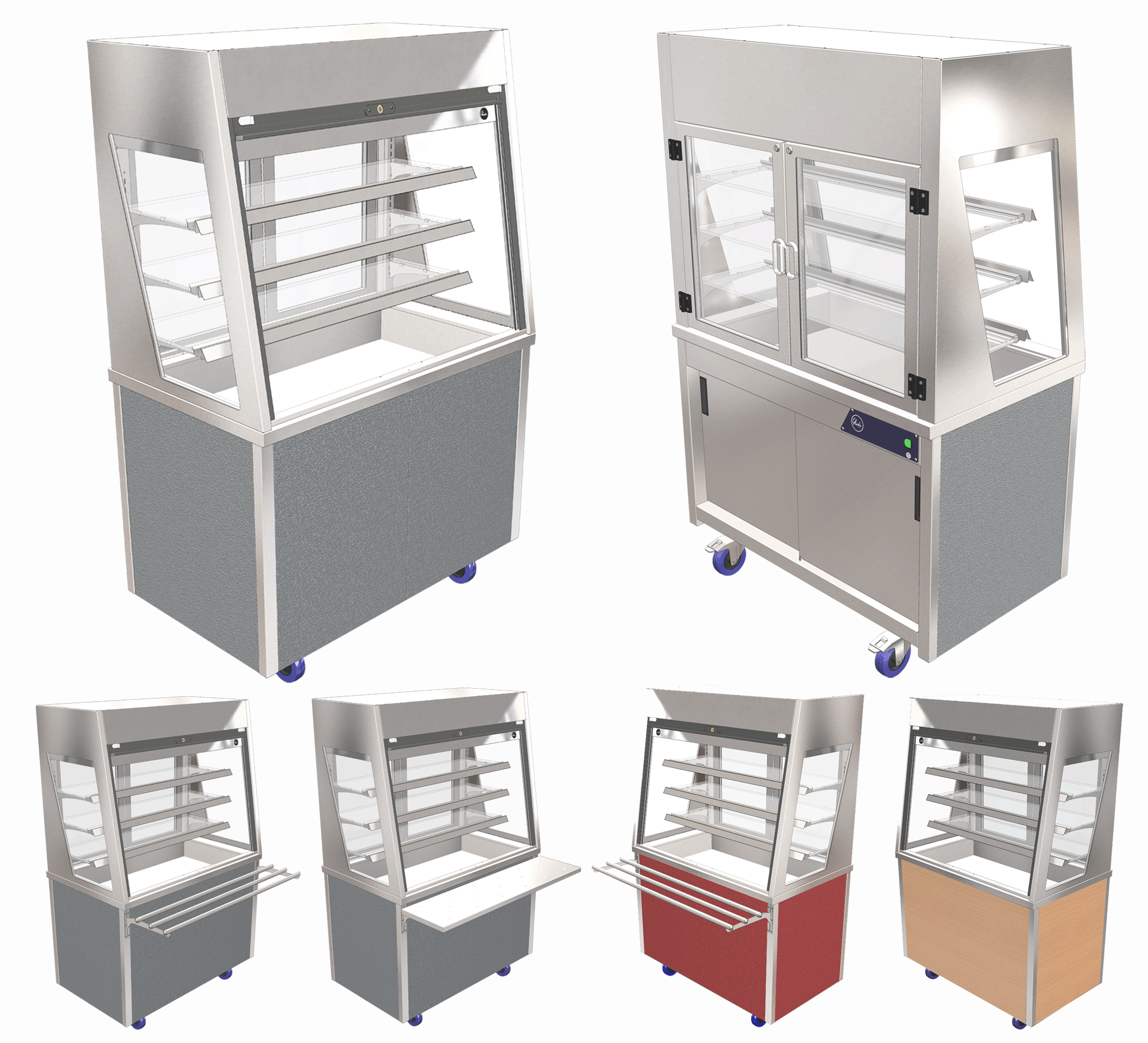

Glide Self Help Ambient Multideck (Shutter & Rear Doors).
Visual

Features

Glide Self Help Ambient Multideck (Shutter & Rear Doors).
Features

• Glide mobile dining cart, self help ambient multideck (shutter & rear doors).
• Free standing application.
• Features twin locking heavy duty overhead security shutter, in dark grey finish. Continuous bottom pull handle and shutter stops prevent trapped fingers when operating.
• Available in 2-1Gn (825mm), 3-1Gn (1175mm), 4-1Gn (1525mm) & 5-1Gn (1875mm) lengths.
• Model dimensions: 700 mm (d) x 900mm (worktop h).  O/all 1840mm (h).
• Fitted with 3 no. adjustable (h) 10mm thk. glass shelves c/w ticket strips (adjustable in height & angle).
• Glass shelving fitted with product stops & 40mm(h) ticket strip holder to front edge of each shelf.
• Multideck accepts 1-1Gn (x100) container pans in the well/ storage area.
• Ambient rear facing cupboard under, with removable s/steel sliding cupboard doors & 2 no. tiers of removable grid shelves, for easy cleaning.
• Ambient cupboard accommodates up to (10) x 1-1 Gn x 200mm (d) containers (not included), depending on model size.
• LED canopy lighting with opaque cover, colour 4000k.
• LED lighting control panel to rear, features illuminated rocker switch/power isolation.
• Panoramic double glazed side glass panels, which improve presentation appearance & add natural lighting in the display.
• Double glazed rear doors, for re-stocking access from operator side.
• Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
• Worktop & deck plates in 304 gd. s/steel, all other external steel surfaces in 430gd (superstructure/ base corners/ cupboard doors etc.).
• Fitted with lockable non-marking rubber tyre castors.
• Power Supply: Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz), for connection to dedicated 13A SSO.

Glide Range: Electrical Connections.

• Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
• If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

• CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
• HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
  ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

• Folding s/steel solid tray slide available*.
• Folding s/steel tubular tray rail Ø25 tube, available*.

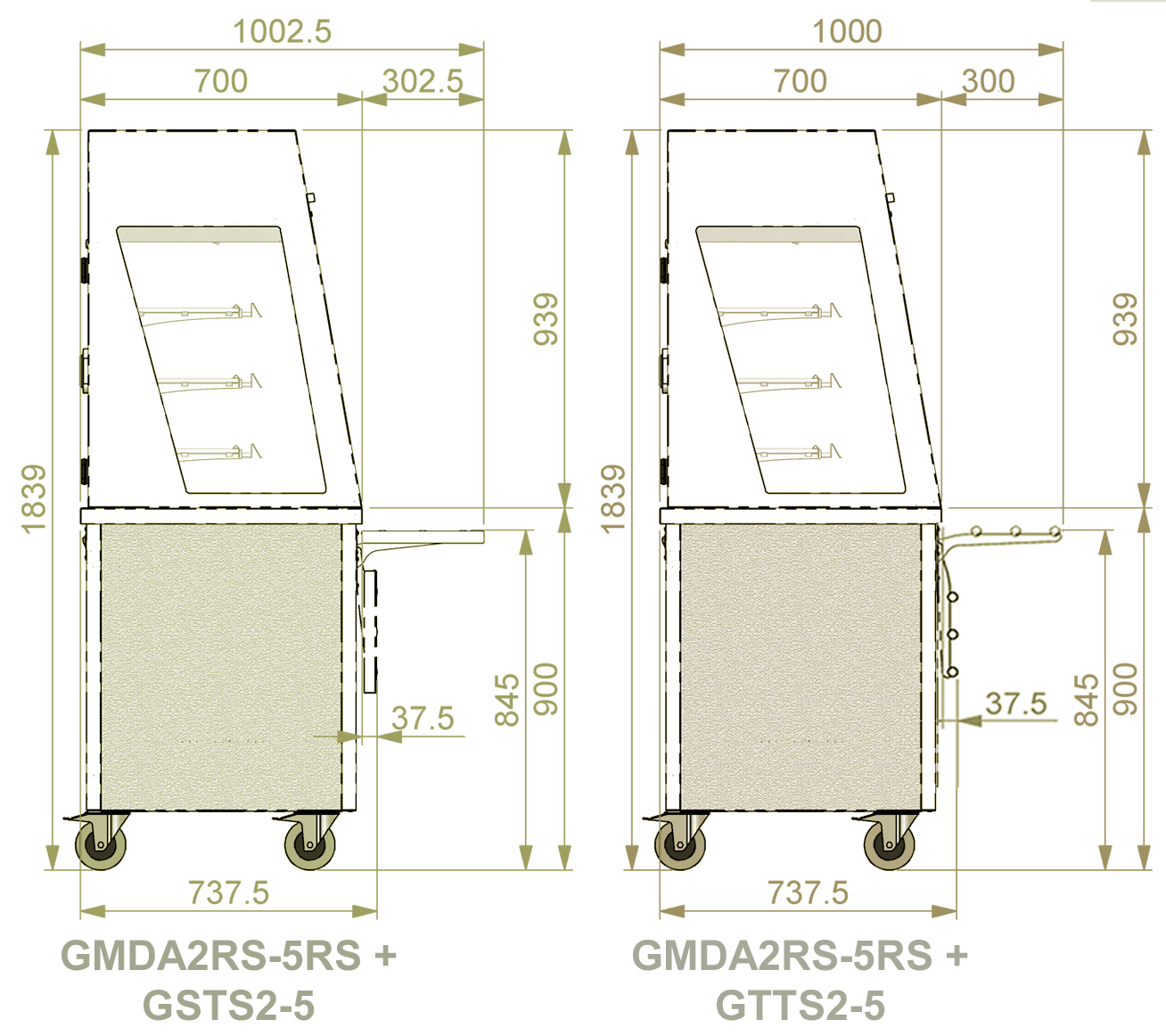

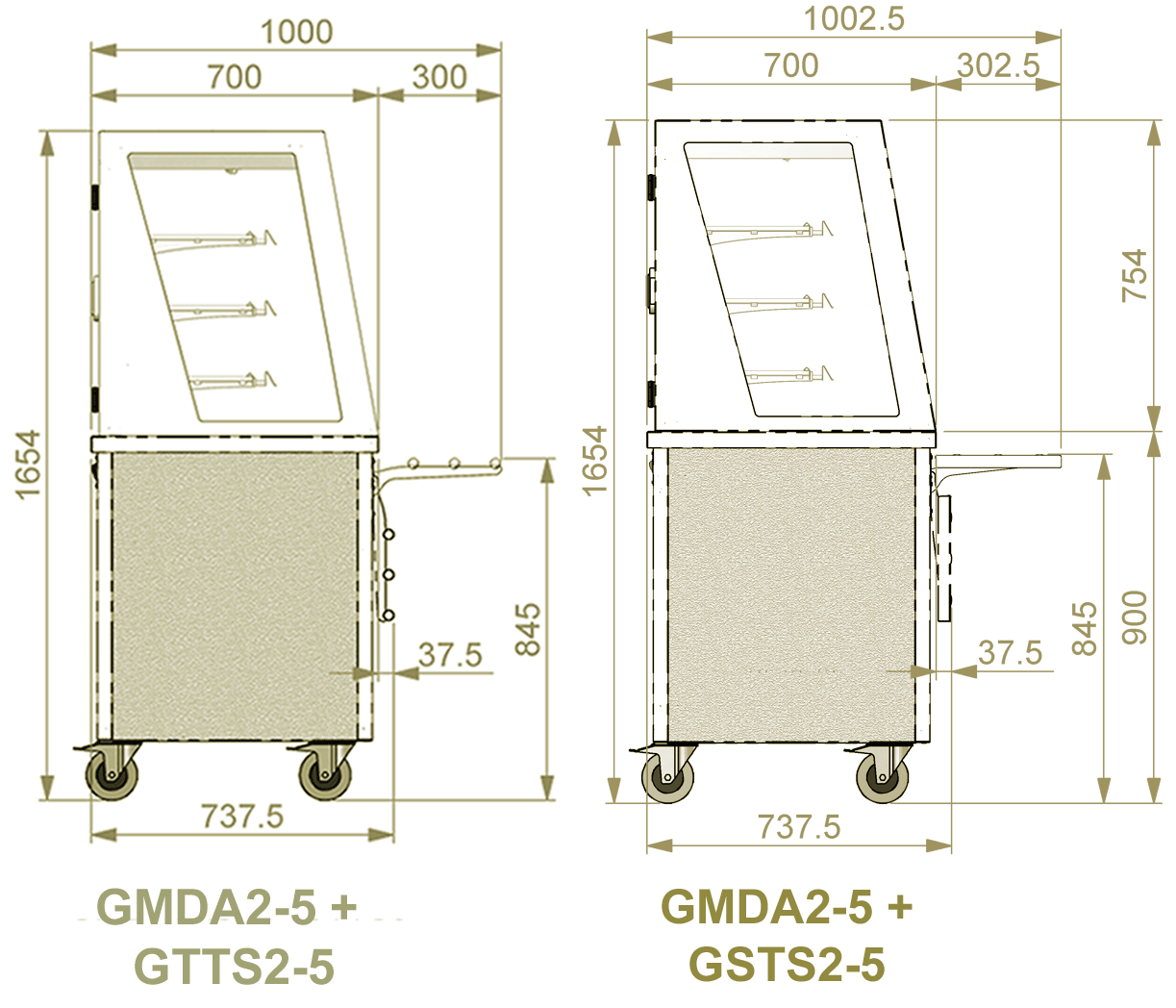

• Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm)*.
• 11 solid colour & woodgrain base panel finishes available.
• Low height model 850mm (worktop h) available.
• Low height model 800mm (worktop h) available*. * Bespoke option with extended lead time*.
• Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).

Food Display Examples

• Drinks (Deck Area). Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.
• Food (Deck & Shelving Area): Fruit, danish pastries, muffins, donuts, fruit cake, biscuits, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereal.
• *Sandwiches, baguettes, rolls, barmcakes & cheese are subject to local health regulations re: display times*

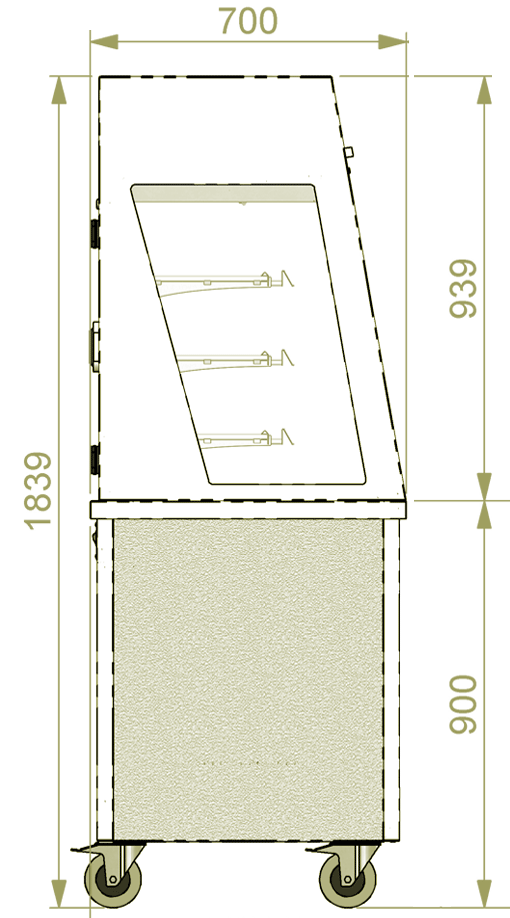

Dimensions

Glide Self Help Ambient Multideck (Shutter & Rear Doors).
Dimensions

* LED lighting rear control panel features illuminated rocker switch/power isolation*

Options – Glide Self Help Ambient Multideck (Shutter & Rear Doors).

Popular Model Codes & Options

Options

Glide Self Help Ambient Multideck (Shutter & Rear Doors).
Options.

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

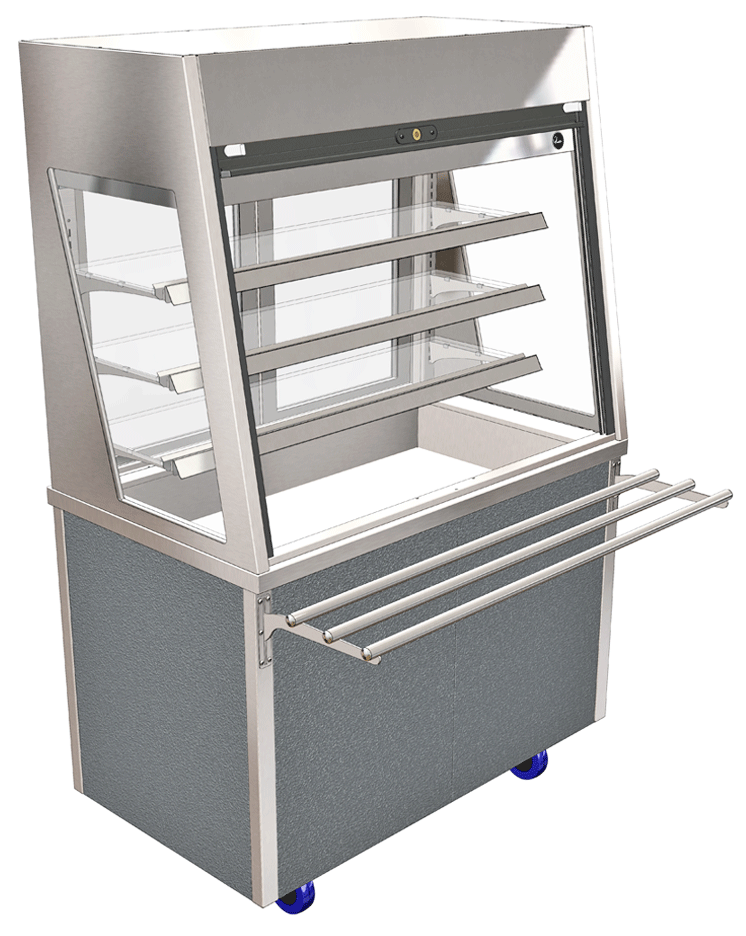

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

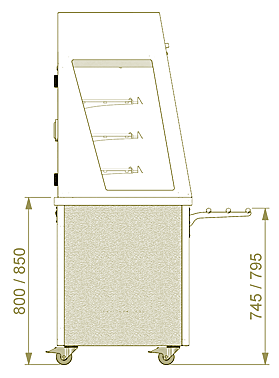

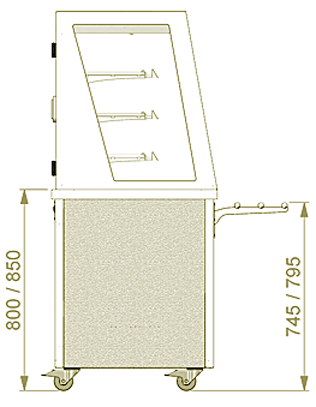

    Low Height Model (Glide Junior) – 850mm.
    (Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model (Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

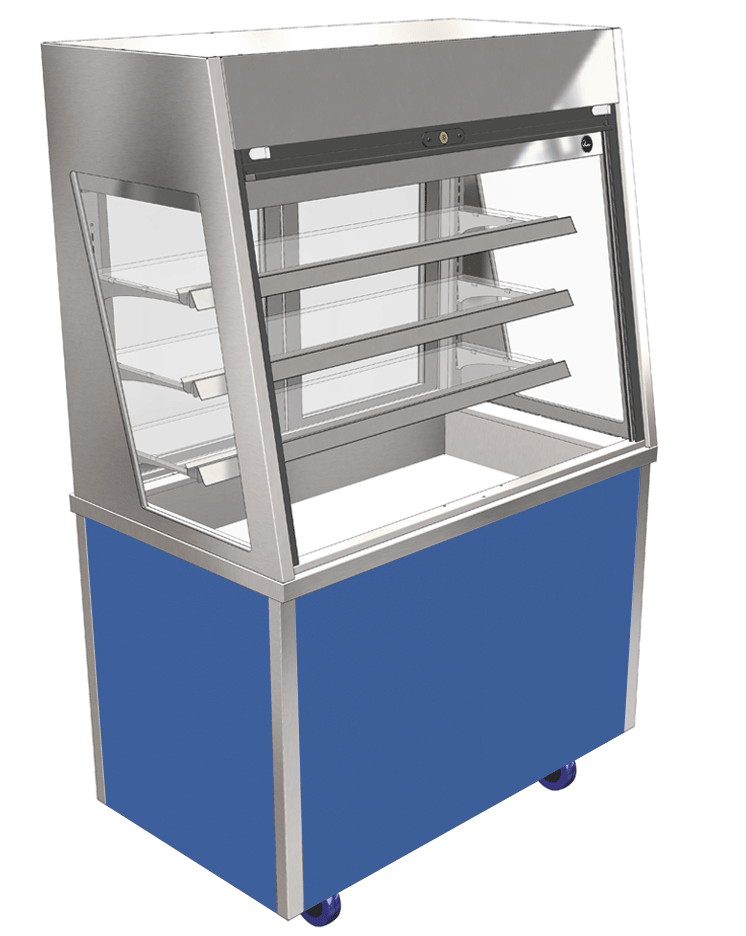

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

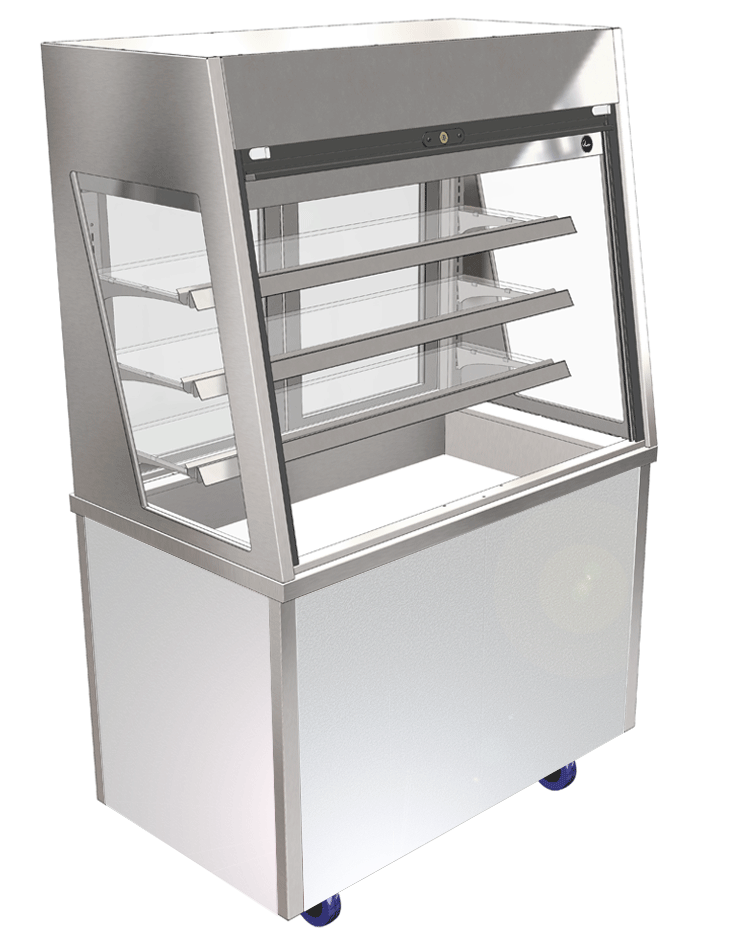

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

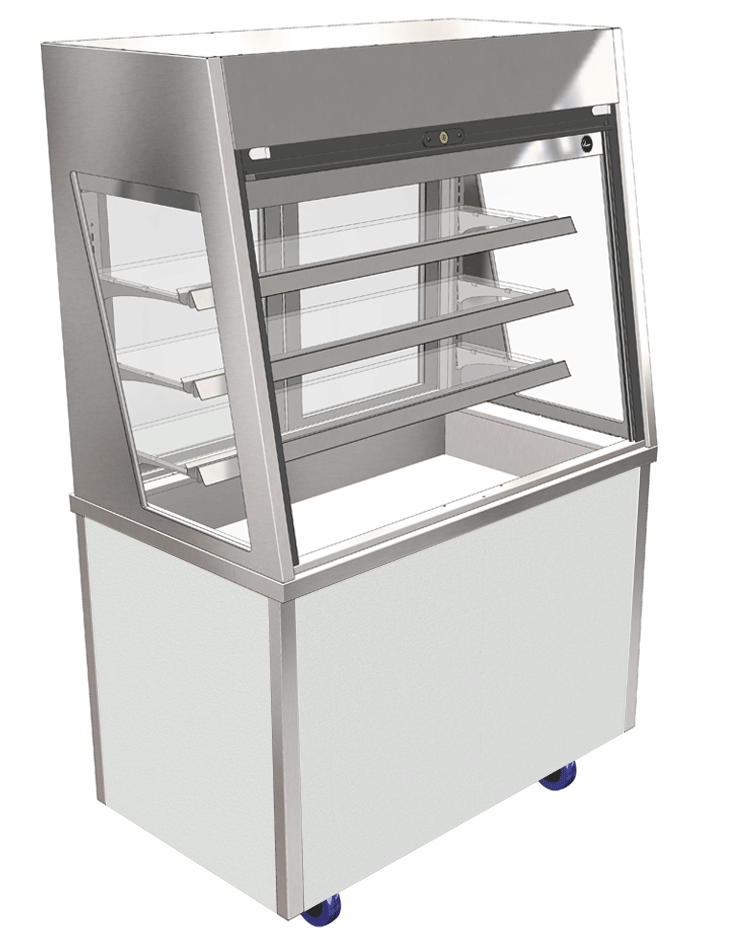

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

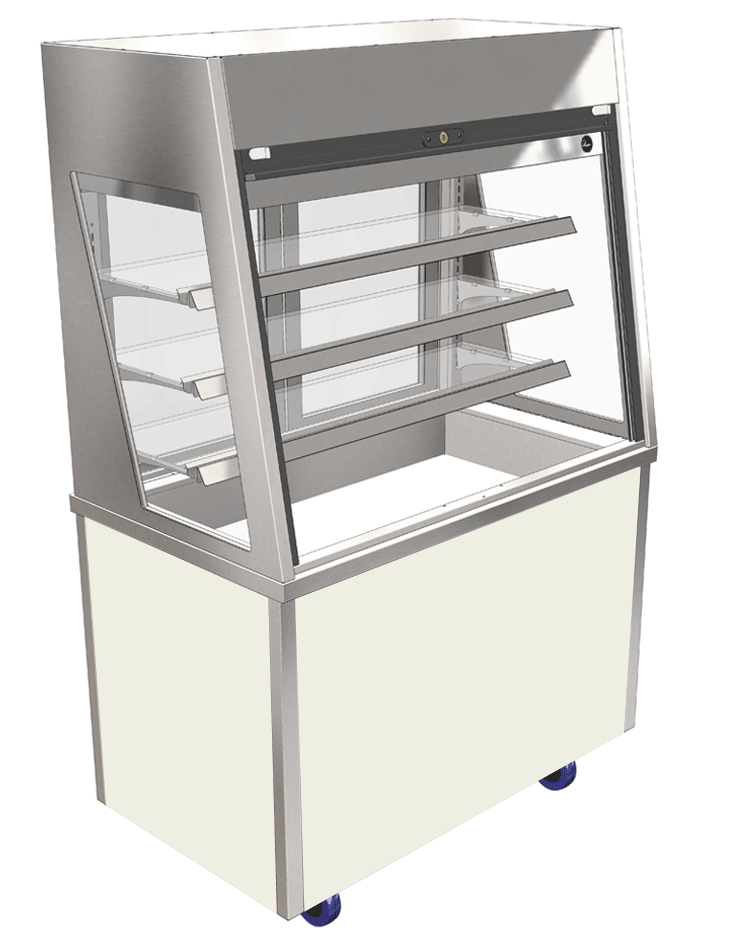

Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

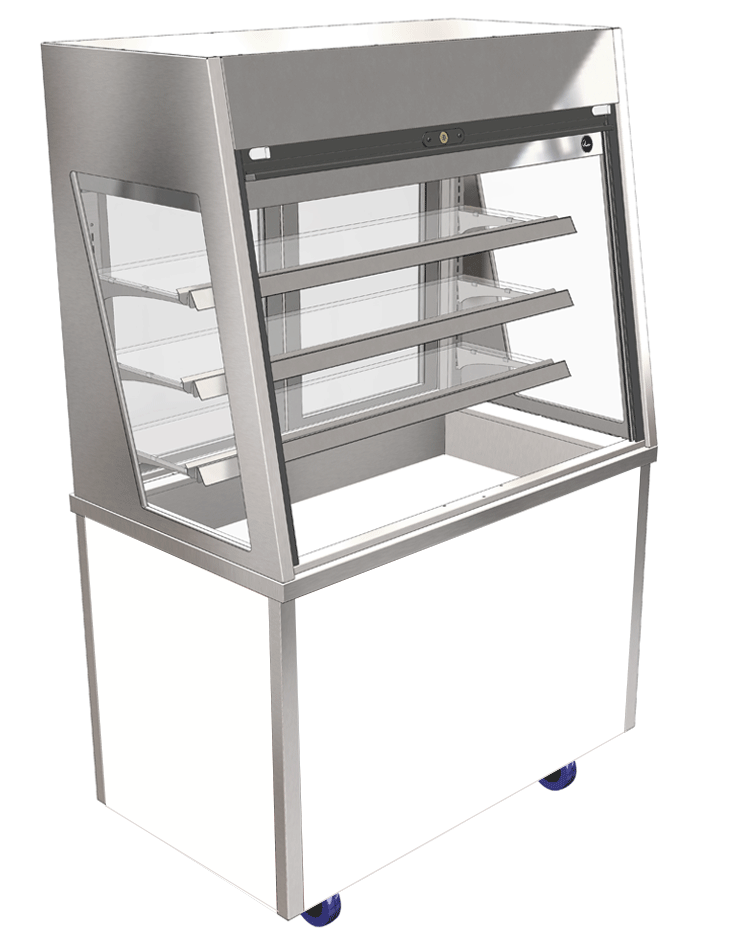

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

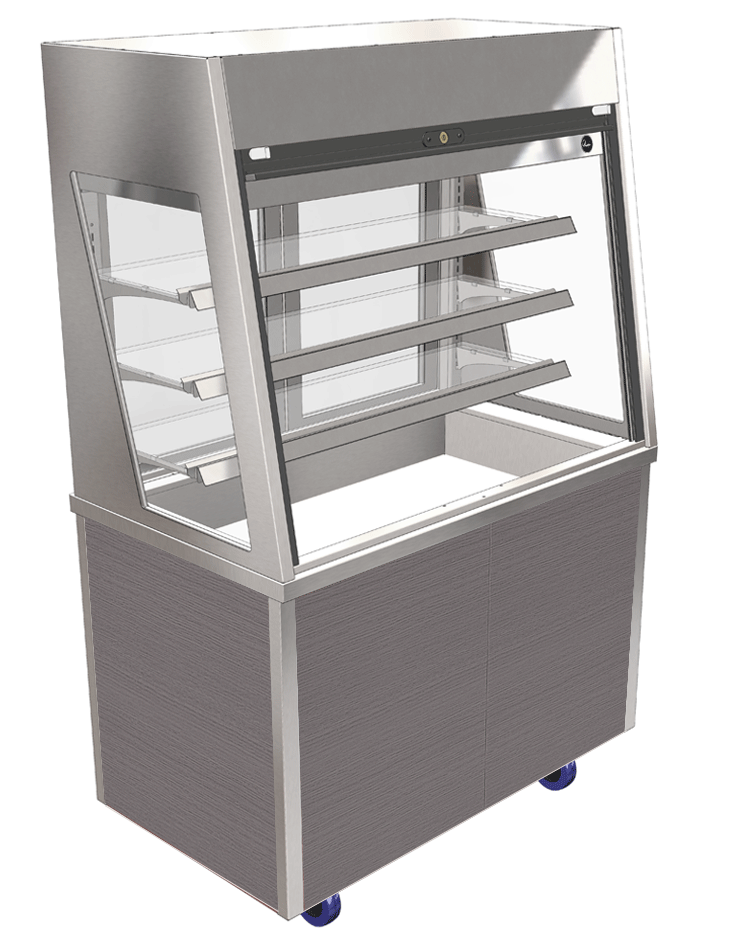

Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

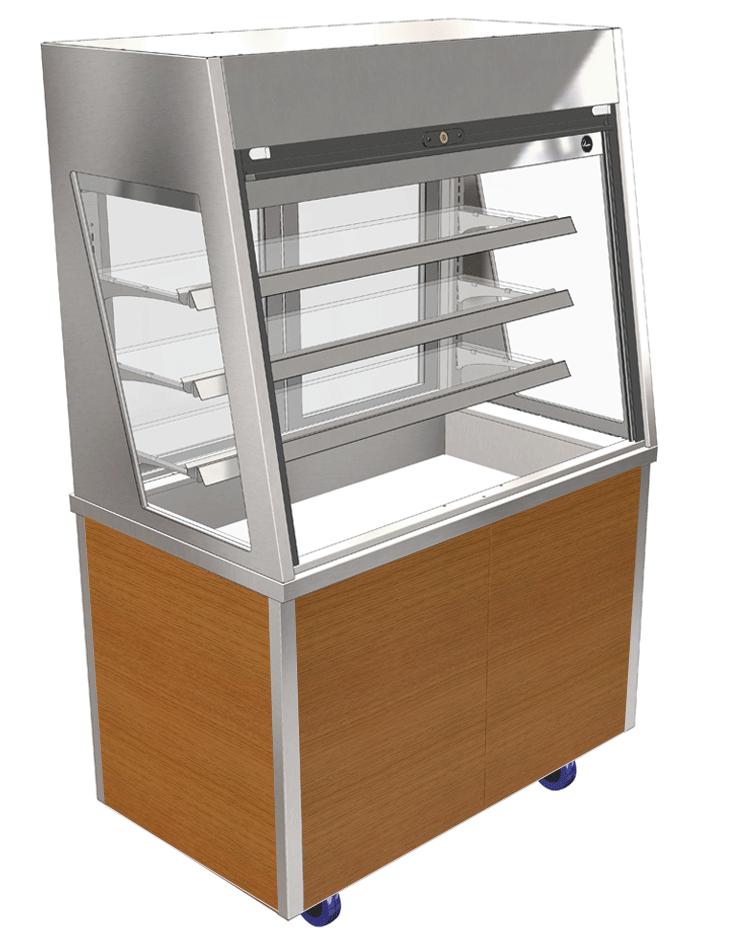

Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Options – Glide Self Help Ambient Multideck (Shutter & Rear Doors).

Popular Model Codes & Options.

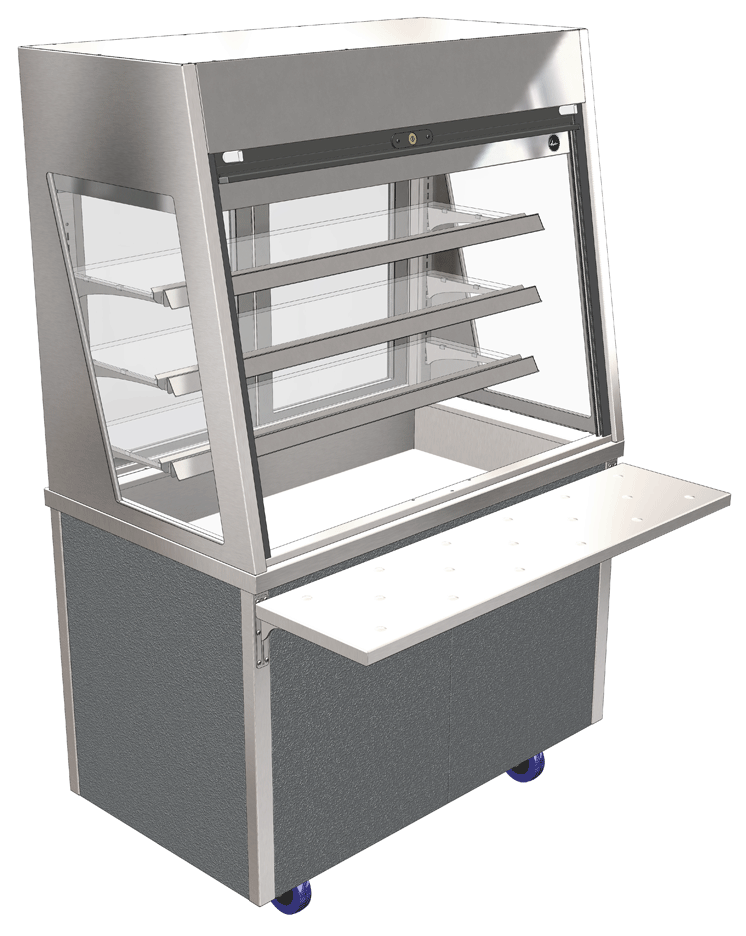

Glide Self Help Ambient Multideck – Shutter & Rear Doors (& Solid Tray Slide)
Model Code       Option Code
GMDA2RS         GSTS2
GMDA3RS         GSTS3
GMDA4RS         GSTS4
GMDA5RS         GSTS5

Glide Self Help Ambient Multideck – Shutter & Rear Doors (& Tubular Tray Rail)
Model Code        Option Code
GMDA2RS          GTTS2
GMDA3RS          GTTS3
GMDA4RS          GTTS4
GMDA5RS          GTTS5

Glide Self Help Ambient Multideck – Shutter & Rear Doors (& Colour Panels – Beech)
Model Code        Option Code

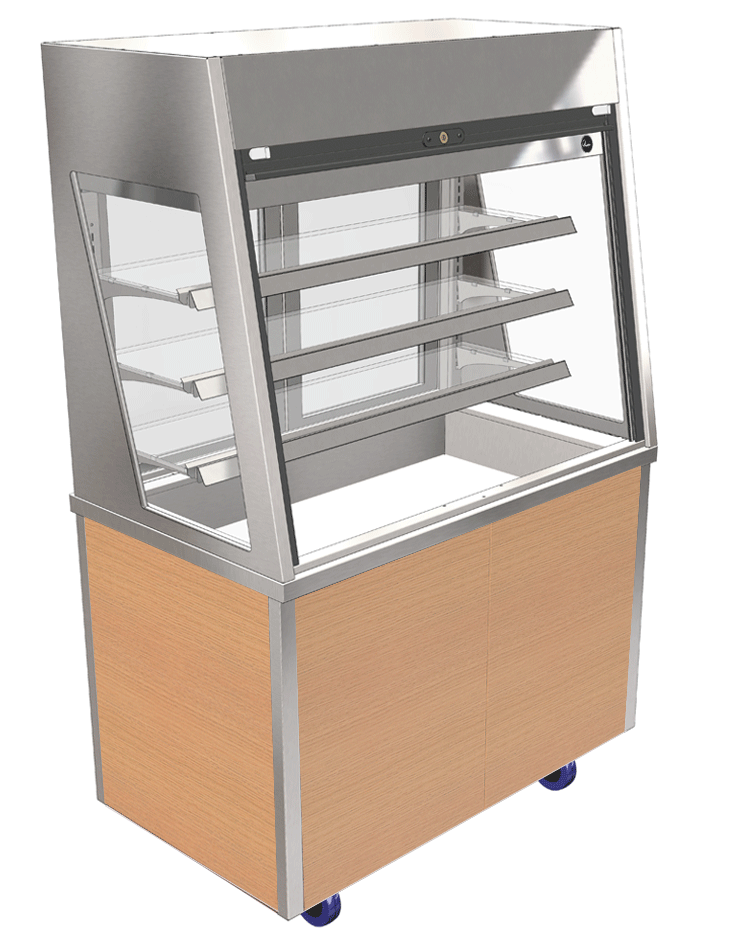

GMDA2RS          GBEECCHA2
GMDA3RS          GBEECCHA3
GMDA4RS          GBEECCHA4
GMDA5RS          GBEECCHA5

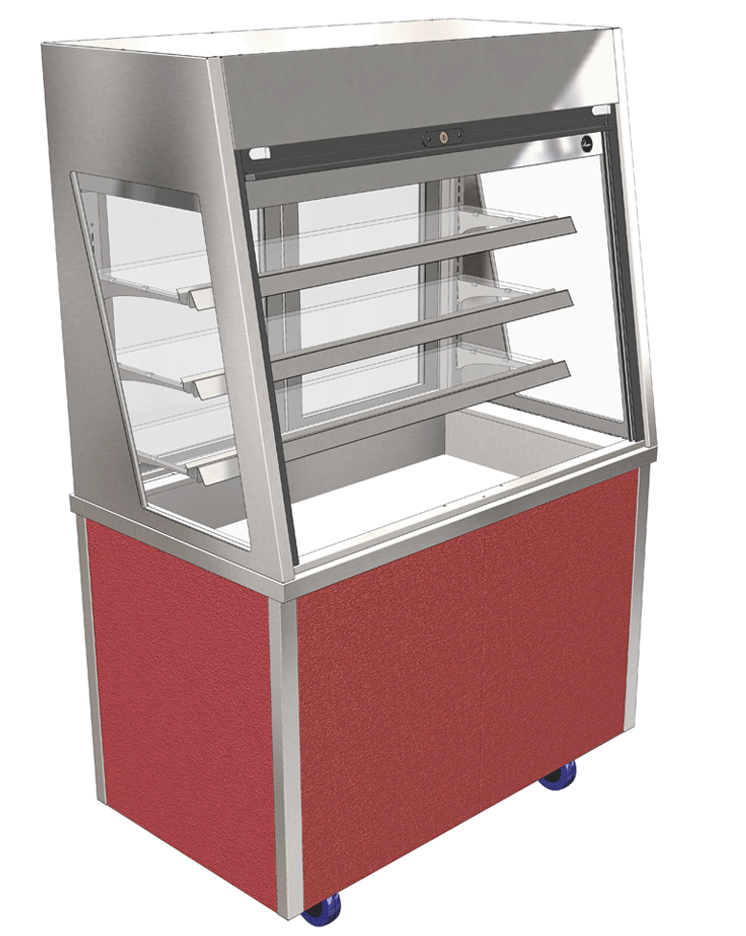

Glide Self Help Ambient Multideck – Shutter & Rear Doors (& Colour Panels – Red)
Model Code        Option Code
GMDA2RS          GPREDCHA2
GMDA3RS          GPREDCHA3
GMDA4RS          GPREDCHA4
GMDA5RS          GPREDCHA5

Glide Self Help Ambient Multideck – Shutter & Rear Doors (& Tubular Tray Rail) (& Colour Panels – Red)
Model Code      Option Codes
GMDA2RS        GTTS2  GPREDCHA2
GMDA3RS        GTTS3  GPREDCHA3
GMDA4RS        GTTS4  GPREDCHA4
GMDA5RS        GTTS5  GPREDCHA5

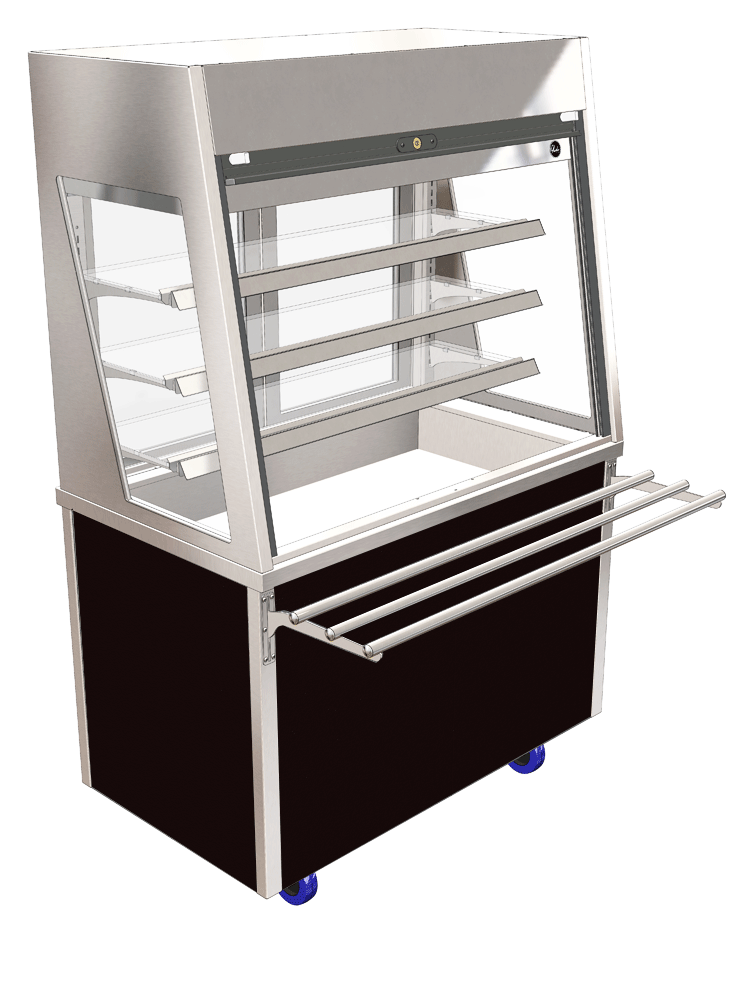

Glide Self Help Ambient Multideck – Shutter & Rear Doors (& Tubular Tray Rail) (& Colour Panels – Black)
Model Code       Option Codes
GMDA2RS         GTTS2  GBLAKCHA2
GMDA3RS         GTTS3  GBLAKCHA3
GMDA4RS         GTTS4  GBLAKCHA4
GMDA5RS         GTTS5  GBLAKCHA5

Downloads

General Layout Drawings
Glide Self Help Ambient Multideck (Shutter & Rear Doors).

Specification Sheet, Base Panel Colour Options, User Manual.
Glide Self Help Ambient Multideck (Shutter & Rear Doors).

Visual

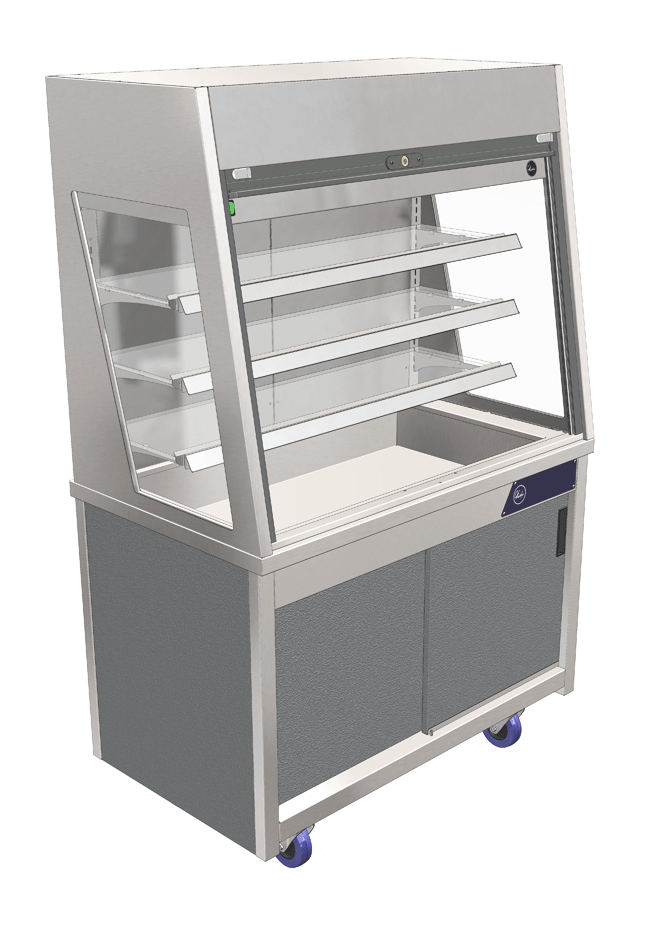

Glide Self Help Ambient Multideck (Shutter & Fixed Back).
Visual

Features

Glide Self Help Ambient Multideck (Shutter & Fixed Back).
Features

• Glide mobile dining cart, self help ambient multideck (shutter & fixed back).
• Wall sited application (in an alcove, against a wall or next to other dining carts in a wall sited Glide counter run).
• Features twin locking heavy duty overhead security shutter, in dark grey finish. Continuous bottom pull handle and shutter stops prevent trapped fingers when operating.
• Available in 2-1Gn (825mm), 3-1Gn (1175mm), 4-1Gn (1525mm) & 5-1Gn (1875mm) lengths.
• Model dimensions: 700 mm (d) x 900mm (worktop h).  O/all 1840mm (h).
• Fitted with 3 no. adjustable (h) 10mm thk. glass shelves c/w ticket strips (adjustable in height & angle).
• Glass shelving fitted with product stops & 40mm(h) ticket strip holder to front edge of each shelf.
• Multideck accepts 1-1Gn (x100) container pans in the well/ storage area.
• Ambient front facing cupboard under, with removable plastisol merlin grey sliding cupboard doors & 2 no. tiers of removable grid shelves, for easy cleaning.
• Ambient cupboard accommodates up to (10) x 1-1 Gn x 200mm (d) containers (not included), depending on model size.
• LED canopy lighting with opaque cover, colour 4000k.
• LED lighting control panel to gantry, features illuminated rocker switch/power isolation.
• Panoramic double glazed side glass panels, which improve presentation appearance & add natural lighting in the display.
• S/steel inner back panel, for re-stocking access from customer side.
• Front facing sliding cupboard doors/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
• Worktop & deck plates in 304 gd. s/steel, all other external steel surfaces in 430gd (superstructure/ base corners/ cupboard doors etc.).
• Fitted with lockable non-marking rubber tyre castors.
• Power Supply: Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz), for connection to dedicated 13A SSO.

Glide Range: Electrical Connections.

• Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
• If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

• CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
• HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
  ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

• Folding s/steel solid tray slide available*.
• Folding s/steel tubular tray rail Ø25 tube, available*.
• Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm)*.
• 11 solid colour & woodgrain base cupboard/ side panel finishes available.
• Low height model 850mm (h) available.
• Low height model 800mm (h) available*. * Bespoke option with extended lead time*.
• Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).

Food Display Examples

• Drinks (Deck Area). Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.
• Food (Deck & Shelving Area): Fruit, danish pastries, muffins, donuts, fruit cake, biscuits, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereal.
• *Sandwiches, baguettes, rolls, barmcakes & cheese are subject to local health regulations re: display times*

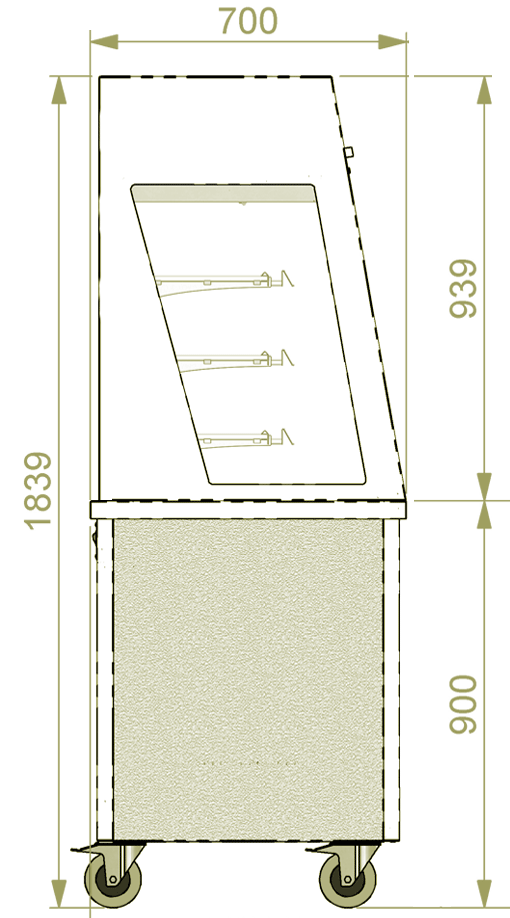

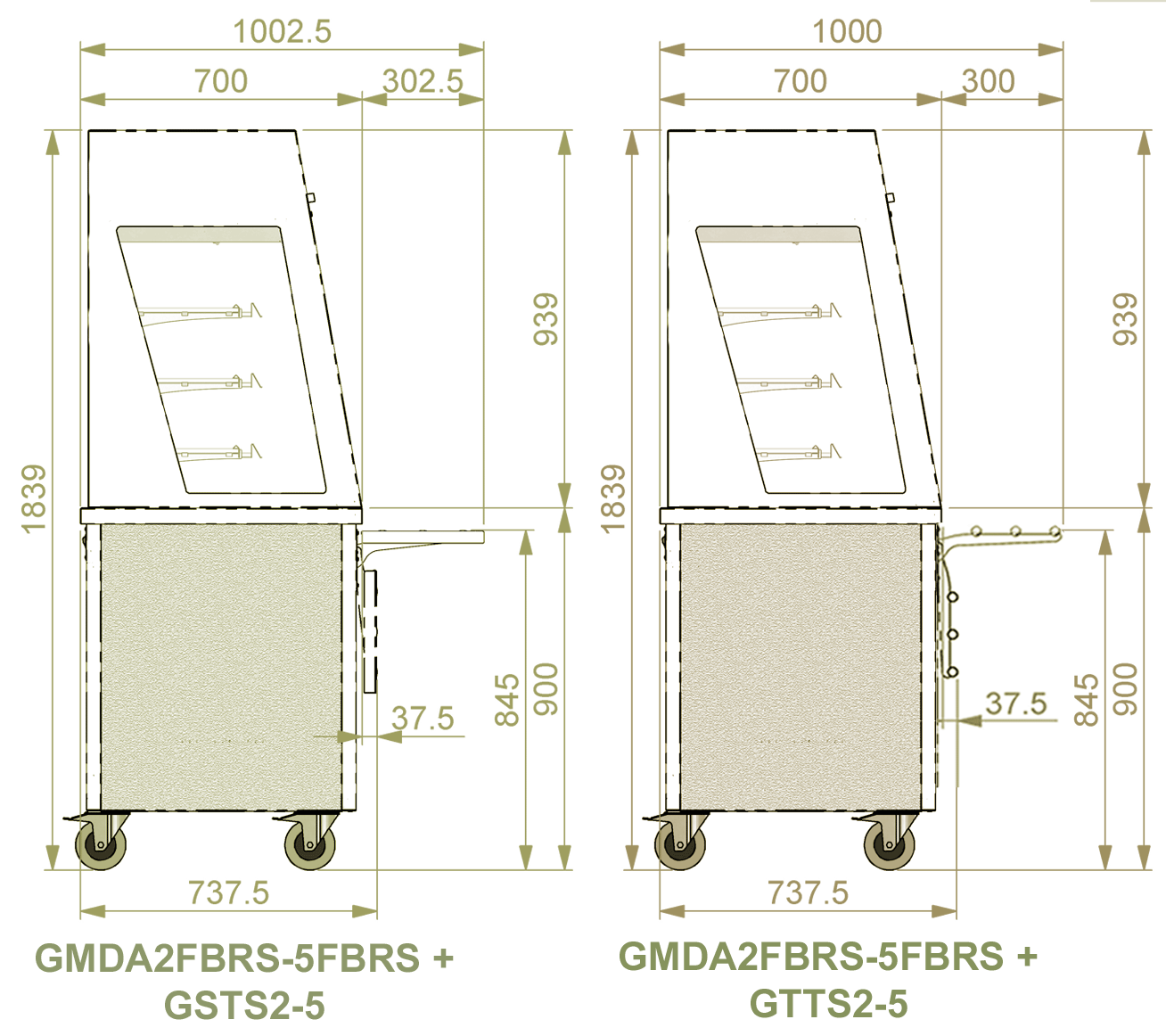

Dimensions

Glide Self Help Ambient Multideck (Shutter & Fixed Back).
Dimensions

* LED lighting is controlled by illuminated green rocker switch/ power isolation at high level in gantry*

Options – Glide Self Help Ambient Multideck (Shutter & Fixed Back).

Popular Model Codes & Options

Options

Glide Self Help Ambient Multideck (Shutter & Fixed Back).
Options.

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

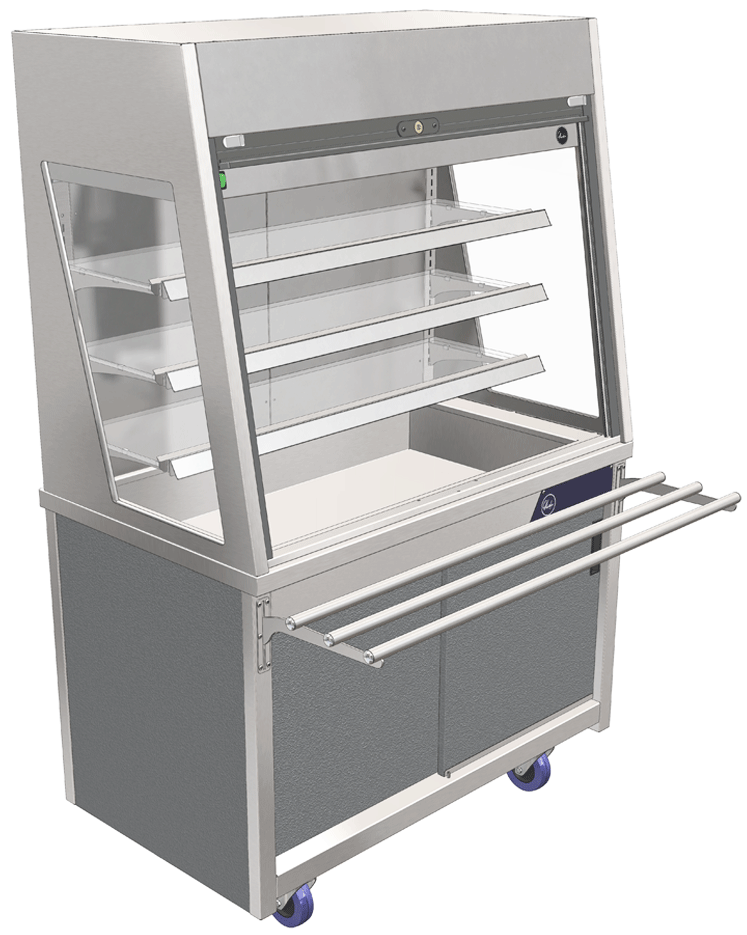

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors. Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high) * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Codes GBLUEWSA2 – GBLUEWSA5) 2-1 Gn to 5-1 Gn full set of front doors/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

S/steel Finish. (Option Code GSSTLWSA2 – GSSTLWSA5) 2-1 Gn to 5-1 Gn full set of front doors/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

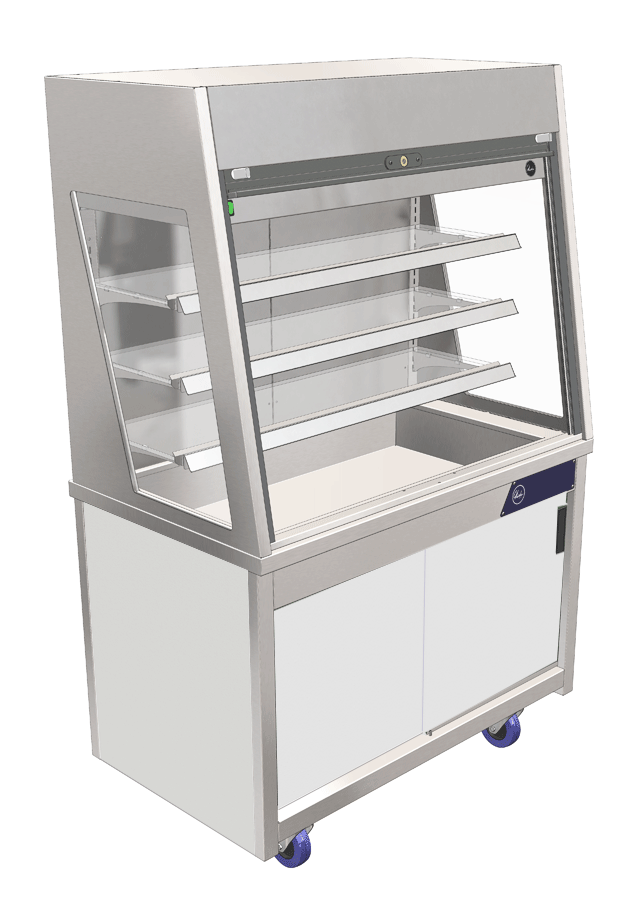

Light Grey Finish. (Option Codes GGREYWSA2 – GGREYWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Forest Green Finish. (Option Codes GGRENWSA2 – GGRENWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Codes GPREDWSA2 – GPREDWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

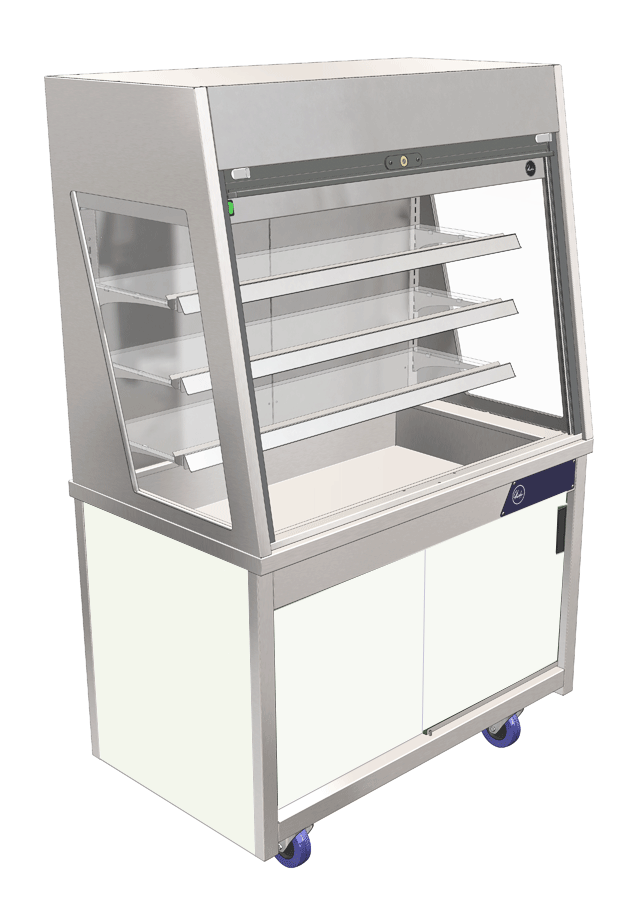

Cream Finish. (Option Codes GCREMWSA2 – GCREMWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

White Finish. (Option Codes GWHITWSA2 – GWHITWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

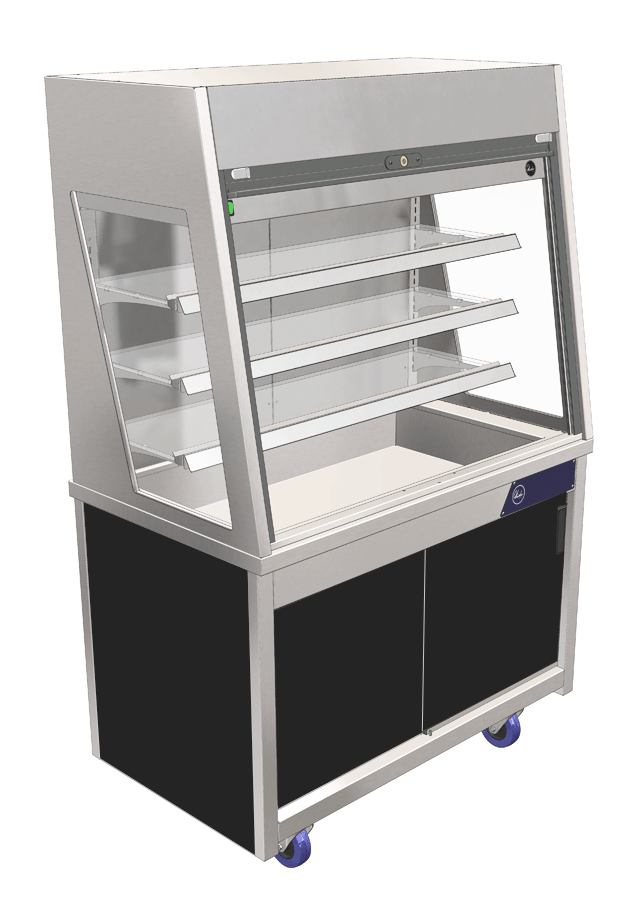

Black Finish. (Option Codes GBLAKWSA2 – GBLAKWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

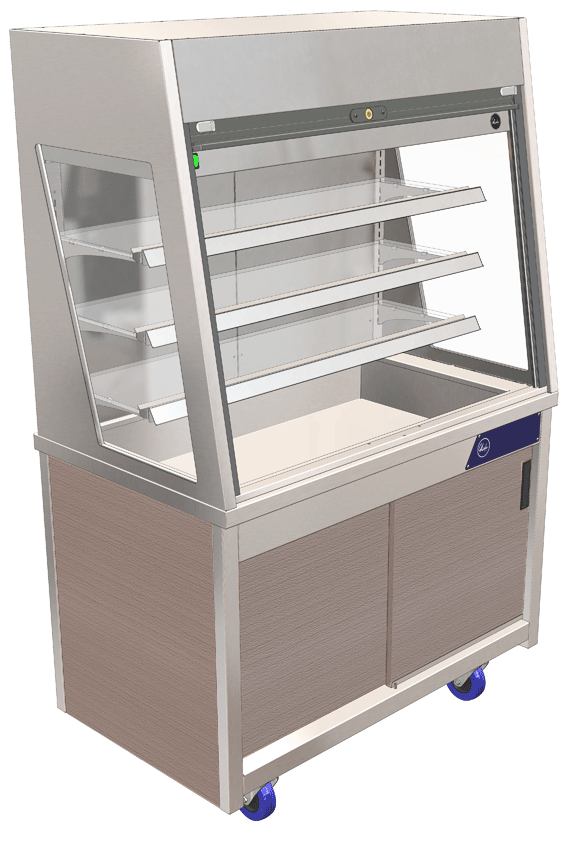

Beech Woodgrain Finish. (Option Codes GBEECWSA2 – GBEECWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Walnut Woodgrain Finish. (Option Codes GWALNWSA2 – GWALNWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Oak Woodgrain Finish. (Option Codes GOAKWSA2 – GOAKWSA5) 2-1 Gn to 5-1 Gn full front doors/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Options – Glide Self Help Ambient Multideck (Shutter & Fixed Back).

Popular Model Codes & Options.

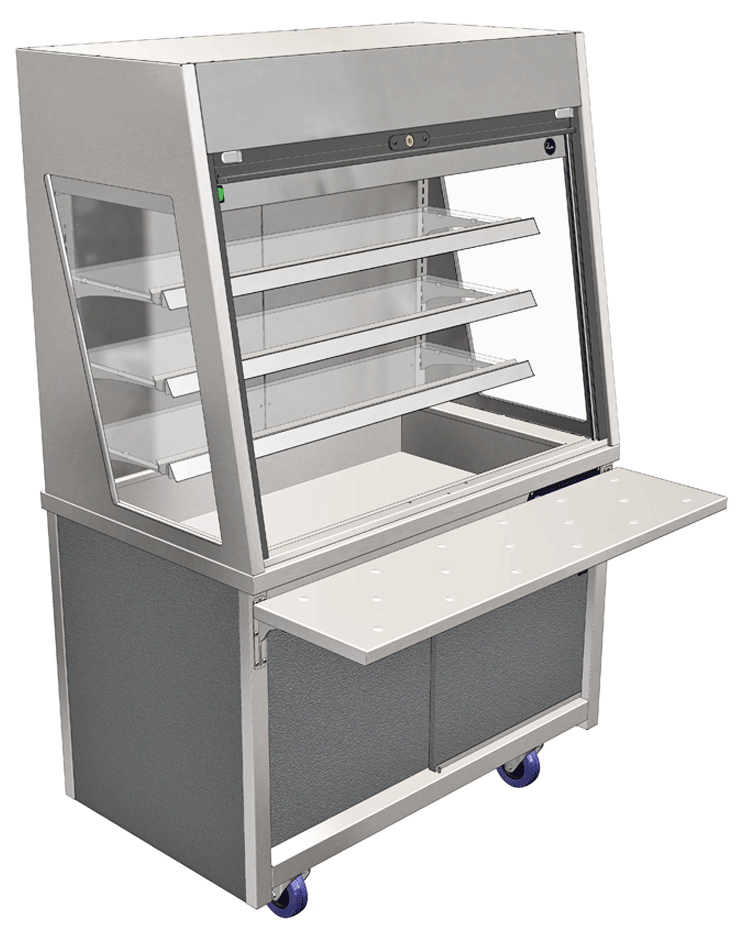

Glide Self Help Ambient Multideck – Shutter & Fixed Back (& Solid Tray Slide)
Model Code            Option Code
GMDA2FBRS         GSTS2
GMDA3FBRS         GSTS3
GMDA4FBRS         GSTS4
GMDA5FBRS         GSTS5

Glide Self Help Ambient Multideck – Shutter & Fixed Back (& Tubular Tray Rail)
Model Code             Option Code
GMDA2FBRS          GTTS2
GMDA3FBRS          GTTS3
GMDA4FBRS          GTTS4
GMDA5FBRS          GTTS5

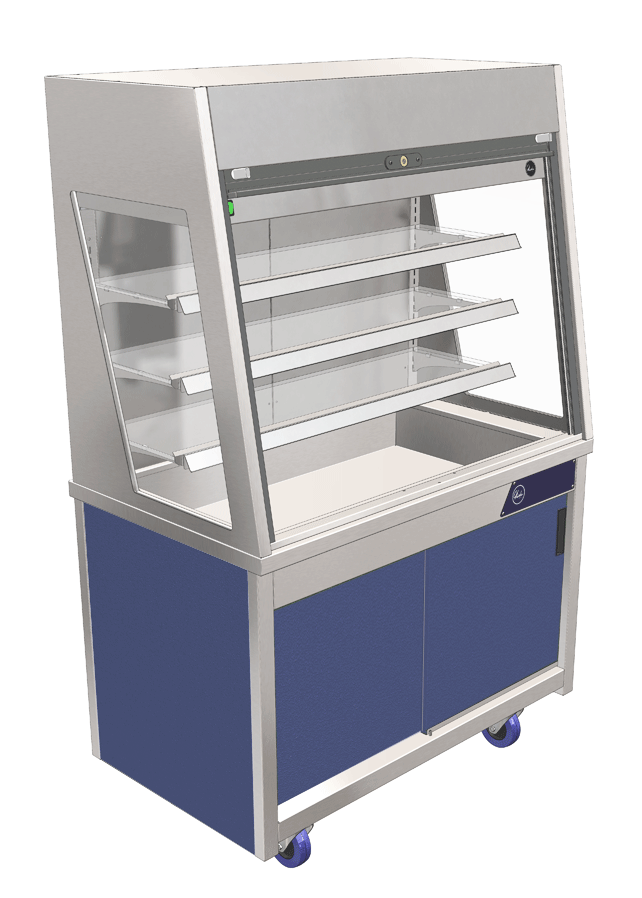

Glide Self Help Ambient Multideck – Shutter & Fixed Back (& Colour Panels – Blue)
Model Code             Option Code
GMDA2FBRS          GBLUEWSA2
GMDA3FBRS          GBLUEWSA3
GMDA4FBRS          GBLUEWSA4
GMDA5FBRS          GBLUEWSA5

Glide Self Help Ambient Multideck – Shutter & Fixed Back (& Colour Panels – Red)
Model Code             Option Code
GMDA2FBRS          GPREDWSA2
GMDA3FBRS          GPREDWSA3
GMDA4FBRS          GPREDWSA4
GMDA5FBRS          GPREDWSA5

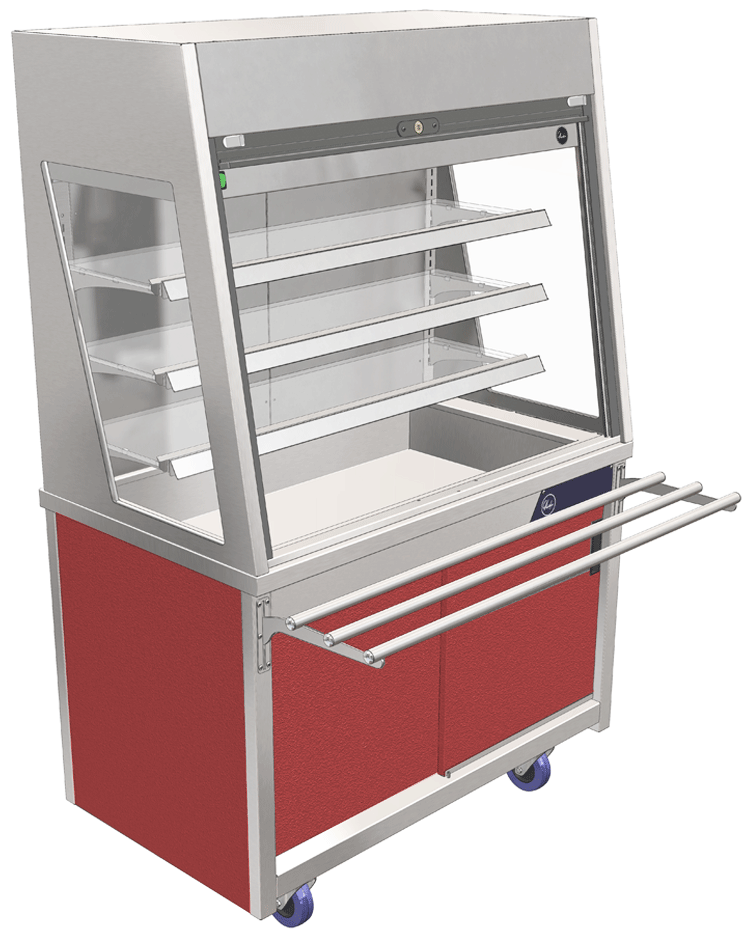

Glide Self Help Ambient Multideck – Shutter & Fixed Back (& Tubular Tray Rail) (& Colour Panels – Red)
Model Code           Option Codes
GMDA2FBRS        GTTS2  GPREDWSA2
GMDA3FBRS        GTTS3  GPREDWSA3
GMDA4FBRS        GTTS4  GPREDWSA4
GMDA5FBRS        GTTS5  GPREDWSA5

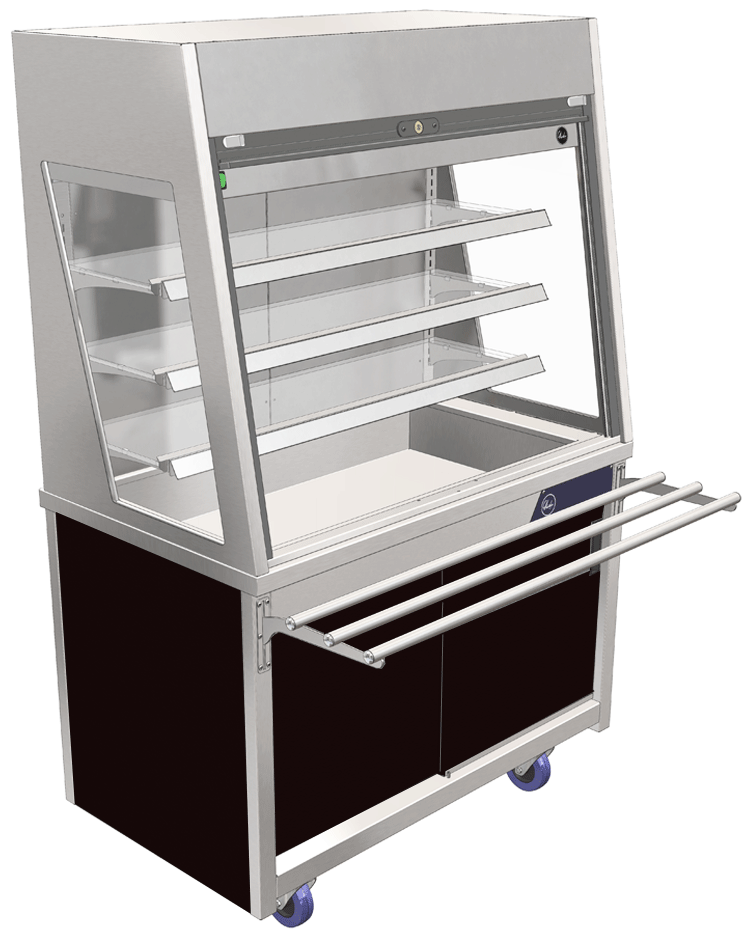

Glide Self Help Ambient Multideck – Shutter & Fixed Back (& Tubular Tray Rail) (& Colour Panels – Black)
Model Code            Option Codes
GMDA2FBRS         GTTS2  GBLAKWSA2
GMDA3FBRS         GTTS3  GBLAKWSA3
GMDA4FBRS         GTTS4  GBLAKWSA4
GMDA5FBRS         GTTS5  GBLAKWSA5

Downloads

General Layout Drawings
Glide Self Help Ambient Multideck (Shutter & Fixed Back).

Specification Sheet, Base Panel Colour Options, User Manual.
Glide Self Help Ambient Multideck (Shutter & Fixed Back).
