The environmentally friendly eutectic plate cold well is part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

Features. The eutectic plate cold well features a series of removable, pre-frozen s/steel plates which sit within the base of the display area. The plates contain a cooling gel and provide a contact cooled surface for storage of fruit, bottled drinks or liquid desserts such as yoghurt pots etc. The display keeps pre-chilled product cold for a typical 2-3 hour lunch period.

This mobile self contained display is available in four different Gastronorm lengths, with locking castors to easily position your equipment around your serving space. When used with the optional ambient gantrys, the cupboard is supplied with a 3m lead & 13 amp UK plug (13A 230v 50Hz).

The Eutectic Cooling Process. A series of 1/1 Gn size removable s/steel eutectic plates (supplied) are pre-frozen overnight in a freezer. When cold they are placed in the well area. Contact cooling occurs by the transfer of cold energy into the product, which is in contact with the steel surface of the eutectic plate.
Rear Cupboard Storage Area. Features rear ambient cupboard with removable sliding s/steel doors. Inside are 2 tiers of internal grid shelves for plate/ Gn pan storage. The cupboards accept plates, dishes or up to 10x 1-1 Gn 150mm deep Gn pans (not included) depending on model size.
Cold Serving Period. The display keeps pre-chilled product cold for a typical 2-3 hour lunch period. This period can be extended by replacing eutectic plates with others (which have also been pre-frozen in advance).
Food Types. Ideal for storage of fruit, bottled drinks or liquid desserts such as yoghurt pots etc.
Finishes. Base panel finish plastisol steel, colour merlin grey (BS 18B25), worktop,rear sliding doors & removable eutectic plates in durable food safe s/steel.
Well Storage Depth. The well depth is 100mm deep with the eutectic plates in the base. If used as an ambient display, the total well/ tank depth is 145mm with the eutectic cold plates removed.

Gantry Options.

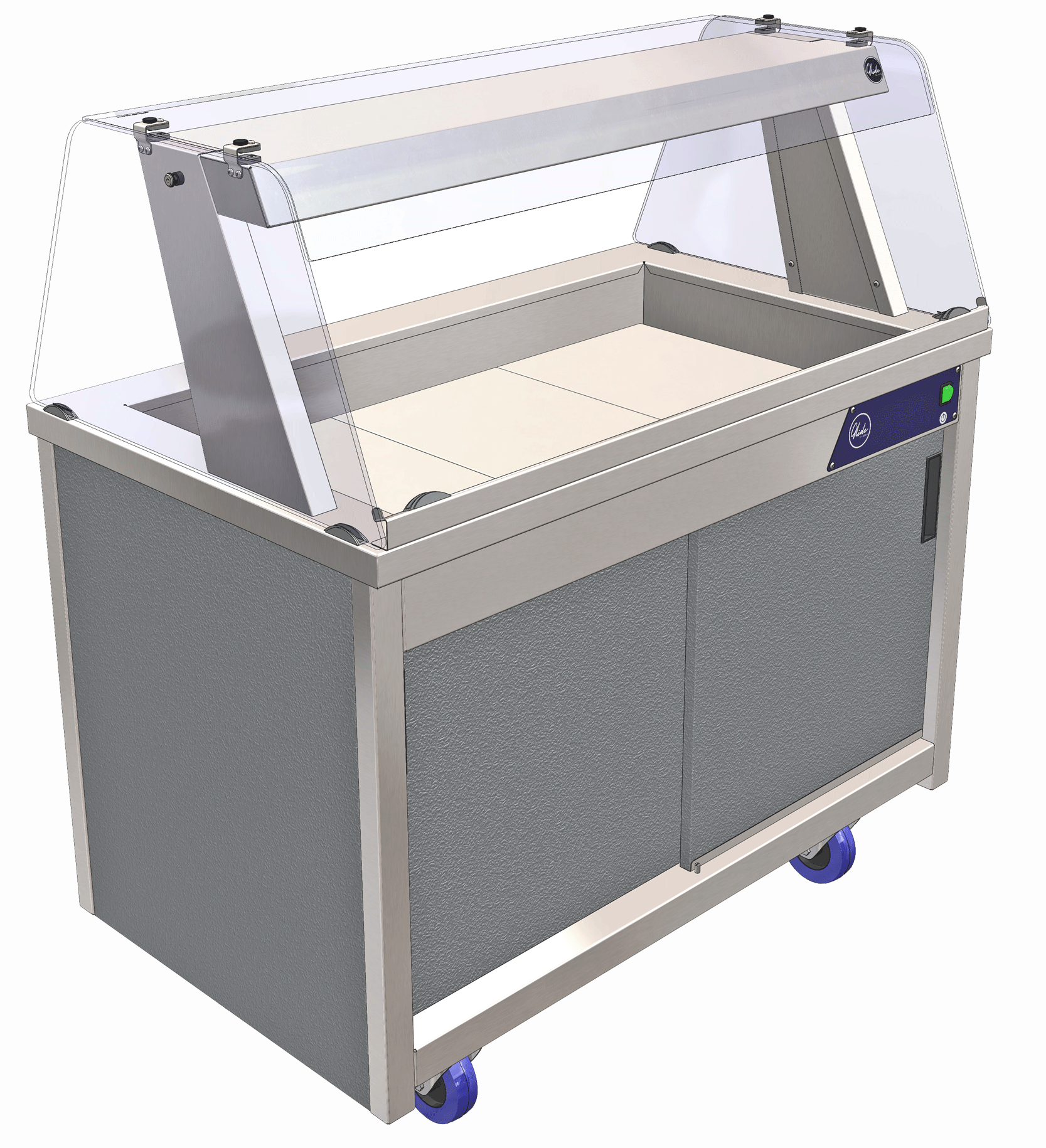

Eutectic Cold Well LED Gantry. Curved self help/ assisted service glass gantry c/w LED
lighting – opaque safety cover, colour 4000k. Reversible curved glass sneeze screen & side glass. A rear control panel/ light switch & 3m lead/ plug are provided.

Eutectic Cold Deli LED Gantry. Assisted service curved glass gantry c/w LED lighting – opaque safety cover, colour 4000k. Glass mid shelf/ full front curved glass & side glass. A rear control panel/ light switch & 3m lead/ plug are provided.

Eutectic Cold Island LED Gantry. Self help island curved glass gantry c/w LED lighting – opaque safety cover, colour 4000k, double curved glass sneeze screen & side glass. A rear control panel/ light switch & 3m lead/ plug are provided.



Height Options.

Low Height Model (Glide Junior). Available in 850mm or 800mm worktop heights for junior/ primary use.





Accessories & Finishes.

Folding Steel Solid or Tubular Tray Slides. Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.



Colour Finishes To Base Panels. 11 alternative choices of durable steel, colour & wood effect finishes for cold multideck base panels, to compliment other selected models in the servery colour scheme.

Rear Deli Preparation Shelf. Rear s/steel work surface & 1-1Gn (L) hook over polyethylene cutting board.

Additional Cutting Board. Extra boards can be used in multiples with the rear prep. shelf accessory.

Additional S/Steel Eutectic Plate. Extend your serving period by replacing eutectic plates with other pre-frozen ones.

Visual

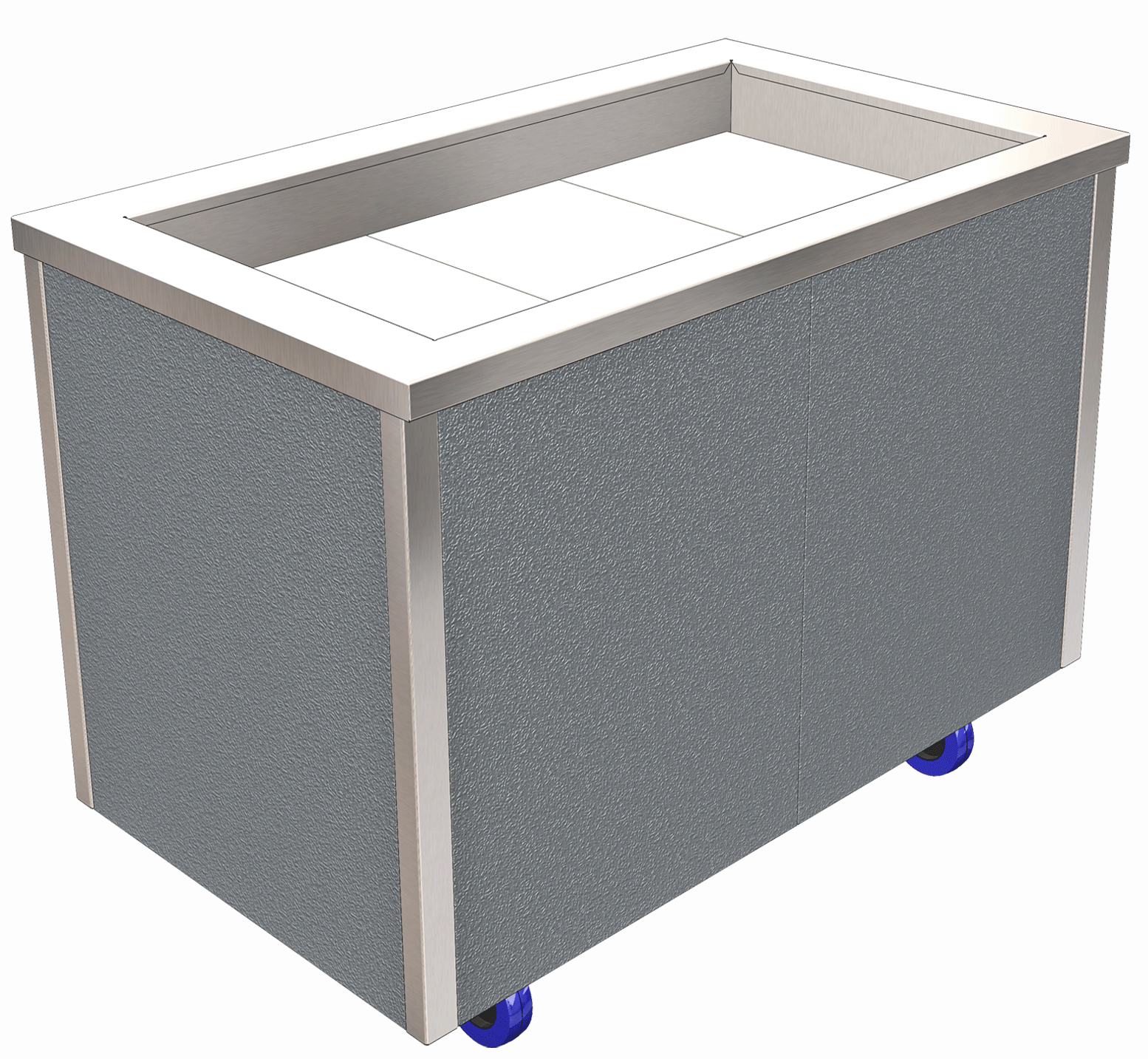

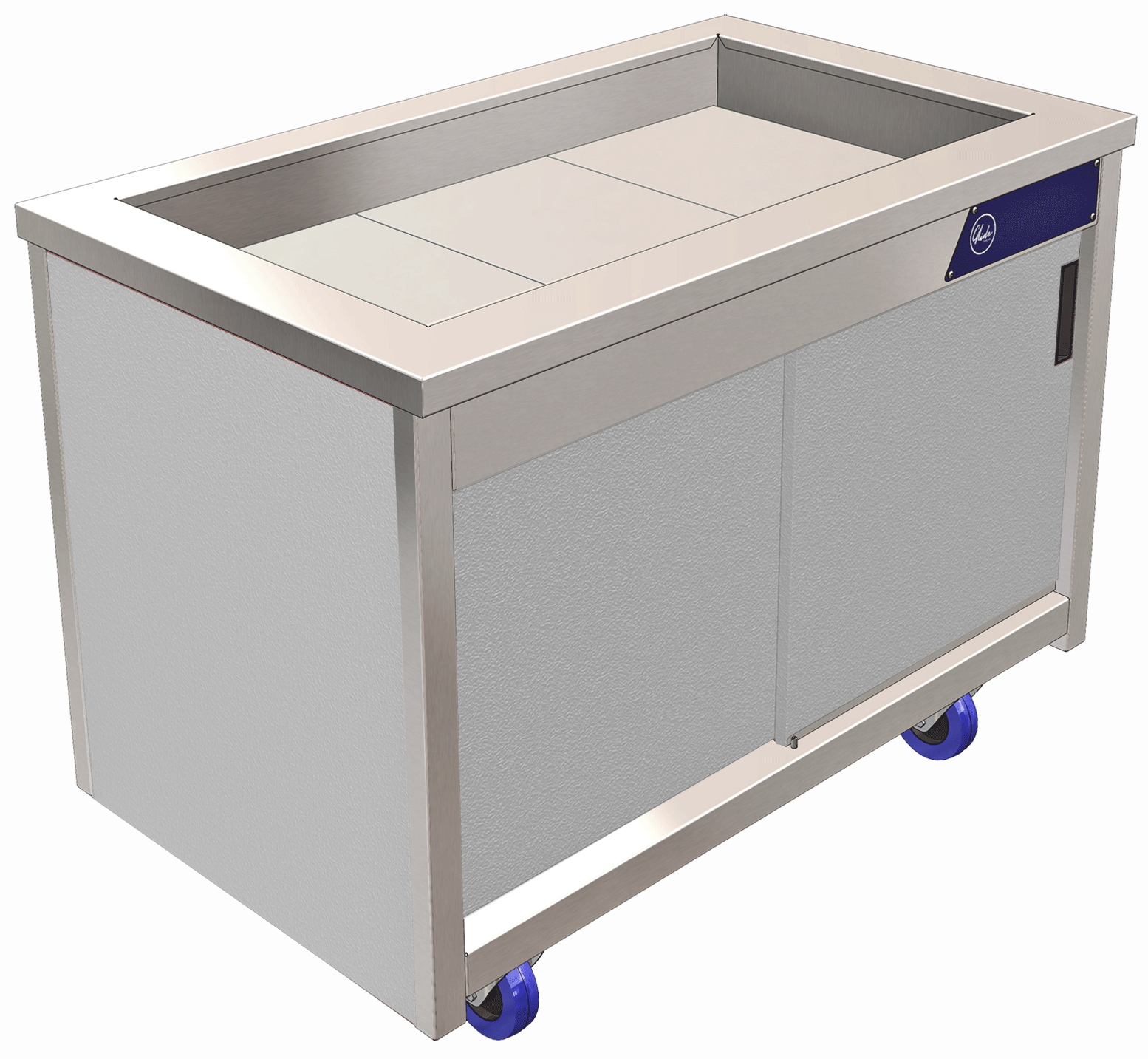

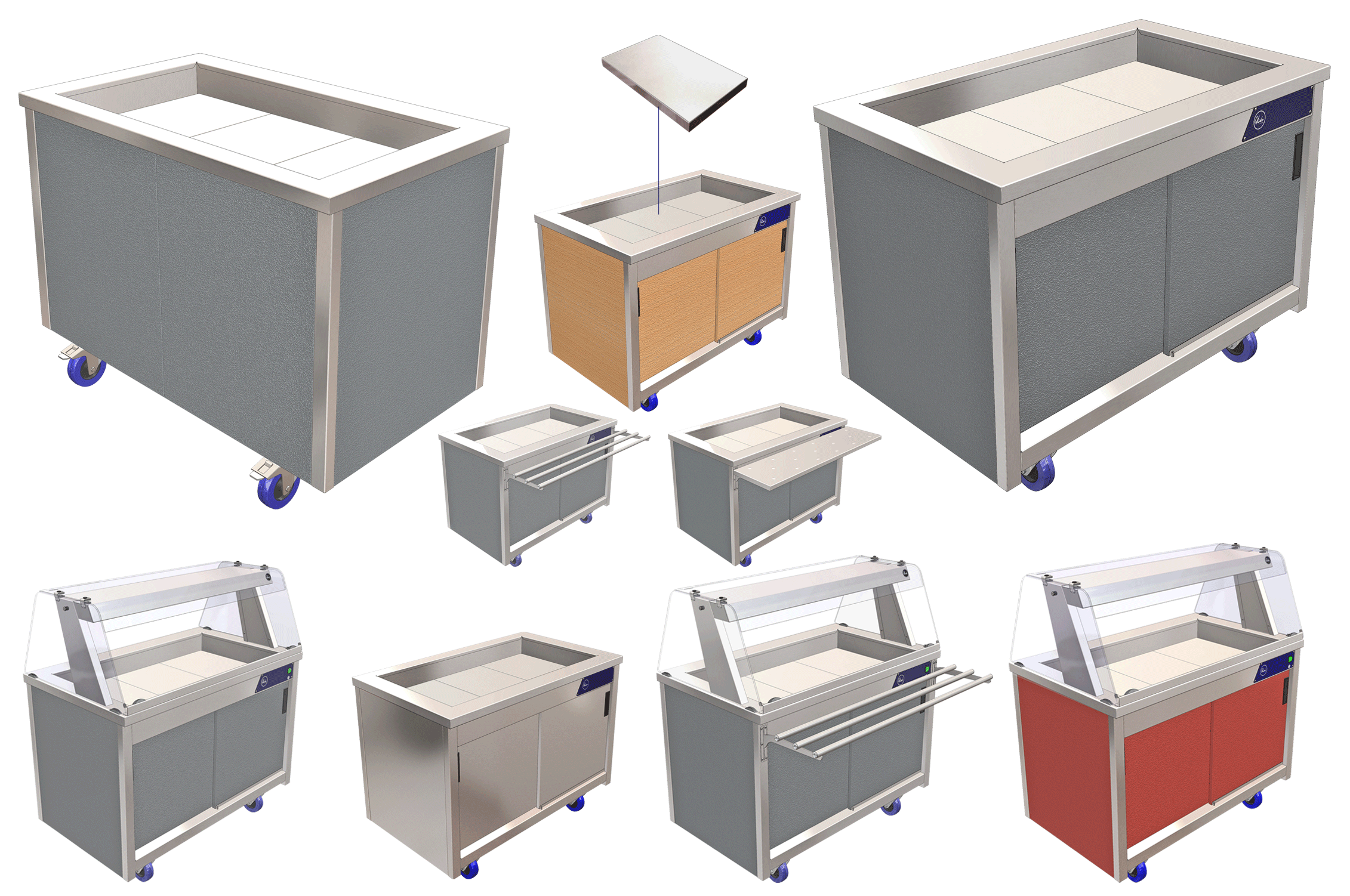

Glide Eutectic Plate Cold Well – No Gantry.
Visual



Features

Glide Eutectic Plate Cold Well – No Gantry.
Features

  • Glide mobile dining cart, eutectic plate cold well with ambient store cupboard (no gantry).
  • Free standing application.
  • Eutectic plates keep pre-chilled product cold for a typical 2-3 hour lunch period.
  • Uses 1-1 Gn pre-frozen s/steel eutectic cooling plates (included) placed in the well area, the transfer of cold energy occurs when product is in contact with the cold surface.
  • Ideal for storage of pre-chilled fruit, bottled drinks, liquid desserts such as yoghurt pots etc.
  • Eutectic well area provides short term contact cooled surface.
  • Available in 2-1Gn (825mm), 3-1Gn (1175mm), 4-1Gn (1525mm) & 5-1Gn (1875mm) lengths.
  • Eutectic plate cold well area also accepts 1-1Gn (x100) container pans in the well/ storage area.
  • Model dimensions: 700 mm (d) x 900mm (worktop h).
  • Ambient rear store cupboard fitted with removable sliding s/steel doors.
  • Cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Cupboard accommodates up to (10) x 1-1 Gn 200mm (d) containers (not included), depending on model size.
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd. s/steel, all other external steel surfaces in 430gd (base corners/ tank/ rear cupboard doors etc.).
  • Fitted with lockable non-marking rubber tyre castors.
  • Power supply – if LED gantry option added: Model supplied with light switch, 3m lead & 13 amp UK plug (13A 230v 50Hz).

Glide Range: Electrical Socket Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
    If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • 11 solid colour & woodgrain base panel finishes.
  • Self help/ assisted service curved glass gantry c/w LED lighting, 397 mm (h), (colour 400ok & opaque safety cover) & side glass.
  • Assisted service full height curved deli glass gantry c/w LED lighting, 540 mm (h), (colour 400ok & opaque safety cover), glass mid shelf & side glass.
  • Self help island double curved glass gantry c/w LED lighting, 397 mm (h) (colour 400ok & opaque safety cover) & side glass.
  • Eutectic rear s/steel preparation shelf c/w 1 no. polyethylene cutting board.
  • Additional rear cutting board.
  • Additional S/steel eutectic plate
    (Extends serving period by replacing eutectic plates with other pre-frozen ones).
  • Folding s/steel solid tray slide available*.
  • Folding s/steel tubular tray rail Ø25 tube, available*
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).*
  • Low height model 850mm worktop (h) available.
  • Low height model 800mm worktop (h) available.*
    Bespoke option with extended lead time.*
  • Optional tray slide height: for
    standard 900 mm (h) worktop = 845 mm,
    low height 850 mm (h) model = 795mm,
    low height 800 mm (h) model = 745mm.

Food Display Examples

  • Drinks (Well Area). Pre-chilled still & carbonated drinks, bottled, canned or cartoned, water, UHT dairy, lemonade, fruit juice & health drinks, yoghurt etc.
  • Food (Well Area): Sandwiches, baguettes, rolls, panini, barm cakes, salad, pasta, cheese snacks, cakes, cereals, fruit in juice & fruitsubject to local food hygiene legislation/ holding periods.

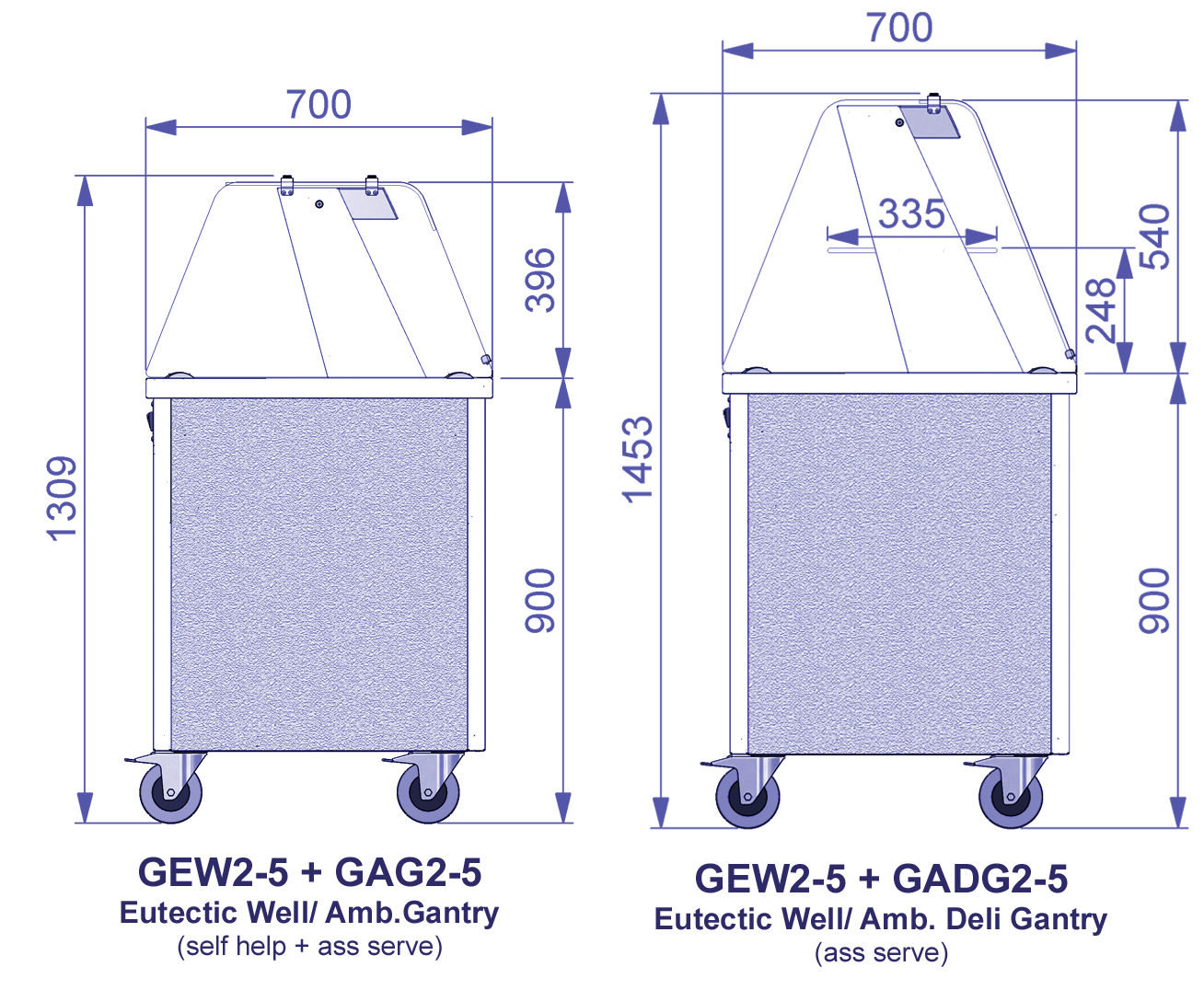

Dimensions

Glide Eutectic Plate Cold Well – No Gantry
Dimensions

Model Code

GEW2

GEW3

GEW4

GEW5

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Worktop Height (mm)

900

900

900

900

Weight (kg) Uncrated

53

79

98

111

Total Power  (kW)
(No Gantry Model)

n/a

n/a

n/a

n/a

Total Power (kw)
Model + LED Light Gantry Option
(colour 4000k opaque safety cover), c/w light switch, 3m lead & Plug (13A 230V 50hz) for connection to dedicated 13A SSO.

0.008

0.014

0.016

0.022

S/steel Eutectic Plates Supplied Per Model
(530mm(l) x 325mm(w) x 45mm (h) c/w cooling gel inner)

2

3

4

5

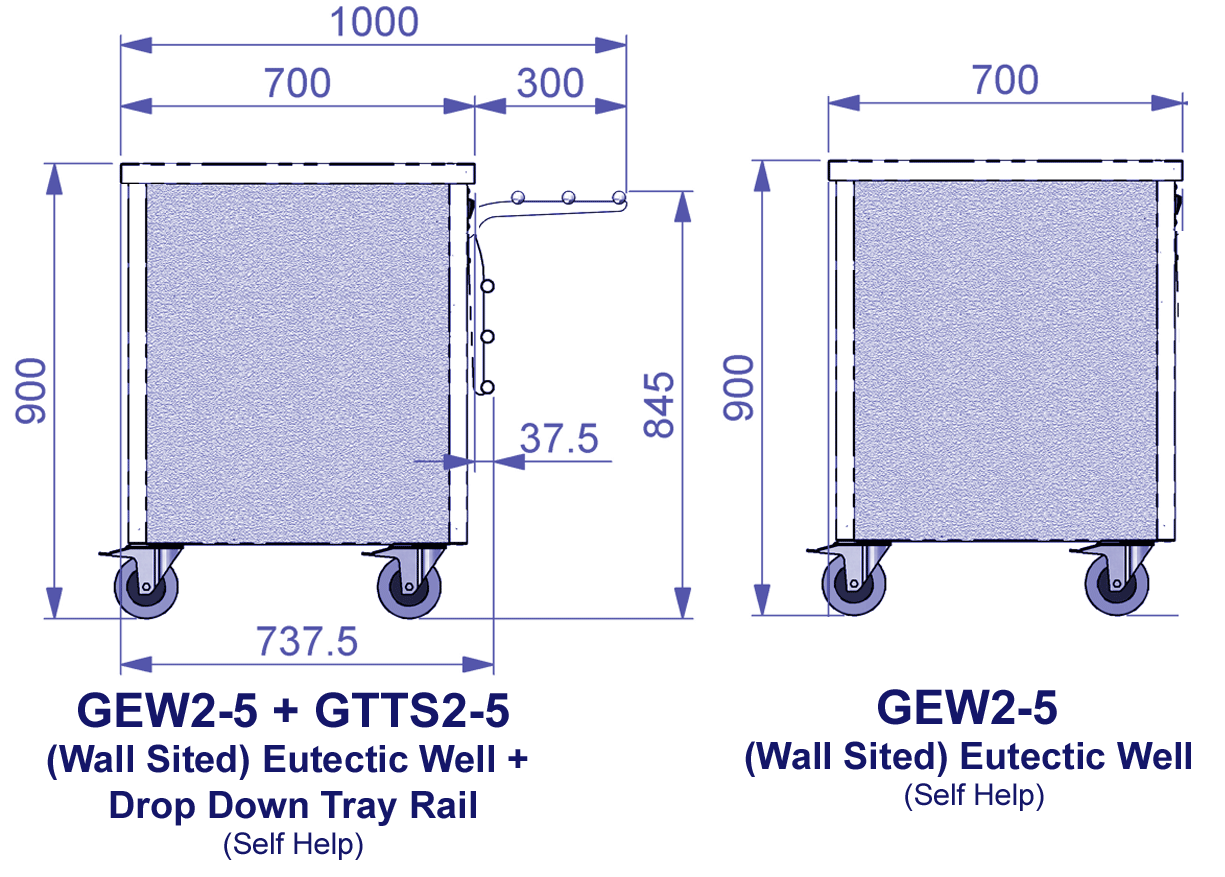

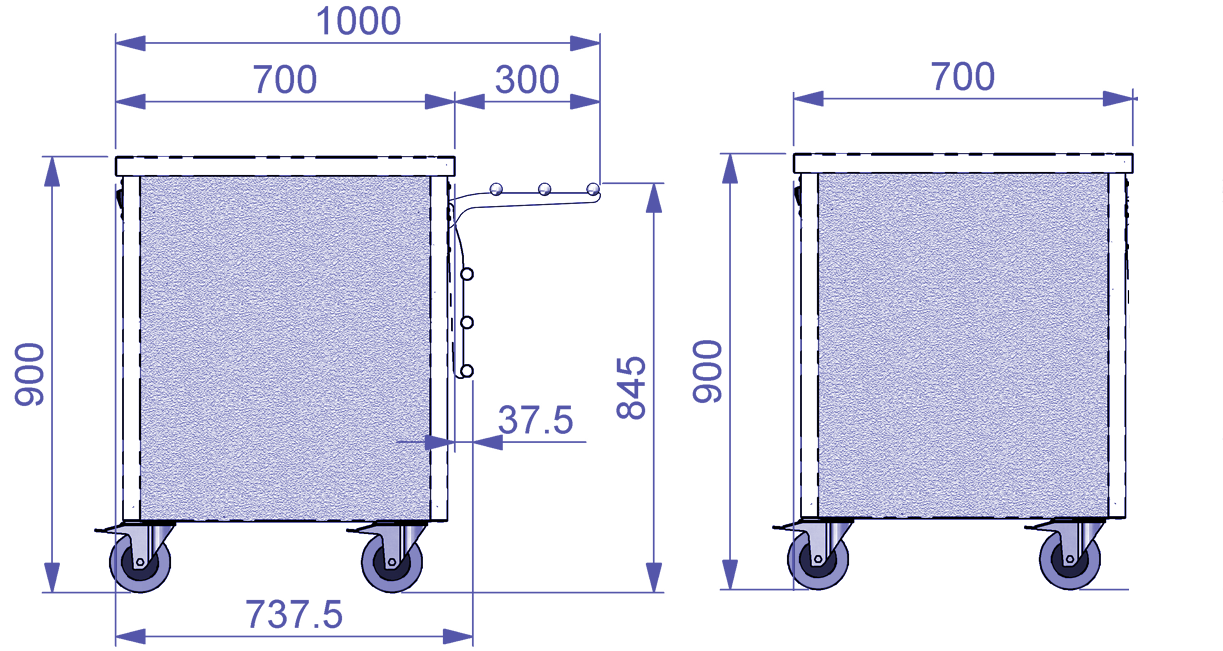

Revised Model Depth (mm) –
(Optional Drop Down Trayslide,

Folding Tray Slide In ‘Down’ Position)

740

740

740

740

Revised Model Depth (mm) –
(Optional Drop Down Trayslide,
Folding Tray Slide In ‘Up’ Position)

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit worktop 900(h) – 55mm)

845

845

845

845

LED Lighting Gantry
Colour 4000k, opaque safety cover

Optional

Optional

Optional

Optional

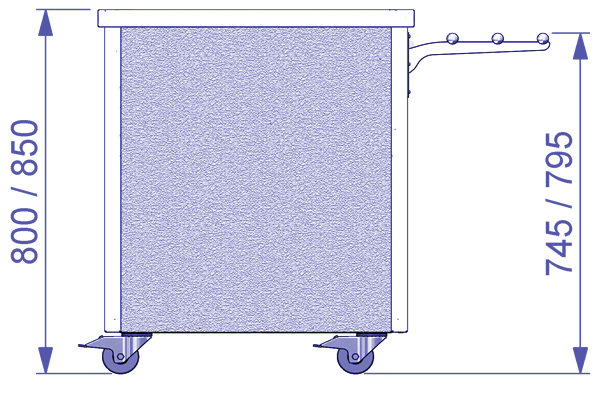

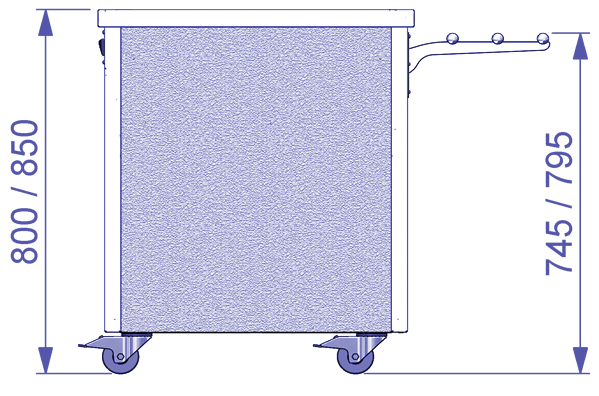

Model Height With Optional  (G850H) Worktop (mm)
Optional tray slide = 795mm (h)

850

850

850

850

Model Height With Optional (G800H) Worktop (mm)*
Optional tray slide = 745mm (h)

*bespoke, extended lead time*

800

800

800

800

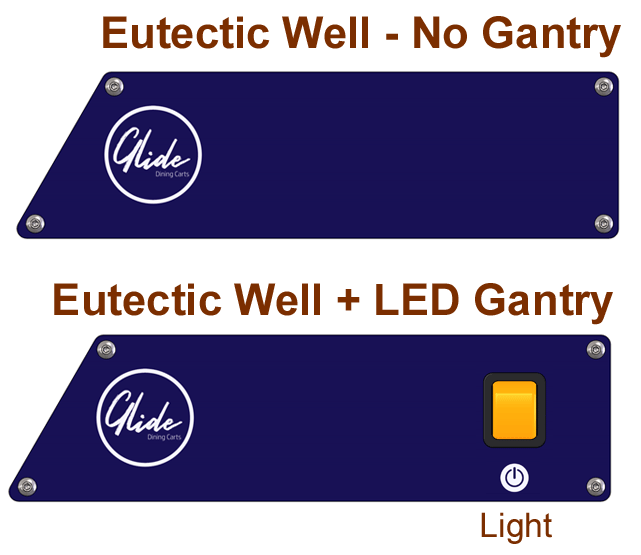

*When Gantry option is added to model, the control panel blank plate is replaced with a control panel featuring illuminated rocker switch/power isolation*



Options – Glide Eutectic Plate Cold Well – No Gantry.

Option                                                                                          Option Code

Model Code

GEW2

GEW3

GEW4

GEW5

Glide Eutectic Cold Well Gantry.
397mm (H) c/w LED light, curved glass & end glass – reversible sneeze screen for self help/ ass. serve use.

GAG2

GAG3

GAG4

GAG5

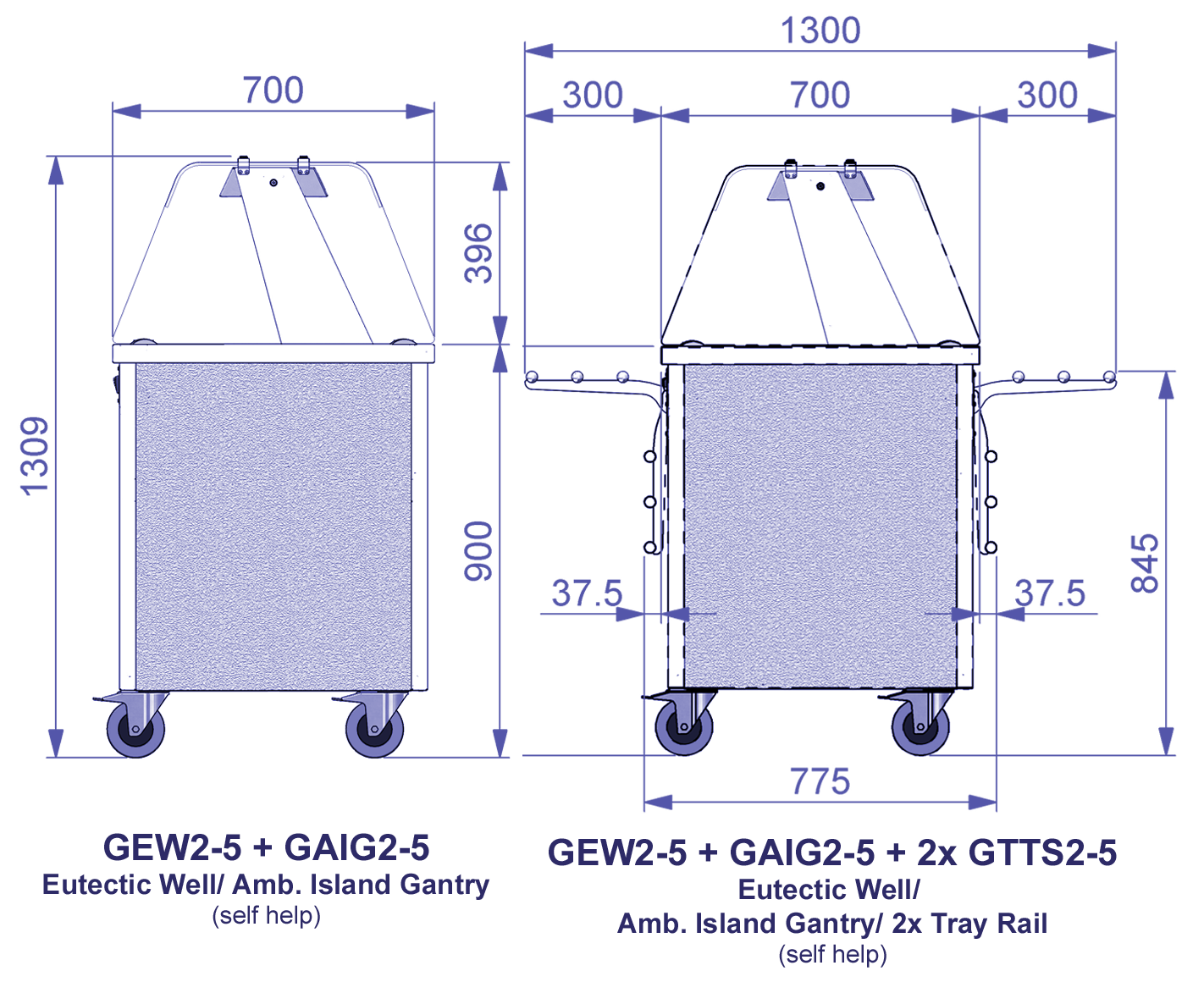

Glide Eutectic Cold Island Gantry.
397mm (H) c/w LED light, double curved sneeze screen glass & end glass – for self help use.

GAIG2

GAIG3

GAIG4

GAIG5

Glide Eutectic Cold Deli Gantry.
540mm (H) c/w LED light, full height curved front glass & end glass, glass midshelf (ambient) – for ass. serve use.

GADG2

GADG3

GADG4

GADG5

Glide S/Steel Eutectic Rear Deli Preparation Shelf (+1 Cutting Board). Rear shelf for sandwich prep. 180mm (D) c/w polyethylene cutting board – 350mm(L) x 250mm(D) x 30mm(H).

GEPS2

GEPS3

GEPS4

GEPS5

Glide Extra 1-1 Gn Cutting Board.
Hook over chopping board in white polyethylene, 350mm(L) x 250mm(D) x 30mm (H).

KCB1

KCB1

KCB1

KCB1

Glide Additional S/Steel Eutectic Plate.
1-1 Gn, eutectic cold plate, charged in deep freeze overnight prior to use.
Plate contains a cooling gel and provides a contact cooled surface for product to stand on.
530 mm(L) x 325 mm(W) x 45 mm(H),

GEP1

GEP1

GEP1

GEP1

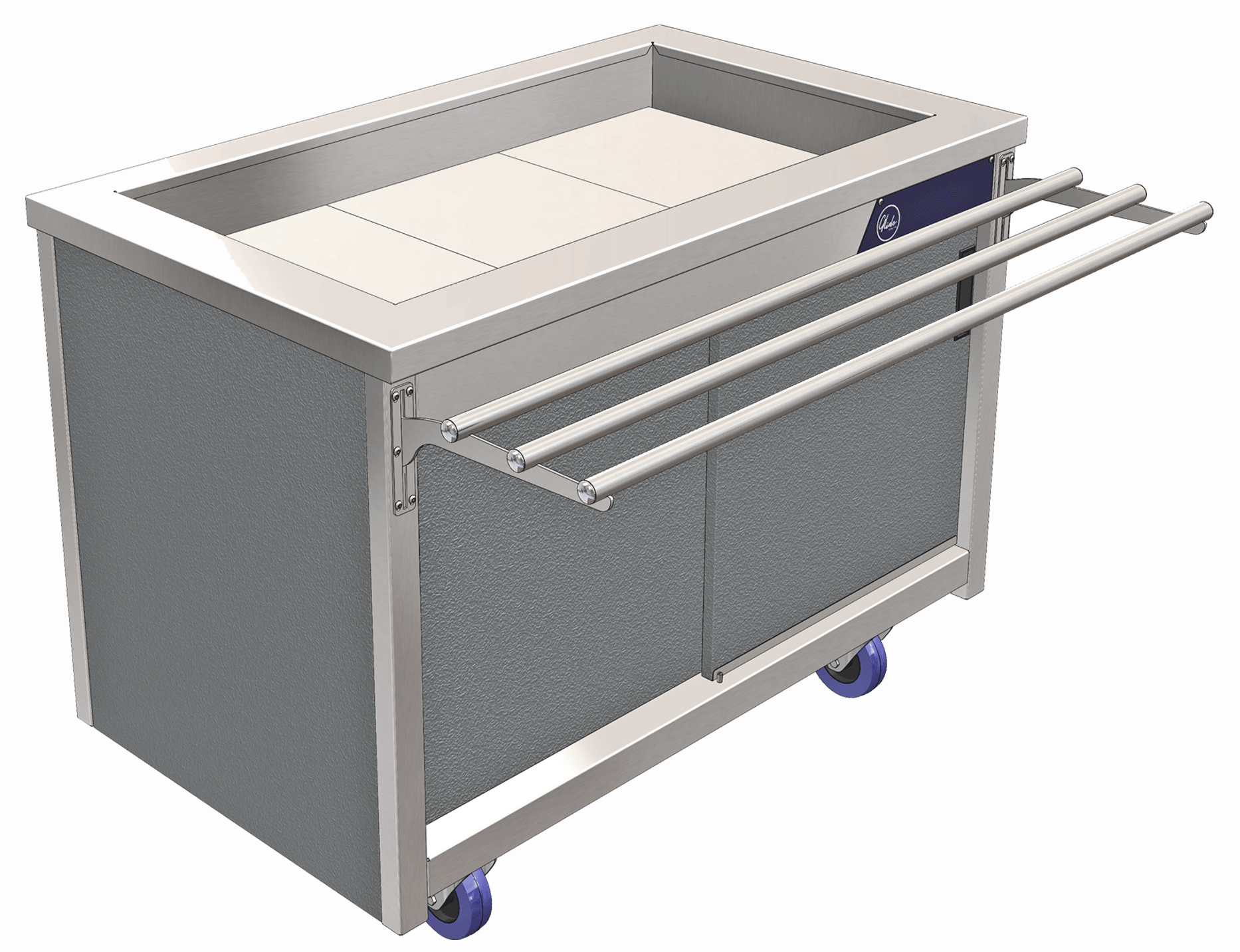

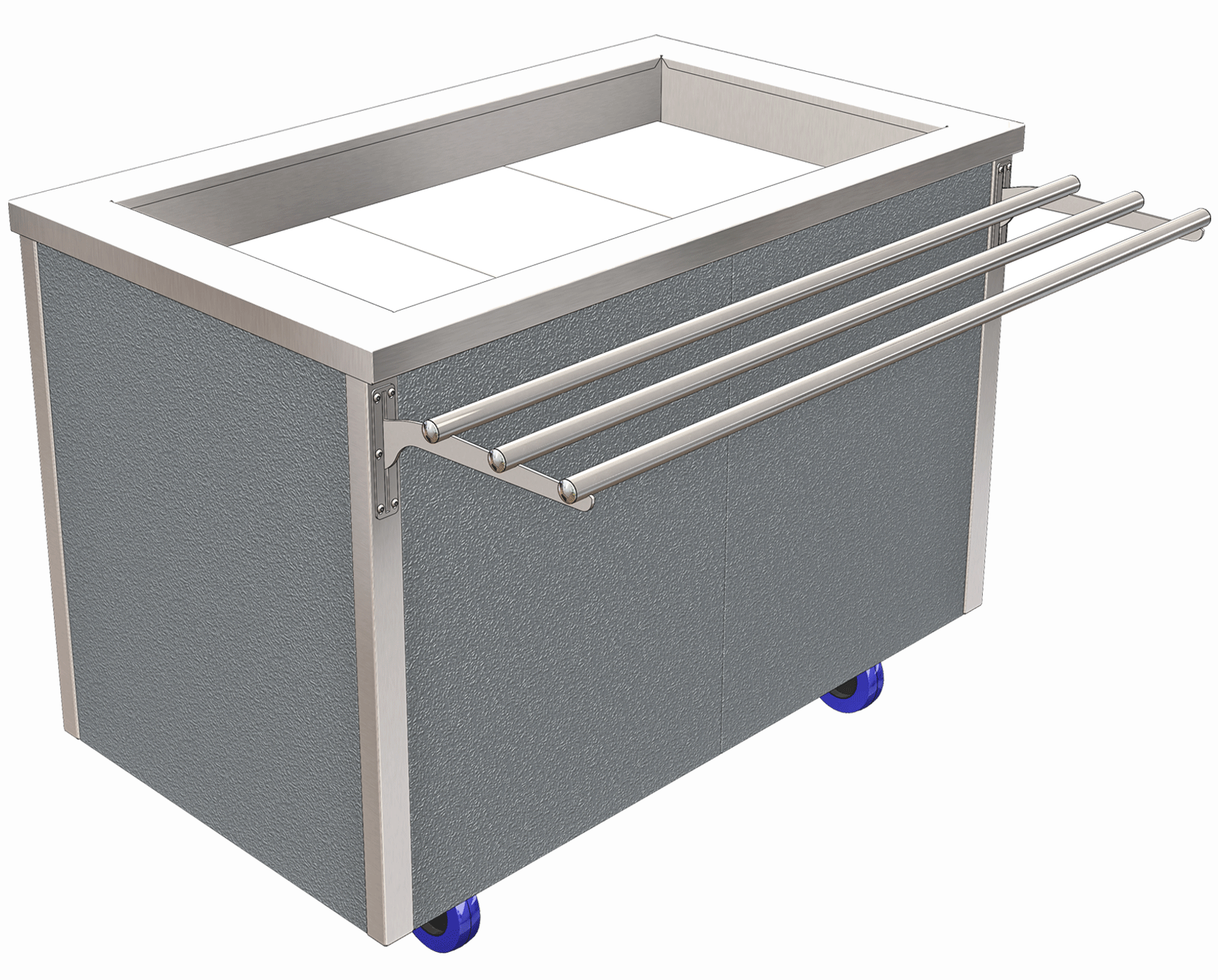

Glide S/Steel Drop Down Tubular Tray Rail.

GTTS2

GTTS3

GTTS4

GTTS5

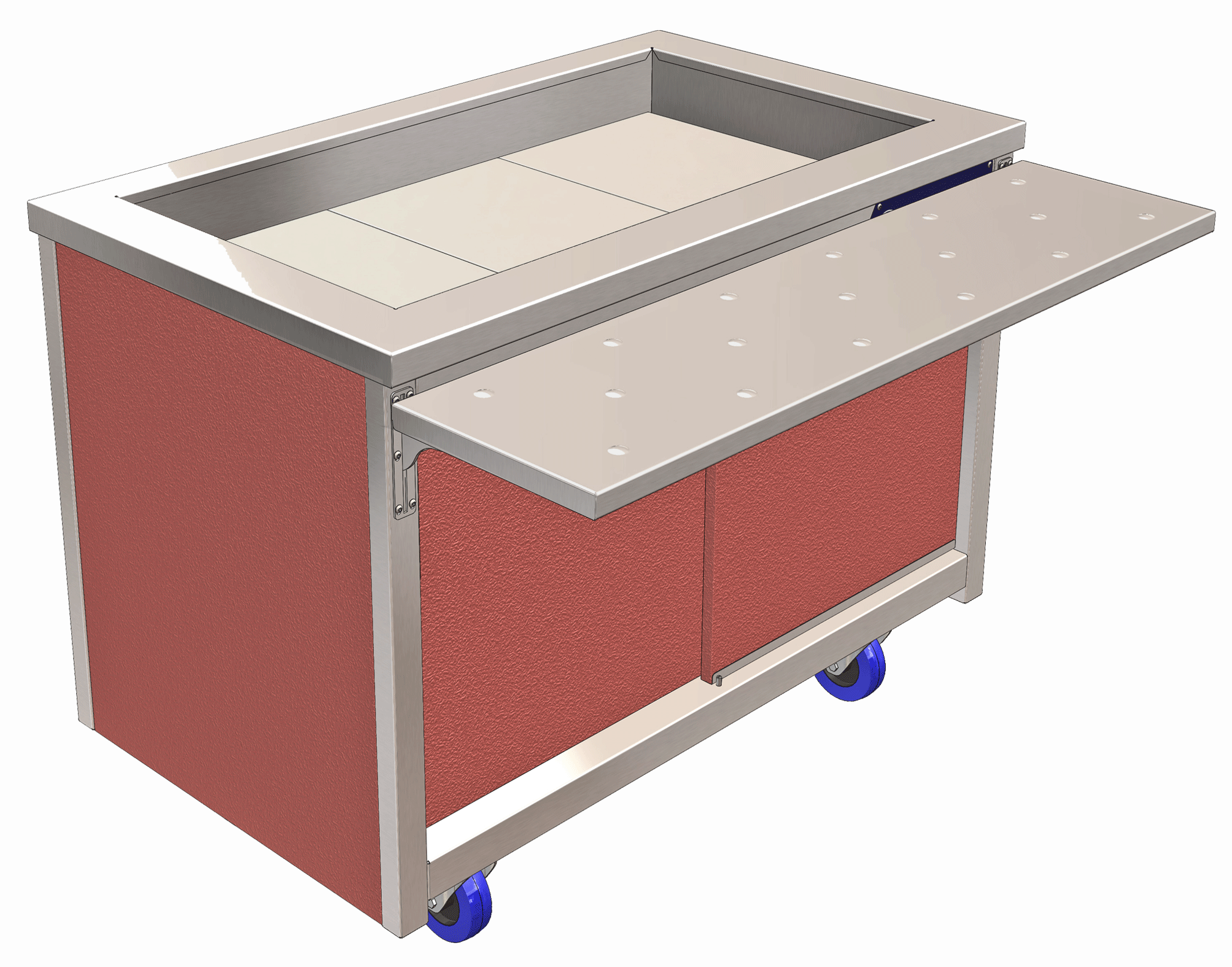

Glide S/Steel Drop Down Solid Tray Slide.

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model.

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front & Sides).

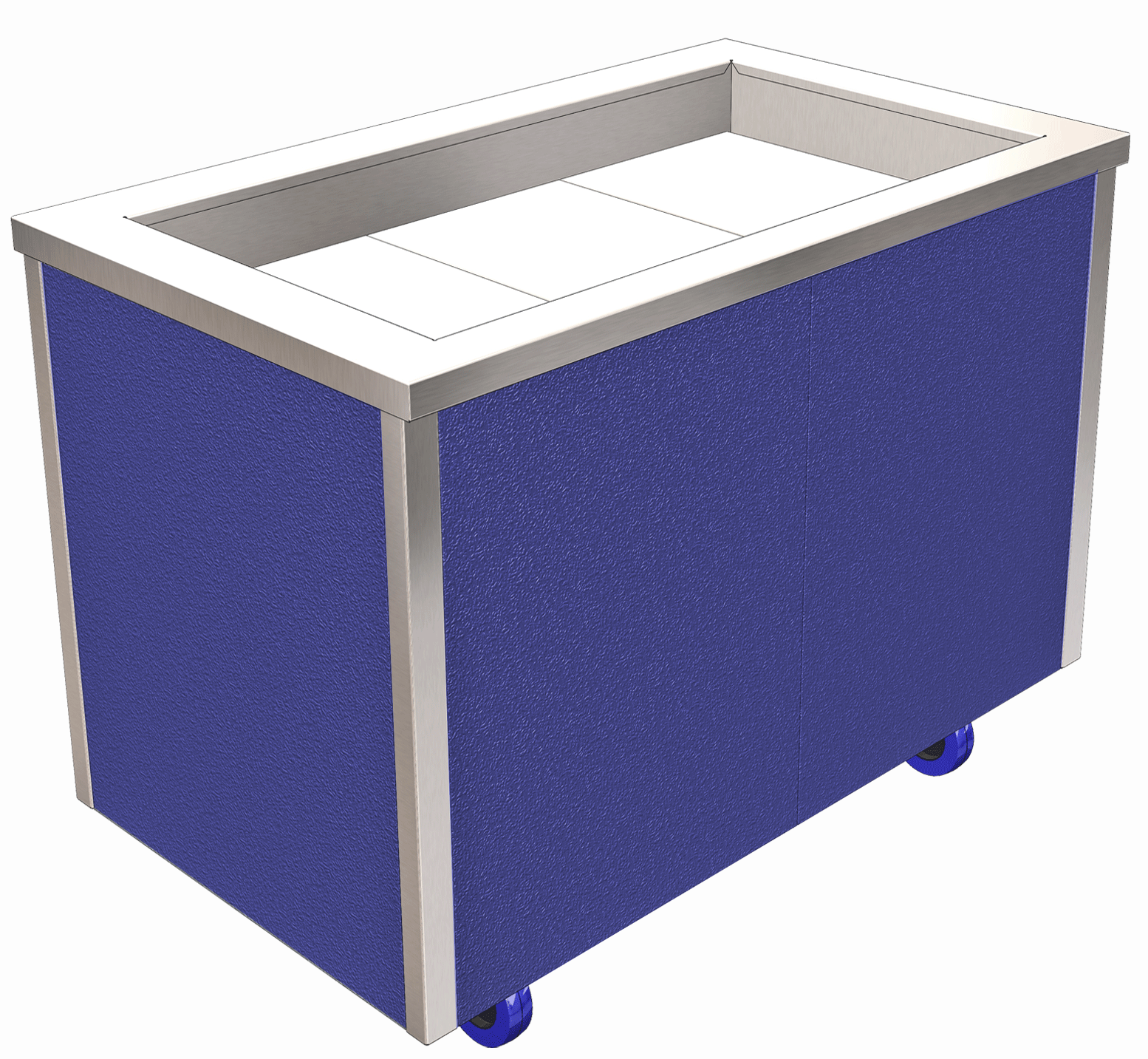

Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

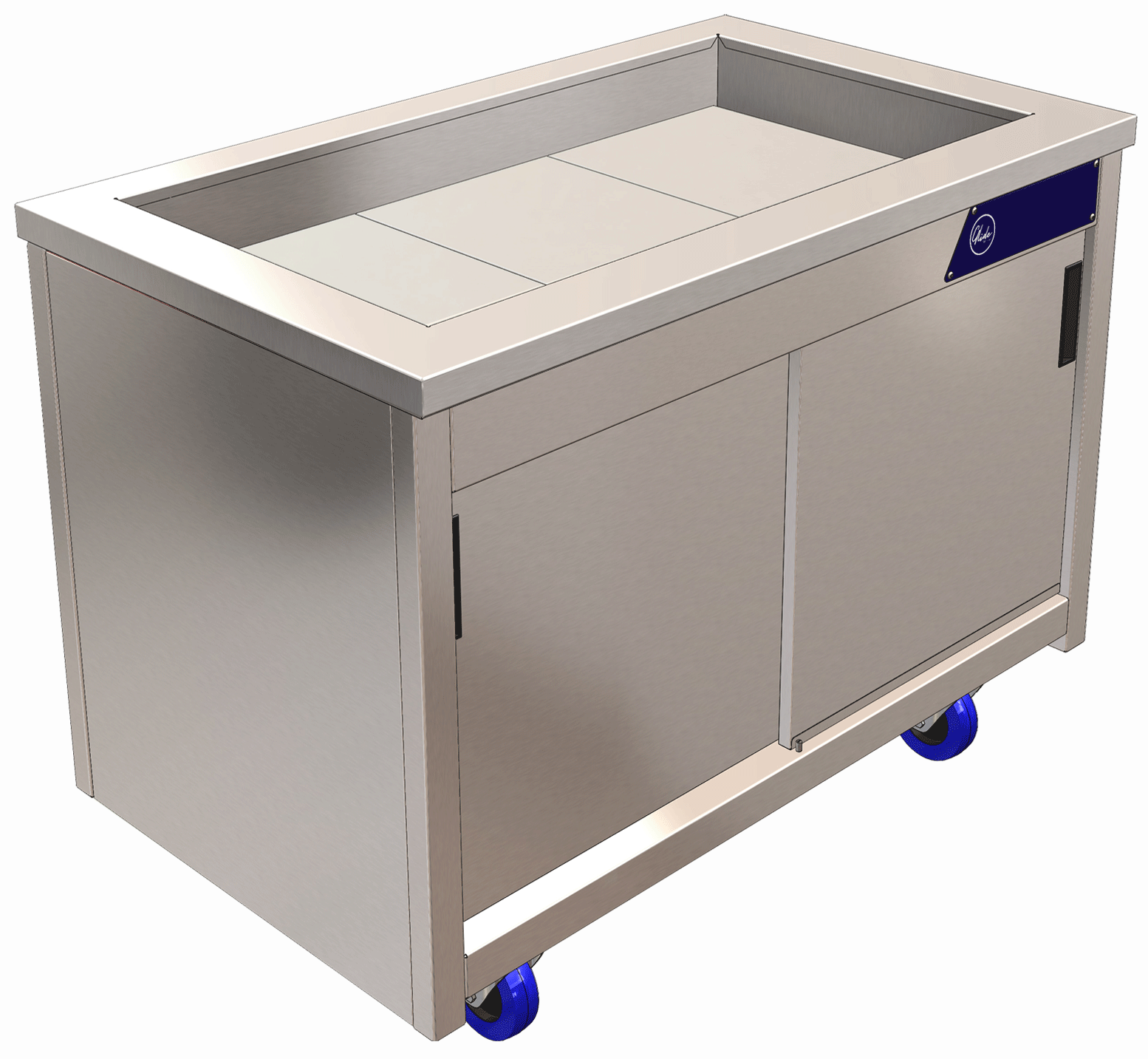

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).

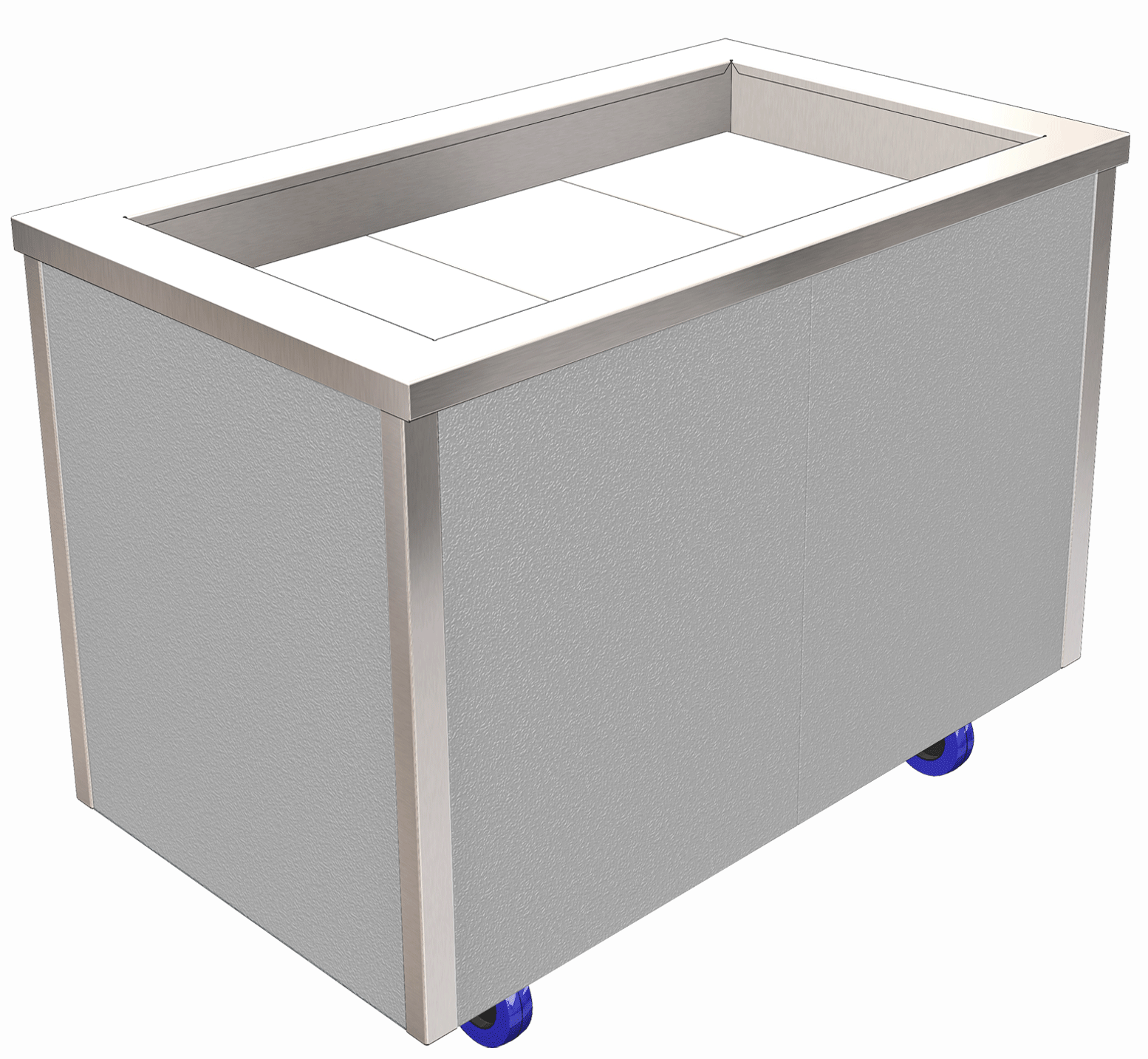

Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

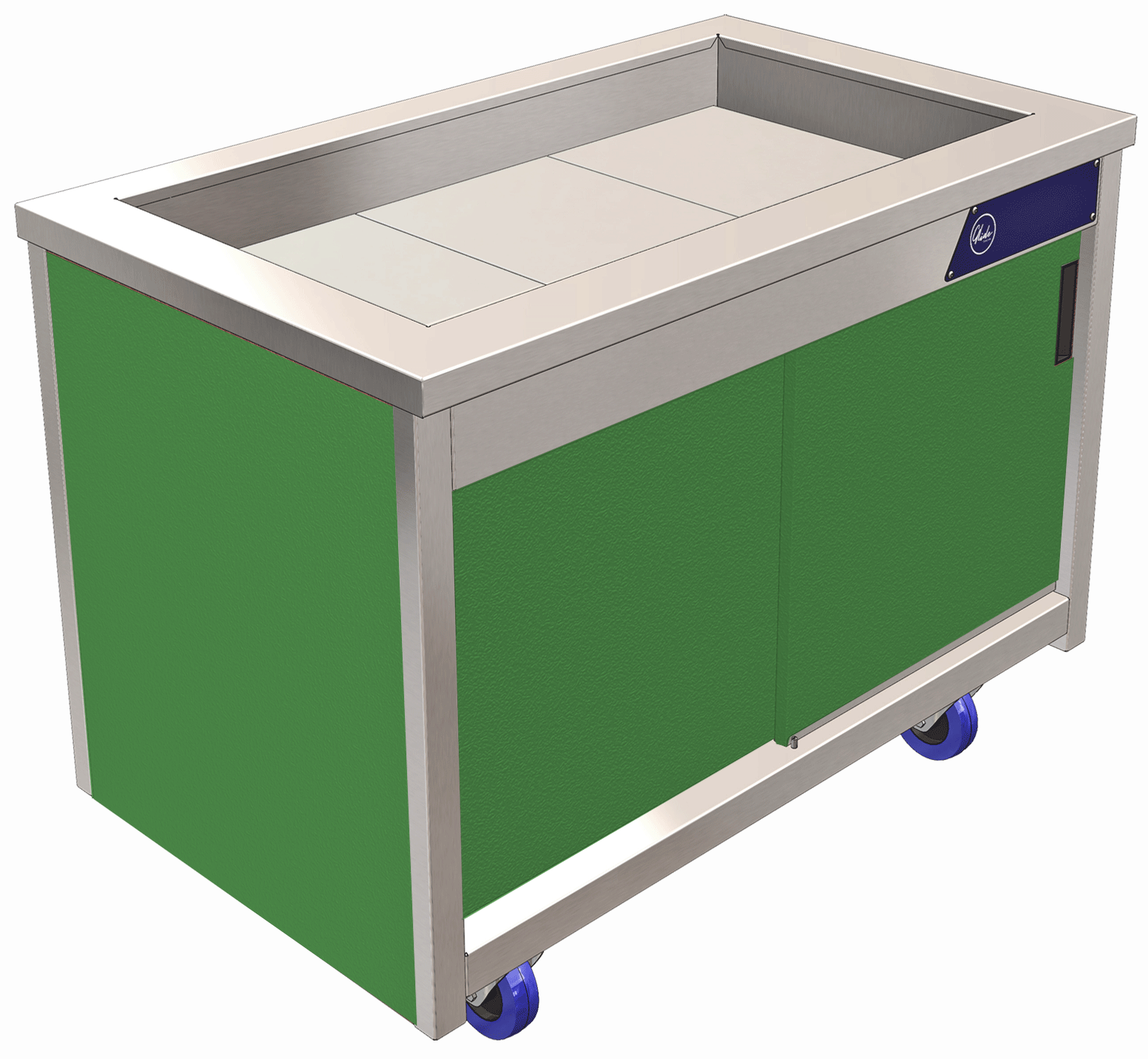

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

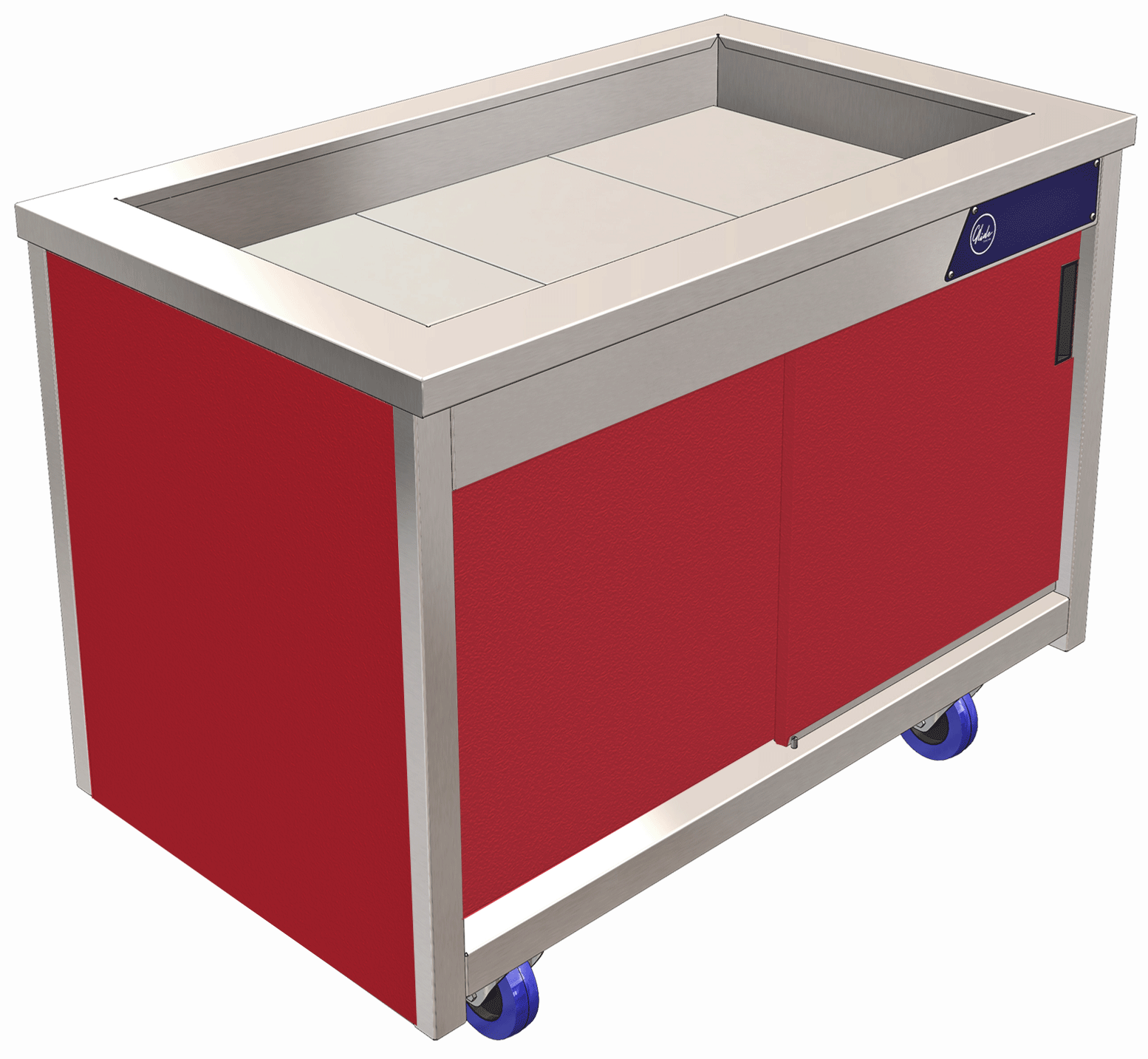

Glide Colour Finish Base Panels (Front & Sides).

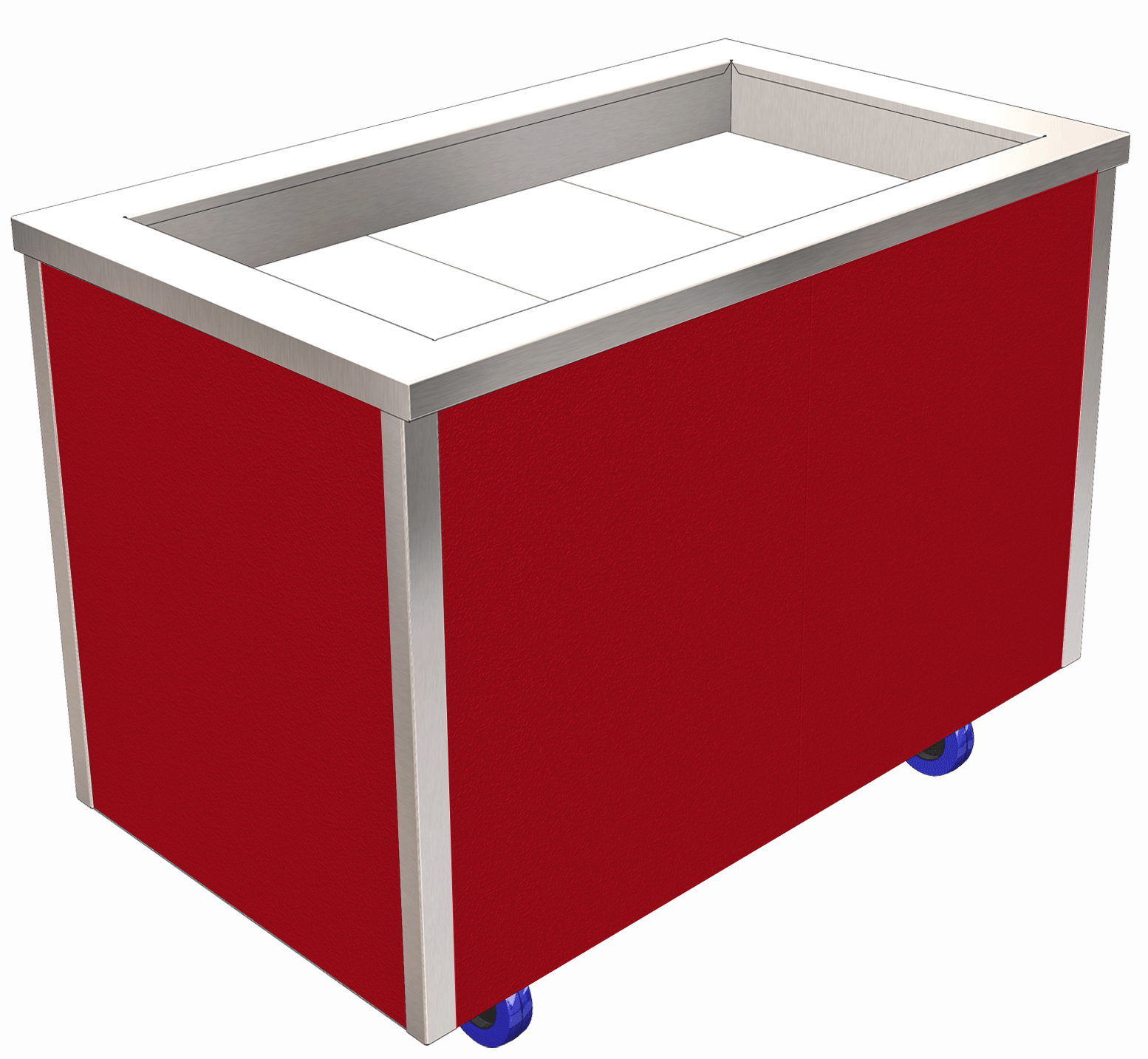

Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).

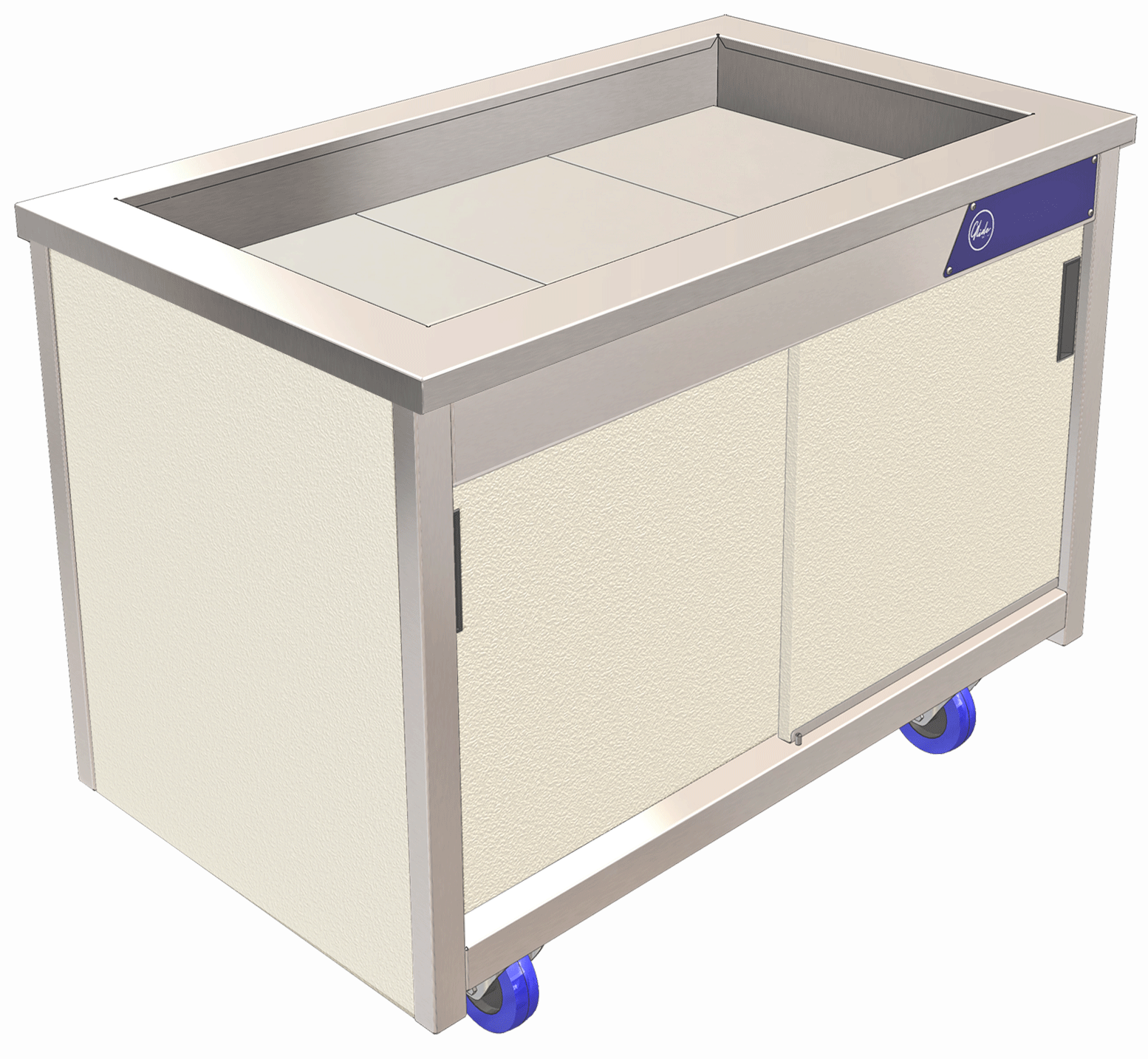

Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).

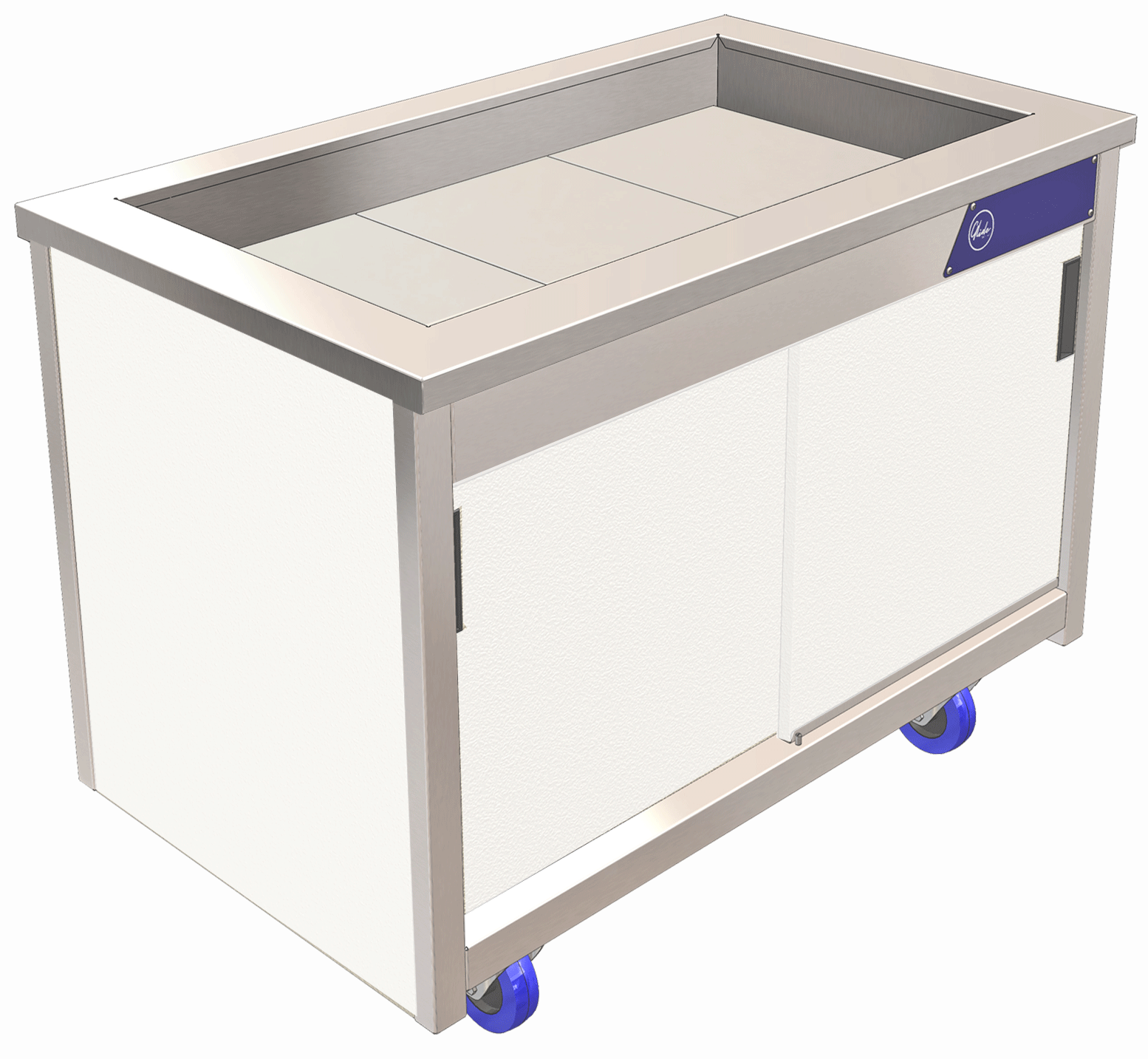

White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).

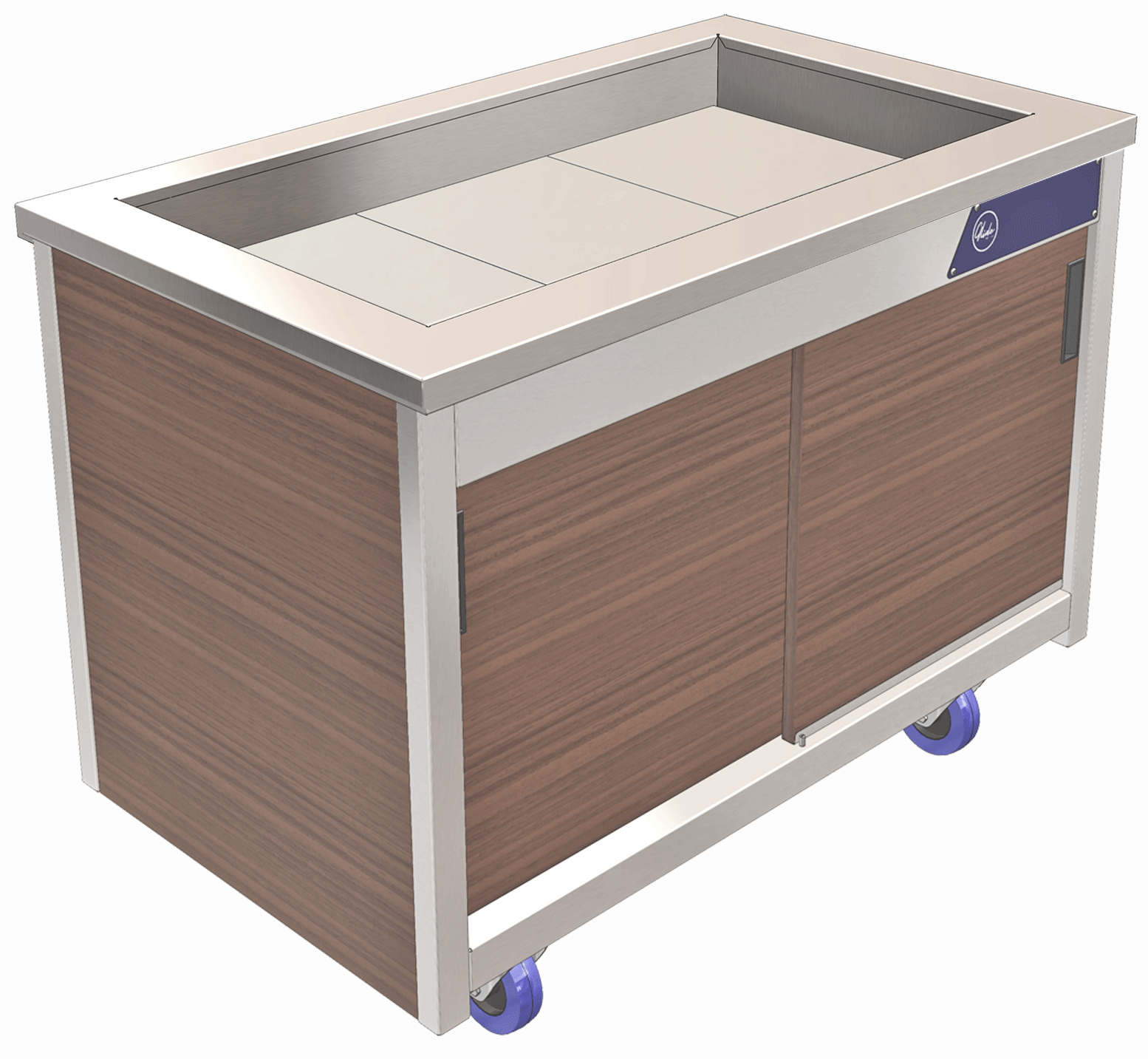

Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

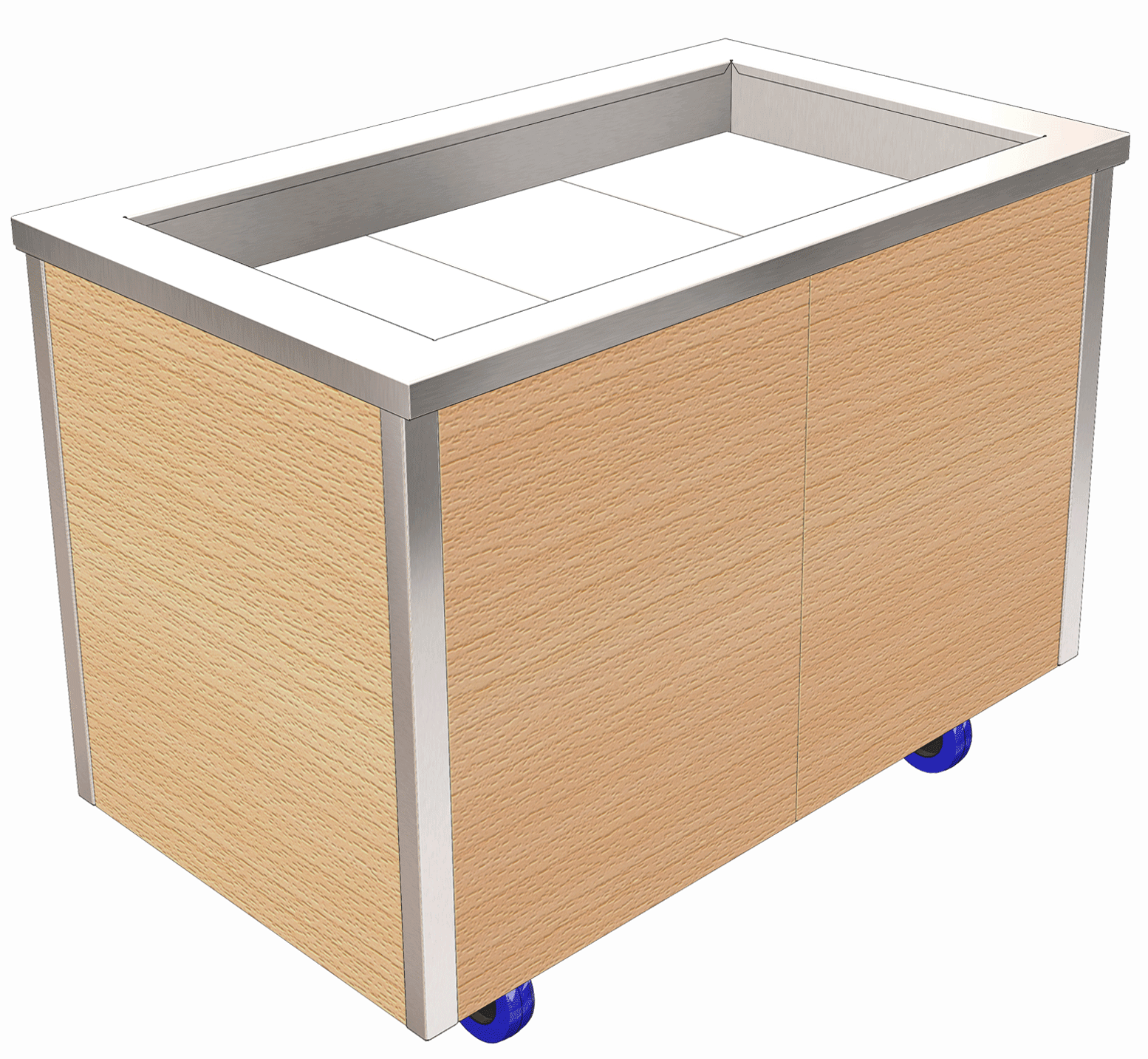

Glide Wood Grain Effect Finish Base Panels (Front & Sides).

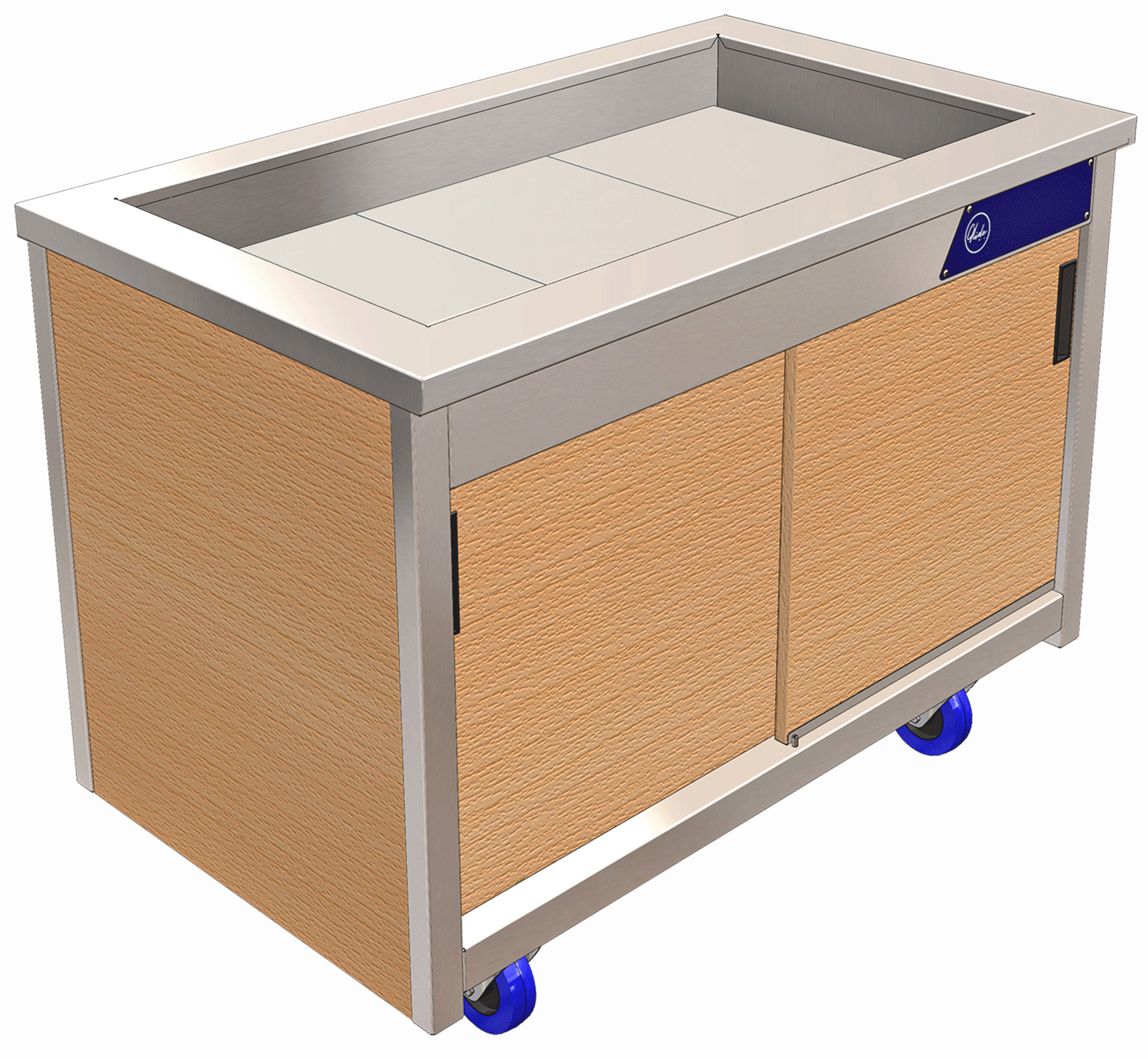

Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

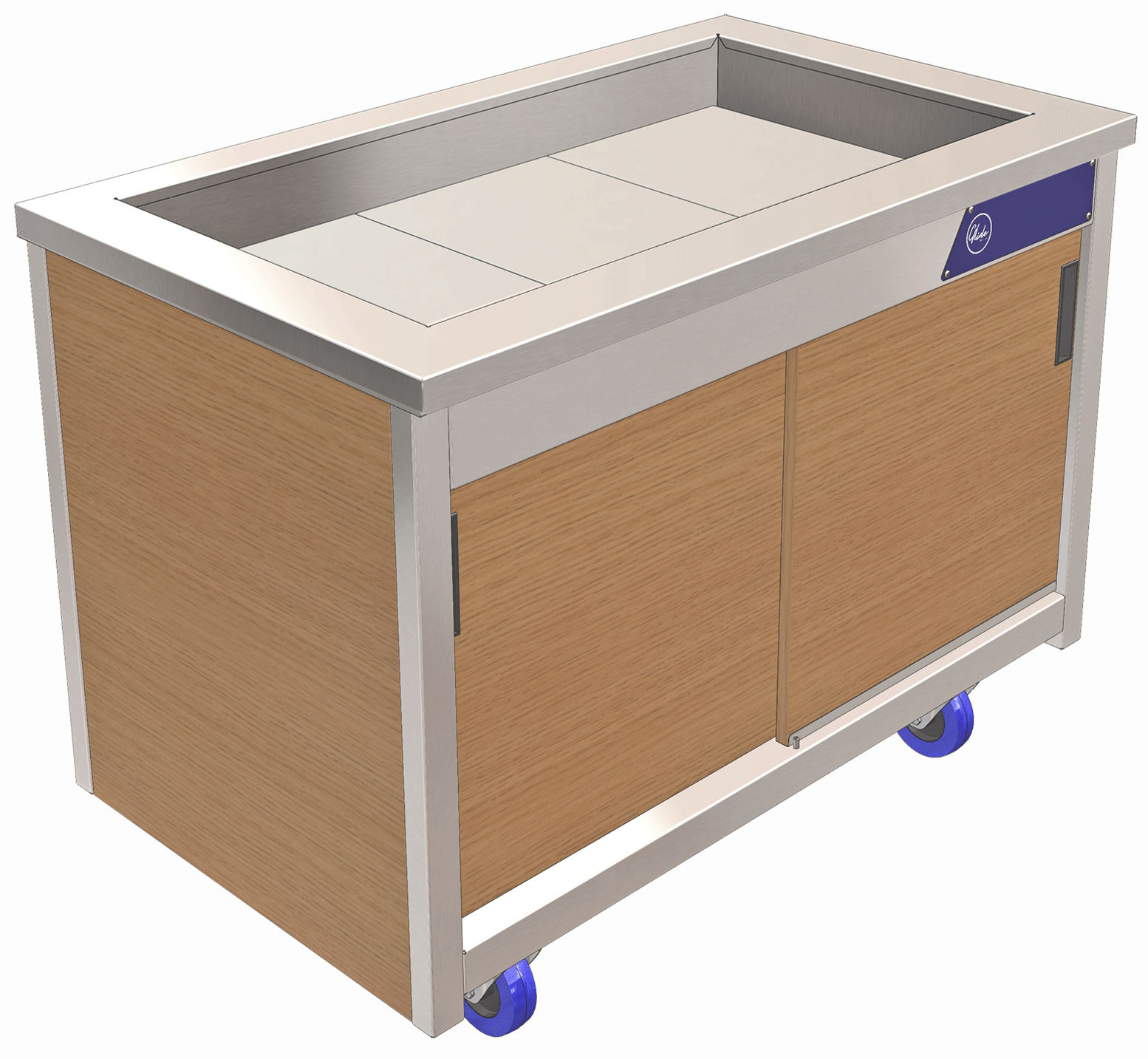

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options

Description Model Code Option Code Option Code Option Code

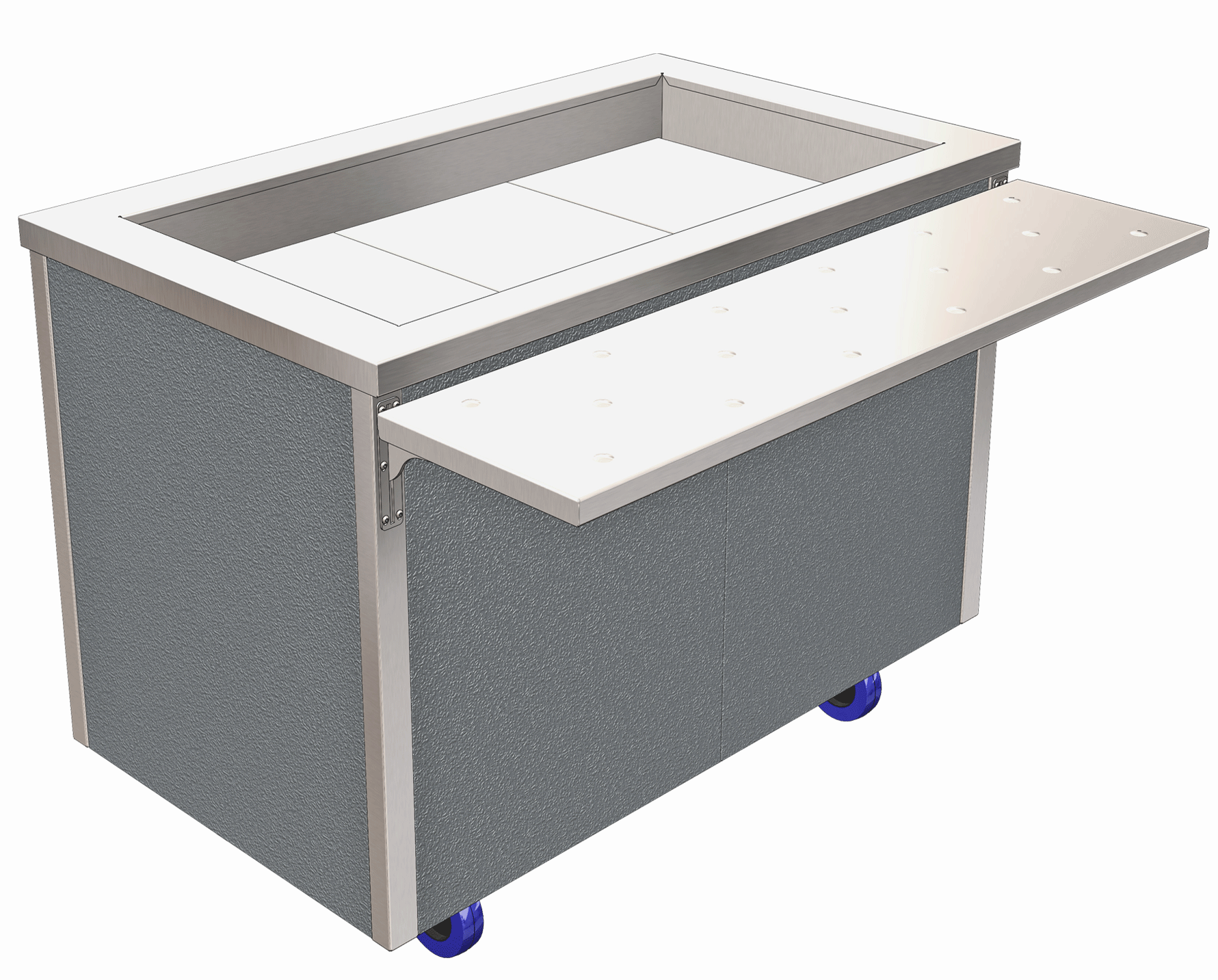

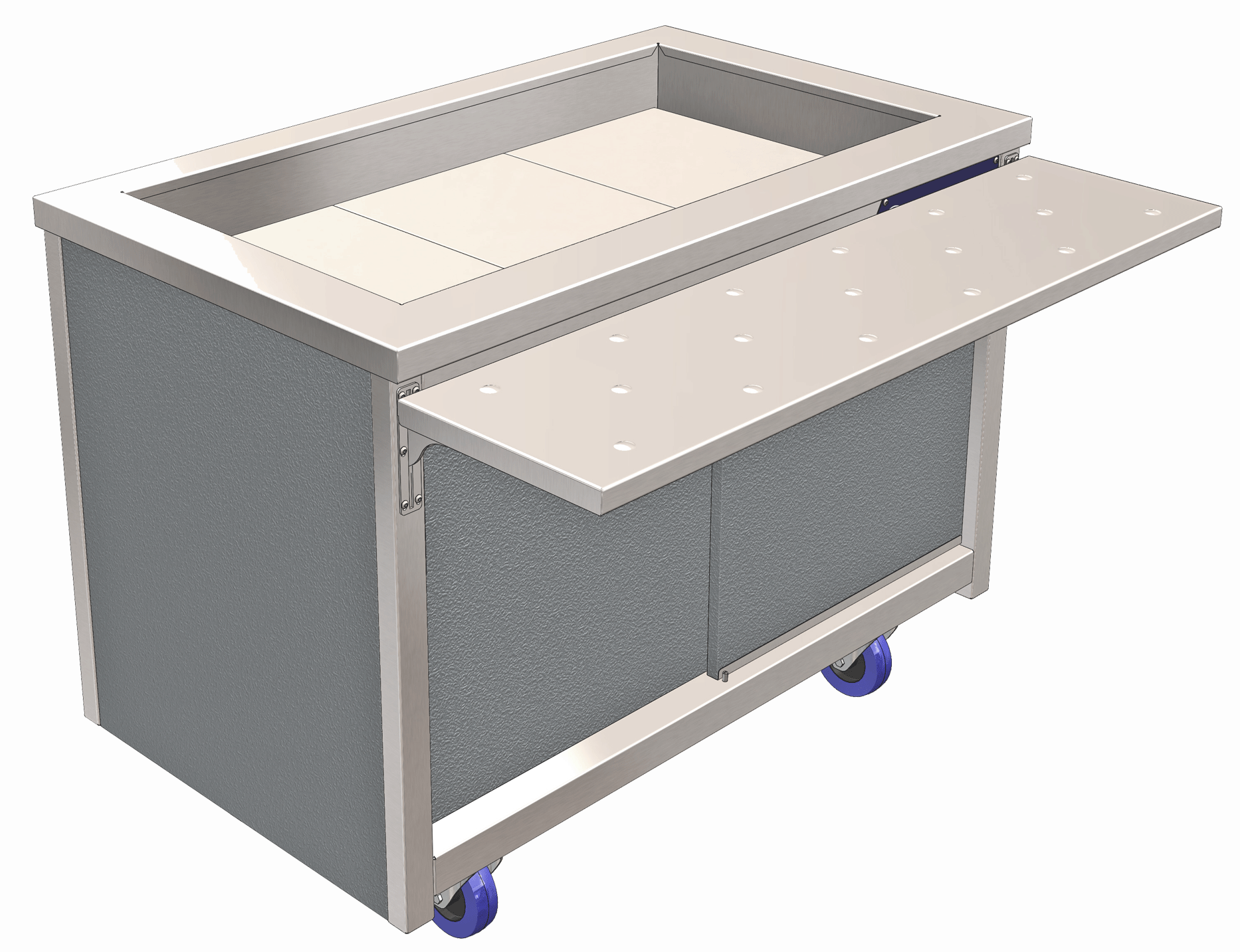

Glide Eutectic Cold Well – No Gantry &
(S/Steel Drop Down
Solid Tray Slide)

GEW2
GEW3
GEW4
GEW5

GSTS2
GSTS3
GSTS4
GSTS5

Glide Eutectic Cold Well – No Gantry &
(S/Steel Drop Down Tubular Tray Rail)

GEW2
GEW3
GEW4
GEW5

GTTS2
GTTS3
GTTS4
GTTS5

Glide Eutectic Cold Well – No Gantry &
(Cold Eutectic Well Gantry c/w LED Lighting,
Self Help/ Ass. Serve
)

GEW2
GEW3
GEW4
GEW5

GAG2
GAG3
GAG4
GAG5

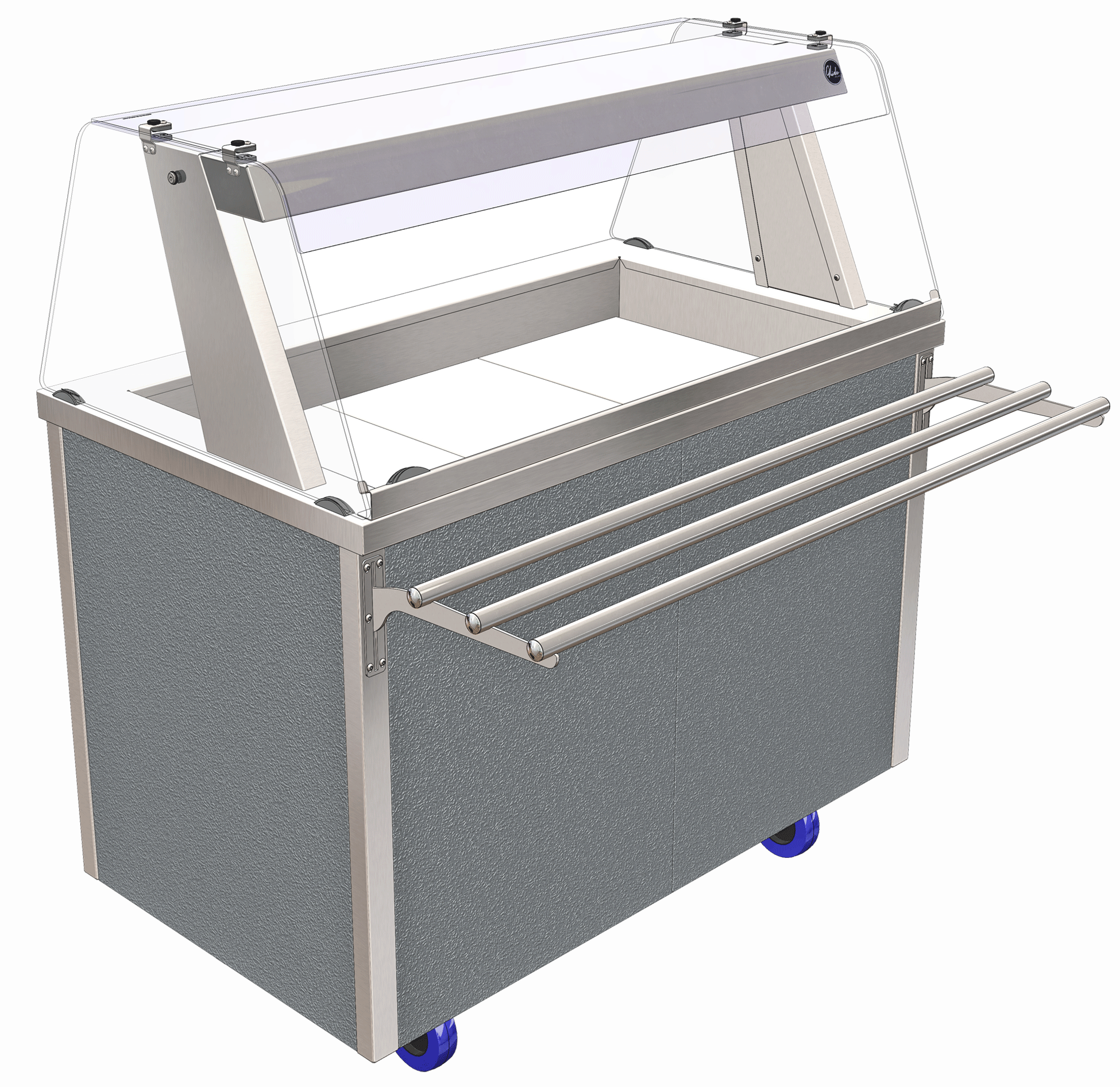

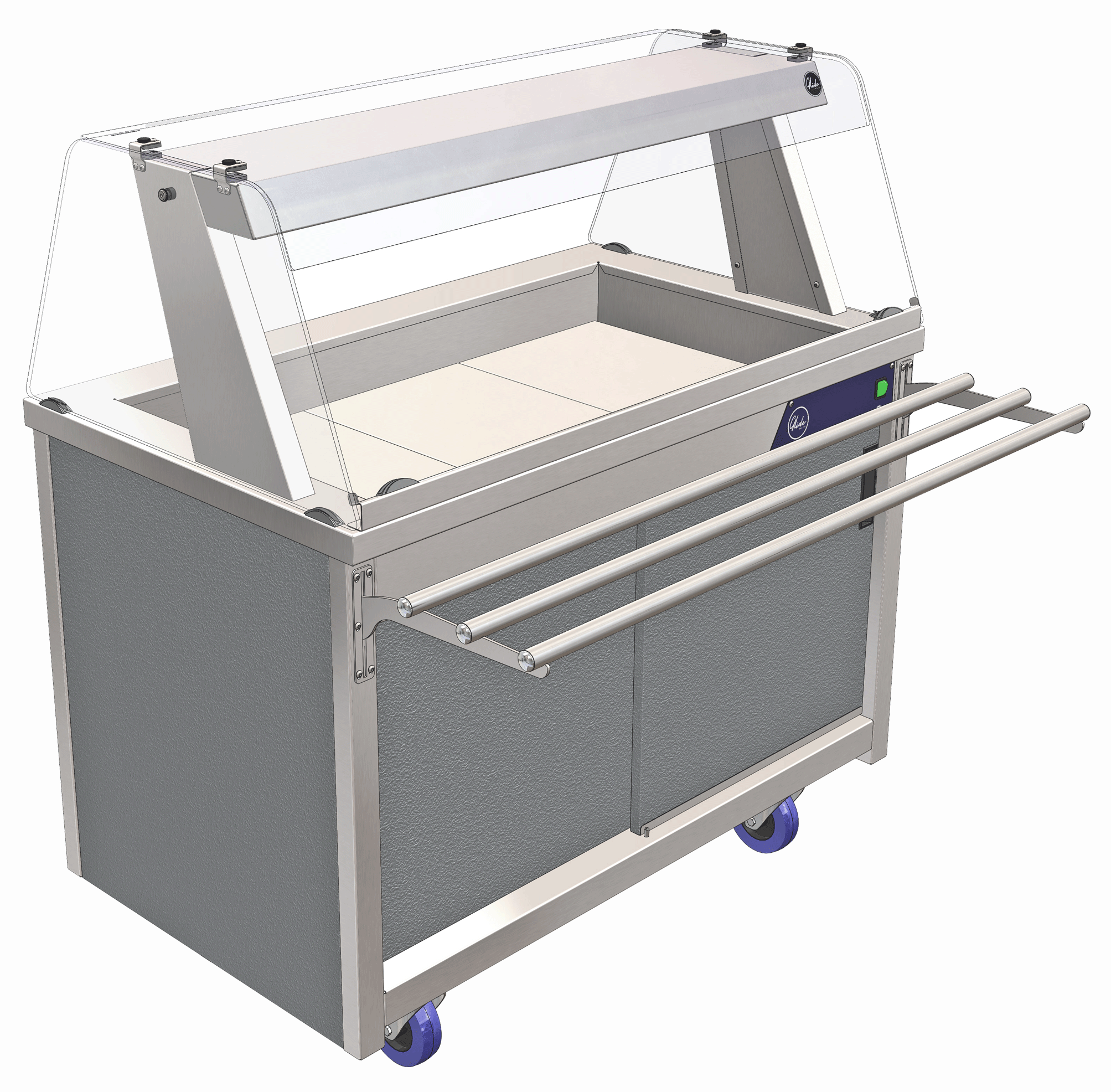

Glide Eutectic Cold Well – No Gantry &
(Cold Eutectic Well Gantry c/w LED Lighting)
(Drop Down Tubular Tray Slide)

GEW2
GEW3
GEW4
GEW5

GAG2
GAG3
GAG4
GAG5

GTTS2
GTTS3
GTTS4
GTTS5

Glide Eutectic Cold Well – No Gantry &
(Cold Eutectic Island Gantry c/w LED Lighting, Self Help)

GEW2
GEW3
GEW4
GEW5

GAIG2
GAIG3
GAIG4
GAIG5

Glide Eutectic Cold Well – No Gantry &
(Cold Eutectic Deli Gantry c/w LED Lighting, Ass. Serve)

GEW2
GEW3
GEW4
GEW5

GADG2
GADG3
GADG4
GADG5

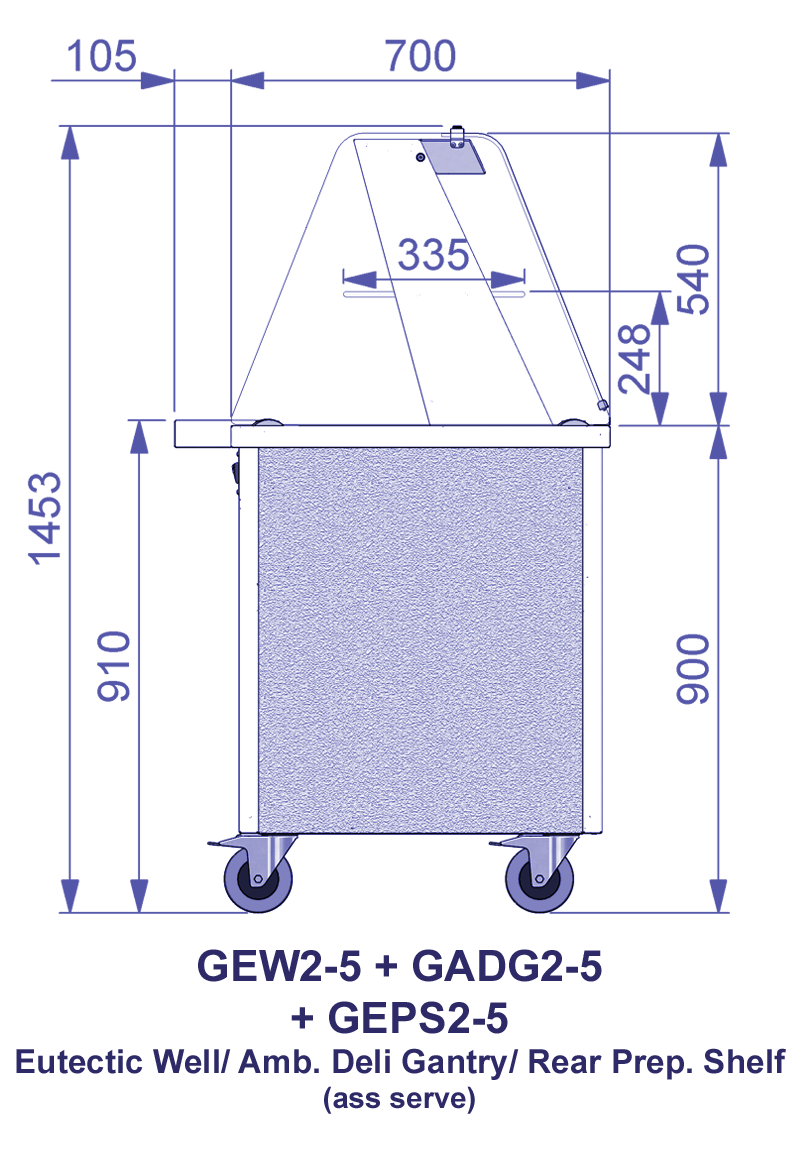

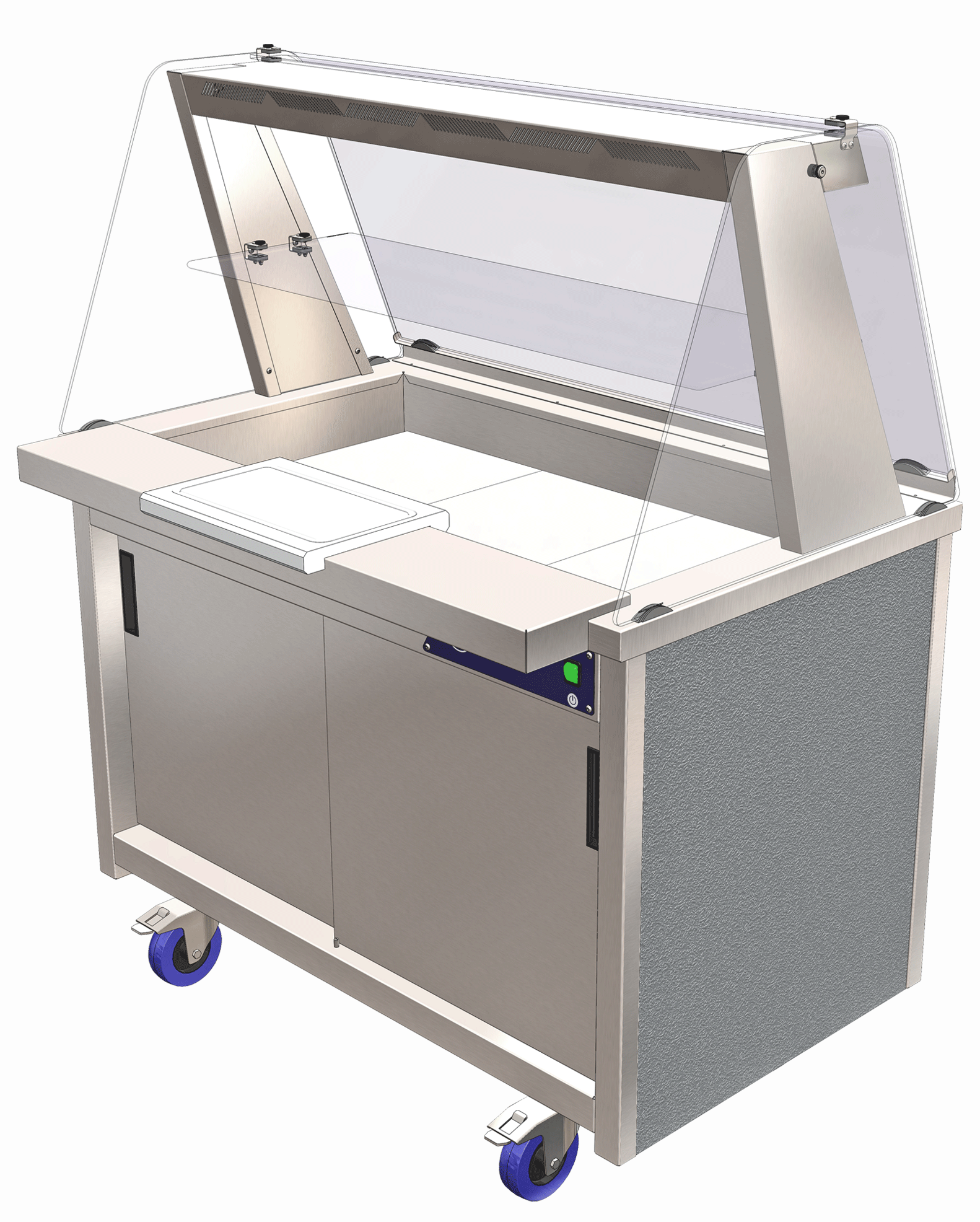

Glide Eutectic Cold Well – No Gantry &
(Cold Eutectic Deli Gantry c/w LED Lighting, Ass. Serve)
(S/Steel Rear Eutectic Deli Preparation Shelf (+1 Cutting Board).

GEW2
GEW3
GEW4
GEW5

GADG2
GADG3
GADG4
GADG5

GEPS2
GEPS3
GEPS4
GEPS5

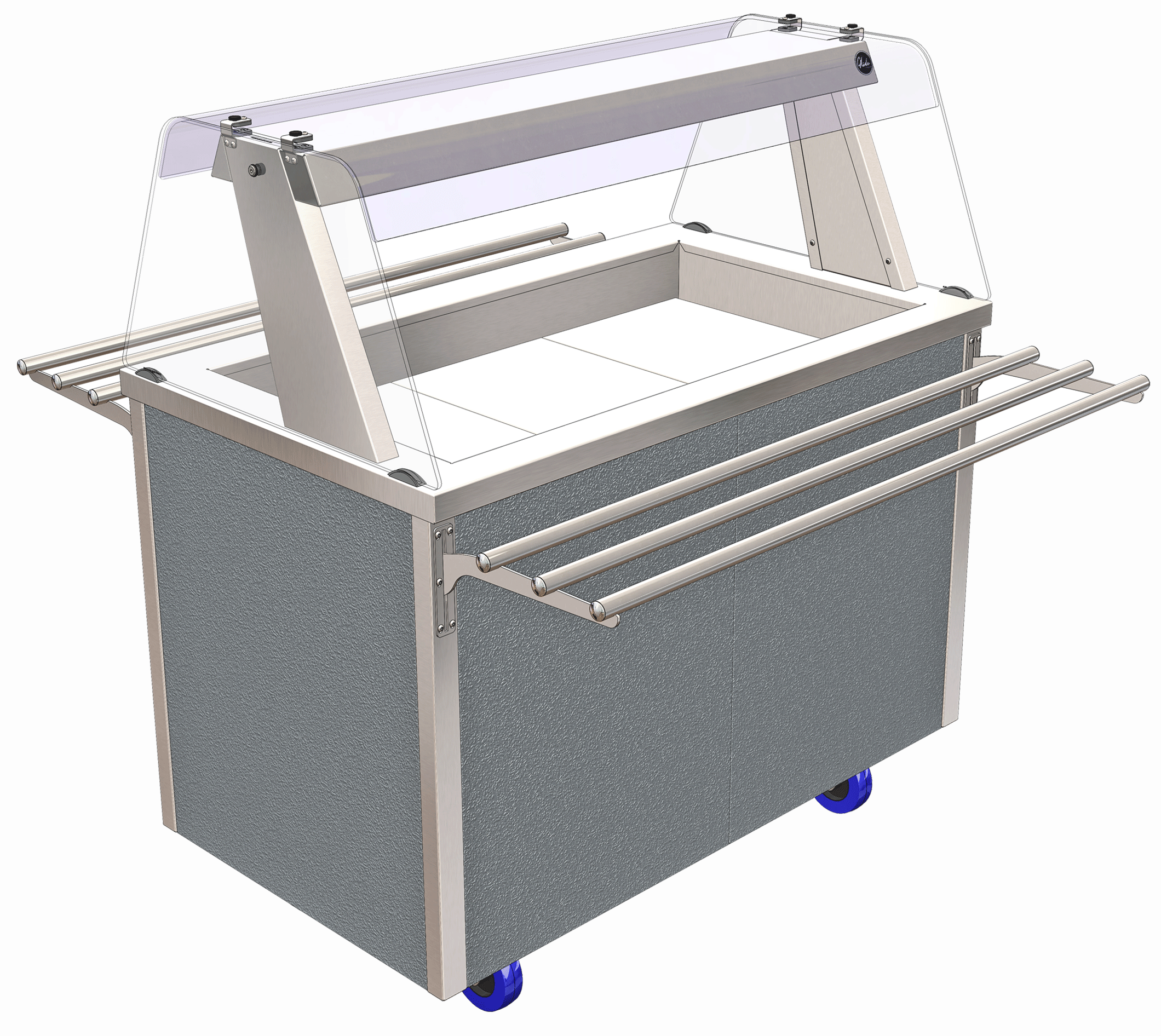

Glide Eutectic Cold Well – No Gantry &
(Cold Eutectic Island Gantry c/w LED Lighting, Self Help)
2 no.(Drop Down Tubular Tray Rail Sets).

GEW2
GEW3
GEW4
GEW5

GAIG2
GAIG3
GAIG4
GAIG5

(2) GTTS2
(2) GTTS3
(2) GTTS4
(2) GTTS5

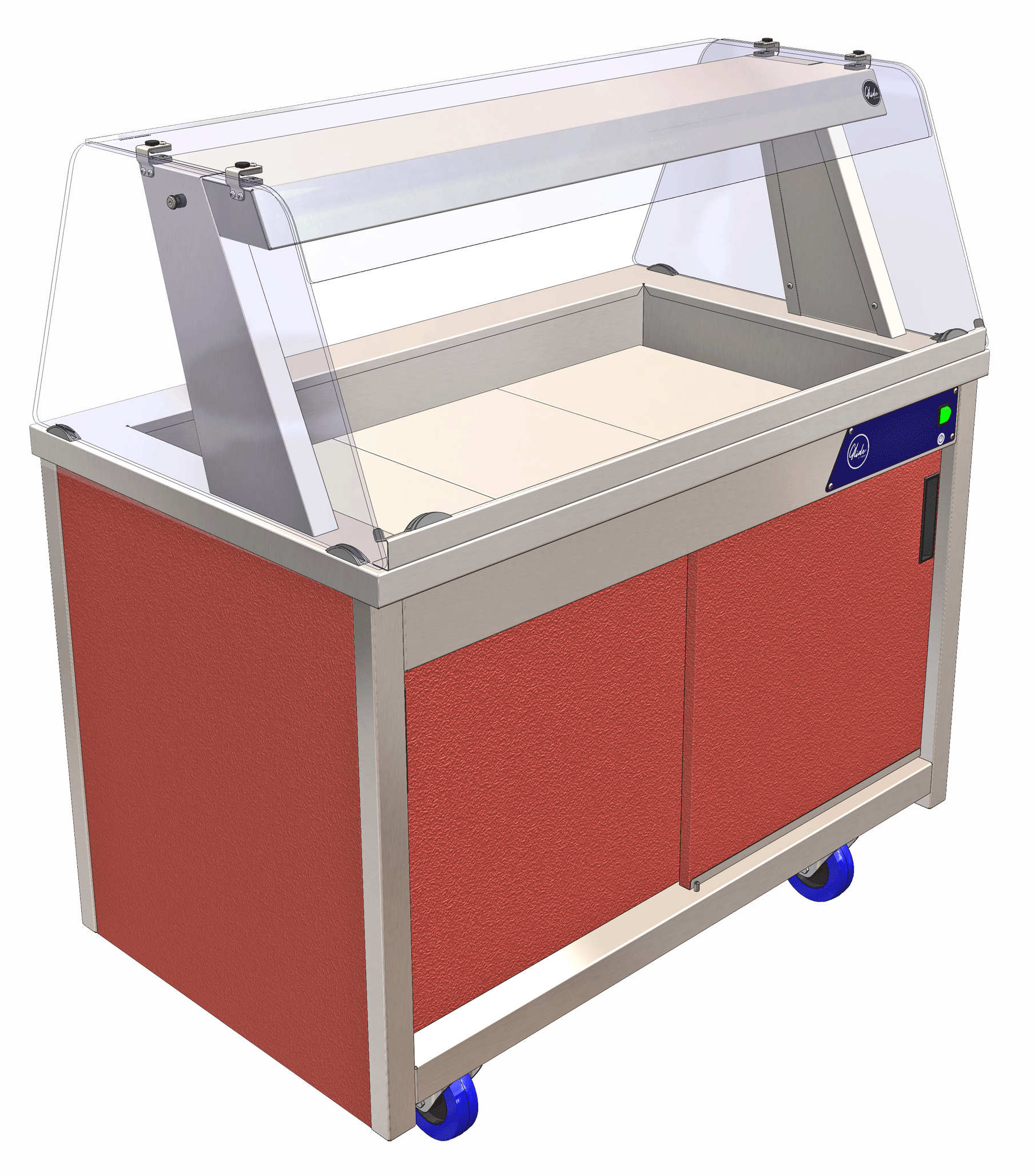

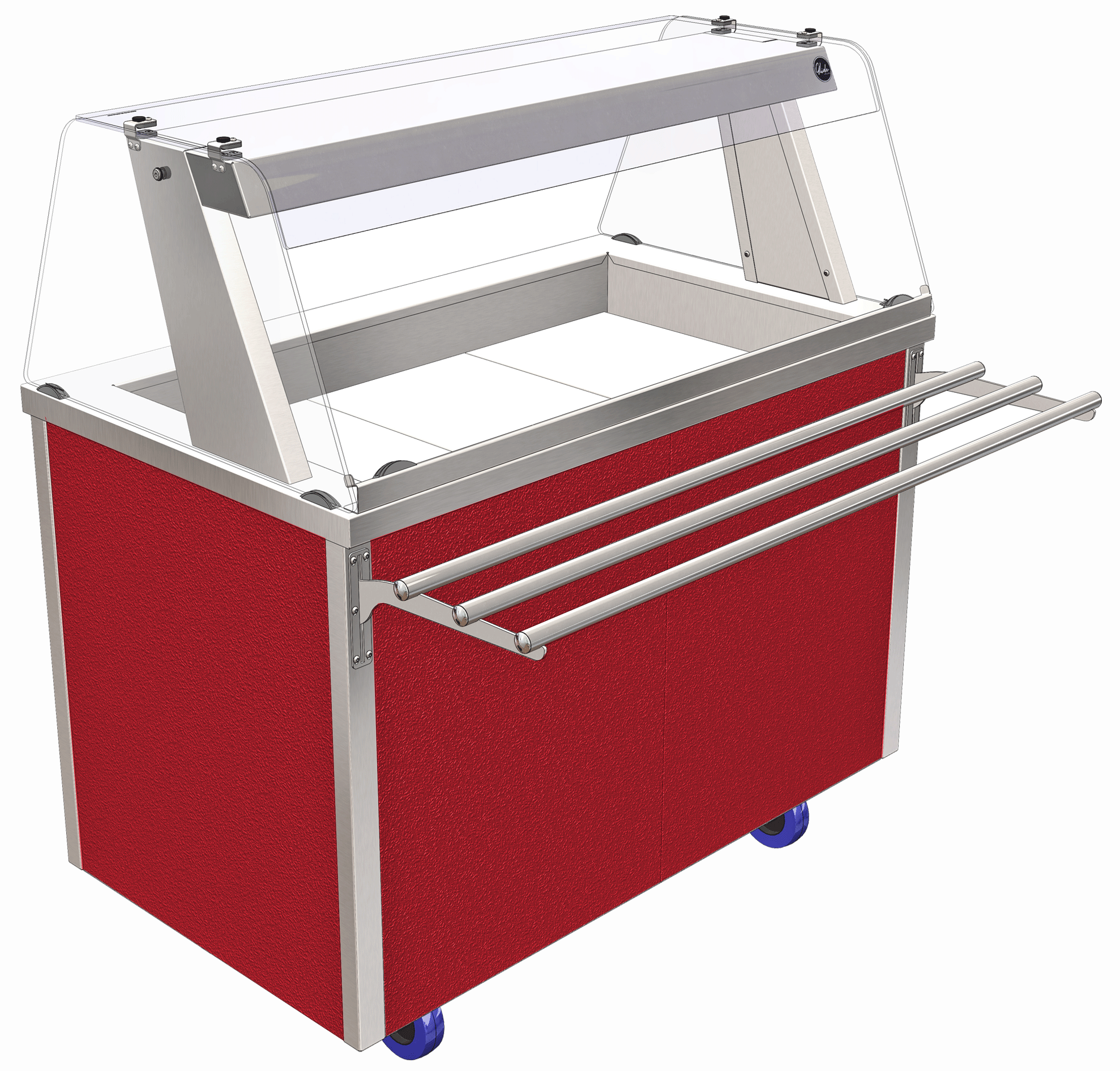

Glide Eutectic Cold Well – No Gantry &
(Cold Eutectic Well Gantry c/w LED Lighting)
Drop Down Tubular Tray Slide)
(Colour Finish Base Panels – Poppy Red)

GEW2
GEW3
GEW4
GEW5

GAG2
GAG3
GAG4
GAG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5



Options

Glide Eutectic Plate Cold Well – No Gantry.
Options.



Glide Eutectic Cold Well Gantry c/w LED Lighting (S. Help & A. Serve).
(Option Codes GAG2-5) Glide option: 2-1 Gn to 5-1 Gn, ambient gantry, s/steel, c/w LED lighting, opaque safety cover, colour 4000k, reversible single curved glass sneeze screen, self help or assisted serve use, + 397(h) above worktop, end glass.



Glide Eutectic Cold Island Well Gantry c/w LED Lighting (S. Help).
(Option Codes GAIG2-5) Glide option: 2-1 Gn to 5-1 Gn, self help island gantry, s/steel, ambient, double curved sneeze screen glass, end glass, c/w LED gantry lighting, opaque cover, colour 4000k, self help use, + 397 mm(h) above worktop.



Glide Eutectic Cold Deli Gantry c/w LED Lighting
(A. Serve).
(Option Codes GADG2-5) Glide option: 2-1 Gn to 5-1 Gn, assisted service ambient deli gantry, s/steel, full height single curved glass front, end glass, glass mid shelf (not chilled), c/w LED gantry lighting, opaque cover, colour 4000k, ass. serve use, + 540 mm(h) above worktop.

Glide S/Steel Rear Eutectic Deli Preparation Shelf (+1 Cutting Board).
(Option Codes GEPS2-5) Glide option: 2-1 Gn to 5-1 Gn, rear s/steel deli preparation shelf, 180mm (d),+ 10mm (h) above worktop, supplied with (1) 1-1 Gn hook over polypropelene cutting board, cutting board dimensions: 350mm (l) x 250(d) x 30(h). (Factory fit option).

Glide Extra 1-1 Gn Cutting Board.
(Option Code KCB1) Glide option: 1-1 Gn polypropelene white chopping board, 350 mm(l) x 250 mm(d) x 30 mm(h), hook on. (For use with Glide rear eutectic deli preparation shelf option GEPS2-5).

Glide Additional S/Steel Eutectic Plate. (Option Code GEP1) Glide option: 1-1 Gn, eutectic cold plate, 530 mm(L) x 325 mm(W) x 45 mm(H),  charged in deep freeze overnight prior to use. The plate contains a cooling gel and provides a contact cooled surface for product to stand on. (For Glide eutectic well only).

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.



Low Height Model (Glide Junior) – 850mm. (Option Code G850H) Glide junior option: 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).



Low Height Model (Glide Junior) – 800mm.*
(Option Code G800H) Glide junior option: 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). *Bespoke Option/ Extended Lead Time *



Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Options – Glide Eutectic Plate Cold Well – No Gantry.

Option                                                                                          Option Code

Model Code

GEW2

GEW3

GEW4

GEW5

Glide Eutectic Cold Well Gantry.
397mm (H) c/w LED light, curved glass & end glass – reversible sneeze screen for self help/ ass. serve use.

GAG2

GAG3

GAG4

GAG5

Glide Eutectic Cold Island Gantry.
397mm (H) c/w LED light, double curved sneeze screen glass & end glass – for self help use.

GAIG2

GAIG3

GAIG4

GAIG5

Glide Eutectic Cold Deli Gantry.
540mm (H) c/w LED light, full height curved front glass & end glass, glass midshelf (ambient) – for ass. serve use.

GADG2

GADG3

GADG4

GADG5

Glide S/Steel Eutectic Rear Deli Preparation Shelf (+1 Cutting Board). Rear shelf for sandwich prep. 180mm (D) c/w polyethylene cutting board – 350mm(L) x 250mm(D) x 30mm(H).

GEPS2

GEPS3

GEPS4

GEPS5

Glide Extra 1-1 Gn Cutting Board.
Hook over chopping board in white polyethylene, 350mm(L) x 250mm(D) x 30mm (H).

KCB1

KCB1

KCB1

KCB1

Glide Additional S/Steel Eutectic Plate.
1-1 Gn, eutectic cold plate, charged in deep freeze overnight prior to use.
Plate contains a cooling gel and provides a contact cooled surface for product to stand on.
530 mm(L) x 325 mm(W) x 45 mm(H).

GEP1

GEP1

GEP1

GEP1

Glide S/Steel Drop Down Tubular Tray Rail.

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide.

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model.

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

Glide Eutectic Plate Cold Well – No Gantry &
(Solid Tray Slide)

Model Code  Option Code
GEW2            GSTS2
GEW3            GSTS3
GEW4            GSTS4
GEW5            GSTS5



Glide Eutectic Plate Cold Well – No Gantry &
(Tubular Tray Rail)

Model Code  Option Code
GEW2            GTTS2
GEW3            GTTS3
GEW4            GTTS4
GEW5            GTTS5



Glide Eutectic Plate Cold Well – No Gantry &
(Glide Eutectic Cold Well Gantry).

Model Code  Option Code
GEW2            GAG2
GEW3            GAG3
GEW4            GAG4
GEW5            GAG5





Glide Eutectic Plate Cold Well – No Gantry &
(Glide Eutectic Cold Well Gantry) &
(Drop Down Tray Rail).

Model Code  Option Codes
GEW2            GAG2   GTTS2
GEW3            GAG3   GTTS3
GEW4            GAG4   GTTS4
GEW5            GAG5   GTTS5



Glide Eutectic Plate Cold Well – No Gantry &
(Glide Cold Eutectic Island Well Gantry).

Model Code  Option Code
GEW2            GAIG2
GEW3            GAIG3
GEW4            GAIG4
GEW5            GAIG5





Glide Eutectic Plate Cold Well – No Gantry &
(Glide Cold Eutectic Deli Gantry).

Model Code  Option Code
GEW2           GADG2
GEW3           GADG3
GEW4           GADG4
GEW5           GADG5





Glide Eutectic Plate Cold Well – No Gantry &
(Glide Cold Eutectic Deli Gantry) &
(Glide Rear Eutectic Deli Preparation Shelf).

Model Code  Option Codes
GEW2            GADG2  GEPS2
GEW3            GADG3  GEPS3
GEW4            GADG4  GEPS4
GEW5            GADG5  GEPS5





Glide Eutectic Plate Cold Well – No Gantry &
(Glide Cold Eutectic Island Well Gantry) &
2x (Glide Drop Down Tubular Tray Slide).
Model Code  Option Codes
GEW2            GAIG2   (2) GTTS2
GEW3            GAIG3   (2) GTTS3
GEW4            GAIG4   (2) GTTS4
GEW5            GAIG5   (2) GTTS5



Glide Eutectic Plate Cold Well – No Gantry &
(Glide Cold Eutectic Well Gantry) &
(Drop Down Tray Rail) &
(Colour Finish – Red)

Model Code  Option Codes
GEW2     GAG2    GTTS2    GPREDCHA2
GEW3     GAG3    GTTS3    GPREDCHA3
GEW4     GAG4    GTTS4    GPREDCHA4
GEW5     GAG5    GTTS5    GPREDCHA5



Downloads

General Layout Drawings
Glide Eutectic Plate Cold Well – No Gantry.





Specification Sheet, Base Panel Colour Options, User Manual.
Glide Eutectic Plate Cold Well – No Gantry.




Visual

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry.
Visual



Features

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry.
Features

  • Glide mobile dining cart, eutectic plate cold well with ambient store cupboard to customer side (no gantry).
  • Wall sited self help application (For wall, alcove, recess or back to back island displays).
  • Eutectic plates keep pre-chilled product cold for a typical 2-3 hour lunch period.
  • Uses 1-1 Gn pre-frozen s/steel eutectic cooling plates (included) placed in the well area, the transfer of cold energy occurs when product is in contact with the cold surface.
  • Ideal for storage of pre-chilled fruit, bottled drinks, liquid desserts such as yoghurt pots etc.
  • Eutectic well area provides short term contact cooled surface.
  • Available in 2-1Gn (825mm), 3-1Gn (1175mm), 4-1Gn (1525mm) & 5-1Gn (1875mm) lengths.
  • Eutectic plate cold well area also accepts 1-1Gn (x100) container pans in the well/ storage area.
  • Model dimensions: 700 mm (d) x 900mm (worktop h).
  • Ambient front facing store cupboard fitted with removable sliding plastisol steel doors.
  • Cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Cupboard accommodates up to (10) x 1-1 Gn 200mm (d) containers (not included), depending on model size.
  • Front sliding doors/rear & side base panels finished in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd. s/steel, all other external steel surfaces in 430gd (base corners/ well area tank/ front valance etc.).
  • Fitted with lockable non-marking rubber tyre castors.
  • Power supply – if LED gantry option added: Model supplied with light switch to front valance panel, 3m lead & 13 amp UK plug (13A 230v 50Hz).

Glide Range: Electrical Socket Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
    If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • 11 solid colour & woodgrain side panel/cupboard door finishes.
  • (Wall Sited) self help curved glass gantry c/w LED lighting (colour 400ok & opaque safety cover) & side glass.
  • Additional S/steel eutectic plate
    (Extends serving period by replacing eutectic plates with other pre-frozen ones).
  • Folding s/steel solid tray slide available.*
  • Folding s/steel tubular tray rail Ø25 tube, available.*
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).*
  • Low height model 850mm worktop (h) available.
  • Low height model 800mm worktop (h) available.*
    Bespoke option with extended lead time.*
  • Optional tray slide height: for
    standard 900 mm (h) worktop = 845 mm,
    low height 850 mm (h) model = 795mm,
    low height 800 mm (h) model = 745mm.

Food Display Examples

  • Drinks (Well Area). Pre-chilled still & carbonated drinks, bottled, canned or cartoned, water, UHT dairy, lemonade, fruit juice & health drinks, yoghurt etc.
  • Food (Well Area): Sandwiches, baguettes, rolls, panini, barm cakes, salad, pasta, cheese snacks, cakes, cereals, fruit in juice & fruit subject to local food hygiene legislation/ holding periods.


Dimensions

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry.
Dimensions

Model Code

GWSEW2

GWSEW3

GWSEW4

GWSEW5

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Worktop Height (mm)

900

900

900

900

Weight (kg) Uncrated

53

79

98

111

Total Power  (kW)
(No Gantry Model)

n/a

n/a

n/a

n/a

Total Power (kw)
Model + LED Light Gantry Option

(colour 4000k opaque safety cover), c/w light switch, 3m lead & Plug (13A 230V 50hz) for connection to dedicated 13A SSO.

0.008

0.014

0.016

0.022

S/steel Eutectic Plates Supplied Per Model
(530mm(l) x 325mm(w) x 45mm (h) c/w cooling gel inner)

2

3

4

5

Revised Model Depth (mm) –
(Optional Drop Down Trayslide,
Folding Tray Slide In ‘Down’ Position)

740

740

740

740

Revised Model Depth (mm) –
(Optional Drop Down Trayslide,
Folding Tray Slide In ‘Up’ Position)

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit worktop 900(h) – 55mm)

845

845

845

845

LED Lighting Gantry
Colour 4000k, opaque safety cover

Optional

Optional

Optional

Optional

Model Height With Optional  (G850H) Worktop (mm)
Optional tray slide = 795mm (h)

850

850

850

850

Model Height With Optional (G800H) Worktop (mm)
Optional tray slide = 745mm (h)
*bespoke, extended lead time*

800

800

800

800



*When Gantry option is added to model, the control panel blank plate is replaced with a control panel featuring illuminated rocker switch/power isolation*





Options – (Wall Sited) Glide Eutectic Plate Cold Well – No Gantry.

Option                                                                                          Option Code

Model Code

GWSEW2

GWSEW3

GWSEW4

GWSEW5

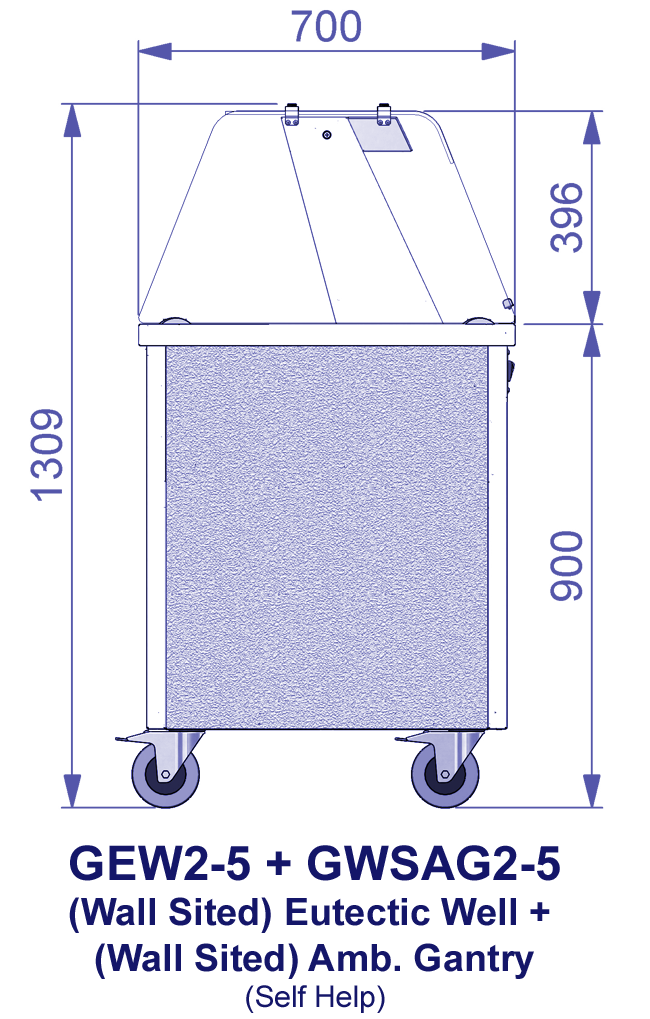

(Wall Sited) Glide Cold Eutectic Well Gantry.
397mm (H) c/w LED light, curved sneeze screen glass & end glass  for self help.

GWSAG2

GWSAG3

GWSAG4

GWSAG5

Glide Additional S/Steel Eutectic Plate.
1-1 Gn, eutectic cold plate, charged in deep freeze overnight prior to use.
Plate contains a cooling gel and provides a contact cooled surface for product to stand on.
530 mm(L) x 325 mm(W) x 45 mm(H),

GEP1

GEP1

GEP1

GEP1

Glide S/Steel Drop Down Tubular Tray Rail.

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide.

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model.

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Ocean Blue (BS 18C37)

GBLUEWSA2

GBLUEWSA3

GBLUEWSA4

GBLUEWSA5

Glide S/Steel Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
S/Steel (430 gd)

GSSTLWSA2

GSSTLWSA3

GSSTLWSA4

GSSTLWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Goosewing Light Grey (BS 10A05)

GGREYWSA2

GGREYWSA3

GGREYWSA4

GGREYWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Forest Green (RAL 6002)

GGRENWSA2

GGRENWSA3

GGRENWSA4

GGRENWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Poppy Red (BS 04E5B)

GPREDWSA2

GPREDWSA3

GPREDWSA4

GPREDWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Buttermilk Cream (BS 10C31)

GCREMWSA2

GCREMWSA3

GCREMWSA4

GCREMWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
White (BS 00E55)

GWHITWSA2

GWHITWSA3

GWHITWSA4

GWHITWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Black (BS 00E53)

GBLAKWSA2

GBLAKWSA3

GBLAKWSA4

GBLAKWSA5

Glide Wood Grain Effect Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Walnut (DL85)

GWALNWSA2

GWALNWSA3

GWALNWSA4

GWALNWSA5

Glide Wood Grain Effect Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Beech (DL76)

GBEECWSA2

GBEECWSA3

GBEECWSA4

GBEECWSA5

Glide Wood Grain Effect Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Oak (DL84)

GOAKWSA2

GOAKWSA3

GOAKWSA4

GOAKWSA5

Popular Model Codes & Options

Description Model Code Option Code Option Code

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry &
(S/Steel Drop Down
Solid Tray Slide)

GWSEW2
GWSEW3
GWSEW4
GWSEW5

GSTS2
GSTS3
GSTS4
GSTS5

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry &
(S/Steel Drop Down
Tubular Tray Rail)

GWSEW2
GWSEW3
GWSEW4
GWSEW5

GTTS2
GTTS3
GTTS4
GTTS5

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry &
(Wall Sited Cold Eutectic Well Gantry)

GWSEW2
GWSEW3
GWSEW4
GWSEW5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry &
(Wall Sited Cold Eutectic Well Gantry)
(Drop Down Tubular Tray Rail)

GWSEW2
GWSEW3
GWSEW4
GWSEW5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

GTTS2
GTTS3
GTTS4
GTTS5

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry &
(Wall Sited Cold Eutectic Well Gantry)
(Drop Down Solid Tray Slide)

GWSEW2
GWSEW3
GWSEW4
GWSEW5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

GSTS2
GSTS3
GSTS4
GSTS5

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry &
(Drop Down Solid Tray Slide)
(Colour Finish – Red)

GWSEW2
GWSEW3
GWSEW4
GWSEW5

GSTS2
GSTS3
GSTS4
GSTS5

GPREDWSA2
GPREDWSA3
GPREDWSA4
GPREDWSA5

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry &
(Colour Finish – Red)

GWSEW2
GWSEW3
GWSEW4
GWSEW5

GPREDWSA2
GPREDWSA3
GPREDWSA4
GPREDWSA5

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry &
(Wall Sited Cold Eutectic Well Gantry)
(Colour Finish – Red)

GWSEW2
GWSEW3
GWSEW4
GWSEW5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

GPREDWSA2
GPREDWSA3
GPREDWSA4
GPREDWSA5



Options

(Wall Sited) Glide Eutectic Plate Cold Well – No Gantry.
Options.



Glide Eutectic Plate Cold Well Gantry c/w LED Lighting (S. Help).
(Option Codes GWSAG2-5) Glide option: 2-1 Gn to 5-1 Gn, ambient gantry, s/steel, c/w LED lighting, opaque safety cover, colour 4000k, single curved glass sneeze screen, self help use, + 397mm (h) above worktop, end glass.



Glide Additional Glide Additional S/Steel Eutectic Plate. (Option Code GEP1) Glide option: 1-1 Gn, eutectic cold plate, 530 mm(L) x 325 mm(W) x 45 mm(H),  charged in deep freeze overnight prior to use. Extends serving period by replacing eutectic plates with other pre-frozen ones. (For Glide eutectic well only).

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm *(Wall sited) front airflow panel option also shown*

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm *(Wall sited) front airflow panel option also shown*

Low Height Model (Glide Junior) – 850mm. (Option Code G850H) Glide junior option: 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model (Glide Junior) – 800mm.*
(Option Code G800H) Glide junior option: 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). *Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Codes GBLUEWSA2 – GBLUEWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

S/steel Finish. (Option Code GSSTLWSA2 – GSSTLWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Light Grey Finish. (Option Codes GGREYWSA2 – GGREYWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Forest Green Finish. (Option Codes GGRENWSA2 – GGRENWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Poppy Red Finish. (Option Codes GPREDWSA2 – GPREDWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Cream Finish. (Option Codes GCREMWSA2 – GCREMWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

White Finish. (Option Codes GWHITWSA2 – GWHITWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Black Finish. (Option Codes GBLAKWSA2 – GBLAKWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Beech Woodgrain Finish. (Option Codes GBEECWSA2 – GBEECWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Walnut Woodgrain Finish. (Option Codes GWALNWSA2 – GWALNWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Oak Woodgrain Finish. (Option Codes GOAKWSA2 – GOAKWSA5) 2-1 Gn to 5-1 Gn full set of front sliding cupbd. doors/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)



Options – (Wall Sited) Glide Eutectic Plate Cold Well – No Gantry.

Option                                                                                          Option Code

Model Code

GWSEW2

GWSEW3

GWSEW4

GWSEW5

(Wall Sited) Glide Cold Eutectic Well Gantry.
397mm (H) c/w LED light, curved sneeze screen glass & end glass  for self help.

GWSAG2

GWSAG3

GWSAG4

GWSAG5

Glide Additional S/Steel Eutectic Plate.
1-1 Gn, eutectic cold plate, charged in deep freeze overnight prior to use.
Plate contains a cooling gel and provides a contact cooled surface for product to stand on.
530 mm(L) x 325 mm(W) x 45 mm(H),

GEP1

GEP1

GEP1

GEP1

Glide S/Steel Drop Down Tubular Tray Rail.

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide.

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model.

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Ocean Blue (BS 18C37)

GBLUEWSA2

GBLUEWSA3

GBLUEWSA4

GBLUEWSA5

Glide S/Steel Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
S/Steel (430 gd)

GSSTLWSA2

GSSTLWSA3

GSSTLWSA4

GSSTLWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Goosewing Light Grey (BS 10A05)

GGREYWSA2

GGREYWSA3

GGREYWSA4

GGREYWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Forest Green (RAL 6002)

GGRENWSA2

GGRENWSA3

GGRENWSA4

GGRENWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Poppy Red (BS 04E5B)

GPREDWSA2

GPREDWSA3

GPREDWSA4

GPREDWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Buttermilk Cream (BS 10C31)

GCREMWSA2

GCREMWSA3

GCREMWSA4

GCREMWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
White (BS 00E55)

GWHITWSA2

GWHITWSA3

GWHITWSA4

GWHITWSA5

Glide Colour Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Black (BS 00E53)

GBLAKWSA2

GBLAKWSA3

GBLAKWSA4

GBLAKWSA5

Glide Wood Grain Effect Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Walnut (DL85)

GWALNWSA2

GWALNWSA3

GWALNWSA4

GWALNWSA5

Glide Wood Grain Effect Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Beech (DL76)

GBEECWSA2

GBEECWSA3

GBEECWSA4

GBEECWSA5



Glide Wood Grain Effect Finish Base Panels (Front Cupbd. Sliding Doors  & Sides).
Oak (DL84)

GOAKWSA2

GOAKWSA3

GOAKWSA4

GOAKWSA5



Popular Model Codes & Options.



(Wall Sited) Glide Eutectic Cold Well-No Gantry &
(Solid Tray Slide).

Model Code  Option Code
GWSEW2      GSTS2
GWSEW3      GSTS3
GWSEW4      GSTS4
GWSEW5      GSTS5



(Wall Sited) Glide Eutectic Cold Well-No Gantry &
(Tubular Tray Rail).

Model Code  Option Code
GWSEW2      GTTS2
GWSEW3      GTTS3
GWSEW4      GTTS4
GWSEW5      GTTS5



(Wall Sited) Glide Eutectic Cold Well-No Gantry &
(Wall Sited Glide Eutectic Cold Well Gantry).

Model Code  Option Code
GWSEW2      GWSAG2
GWSEW3      GWSAG3
GWSEW4      GWSAG4
GWSEW5      GWSAG5





(Wall Sited) Glide Eutectic Cold Well-No Gantry &
(Wall Sited Glide Eutectic Cold Well Gantry) & (Drop Down Tray Rail).

Model Code  Option Codes
GWSEW2      GWSAG2   GTTS2
GWSEW3      GWSAG3   GTTS3
GWSEW4      GWSAG4   GTTS4
GWSEW5      GWSAG5   GTTS5



(Wall Sited) Glide Eutectic Cold Well-No Gantry &
(Wall Sited Glide Eutectic Cold Well Gantry) & (Drop Down Solid Tray Slide).
Model Code  Option Codes
GWSEW2      GWSAG2   GSTS2
GWSEW3      GWSAG3   GSTS3
GWSEW4      GWSAG4   GSTS4
GWSEW5      GWSAG5   GSTS5



(Wall Sited) Glide Eutectic Cold Well-No Gantry &
(Drop Down Solid Tray Slide) &
(Colour Finish – Red).

Model Code  Option Codes
GWSEW2       GSTS2   GPREDWSA2
GWSEW3       GSTS3   GPREDWSA3
GWSEW4       GSTS4   GPREDWSA4
GWSEW5       GSTS5    GPREDWSA5



(Wall Sited) Glide Eutectic Cold Well-No Gantry &
(Colour Finish – Red).
Model Code  Option Code

GWSEW2     GPREDWSA2
GWSEW3     GPREDWSA3
GWSEW4     GPREDWSA4
GWSEW5     GPREDWSA5



(Wall Sited) Glide Eutectic Cold Well-No Gantry &
(Wall Sited Glide Eutectic Cold Well Gantry) & (Colour Finish – Red).

Model Code  Option Codes
GWSEW2      GWSAG2   GPREDWSA2
GWSEW3      GWSAG3   GPREDWSA3
GWSEW4      GWSAG4   GPREDWSA4
GWSEW5      GWSAG5   GPREDWSA5





Downloads

General Layout Drawings
(Wall Sited) Glide Eutectic Cold Well – No Gantry.





Specification Sheet, Base Panel Colour Options, User Manual.
(Wall Sited) Glide Eutectic Cold Well – No Gantry.
