This self contained waste clearing trolley forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

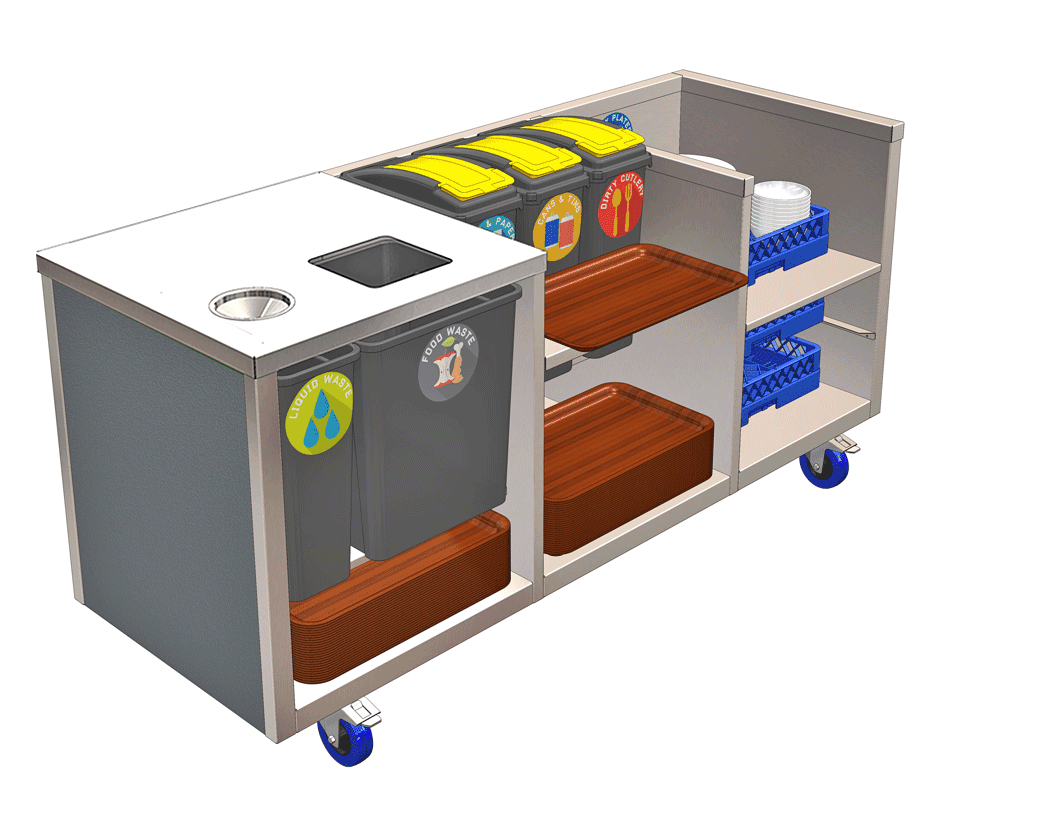

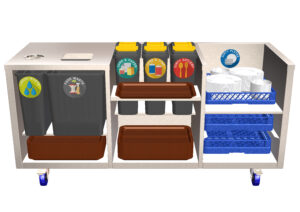

Glide Waste Clearing Trolley.
The s/steel waste clearing trolley is made in a 5-1Gn size 1875 mm (l) x 675 mm (d) x 900mm(h). It can be used as a freestanding or wall sited unit that suites with the servery layout.
Scrapping Area.

The welded worktop area (left hand end) has anti drip mould for food and liquid waste scrapping, with a lift out s/steel wktp. funnel for pouring liquid waste through.
Returns Area.

A 520mm wide 2 tier section for plate returns (right hand end) will also accept dishwash baskets & basket or tray storage underneath. The unit comes with 5 no. removable bins for liquid (25 lt.) + food waste (50 lt.), paper, cans, & cutlery (all 25 lt.), with bin type identification vinyl labels to each.

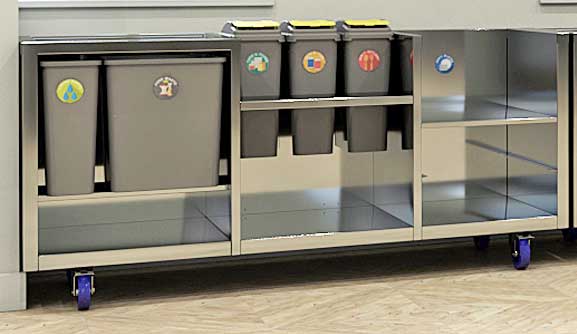

Waste Clearing Area.
A central tray rest shelf doubles as a bin retainer & lifts out for simple bin removal if required. The rear & side base panels are leathergrain plastisol steel, colour merlin grey, the worktop is 304 gd. s/steel & base is 430 gd. The trolley is fitted with lockable castors. Dishwash baskets & trays are not included.

Height Options. Low Height Model (Glide Junior) – in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.
Colour Finishes To Waste Trolley Rear/ Side Panels  11 alternative choices of durable steel, colour & wood effect finishes for waste clearing trolley outer panels, to compliment other selected models in the servery colour scheme.

Visual

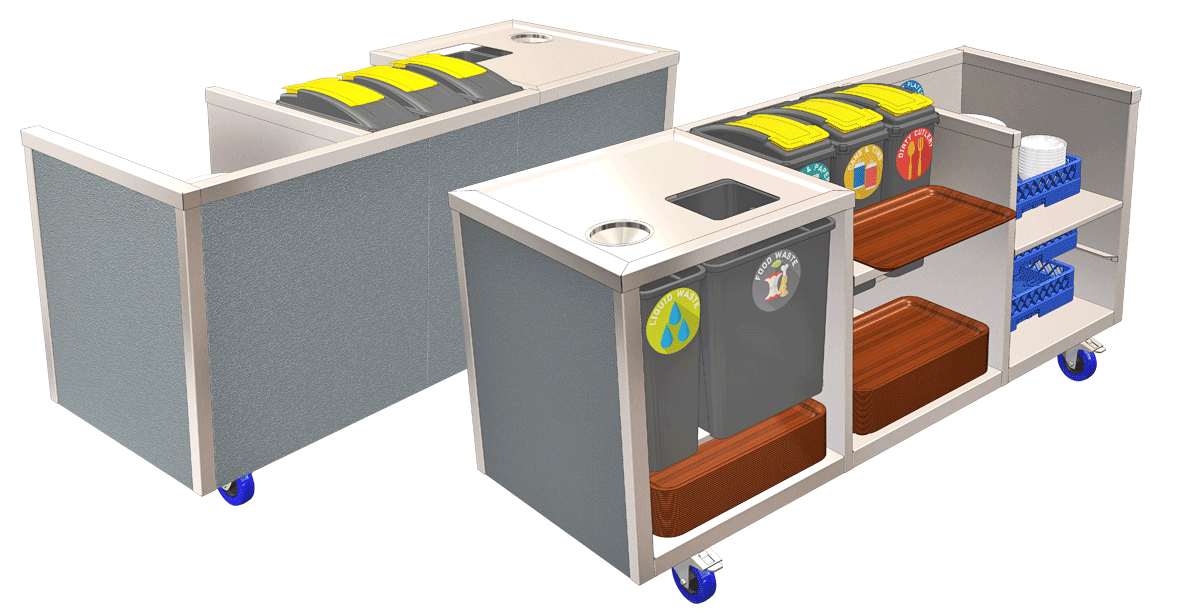

Glide Waste Clearing Trolley.
Visual



Features

Glide Waste Clearing Trolley.
Features

  • Glide mobile dining cart, waste clearing trolley 5-1 Gn.
  • Free standing or wall sited application.
  • Model Code GWT.
  • S/steel construction
  • C/w multiple 25/50 lt. recycling bins.
  • Fully welded worktop with anti drip mould for food and liquid waste scrapping.
  • Lift out s/steel worktop funnel for pouring liquid waste through.
  • 2 tier plate returns area/dishwash basket storage.
  • O/all dimensions 1875 mm (l) x 675 mm (d) x 900 mm (h).
  • 5 no. removable bins for liquid (25 lt.) + food waste (50 lt.), paper, cans, & cutlery (all 25 lt.).

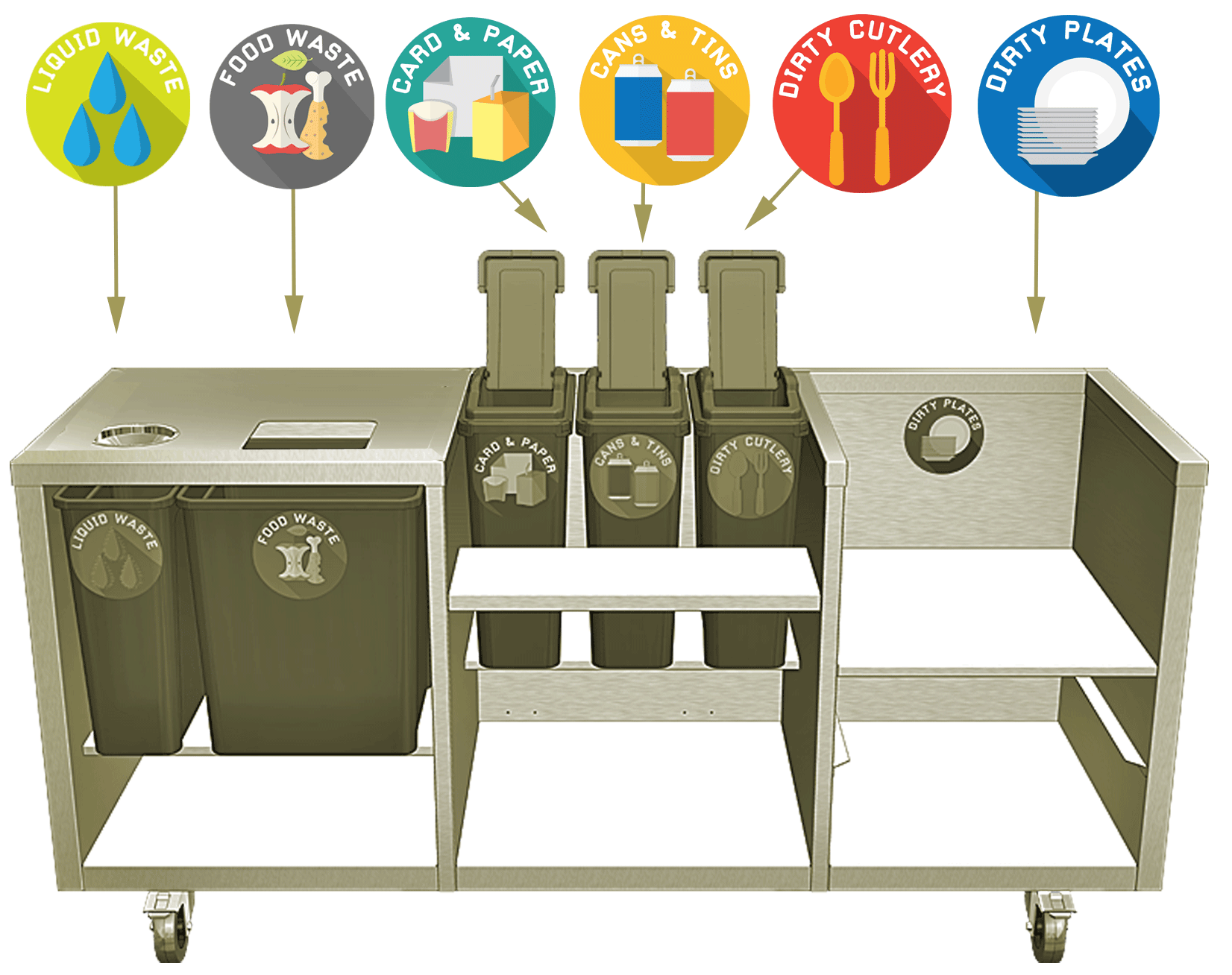

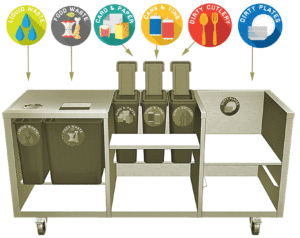

  • Self adhesive, printed vinyl gloss laminated vinyl bin identification labels fitted to each zone.
  • Tray rest shelf/bin retainer that lifts out for simple bin removal (if required).
  • Rear/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ sides etc.) in 430gd.
  • Fitted with lockable non-marking rubber tyre castors.
  • Unit weight 68 kg.
  • (Dishwash baskets & trays are not included).

Options

  • Optional choice of 11 solid colour & woodgrain base outer side/rear panel finishes available.
  • Optional low height model 850mm (h) available for junior/ primary use.
  • Optional low height model 800mm (h) available for junior/ primary use.*
  • 800mm (h) = bespoke option with extended lead time*.





Dimensions

Glide Waste Clearing Trolley.
Dimensions

  • Model Code GWT.
  • 5/1 Gn size.

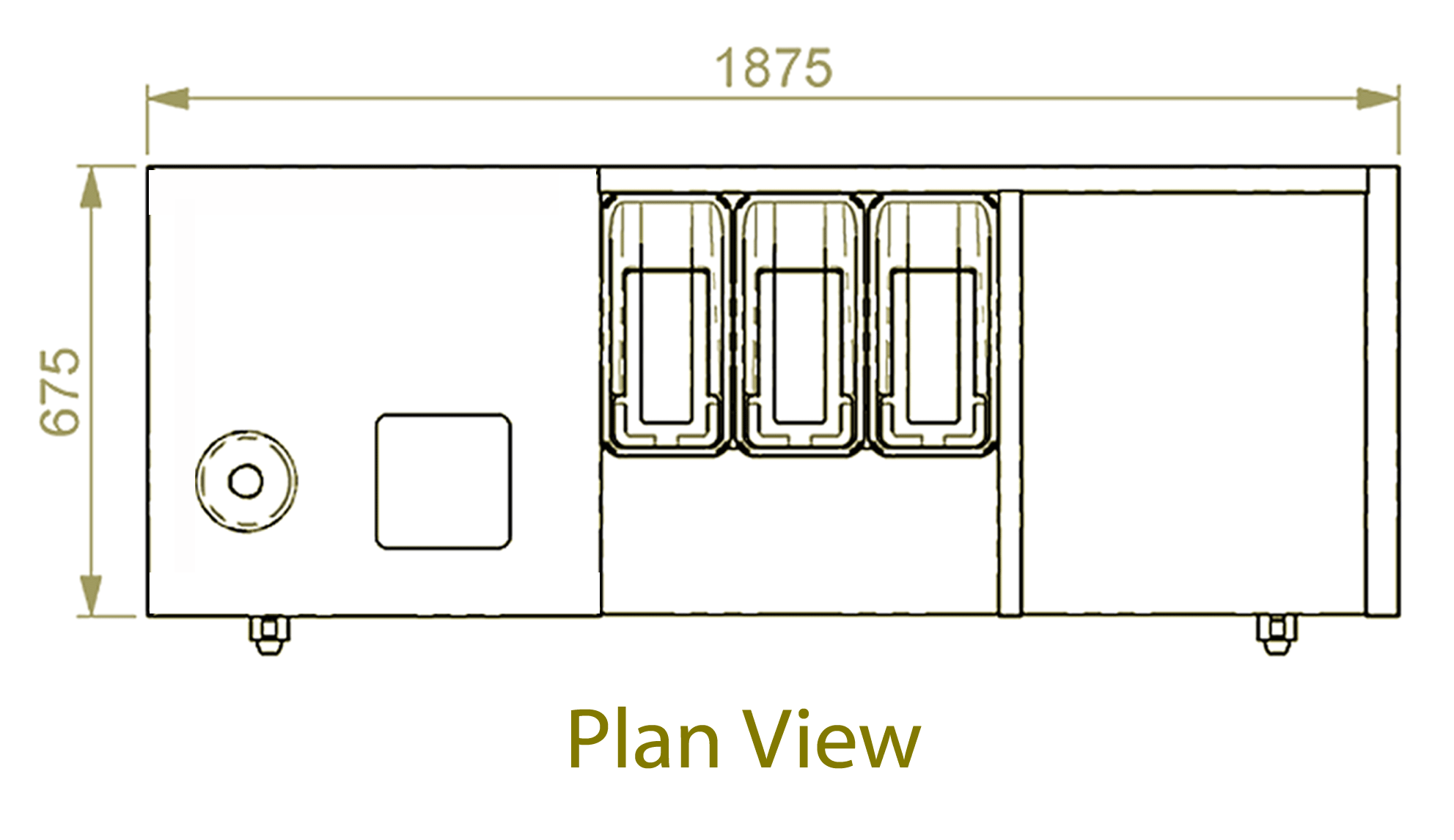

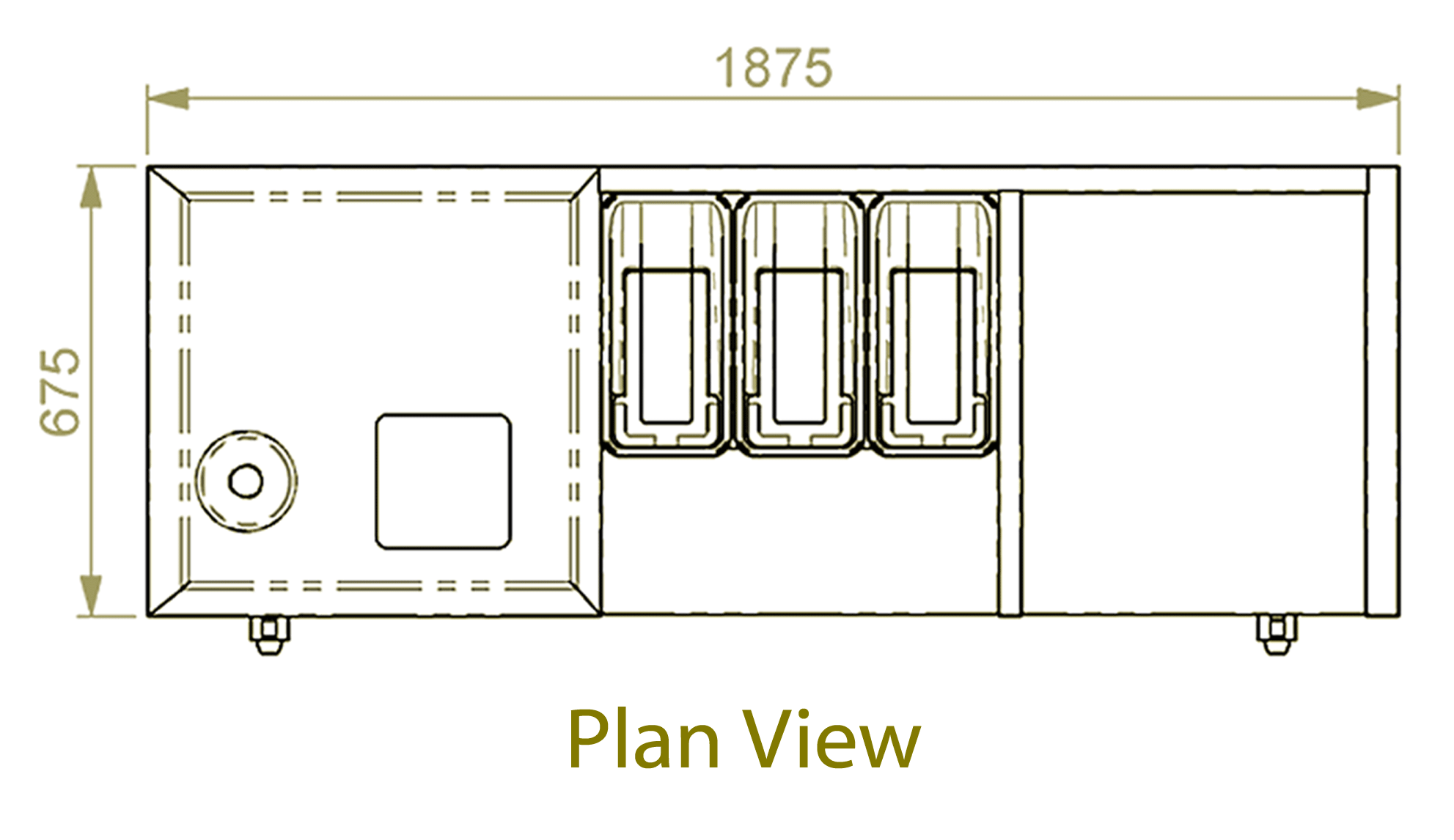

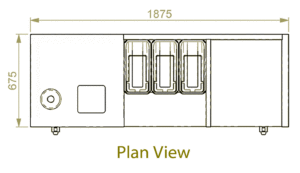

  • O/all dimensions 1875 mm (l) x 675 mm (d) x 900 mm (h).
  • Model weight 68 kg.
  • Scrapping Area (left hand end). Fully welded worktop area with anti drip mould, for food and liquid waste scrapping.
  • Lift-out s/steel wktp. funnel for pouring liquid waste through.
  • 1 no. removable 25 litre liquid & 1 no. 50 litre food waste scrapping bin with labels (no lids) provided to sit under worktop on shelf.

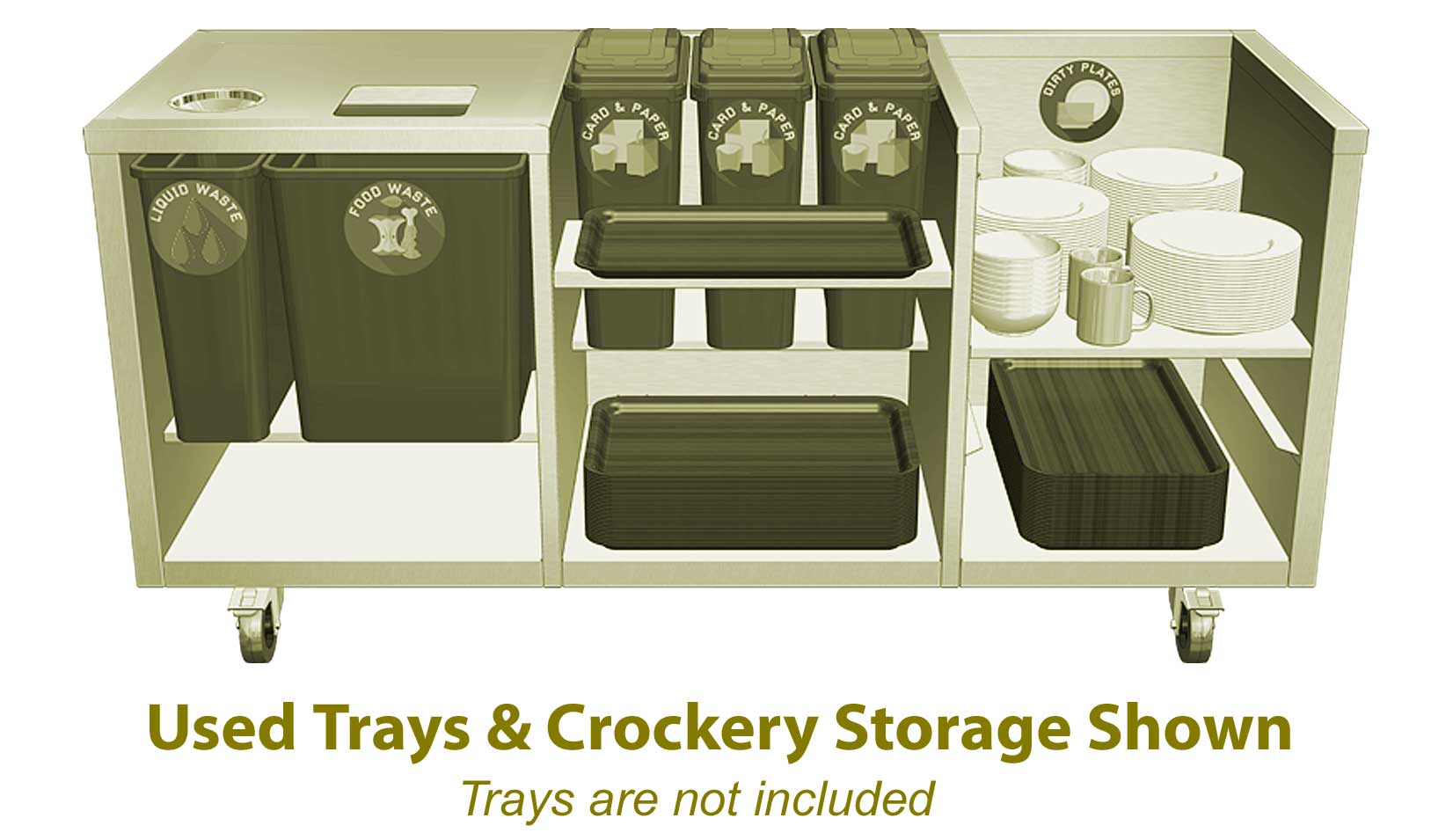

  • 600 mm (w) used tray storage space available below bin shelf.

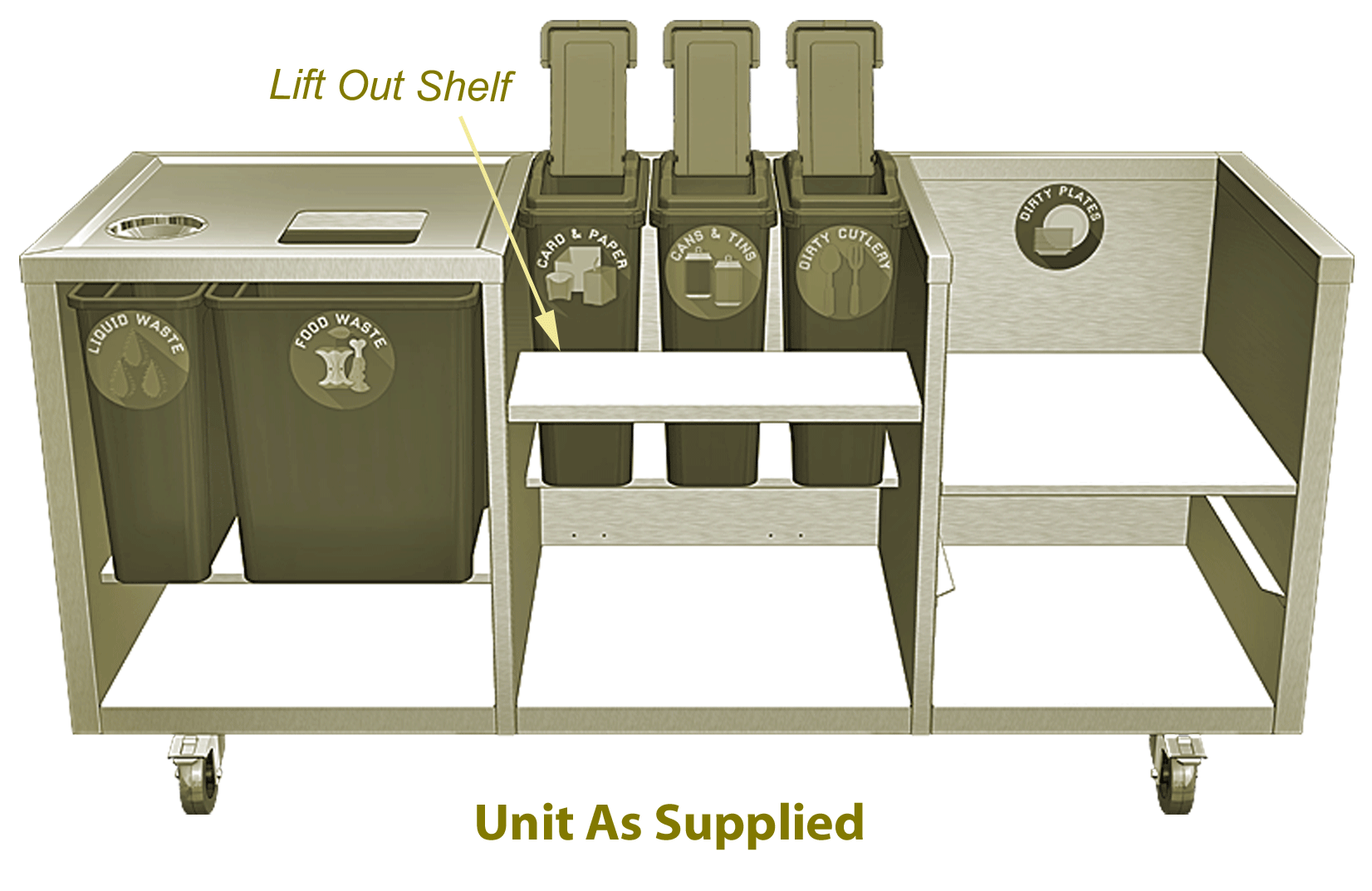

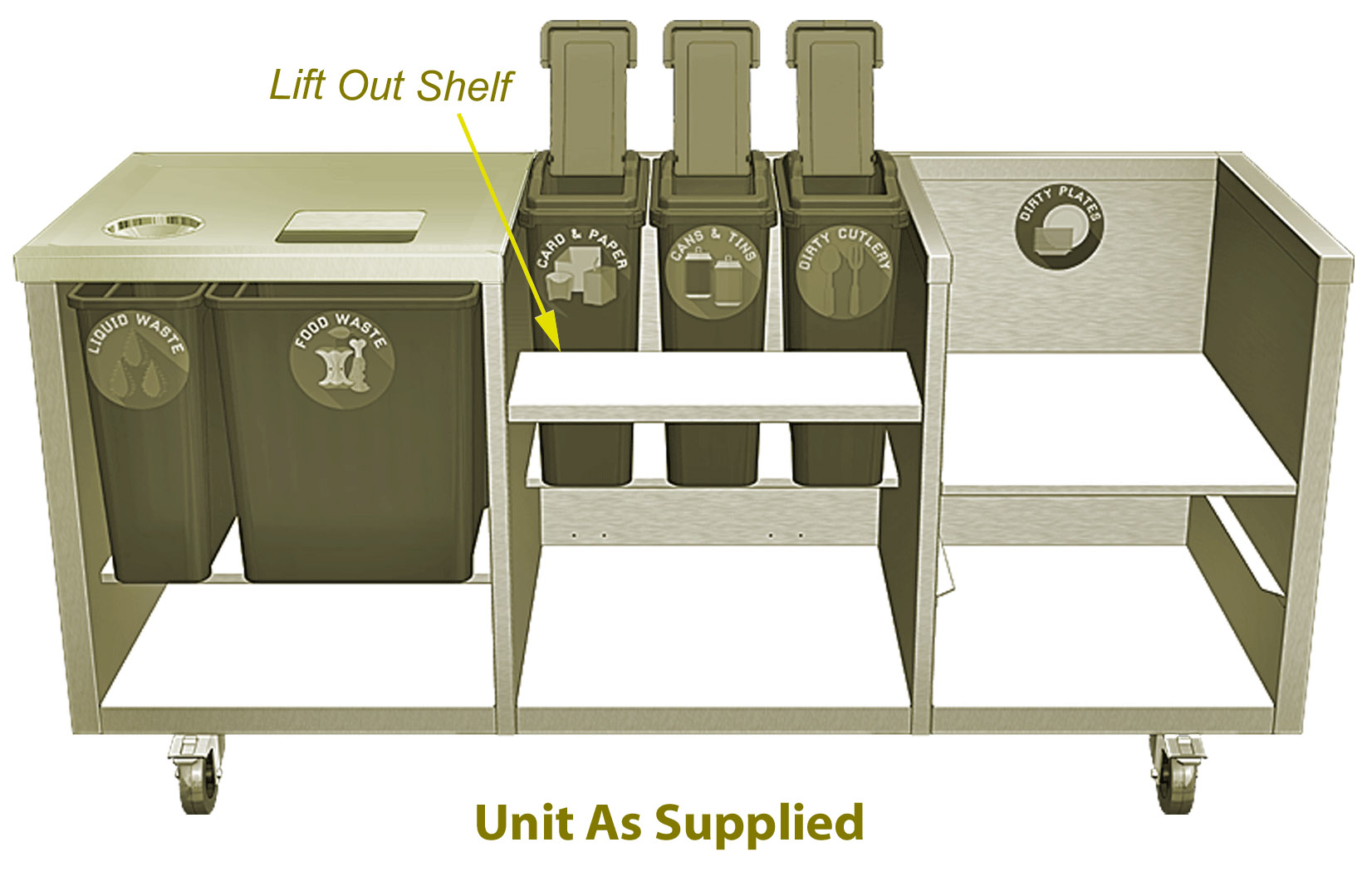

  • Waste Clearing Area (centre section). Central tray rest shelf/ bin retainer which lifts out for bin removal if required.
  • 3 no. removable 25 litre bins with lids & labels, for storage of used card or paper, used cans or tins & used cutlery.
  • 600 mm (w) used tray storage space available below bin shelf.
  • Returns Area (right hand end). 520 mm (w) x 635 mm (d) 2 tier storage section for plate returns with label to denote area use.

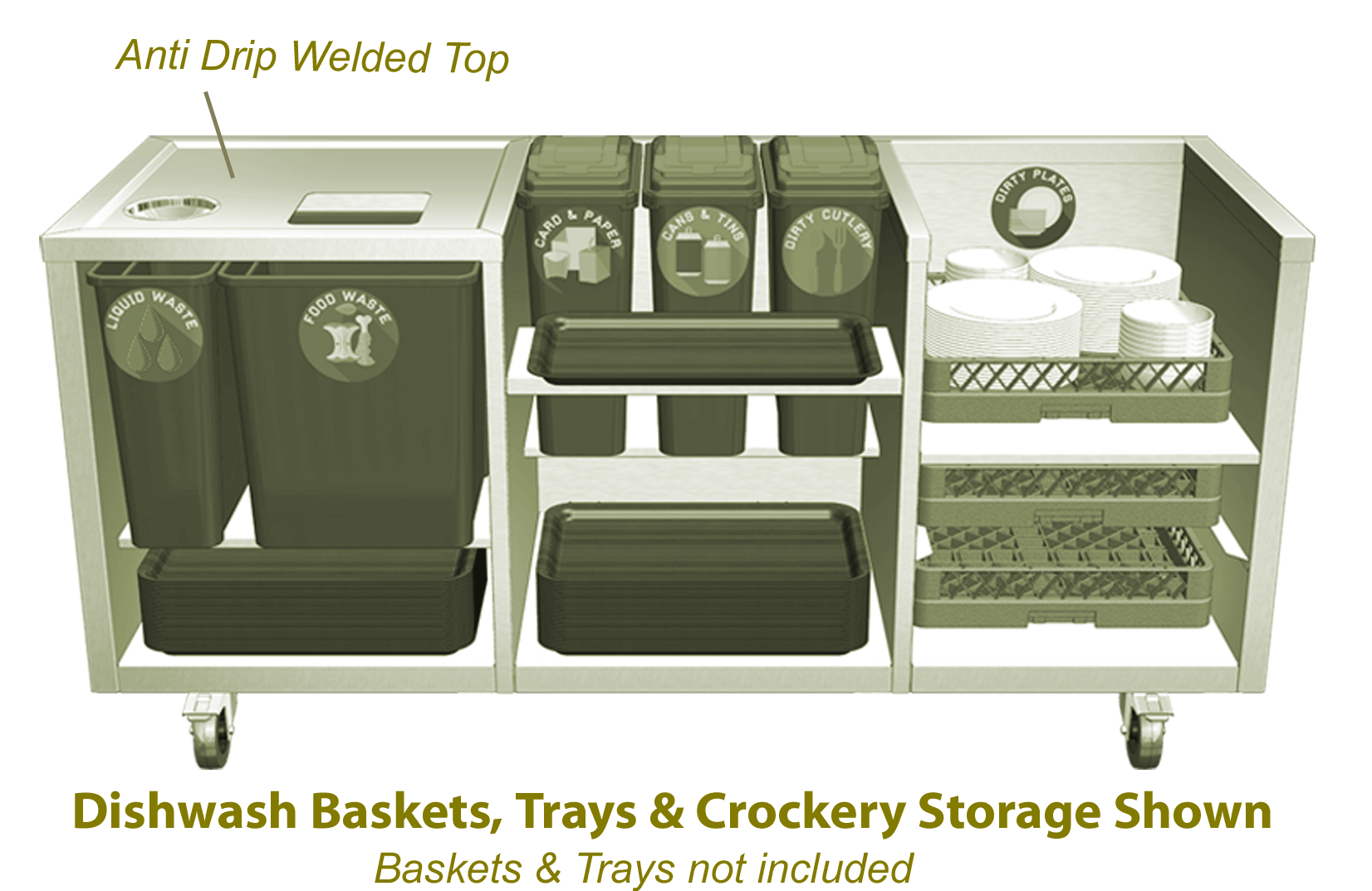

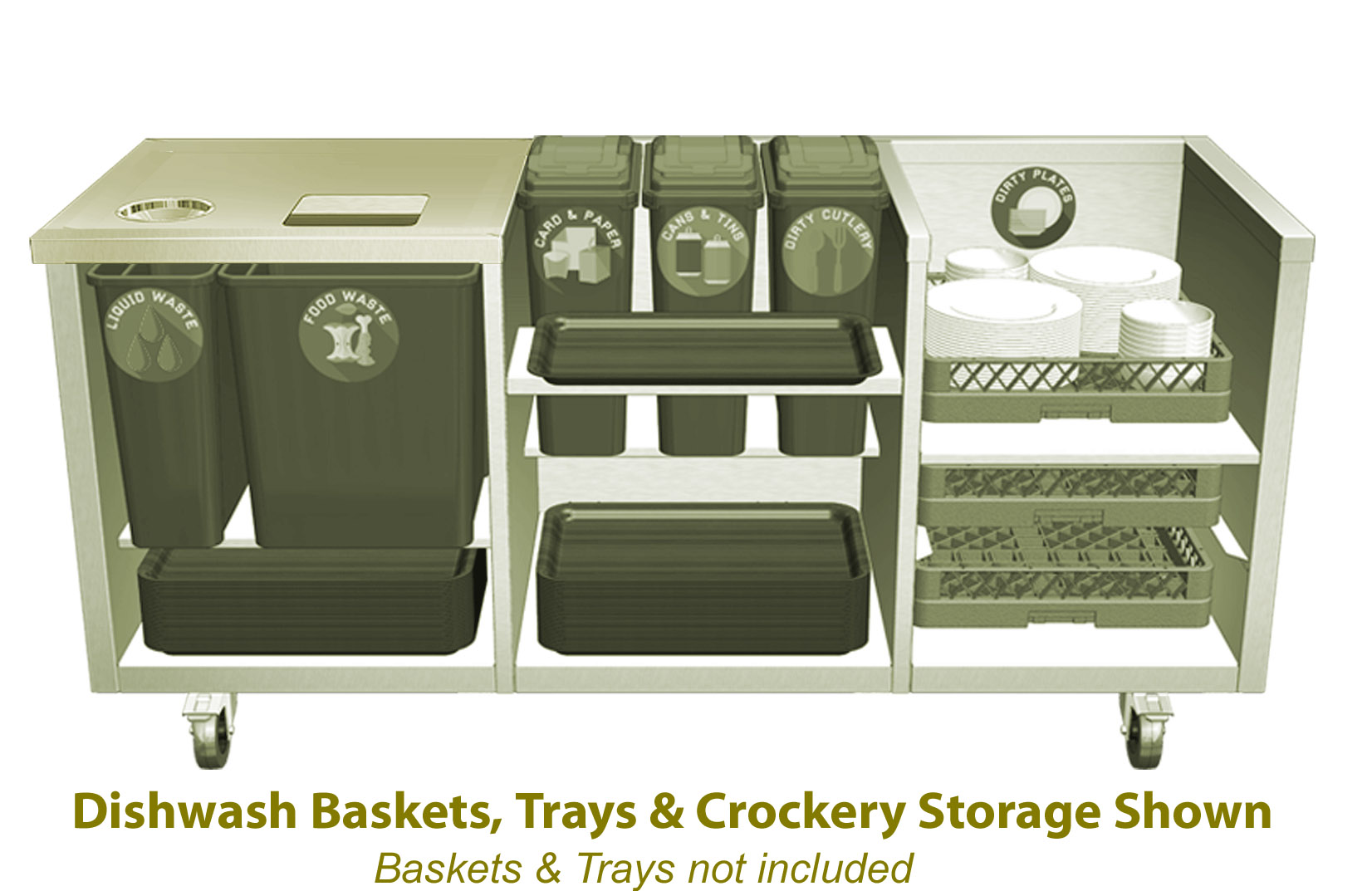

  • Area below mid shelf has basket runners fitted to accept 2 no. dishwash baskets & basket or tray storage (Dishwash baskets & trays are not included).
  • Rear/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ sides etc.) in 430gd.
  • Fitted with lockable non-marking rubber tyre castors.
  • Power Supply N/A.

OPTIONS :  Glide Waste Clearing Trolley (Model GWT).

Option

Code

Option

Code

Option

Code

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Side/ Rear Panels
(430gd.)

GSSTLCHA5

Colour Side/ Rear Panels
Ocean Blue
(BS18C37)

GBLUECHA5

Colour Side/ Rear Panels
Light Grey
(BS10A05)

GGREYCHA5

Colour Side/ Rear Panels
Forest Green
(RAL6002)

GGRENCHA5

Colour Side/ Rear Panels
Poppy Red
(BS04E5B)

GPREDCHA5

Colour Side/ Rear Panels
Cream
(BS10c31)

GCREMCHA5

Colour Side/ Rear Panels
White
(BS00E55)

GWHITCHA5

Colour Side/ Rear Panels
Black
(BS00E53)

GBLAKCHA5

Woodgrain Side/ Rear Panels
Walnut
(DL85)

GWALNCHA5

Woodgrain Side/ Rear Panels
Beech
(DL76)

GBEECCHA5

Woodgrain Side/ Rear Panels
Oak
(DL84)

GOAKCHA5

XXXXX

XXXXX

XXXXX

XXXXX

Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

XXX

Glide Waste Clearing Trolley
(& 850mm Low Height Option )

GWT

G850H

Glide Waste Clearing Trolley
(& Colour Side/ Rear Panels
Ocean Blue – BS18C37)

GWT

GBLUECHA5

Glide Waste Clearing Trolley
(& Colour Side/ Rear Panels
Forest Green – RAL6002)

GWT

GGRENCHA5

Glide Waste Clearing Trolley
(& Colour Side/ Rear Panels
Black – BS00E53)

GWT

GBLAKCHA5

Glide Waste Clearing Trolley
(& Colour Side/ Rear Panels
Poppy Red – BS04E5B)

GWT

GPREDCHA5

Glide Waste Clearing Trolley
(& Woodgrain Effect Side/ Rear Panels Beech – DL76)

GWT

GBEECCHA5



Options

Glide Waste Clearing Trolley.
Options.

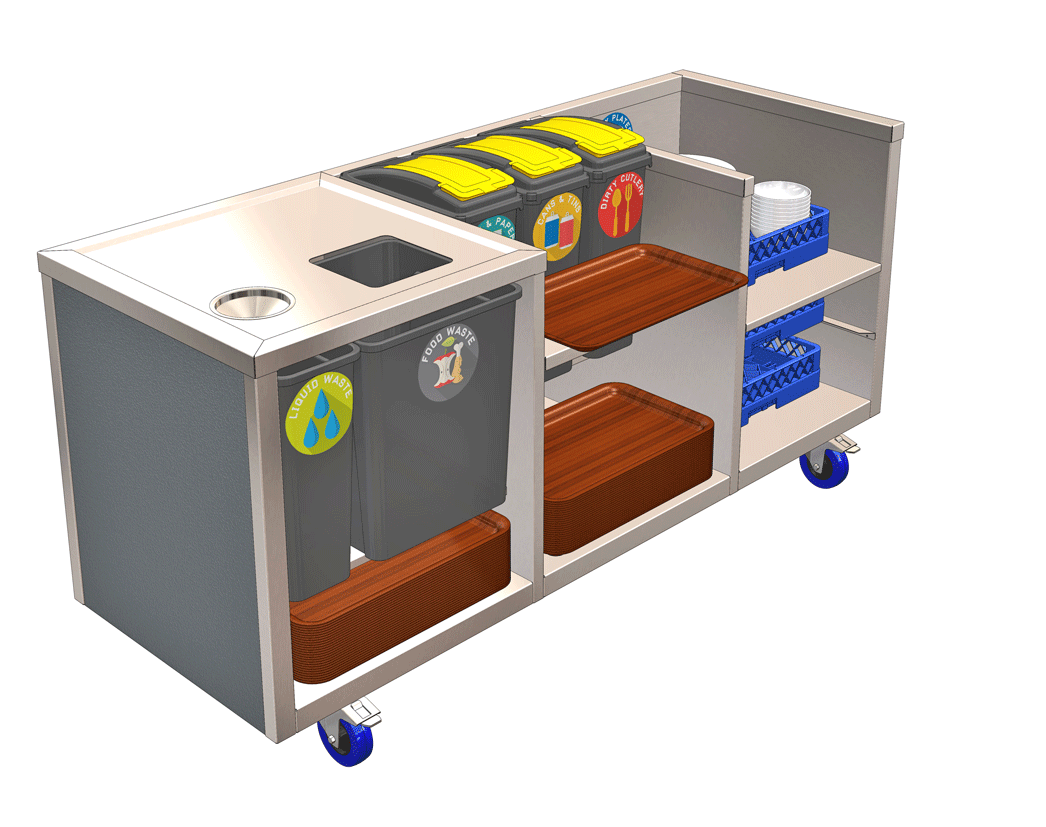

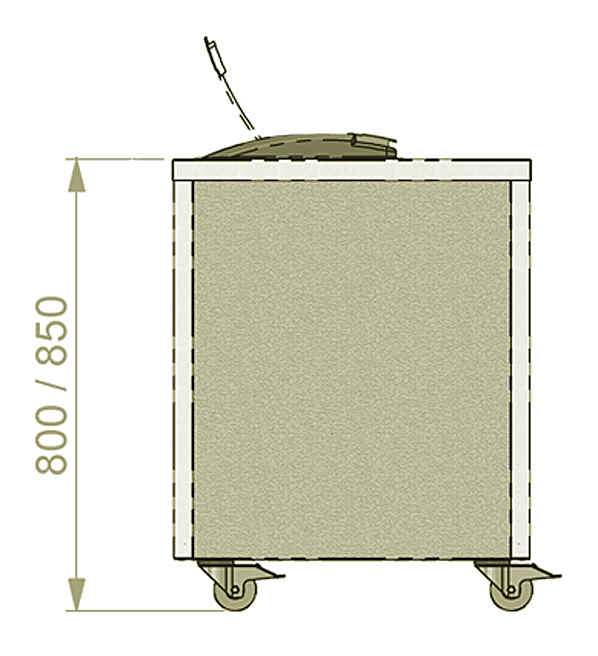

Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use.

Low Height Model ( Glide Junior) – 800mm.*
(G800H) Glide junior option: 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use. * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Rear/ Side Panels.

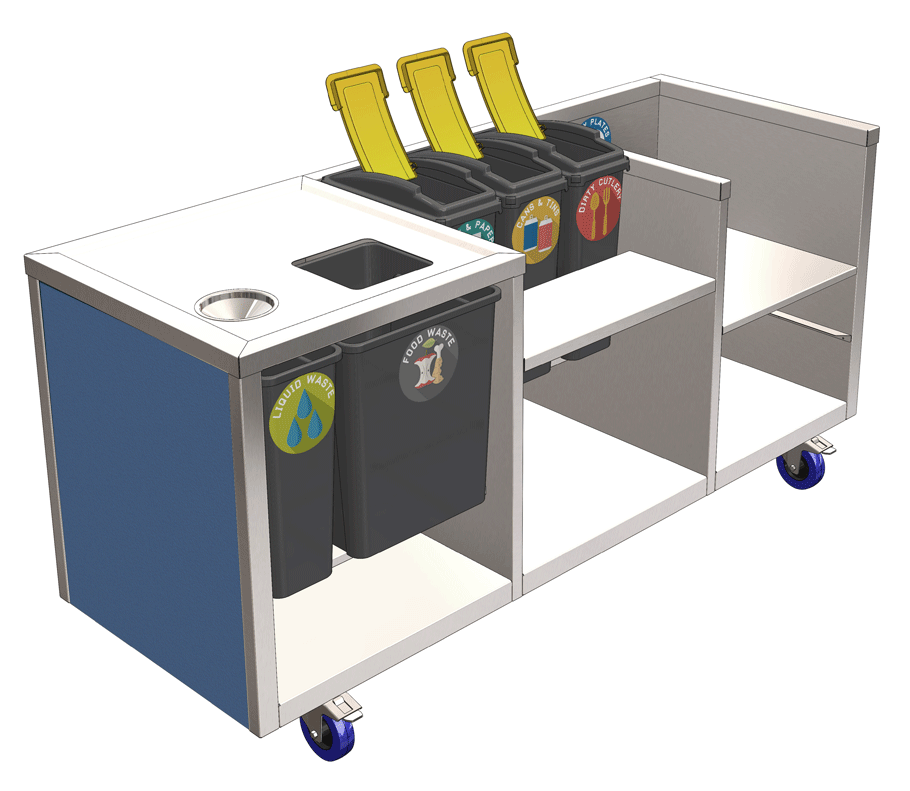

Blue Finish. (Option Code GBLUECHA5) 5-1 Gn set of outer rear/ side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

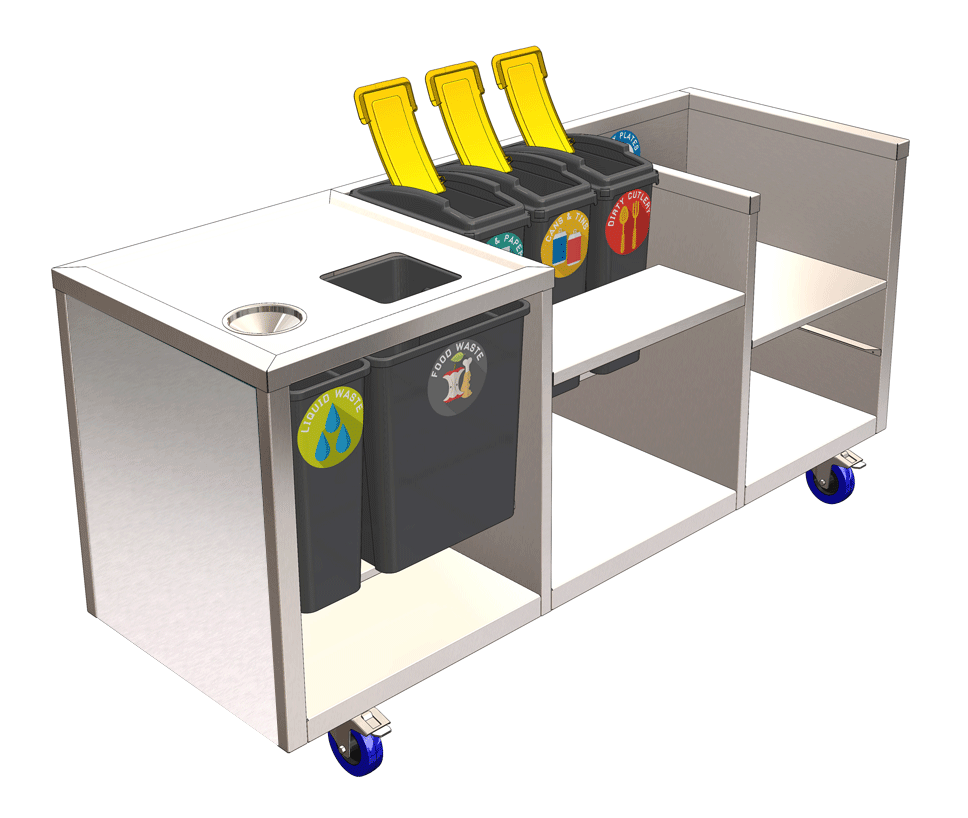

S/steel Finish. (Option Code GSSTLCHA5) 5-1 Gn set of outer rear/ side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

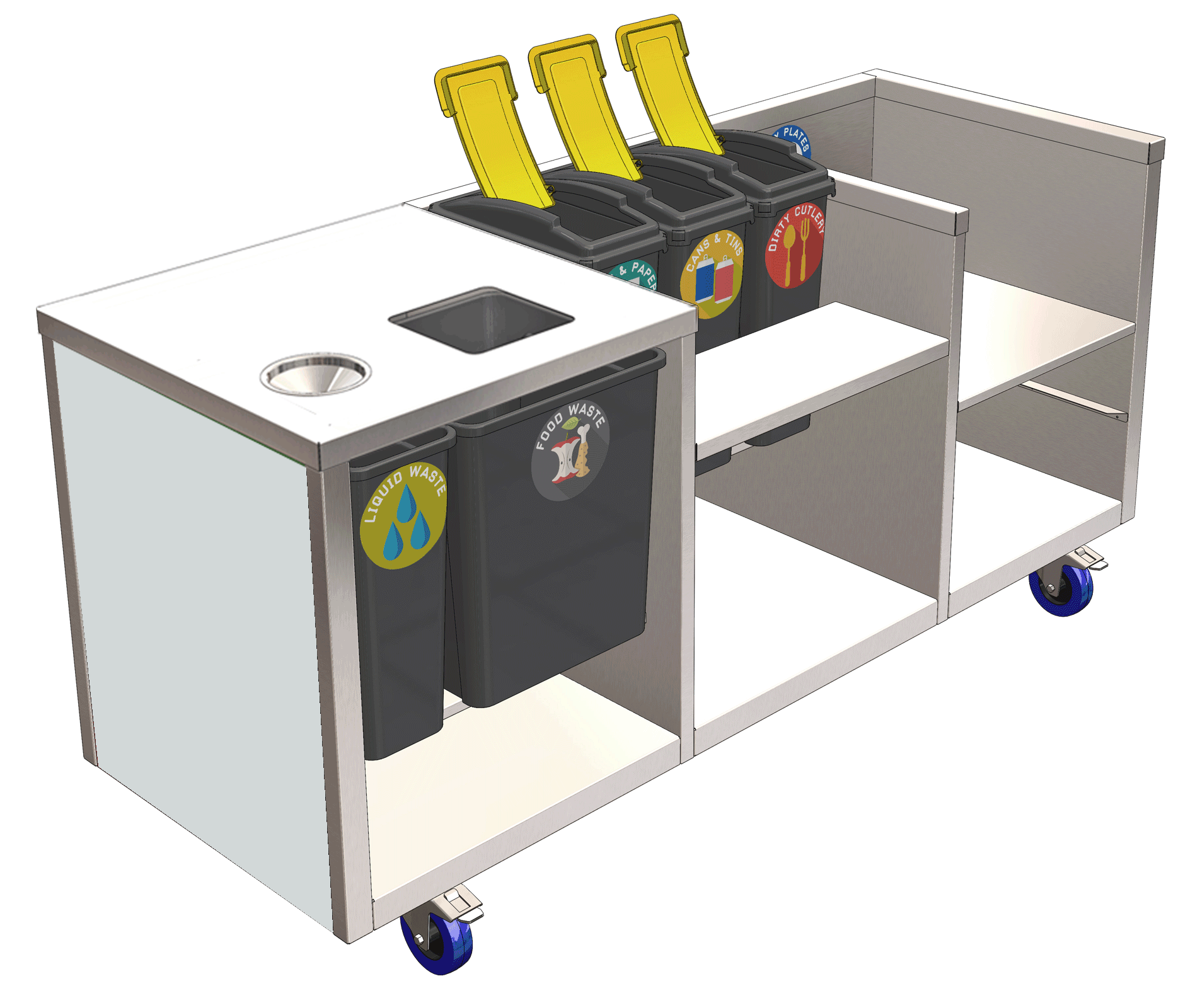

Light Grey Finish. (Option Code GGREYCHA5) 5-1 Gn set of outer rear/ side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

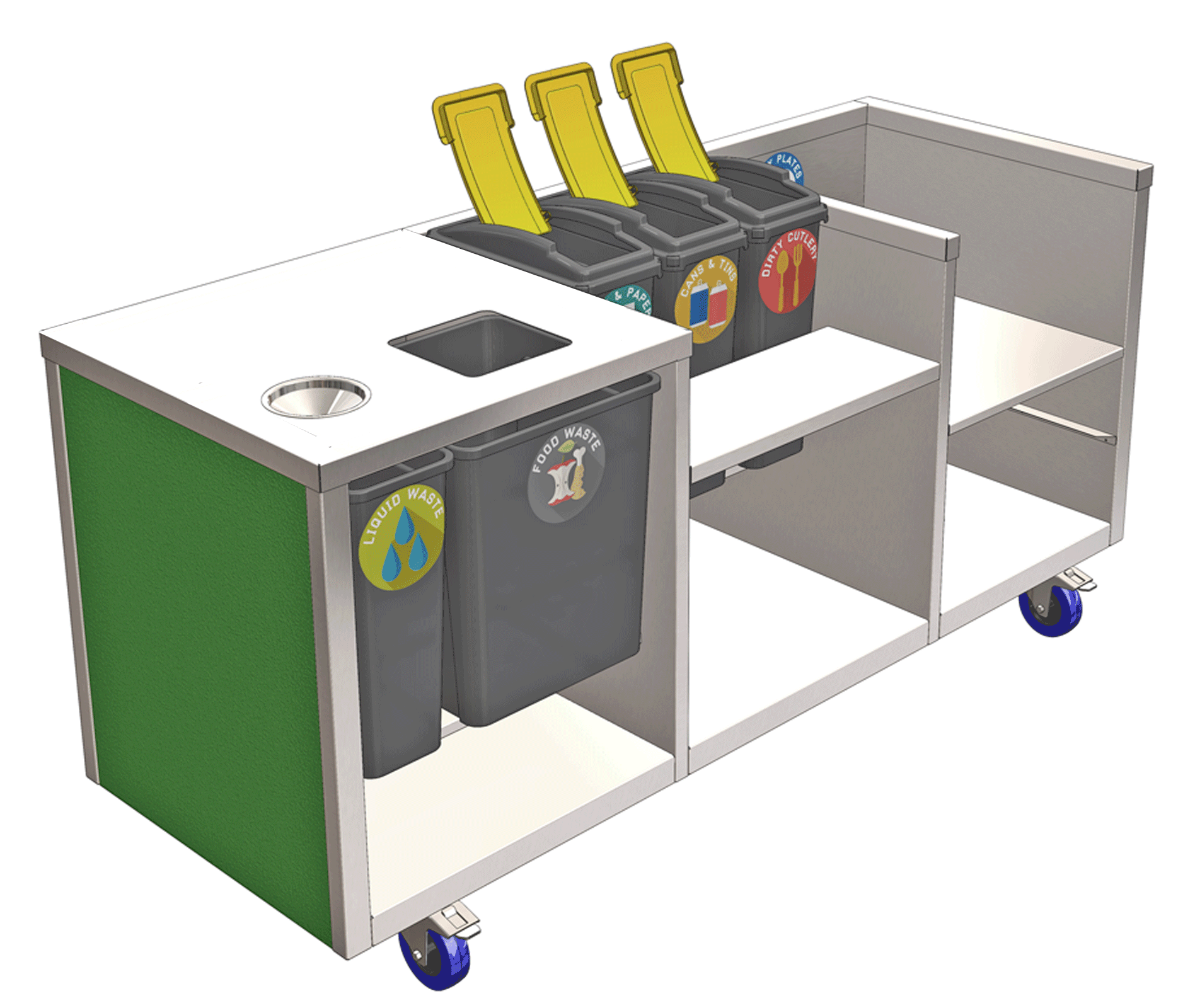

Forest Green Finish. (Option Code GGRENCHA5) 5-1 Gn set of outer rear/ side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

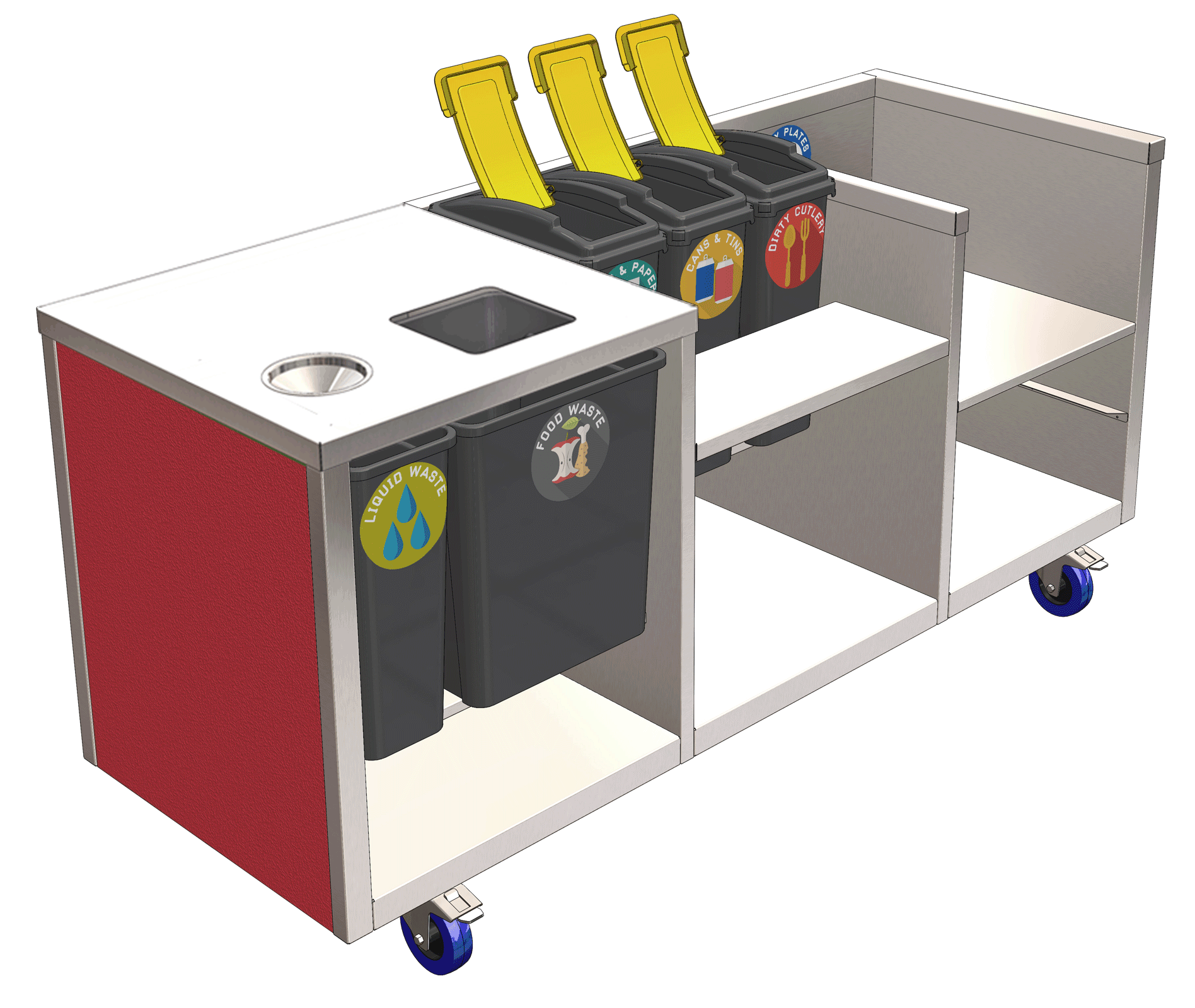

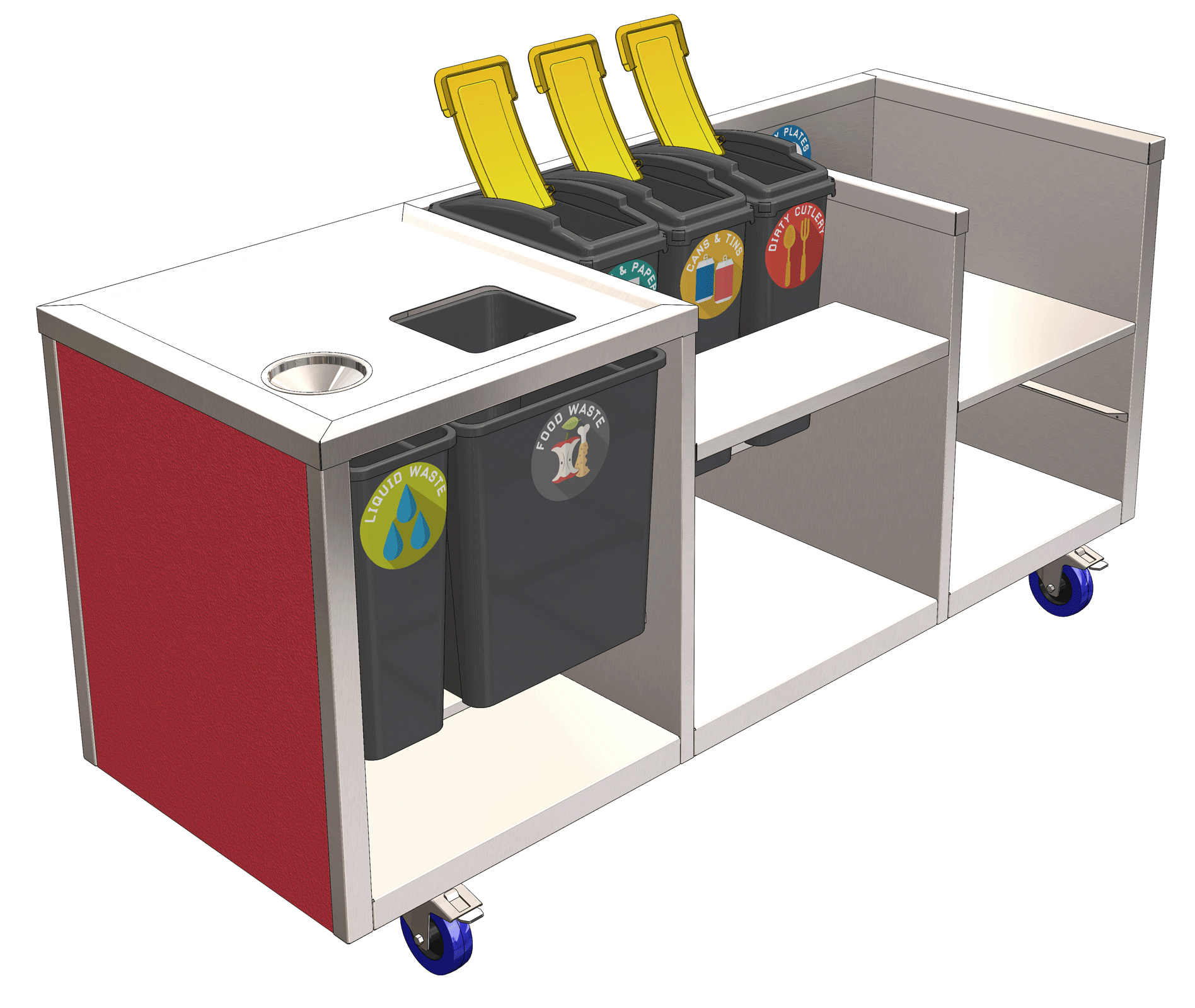

Poppy Red Finish. (Option Code GPREDCHA5) 5-1 Gn set of outer rear/ side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

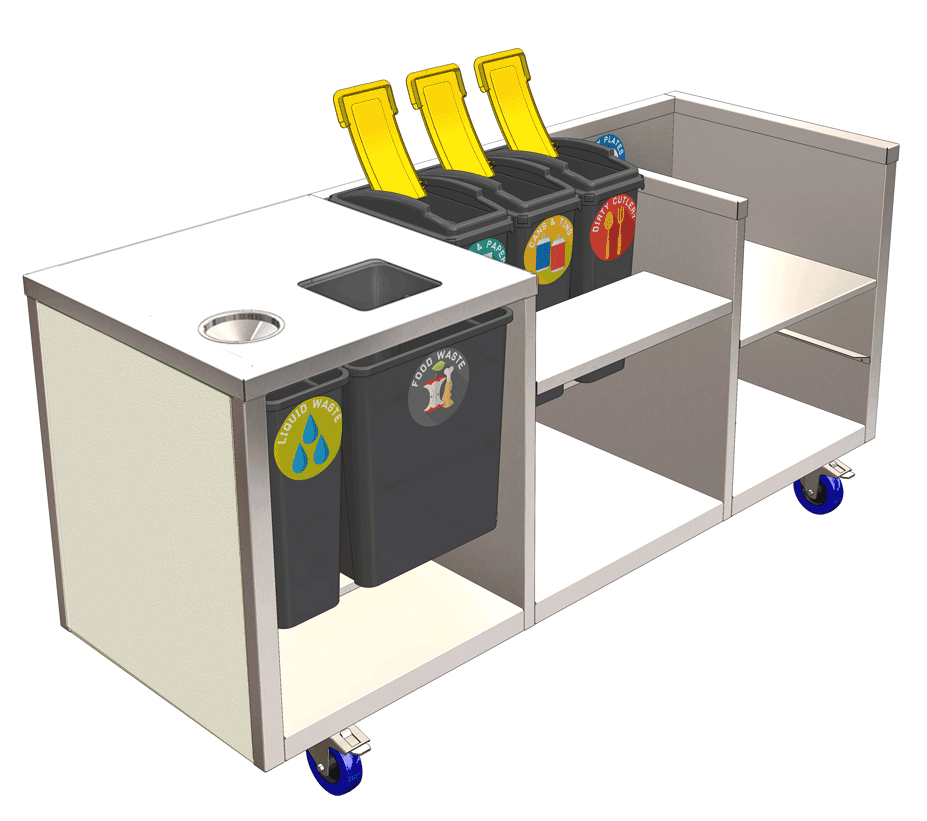

Cream Finish. (Option Code GCREMCHA5) 5-1 Gn set of outer rear/ side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

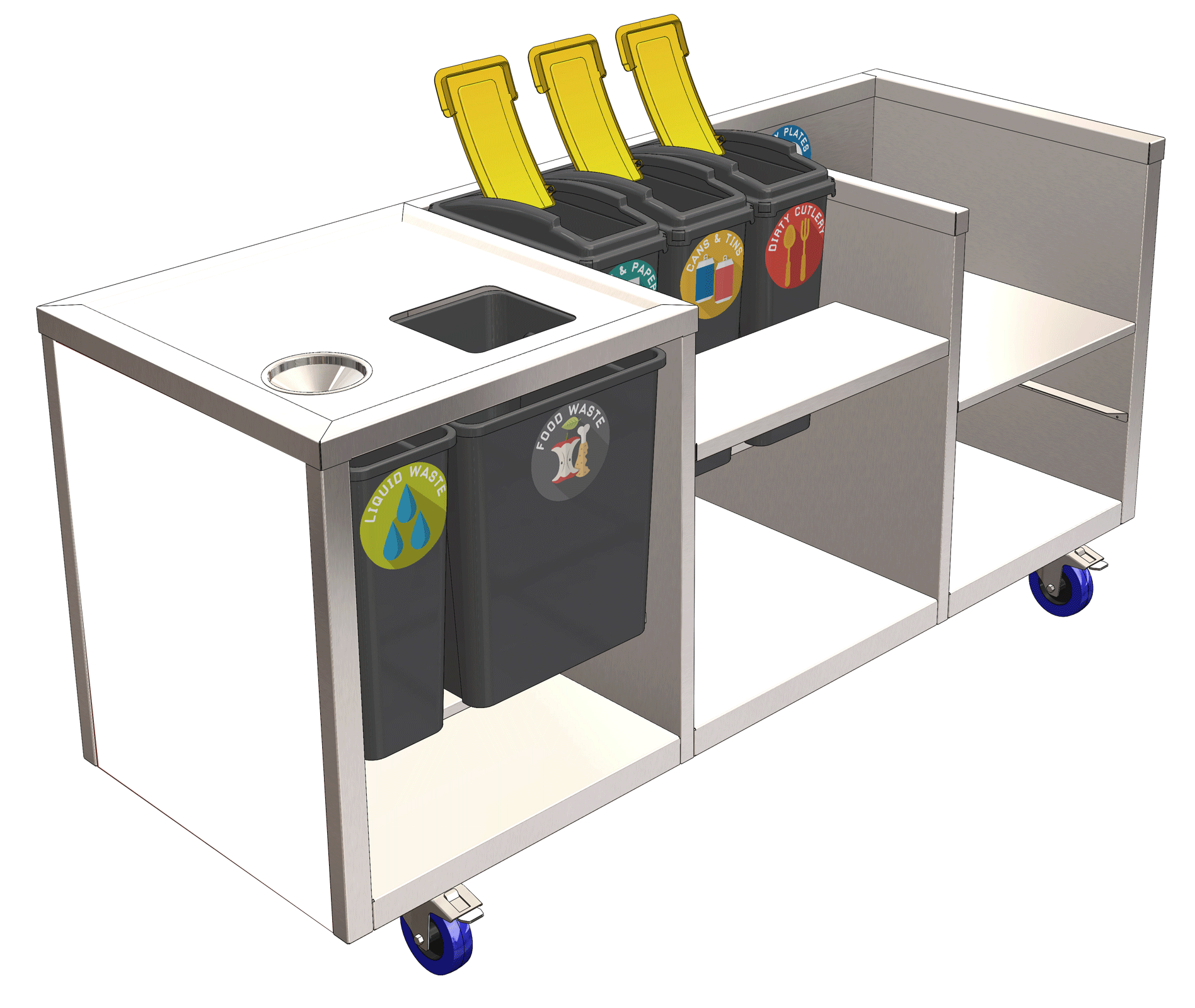

White Finish. (Option Code GWHITCHA5) 5-1 Gn set of outer rear/ side panels in leathergrain plastisol steel, colour white (BS 00E55)  to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

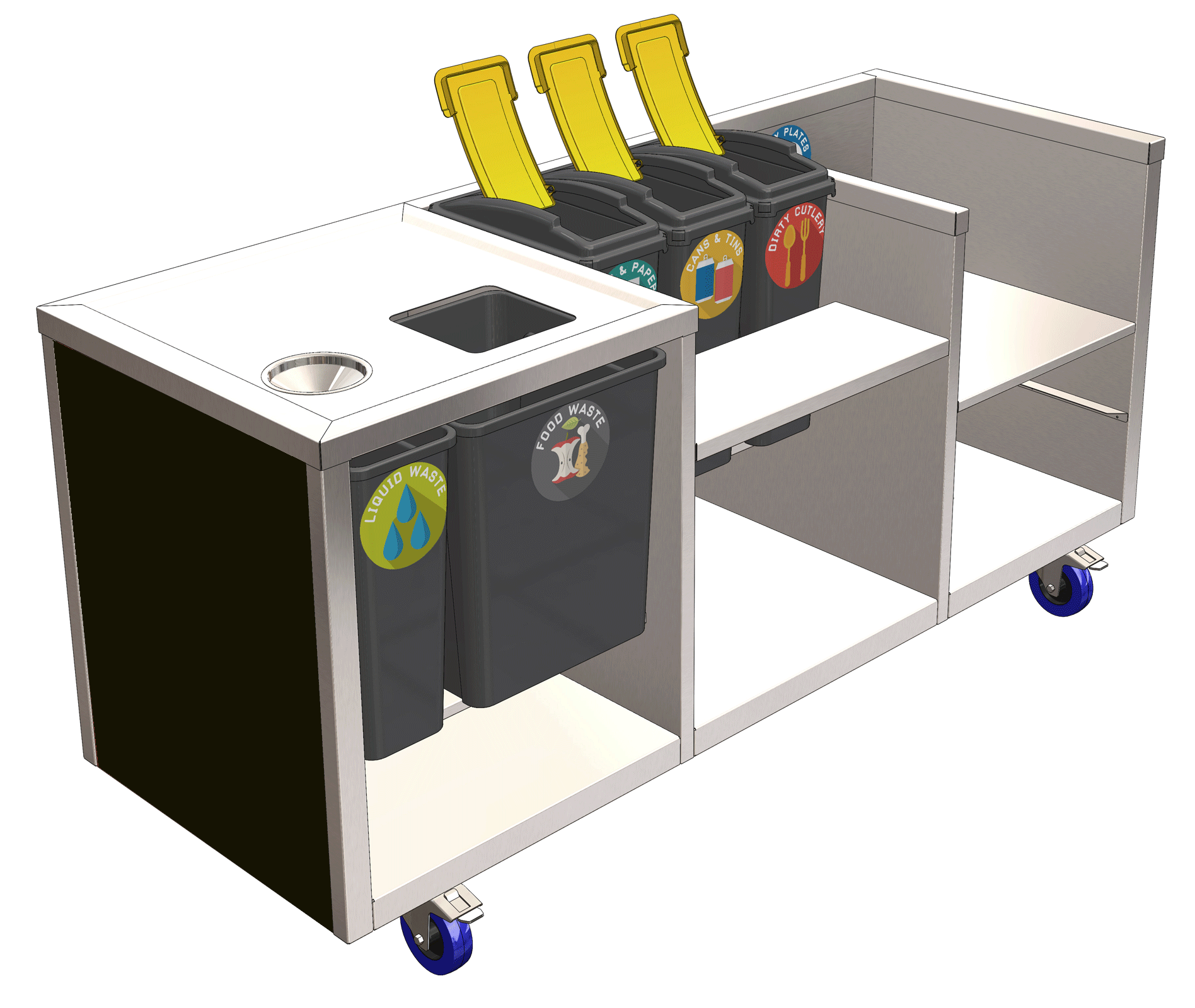

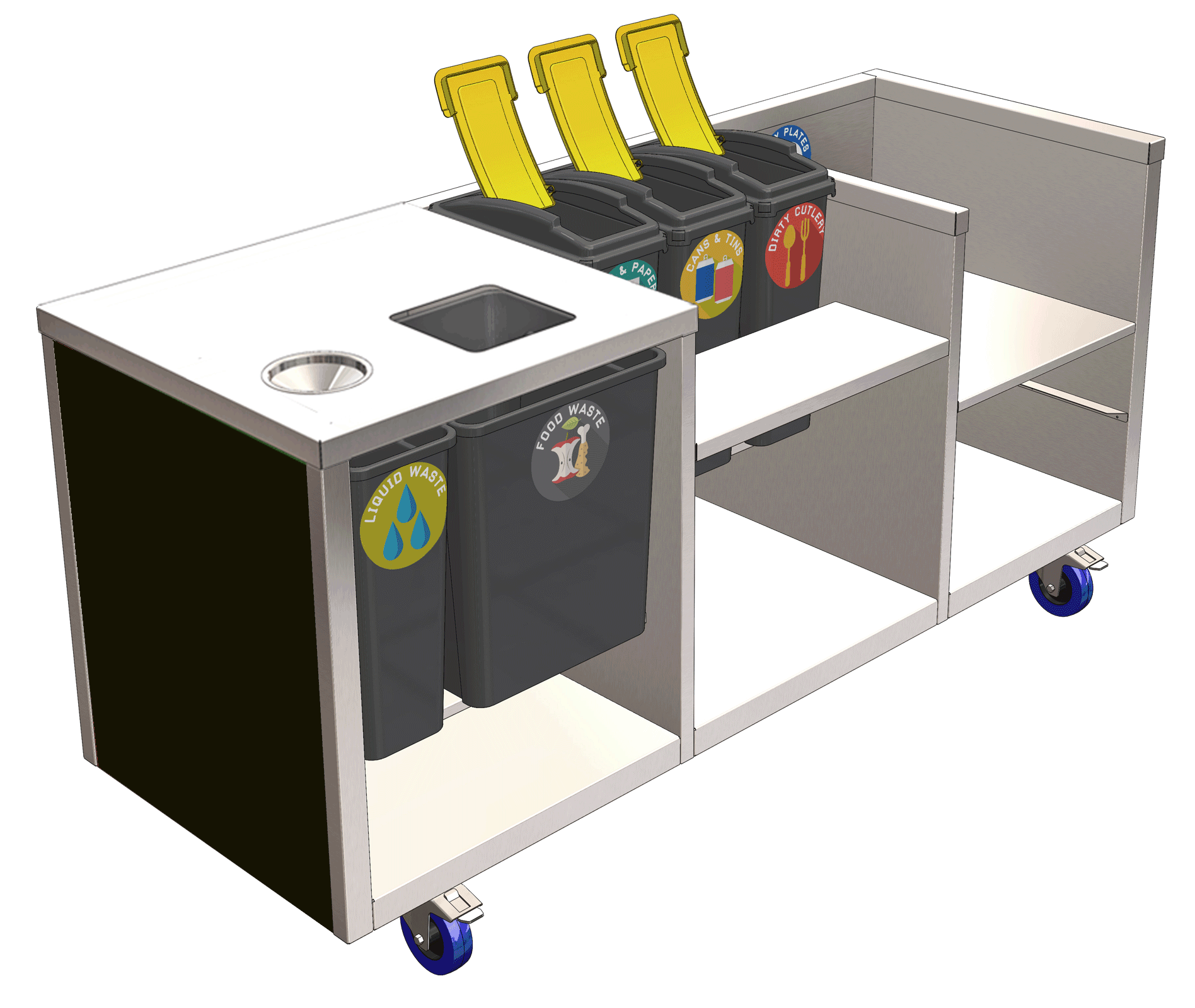

Black Finish. (Option Code GBLAKCHA5) 5-1 Gn set of outer rear/ side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

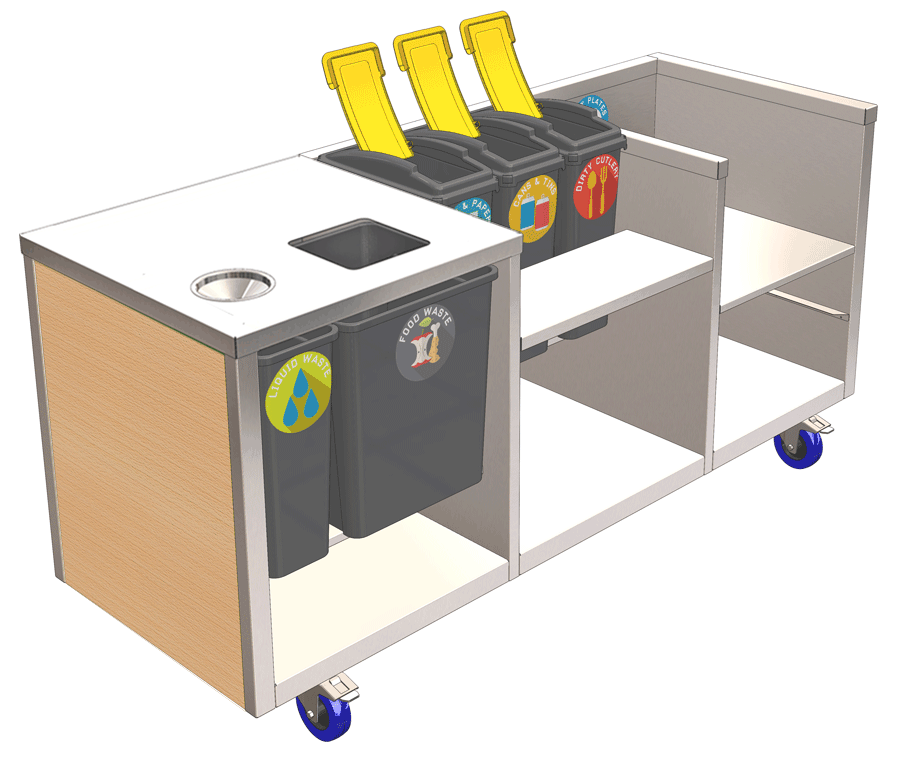

Beech Woodgrain Finish. (Option Code GBEECCHA5) 5-1 Gn set of outer rear/ side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

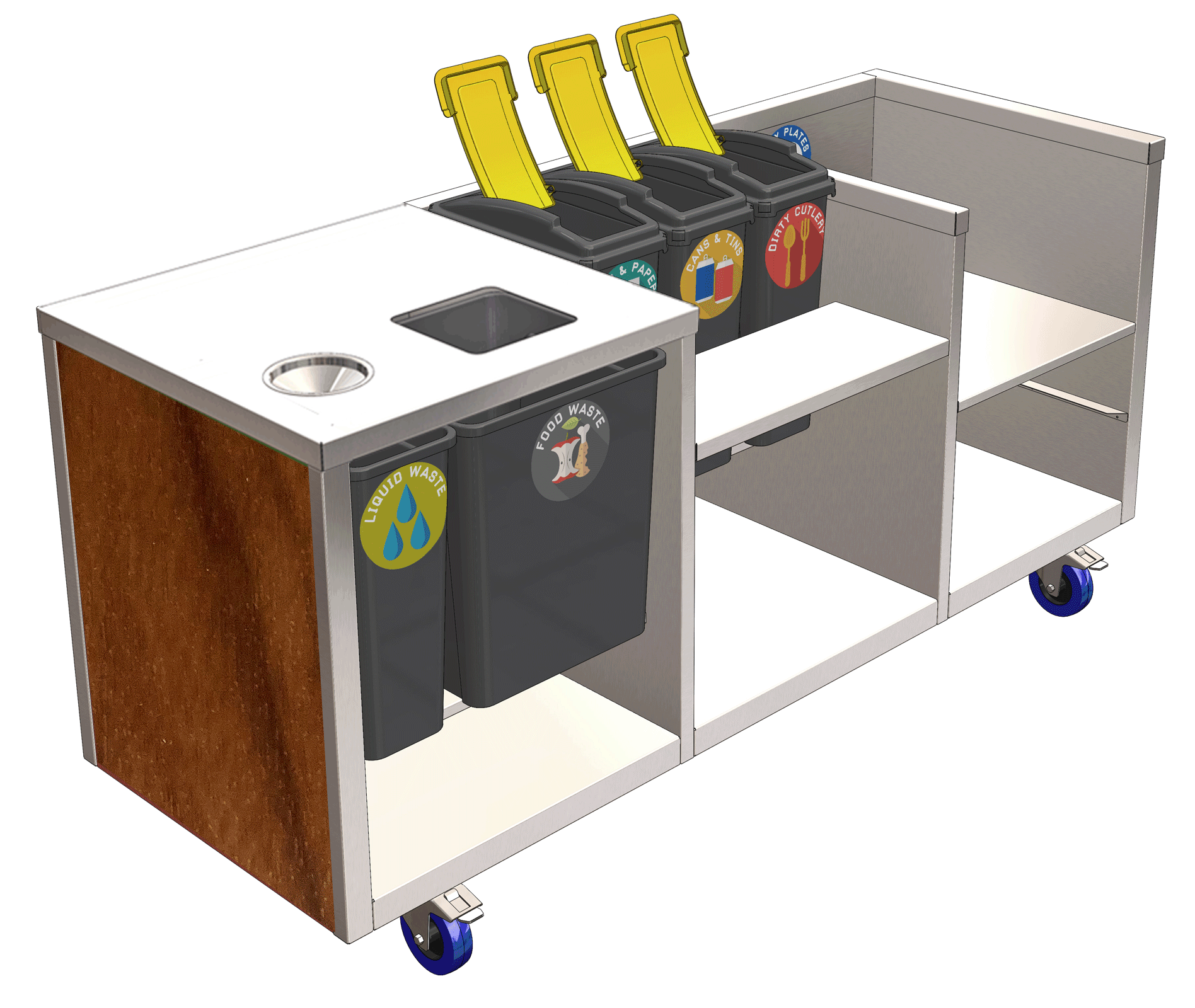

Walnut Woodgrain Finish. (Option Code GWALNCHA5) 5-1 Gn set of outer rear/ side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

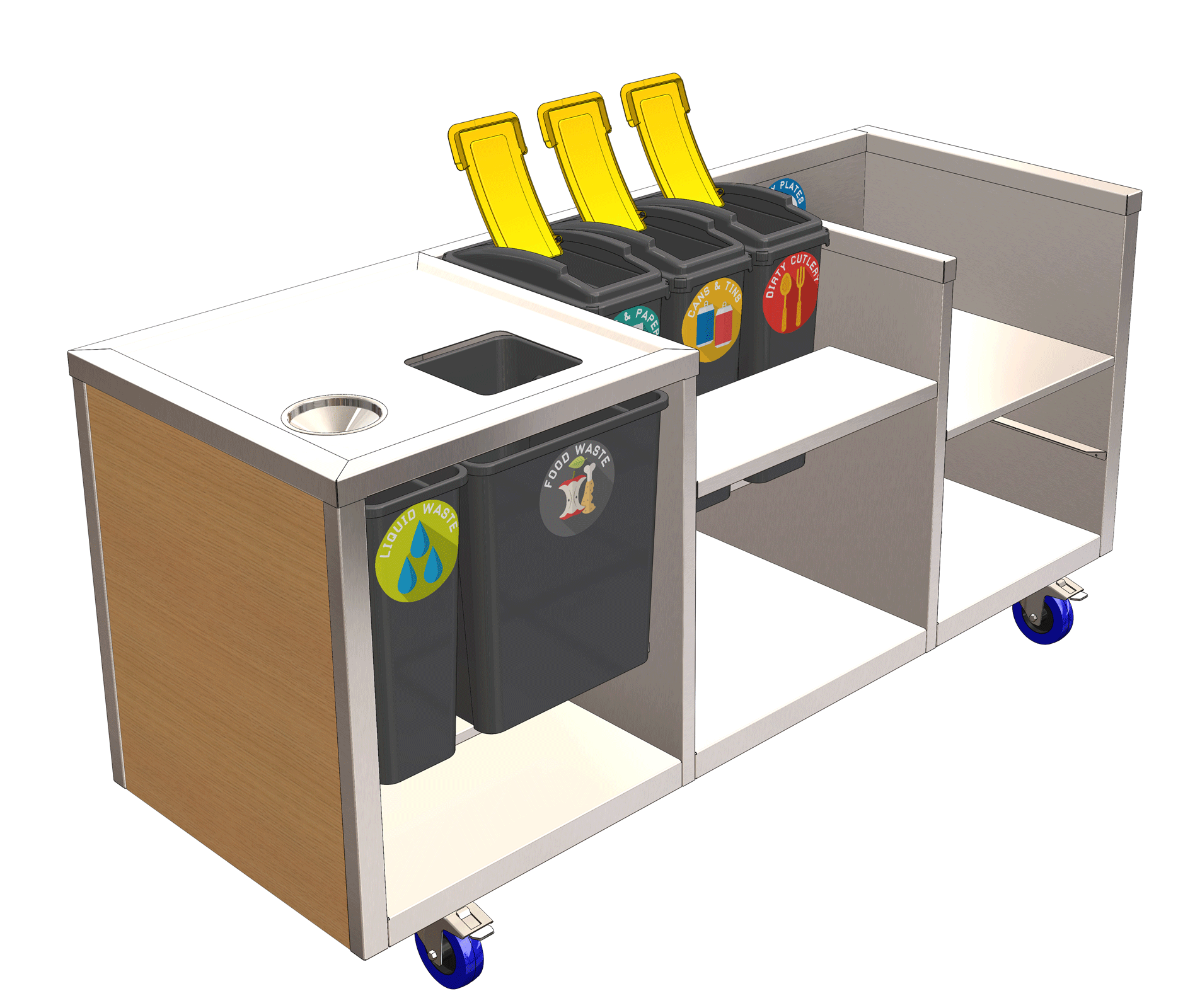

Oak Woodgrain Finish. (Option Code GOAKCHA5)  5-1 Gn set of outer rear/ side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.



OPTIONS :  Glide Waste Clearing Trolley (Model GWT).

Option

Code

Option

Code

Option

Code

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Side/ Rear Panels
(430gd.)

GSSTLCHA5

Colour Side/ Rear Panels
Ocean Blue
(BS18C37)

GBLUECHA5

Colour Side/ Rear Panels
Light Grey
(BS10A05)

GGREYCHA5

Colour Side/ Rear Panels
Forest Green
(RAL6002)

GGRENCHA5

Colour Side/ Rear Panels
Poppy Red
(BS04E5B)

GPREDCHA5

Colour Side/ Rear Panels
Cream
(BS10c31)

GCREMCHA5

Colour Side/ Rear Panels
White
(BS00E55)

GWHITCHA5

Colour Side/ Rear Panels
Black
(BS00E53)

GBLAKCHA5

Woodgrain Side/ Rear Panels
Walnut
(DL85)

GWALNCHA5

Woodgrain Side/ Rear Panels
Beech
(DL76)

GBEECCHA5

Woodgrain Side/ Rear Panels
Oak
(DL84)

GOAKCHA5

XXXXX

XXXXX

XXXXX

XXXXX





Popular Model Codes & Options.

Glide Waste Clearing Trolley
(& 850mm Low Height Option )
Model Code      Option Code
GWT                  G850H







Glide Waste Clearing Trolley
(& Colour Side/ Rear Panels
Ocean Blue – BS18C37)
Model Code      Option Code
GWT                 GBLUECHA5







Glide Waste Clearing Trolley
(& Colour Side/ Rear Panels
Forest Green – RAL6002)
Model Code      Option Code
GWT                 GGRENCHA5







Glide Waste Clearing Trolley
(& Colour Side/ Rear Panels
Black – BS00E53)
Model Code      Option Code
GWT                  GBLAKCHA5







Glide Waste Clearing Trolley
(& Colour Side/ Rear Panels
Poppy Red – BS04E5B)
Model Code      Option Code
GWT               GPREDCHA5







Glide Waste Clearing Trolley
(& Woodgrain Effect Side/ Rear Panels Beech – DL76)
Model Code      Option Code
GWT                GBEECCHA5





Downloads

General Layout Drawings
Glide Waste Clearing Trolley.







Specification Sheet, Base Panel Colour Options, User Manual.
Glide Waste Clearing Trolley.
