CED’s Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

Self Help Ambient Multideck (Open Rear)

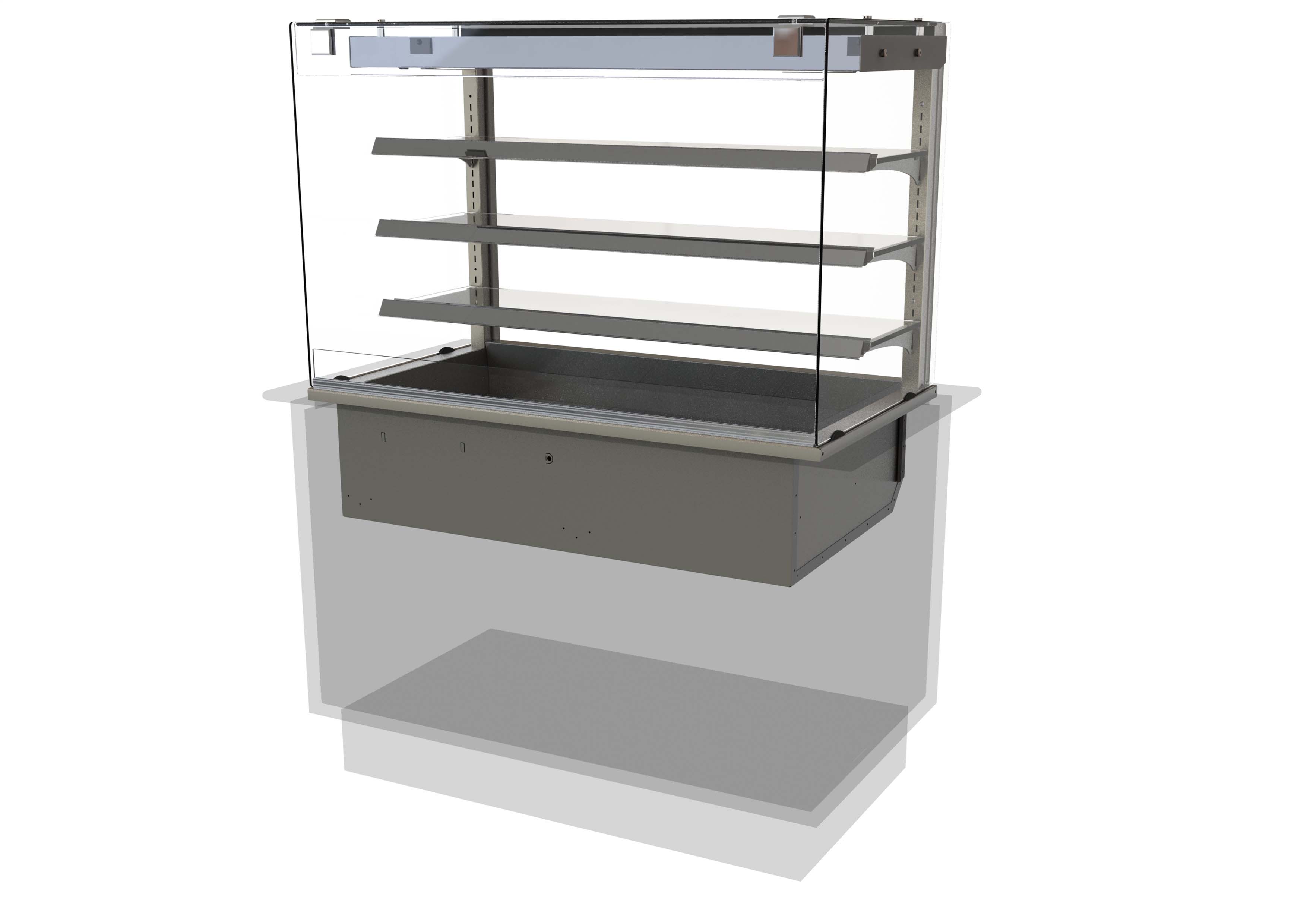

Kubus Self Help Ambient Multideck (Open Rear) (KMDA2-4)



Features

Self Help Ambient Multideck (Open Rear).
Features.

  • Rectilinear flat glass profile is designed to compliment other units within the range.
  • Ambient multi deck with storage well & 3 tier glass shelving, for display of wrapped/ unwrapped ambient product.
  • Self help application. Can be converted to assisted service with addition of full height front glass ( see model below).
  • Superstructure in bright polished steel and aluminium profile.
  • 3 tier toughened glass shelving, adjustable in both height and angle, for increased product display area.
  • Rear loading/ open to rear for easier restocking access.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Lighting is controlled from a push button switch at eye level on gantry soffit.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Optional rear door set available (option KDR2-KDR4)
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Rear Door Option Available  (KDR2-4)


Food Types

Self Help Ambient Multideck (Open Rear).
Food Display Types.



Drinks (Deck Area): Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.



Food (Deck & Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

  • * Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times.


Dimensions

Self Help Ambient Multideck (Open Rear).
Dimensions.

Model

KMDA2

KMDA3

KMDA4

Capacity

2/1 GN

3/1 GN

4/1 GN

Length (mm)

825

1175

1525

Depth (mm)

660

660

660

Height above worktop (mm)

775

775

775

Depth below worktop (mm)

265

265

265

Weight (uncrated) (kg)

69

111

152

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V

  • Lighting switch mounted in gantry sofitt.
  • Rear Door Option Available  (KDR2-4)





Downloads

General Layout Drawings.
Kubus Self Help Ambient Multidecks (Open Rear).





Fitting Instructions & User Manual.
Kubus Self Help Ambient Multidecks (Open Rear).




Kubus Ambient

Visual

Assisted Service Ambient Multideck (Open Rear)

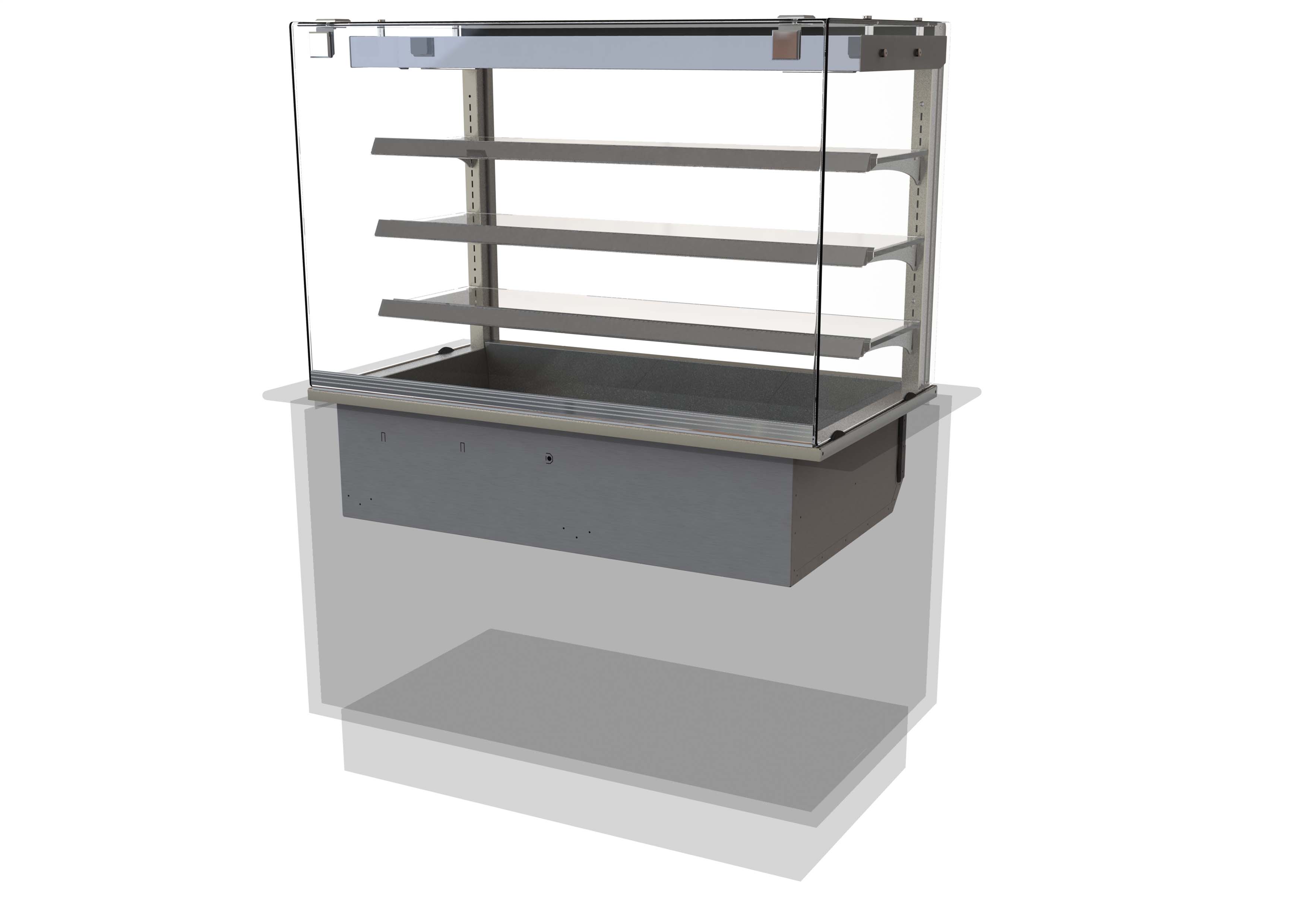

Kubus Assisted Service Ambient Multideck (Open Rear) (KMDA2-4AS)



Features

Assisted Service Ambient Multideck (Open Rear).
Features.

  • Rectilinear flat full height front & side glass sneeze guard profile is designed to compliment other units within the Kubus range
  • Ambient multi deck with storage well & 3 tier glass shelving, for display of wrapped/ unwrapped ambient product.
  • Assisted service application.
  • Superstructure in bright polished steel and aluminium profile.
  • 3 tier toughened glass shelving, adjustable in both height and angle, for increased product display area.
  • Rear loading/ open to rear for easier restocking access.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Lighting is controlled from a push button switch at eye level on gantry soffit.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Optional rear door set available (option KDR2-KDR4)
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Tilting front glass sneeze screen mounted on locking hinge, for ease of cleaning.
  • Rear Door Option Available  (KDR2-4)


Food Types

Assisted Service Ambient Multideck (Open Rear).
Food Display Types.



Drinks (Deck Area): Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.



Food (Deck & Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

  • * Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times.


Dimensions

Assisted Service Ambient Multideck (Open Rear).
Dimensions.

Model

KMDA2AS

KMDA3AS

KMDA4AS

Capacity

2/1 GN

3/1 GN

4/1 GN

Length (mm)

825

1175

1525

Depth (mm)

660

660

660

Height above worktop (mm)

775

775

775

Depth below worktop (mm)

265

265

265

Weight (uncrated) (kg)

73

117

162

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V

  • Lighting switch mounted in gantry sofitt.
  • Rear Door Option Available  (KDR2-4)





Downloads

General Layout Drawings.
Kubus Assisted Service Ambient Multidecks (Open Rear).





Fitting Instructions & User Manual.
Kubus Assisted Service Ambient Multidecks (Open Rear).







website KUBUS AMBIENT HEADER

Visual

Self Help Ambient Multideck (Fixed Back)

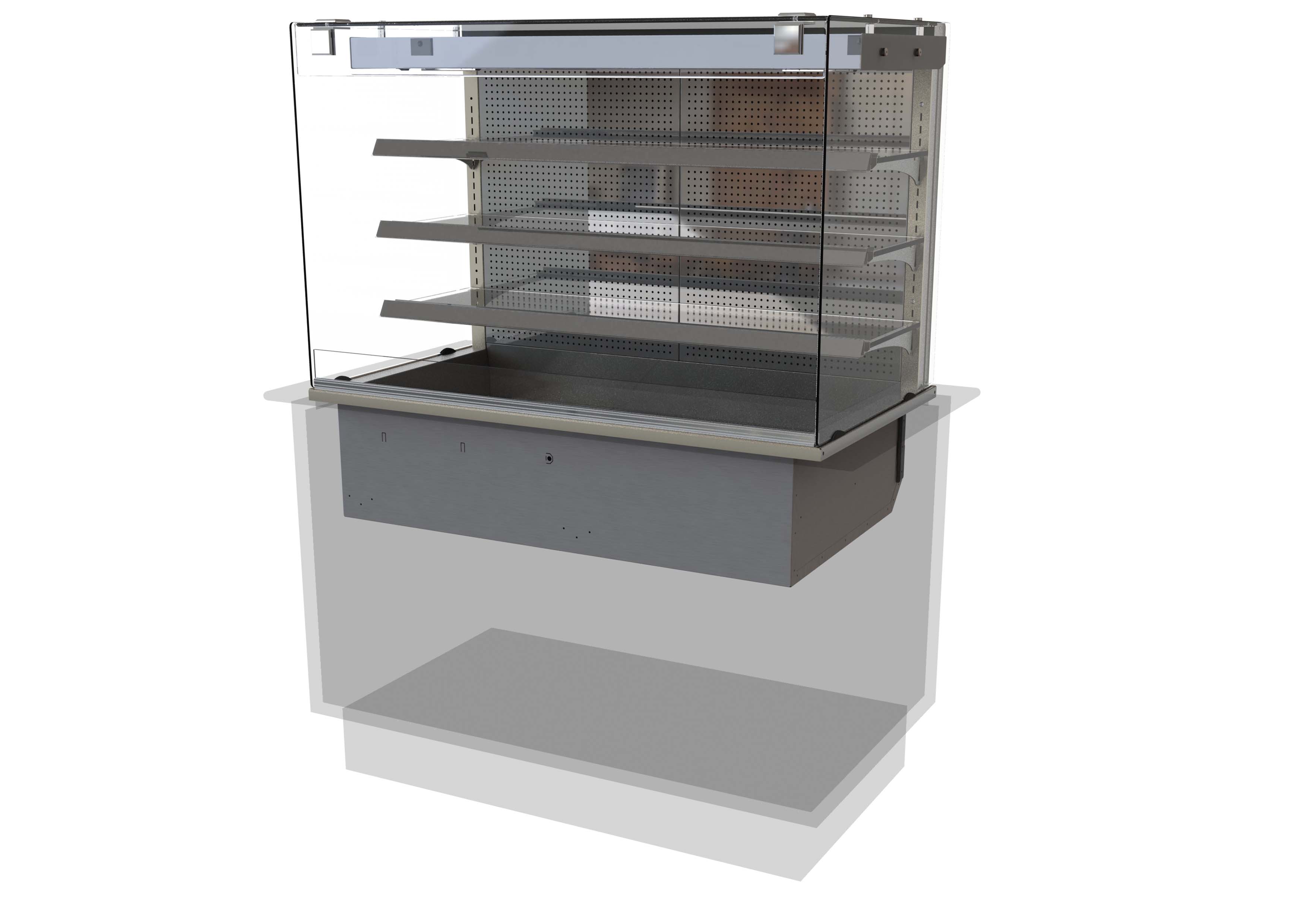

Kubus Self Help Ambient Multideck (Fixed Back) (KMDA2-4FB)



Features

Self Help Ambient Multideck (Fixed Back).
Features.

  • Rectilinear flat glass profile is designed to compliment other units within the range.
  • Ambient multi deck with storage well & 3 tier glass shelving, for display of wrapped/ unwrapped ambient product.
  • Self help application. Can be converted to assisted service with addition of full height front glass ( see model below).
  • Superstructure in bright polished steel and aluminium profile.
  • 3 tier toughened glass shelving, adjustable in both height and angle, for increased product display area.
  • Solid steel rear perforated back panel for wall sited application – to match similar chilled multideck display.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Lighting is controlled from a push button switch at eye level on gantry soffit.
  • 40mm tall ‘Point Of Sale’ display/ ticket strips are fitted as standard.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Optional rear door set available (option KDR2-KDR4)
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Self Help Ambient Multideck (Fixed Back).
Food Display Types.



Drinks (Deck Area): Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, wine, beer, Lager, fruit juice & health drinks.



Food (Deck & Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

  • * Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times.


Dimensions

Self Help Ambient Multideck (Fixed Back).
Dimensions.

Model

KMDA2FB

KMDA3FB

KMDA4FB

Capacity

2/1 GN

3/1 GN

4/1 GN

Length (mm)

825

1175

1525

Depth (mm)

660

660

660

Height above worktop (mm)

775

775

775

Depth below worktop (mm)

265

265

265

Weight (uncrated) (kg)

75

116

162

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V



  • Lighting switch mounted in gantry soffit.


Downloads

General Layout Drawings.
Kubus Self Help Ambient Multidecks (Fixed Back).





Fitting Instructions & User Manual.
Kubus Self Help Ambient Multidecks (Fixed Back).
