Bag-Holder---MainTOURNUS_300_rvbWaste Bag Holders.
Tournus waste bag holding equipment accommodates between 50 & 130 litre waste/ bin bag sizes and are available as either front of house (s/steel surround) or back of house (open framed) versions.

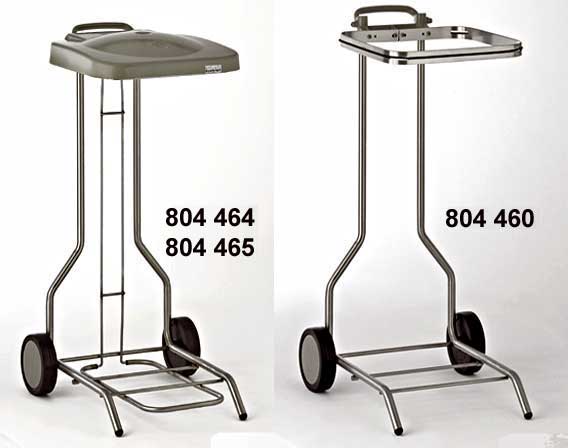

codes---open-frameOpen Frame Bag Holders (Open Neck Or Pedal Lid).                 These bag holders are available as an open framed model, with a robust pedal operated lid opening system, or as an open neck model, both ideal for back of house waste. They are essentially all made from s/steel 20 mm diameter tube open frames, with a rigid bag support at the neck, formed from 4 mm s/steel flat bar, and an elastic strap bag fixing system, to retain the bag. All bag holder versions are are fitted with Ø 150 mm smooth wheels, front support legs on non-slip rubber pads and a generously sized handle, for easier transport.

codes---bag-holder---118845Open Frame Bag Holder (Bag Support Option). The option of a removable solid tray to the open base frame models, help support waste bags from below (Code 118 845).

1

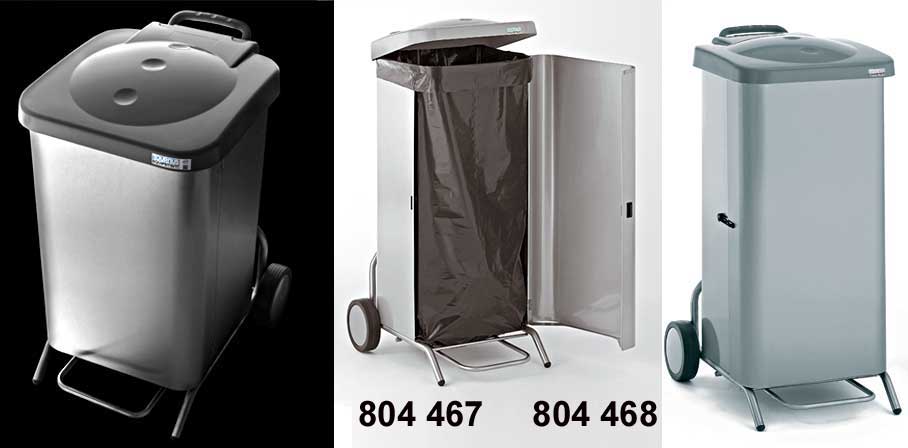

804-468-mainBag Holders (Pedal Lid + Steel Surround).
For front of house areas, the pedal operated lid model is available with a s/steel surround. This model is available as either 700 mm high (70 litre) or 900 mm high (100 litre). The steel surround versions feature a latch and opening door leaf, for easier waste bag replacement. The models with pedal lid feature a polypropylene hinged lid, controlled by a steel pedal and connecting rods, for hands free opening.

Bag-Holder-+-Clip---Main-+-Open Frame Bag Holders (Pedal Clip).
A 810 mm high (100 litre) or 970 mm high (110 litre) open framed version of the bag holder is also available with a steel base to support the bag, and a two part pedal operated clip to hold and open the bag.

option-296-298Segregated Waste (Coloured Label Option). Optional colour coded labels can be placed on the bag holders, allowing individual models to be identified, when waste is to be segregated (Code 296 298) .

1

TOURNUS_300_rvb

Waste Bins.

Bins---Main-Header

Waste Bins.

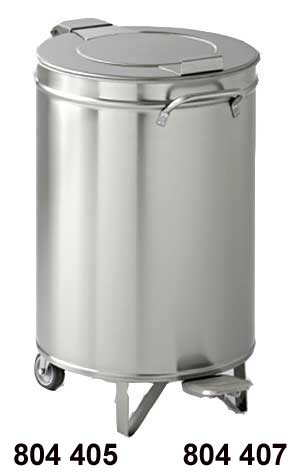

cylindrical-binCylindrical Bins (Pedal Lid). The range of Tournus kitchen waste bins include a 610 mm high (50 litre capacity) & a 720 mm high (100 Litre capacity) cylindrical s/steel bin, each with pedal operated lid and swivel wheels. The body of the bin also has transport handles fitted.

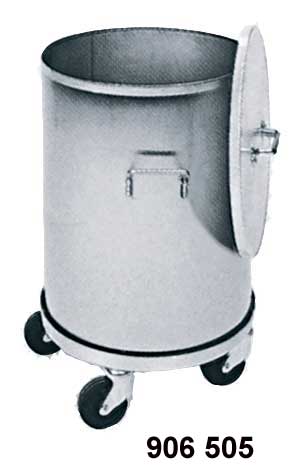

waste-bin-fat-&-bonesWaste Bin (Fat & Bones). For busy supermarket kitchens or commercial carcass preparation areas, this 755 mm high, Ø 470 mm s/steel storage bin has a 100 Litre capacity. The bin is designed with transport handles, an independent wheeled base and a hook on lid with handle, to enable the bin to be used as on open ended cylinder.

Sanitary Containers. For storage of SRM (specified risk materials) or seizure, Tournus offer two types of white 60 Litre capacity polyethylene sanitary containers, each container is marked S.R.M. or Seizure in red lettering. They are 650 mm high, Ø 400 mm and are supplied with sanitary-containerssteel lids & padlocks.

Sanitary Container (Mobile Base Option). An optional mobile circular steel base for the sanitary container is available, with both perimeter up stand and independent set of castors.

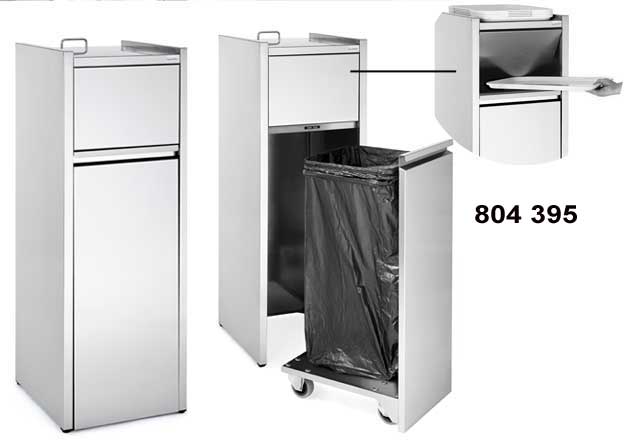

more-snack-barSnack Bar Bin  (Hinged Waste Flap). The mobile Tournus snack bar bin is a neat, compact ‘front-of-house’ food waste disposal solution. 1236 mm high & made from food grade s/steel, the top of the unit has a flat roof space for used tray storage, with a rear mounted transport handle, which also doubles as a tray stop.

The top portion of the bin features a hinged steel flap, for food disposal into the lower bag holding section. The removable steel bag section is an open mobile frame, with base panel & castors attached to a front up-stand with folded handle, which slides into the outer bin frame. The bag holding section has a rigid bag support at the open neck, formed from 4 mm s/steel flat bar, and an elastic strap bag fixing system to retain the bag.

Visual

Waste Bag Holders & Bins.TOURNUS_300_rvb
Visual

Waste Bag Holders.

3-bag-holders

Waste Bins.

Bins---Main-Header



Features

Waste Bag Holders & Bins.TOURNUS_300_rvb
Features

Waste Bag Holders.

3-bag-holders

  • Waste bag holding equipment accommodates either 70 or 100 litre waste/ bin bag sizes.
  • Available as either front of house (s/steel surround) or back of house (open framed) versions.
  • Open Frame Bag Holder (Pedal Lid) – supplied with robust pedal operated lid opening system.
  • Open Frame Bag Holder (Open Neck) – supplied with rigid bag support at the neck, formed from 4 mm s/steel flat bar, and elasticated strap bag – fixing system, to retain the bag.
  • All made from s/steel 20 mm diameter tube open frames & fitted with Ø 150 mm smooth wheels, front support legs on non-slip rubber pads and generous sized transport handle.
  • Bag Holder (Steel Surround) – supplied with pedal operated lid and s/steel surround. Steel surround features a latch and opening door leaf, for waste bag replacement. The pedal lid feature has polypropylene hinged lid, controlled by a steel pedal and connecting rods, for hands free opening.
  • Open Frame Bag Holder (Pedal Clip) – supplied as open frame bag holder with steel base to support the bag, and two part pedal operated clip to hold and open the bag.
  • Model code – Open Frame Bag Holder (Pedal Lid) 50-100 Litre Capacity – (804 464).
  • Model code – Open Frame Bag Holder (Pedal Lid) 100-130 Litre Capacity – (804 465).
  • Model code – Open Frame Bag Holder (Open Neck) 50-100 Litre Capacity – (804 460).
  • Model code – Bag Holder (Pedal Lid + S/steel Surround ) 70 Litre Capacity – (804 467).
  • Model code – Bag Holder (Pedal Lid + S/steel Surround ) 100 Litre Capacity – (804 468).
  • Model code – Open Frame Bag Holder (Pedal Clip) 100 Litre – (804 452).
  • Model code – Open Frame Bag Holder (Pedal Clip) 110 Litre – (804 453).
  • Option Code – Open Frame Bag Holder (Bag Support Option), removable solid tray to the open base frame models, helps support waste bags from below – (118 845).
  • Option Code – Segregated Waste (Set Of 5 Coloured Labels), placed on bag holders allowing individual identification, when waste is to be segregated – (296 298).

Waste Bins.

Bins---Main-Header

  • Cylindrical Bins (Pedal Lid) – available as 610 mm high (50 litre capacity) & 720 mm high (100 Litre capacity) cylindrical s/steel bin, each with pedal operated lid and swivel wheels.
  • Cylindrical Bins (Pedal Lid) – the body of the bin also has transport handles fitted.
  • Waste Bin (Fat & Bones) – ideal for busy supermarket kitchens or commercial carcass preparation areas.
  • Waste Bin (Fat & Bones) – supplied as 755 mm high, Ø 470 mm s/steel storage bin with 100 Litre capacity.
  • Waste Bin (Fat & Bones) – supplied with transport handles, independent wheeled base and a hook on lid with handle.
  • Sanitary Containers – suited to storage of SRM (specified risk materials) or seizure.
  • Sanitary Containers – 650 mm high, Ø 400 mm and are supplied with polyethylene lids & padlocks.
  • Sanitary Containers – each container is marked ‘S.R.M.’ or ‘Seizure’ in red lettering.
  • Option – Sanitary Container Mobile Base. A mobile circular steel base for the sanitary container is available, with both perimeter up stand and independent set of castors.
  • Snack Bar Bin – ‘front-of-house’ food waste disposal solution. 1236 mm high & made from food grade s/steel (110 Litre Capacity).
  • Snack Bar Bin top of the unit has flat roof space for used tray storage and rear mounted transport handle, which doubles as tray stop.
  • Snack Bar Bin top portion of the bin features a hinged steel flap, for food disposal into the lower bag holding section.
  • Snack Bar Bin – removable steel bag section is open mobile frame, with base panel, castors and front up-stand with folded handle, which slides into outer bin frame.
  • Snack Bar Binbag holding section has rigid bag support at the open neck, formed from 4 mm s/steel flat bar, and an elastic strap bag fixing system to retain the bag.
  • Model code – Snack Bar Bin (Hinged Waste Flap) 110 Litre Capacity – (804 395).
  • Model code – Cylindrical Bin (Pedal Lid) 50 Litre Capacity – (804 405).
  • Model code – Cylindrical Bin (Pedal Lid) 100 Litre Capacity – (804 407).
  • Model code – Waste Bin – Fat & Bones (Lid & Hook) 100 Litre Capacity – (906 505).
  • Model code – ‘Seizure’ Type Sanitary Container (Lid + Padlock + Container With Logo) 60 Litre Capacity – (804 426).
  • Model code – ‘S.R.M.'(Specified Risk Material) Type Sanitary Container (Lid + Padlock + Container With Logo) 60 Litre Capacity – (804 425).
  • Option Code – Mobile S/steel base for Sanitary Container – (906 519).


Dimensions

TOURNUS_300_rvbWaste Bag Holders & Bins.
Dimensions

Waste Bag Holders.

3-bag-holders







Model

804 464

804 465

804 460

804 467

804 468

Description

Open Frame Bag Holder (Pedal Lid)

Open Frame Bag Holder (Pedal Lid)

Open Frame Bag Holder (Open Neck)

Bag Holder (Pedal Lid + Steel Surround)

Bag Holder (Pedal Lid + Steel Surround)

Bag Access/ Retention Method

Pedal Lid/ Elastic Bag Holder Strap To 4 mm Steel Opening.

Pedal Lid/ Elastic Bag Holder Strap To 4 mm Steel Opening.

Open Neck Frame/ Elastic Bag Holder Strap To 4 mm Steel Opening.

Pedal Lid/ Elastic Bag Holder Strap To 4 mm Steel Opening.

Pedal Lid/ Elastic Bag Holder Strap To 4 mm Steel Opening.

Storage Capacity (Lt).

50-100

100 – 130

50 – 100

70

100

Frame Construction

S/steel Ø 20 mm tube open frame, Ø 150 mm wheels + support legs c/w rubber pads.

S/steel Ø 20 mm tube open frame, Ø 150 mm wheels + support legs c/w rubber pads.

S/steel Ø 20 mm tube open frame, Ø 150 mm wheels + support legs c/w rubber pads.

S/steel Ø 20 mm tube open frame, Ø 150 mm wheels + support legs c/w rubber pads.

S/steel Ø 20 mm tube open frame, Ø 150 mm wheels + support legs c/w rubber pads.

Unit Height (mm)

700

900

800

700

900

Unit Width (mm)

450

450

450

450

450

Unit Depth (mm)

535

535

505

535

1/2 “

Waste Bag Holders (Pedal Clip).

1-bag-holder



Model

804 452

804 453

Description

Open Frame Bag Holder (Pedal Control Clip)

Open Frame Bag Holder (Pedal Control Clip)

Bag Access/ Retention Method

Pedal Clip/ Elastic Bag Holder Strap To Steel Clips.

Pedal Clip/ Elastic Bag Holder Strap To Steel Clips.

Storage Capacity (Lt).

100

110

Frame Construction

S/steel Ø 20 mm tube open frame, Ø 150 mm wheels + support legs c/w rubber pads.

S/steel Ø 20 mm tube open frame, Ø 150 mm wheels + support legs c/w rubber pads.

Unit Height (mm)

810

970

Unit Width (mm)

450

450

Unit Depth (mm)

535

535















Waste Bins.

bins---dimensions



Model

804 395

804 405

804 407

906 505

Description

Snack Bar Bin (Hinged Waste Flap).

Cylindrical Bin (Pedal Lid).

Cylindrical Bin (Pedal Lid).

Waste Bin (Fat & Bones).

Bag Access/ Retention Method

Hinged Flap/ Elastic Bag Holder Strap To 4 mm Steel Opening/ Mobile Base.

Pedal Lid.

Pedal Lid.

Removable Lid With Hook Support.

Storage Capacity (Lt).

110

50

100

100

Frame Construction.

S/steel Outer Frame Panels With Tray Storage & Product Stop/ Mobile Steel Bag Support Trolley Under With Pull Handle.

Mobile S/steel Cylinder Frame With Pedal Operated Lid, Transport Handle, Swivel Wheels + Base Pedal Stand.

Mobile S/steel Cylinder Frame With Pedal Operated Lid, Transport Handle, Swivel Wheels + Base Pedal Stand.

Mobile S/steel Cylinder Frame, Removable Lid + Hook. Transport Handle + Independent Wheeled Base (4 No.)

Unit Height (mm)

1236

610

720

755

Unit Width (mm)

444

Ø 370

Ø 450

Ø 470

Unit Depth (mm)

480

N/A

N/A

N/A


sanitary-containers

Model

804 425

804 426

906 519

Description

Sanitary Container (Specified Risk Material) /Polyethylene Body + Lid/ Padlock/ Marked ‘S.R.M.’

Sanitary Container (Seizure) /Polyethylene Body + Lid/ Padlock/ Marked ‘Seizure’.

Mobile Circular Steel Base For Sanitary Container/ Perimeter Up Stand/ Independent Set Of Castors.

Storage Capacity (Lt).

60

60

N/A

Unit Height (mm)

650

650

125

Unit Width (Ø mm)

Ø 400

Ø 400

Ø 425



Options

Waste Bag Holders & Bins.TOURNUS_300_rvb
Options.

Open Frame Bag Holder (Bag Support Option).

codes---bag-holder---118845Removable solid tray for open base frame models 804 464/ 804 465/ 804 460 – helps support waste bags from below – (Option Code 118 845).





Segregated Waste (Set Of 5 Coloured Labels).

option-296-298Set Of 5 Coloured Labels – placed on bag holders allowing individual identification, when waste is to be segregated – (Option Code 296 298).



Downloads

Sales & Technical Information.TOURNUS_300_rvb
Waste Bag Holders & Bins.

 Waste Bags Holders & Bins - Sales LiteratureWaste Bags Holders & Bins – Sales Literature  Waste Bag Holders & Bins - Technical Data SheetsWaste Bag Holders & Bins – Technical Data Sheets



General Arrangement Drawings.
Waste Bag Holders & Bins.

Waste Bag Holders & Bins - G.A's All ModelsWaste Bag Holders & Bins – G.A’s All Models
