CED’s Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

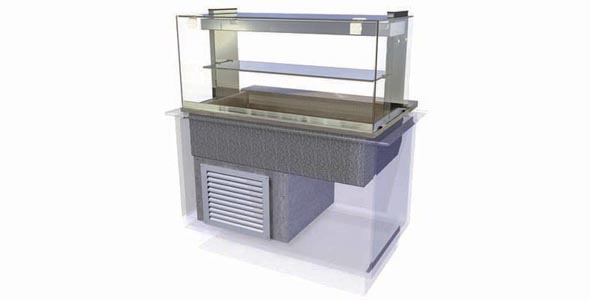

Assisted Service Cold Deli (HT).Kubus Cold Deli





Features

Assisted Service Cold Deli (HT).
Features.

  • Rectilinear flat glass profile is designed to compliment other units within the Kubus range.
  • Cold fan blown well unit features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Assisted service application.
  • Superstructure supports a toughened full height curved glass sneeze screen & side glass.
  • Toughened flat glass ambient mid shelf increases product display diversity.
  • Rear steel sandwich preparation shelf for food preparation.
  • Features eye-level gantry mounted digital temperature display and control panel (operator side).
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Superstructure in bright polished steel and aluminium profile.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2 m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • 24-hour operation as standard.
  • Optional 1/1 GN polyethylene cutting board for sandwich preparation, can be used in multiples. (Option KCB1)
  • Refrigeration condensing unit is housed in an under slung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Features ‘tamper proof temperature control facility.
  • Modular removable deck plate system for easier cleaning and maintenance.


Food Types

Assisted Service Cold Deli (HT).
Food Display Types.



Drinks (Well Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Well Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.

Food (Glass Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts.

* Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations re: display times.





Dimensions

Assisted Service Cold Deli (HT).
Dimensions

Model

KCDL2HT

KCDL3HT

KCDL4HT

KCDL5HT

KCDL6HT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Storage Capacity (Litres) + Ambient Shelf

44 (+20)

66 (+25)

88 (+30)

110(+35)

132(+38)

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

784

784

784

784

784

Height Above Worktop (mm)

540

540

540

540

540

Depth Below Worktop (mm)

677

677

677

677

677

Weight (Un-Crated) (kg)

111

133

161

180

199

Power (kW)

1.22

1.22

1.46

1.66

1.73

Total Heat Rejection @ 32°C Ambient (Watts)

1080

1080

1340

2010

2317

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = R290 Refrigerant.
  • Control panel to ‘operator side’ of gantry.


Downloads

General Layout Drawings.
Kubus Assisted Service Cold Delis (HT).



General Layout Drawings.
Non Standard Airflow Options (Cold Displays)



Fitting Instructions & User Manual.
Kubus Assisted Service Cold Delis (HT).




AA-KUBUS COLD BANNER

Visual

Self Help Cold Deli (HT).Kubus Self Help Cold Deli (KCDLSH2-6HT)



Features

Self Help Cold Deli (HT).
Features.

  • Rectilinear flat glass profile is designed to compliment other units within the Kubus range.
  • Cold fan blown well unit features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Self help application.
  • Superstructure supports a toughened flat glass sneeze screen & side glass.
  • Toughened flat glass ambient mid shelf increases product display diversity.
  • Rear steel sandwich preparation shelf for food preparation.
  • Features eye-level gantry mounted digital temperature display and control panel (operator side).
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Superstructure in bright polished steel and aluminium profile.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2 m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • 24-hour operation as standard.
  • Optional 1/1 GN polyethylene cutting board for sandwich preparation, can be used in multiples. (Option KCB1)
  • Refrigeration condensing unit is housed in an under slung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Features ‘tamper proof temperature control facility.
  • Modular removable deck plate system for easier cleaning and maintenance.


Food Types

Self Help Cold Deli (HT).
Food Display Types.



Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.

Food (Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts.

* Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations re: display times.





Dimensions

Self Help Cold Deli (HT).
Dimensions.

Model

KCDLSH2HT

KCDLSH3HT

KCDLSH4HT

KCDLSH5HT

KCDLSH6HT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Storage Capacity (Litres) + Ambient Shelf.

44 (+20)

66 (+25)

88 (+30)

110(+35)

132(+38)

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

784

784

784

784

784

Height Above Worktop (mm)

540

540

540

540

540

Depth Above Worktop (mm)

677

677

677

677

677

Weight (Un-Crated) (kg)

107

127

153

170

188

Power (kW)

1.22

1.22

1.46

1.66

1.73

Total Heat Rejection @ 32°C Ambient (Watts)

1080

1080

1340

2010

2317

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = R290 Refrigerant.
  • Control panel to ‘operator side’ of gantry.
  • If controls are required on customer side, please state ‘Controls to customer side’ when ordering.


Downloads

General Layout Drawings.
Kubus Self Help Cold Deli (HT).

General Layout Drawings.
Non Standard Airflow options (Cold Displays)



Fitting Instructions & User Manual.
Kubus Self Help Cold Deli (HT).
