Reheating Ovens

Visual

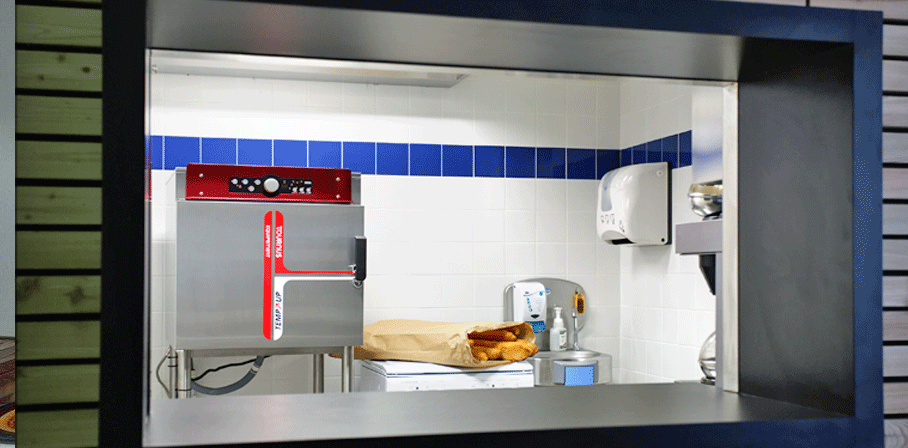

Reheating Ovens.

Features

Reheating Ovens.
Features.

• Fan assisted reheating oven for raising the temperature of pre-cooked food, to a minimum temperature of  82ºC before being held, displayed or served. (auto holding temperature thereafter of 65ºC)
• Capacity for 5, 7, 10 and 15 levels of 1/1 GN capacity containers (20/40 or 65 mm deep) or wire grids (By Others).
• Oven mounted on stainless steel frame with lower storage shelf.
• 5-level oven also comes as optional free-standing model.
• Available as Mono Program Control Type Oven – for one single reheating time.
• Available as Multi Program Control Type Oven – for up to 3 simultaneous reheating times, allowing staged reheating of different food types.
• Made of food quality stainless steel
• AISI 441 stainless steel cladding with top and bottom ventilation areas at rear. The offset ventilation at the top allows for positioning up against a wall in optimum safety.
• Inside of oven made of one-piece, radius AISI 304 stainless steel, 1.2 mm thick with press-drawn sliders, spaced every 71 mm for easy cleaning.
• Thermal insulation of muffle by glass wool, 60 mm thick.
• Automatic Oura in upper part.
• Reversible door, opening to the right at 240° as standard, insulated with rock wool, 40 mm thick – Closed by automatic latching handle.
• Removable silicone door seal to facilitate cleaning or replacement.
• Removable protective plate for fan and heating element.
• Fan assisted heating by stainless steel shielded circular heating elements.
• Door opening – maximum radius 240 degrees.
• IP 25 Ingress Protection.
• Electrical  Frequency 50/60 Hz.
• 3 Phase electrical supply – minimum 1.5 m electrical hard wire cable connection required by others – to terminal provided.
• Single phase electrical supply on request (For 5 level model only) – minimum 1.5 m electrical hard wire cable connection required by others – to terminal provided.
• Humidification condensate discharge, connection required to fitting (o.d. Ø 20 mm) provided – connection by others.
• Incoming humidification water supply, connection required to male threaded 8/13 mm (1/4″) end provided – connection by others.
• Option – humidification condensate discharge collection tray, mounted to under side of oven – 1/1 GN x 40 mm. (Option Code 507 655)
• Option – perforated mesh 1/1/GN container, ideal for fried food reheating. (Option Code 903 814)
• Option – Stainless steel 1/1GN grid, ideal for plated food reheating. (Option Code 805 081)
• Option – power cable without plug – 2 M length. (Option Code 701 962)

(Option Code 903 814)

Safety Features.

• Stainless steel tubular legs Ø 45 mm feature non-slip adjustable jacks.
• Thermal and electrical protection of the different internal components.
• Fan and heating safety cut-out when oven door opens.

Control Features.

• Touch sensitive control panel with pictograms.
• Sensitive knurled wheel to adjust the operating time.

Mono-Program Oven.

• 1 single “on/off” button for reheating and holding at required temperature.
• 1 digital display timer with buzzer at end of cycle.
• 1 “half load” button and indicator lamp.
• 2 cycle indicator lamps (reheating then holding at temperature).
• 1 button and indicator lamp for special chip program.

Multi-Program Oven.

• Features as above for Mono Program Control.
• 3 buttons and indicator lamps for the multiple programming.
• 1 button and indicator lamp for special “humidifier” program.

Operational Features.

• Time ranges from 0 to 90 minutes.
• Automatic start of reheating after selection via the timer knob.
• Buzzer at end of reheating cycle.
• Possibility of setting 2 to 3 different reheating times (multi-program models) with buzzer between each program.
• Oven automatically switches to holding mode at the end of the re-heating cycle(s).
• Stopping of timer countdown on opening of door.

Dimensions

Reheating Ovens.
Dimensions.

Mono Program Control Type Oven.
Model	507 604	507 605	507 610	507 615	507 620
Description	5 Level (Free Standing)	5 Level     (On Frame)	7 Level     (On Frame)	10 Level    (On Frame)	15 Level  (On Frame)
Length (mm)	665	665	665	665	665
Depth (mm)	815	815	815	815	815
Height (mm)	798	1638	1638	1638	1638
Weight (uncrated) (kg)	61	68	76	88	107
Power (kW)	3.32	3.32	7.08	9.87	14.17
3 Phase Electrical supply (50/60Hz)	16A TPN+E	16A TPN+E	16A TPN+E	16A TPN+E	32A TPN+E
Optional Single Phase Electric. Supply (On Request)	20A SPN+E	20A SPN+E	n/a	n/a	n/a

• 5 level model only – (Optional Single Phase Electrical Supply 20A 230V SPN+E On Request).
• Optional slide out condensate drip tray – 40 mm deep 1/1 GN container, supported under oven base. (Option Code 507 655).

Multi-Program Control Type Oven.
Model	507 624	507 625	507 630	507 635	507 640
Description	5 Level (Free Standing)	5 Level     (On Frame)	7 Level     (On Frame)	10 Level    (On Frame)	15 Level  (On Frame)
Length (mm)	665	665	665	665	665
Depth (mm)	815	815	815	815	815
Height (mm)	798	1638	1638	1638	1638
Weight (uncrated) (kg)	61	68	76	88	107
Power (kW)	3.32	3.32	7.08	9.87	14.17
3 Phase Electrical supply (50/60Hz)	16A TPN+E	16A TPN+E	16A TPN+E	16A TPN+E	32A TPN+E
Optional Single Phase Electric. Supply (On Request)	20A SPN+E	20A SPN+E	n/a	n/a	n/a
Water Connection: Male Threaded Connector	8/13 mm (1/4″)	8/13 mm (1/4″)	8/13 mm (1/4″)	8/13 mm (1/4″)	8/13 mm (1/4″)
Condensate Discharge: Pipe, Outside diameter	20 mm	20 mm	20 mm	20 mm	20 mm

• (5 level model only) Optional Single Phase Electrical Supply 20A 230V SPN+E On Request.
• Optional slide out condensate drip tray – 40 mm deep 1/1 GN container, supported under oven base. (Option Code 507 655).

Sales & Technical Information.
Reheating Ovens (All Models).

General Layout Drawings.
Reheating Ovens.
