Wall Mounted Electronic Sanitiser Dispenser (Alcohol Gel =/>60%).
CED’s electronic sanitising dispenser is hands free to help maintain a hygienic environment, combining safety and practicality at low cost.Public Health England advise that using a sanitising gel with an alcohol content of 60% and above, is effective at killing corona virus.

This dispenser can be placed in several locations to encourage PPB (personal protective behaviour).

Easy To Use. By placing your hands underneath the electronic dispenser, the infra red detection cell discharges a measured dose of sanitising gel and it’s simple to refill too. The sanitiser has a large dispensing capacity of approx. 500 doses. The slotted window in the electronic dispenser provides easy monitoring of gel level.

An optional electrical plug (For Sanitiser). The dispenser uses (4 x) AA batteries – not included. There is also an option for a UK plug with 2m electrical lead (Option Code ESPDP).

Wall Mounted Retractable Barrier (With Extending 3M Belt).
With its’ extending 3M belt operation, the CED wall mounted retractable barrier can provide a useful temporary barrier between two wall surfaces, where access restrictions are periodically required.
Available with integral red or black belts, the barrier belt end fastens to the supplied wall clip and can be locked to it, in order to prevent tampering. The barrier is finished in a mirror polished steel casing, with a mounting bracket incorporated. Fixings are also included for mounting the barrier and the wall clip.

Easy To Use. The barrier belt is retained in the body under tension, simply pull the belt from its housing and attach it to the wall mounted belt receiver, by sliding it down and on to the bracket. By rotating the base of the belt when attached to the bracket, it will lock to prevent tampering !

Health & Safety. Sanitisers and retractable barriers provide an ideal solution following risk assessments, undertaken by businesses in compliance with the FDA June 2020 UK Government Guidance ‘Keeping workers and customers safe during COVID-19 in restaurants, pubs, bars and takeaway services’.

Visual

Wall Mounted Electronic Sanitiser Dispenser,
Wall Mounted Retractable Barrier.
Visual





Features

Wall Mounted Electronic Sanitiser Dispenser,
Wall Mounted Retractable Barrier.
Features

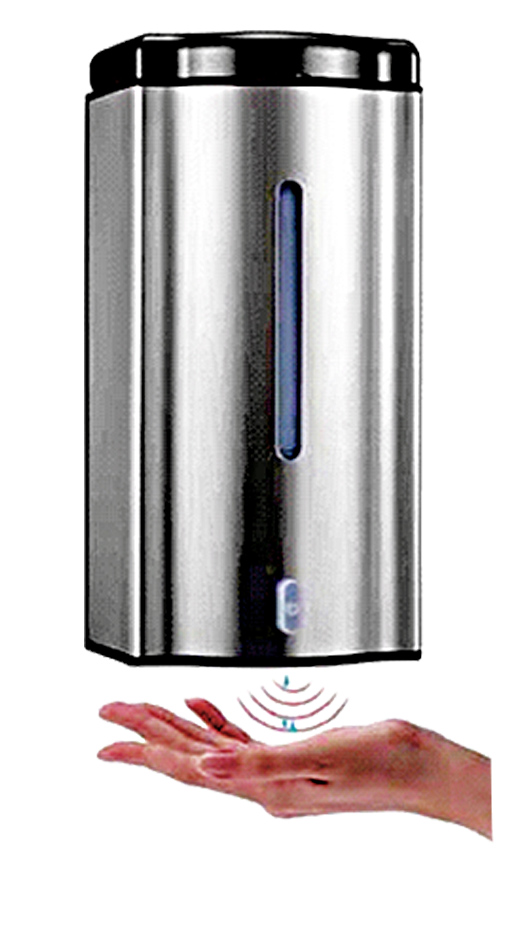

(ESD) Wall Mounted Electronic Sanitiser Dispenser (Alcohol Gel =/>60%)
.

  • A wall mounted electronic ‘hands free’ sanitiser dispenser (alcohol gel).
  • Infra-red electronic cell detects hands to auto dispense the sanitising gel.
  • Suitable for high alcohol sanitising gels =/>60%.
  • Dispenser requires (4x) AA batteries – not included.
  • CE Certified.
  • Gel dispensing capacity 600ml/ appx. 500 doses.
  • Dispenser dimensions: 203(h) x 100(w) x 92mm(d).
  • Easily installed in many locations, as no electrical connection is required.
  • Option of electrical connection lead with UK plug (lead length 2m) (Option Code ESPDP).

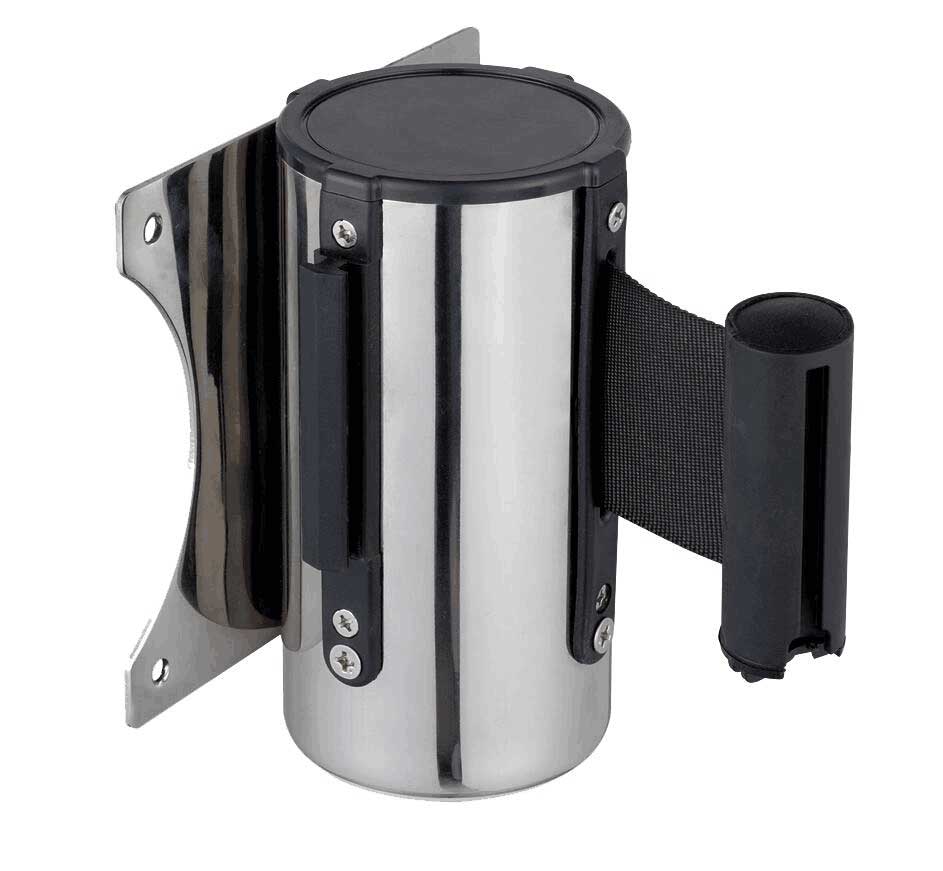

(HWMPR) Wall Mounted Retractable Barrier: Red Belt.
(HWMPB) Wall Mounted Retractable Barrier: Black Belt.

  • Wall mounted barrier with a retracting 3M belt, to create a temporary access restriction between two walls.
  • S/steel mirror finish outer body.

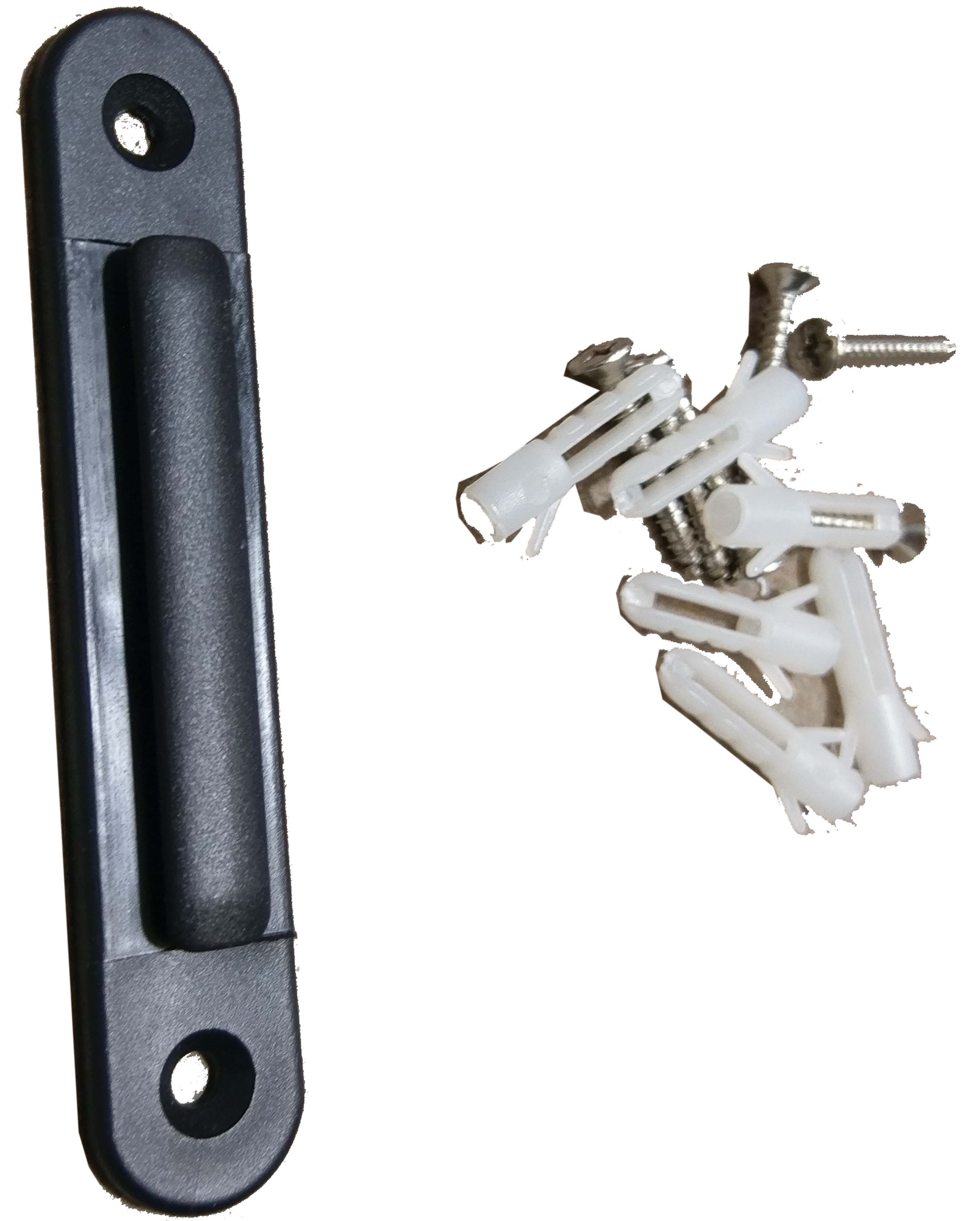

  • Separate wall clip fastening supplied.
  • Retractable belt end can be locked to the wall clip to prevent mis-use.
  • Wall barrier available with red or black retractable belt: 3m long x 50mm wide.
  • Barrier dimensions: 124(h) x 114(w) x 68mm(d).
  • Wall Fixings Supplied.


Dimensions

Wall Mounted Electronic Sanitiser Dispenser,
Wall Mounted Retractable Barrier.
Dimensions



Model

HWMPR

HWMPB

ESD

Description

Wall Mounted Retractable Barrier (Red Belt).

Wall Mounted Retractable Barrier (Black Belt).

Wall Mounted Electronic Sanitiser Dispenser (Alcohol Gel).

Appx. Dispenser Doses (Prior To Refill).

N/A

N/A

500

Dispenser Suitable For High Alcohol Sanitising Gels =/>60%.

N/A

N/A

Yes

Pump Dispensing Method.

N/A

N/A

Infra Red Detection Cell Within 150 mm Of Sensor.

Dispenser Alcohol Gel Capacity (ml)

N/A

N/A

600

Dispenser Power Supply (4x AA Batteries).

N/A

N/A

Not Included

Dispenser Electrical 2M lead + UK plug (Option Code).

N/A

N/A

ESPDP

Belt Colour (Retractable 3M x 50mm thk. Barrier).

Red

Black

N/A

Model Dimensions (mm).

124(h) x 114(w) x 68mm(d).

124(h) x 114(w) x 68mm(d).

203(h) x 100(w) x 92mm(d).

CE Certified

N/A

N/A

Yes

Model Weight (Kg)

0.5

0.5

1



Downloads

Sales & Technical Information.
Wall Mounted Electronic Sanitiser Dispenser,
Wall Mounted Retractable Barrier.



General Layout Drawings.
Wall Mounted Electronic Sanitiser Dispenser,
Wall Mounted Retractable Barrier.
