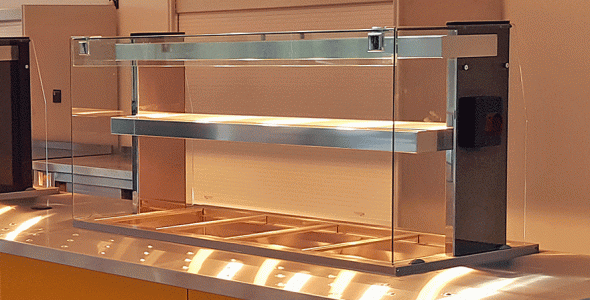

CED’s Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

Self Help Dry Heat Bain Marie – Heated Mid Shelf.
Visual

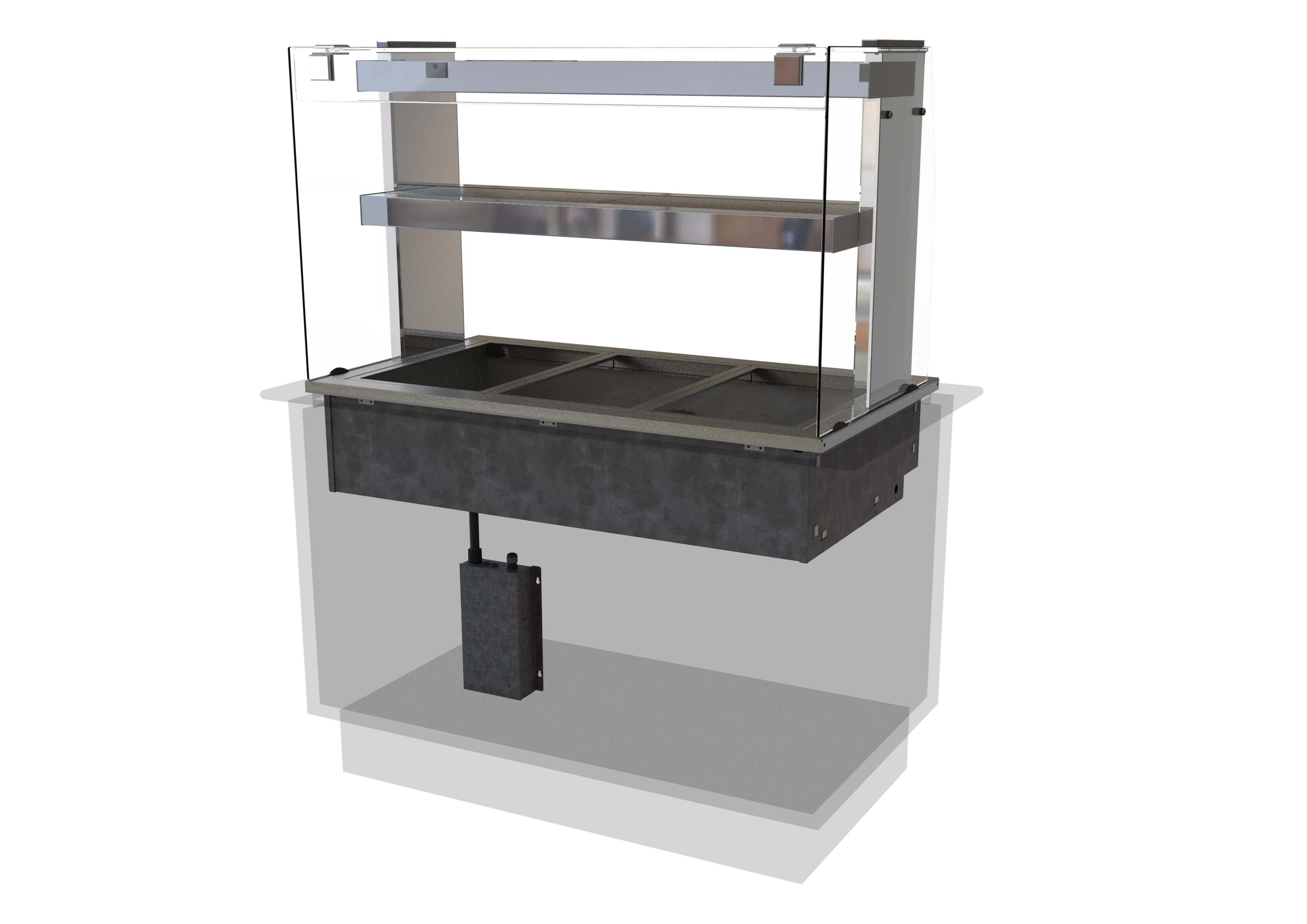

Kubus Self Help Dry Heat Bain Marie & Heated Mid-Shelf (KHBM2-5PS)



Features

Self Help Dry Heat Bain Marie – Heated Mid Shelf.
Features



  • Rectilinear flat toughened glass sneeze guard profile is designed to compliment other units within the Kubus range.
  • Dry heat bain marie tank with individual 1/1GN support collars to accept 100/150mm deep s/steel gastronorm containers ( not supplied)
  • Self help application. Can be factory converted to assisted service by addition of full height glass screen (see model below)
  • Additional eye level heated mid shelf – ideal for plated meal presentation.
  • Touch safe’ gantry mounted digital temperature display and eye level control panel (operator side)
  • Superstructure supports a toughened rectangular flat glass sneeze screen & side glass.
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from 2 no.gantry mounted dimmer switches.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp supply.
  • Features tamper proof temperature control facility.
  • Product illumination/ surface heat is provided from a rectangular profile gantry.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.


Food Types

Self Help Dry Heat Bain Marie – Heated Mid Shelf.
Food Display Types



LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns.

Lunch/ Dinner: stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables (dry or in liquid), ribs with sauce, chicken portions.



SHORT TERM HOLDING (15-20 mins)

Breakfast/ Brunch: omelettes, fried/ boiled eggs,  baked potatoes.

Lunch/ Dinner: battered fish, chips / fries, pizza.





Dimensions

Self Help Dry Heat Bain Marie – Heated Mid Shelf.
Dimensions

Model

KHBM2PS

KHBM3PS

KHBM4PS

KHBM5PS

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Length (mm)

825

1175

1525

1875

Depth (mm)

660

660

660

660

Height above worktop (mm)

700

700

700

700

Depth below worktop (mm)

220

220

220

220

Weight (uncrated) (kg)

65

76

87

98

Power (kW)

2.2

3.3

4.4

5.5

Electrical supply

13A 230V

16A 230V

20A 230V

32A 230V



  • This model has controls fitted on operator side of gantry as standard.
    If controls are required on customer side (i.e. for wall sited counters )please state ‘controls to customer side’ when ordering.





Downloads

General Layout Drawings.
Kubus Self Help Dry Heat Bain Marie – Heated Mid Shelf.







Fitting Instructions & User Manual.
Kubus Self Help Dry Heat Bain Marie – Heated Mid Shelf.




website-HOT-KUBUS-HEADER

Visual

Ass. Serve Dry Heat Bain Marie – Heated Mid Shelf.
Visual

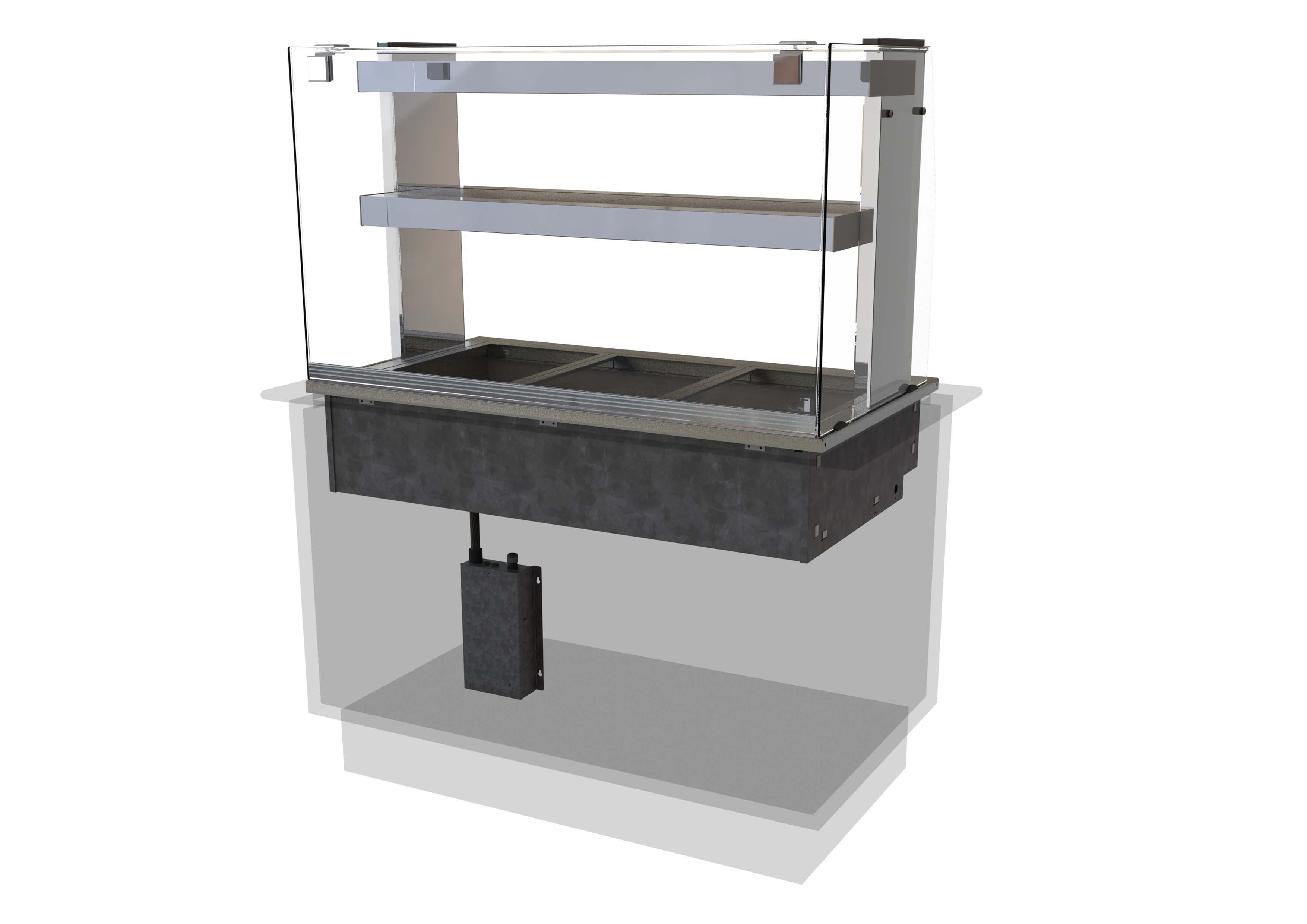

Kubus Assisted Service Dry Heat Bain Marie & Heated Mid-Shelf (KHBM2-5PS+KAS2-5PS)



Features

Ass. Serve Dry Heat Bain Marie – Heated Mid Shelf.
Features



  • Rectilinear flat full height front & side glass sneeze guard profile is designed to compliment other units within the Kubus range.
  • Dry heat bain marie tank with individual 1/1GN support collars to accept 100/150mm deep s/steel gastronorm containers ( not supplied)
  • Assisted service application.
  • Additional eye level heated mid shelf – ideal for plated meal presentation.
  • Touch safe’ gantry mounted digital temperature display and eye level control panel (operator side)
  • Superstructure supports a toughened rectangular flat glass sneeze screen & side glass.
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from 2 no.gantry mounted dimmer switches.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp supply.
  • Tilting front glass sneeze screen mounted on locking hinge, for ease of cleaning.
  • Features tamper proof temperature control facility.
  • Product illumination/ surface heat is provided from a rectangular profile gantry.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.


Food Types

Ass. Serve Dry Heat Bain Marie – Heated Mid Shelf.
Food Display Types.



LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns.

Lunch/ Dinner: stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables (dry or in liquid), ribs with sauce, chicken portions.



SHORT TERM HOLDING (15-20 mins)

Breakfast/ Brunch: omelettes, fried/ boiled eggs,  baked potatoes.

Lunch/ Dinner: battered fish, chips / fries, pizza.



Dimensions

Ass. Serve Dry Heat Bain Marie – Heated Mid Shelf.
Dimensions.

Model

KHBM2PS
+ KAS2PS

KHBM3PS
+ KAS3PS

KHBM4PS
+ KAS4PS

KHBM5PS
+ KAS5PS

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Length (mm)

825

1175

1525

1875

Depth (mm)

660

660

660

660

Height above worktop (mm)

700

700

700

700

Depth below worktop (mm)

220

220

220

220

Weight (uncrated) (kg)

71

84

98

111

Power (kW)

2.2

3.3

4.4

5.5

Electrical supply

13A 230V

16A 230V

20A 230V

32A 230V



  • This model has controls fitted on operator side of gantry as standard.





Downloads

General Layout Drawings.
Kubus Ass. Serve Dry Heat Bain Marie – Heated Mid Shelf.





Fitting Instructions & User Manual.
Kubus Ass. Serve Dry Heat Bain Marie – Heated Mid Shelf.
