The Designline chilled range of models are also available in R404a refrigerant, regarded globally as an industry standard refrigerant gas. (The Designline chilled range of models are also available in chilled hydrocarbon refrigerant).

Self help displays.

Designline self help chilled displays available to the designer, include chilled salad wells, chilled island wells and multidecks.

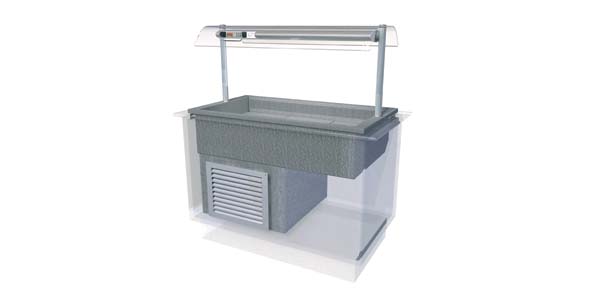

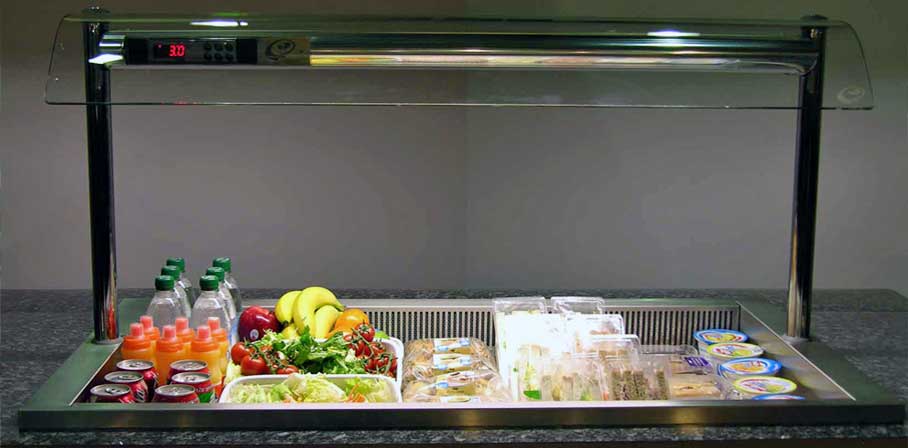

Self help chilled well page-header---d.line-cold-wor chilled island well. The traditional salad well is available in up to a 6/1G/n size, the island type in 3/1 & 4/1Gn size. Integral gantry mounted control panels suite effortlessly within chromed alluminum superstructures supporting either single (chilled well) or double (island chilled well) curved sneeze screen protection (See CW2-6, CIW3-4).

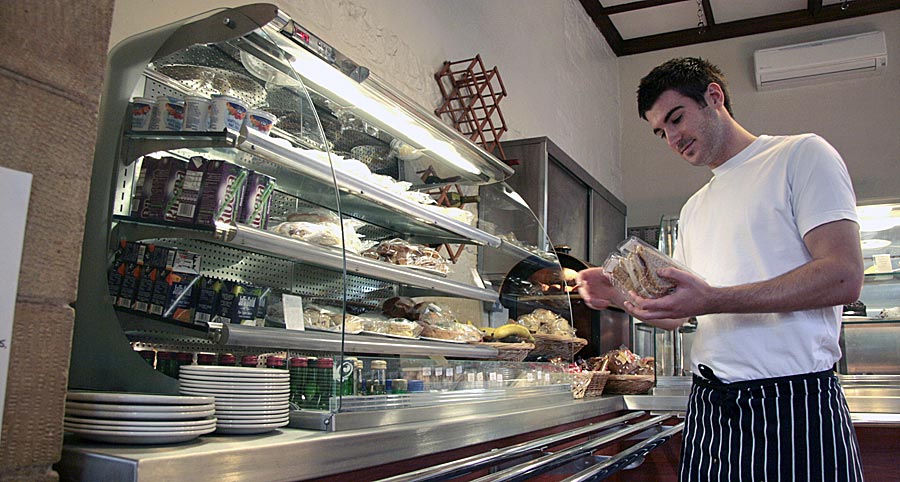

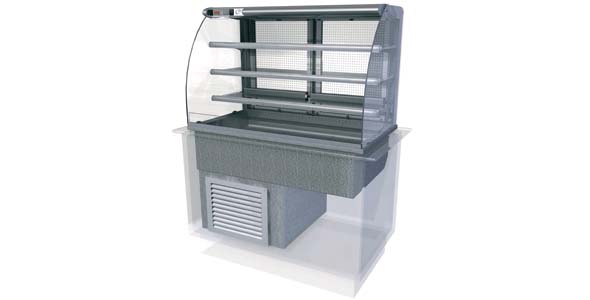

Self help multideck-rear Designline self help chilled multideck is a perfect match to the assisted service version. The shelving and well area features are retained, as to is the rear access door/s and shelf edge ticket strip. The display\’s adustable height shelving will allow for varied product presentation and unobstructed customer access. Again, the control panel is conveniently sited in the gantry nose. (See MDR2-4).

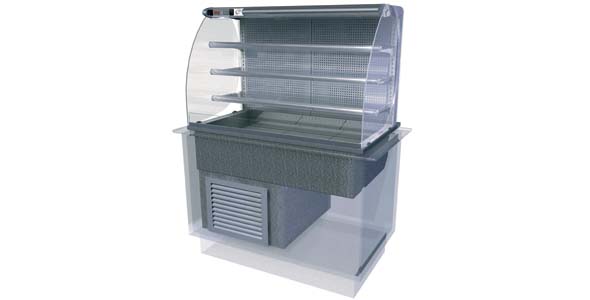

Self help multideck-fixed back.Designline Self Help Chilled Multideck Drop In Display (Fixed Back) A matching wall sited version is also available with steel rear back panel, replacing the rear door (See MDF2-4).




Assisted service displays.

Designline displays for use with an assisted service operation include chilled wells, delis, chilled multi level delis, tiered chilled display delis and chilled multidecks.

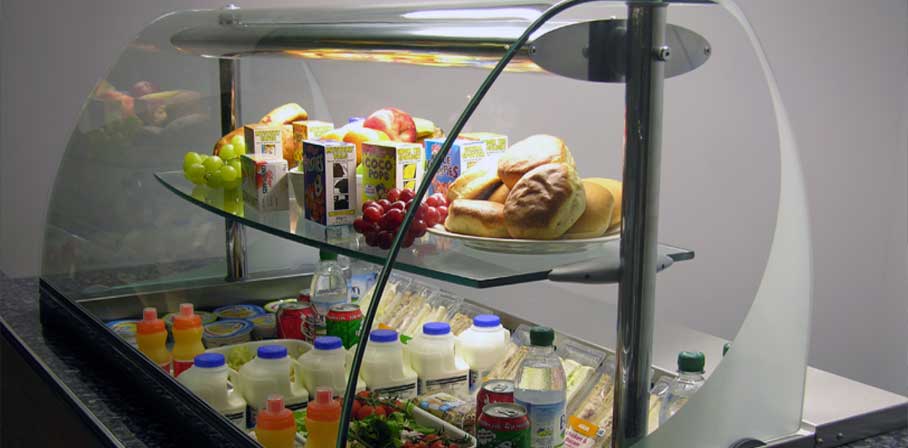

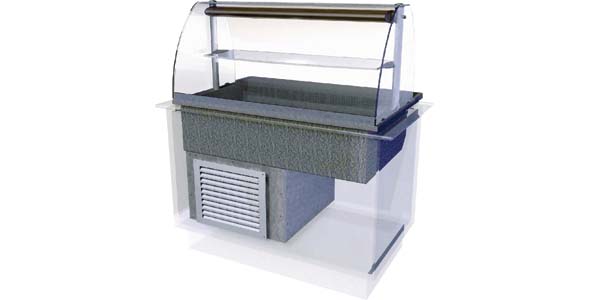

Assisted service chilled delipage-header-d.line-c.-deli or multi level deli. Featuring eye-level gantry mounted control panels, the chilled delis boast single or twin ambient glass display shelving over the chilled well area, increasing product display diversity. Single shelf chilled delis are available in up to a 5/1Gn size. The twin shelf model in 3/1 & 4/1Gn only. (See CDL2-5, CMDL3-4).

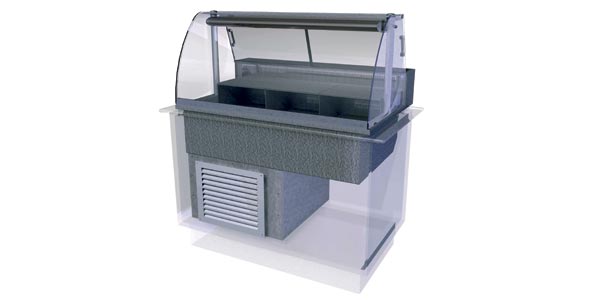

Assisted service chilled tiered deli.Designline Cold Tiered Deli Drop In Display, Render The Designline chilled tiered deli has two tiers of display levels, allowing chilled produce to be displayed within the well area and also on raised steel trivet stands. The display features assisted service glass, with operator access via sliding rear acrylic doors. The control panel is conveniently located within the elliptical gantry to the operator side of the display.

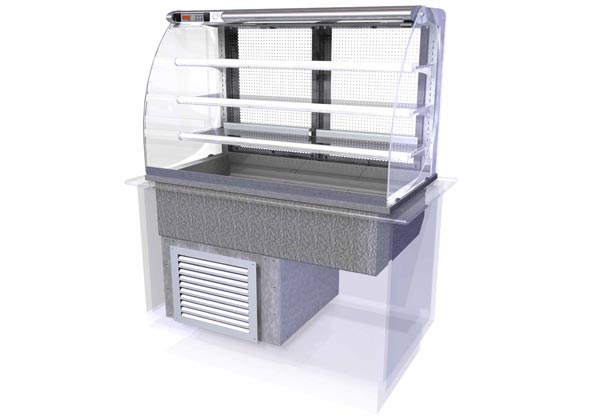

Assisted service multideck.Designline Assisted Service Chilled Multideck Drop In Display The assisted service version of the Designline multideck boasts 3 tiers of chilled toughened glass display shelving and large chilled bottle well area. The features are beautifully presented behind a full height curved toughened glass hood and elliptical sides. Operator access is from durable side hung rear steel door/s. Each display level is supplied with a combined product stop and industry standard 40mm ticket strip to each shelf edge. Operator control panel is conveniently sited in the gantry nose. (See MDR2-4AS).

Assisted service chilled the addition of factory fitted full height front curved glass and ends, the self help chilled well becomes assisted service. The traditional salad well in the Designline style is available up to a 5/1G/n size. The integral gantry mounted control panel mounts within the chromed alluminum superstructure, supporting the optional full height curved glass screen and ends. (See CW2-5 & option AS2-5).

Designline choice. Compliment your selections with Designline ancillary items, such as cutlery condiment units, chopping boards, carving & hotplate inserts. Designline drop in displays feature intelligent, tamper proof & gantry mounted digital control display technology, housed within innovative elliptical touch safe materials. Choose from matching self help, heated or chilled displays, assisted service heated or chilled deli displays, plus ambient displays

Designline styling. Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Designline quality & reliability. Designed, constructed and independently CE approved to meet the latest exacting European standards, Designline are now established as an industry classic, backed by CED’s continued assurance of beautiful toughness and ruthless reliability in the field.
