Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling.  Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

The hotplate (no gantry) display will allow:

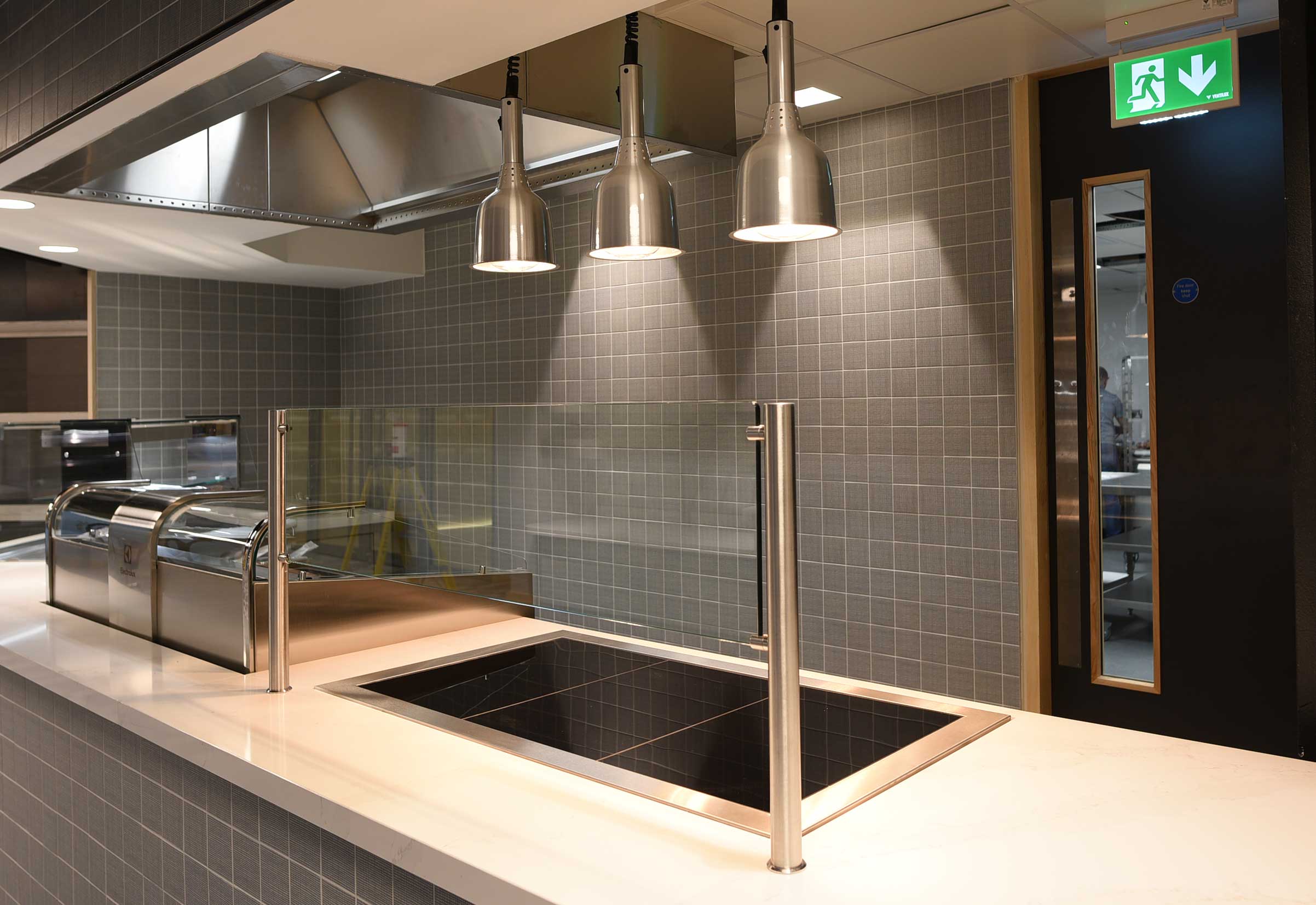

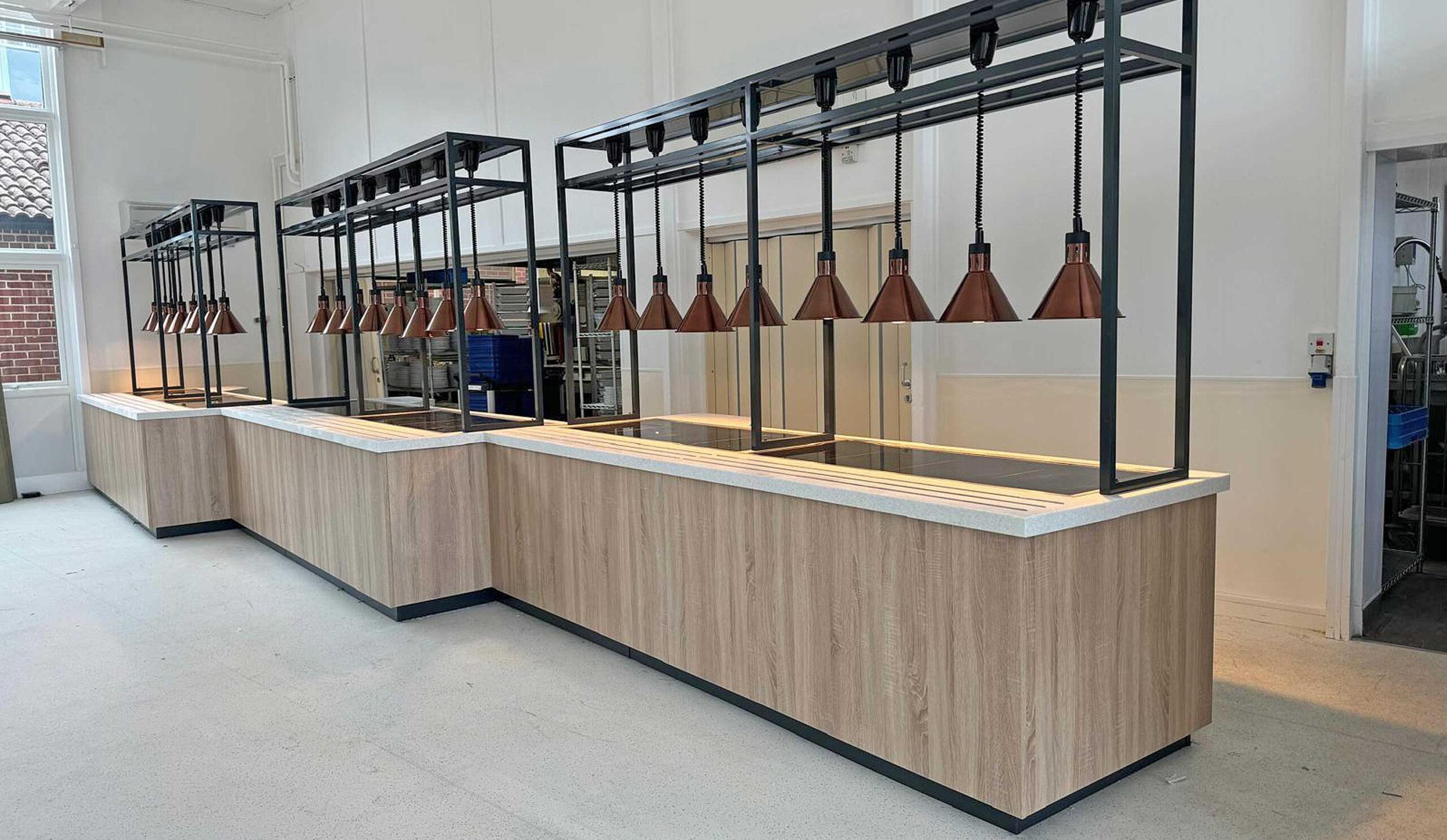

1) Bespoke retractable ceiling mounted heat lamps to be used above the display,
2) UV bonded glass heated gantries or
3) Other type heated gantry superstructures to be fitted over the display (by others)

Visual

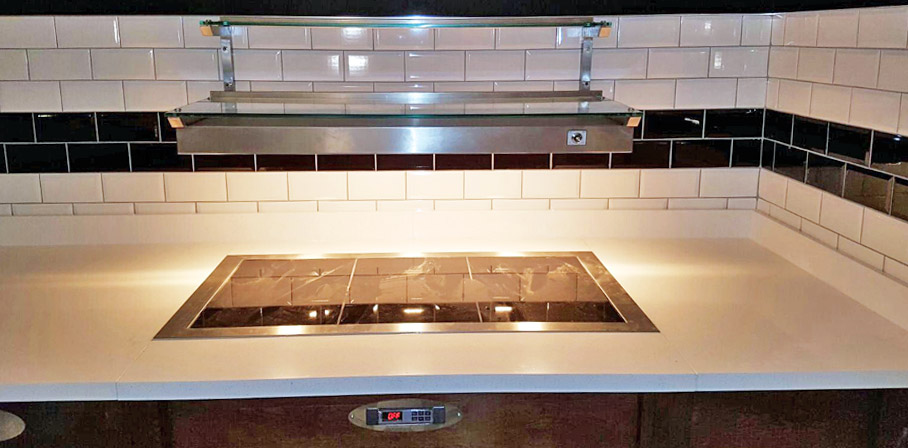

Ceran Glass Hotplate (No Gantry)

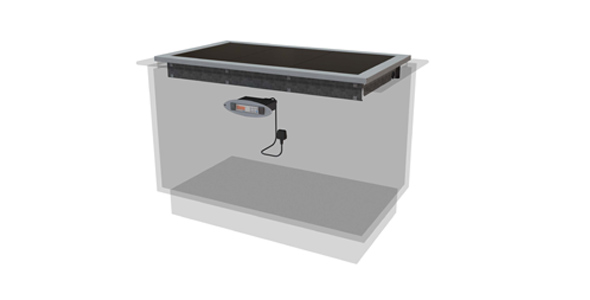

Heated Ceran Glass Hotplate (No Gantry). - AA FEATURED



Features

Ceran Glass Hotplate (No Gantry).
Features.

  • Ceran glass hotplate display surface.
  • ** Allows retractable ceiling mounted heat lamps to be used above the display surface.
  • ** Allows bespoke UV bonded glass heated gantries or other bespoke heated gantry types to be used above the display surface.
  • Self help or assisted service application.
  • For food presentation in flat bottom oven to tableware dishes.
  • 24-hour operation as standard.
  • Supplied with remote digital control panel & mounting plate on a 2m electrical loom, for connection to 13 Amp supply.
  • Base heat output is thermostatically controlled, giving even heat spread.
  • Bespoke top heated lamps or heated gantries can be variably controlled from a dimmer switch.
  • Features tamper proof temperature control facility.

** Recommended Use Of The Ceran Glass Hotplate (No Gantry) Display.

  • If top heat above the display is to be supplied (by others) – the following arrangement is recommended i.e. 300 w quartz infra red lamps, 1 per GN section – mounted at 430mm above base surface.
  • Retractable ceiling mounted heat lamps should be positioned as described above.
  • Depending on food type displayed, a dimmer control for heat lamps may be required.
  • If no top heat is provided, all food containers require lids.
  • Product display may also require sneeze guard protection (by others) or screens to limit draught.





Food Types

Ceran Glass Hotplate (No Gantry).
Food Display Examples.

LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns.

Lunch / Dinner: stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables (dry or in liquid), ribs with sauce, chicken portions.

  • ** If no top heat is provided, all food containers require lids.



SHORT TERM HOLDING (15-20 mins)

Breakfast / Brunch: omelettes, fried/ boiled eggs,  baked potatoes.

Lunch / Dinner: battered fish, chips / fries, pizza.

  • ** If no top heat is provided, all food containers require lids.


Dimensions

Ceran Glass Hotplate (No Gantry).
Dimensions.

Model

HP1NG

HP2NG

HP3NG

HP4NG

HP5NG

HP6NG

Capacity

1/1 GN

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Length (mm)

475

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

660

Height above worktop (mm)

25

25

25

25

25

25

Depth below worktop (mm)

92

92

92

92

92

92

Weight (uncrated) (kg)

20

36

45

52

61

70

Power (kW)

0.4

0.7

1.1

1.4

1.8

2.1

Electrical supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



  • * This model has a remote mounted control panel, fitted on a 2 Metre electrical loom, for site fitting by others.





Downloads

General Layout Drawings.
Kubus Ceran Glass Hotplates (No Gantry).





Fitting Instructions & User Manual.
Kubus Ceran Glass Hotplates (No Gantry).
