CED’s Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

Self Help Cold Tiered Well (HT).

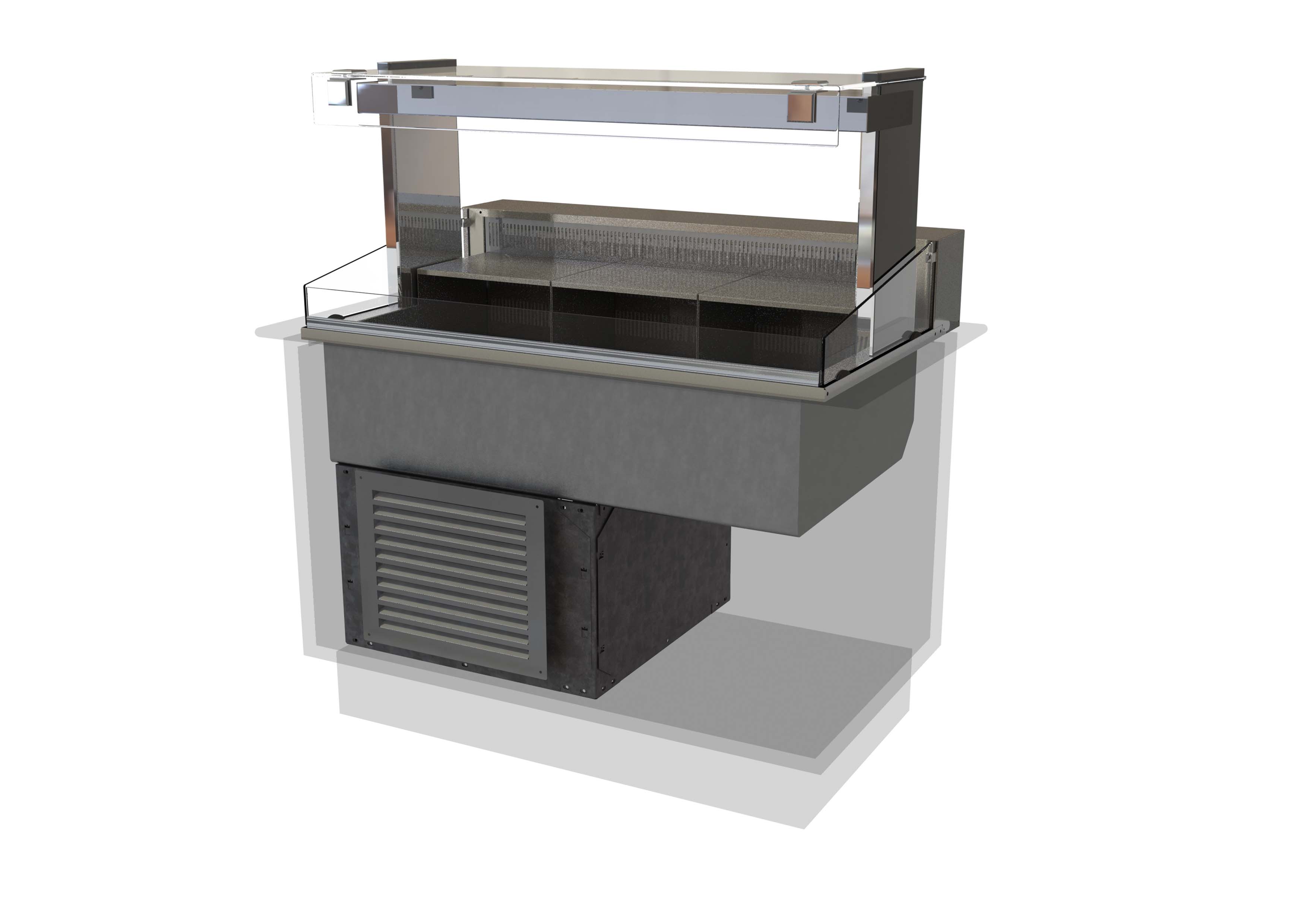

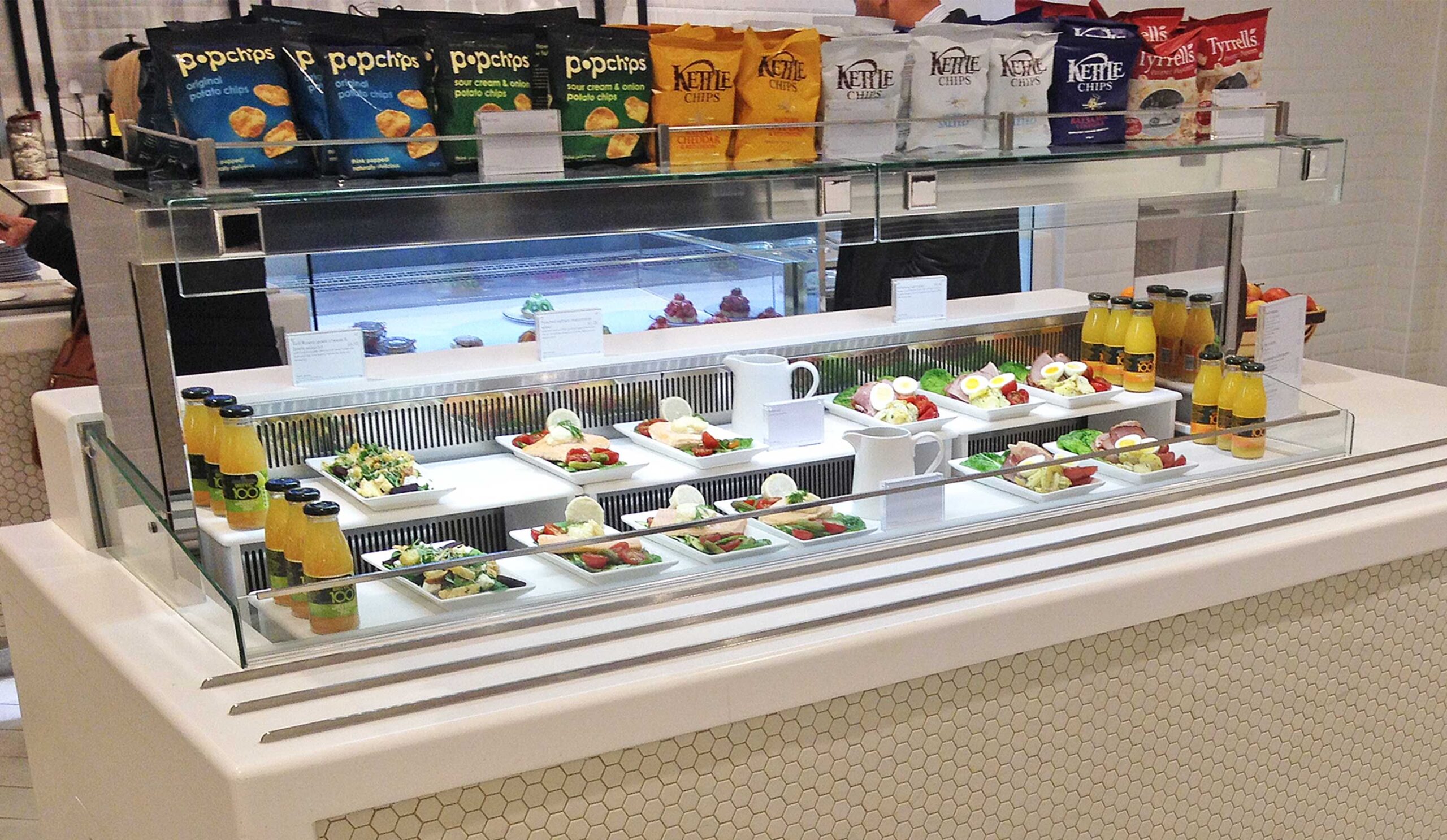

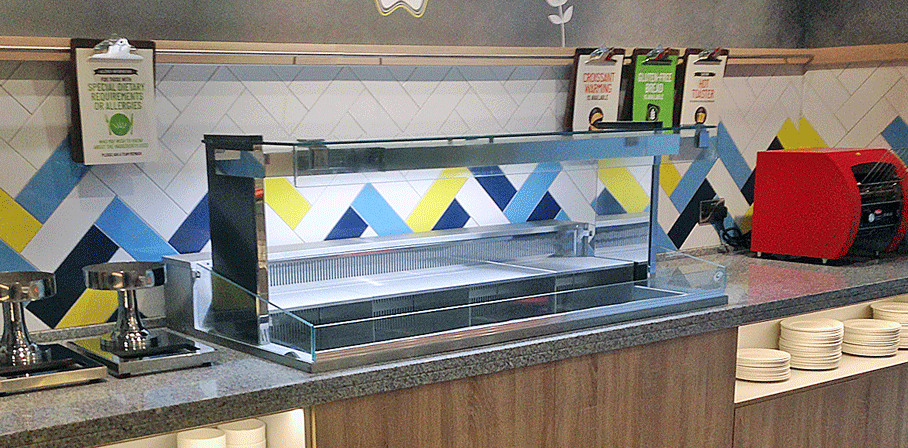

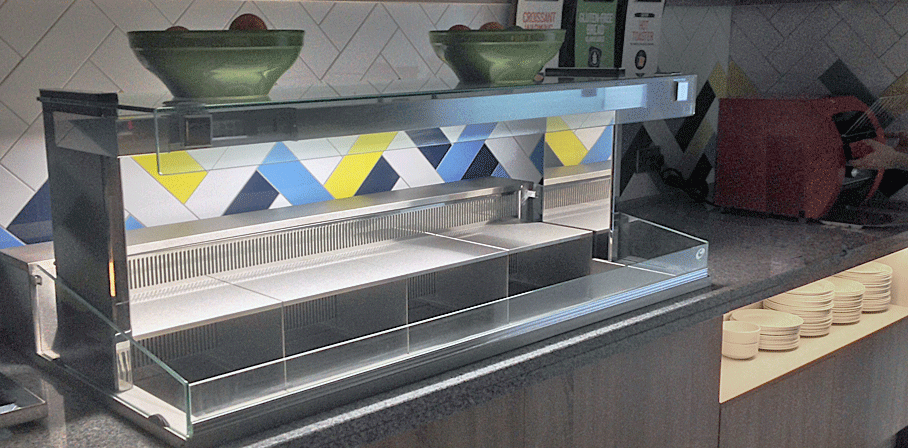

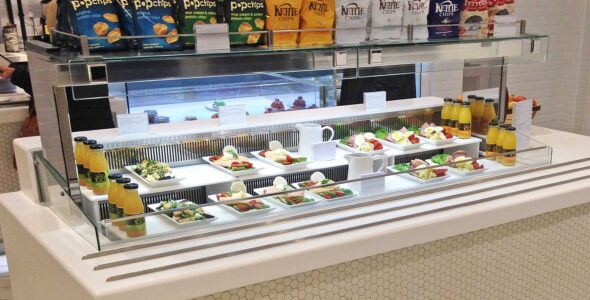

Kubus Self Help Cold Tiered Well (KCTW2-4HT)



Features

Self Help Cold Tiered Well (HT).
Features.

  • Rectilinear flat glass profile is designed to compliment other units within the Kubus range.
  • Cold fan blown well unit features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Self help application.
  • Superstructure supports a toughened glass sneeze screen & side wier glass.
  • Raised rear steel preparation shelf for food preparation of sandwiches, fillings etc.
  • Removable raised steel trivets for two tier chilled product presentation in well area.
  • Features eye-level gantry mounted digital temperature display and control panel (operator side).
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Superstructure in bright polished steel and aluminium profile.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2 m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • 24-hour operation as standard.
  • Optional 1/1 GN polyethylene cutting board for sandwich preparation, can be used in multiples. (Option KCB1)
  • Refrigeration condensing unit is housed in an under slung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Features ‘tamper proof temperature control facility.
  • Modular removable deck plate & raised trivet system for easier cleaning and maintenance.


Food Types

Self Help Cold Tiered Well (HT).
Food Display Types.



Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck & Trivet Stand Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.



Dimensions

Self Help Cold Tiered Well (HT).
Dimensions.

Model

KCTW2HT

KCTW3HT

KCTW4HT

GN Size

2/1 GN

3/1 GN

4/1 GN

Storage Capacity (Litres) (Inc. Trivet Shelving)

64

91

118

Length (mm)

825

1175

1525

Depth (mm)

784

784

784

Height Above Worktop (mm)

540

540

540

Depth Below Worktop (mm)

677

677

677

Weight (Un-Crated) (kg)

108

129

158

Power (kW)

1.22

1.22

1.46

Total Heat Rejection @ 32°C Ambient (Watts)

1080

1080

1340

Electrical Supply

13A 230V

13A 230V

13A 230V

  • (HT) = R290 Refrigerant.
  • Control panel to ‘operator side’ of gantry.


Downloads

General Layout Drawings.
Kubus Self Help Cold Tiered Wells (HT).



General Layout Drawings.
Non Standard Airflow Options (Cold Displays).



Fitting Instructions & User Manual.
Kubus Self Help Cold Tiered Wells (HT).




AA-KUBUS COLD BANNER

Visual

Assisted Service Cold Tiered Well (HT).

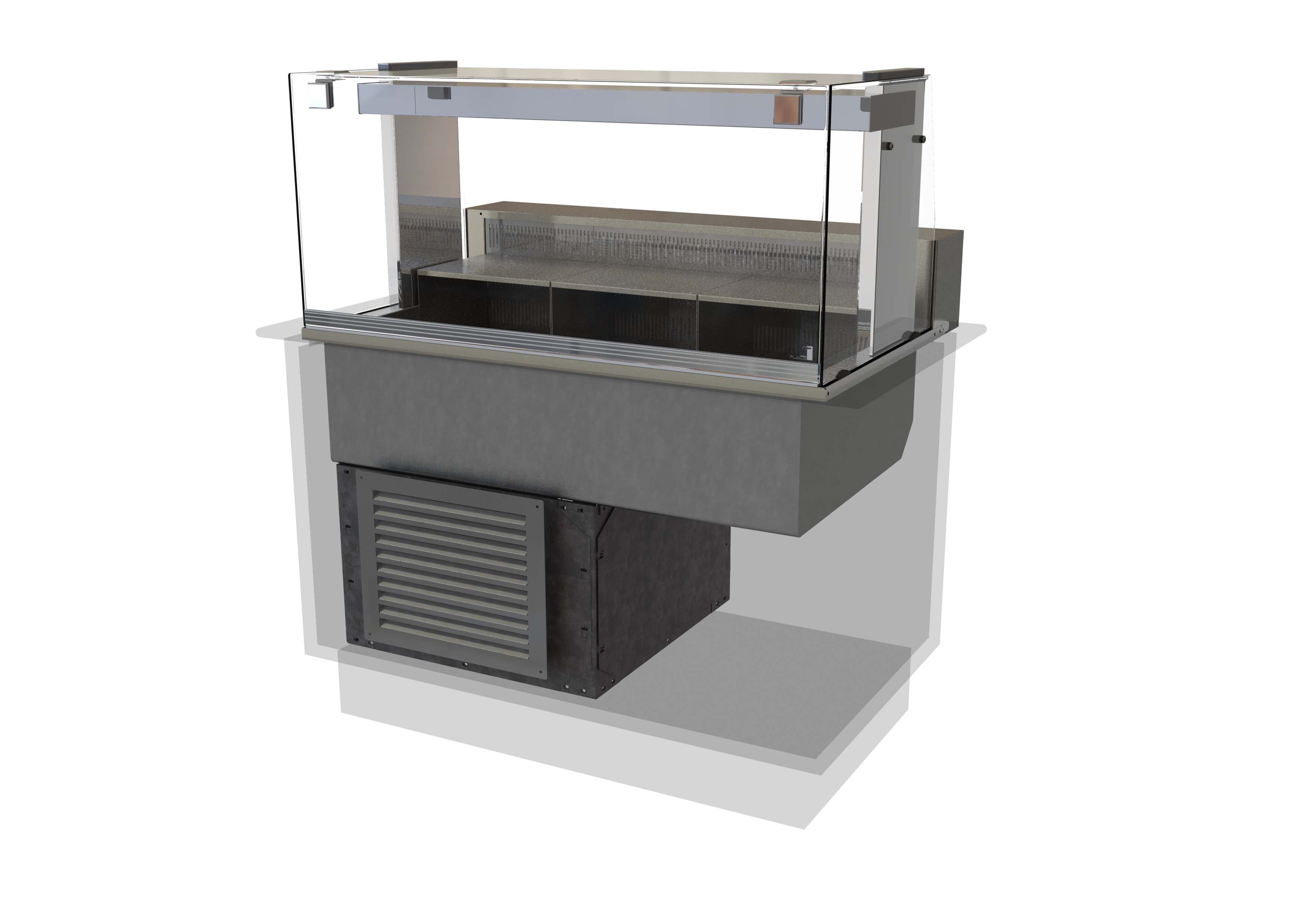

Kubus Assisted Service Cold Tiered Well (KCTW2-4HT+KAS2-4)



Features

Assisted Service Cold Tiered Well (HT).
Features.

  • Rectilinear flat glass profile is designed to compliment other units within the Kubus range.
  • Cold fan blown well unit features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Assisted service application.
  • Superstructure supports a toughened full height (tilt forward) front glass sneeze screen & side glass.
  • Raised rear steel preparation shelf for food preparation of sandwiches, fillings etc.
  • Removable raised steel trivets for two tier chilled product presentation in well area.
  • Features eye-level gantry mounted digital temperature display and control panel (operator side).
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Superstructure in bright polished steel and aluminium profile.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Supplied with 2 m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • 24-hour operation as standard.
  • Optional 1/1 GN polyethylene cutting board for sandwich preparation, can be used in multiples. (Option KCB1)
  • Refrigeration condensing unit is housed in an under slung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Features ‘tamper proof temperature control facility.
  • Modular removable deck plate & raised trivet system for easier cleaning and maintenance.


Food Types

Assisted Service Cold Tiered Well (HT).
Food Display Types.



Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck & Trivet Stand Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.



Dimensions

Assisted Service Cold Tiered Well (HT).
Dimensions.

Model

KCTW2HT+KAS2

KCTW3HT+KAS3

KCTW4HT+KAS4

GN Size

2/1 GN

3/1 GN

4/1 GN

Storage Capacity (Litres) (Inc. Trivet Shelving)

64

91

118

Length (mm)

825

1175

1525

Depth (mm)

784

784

784

Height Above Worktop (mm)

540

540

540

Depth Below Worktop (mm)

677

677

677

Weight (Un-Crated) (kg)

119

142

172

Power (kW)

1.22

1.22

1.46

Total Heat Rejection @ 32°C Ambient (Watts)

1080

1080

1340

Electrical Supply

13A 230V

13A 230V

13A 230V

  • (HT) = R290 Refrigerant.
  • Control panel to ‘operator side’ of gantry.


Downloads

General Layout Drawings.
Kubus Assisted Service Cold Tiered Wells (HT).



General Layout Drawings.
Non Standard Airflow Options (Cold Displays).




Fitting Instructions & User Manual.
Kubus Assisted Service Cold Tiered Wells (HT).




AA-KUBUS COLD BANNER
