CED’s Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels

Visual

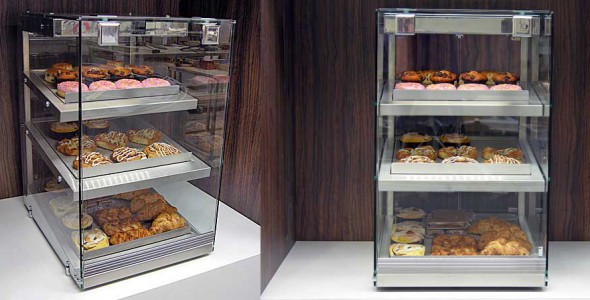

Assisted Service Confectionery Display Stand

page-header-KTTCDSAS---2



Features

Assisted Service Confectionery Display Stand.
Features.

  • Assisted service table top freestanding confectionery unit, can be typically sited at till & cashier points etc.
  • Toughened glass and satin finished steel frame, bright polished chrome finish gantry & diffused canopy lighting.
  • 2 no. removable inclined display shelves and inclined base shelf in formed steel.
  • Each shelf features additional diffused lighting and product stop.
  • Full height toughened front glass, mounted on locking tilt hinge for easy cleaning access.
  • Keyless locking front glass, for theft prevention.
  • Toughened glass end panels and magnetically held rear doors.
  • The counter top display is supported by s/steel levelling feet c/w adjustable nylon surface protection inserts.


Food Types

Assisted Service Confectionery Display Stand.
Food Display Types.



Ambient Display: Wrapped/ unwrapped muffins, cakes, doughnuts, fruit cake, biscuits, chocolate, crisps, nuts, etc.



Dimensions

Assisted Service Confectionery Display Stand.
Dimensions



Model

KTTCDSAS

Length (mm)

450

Depth (mm)

600

Height above worktop (mm)

730

Weight (uncrated) (kg)

47





Downloads

General Layout Drawing & User Manual.
Kubus Assisted Service Confectionery Display Stand.






Kubus Ambient

Visual

Self Help Confectionery Display Stand

Kubus Self Help Confectionary Display Stand (KTTCDS)



Features

Self Help Confectionery Display Stand.
Features

  • Self help table top freestanding confectionery unit, can be typically sited at till & cashier points etc.
  • Toughened glass and satin finished steel frame, bright polished chrome finish gantry & diffused canopy lighting.
  • 2 no. removable inclined display shelves and inclined base shelf in formed steel.
  • Each shelf features additional diffused lighting and product stop.
  • Open fronted display with toughened front sneeze screen downstand glass.
  • Toughened glass end panels and magnetically held rear doors.
  • The counter top display is supported by s/steel levelling feet c/w adjustable nylon surface protection inserts.


Food Types

Self Help Confectionery Display Stand.
Food Display Types.

  • Wrapped muffins, cakes, doughnuts, fruit cake, biscuits, chocolate, crisps, nuts, etc.


Dimensions

Self Help Confectionery Display Stand.
Dimensions.



Model

KTTCDS

Length (mm)

450

Depth (mm)

600

Height above worktop (mm)

730

Weight (uncrated) (kg)

47



Downloads

General Layout Drawing & User Manual.
Kubus Self Help Confectionery Display Stand.






*Assisted service model shown below
