Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling.  Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

Self Help Ceran Glass Hotplate & Heated Mid-Shelf

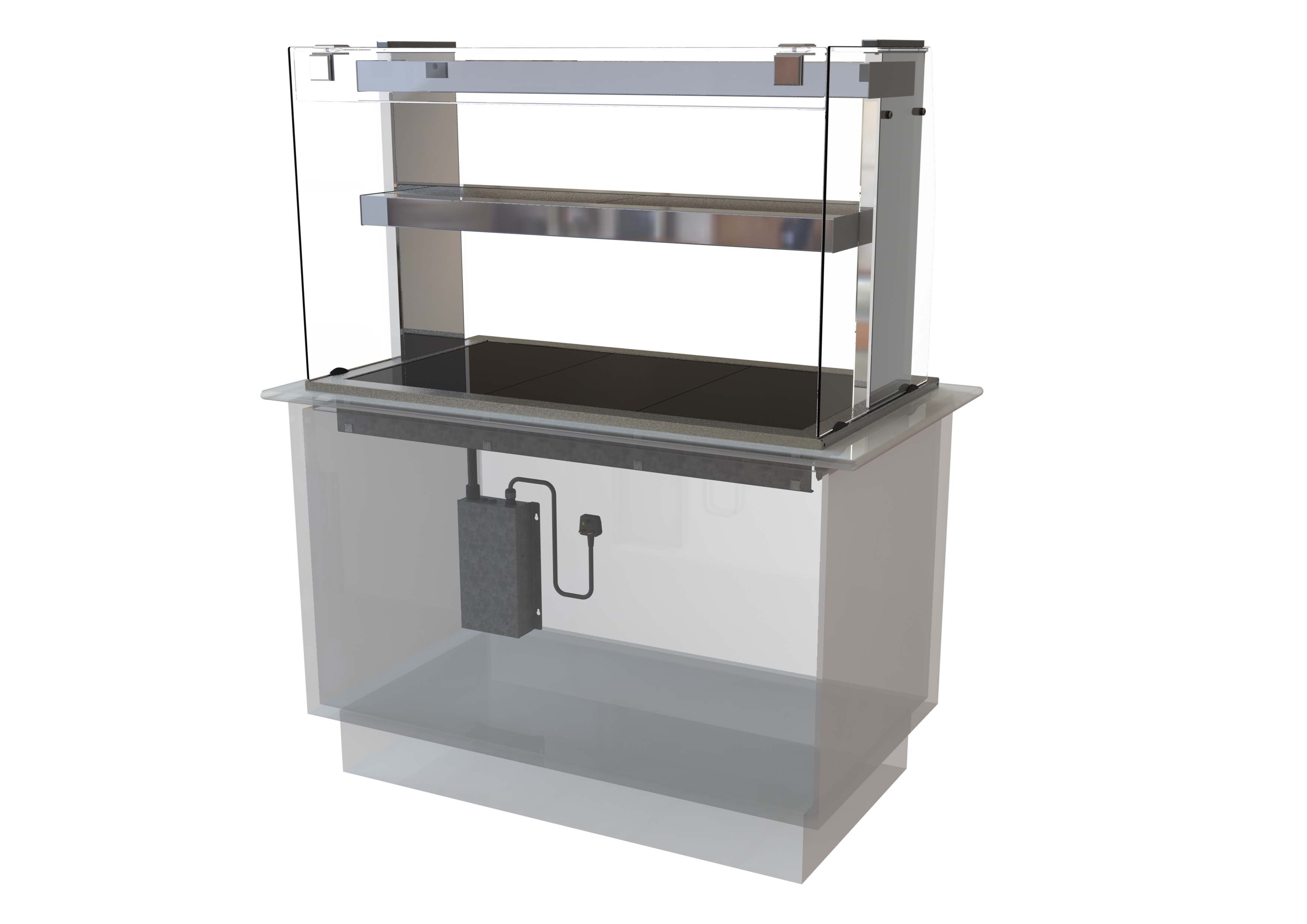

Kubus Self Help Ceran Glass Hotplate & Heated Mid-Shelf (KHP2-5PS)



Features

Self Help Ceran Glass Hotplate & Heated Mid-Shelf.
Features.

  • Rectilinear flat glass sneeze guard & side glass profile is designed to compliment other units within the range.
  • Heated ceran glass surface for food presentation in flat bottomed dishes.
  • Self help application. Can be factory converted to assisted service by addition of full height glass screen (see model below)
  • ‘Touch safe’ gantry mounted digital temperature display and eye level control panel (operator side)
  • Additional eye level heated mid shelf – ideal for plated meal presentation.
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from 2 no.gantry mounted dimmer switches.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp supply.
  • Product illumination/ surface heat is provided from a rectangular profile gantry.
  • Features tamper proof temperature control facility.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.


Food Types

Self Help Ceran Glass Hotplate & Heated Mid-Shelf.
Food Display Types.



LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns.

Lunch / Dinner: wrapped/unwrapped pastries, pies, sausage rolls, stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables, ribs with sauce, chicken portions.



SHORT TERM HOLDING (15-20 mins)

Breakfast / Brunch: omlettes, fried / boiled eggs, muffins, baked potatoes.

Lunch / Dinner: battered fish, chips / fries.



Dimensions

Self Help Ceran Glass Hotplate & Heated Mid-Shelf.
Dimensions.

Model

KHP2PS

KHP3PS

KHP4PS

KHP5PS

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Length (mm)

825

1175

1525

1875

Depth (mm)

660

660

660

660

Height above worktop (mm)

700

700

700

700

Depth below worktop (mm)

92

92

92

92

Weight (uncrated) (kg)

66

81

95

117

Power (kW)

1.9

2.9

3.8

4.8

Electrical supply

13A 230V

13A 230V

20A 230V

32A 230V



  • This model has controls fitted on operator side of gantry as standard.
  • If controls are required on customer side i.e. for wall sited counters, please state ‘controls to customer side’ when ordering.


Downloads

General Layout Drawings.
Kubus Self Help Ceran Glass Hotplates – Heated Mid Shelf.





Fitting Instructions & User Manual.
Kubus Self Help Ceran Glass Hotplates – Heated Mid Shelf.




website-HOT-KUBUS-HEADER

Visual

Assisted Service Ceran Glass Hotplate & Heated Mid-Shelf

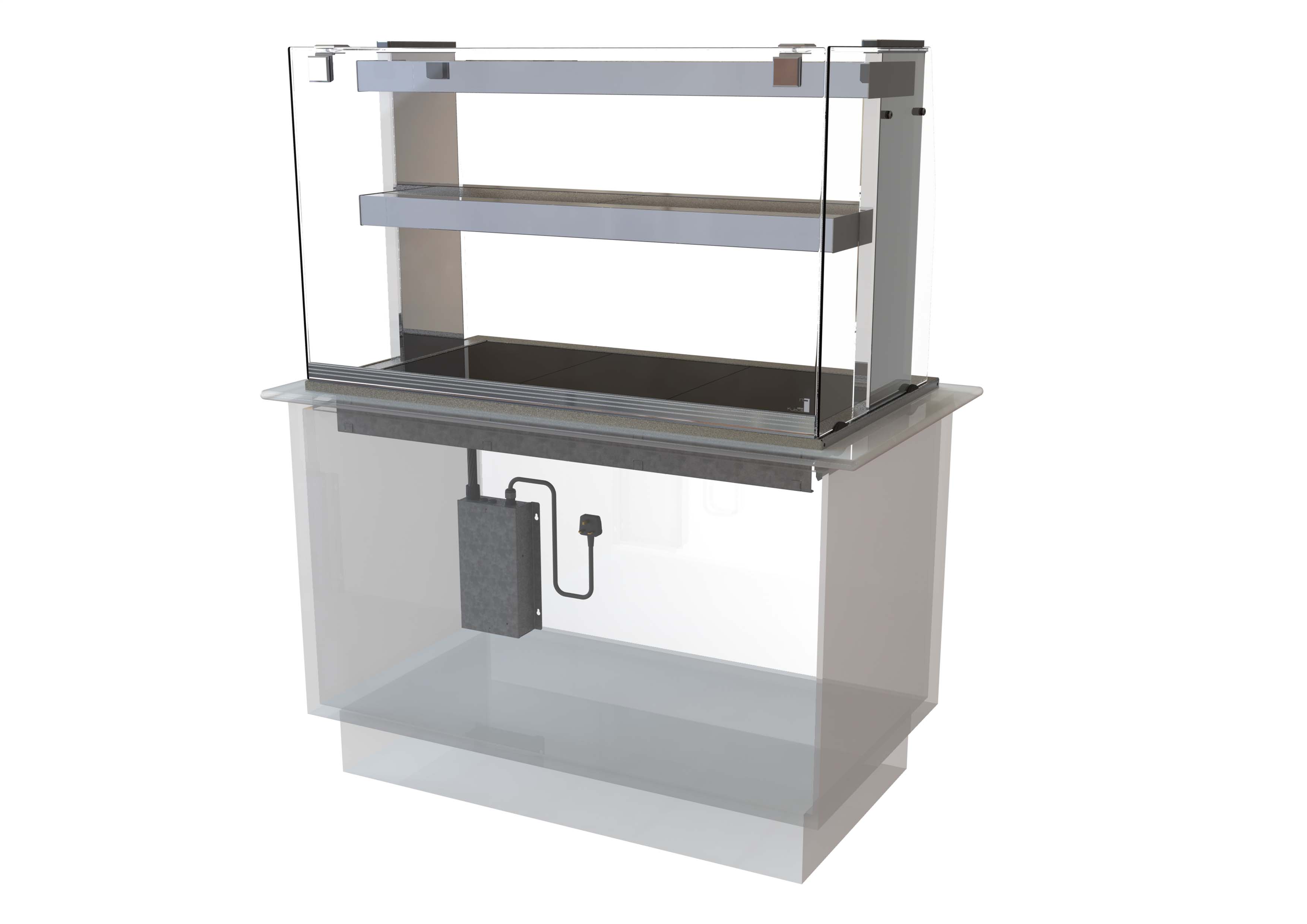

Kubus Assisted Service Ceran Glass Hotplate & Heated Mid-Shelf (KHP2-5PS+KAS2-5PS)



Features

Assisted Service Ceran Glass Hotplate & Heated Mid-Shelf.
Features.

  • Full height flat front glass sneeze guard & side glass profile is designed to compliment other units within the Kubus range.
  • Heated ceran glass surface for food presentation in flat bottomed dishes.
  • Assisted service application.
  • ‘Touch safe’ gantry mounted digital temperature display and eye level control panel (operator side)
  • Additional eye level heated mid shelf – ideal for plated meal presentation.
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from 2 no.gantry mounted dimmer switches.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp supply.
  • Tilting front glass sneeze screen mounted on locking hinge, for ease of cleaning.
  • Product illumination/ surface heat is provided from a rectangular profile gantry.
  • Features tamper proof temperature control facility.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.


Food Types

Assisted Service Ceran Glass Hotplate & Heated Mid-Shelf.
Food Display Types.



LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns.

Lunch / Dinner: wrapped/unwrapped pastries, pies, sausage rolls, stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables, ribs with sauce, chicken portions.



SHORT TERM HOLDING (15-20 mins)

Breakfast / Brunch: omlettes, fried / boiled eggs, muffins, baked potatoes.

Lunch / Dinner: battered fish, chips / fries.



Dimensions

Assisted Service Ceran Glass Hotplate & Heated Mid-Shelf.
Dimensions.

Model

KHP2PS
+KAS2PS

KHP3PS
+KAS3PS

KHP4PS
+KAS4PS

KHP5PS
+KAS5PS

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Length (mm)

825

1175

1525

1875

Depth (mm)

660

660

660

660

Height above worktop (mm)

700

700

700

700

Depth below worktop (mm)

92

92

92

92

Weight (uncrated) (kg)

72

89

106

130

Power (kW)

1.9

2.9

3.8

4.8

Electrical supply

13A 230V

13A 230V

20A 230V

32A 230V



  • Control panel to ‘operator side’ of gantry.


Downloads

General Layout Drawings.
Kubus Assisted Service Ceran Glass Hotplates – Heated Mid Shelf.





Fitting Instructions & User Manual.
Kubus Assisted Service Ceran Glass Hotplates – Heated Mid Shelf.




website-HOT-KUBUS-HEADER---

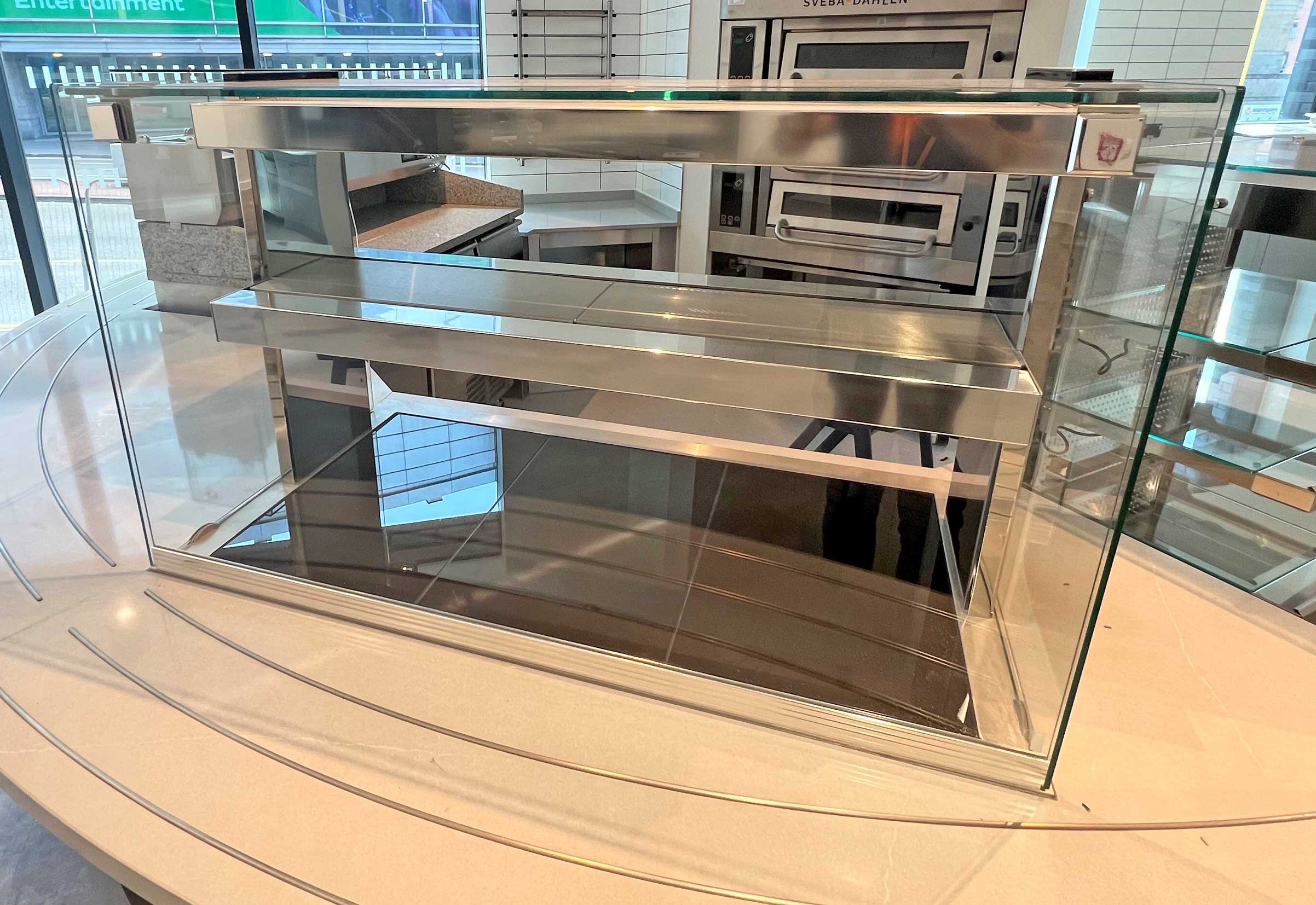

KHP3PSAS web site renderKHP3PSAS - Photo

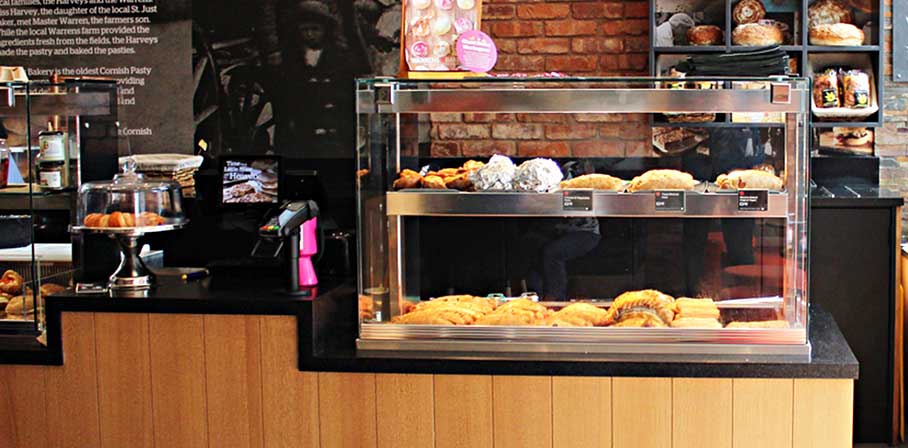

KHP4S-+-KAS4
