Sinks & Wash Units

The complete range of Designline Backbar single/double sink units, handwash and blender station base units are supplied with mixer taps, plug and waste, ready for speedy site connection

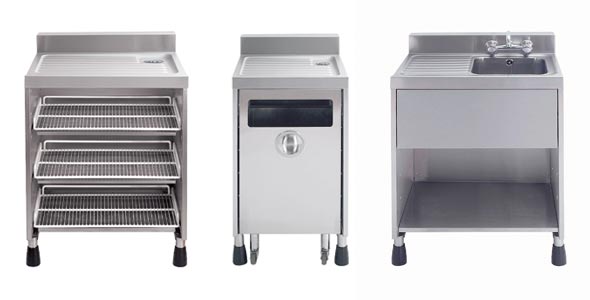

Complementary drainer top bridging units can also be included in a wet area layout by selecting from modules with under-shelf storage, glass rack storage or under-counter flush-fitting roll-under bins.

Drainer units

Drainer units

Drainer top shelf unit
Code	Unit length(mm)
DTS45	450
DTS65	650
DTS80	800
DTS100	1000
Removable stainless steel shelves

Drainer top shelf unit with rack
Code	Unit length(mm)
DTS45W	450
DTS65W	650
DTS80W	800
DTS100W	1000
Removable wire shelves with drip trays

Sink units

Sink units

Single sink unit
Code	Unit length(mm)
SSU45	450
SSU65	650
SSU80	800
SSU100	1000
Complete with waste & mixer tap. SSU45 has no drainer. All other models – left hand drainer only

Double sink unit
Code	Unit length(mm)
DSU65	650
DSU80	800
Complete with waste & mixer tap. No drainer

Hand wash basin

Hand wash basin

Hand wash basin unit
Code	Unit length(mm)
HWU35	350
HWU45	450
Complete with mixer tap and waste

Blender station

Blender station

Blender station
Code	Unit length(mm)
BS45	450
BS65	650

Bridge/r. under bin

Bridge with roll under bin

Bridge with roll under bin
Product	Code	Unit length(mm)
Plain top with roll under bin	PTB45	450
Plain top with roll under bin	PTB65	650
Drainer top with roll under bin	PTD45	450
Drainer top with roll under bin	PTD65	650
